Hyundai Sonata Plug-in Hybrid 2017 Quick Reference Guide

MULTIMEDIA
Quick Reference Guide I 39
38 I Quick Reference Guide
HYUNDAI SONATA HYBRID/PLUG-IN HYBRID
REQUIREMENTS
- Apple Lightning
® cable
- Latest iOS
- iPhone
® 5 or above
- Data and wireless plan for applicable features
BEFORE YOU BEGIN
- Apple® CarPlay features may operate differently than on our phone.
- Message and data charges may apply when using Apple CarPlay.
- Apple CarPlay relies on the performance of your phone. If you
experience performance issues:
- Close all apps and then restart them or
- Disconnect and then reconnect your phone
- Using the Apple Lightning cable that was provided with your phone
is recommended.
- When Apple CarPlay is active, your voice recognition system is
disabled and you will be using Siri
® to make your requests.
CAR SETUP1. Press the SETUP button.
2. Touch the “Connectivity” icon on the screen.
3. Touch “iOS” on the Connectivity Settings screen then touch “On”
to enable Apple CarPlay.
4. Connect your Apple iPhone to the vehicle USB port then touch
‘OK’ when the pop-up message appears. The Apple CarPlay icon
will now appear on the vehicle Home screen confirming the setup.
APPLE CARPLAY ™
Apple CarPlay, Apple, and other marks are trademarks of Apple Inc.
PHONE SETUP
On your phone, go to Settings >
General > Restrictions > CarPlay to
allow CarPlay access.
On your phone, go to Settings >
General > Siri and ensure Siri is
turned ON.

MULTIMEDIA
Quick Reference Guide I 41
40 I Quick Reference Guide
HYUNDAI SONATA HYBRID/PLUG-IN HYBRID
Apple CarPlay uses Siri to perform many actions like sending
messages, placing calls, and looking up/setting POI/Destinations. A
Siri session can be initiated on any screen by:
1. Touch and holding the HOME icon
1 on the CarPlay screen or
2. Press the steering wheel VOICE RECOGNITION
13 button.
Note: Ensure Siri feature is set to ON in your phone (Go to Settings >
General > Siri).
3. Say any of the following commands;
!Ÿ“Text ‘Call you later’” to send a text message.
!Ÿ“Read text messages” to read available text message.
!Ÿ“Call ” to make a phone call.
!Ÿ“Find ” to locate a POI/Destination.PHONE
Touch the PHONE
5 icon to access the Phone screen. Siri will
automatically asks ‘Who you would like to call’ when the PHONE
5
icon is selected.
NOTE: Phone call sound quality is dependent on the wired
connection. Using the Lightning cable that came with the phone is
recommended.
APPLE MUSIC
Touch the APPLE MUSIC
6 icon to access the Apple Music screen.
APPLE MAPS
Touch the APPLE MAPS
7 icon to access the Apple Map screen.
MESSAGES
Touch the MESSAGES 8 icon to access the Message screen. Siri
will automatically asks ‘To hear unread messages or create a new
one’ when the MESSAGE icon is selected.
3rd PARTY APPS
Supported CarPlay apps that are downloaded on your phone will
appear on the CarPlay screen. Touch the apps icons to access
those supported apps.
NOTE:
A list of the supported CarPlay supported apps can be found
at http://www.apple.com/ios/carplay/
Ensure phone has latest version of the 3rd Party Apps.
CarPlay Home Screen
SIRI1 HOME ICON2 WIRELESS CONNECTIVTY3 CELLULAR SIGNAL4 PHONE TIME5 PHONE6 APPLE MUSIC™
7 APPLE MAPS8 MESSAGES9
3RD PARTY APPS
10 SCREEN PAGE INDICATOR11 EXIT TO HYUNDAI 12 CURRENT CARPLAY AUDIO PLAYING
2
3
41
5
6
7
89
10
11
12
13

or Move the shift lever from P to
R or D while depressing the
brake pedal.
Releasing
Press the EPB switch while
depressing the brake pedal.Stop the vehicle then pull up
the EPB switch.
ApplyingNOTE: If necessary, emergency braking is
possible by puling and holding the
EPB switch.
To cancel the AUTO HOLD operation,
press the AUTO HOLD switch again.When the vehicle reaches a stop, Auto
Hold keeps the vehicle stopped even
when the brake pedal is released. The
brakes are released automatically when
the accelerator pedal is depressed.
1. Press the AUTO HOLD
switch.WHITE
2. Stop the vehicle by depressing
the brake pedal. The brake will
remain engaged even if the
brake pedal is released.
GREEN
3. The brake pedal will release
when the accelerator pedal is
depressed with transmission
in D, R or manual mode.
WHITE

LOW TIRE PRESSURE INDICATOR Illuminates if one or more of your tires is significantly under-inflated. TPMS MALFUNCTION INDICATORBlinks for approximately one minute, then remains illuminated when
there is a malfunction with the TPMS. Inspect all tires and adjust the
tire pressure to specification. If the lamp remains illuminated, have the
system checked by an authorized Hyundai dealer as soon as possible.LOW TIRE PRESSURE POSITION INDICATOR AND
TIRE PRESSURE INDICATOR (LCD DISPLAY)Tire pressures will display after driving a short distance. If a tire
pressure drops lower than predetermined specification, the Low Tire
Pressure Indicator
will illuminate and the LCD

display will
indicate tire(s) requiring air.
Low Tire Pressure Position Indicator
and Tire Pressure Indicator
( Shown on the LCD display ) Low Tire Pressure Indicator /
TPMS Malfunction Indicator
DRIVING
ELECTRIC PARKING BRAKE (EPB)
TIRE PRESSURE MONITORING SYSTEM (TPMS)
AUTO HOLD
Quick Reference Guide I 43
42 I Quick Reference Guide
HYUNDAI SONATA HYBRID/PLUG-IN HYBRID

(
) : Press the shift button while moving the shift lever.
(
) :
Depress the brake pedal and press the shift button while moving the shift lever.
(
) : The shift lever can freely operate.
Move the shift lever from D (Drive) into the manual gate to select.
Move the shift lever forward (+) to up shift or rearward (–) to downshift.ShiftronicThe Virtual Engine Sound System generates an artificial sound to alert
pedestrians of the vehicle approaching due to the silent nature of the
vehicle when it is operating in EV mode.The ESC system is an electronic
system designed to help the driver
maintain vehicle control under
adverse conditions.
• To turn on the LDWS,
press the LDWS switch.
• To turn off the LDWS,
press the switch again.
The indicator on the instrument
cluster is green when the system
detects lanes but is white when the
lane is not detected.The Lane Departure Warning
System detects the lane on the
road and warns the driver if the
vehicle leaves the lane when the
vehicle speed is over 40mph.ESC automatically selects the ON
position when the engine is started.To turn off the Engine ControlPress the ESC OFF button shortly.To turn off the Engine and Traction
ControlPress the ESC OFF button for more
than 3 seconds.
DRIVING
AUTOMATIC TRANSMISSIONVIRTUAL ENGINE SOUND SYSTEM (VESS)
ELECTRONIC STABILITY CONTROL (ESC)LANE DEPARTURE WARNING SYSTEM (LDWS)
Quick Reference Guide I 45
44 I Quick Reference Guide
HYUNDAI SONATA HYBRID/PLUG-IN HYBRID

The BSD (Blind Spot Detection)
system uses a radar sensor to alert
the driver while driving.
It monitors the rear area of the vehicle
and provides information to the driver.1 Blind Spot Detection2 Lane Change Assist3 Rear Cross Traffic Alert
The system will activate if vehicle speed exceeds 20 mph.• To turn the BSD on, press the BSD
button (indicator illuminated).
• To turn the BSD off, press the BSD
button again.
When the transmission is put in R (Reverse), the system provides an
alert if a vehicle is approaching from the sides.Rear Cross Traffic Alert
You can select the drive mode
according to your preference or the
road condition.
The system defaults back to ECO
mode when the vehicle is restarted.
Each time you press the button, the
drive mode is changed as follows :
Eco mode system helps to improve fuel efficiency. When the Eco mode
system is activated, the vehicle acceleration and gear shift points and
will be reduced to conserve the fuel consumption.
ECO mode
DRIVING
BLIND SPOT DETECTION SYSTEM (BSD)
DRIVE MODE INTEGRATED CONTROL SYSTEM
2
3
1
Quick Reference Guide I 47
46 I Quick Reference Guide
HYUNDAI
Normal mode is not displayed on the instrument cluster.
NORMAL
ECO
Plug-in hybrid
SONATA HYBRID/PLUG-IN HYBRID

Setting Vehicle Distance (Advanced
Smart Cruise Control only)The vehicle to vehicle distance
5 will
automatically activate when you set
the cruise speed
6. This system assist you in setting the
distance from the vehicle ahead and
will maintain the selected distance
without you depressing the
accelerator or the brake pedal.
Each time the vehicle distance set
button is pressed, the vehicle to
vehicle distance changes as follows: The Cruise Control system allows
you to program the vehicle to
maintain a constant speed without
holding the accelerator pedal.
1 To turn On / Off the Cruise Control.2 To Resume or Increase
the Cruise Control speed.3 To Set or Decrease
the Cruise Control speed.4 To Cancel the Cruise Control.
If your vehicle is equipped with Advanced Smart Cruise Control and
you wish to eliminate the vehicle distance function, you can change
cruise control setting to a standard setting.
Press the Cruise Control button on the steering wheel to turn on the
Cruise Control. Then press and hold the vehicle distance button for
more than 2 seconds to toggle between the Smart Cruise Control
(SCC) and Cruise Control (CC) mode.
Please refer to your Owner's Manual for more information.
Distance 2 Distance 3 Distance 4
Distance 1
The following tips may help benefit you to maximizing fuel economy
and experience Hybrid driving.
Set headlight switch to AUTO or OFF
when not in use. This will help preserve
Hybrid battery charge.
Set climate control to ECON mode.
Try to drive in the ECO zone and maintain
EV Mode indicator to illuminate as much
as possible. Common practice:
•Check tire pressure
•Roll windows up when driving
•Properly maintain your vehicle
•Turn the Climate Control system off during cold start.
Driving suggestions to improve fuel economy:•Drive smoothly.
•Accelerate at moderate speed.
•Try to maintain your speed with traffic to prevent unnecessary
speed adjustments.
•Always maintain a safe driving distance from the vehicle in
front of you so you can avoid unnecessary braking.
+
DRIVING
CRUISE CONTROL / SMART CRUISE CONTROL
HYBRID DRIVING TIPS
6
234
5
1
Quick Reference Guide I 49
48 I Quick Reference Guide
HYUNDAI SONATA HYBRID/PLUG-IN HYBRID

Quick Reference Guide I
51
50 I Quick Reference Guide
HYUNDAI SONATA HYBRID/PLUG-IN HYBRID

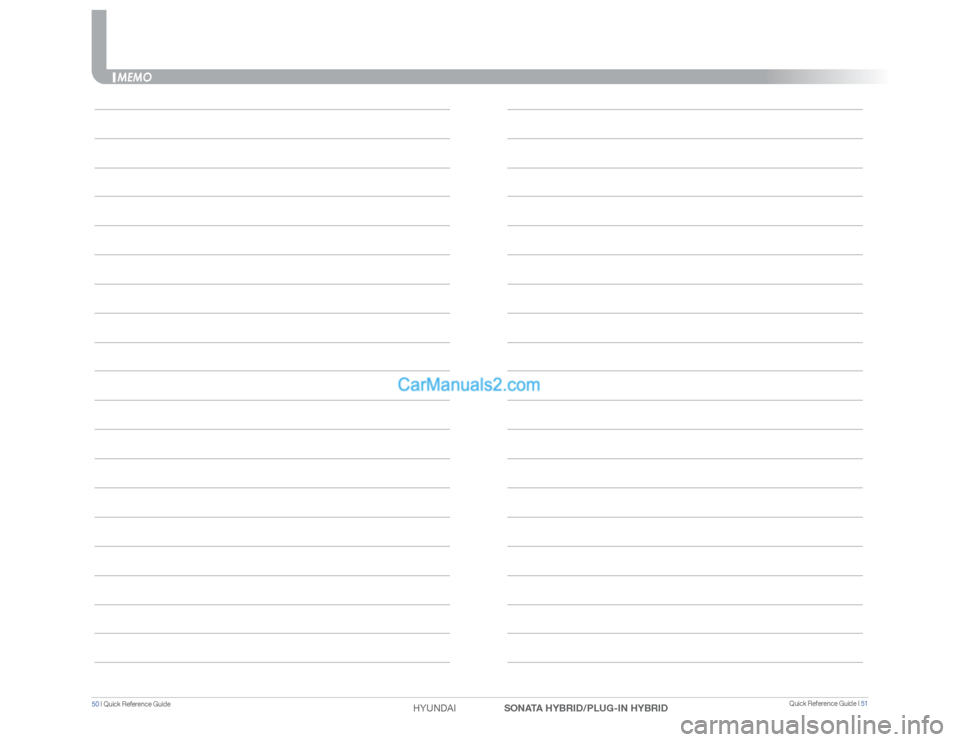

MEMO

SONATA CUSTOMER DELIVERY CHECK LIST HYUNDAI OWNER DEALERSHIP NAME SALES CONSULTANT DATE VIN PREVIOUS VEHICLE Sales Consultant Date Sales Manager Date
Customer Date
Email☐

SET TIRE PRESSURE LF

RF
RR
LR
☐
VERIFY VEHICLE IS CLEAN, IN GOOD CONDITION,
FREE OF CHIPS AND SCRATCHES · CLEAN WINDSHIELD
AND BACK WINDOW
☐ ENSURE FLOORMATS ARE SNAPPED INTO PLACEBEFORE DELIVERY
Quick Reference Guide I 53
52 I Quick Reference Guide
HYUNDAI SONATA HYBRID/PLUG-IN HYBRID
MEMO
HYUNDAI VEHICLE OWNER PRIVACY POLICY
Your Hyundai vehicle may be equipped with technologies and services
that use information collected, generated, recorded or stored by the
vehicle. Hyundai has created a Vehicle Owner Privacy Policy to explain
how these technologies and services collect, use, and share this
information.
You may read our Vehicle Owner Privacy Policy on the Hyundaiusa.com
website at https://www.hyundaiusa.com/owner-privacy-policy.aspx
If you would like to receive a hard copy of our Vehicle Owner Privacy
Policy, please contact our Customer Connect Center at:
Hyundai Motor America
Hyundai Customer Connect Center
P.O. Box 20850
Fountain Valley, CA 92728-0850
800-633-5151 [email protected]
Hyundai's Customer Connect Center representatives are available
Monday through Friday, between the hours of 5:00 AM and 7:00 PM
PST and Saturday and Sunday between 6:30 AM and 3:00 PM PST
(English). For Customer Connect Center assistance in Spanish or
Korean, representatives are available Monday through Friday between
6:30 AM and 3:00 PM PST.
