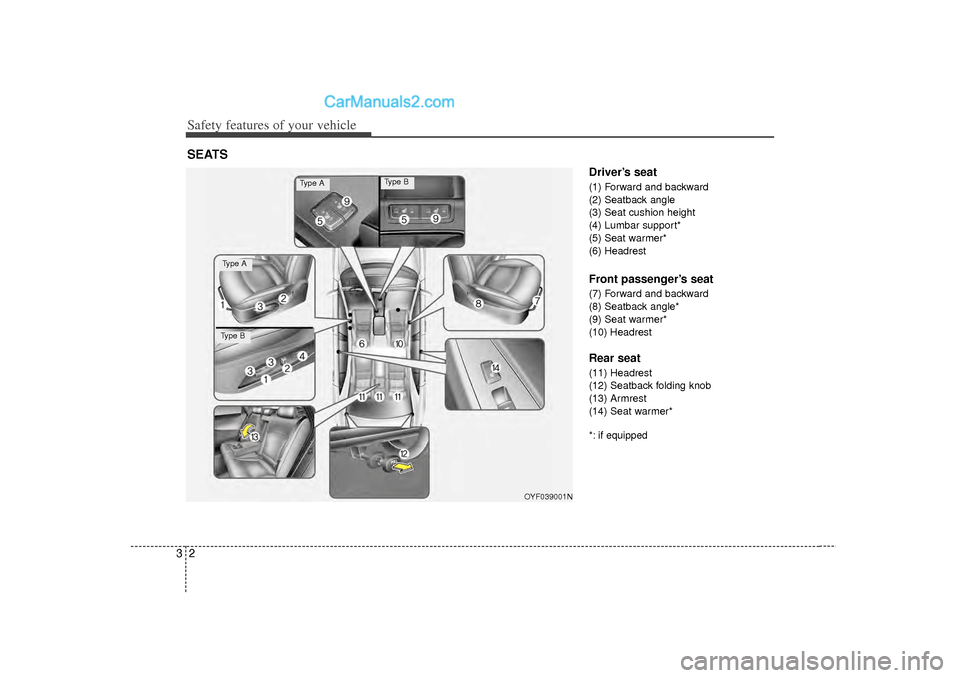

Safety features of your vehicle23
Driver’s seat(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height
(4) Lumbar support*
(5) Seat warmer*
(6) HeadrestFront passenger’s seat(7) Forward and backward
(8) Seatback angle*
(9) Seat warmer*
(10) HeadrestRear seat(11) Headrest
(12) Seatback folding knob
(13) Armrest
(14) Seat warmer**: if equipped
SEATS
OYF039001N
Type A
Type A
Type B
Type B

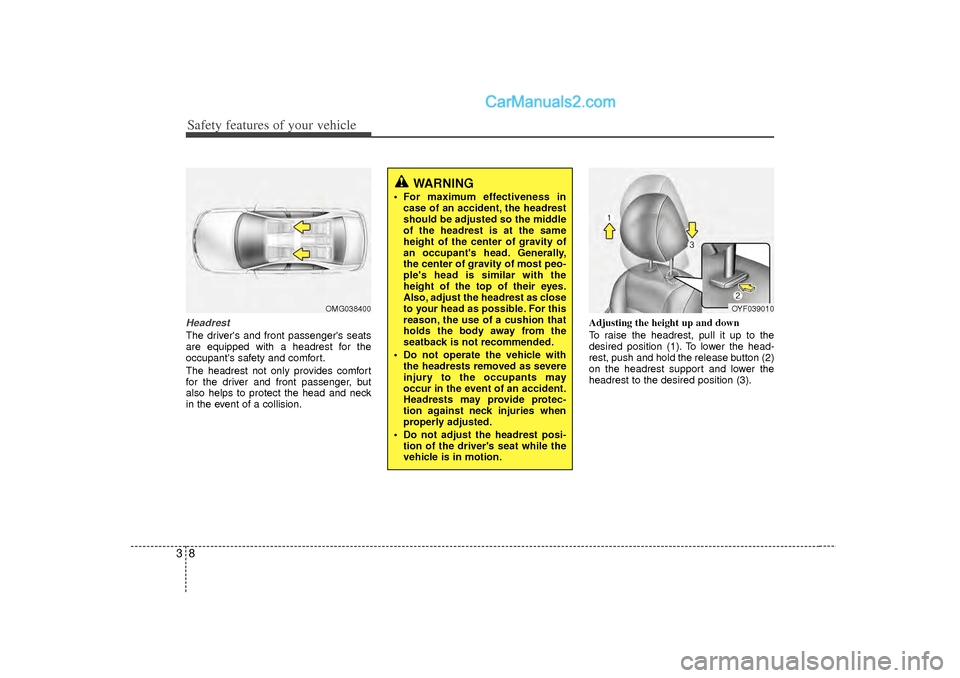

Safety features of your vehicle83HeadrestThe driver's and front passenger's seats
are equipped with a headrest for the
occupant's safety and comfort.
The headrest not only provides comfort
for the driver and front passenger, but
also helps to protect the head and neck
in the event of a collision.Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower the
headrest to the desired position (3).
OYF039010
WARNING
 For maximum effectiveness in
case of an accident, the headrest
should be adjusted so the middle
of the headrest is at the same
height of the center of gravity of
an occupant's head. Generally,
the center of gravity of most peo-
ple's head is similar with the
height of the top of their eyes.
Also, adjust the headrest as close
to your head as possible. For this
reason, the use of a cushion that
holds the body away from the
seatback is not recommended.
 Do not operate the vehicle with the headrests removed as severe
injury to the occupants may
occur in the event of an accident.
Headrests may provide protec-
tion against neck injuries when
properly adjusted.
 Do not adjust the headrest posi- tion of the driver's seat while the
vehicle is in motion.
OMG038400

39
Safety features of your vehicle

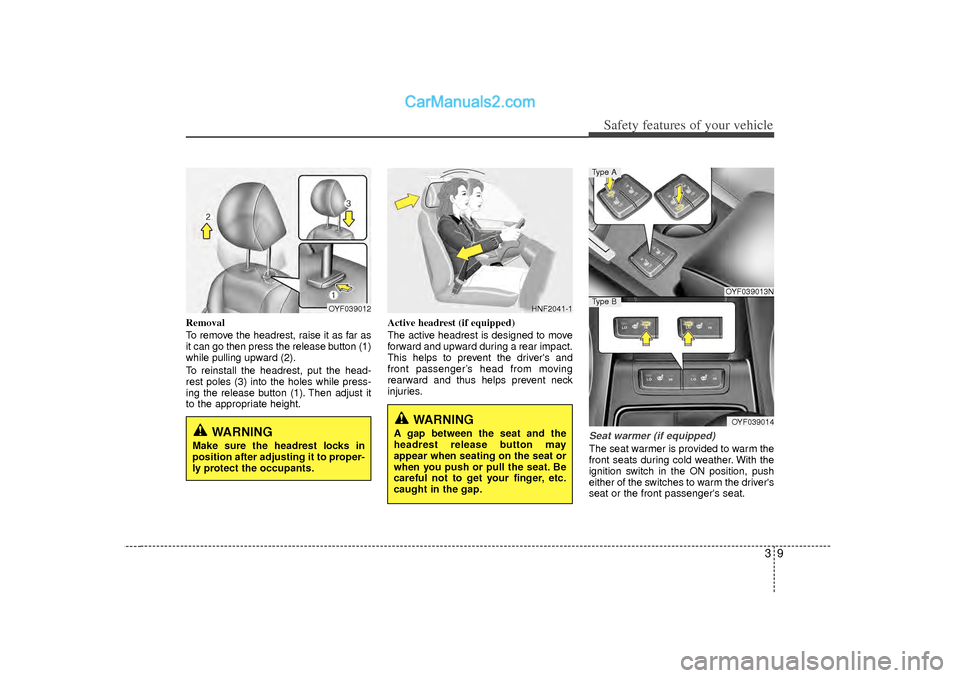

Removal
To remove the headrest, raise it as far as
it can go then press the release button (1)
while pulling upward (2).
To reinstall the headrest, put the head-
rest poles (3) into the holes while press-
ing the release button (1). Then adjust it
to the appropriate height.Active headrest (if equipped)
The active headrest is designed to move
forward and upward during a rear impact.
This helps to prevent the driver's and
front passenger’s head from moving
rearward and thus helps prevent neck
injuries.
Seat warmer (if equipped)The seat warmer is provided to warm the
front seats during cold weather. With the
ignition switch in the ON position, push
either of the switches to warm the driver's
seat or the front passenger's seat.
HNF2041-1
OYF039013NOYF039014
OYF039012
WARNING
Make sure the headrest locks in
position after adjusting it to proper-
ly protect the occupants.
Type AType B
WARNING
A gap between the seat and the
headrest release button may
appear when seating on the seat or
when you push or pull the seat. Be
careful not to get your finger, etc.
caught in the gap.

311
Safety features of your vehicle
Seatback pocketThe seatback pocket is provided on the
back of the front passenger’s and driver’s
seatbacks.
Rear seat HeadrestThe rear seat(s) is equipped with head-
rests in all the seating positions for the
occupant's safety and comfort.
The headrest not only provides comfort
for passengers, but also helps to protect
the head and neck in the event of a colli-
sion.
WARNING
For proper operation of the occu-
pant classification system:
 Do not place any items cumula-tively weighing over 2.2 lbs (1 kg)
in the seatback pocket or on the
seat.
 Do not hang onto the front pas- senger seat.
ONF039401
WARNING
- Seatback
pockets
Do not put heavy or sharp objects
in the seatback pockets. In an acci-
dent they could come loose from
the pocket and injure vehicle occu-
pants.
OYF039015

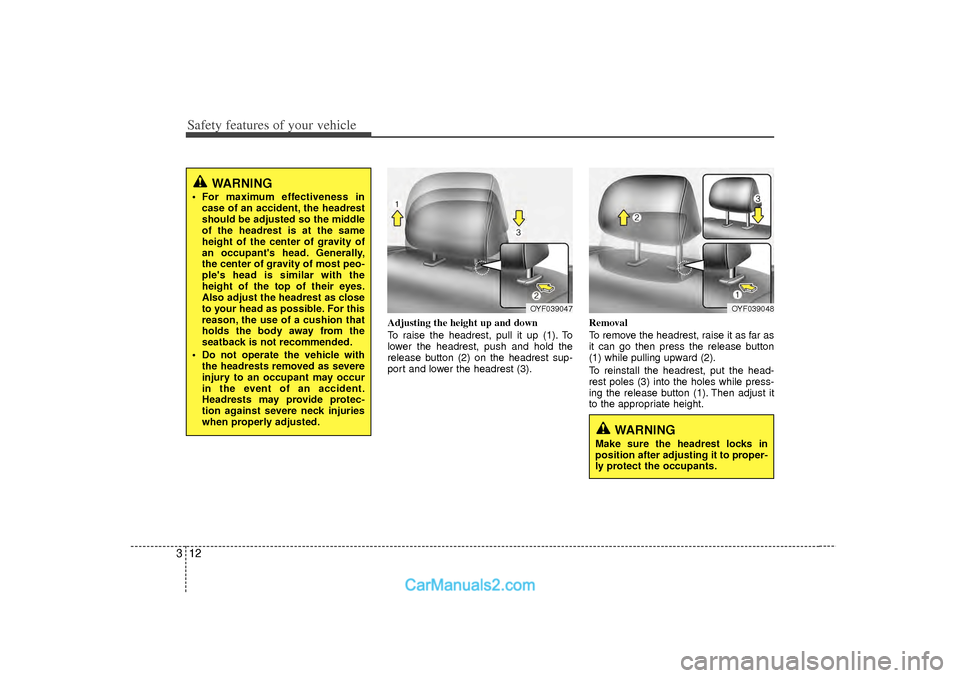

Safety features of your vehicle12
3
Adjusting the height up and down
To raise the headrest, pull it up (1). To
lower the headrest, push and hold the
release button (2) on the headrest sup-
port and lower the headrest (3). Removal
To remove the headrest, raise it as far as
it can go then press the release button
(1) while pulling upward (2).
To reinstall the headrest, put the head-
rest poles (3) into the holes while press-
ing the release button (1). Then adjust it
to the appropriate height.
OYF039047
OYF039048
WARNING
Make sure the headrest locks in
position after adjusting it to proper-
ly protect the occupants.
WARNING
 For maximum effectiveness in
case of an accident, the headrest
should be adjusted so the middle
of the headrest is at the same
height of the center of gravity of
an occupant's head. Generally,
the center of gravity of most peo-
ple's head is similar with the
height of the top of their eyes.
Also adjust the headrest as close
to your head as possible. For this
reason, the use of a cushion that
holds the body away from the
seatback is not recommended.
 Do not operate the vehicle with the headrests removed as severe
injury to an occupant may occur
in the event of an accident.
Headrests may provide protec-
tion against severe neck injuries
when properly adjusted.

315
Safety features of your vehicle
2. Make sure the rear seat belt webbingis in the guide to prevent the seat belt
from being damaged.
3. Set the front seatback to the upright position and if necessary, slide the
front seat forward.
4. Lower the rear headrests to the lowest position.
5. Pull on the seatback folding lever locat-ed in the trunk, then fold the seat
toward the front of the vehicle. 6. To use the rear seat, lift and pull the
seatback rearward. Push the seatback
firmly until it clicks into place. Make
sure the seatback is locked in place.
When you return the seatback to its
upright position, always be sure it has
locked into position by pushing on the
top of the seatback.
7. Return the rear seat belt to the proper position.
OYF039052NOYF039051N
OYF039061N

Safety features of your vehicle34

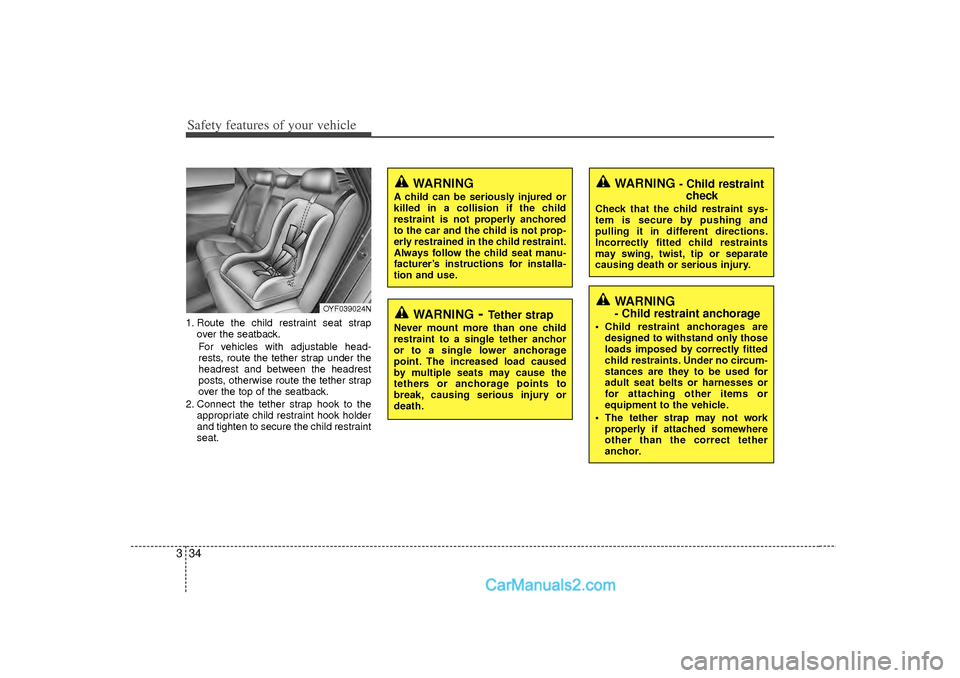

31. Route the child restraint seat strap
over the seatback.
For vehicles with adjustable head-
rests, route the tether strap under the
headrest and between the headrest
posts, otherwise route the tether strap
over the top of the seatback.
2. Connect the tether strap hook to the appropriate child restraint hook holder
and tighten to secure the child restraint
seat.
OYF039024N
WARNING
- Child restraintcheck
Check that the child restraint sys-
tem is secure by pushing and
pulling it in different directions.
Incorrectly fitted child restraints
may swing, twist, tip or separate
causing death or serious injury.
WARNING
- Tether strap
Never mount more than one child
restraint to a single tether anchor
or to a single lower anchorage
point. The increased load caused
by multiple seats may cause the
tethers or anchorage points to
break, causing serious injury or
death.
WARNING
A child can be seriously injured or
killed in a collision if the child
restraint is not properly anchored
to the car and the child is not prop-
erly restrained in the child restraint.
Always follow the child seat manu-
facturer’s instructions for installa-
tion and use.
WARNING - Child restraint anchorage
 Child restraint anchorages are
designed to withstand only those
loads imposed by correctly fitted
child restraints. Under no circum-
stances are they to be used for
adult seat belts or harnesses or
for attaching other items or
equipment to the vehicle.
 The tether strap may not work properly if attached somewhere
other than the correct tether
anchor.

763
Maintenance
High mounted stop light replace-
ment 1. Set the front seatback to the upright position and if necessary, slide the front seat forward.
2. Pull up the rear seat cushion.
3. Remove the nuts under the seat con- necting each side of the seat. 4. Make sure the rear seat belt webbing
is in the guide to prevent the seat belt
from being damaged.
5. Lower the rear headrests to the low- est position.
6. Pull on the seatback folding lever, then fold the seat toward the front of
the vehicle.
7. Pull out the rear seat belt webbing from the guide.
8. Remove each side seat(1).
OYF039061N
OYF079036OYF071100N
OYF039052NOYF039051L

I5

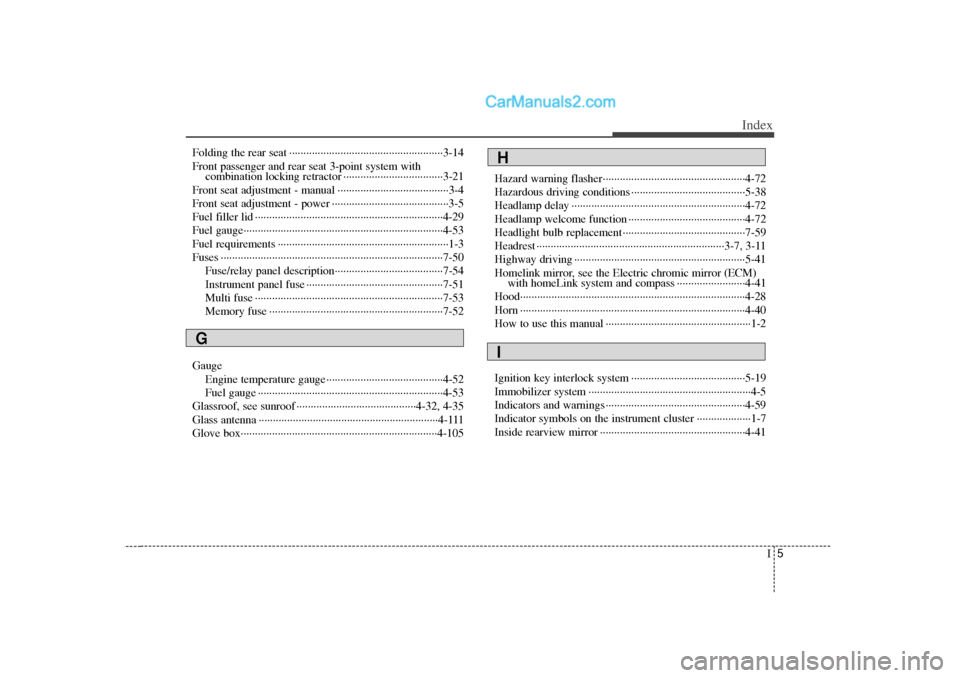

Index
Folding the rear seat ··················\
··················\
··················\
3-14
Front passenger and rear seat 3-point system withcombination locking retractor ··················\
·················3-21\
Front seat adjustment - manual ··················\
··················\
···3-4
Front seat adjustment - power ··················\
··················\
·····3-5
Fuel filler lid ··················\
··················\
··················\
············4-29
Fuel gauge··················\
··················\
··················\
················4-53
Fuel requirements ··················\
··················\
··················\
······1-3
Fuses ··················\
··················\
··················\
··················\
······7-50 Fuse/relay panel description··················\
··················\
··7-54
Instrument panel fuse ··················\
··················\
············7-51
Multi fuse ··················\
··················\
··················\
············7-53
Memory fuse ··················\
··················\
··················\
·······7-52
Gauge Engine temperature gauge··················\
··················\
·····4-52
Fuel gauge ··················\
··················\
··················\
···········4-53
Glassroof, see sunroof ··················\
··················\
······4-32, 4-35
Glass antenna ··················\
··················\
··················\
·········4-111
Glove box··················\
··················\
··················\
···············4-105 Hazard warning flasher··················\
··················\
··············4-72
Hazardous driving conditions ··················\
··················\
····5-38
Headlamp delay ··················\
··················\
··················\
·······4-72
Headlamp welcome function ··················\
··················\
·····4-72
Headlight bulb replacement ··················\
··················\
·······7-59
Headrest ··················\
··················\
··················\
············3-7, 3-11
Highway driving ··················\
··················\
··················\
······5-41
Homelink mirror, see the Electric chromic mirror (ECM)
with homeLink system and compass ··················\
······4-41
Hood··················\
··················\
··················\
··················\
·······4-28
Horn ··················\
··················\
··················\
··················\
·······4-40
How to use this manual ··················\
··················\
···············1-2
Ignition key interlock system ··················\
··················\
····5-19
Immobilizer system ··················\
··················\
··················\
···4-5
Indicators and warnings ··················\
··················\
·············4-59
Indicator symbols on the instrument cluster ··················\
·1-7
Inside rearview mirror ··················\
··················\
···············4-41G
IH

I7

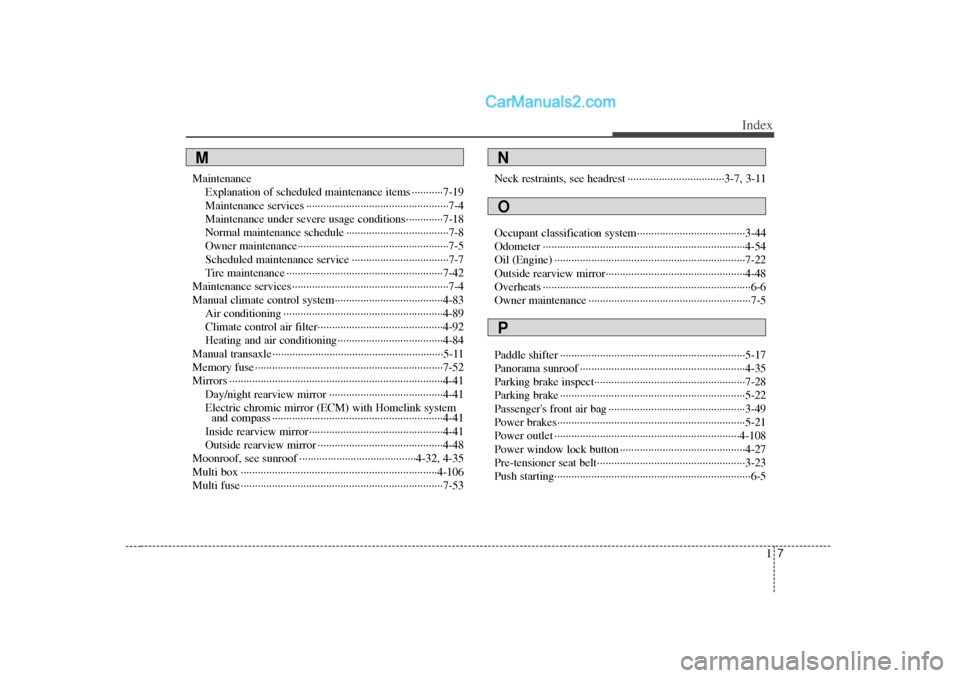

Index
MaintenanceExplanation of scheduled maintenance items ···········7-19
Maintenance services ··················\
··················\
··············7-4
Maintenance under severe usage conditions ·············7-18
Normal maintenance schedule ··················\
··················\
7-8
Owner maintenance··················\
··················\
·················7-5
Scheduled maintenance service ··················\
················7-7
Tire maintenance ··················\
··················\
··················\
·7-42
Maintenance services ··················\
··················\
··················\
·7-4
Manual climate control system··················\
··················\
··4-83 Air conditioning ··················\
··················\
··················\
··4-89
Climate control air filter··················\
··················\
········4-92
Heating and air conditioning··················\
··················\
·4-84
Manual transaxle ··················\
··················\
··················\
······5-11
Memory fuse ··················\
··················\
··················\
············7-52
Mirrors ··················\
··················\
··················\
··················\
···4-41 Day/night rearview mirror ··················\
··················\
····4-41
Electric chromic mirror (ECM) with Homelink systemand compass ··················\
··················\
··················\
······4-41
Inside rearview mirror··················\
··················\
···········4-41
Outside rearview mirror ··················\
··················\
········4-48
Moonroof, see sunroof ··················\
··················\
·····4-32, 4-35
Multi box ··················\
··················\
··················\
···············4-106
Multi fuse ··················\
··················\
··················\
·················7-53\
Neck restraints, see headrest ··················\
················3-7, 3-1\
1
Occupant classification system··················\
··················\
··3-44
Odometer ··················\
··················\
··················\
·················4-54\
Oil (Engine) ··················\
··················\
··················\
·············7-22
Outside rearview mirror··················\
··················\
·············4-48
Overheats ··················\
··················\
··················\
··················\
·6-6
Owner maintenance ··················\
··················\
··················\
···7-5
Paddle shifter ··················\
··················\
··················\
···········5-17
Panorama sunroof ··················\
··················\
··················\
····4-35
Parking brake inspect··················\
··················\
·················7-28\
Parking brake ··················\
··················\
··················\
···········5-22
Passenger's front air bag ··················\
··················\
············3-49
Power brakes··················\
··················\
··················\
············5-21
Power outlet ··················\
··················\
··················\
···········4-108
Power window lock button ··················\
··················\
········4-27
Pre-tensioner seat belt··················\
··················\
················3-23
Push starting··················\
··················\
··················\
···············6-5M
NOP
