FEATURES OF YOUR HYUNDAI
1- 8
Park the car and stop the engine. Arm the system as described below.
1) Remove the ignition key from the ignition switch.
2) Make sure that the engine hood and tail gate
are locked.
3) Lock the doors using the transmitter of the
keyless entry system.
After completion of the steps above, the turn signal lights will blink once to indicate that the system is armed. NOTE:
1) If any door, tail gate or engine hood re- mains open, the system will not be armed.
2) If this happens, rearm the system as de-
scribed above.
B070B02HP
LOCK
UNLOCK
Type B
B070A01A-AAT THEFT-ALARM SYSTEM (If installed) This system is designed to provide protection from unauthorized entry into the car. This system is operated in three stages: the first is the "Armed" stage, the second is the "Alarm" stage, and the third is the "Disarmed" stage. If triggered, the system provides an audible alarm with blinking of the turn signal lights. B070B01O-AAT Armed Stage
B070B01HP
LOCK
B040G01HP-AAT Central Door Locks
B040G01HP
The central door locking switch is located on the driver's arm rest. It is operated by depressing the door lock switch. NOTE:
o When pushing the front portion of the driver's door lock switch, all vehicle doorswill lock. If any door is open when the switch is depressed, the door will remain locked when closed.
o When pushing the rear portion of the
switch, all vehicle doors will unlock.
o The central door locking is operated by
turning the key toward the front or rear of the vehicle. UNLOCK
LOCK
UNLOCKType A

FEATURES OF YOUR HYUNDAI 1- 9
B070C01HP-GAT Alarm Stage
CAUTION: Do not arm the system until all passengers have left the car. If the system is armed while a passenger(s) remains in the car, the alarm may be activated when the remaining passenger(s) leaves the car.
B070D03O-AAT Disarmed Stage The system will be disarmed when the driver's or passenger's door is unlocked by depressing the "UNLOCK" button on the transmitter. After completion of the step above, the turn signal lights will blink twice to indicate that the system is disarmed. CAUTION: Only the transmitter can disarm the armed stage. If the transmitter does not disarm the system, it is necessary to take the following steps;
1. Unlock the door with the key, which willcause the alarm to be activated.
2. Insert the key in the ignition key cylinder
and turn the ignition key to "ON" position.
3. Wait for 30 seconds.After completing the steps above, the system will be disarmed.
B070C01HP
The alarm will be activated if any of the following occurs while the car is parked and the system is armed.
1) A front or rear door is opened without using the transmitter.
2) The tail gate is opened without using the
transmitter.
3) The engine hood is opened. The siren will sound and the turn signal lights will blink continuouly for 27 seconds (Type B/ Type
A : This happens 3 times). To turn off the system, unlock the door or tail gate with the transmitter. CAUTION: Avoid trying to start the engine while the system is armed.
B070F01A-GAT Keyless Entry System (If installed) Locking doors
1. Close all doors.
2. Push the "LOCK" button on the transmitter.
3. At the same time all doors lock, the turn signal
lights will blink once to indicate that the sys-tem is armed.
Unlocking doors
1. Push the "UNLOCK" button on the transmit- ter.
2. At the same time all doors unlock, the turn signal lights will blink twice to indicate that the system is disarmed.
B070E02HP-GAT Replacing the batteryWhen the transmitter's battery begins to get weak, it may take several pushes on the button to lock or unlock the doors, and the LED will not light. Replace the battery as soon as possible. Battery type : CR2032(Type A) or CR1616 (Type B)

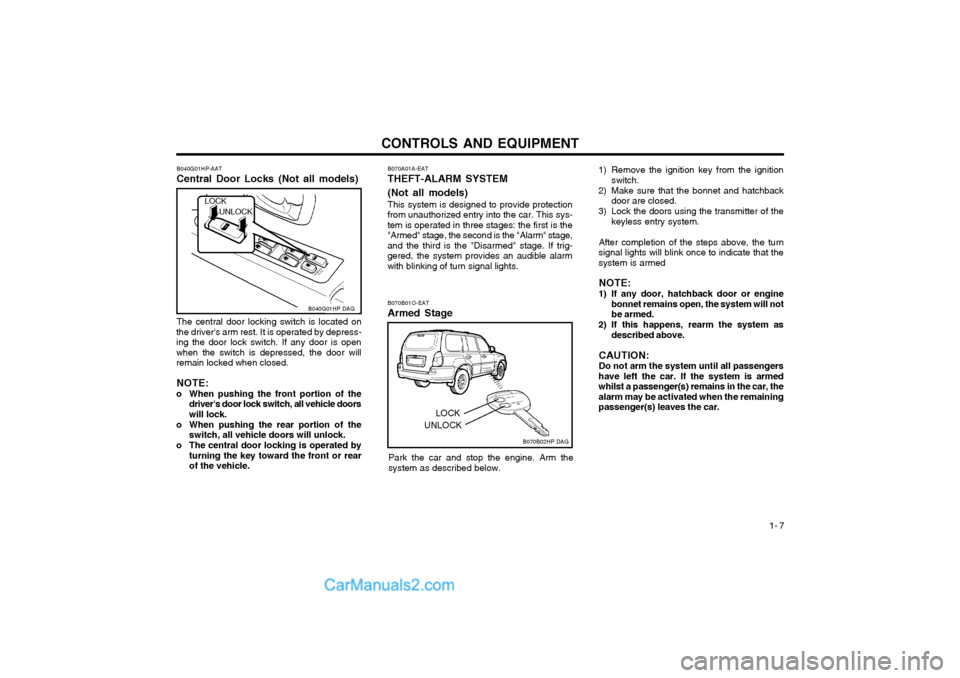

CONTROLS AND EQUIPMENT1- 7
B070A01A-EAT THEFT-ALARM SYSTEM (Not all models) This system is designed to provide protection
from unauthorized entry into the car. This sys- tem is operated in three stages: the first is the"Armed" stage, the second is the "Alarm" stage,and the third is the "Disarmed" stage. If trig-gered, the system provides an audible alarmwith blinking of turn signal lights.
B070B01O-EAT Armed Stage
B070B02HP.DAG
Park the car and stop the engine. Arm the
system as described below.
UNLOCK LOCK
B040G01HP-AAT Central Door Locks (Not all models)
The central door locking switch is located on
the driver's arm rest. It is operated by depress- ing the door lock switch. If any door is openwhen the switch is depressed, the door willremain locked when closed.
NOTE:
o When pushing the front portion of the driver's door lock switch, all vehicle doorswill lock.
o When pushing the rear portion of the switch, all vehicle doors will unlock.
o The central door locking is operated by turning the key toward the front or rearof the vehicle.
B040G01HP.DAG 1) Remove the ignition key from the ignition
switch.
2) Make sure that the bonnet and hatchback door are closed.
3) Lock the doors using the transmitter of the keyless entry system.
After completion of the steps above, the turn
signal lights will blink once to indicate that the system is armed
NOTE:
1) If any door, hatchback door or engine bonnet remains open, the system will notbe armed.
2) If this happens, rearm the system as described above.
CAUTION:Do not arm the system until all passengers
have left the car. If the system is armedwhilst a passenger(s) remains in the car, thealarm may be activated when the remainingpassenger(s) leaves the car.
LOCK
UNLOCK

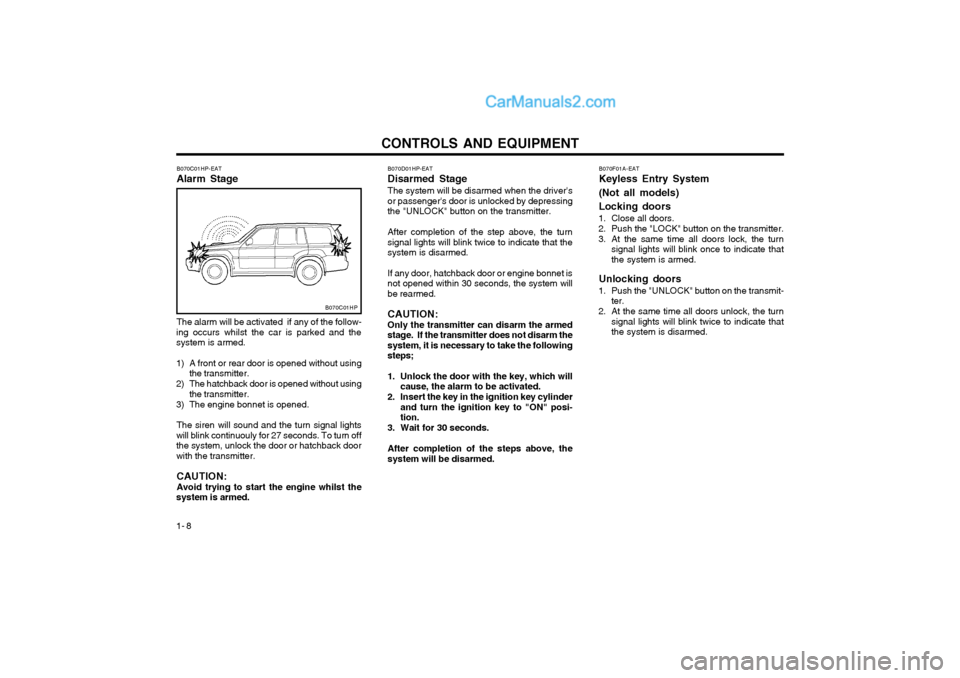

CONTROLS AND EQUIPMENT
1- 8
B070D01HP-EAT Disarmed StageThe system will be disarmed when the driver's or passenger's door is unlocked by depressingthe "UNLOCK" button on the transmitter. After completion of the step above, the turn signal lights will blink twice to indicate that thesystem is disarmed. If any door, hatchback door or engine bonnet is not opened within 30 seconds, the system willbe rearmed. CAUTION: Only the transmitter can disarm the armed stage. If the transmitter does not disarm thesystem, it is necessary to take the followingsteps;
1. Unlock the door with the key, which will cause, the alarm to be activated.
2. Insert the key in the ignition key cylinder and turn the ignition key to "ON" posi- tion.
3. Wait for 30 seconds. After completion of the steps above, the system will be disarmed.
B070C01HP-EAT Alarm Stage
B070F01A-EATKeyless Entry System (Not all models) Locking doors
1. Close all doors.
2. Push the "LOCK" button on the transmitter.
3. At the same time all doors lock, the turn signal lights will blink once to indicate that the system is armed.
Unlocking doors
1. Push the "UNLOCK" button on the transmit- ter.
2. At the same time all doors unlock, the turn signal lights will blink twice to indicate thatthe system is disarmed.
B070C01HP
The alarm will be activated if any of the follow-
ing occurs whilst the car is parked and the system is armed.
1) A front or rear door is opened without using the transmitter.
2) The hatchback door is opened without using the transmitter.
3) The engine bonnet is opened.
The siren will sound and the turn signal lights
will blink continuouly for 27 seconds. To turn off the system, unlock the door or hatchback doorwith the transmitter.
CAUTION: Avoid trying to start the engine whilst the
system is armed.
