FEATURES OF YOUR HYUNDAI
77

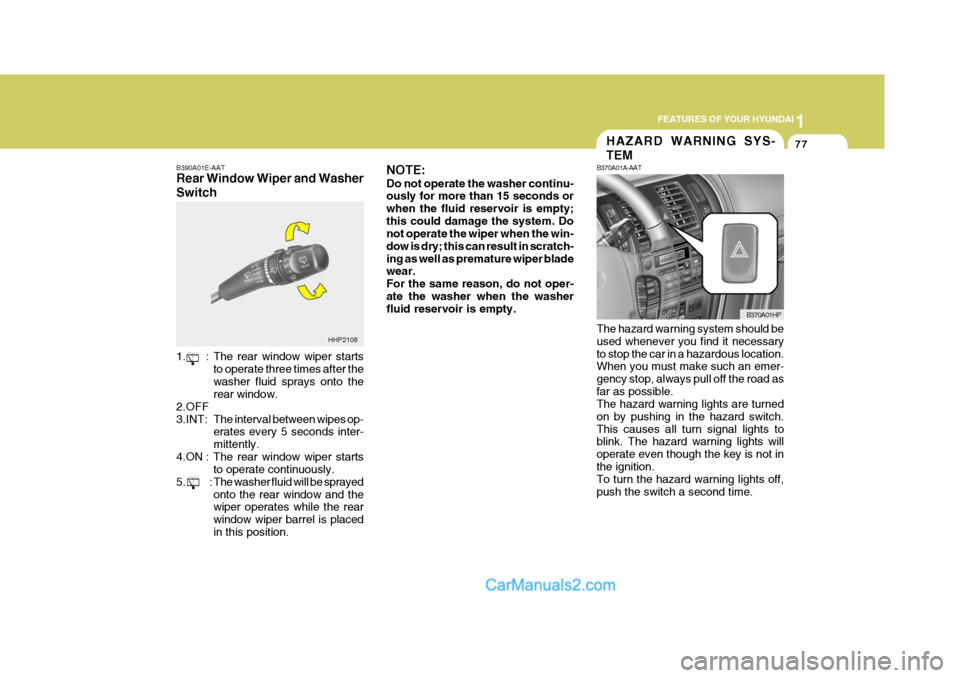

B390A01E-AAT Rear Window Wiper and Washer Switch
1. : The rear window wiper starts to operate three times after the washer fluid sprays onto the rear window.
2.OFF
3.INT: The interval between wipes op-
erates every 5 seconds inter-mittently.
4.ON : The rear window wiper starts
to operate continuously.
5. : The washer fluid will be sprayed
onto the rear window and the wiper operates while the rear window wiper barrel is placedin this position.
HHP2108 NOTE: Do not operate the washer continu- ously for more than 15 seconds or when the fluid reservoir is empty;this could damage the system. Do not operate the wiper when the win- dow is dry; this can result in scratch-ing as well as premature wiper blade wear. For the same reason, do not oper-ate the washer when the washer fluid reservoir is empty.
HAZARD WARNING SYS- TEM
B370A01A-AAT The hazard warning system should be used whenever you find it necessary to stop the car in a hazardous location. When you must make such an emer- gency stop, always pull off the road asfar as possible. The hazard warning lights are turned on by pushing in the hazard switch.This causes all turn signal lights to blink. The hazard warning lights will operate even though the key is not inthe ignition. To turn the hazard warning lights off, push the switch a second time. B370A01HP

1FEATURES OF YOUR HYUNDAI
78DIGITAL CLOCK

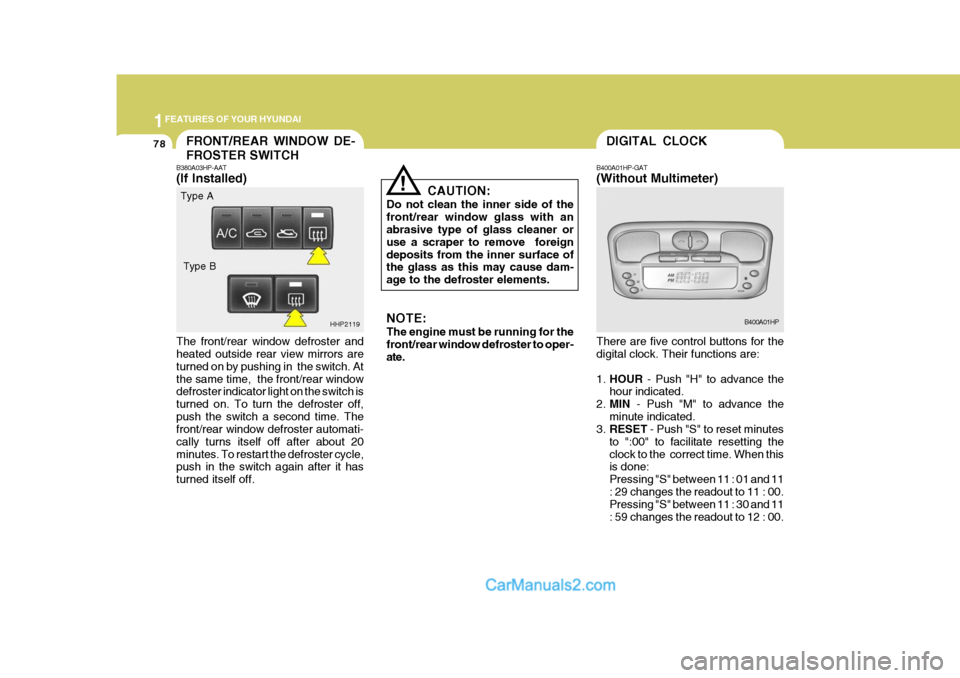

B400A01HP-GAT (Without Multimeter) There are five control buttons for the digital clock. Their functions are: 1. HOUR - Push "H" to advance the
hour indicated.
2. MIN - Push "M" to advance the
minute indicated.
3. RESET - Push "S" to reset minutes
to ":00" to facilitate resetting the clock to the correct time. When this is done: Pressing "S" between 11 : 01 and 11: 29 changes the readout to 11 : 00. Pressing "S" between 11 : 30 and 11 : 59 changes the readout to 12 : 00. B400A01HPFRONT/REAR WINDOW DE- FROSTER SWITCH
!
B380A03HP-AAT (If Installed) The front/rear window defroster and heated outside rear view mirrors are turned on by pushing in the switch. Atthe same time, the front/rear window defroster indicator light on the switch is turned on. To turn the defroster off,push the switch a second time. The front/rear window defroster automati- cally turns itself off after about 20minutes. To restart the defroster cycle, push in the switch again after it has turned itself off. CAUTION:
Do not clean the inner side of thefront/rear window glass with an abrasive type of glass cleaner or use a scraper to remove foreigndeposits from the inner surface of the glass as this may cause dam- age to the defroster elements.
HHP2119 NOTE: The engine must be running for the front/rear window defroster to oper- ate.
Type A
Type B

1
FEATURES OF YOUR HYUNDAI
79INSTRUMENT PANEL LIGHT CONTROL (RHEOSTAT)
4. MODE - Push "MODE" button to
display a 12- or 24-hour clock. When the 12-hour clock is in use, the letters AM or PM appear with the time.
5. - The time is displayed on the LCD by pushing in on the switchand is turned off by pushing in on theswitch again.
If your vehicle is equipped with themultimeter, see the page 1-72. B410A01A-AAT (If Installed)
The instrument panel lights can be made brighter or dimmer by turning the instrument panel light control knob.
B410A01HP
CIGARETTE LIGHTER
B420A02A-AAT For the cigarette lighter to work, the key must be in the "ACC" position or the "ON" position. To use the cigarette lighter, push it all the way into its socket. When theelement has heated, the lighter will pop out to the "ready" position. Do not hold the cigarette lighter pressedin. This can damage the heating ele- ment and create a fire hazard. If it is necessary to replace the ciga-rette lighter, use only a genuine Hyundai replacement or its approved equiva- lent. HHP2160

1FEATURES OF YOUR HYUNDAI
80
!
These supply 12V electric power to operate electric accessories or equip-ment only when the key is in the "ON" or "ACC" position.
CAUTION:
o Use when the engine is running and remove a plug from the power outlet after using the electric ap-pliance. Using when the engine stops or remaining the electric appliance with plugged in formany hours may cause the bat- tery to be discharged.
o Do not use the power outlet to connect electric accessories orequipment other than those de- signed to operate on 12 volts.
o Some electronic devices can cause electronic interferencewhen plugged into the poweroutlet. These devices may cause excessive audio noise and mal- functions in other electronic sys-tems or devices used in your vehicle.
POWER OUTLET
! CAUTION:
Do not use electric accessories or equipment other than the Hyundai genuine parts in the socket. B500D08HP-AAT (If Installed)
HHP2162HHP2161

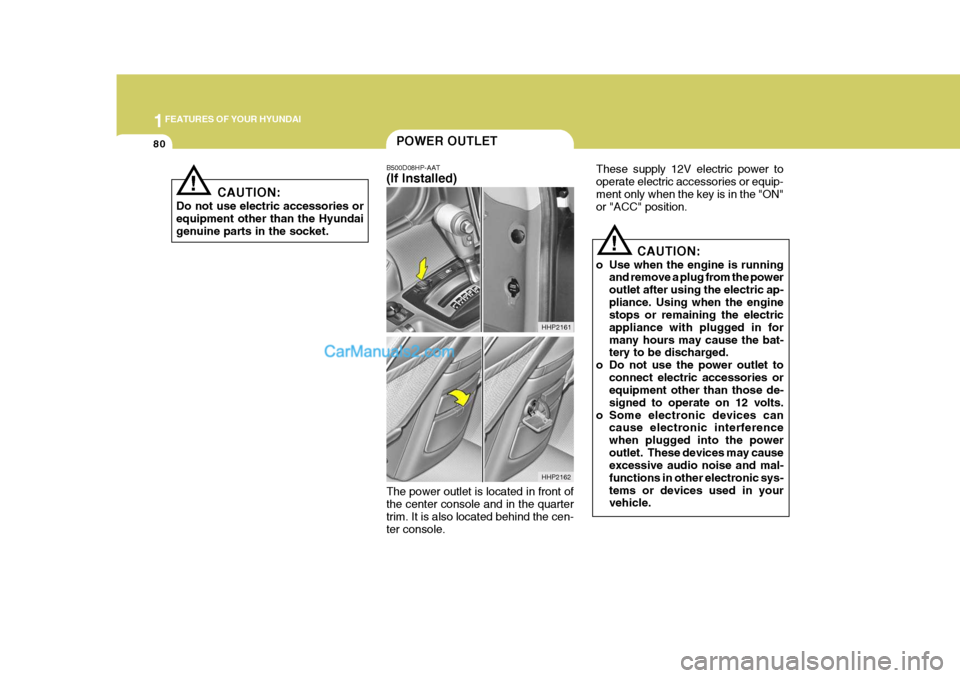

The power outlet is located in front of the center console and in the quarter trim. It is also located behind the cen- ter console.

1
FEATURES OF YOUR HYUNDAI
81ASHTRAY

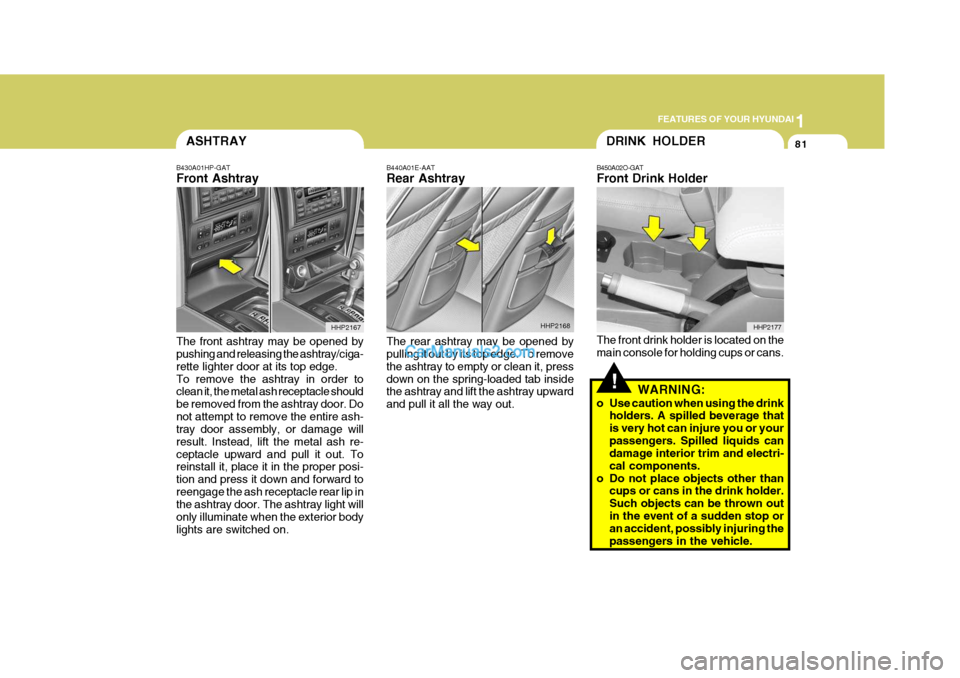

B430A01HP-GAT Front Ashtray The front ashtray may be opened by pushing and releasing the ashtray/ciga- rette lighter door at its top edge.To remove the ashtray in order to clean it, the metal ash receptacle should be removed from the ashtray door. Donot attempt to remove the entire ash- tray door assembly, or damage will result. Instead, lift the metal ash re-ceptacle upward and pull it out. To reinstall it, place it in the proper posi- tion and press it down and forward toreengage the ash receptacle rear lip in the ashtray door. The ashtray light will only illuminate when the exterior bodylights are switched on. HHP2167
B440A01E-AAT Rear Ashtray The rear ashtray may be opened by pulling it out by its top edge. To remove the ashtray to empty or clean it, pressdown on the spring-loaded tab inside the ashtray and lift the ashtray upward and pull it all the way out.
HHP2168DRINK HOLDER
!
B450A02O-GAT Front Drink Holder The front drink holder is located on the main console for holding cups or cans.
WARNING:
o Use caution when using the drink holders. A spilled beverage thatis very hot can injure you or yourpassengers. Spilled liquids can damage interior trim and electri- cal components.
o Do not place objects other than cups or cans in the drink holder.Such objects can be thrown outin the event of a sudden stop or an accident, possibly injuring the passengers in the vehicle. HHP2177

1FEATURES OF YOUR HYUNDAI
82
!

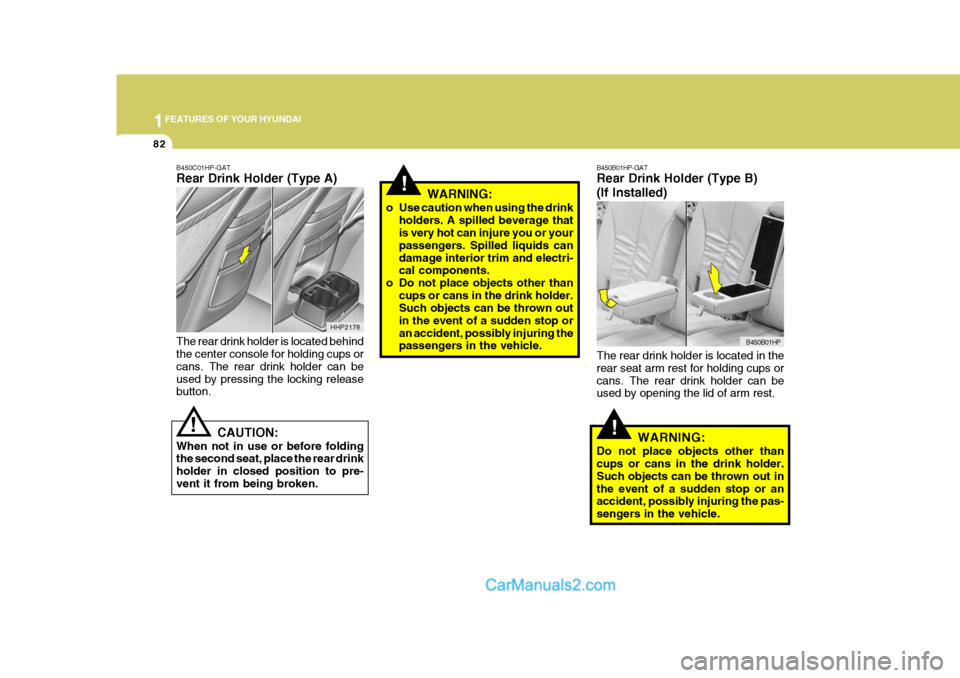

B450B01HP-GAT Rear Drink Holder (Type B) (If Installed) The rear drink holder is located in the rear seat arm rest for holding cups orcans. The rear drink holder can be used by opening the lid of arm rest.
WARNING:
Do not place objects other thancups or cans in the drink holder. Such objects can be thrown out inthe event of a sudden stop or an accident, possibly injuring the pas- sengers in the vehicle. B450B01HP
!
B450C01HP-GAT Rear Drink Holder (Type A) The rear drink holder is located behind the center console for holding cups or cans. The rear drink holder can beused by pressing the locking release button.
HHP2178WARNING:
o Use caution when using the drink holders. A spilled beverage thatis very hot can injure you or your passengers. Spilled liquids candamage interior trim and electri- cal components.
o Do not place objects other than cups or cans in the drink holder.Such objects can be thrown out in the event of a sudden stop oran accident, possibly injuring the passengers in the vehicle.
CAUTION:
When not in use or before folding the second seat, place the rear drink holder in closed position to pre-vent it from being broken.!

1
FEATURES OF YOUR HYUNDAI
83COIN HOLDERSUNSHADE
B470A01HP-AAT (If Installed) The sunshade can be opened and closed by sliding it forward or rearward when the sunroof is closed. The sun-shade will open automatically when the sunroof is opened, but it must be closed manually. HHP2023
!WARNING:
Never adjust the sunshade while driving.

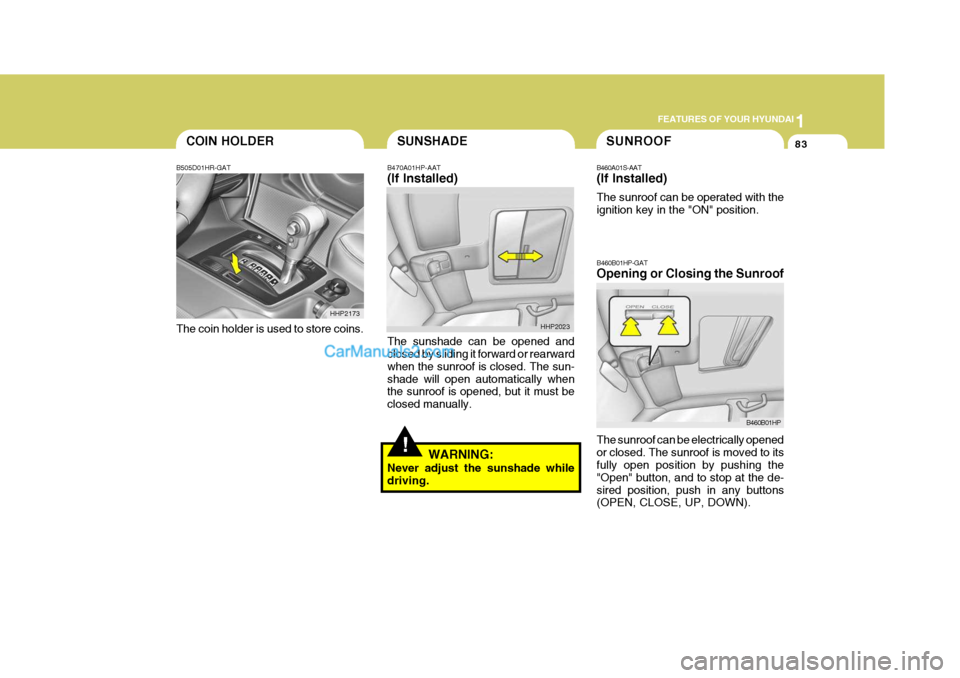

B505D01HR-GAT The coin holder is used to store coins.
HHP2173
B460B01HP-GAT Opening or Closing the Sunroof The sunroof can be electrically opened or closed. The sunroof is moved to its fully open position by pushing the "Open" button, and to stop at the de-sired position, push in any buttons (OPEN, CLOSE, UP, DOWN).B460B01HP
SUNROOF
B460A01S-AAT (If Installed) The sunroof can be operated with the ignition key in the "ON" position.

1FEATURES OF YOUR HYUNDAI
84
B460D01HP-GAT Manual Operation of Sunroof
CAUTION:
Remove the round plug with the groove pointing to the front and therear. Otherwise, the projections of the plug may break if it is not posi- tioned properly.
!
If the sunroof does not electrically oper- ate:
1. Remove the round plug in the front
of the roof panel with a flat-bladed screwdriver or coin. HHP2021
!
!WARNING:
o Do not close a sunroof if anyone's hands, arms or body are between the sliding glass and the sunroof sash, as this could result in an injury.
o Do not place your head or arms out of the sunroof opening at anytime.
CAUTION:
o Do not open the sunroof in se- verely cold temperature or when it is covered with ice or snow.
o Periodically remove any dirt that may have accumulated on theguide rails. B460C01S-AAT Tilting the Sunroof The sunroof can be tilted by pushing the "UP" button with the sunroof closed. Release the button when the sunroofreaches the desired position. To close the sunroof, press the "DOWN" but- ton. NOTE: After washing the car or after there is rain, be sure to wipe off any waterthat is on the sunroof before oper- ating it.
B460C01HP
To close, press and hold the "CLOSE" button. Release the button when thesunroof reaches the desired position.

1
FEATURES OF YOUR HYUNDAI
85INTERIOR LIGHT

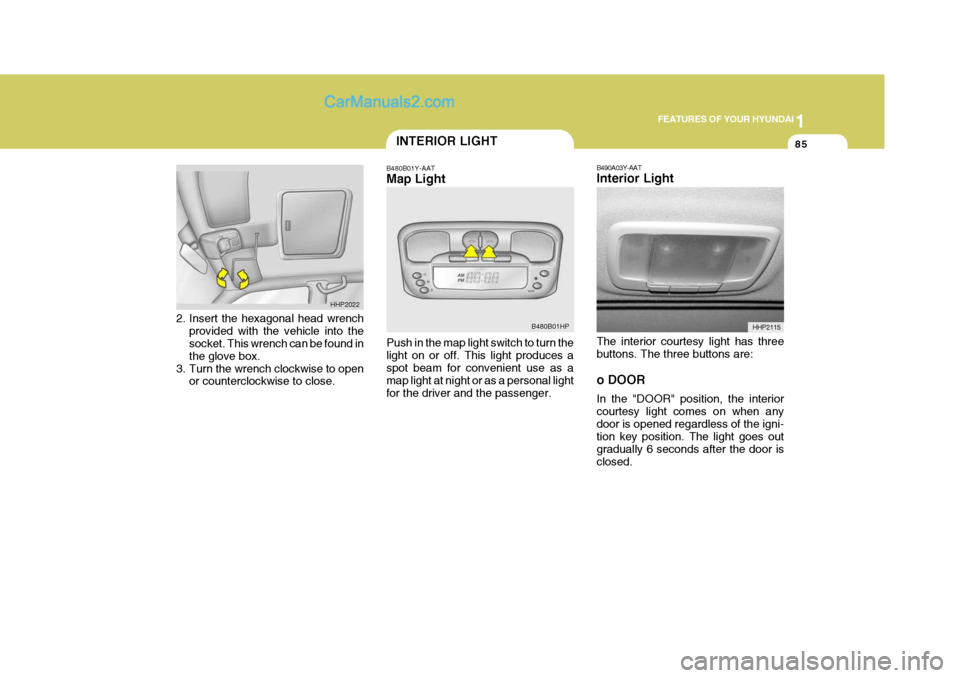

B480B01Y-AAT Map Light Push in the map light switch to turn the light on or off. This light produces aspot beam for convenient use as a map light at night or as a personal light for the driver and the passenger. B480B01HP
2. Insert the hexagonal head wrench
provided with the vehicle into the socket. This wrench can be found in the glove box.
3. Turn the wrench clockwise to open or counterclockwise to close. HHP2022
B490A03Y-AAT Interior Light The interior courtesy light has three buttons. The three buttons are: o DOOR In the "DOOR" position, the interior courtesy light comes on when anydoor is opened regardless of the igni- tion key position. The light goes out gradually 6 seconds after the door isclosed. HHP2115

1FEATURES OF YOUR HYUNDAI
86
B500B01HP-DAT MULTI BOX The multi box may be opened by pulling it out by its grip. It is used for storing small articles. HHP2174
STORAGE BOX
!
!

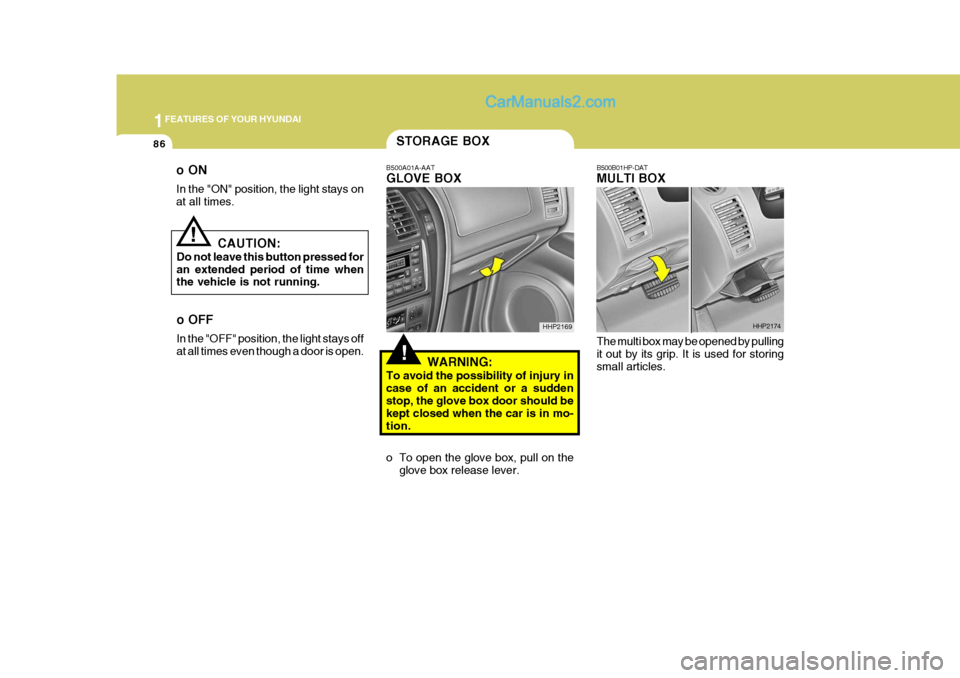

B500A01A-AAT GLOVE BOX
WARNING:
To avoid the possibility of injury in case of an accident or a sudden stop, the glove box door should be kept closed when the car is in mo-tion.
o To open the glove box, pull on the glove box release lever.
o ON In the "ON" position, the light stays on at all times.
CAUTION:
Do not leave this button pressed foran extended period of time when the vehicle is not running. o OFF In the "OFF" position, the light stays off at all times even though a door is open. HHP2169
