Hyundai Terracan 2007 Owner's Guide

1

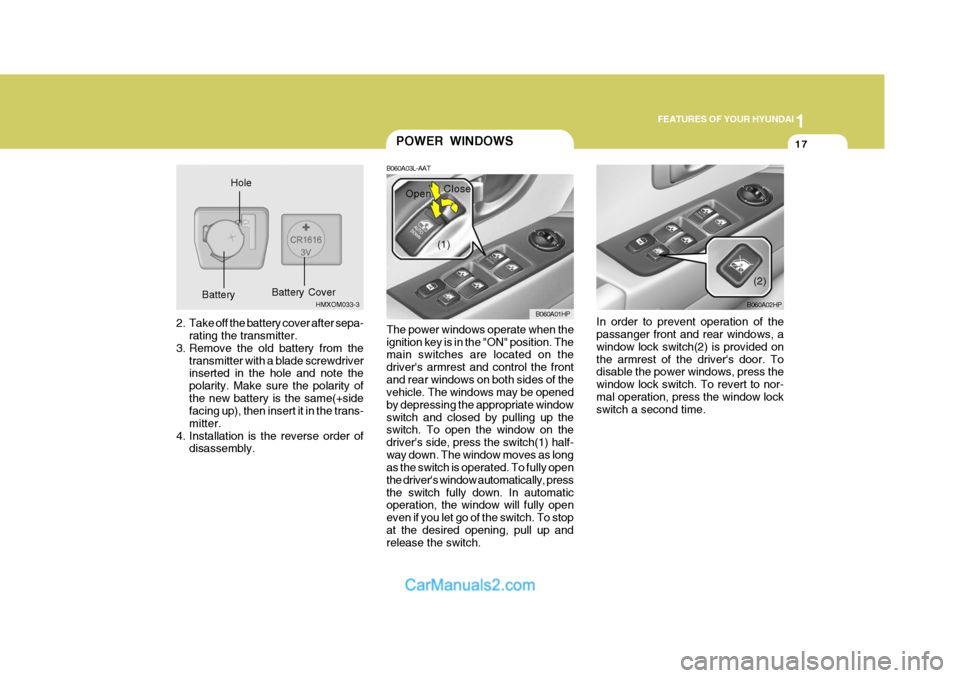

FEATURES OF YOUR HYUNDAI
17
2. Take off the battery cover after sepa-
rating the transmitter.
3. Remove the old battery from the transmitter with a blade screwdriver inserted in the hole and note the polarity. Make sure the polarity ofthe new battery is the same(+side facing up), then insert it in the trans- mitter.
4. Installation is the reverse order of disassembly. HMXOM033-3
Hole
Battery
Battery Cover
POWER WINDOWS
B060A03L-AAT The power windows operate when the ignition key is in the "ON" position. The main switches are located on the driver's armrest and control the frontand rear windows on both sides of the vehicle. The windows may be opened by depressing the appropriate windowswitch and closed by pulling up the switch. To open the window on the driver's side, press the switch(1) half-way down. The window moves as long as the switch is operated. To fully open the driver's window automatically, pressthe switch fully down. In automatic operation, the window will fully open even if you let go of the switch. To stopat the desired opening, pull up and release the switch. B060A01HP
(1)
In order to prevent operation of the passanger front and rear windows, a window lock switch(2) is provided on the armrest of the driver's door. To disable the power windows, press the window lock switch. To revert to nor-mal operation, press the window lock switch a second time.
Close
Open
(2)
B060A02HP

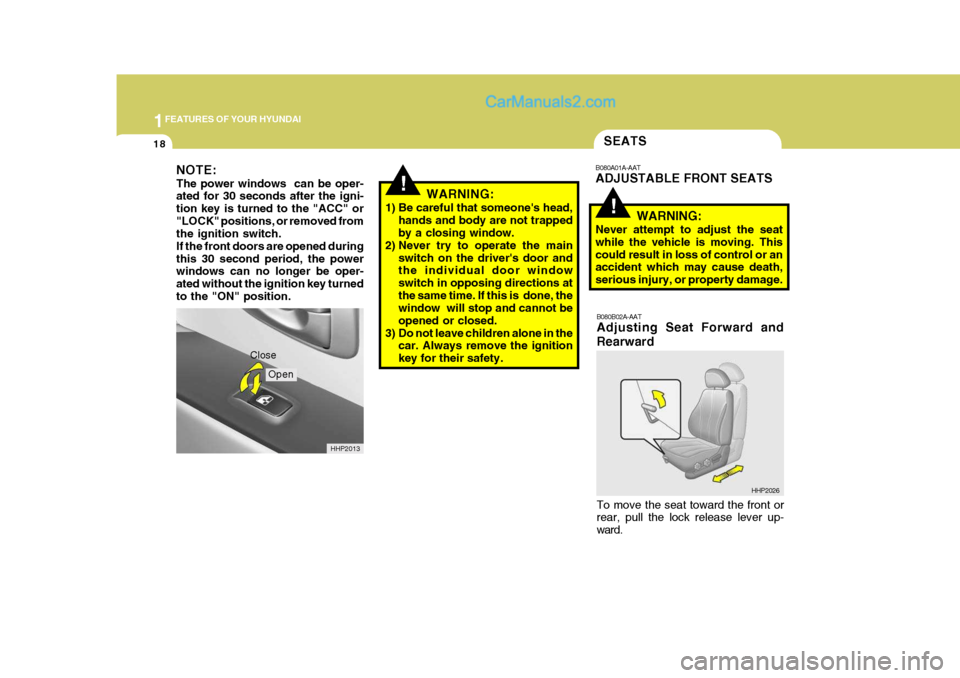

1FEATURES OF YOUR HYUNDAI
18SEATS
!
B080A01A-AAT ADJUSTABLE FRONT SEATS
WARNING:
Never attempt to adjust the seat while the vehicle is moving. Thiscould result in loss of control or an accident which may cause death, serious injury, or property damage.
B080B02A-AAT Adjusting Seat Forward and Rearward To move the seat toward the front or rear, pull the lock release lever up- ward.
!WARNING:
1) Be careful that someone's head, hands and body are not trapped by a closing window.
2) Never try to operate the main
switch on the driver's door andthe individual door window switch in opposing directions atthe same time. If this is done, the window will stop and cannot be opened or closed.
3) Do not leave children alone in the car. Always remove the ignitionkey for their safety.
HHP2026
HHP2013
NOTE: The power windows can be oper- ated for 30 seconds after the igni- tion key is turned to the "ACC" or"LOCK" positions, or removed from the ignition switch. If the front doors are opened duringthis 30 second period, the power windows can no longer be oper- ated without the ignition key turnedto the "ON" position.
Close
Open

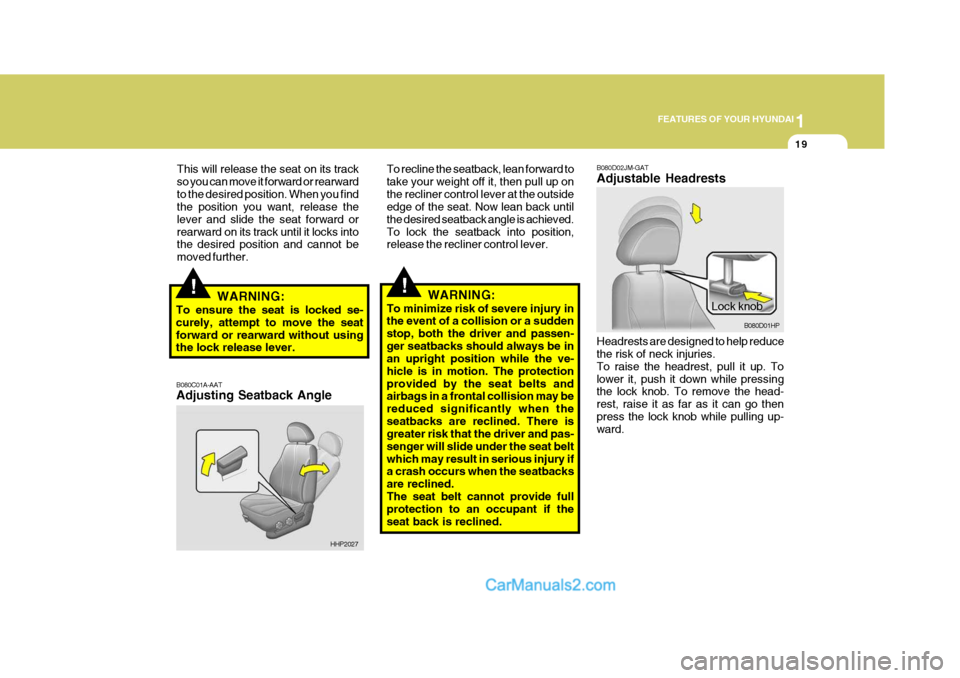

1
FEATURES OF YOUR HYUNDAI
19
This will release the seat on its track so you can move it forward or rearwardto the desired position. When you find the position you want, release the lever and slide the seat forward orrearward on its track until it locks into the desired position and cannot be moved further.
!WARNING:
To ensure the seat is locked se- curely, attempt to move the seatforward or rearward without using the lock release lever.!
B080C01A-AAT Adjusting Seatback Angle To recline the seatback, lean forward to take your weight off it, then pull up onthe recliner control lever at the outside edge of the seat. Now lean back until the desired seatback angle is achieved.To lock the seatback into position, release the recliner control lever.
WARNING:
To minimize risk of severe injury inthe event of a collision or a sudden stop, both the driver and passen-ger seatbacks should always be in an upright position while the ve- hicle is in motion. The protectionprovided by the seat belts and airbags in a frontal collision may be reduced significantly when theseatbacks are reclined. There is greater risk that the driver and pas- senger will slide under the seat beltwhich may result in serious injury if a crash occurs when the seatbacks are reclined.The seat belt cannot provide full protection to an occupant if the seat back is reclined.
HHP2027
B080D02JM-GAT Adjustable Headrests
Lock knobB080D01HP
Headrests are designed to help reduce the risk of neck injuries. To raise the headrest, pull it up. Tolower it, push it down while pressing the lock knob. To remove the head- rest, raise it as far as it can go thenpress the lock knob while pulling up- ward.

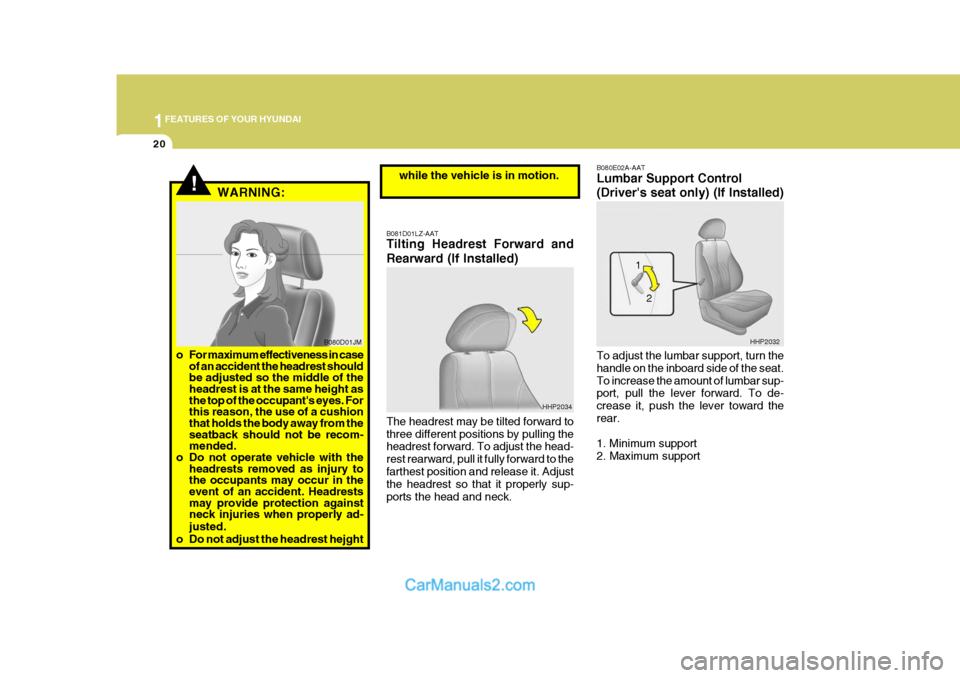

1FEATURES OF YOUR HYUNDAI
20
!
B080E02A-AAT Lumbar Support Control (Driver's seat only) (If Installed) To adjust the lumbar support, turn the handle on the inboard side of the seat.To increase the amount of lumbar sup- port, pull the lever forward. To de- crease it, push the lever toward therear. 1. Minimum support 2. Maximum support
B081D01LZ-AAT Tilting Headrest Forward and Rearward (If Installed) The headrest may be tilted forward to three different positions by pulling the headrest forward. To adjust the head- rest rearward, pull it fully forward to thefarthest position and release it. Adjust the headrest so that it properly sup- ports the head and neck.
HHP2034
HHP2032
1
2
WARNING:
o For maximum effectiveness in case of an accident the headrest should be adjusted so the middle of theheadrest is at the same height as the top of the occupant's eyes. For this reason, the use of a cushionthat holds the body away from the seatback should not be recom- mended.
o Do not operate vehicle with the
headrests removed as injury tothe occupants may occur in theevent of an accident. Headrests may provide protection against neck injuries when properly ad- justed.
o Do not adjust the headrest hejght B080D01JM
while the vehicle is in motion.

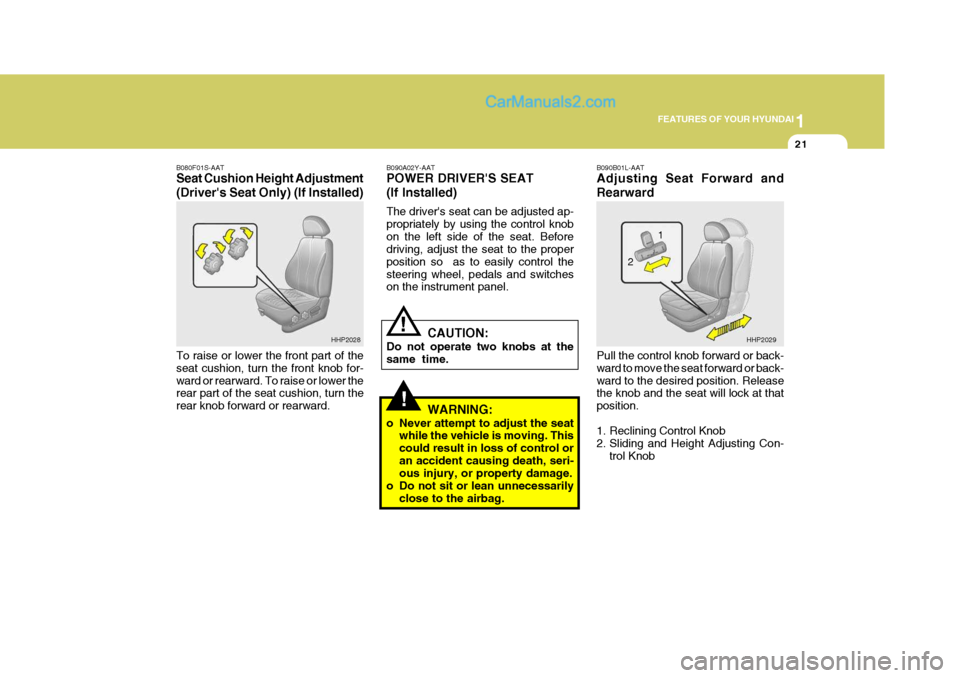

1
FEATURES OF YOUR HYUNDAI
21
!
!
B090A02Y-AAT POWER DRIVER'S SEAT (If Installed) The driver's seat can be adjusted ap- propriately by using the control knobon the left side of the seat. Before driving, adjust the seat to the proper position so as to easily control thesteering wheel, pedals and switches on the instrument panel.
CAUTION:
Do not operate two knobs at the same time.
WARNING:
o Never attempt to adjust the seat while the vehicle is moving. Thiscould result in loss of control oran accident causing death, seri- ous injury, or property damage.
o Do not sit or lean unnecessarily close to the airbag. B090B01L-AAT Adjusting Seat Forward and Rearward Pull the control knob forward or back- ward to move the seat forward or back-ward to the desired position. Release the knob and the seat will lock at that position.
1. Reclining Control Knob
2. Sliding and Height Adjusting Con-
trol Knob
B080F01S-AAT Seat Cushion Height Adjustment (Driver's Seat Only) (If Installed) To raise or lower the front part of the seat cushion, turn the front knob for-ward or rearward. To raise or lower the rear part of the seat cushion, turn the rear knob forward or rearward.
HHP2028
HHP2029
1
2

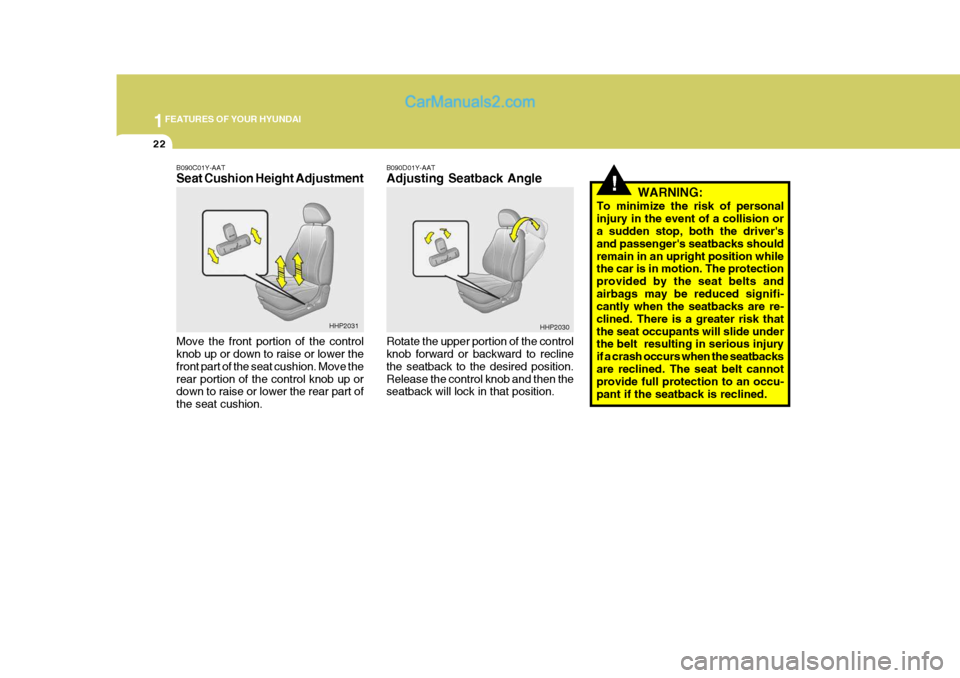

1FEATURES OF YOUR HYUNDAI
22
!
B090D01Y-AAT Adjusting Seatback Angle Rotate the upper portion of the control knob forward or backward to recline the seatback to the desired position.Release the control knob and then the seatback will lock in that position. WARNING:
To minimize the risk of personal injury in the event of a collision or a sudden stop, both the driver's and passenger's seatbacks shouldremain in an upright position while the car is in motion. The protection provided by the seat belts andairbags may be reduced signifi- cantly when the seatbacks are re- clined. There is a greater risk thatthe seat occupants will slide under the belt resulting in serious injury if a crash occurs when the seatbacksare reclined. The seat belt cannot provide full protection to an occu- pant if the seatback is reclined.
B090C01Y-AAT Seat Cushion Height Adjustment Move the front portion of the control knob up or down to raise or lower the front part of the seat cushion. Move therear portion of the control knob up or down to raise or lower the rear part of the seat cushion.
HHP2031
HHP2030

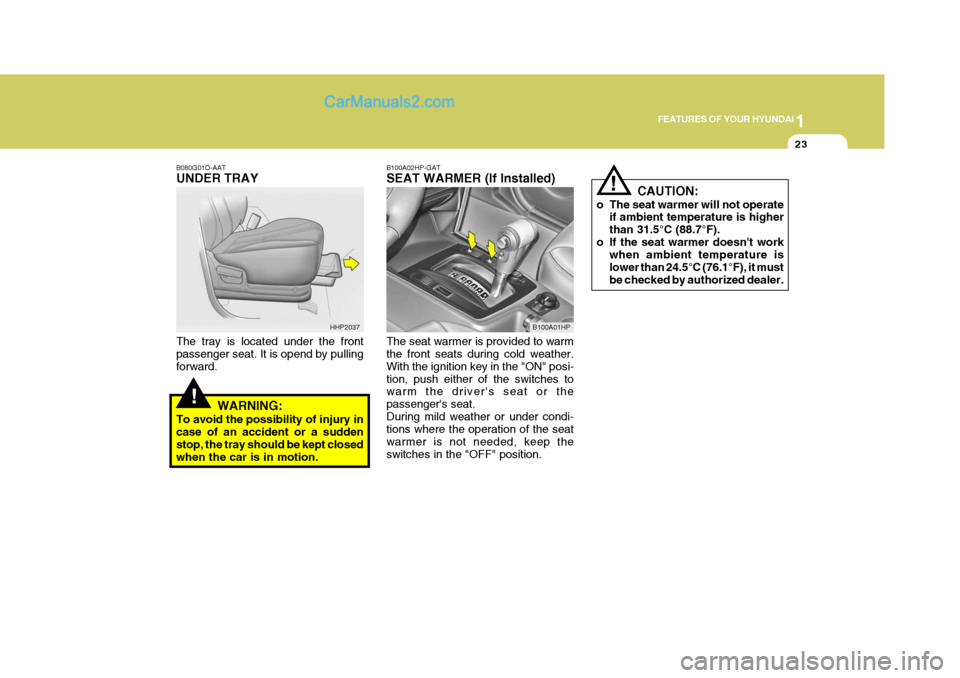

1
FEATURES OF YOUR HYUNDAI
23
!
!
B080G01O-AAT UNDER TRAY The tray is located under the front passenger seat. It is opend by pulling forward.
WARNING:
To avoid the possibility of injury incase of an accident or a sudden stop, the tray should be kept closed when the car is in motion. B100A02HP-GAT SEAT WARMER (If Installed) The seat warmer is provided to warm the front seats during cold weather. With the ignition key in the "ON" posi-tion, push either of the switches to warm the driver's seat or the passenger's seat.During mild weather or under condi- tions where the operation of the seat warmer is not needed, keep theswitches in the "OFF" position.
CAUTION:
o The seat warmer will not operate if ambient temperature is higherthan 31.5°C (88.7°F).
o If the seat warmer doesn't work when ambient temperature islower than 24.5°C (76.1°F), it mustbe checked by authorized dealer.
HHP2037 B100A01HP

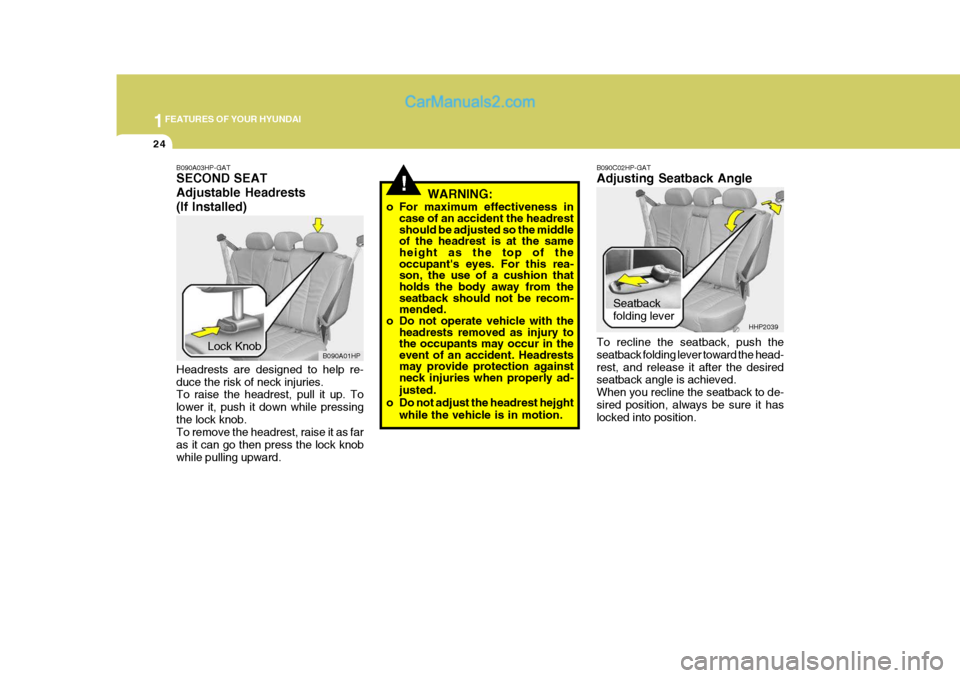

1FEATURES OF YOUR HYUNDAI
24
!
B090A03HP-GAT SECOND SEAT Adjustable Headrests(If Installed) Headrests are designed to help re- duce the risk of neck injuries. To raise the headrest, pull it up. To lower it, push it down while pressingthe lock knob. To remove the headrest, raise it as far as it can go then press the lock knobwhile pulling upward. WARNING:
o For maximum effectiveness in case of an accident the headrest should be adjusted so the middle of the headrest is at the sameheight as the top of the occupant's eyes. For this rea- son, the use of a cushion thatholds the body away from the seatback should not be recom- mended.
o Do not operate vehicle with the
headrests removed as injury tothe occupants may occur in theevent of an accident. Headrestsmay provide protection against neck injuries when properly ad- justed.
o Do not adjust the headrest hejght while the vehicle is in motion.
Lock Knob B090C02HP-GAT Adjusting Seatback Angle To recline the seatback, push the seatback folding lever toward the head-rest, and release it after the desired seatback angle is achieved. When you recline the seatback to de-sired position, always be sure it has locked into position.
Seatbackfolding lever
B090A01HP HHP2039

1

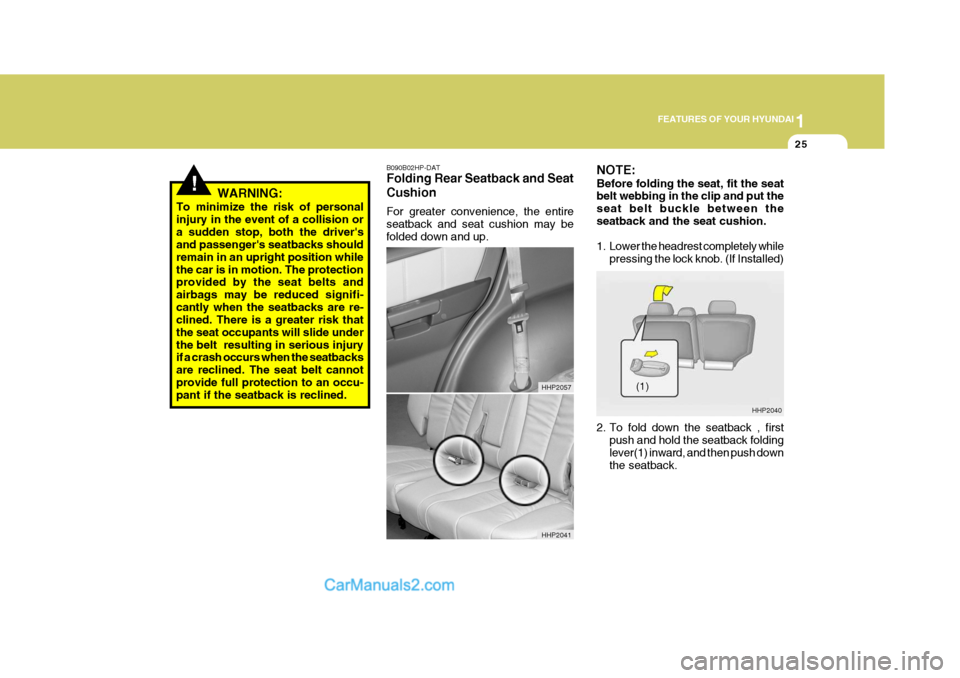

FEATURES OF YOUR HYUNDAI
25
B090B02HP-DAT Folding Rear Seatback and Seat Cushion For greater convenience, the entire seatback and seat cushion may befolded down and up.
!WARNING:
To minimize the risk of personal injury in the event of a collision ora sudden stop, both the driver's and passenger's seatbacks should remain in an upright position whilethe car is in motion. The protection provided by the seat belts and airbags may be reduced signifi-cantly when the seatbacks are re- clined. There is a greater risk that the seat occupants will slide underthe belt resulting in serious injury if a crash occurs when the seatbacks are reclined. The seat belt cannotprovide full protection to an occu- pant if the seatback is reclined. NOTE: Before folding the seat, fit the seat belt webbing in the clip and put the seat belt buckle between theseatback and the seat cushion.
1. Lower the headrest completely while
pressing the lock knob. (If Installed)
HHP2057 HHP2041 HHP2040
2. To fold down the seatback , first push and hold the seatback folding lever(1) inward, and then push down the seatback. (1)

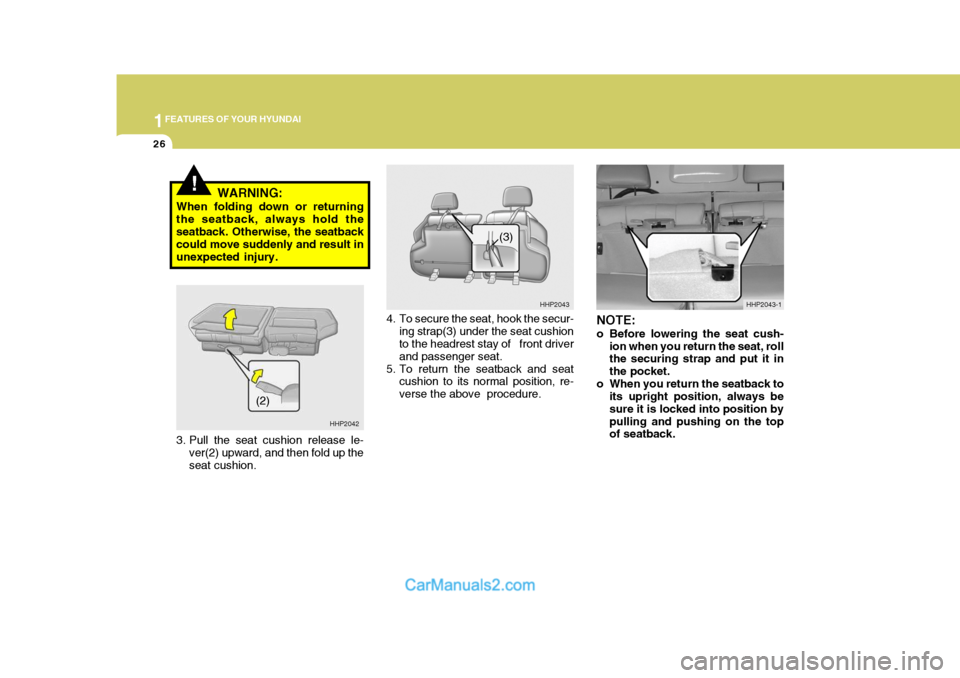

1FEATURES OF YOUR HYUNDAI
26
!WARNING:
When folding down or returning the seatback, always hold theseatback. Otherwise, the seatback could move suddenly and result in unexpected injury.
NOTE:
o Before lowering the seat cush-ion when you return the seat, roll the securing strap and put it in the pocket.
o When you return the seatback to its upright position, always besure it is locked into position bypulling and pushing on the top of seatback.
HHP2042
3. Pull the seat cushion release le- ver(2) upward, and then fold up theseat cushion. 4. To secure the seat, hook the secur-
ing strap(3) under the seat cushionto the headrest stay of front driver and passenger seat.
5. To return the seatback and seat cushion to its normal position, re-verse the above procedure. HHP2043
HHP2043-1
(2) (3)
