Hyundai Tiburon 2003 Workshop Manual

FEATURES OF YOUR HYUNDAI
1- 43
B610A01S-AAT

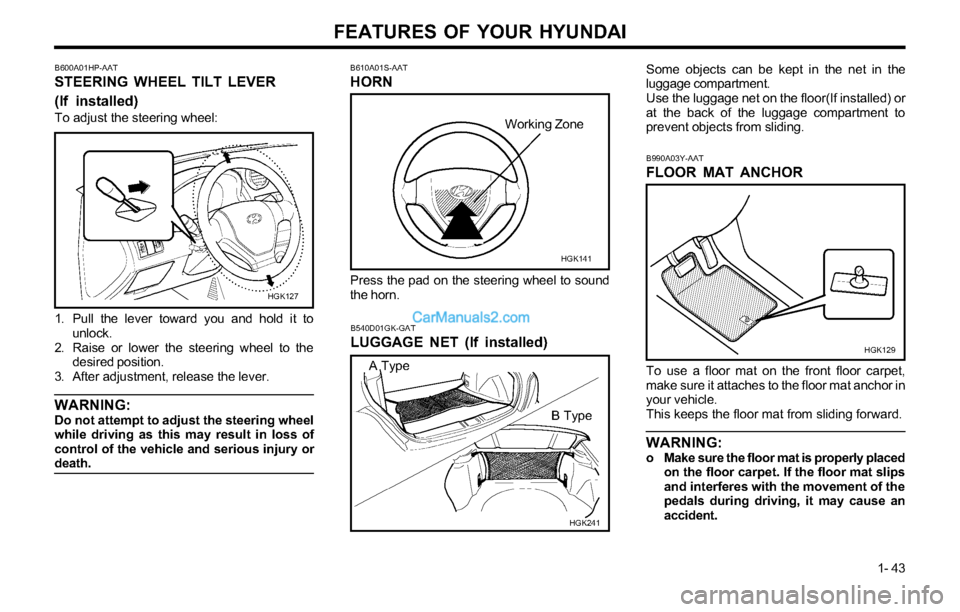

HORN
Press the pad on the steering wheel to sound
the horn.
HGK141 B600A01HP-AAT
STEERING WHEEL TILT LEVER
(If installed)
To adjust the steering wheel:
1. Pull the lever toward you and hold it to
unlock.
2. Raise or lower the steering wheel to the
desired position.
3. After adjustment, release the lever.
WARNING:Do not attempt to adjust the steering wheel
while driving as this may result in loss of
control of the vehicle and serious injury or
death.
HGK127
B540D01GK-GAT
LUGGAGE NET (If installed)
Some objects can be kept in the net in the
luggage compartment.
Use the luggage net on the floor(If installed) or
at the back of the luggage compartment to
prevent objects from sliding.
HGK241
HGK129 B990A03Y-AAT
FLOOR MAT ANCHOR
To use a floor mat on the front floor carpet,
make sure it attaches to the floor mat anchor in
your vehicle.
This keeps the floor mat from sliding forward.
WARNING:o Make sure the floor mat is properly placed
on the floor carpet. If the floor mat slips
and interferes with the movement of the
pedals during driving, it may cause an
accident.
Working Zone
A Type
B Type

FEATURES OF YOUR HYUNDAI
1- 44
B660B01GK B660B01E-AAT
To Set the Cruise Speed
1. Push in the cruise control main switch on
the end of the barrel. The "CRUISE" indica-
tor light in the instrument cluster will be
illuminated. This turns the system on.
2. Accelerate to the desired cruising speed
above 25 mph (40 km/h).
3. Push the control switch downward to "SET
(COAST)" and release it.
4. Remove your foot from the accelerator pedal
and the desired speed will automatically be
maintained.
5. To increase speed, depress the accelerator
pedal enough for the vehicle to exceed the
preset speed. When you remove your foot
from the accelerator pedal, the vehicle will
return to the speed you have set. The cruise control system provides automatic
speed control for your comfort when driving on
freeways, tollroads, or other noncongested high-
ways. This system is designed to function above
approximately 25 mph (40 km/h).
B660C02E-AAT
To Cancel the Cruise Speed
Do one of the following:
o Pull the control switch toward the steering
wheel to "CANCEL" position.
o Depress the brake pedal.
o Depress the clutch pedal (Manual transaxle).
o Shift the selector lever to "N" position (Auto-
matic transaxle).
o Decrease the vehicle speed lower than the
memorized speed by 12 mph (20 km/h).
o Decrease the vehicle speed to less than 25
mph (40 km/h).
o Release the main switch.
B660C01GKB660A01GK
Main switch
B660A01S-AAT

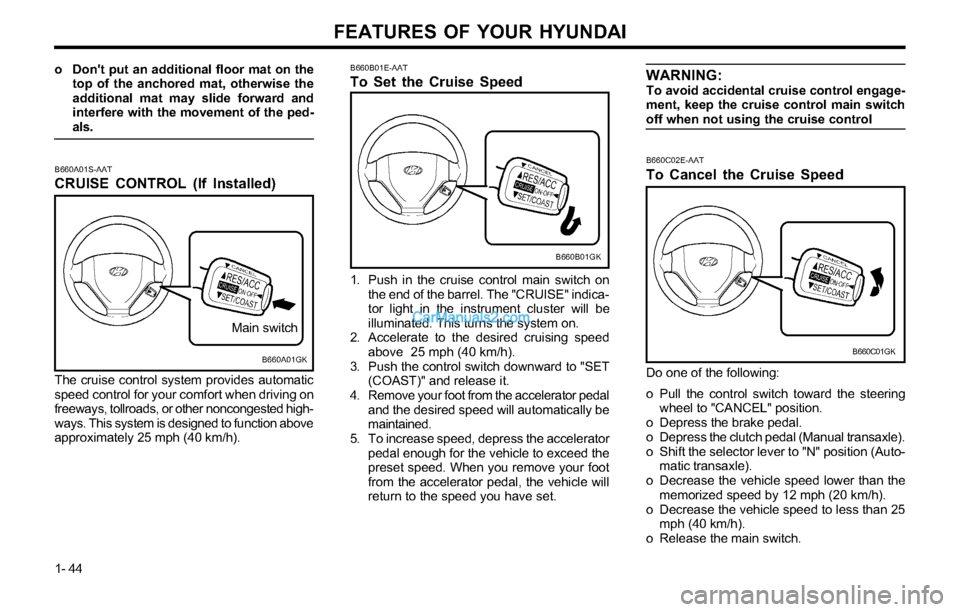

CRUISE CONTROL (If Installed)
o Don't put an additional floor mat on the
top of the anchored mat, otherwise the
additional mat may slide forward and
interfere with the movement of the ped-
als.WARNING:To avoid accidental cruise control engage-
ment, keep the cruise control main switch
off when not using the cruise control

FEATURES OF YOUR HYUNDAI
1- 45
B660F01E-AAT
To Reset at a Slower Speed
B660B01GK
1. Push the control switch downward to "SET
(COAST)" and hold it. The vehicle will de-
celerate.
2. When the desired speed is obtained, re-
lease the control switch. While the control
switch is pushed, the vehicle speed will
gradually decrease.
WARNING:
o Keep the main switch off when not using
the cruise control.
o Do not use the cruise control when it may
not be safe to keep the car at a constant
speed, for instance, driving in heavy or
varying traffic, or on slippery (rainy, icy or
snow-covered) or winding roads or over
6% up-hill or down-hill roads.
o Pay particular attention to the driving con-
ditions whenever using the cruise control
system.
o During cruise-control driving with a
manual transaxle vehicle, do not shift into
neutral without depressing the clutch
pedal, or the engine will be overrevved. If
this happens, depress the clutch pedal or
release the main switch.
o With the cruise control engaged, when
the brake pedal is applied, it is normal to
hear the cruise control system deactivate.
This is an indication of normal system
operation.
o During normal cruise control operation,
when the "SET(COAST)" is activated or
reactivated after applying the brakes, the
cruise control will energize after approxi-
mately 3 seconds. This delay is normal.B660D01E-AAT

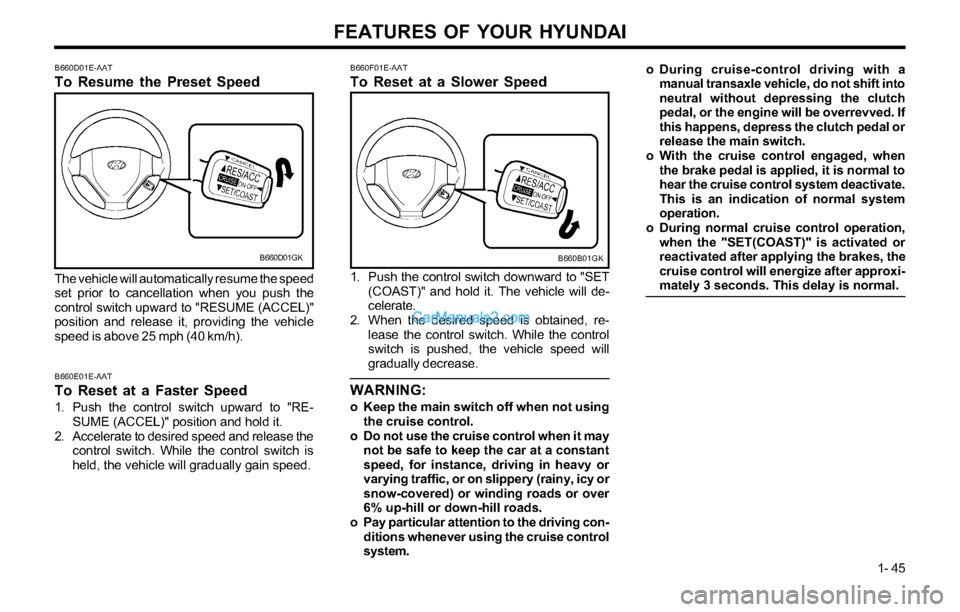

To Resume the Preset Speed
B660D01GK
The vehicle will automatically resume the speed
set prior to cancellation when you push the
control switch upward to "RESUME (ACCEL)"
position and release it, providing the vehicle
speed is above 25 mph (40 km/h).
B660E01E-AAT
To Reset at a Faster Speed
1. Push the control switch upward to "RE-
SUME (ACCEL)" position and hold it.
2. Accelerate to desired speed and release the
control switch. While the control switch is
held, the vehicle will gradually gain speed.

FEATURES OF YOUR HYUNDAI
1- 46
B710A01GK-GAT

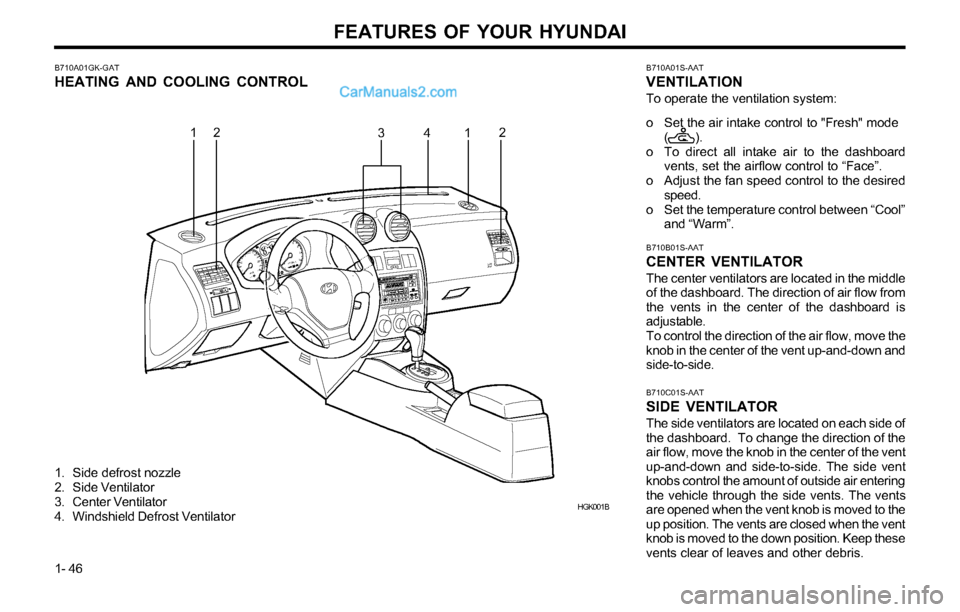

HEATING AND COOLING CONTROL
1. Side defrost nozzle
2. Side Ventilator
3. Center Ventilator
4. Windshield Defrost Ventilator
HGK001B
12
312
B710A01S-AAT
VENTILATION
To operate the ventilation system:
o Set the air intake control to "Fresh" mode
( ).
o To direct all intake air to the dashboard
vents, set the airflow control to “Face”.
o Adjust the fan speed control to the desired
speed.
o Set the temperature control between “Cool”
and “Warm”.
B710C01S-AAT
SIDE VENTILATOR
The side ventilators are located on each side of
the dashboard. To change the direction of the
air flow, move the knob in the center of the vent
up-and-down and side-to-side. The side vent
knobs control the amount of outside air entering
the vehicle through the side vents. The vents
are opened when the vent knob is moved to the
up position. The vents are closed when the vent
knob is moved to the down position. Keep these
vents clear of leaves and other debris.
B710B01S-AAT
CENTER VENTILATOR
The center ventilators are located in the middle
of the dashboard. The direction of air flow from
the vents in the center of the dashboard is
adjustable.
To control the direction of the air flow, move the
knob in the center of the vent up-and-down and
side-to-side.
4

FEATURES OF YOUR HYUNDAI
1- 47
HGK002 B670A01GK-GAT

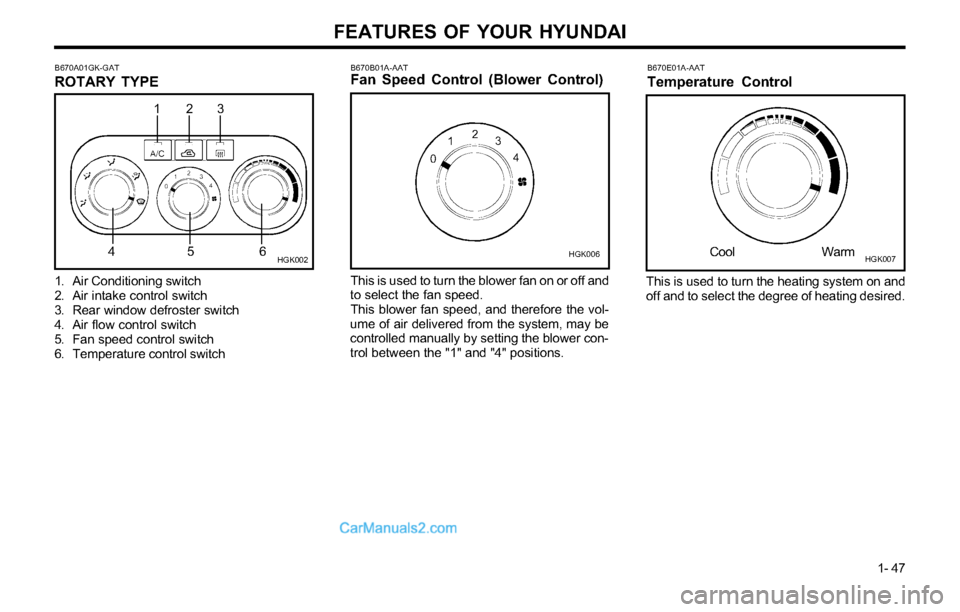

ROTARY TYPE
This is used to turn the heating system on and
off and to select the degree of heating desired.
B670E01A-AAT
Temperature Control
Cool
Warm
B670B01A-AATFan Speed Control (Blower Control)
HGK006
This is used to turn the blower fan on or off and
to select the fan speed.
This blower fan speed, and therefore the vol-
ume of air delivered from the system, may be
controlled manually by setting the blower con-
trol between the "1" and "4" positions.
123
456
1. Air Conditioning switch
2. Air intake control switch
3. Rear window defroster switch
4. Air flow control switch
5. Fan speed control switch
6. Temperature control switch
HGK007

FEATURES OF YOUR HYUNDAI
1- 48
HGK016B670D02GK-AAT

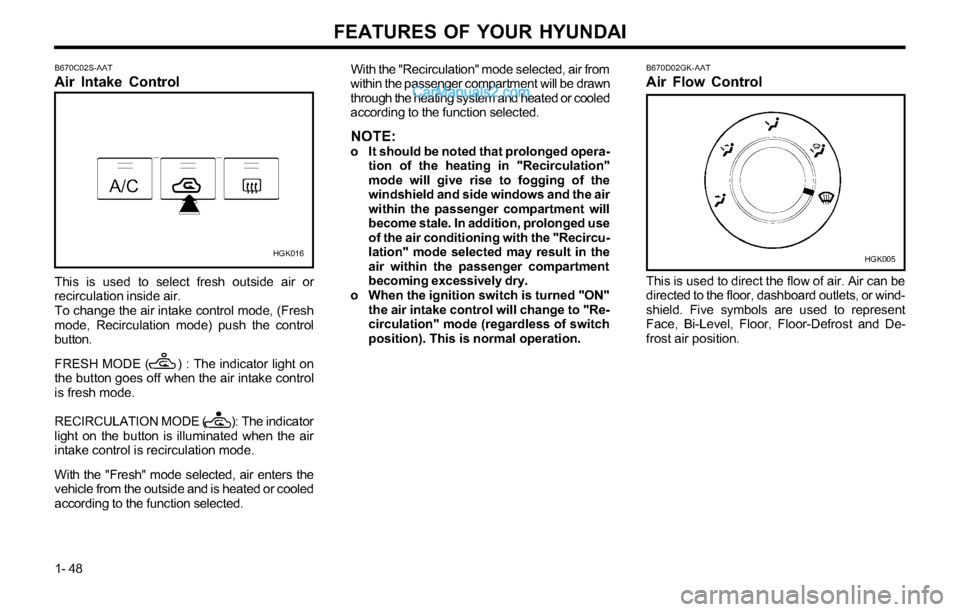

Air Flow Control
This is used to direct the flow of air. Air can be
directed to the floor, dashboard outlets, or wind-
shield. Five symbols are used to represent
Face, Bi-Level, Floor, Floor-Defrost and De-
frost air position.
HGK005 B670C02S-AAT
Air Intake Control
This is used to select fresh outside air or
recirculation inside air.
To change the air intake control mode, (Fresh
mode, Recirculation mode) push the control
button.
FRESH MODE ( ) : The indicator light on
the button goes off when the air intake control
is fresh mode.
RECIRCULATION MODE ( ): The indicator
light on the button is illuminated when the air
intake control is recirculation mode.
With the "Fresh" mode selected, air enters the
vehicle from the outside and is heated or cooled
according to the function selected.With the "Recirculation" mode selected, air from
within the passenger compartment will be drawn
through the heating system and heated or cooled
according to the function selected.
NOTE:o It should be noted that prolonged opera-
tion of the heating in "Recirculation"
mode will give rise to fogging of the
windshield and side windows and the air
within the passenger compartment will
become stale. In addition, prolonged use
of the air conditioning with the "Recircu-
lation" mode selected may result in the
air within the passenger compartment
becoming excessively dry.
o When the ignition switch is turned "ON"
the air intake control will change to "Re-
circulation" mode (regardless of switch
position). This is normal operation.

FEATURES OF YOUR HYUNDAI
1- 49
HGK023
HGK024

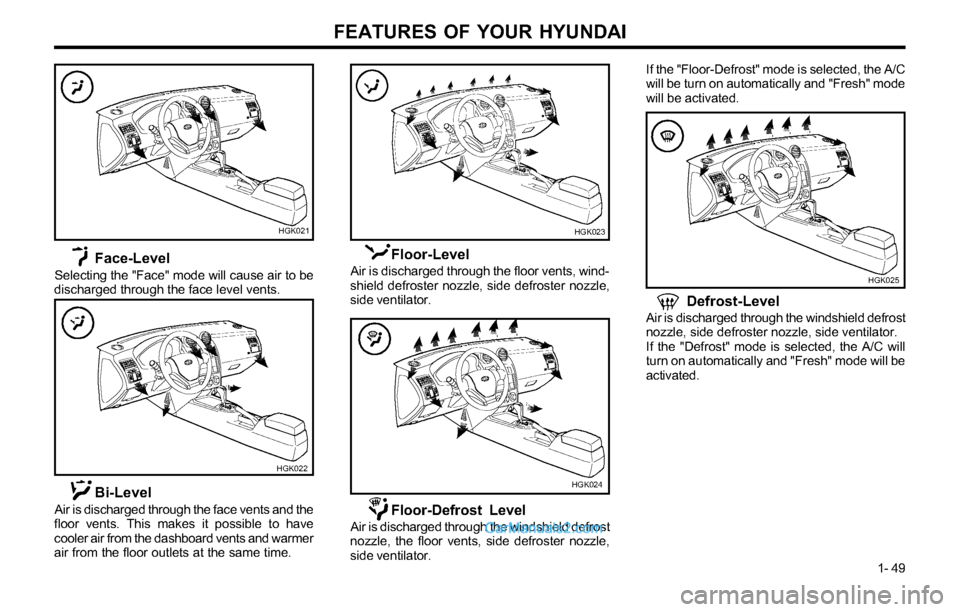

Floor-Level
Air is discharged through the floor vents, wind-
shield defroster nozzle, side defroster nozzle,
side ventilator.
Floor-Defrost Level
Air is discharged through the windshield defrost
nozzle, the floor vents, side defroster nozzle,
side ventilator.
HGK025
Face-Level
Selecting the "Face" mode will cause air to be
discharged through the face level vents.
HGK022
Bi-Level
Air is discharged through the face vents and the
floor vents. This makes it possible to have
cooler air from the dashboard vents and warmer
air from the floor outlets at the same time.
HGK021
If the "Floor-Defrost" mode is selected, the A/C
will be turn on automatically and "Fresh" mode
will be activated.
Defrost-Level
Air is discharged through the windshield defrost
nozzle, side defroster nozzle, side ventilator.
If the "Defrost" mode is selected, the A/C will
turn on automatically and "Fresh" mode will be
activated.

FEATURES OF YOUR HYUNDAI
1- 50
B740A01S-AAT

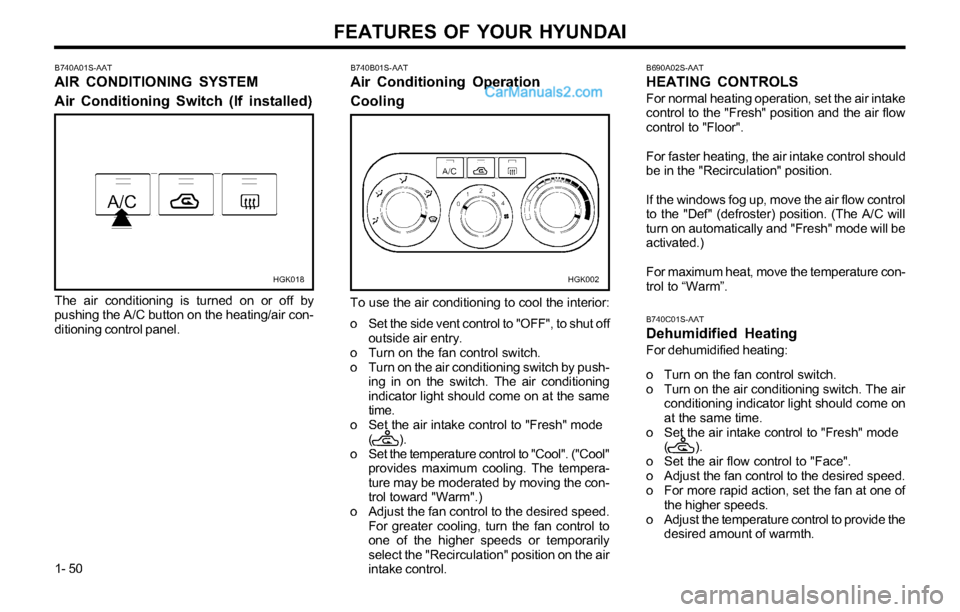

AIR CONDITIONING SYSTEM
Air Conditioning Switch (If installed)
HGK018
The air conditioning is turned on or off by
pushing the A/C button on the heating/air con-
ditioning control panel.
HGK002
B740B01S-AAT
Air Conditioning Operation
Cooling
To use the air conditioning to cool the interior:
o Set the side vent control to "OFF", to shut off
outside air entry.
o Turn on the fan control switch.
o Turn on the air conditioning switch by push-
ing in on the switch. The air conditioning
indicator light should come on at the same
time.
o Set the air intake control to "Fresh" mode
( ).
o Set the temperature control to "Cool". ("Cool"
provides maximum cooling. The tempera-
ture may be moderated by moving the con-
trol toward "Warm".)
o Adjust the fan control to the desired speed.
For greater cooling, turn the fan control to
one of the higher speeds or temporarily
select the "Recirculation" position on the air
intake control.
B690A02S-AAT
HEATING CONTROLS
For normal heating operation, set the air intake
control to the "Fresh" position and the air flow
control to "Floor".
For faster heating, the air intake control should
be in the "Recirculation" position.
If the windows fog up, move the air flow control
to the "Def" (defroster) position. (The A/C will
turn on automatically and "Fresh" mode will be
activated.)
For maximum heat, move the temperature con-
trol to “Warm”.
B740C01S-AAT
Dehumidified Heating
For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch. The air
conditioning indicator light should come on
at the same time.
o Set the air intake control to "Fresh" mode
( ).
o Set the air flow control to "Face".
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at one of
the higher speeds.
o Adjust the temperature control to provide the
desired amount of warmth.

FEATURES OF YOUR HYUNDAI
1- 51
NOTE:
When the A/C is operated continuously on the floor-defrost level () or defrost level (), it may cause
fog to form on the exterior windshield. If this occurs, set the air flow control to the face level position
(
) and fan speed control to the low position. Use the heating/ventilation system to defrost or
defog the windshield:
To remove interior fog on the windshield:
o Set the air flow control to the defrost (
) position.
(The A/C will turn on automatically and "Fresh"
mode will be activated)
o Set the temperature control to the desired position.
o Set the fan speed control between "1" and "4" position.To remove frost or exterior fog on the windshield:
o Set the air flow control to the defrost (
) position.
(The A/C will turn on automatically and "Fresh"
mode will be activated.)
o Set the temperature control to warm.
o Set the fan speed control to position "3" or "4".

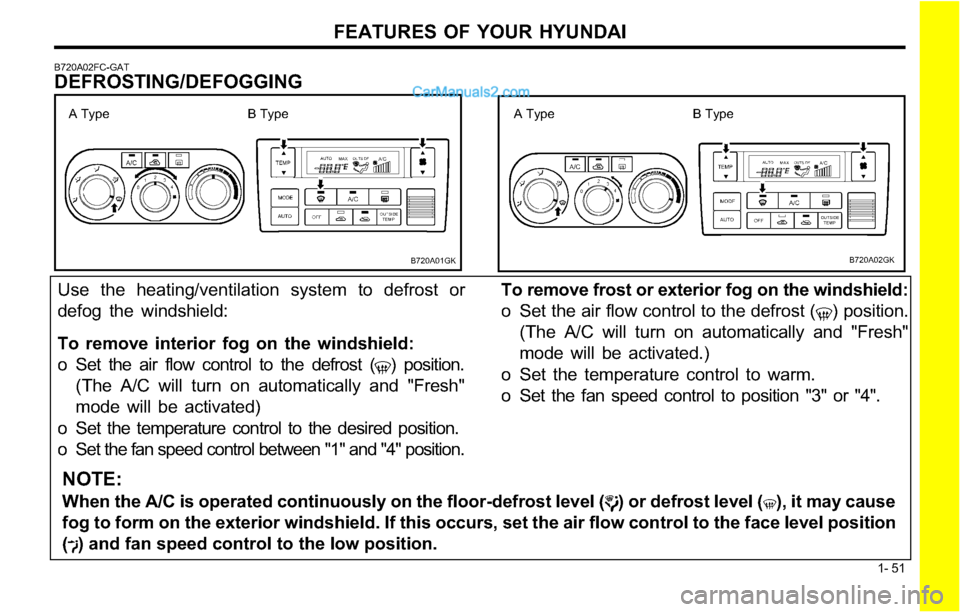

B720A02FC-GAT
DEFROSTING/DEFOGGING
B720A01GKB720A02GK
A Type B TypeA Type B Type

FEATURES OF YOUR HYUNDAI
1- 52

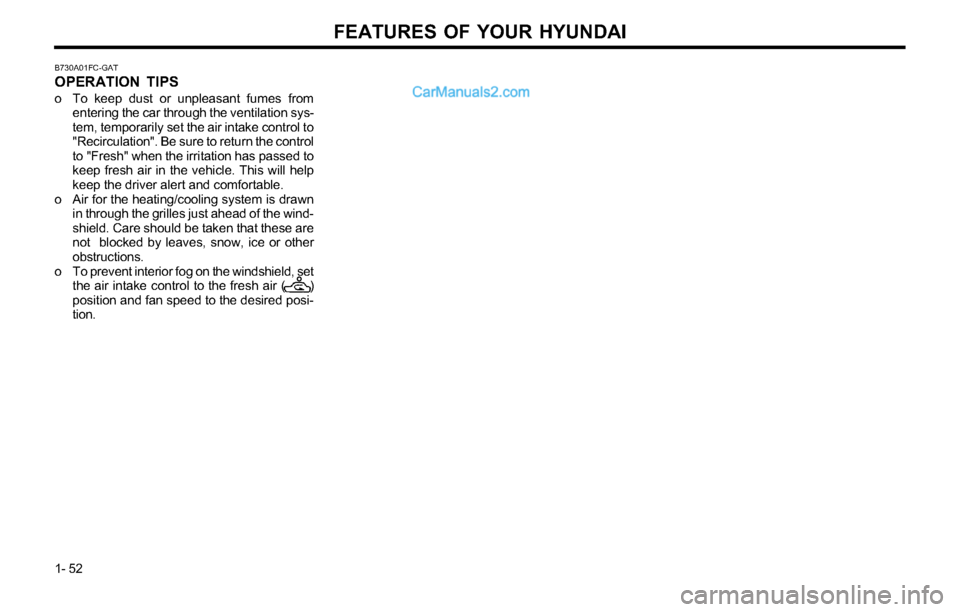

B730A01FC-GAT
OPERATION TIPS
o To keep dust or unpleasant fumes from
entering the car through the ventilation sys-
tem, temporarily set the air intake control to
"Recirculation". Be sure to return the control
to "Fresh" when the irritation has passed to
keep fresh air in the vehicle. This will help
keep the driver alert and comfortable.
o Air for the heating/cooling system is drawn
in through the grilles just ahead of the wind-
shield. Care should be taken that these are
not blocked by leaves, snow, ice or other
obstructions.
o To prevent interior fog on the windshield, set
the air intake control to the fresh air ( )
position and fan speed to the desired posi-
tion.
