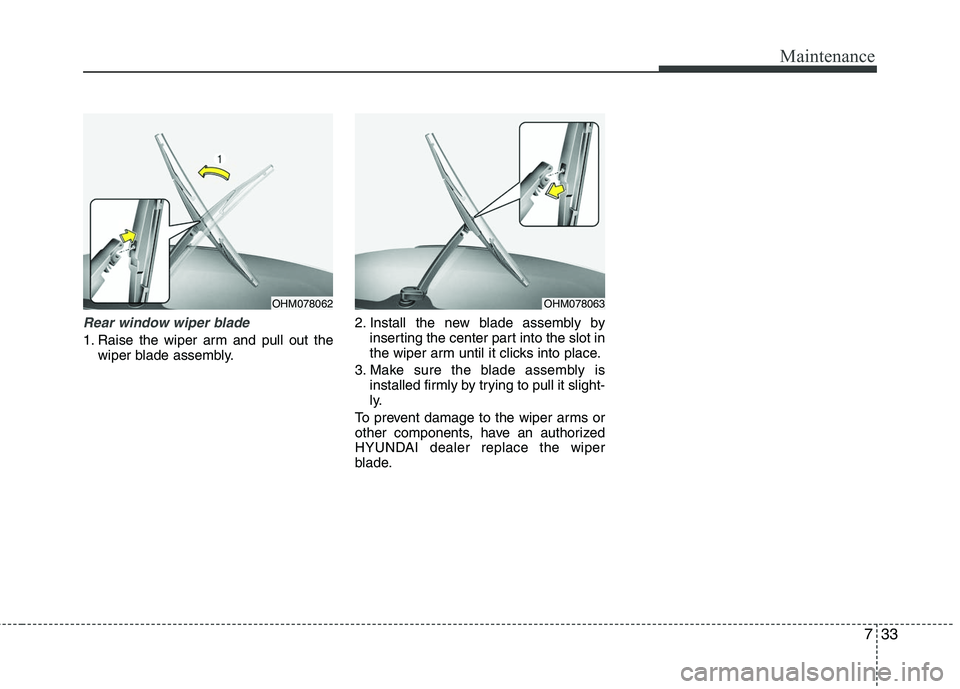

Page 321 of 382

HYUNDAI TUCSON 2010  Owners Manual
733
Maintenance
Rear window wiper blade
1. Raise the wiper arm and pull out thewiper blade assembly. 2. Install the new blade assembly by
inserting the center part into the slot in
the wiper arm unt

Page 322 of 382

HYUNDAI TUCSON 2010  Owners Manual
Maintenance
34
7

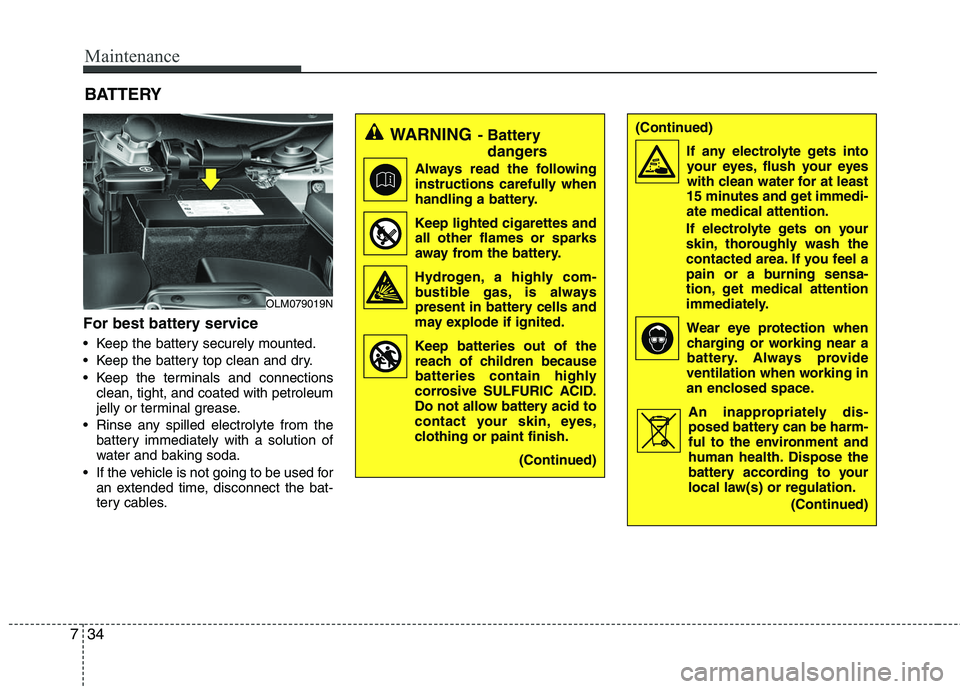

(Continued)
If any electrolyte gets intoyour eyes, flush your eyes
with clean water for at least
15 minutes and get immedi-
ate medical attention.
If electrolyte gets on your
skin, t

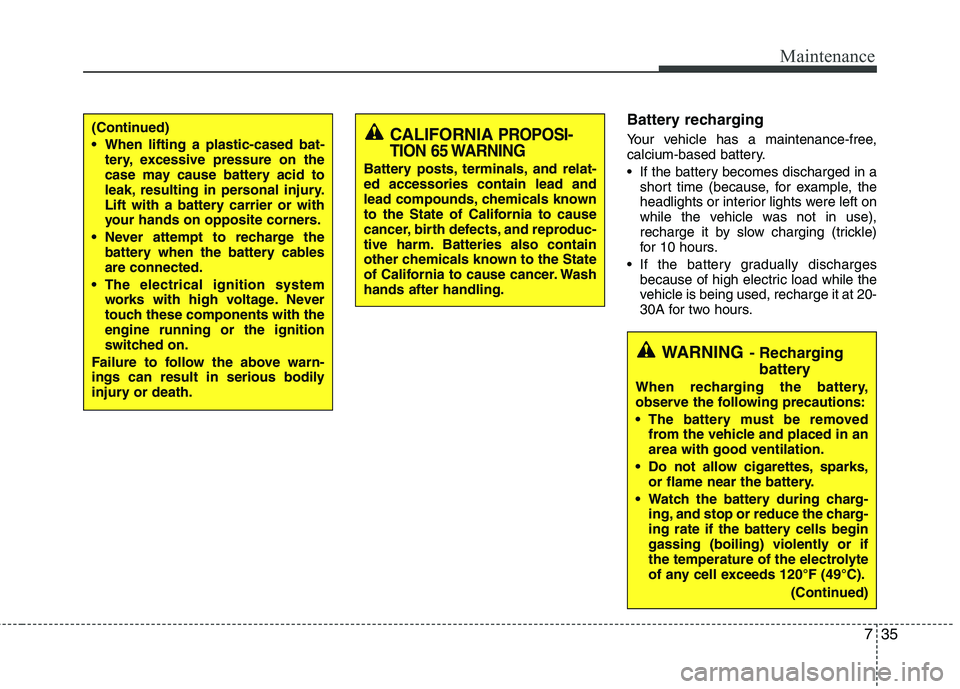

Page 323 of 382

HYUNDAI TUCSON 2010  Owners Manual
735
Maintenance
Battery recharging
Your vehicle has a maintenance-free,
calcium-based battery.
 If the battery becomes discharged in ashort time (because, for example, the
headlights or interior li

Page 324 of 382

HYUNDAI TUCSON 2010  Owners Manual
Maintenance
36
7

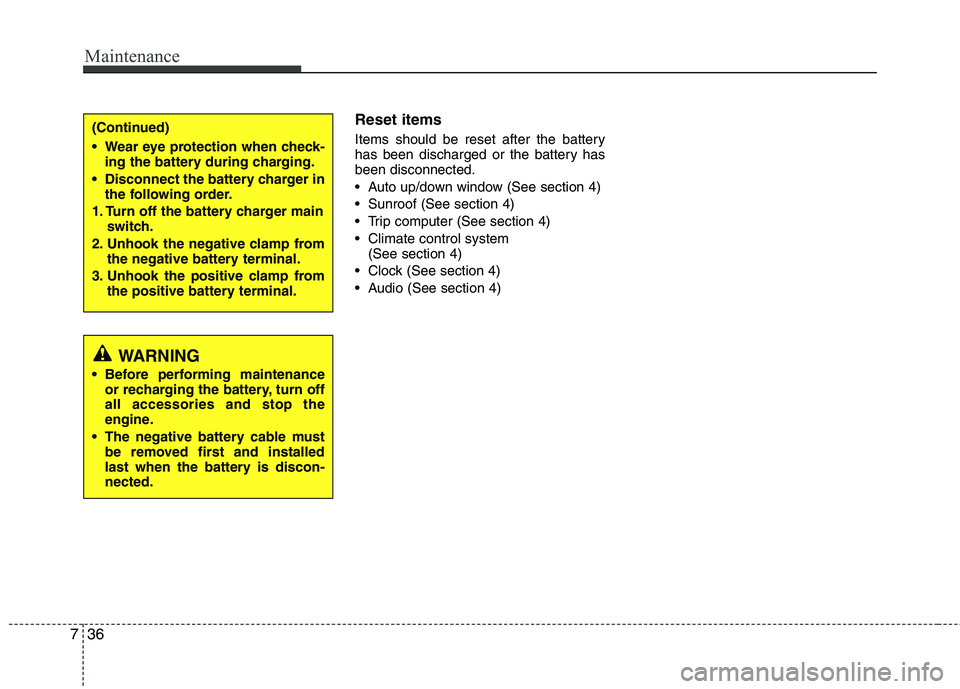

Reset items
Items should be reset after the battery
has been discharged or the battery has
been disconnected.
 Auto up/down window (See section 4)
 Sunroof (See section 4)
 Trip comp

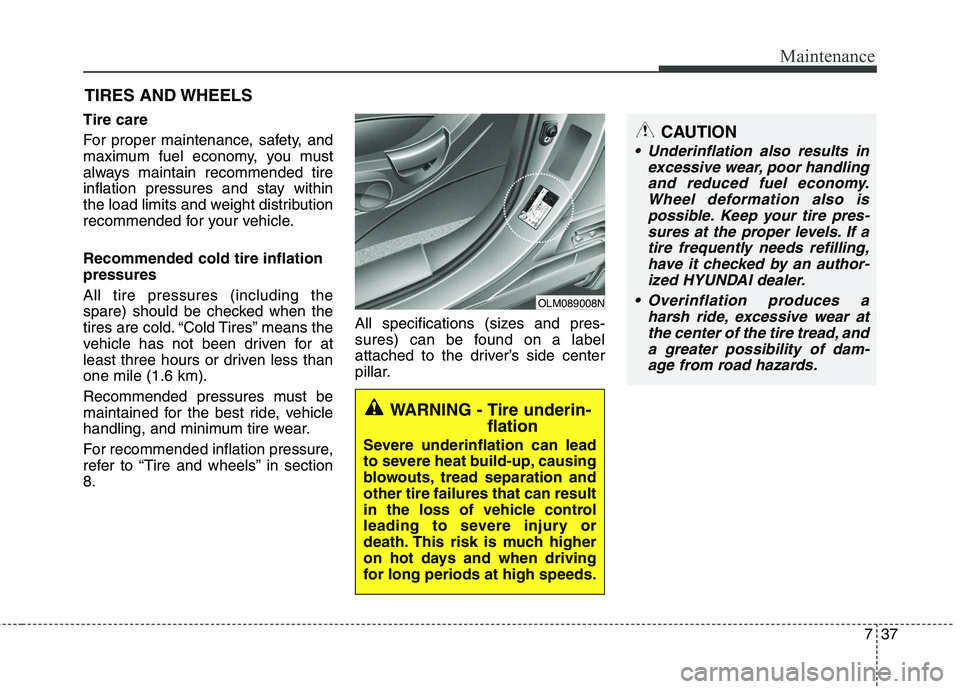

Page 325 of 382

HYUNDAI TUCSON 2010  Owners Manual
737
Maintenance
CAUTION
 Underinflation also results inexcessive wear, poor handlingand reduced fuel economy.Wheel deformation also ispossible. Keep your tire pres-sures at the proper levels. If atir

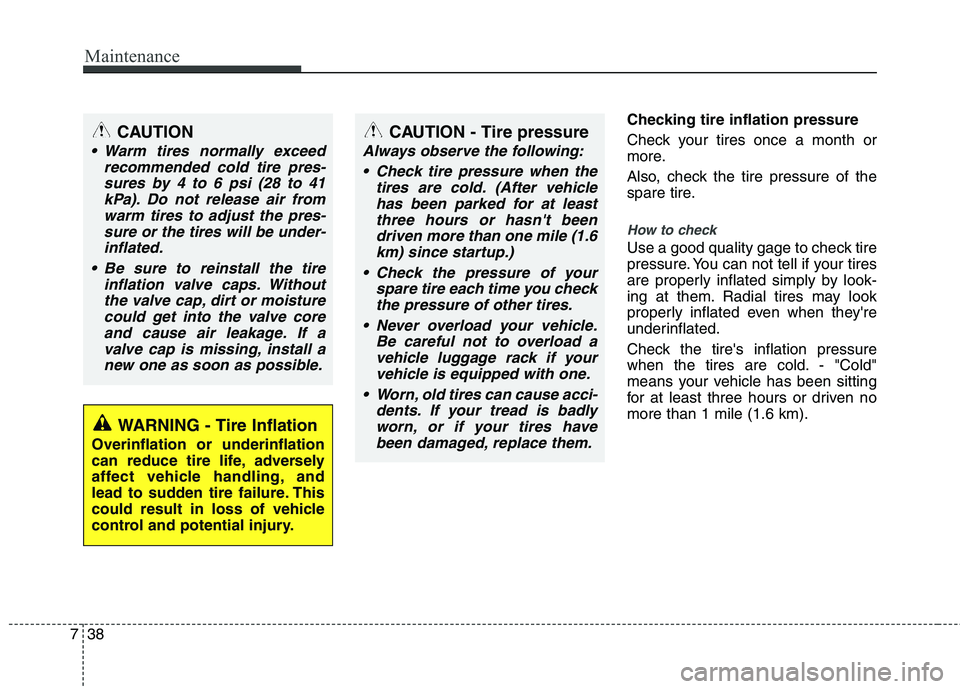

Page 326 of 382

HYUNDAI TUCSON 2010  Owners Manual
Maintenance
38
7
Checking tire inflation pressure
Check your tires once a month or
more.
Also, check the tire pressure of the
spare tire.
How to check
Use a good quality gage to check tire
pressure.

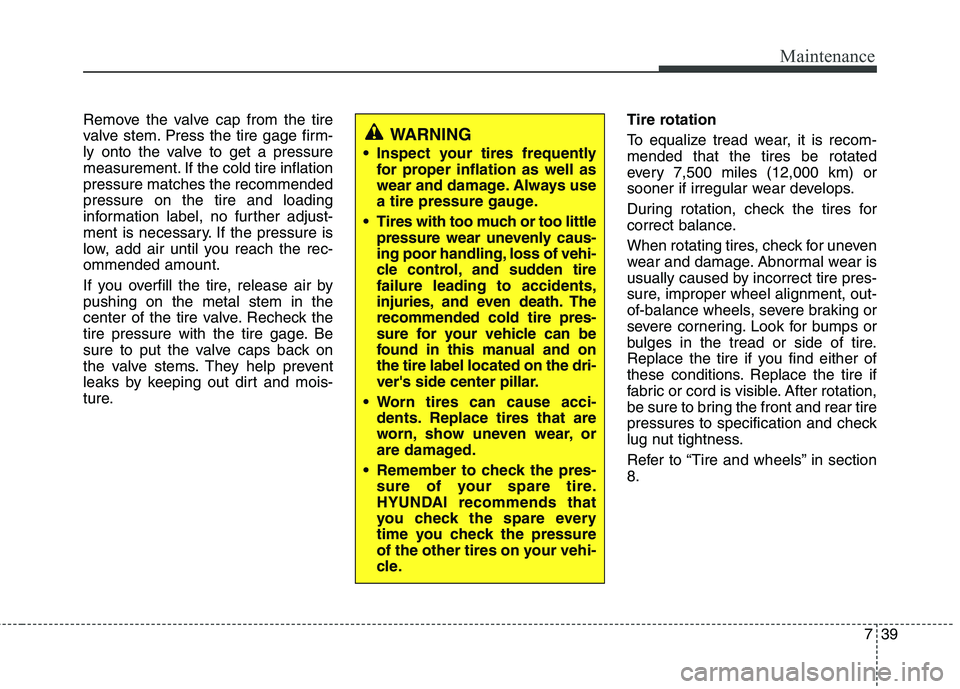

Page 327 of 382

HYUNDAI TUCSON 2010  Owners Manual
739
Maintenance
Remove the valve cap from the tire
valve stem. Press the tire gage firm-
ly onto the valve to get a pressure
measurement. If the cold tire inflation
pressure matches the recommended
p

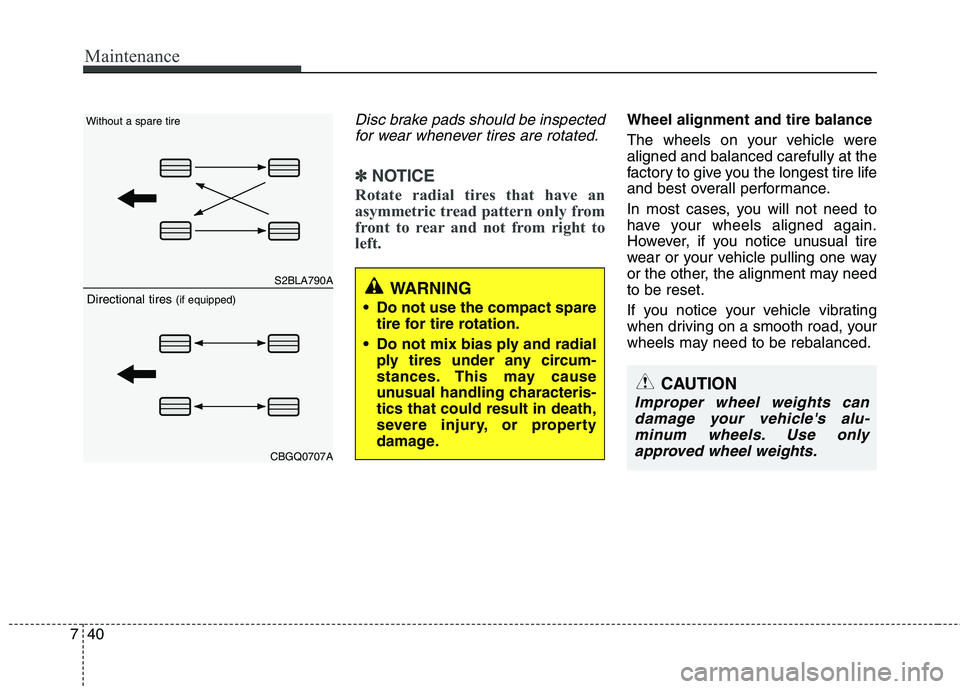

Page 328 of 382

HYUNDAI TUCSON 2010  Owners Manual
Maintenance
40
7
Disc brake pads should be inspected
for wear whenever tires are rotated.
✽
✽ NOTICE
Rotate radial tires that have an
asymmetric tread pattern only from
front to rear and not from

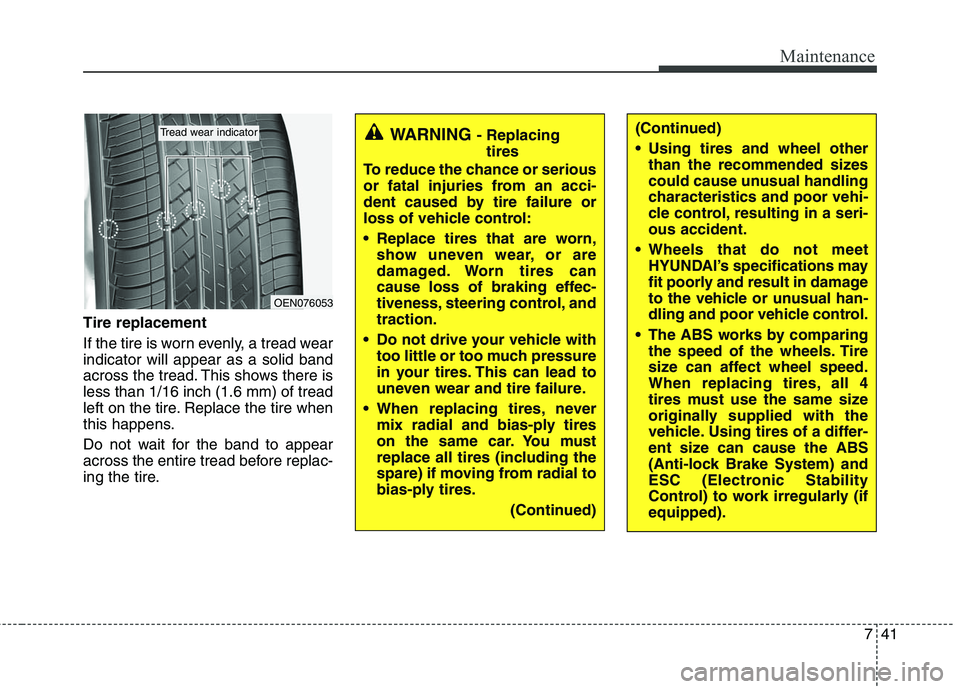

Page 329 of 382

HYUNDAI TUCSON 2010  Owners Manual
741
Maintenance
Tire replacement
If the tire is worn evenly, a tread wear
indicator will appear as a solid band
across the tread. This shows there is
less than 1/16 inch (1.6 mm) of tread
left on the

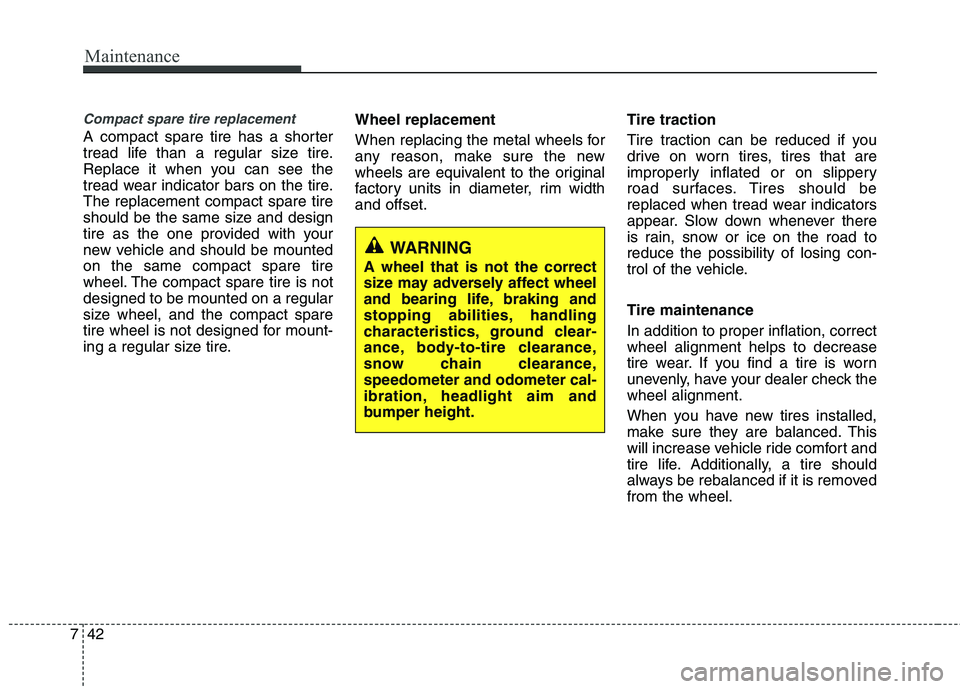

Page 330 of 382

HYUNDAI TUCSON 2010  Owners Manual
Maintenance
42
7
Compact spare tire replacement
A compact spare tire has a shorter
tread life than a regular size tire.
Replace it when you can see the
tread wear indicator bars on the tire.
The rep
