HYUNDAI TUCSON 2014 Owners Manual

3-85
Convenient features of your vehicle
3

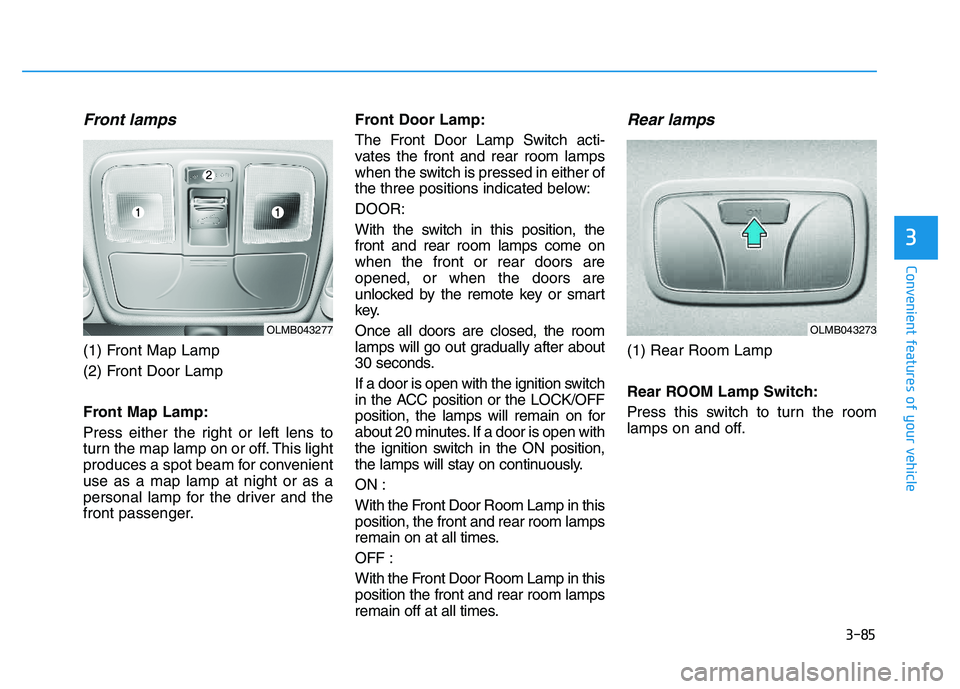

Front lamps
(1) Front Map Lamp
(2) Front Door Lamp
Front Map Lamp:
Press either the right or left lens to
turn the map lamp on or off. This light
produces a spot beam for convenientuse as a map lamp at night or as a
personal lamp for the driver and the
front passenger.Front Door Lamp:
The Front Door Lamp Switch acti-
vates the front and rear room lamps
when the switch is pressed in either of
the three positions indicated below: DOOR:
With the switch in this position, the front and rear room lamps come onwhen the front or rear doors areopened, or when the doors are
unlocked by the remote key or smart
key. Once all doors are closed, the room
lamps will go out gradually after about
30 seconds.
If a door is open with the ignition switch
in the ACC position or the LOCK/OFF
position, the lamps will remain on for
about 20 minutes. If a door is open with
the ignition switch in the ON position,
the lamps will stay on continuously. ON :
With the Front Door Room Lamp in this position, the front and rear room lamps
remain on at all times. OFF :
With the Front Door Room Lamp in this position the front and rear room lamps
remain off at all times.
Rear lamps
(1) Rear Room Lamp
Rear ROOM Lamp Switch:
Press this switch to turn the room
lamps on and off.
OLMB043277OLMB043273

3-86
Convenient features of your vehicle

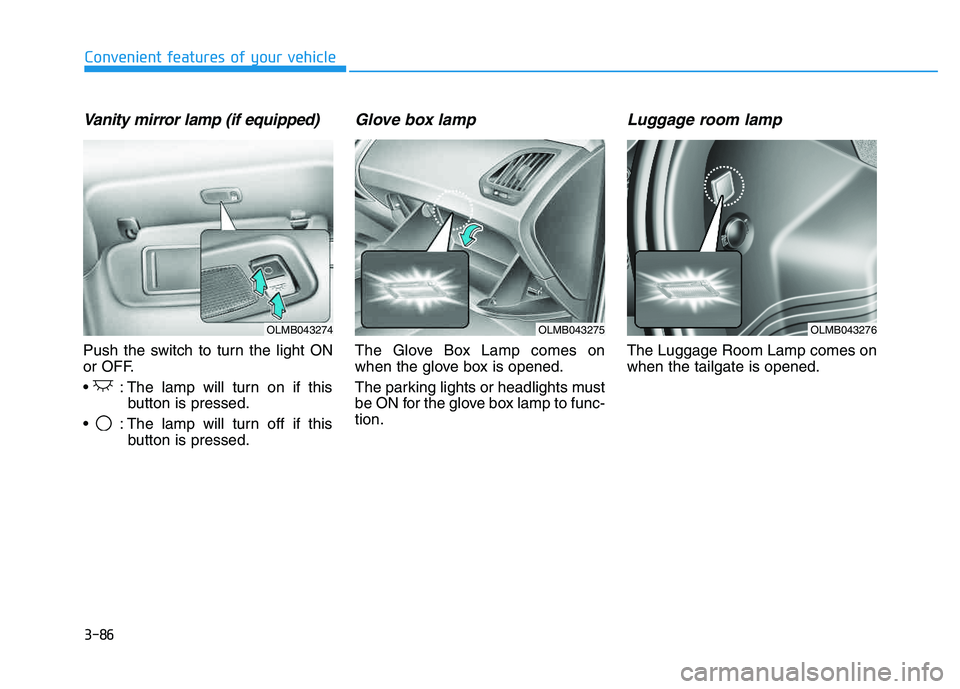

Vanity mirror lamp (if equipped)
Push the switch to turn the light ON
or OFF.
: The lamp will turn on if thisbutton is pressed.
: The lamp will turn off if this button is pressed.
Glove box lamp
The Glove Box Lamp comes on
when the glove box is opened.
The parking lights or headlights must
be ON for the glove box lamp to func-tion.
Luggage room lamp
The Luggage Room Lamp comes onwhen the tailgate is opened.
OLMB043274OLMB043276OLMB043275

3-87
Convenient features of your vehicle
3

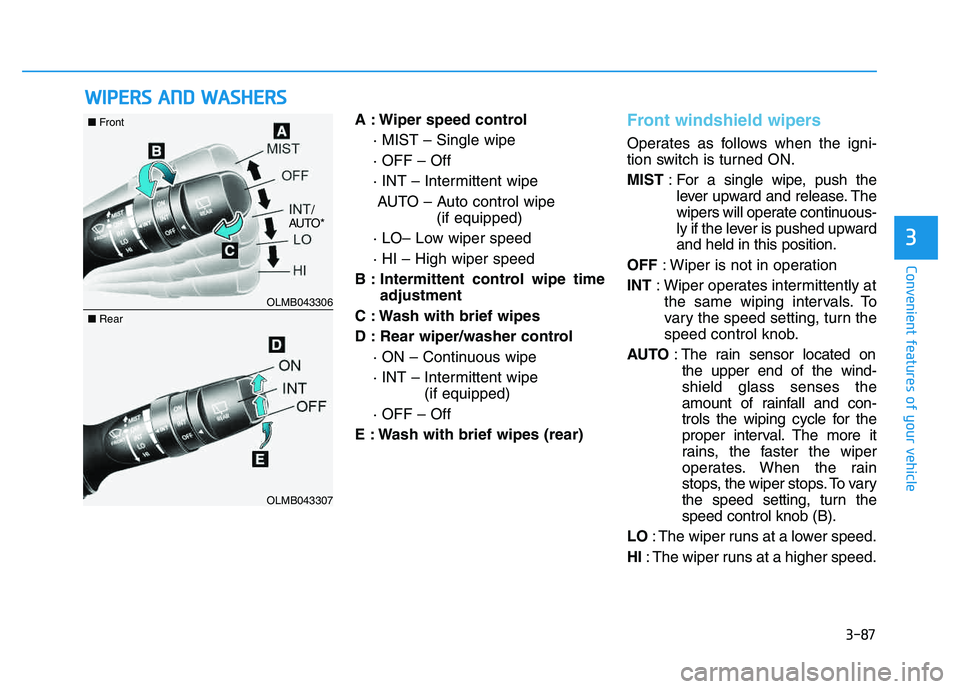

WWIIPP EERR SS AA NN DD WW AASSHH EERR SS
A : Wiper speed control
· MIST – Single wipe · OFF – Off
· INT – Intermittent wipeAUTO – Auto control wipe (if equipped)
· LO– Low wiper speed· HI – High wiper speed
B : Intermittent control wipe time adjustment
C : Wash with brief wipes
D : Rear wiper/washer control · ON – Continuous wipe
· INT – Intermittent wipe (if equipped)
· OFF – Off
E : Wash with brief wipes (rear)Front windshield wipers
Operates as follows when the igni-
tion switch is turned ON. MIST : For a single wipe, push the
lever upward and release. The
wipers will operate continuous-
ly if the lever is pushed upwardand held in this position.
OFF : Wiper is not in operation
INT : Wiper operates intermittently at
the same wiping intervals. To
vary the speed setting, turn the
speed control knob.
AUTO : The rain sensor located on
the upper end of the wind-shield glass senses the
amount of rainfall and con-
trols the wiping cycle for the
proper interval. The more it
rains, the faster the wiper
operates. When the rain
stops, the wiper stops. To vary
the speed setting, turn thespeed control knob (B).
LO : The wiper runs at a lower speed.
HI : The wiper runs at a higher speed.
OLMB043306
OLMB043307
■Front
■Rear
/
AUTO*

3-88
Convenient features of your vehicle

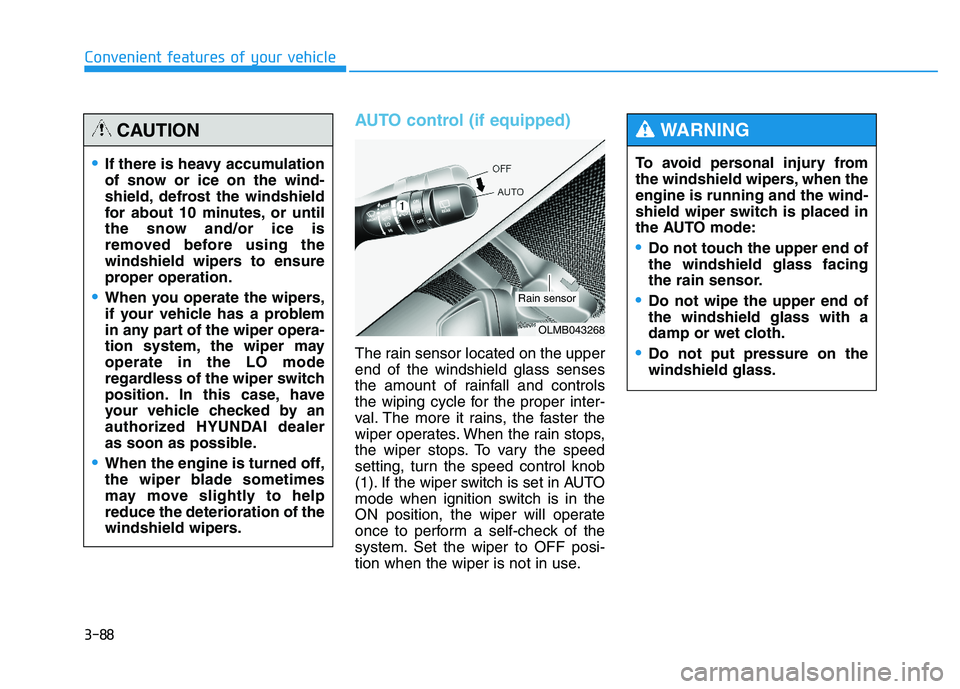

AUTO control (if equipped)
The rain sensor located on the upper end of the windshield glass senses
the amount of rainfall and controls
the wiping cycle for the proper inter-
val. The more it rains, the faster the
wiper operates. When the rain stops,
the wiper stops. To vary the speed
setting, turn the speed control knob
(1). If the wiper switch is set in AUTO
mode when ignition switch is in the
ON position, the wiper will operate
once to perform a self-check of the
system. Set the wiper to OFF posi-
tion when the wiper is not in use.To avoid personal injury from
the windshield wipers, when theengine is running and the wind-
shield wiper switch is placed in
the AUTO mode:
Do not touch the upper end of the windshield glass facing
the rain sensor.
Do not wipe the upper end of the windshield glass with a
damp or wet cloth.
Do not put pressure on the windshield glass.
WARNING
If there is heavy accumulation
of snow or ice on the wind-
shield, defrost the windshield
for about 10 minutes, or until
the snow and/or ice is
removed before using the
windshield wipers to ensure
proper operation.
When you operate the wipers,
if your vehicle has a problem
in any part of the wiper opera-
tion system, the wiper mayoperate in the LO mode
regardless of the wiper switch
position. In this case, have
your vehicle checked by an
authorized HYUNDAI dealer
as soon as possible.
When the engine is turned off,
the wiper blade sometimes
may move slightly to helpreduce the deterioration of the
windshield wipers.
CAUTION
OLMB043268
Rain sensor

3-89
Convenient features of your vehicle
3

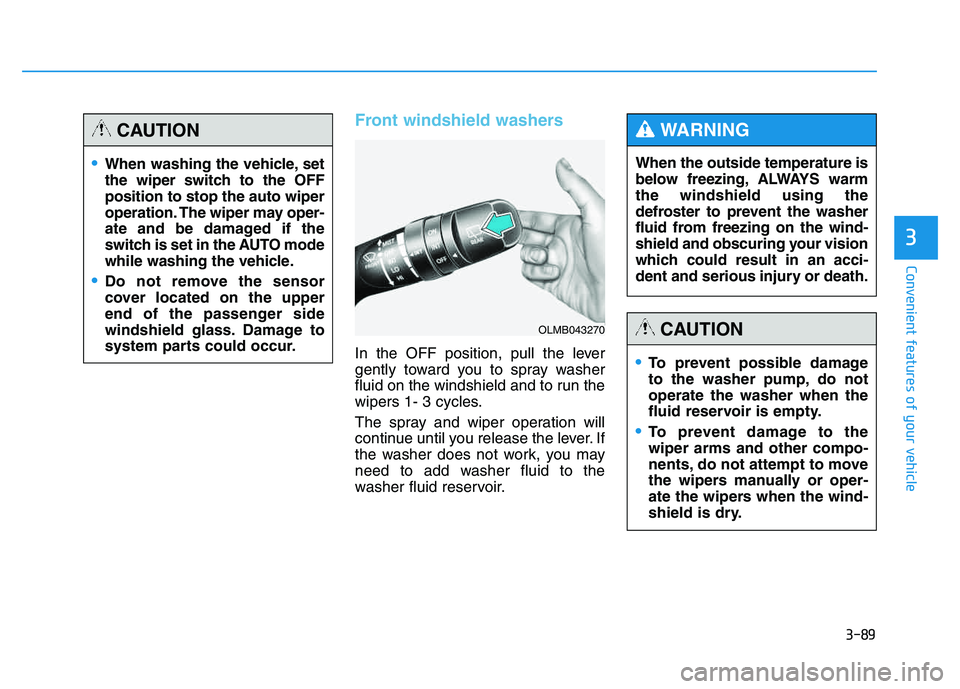

Front windshield washers
In the OFF position, pull the lever
gently toward you to spray washer
fluid on the windshield and to run the
wipers 1- 3 cycles.
The spray and wiper operation will
continue until you release the lever. If
the washer does not work, you may
need to add washer fluid to the
washer fluid reservoir.When the outside temperature is
below freezing, ALWAYS warmthe windshield using the
defroster to prevent the washer
fluid from freezing on the wind-
shield and obscuring your vision
which could result in an acci-
dent and serious injury or death.
WARNING
To prevent possible damage
to the washer pump, do notoperate the washer when the
fluid reservoir is empty.
To prevent damage to the wiper arms and other compo-
nents, do not attempt to move
the wipers manually or oper-
ate the wipers when the wind-
shield is dry.
CAUTION
When washing the vehicle, set
the wiper switch to the OFFposition to stop the auto wiper
operation. The wiper may oper-
ate and be damaged if the
switch is set in the AUTO mode
while washing the vehicle.
Do not remove the sensor
cover located on the upper
end of the passenger side
windshield glass. Damage to
system parts could occur.
CAUTION
OLMB043270

3-90
Convenient features of your vehicle

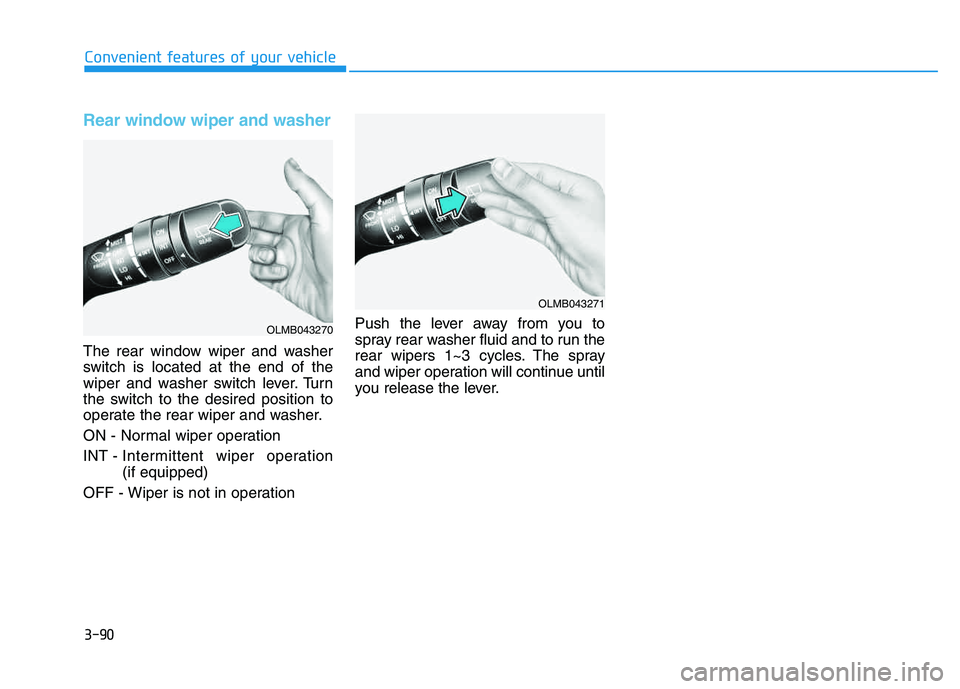

Rear window wiper and washer
The rear window wiper and washer
switch is located at the end of the
wiper and washer switch lever. Turn
the switch to the desired position to
operate the rear wiper and washer.
ON - Normal wiper operationINT - Intermittent wiper operation (if equipped)
OFF - Wiper is not in operation Push the lever away from you to
spray rear washer fluid and to run the
rear wipers 1~3 cycles. The spray
and wiper operation will continue until
you release the lever.
OLMB043270
OLMB043271

3-91
Convenient features of your vehicle
3
✽✽NOTICE
If you want to defrost and defog
the front windshield, refer to
“Windshield defrosting and defog-
ging” in this chapter.

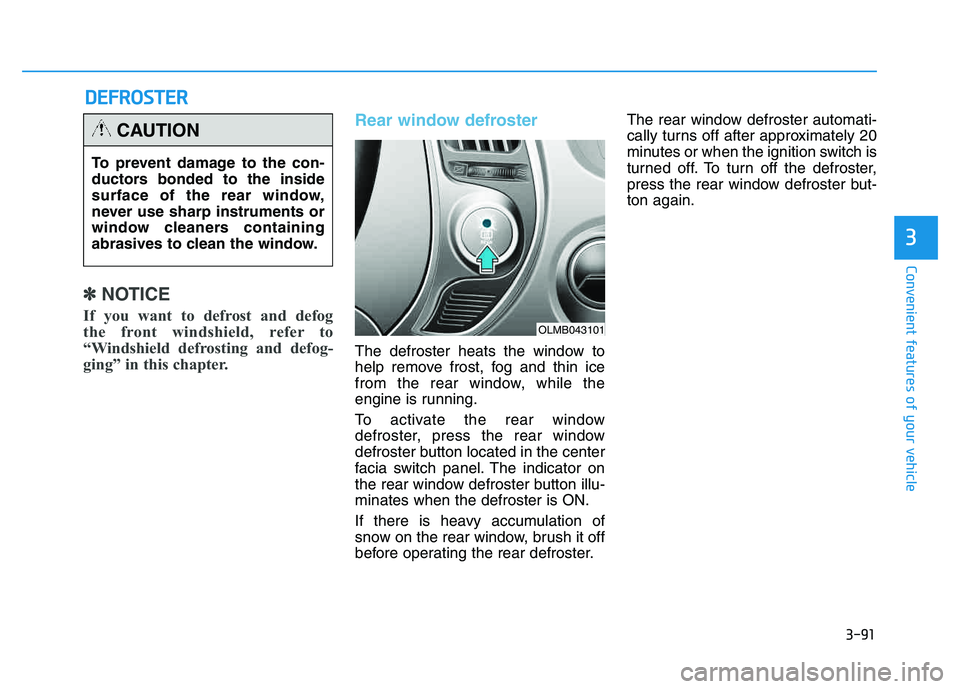

Rear window defroster
The defroster heats the window to
help remove frost, fog and thin ice
from the rear window, while the
engine is running.
To activate the rear window
defroster, press the rear window
defroster button located in the center
facia switch panel. The indicator on
the rear window defroster button illu-minates when the defroster is ON.
If there is heavy accumulation of
snow on the rear window, brush it off
before operating the rear defroster. The rear window defroster automati-
cally turns off after approximately 20
minutes or when the ignition switch is
turned off. To turn off the defroster,
press the rear window defroster but-ton again.
DD
EEFFRR OO SSTT EERR
To prevent damage to the con-
ductors bonded to the inside
surface of the rear window,
never use sharp instruments or
window cleaners containing
abrasives to clean the window.
CAUTION
OLMB043101

3-92
Convenient features of your vehicle

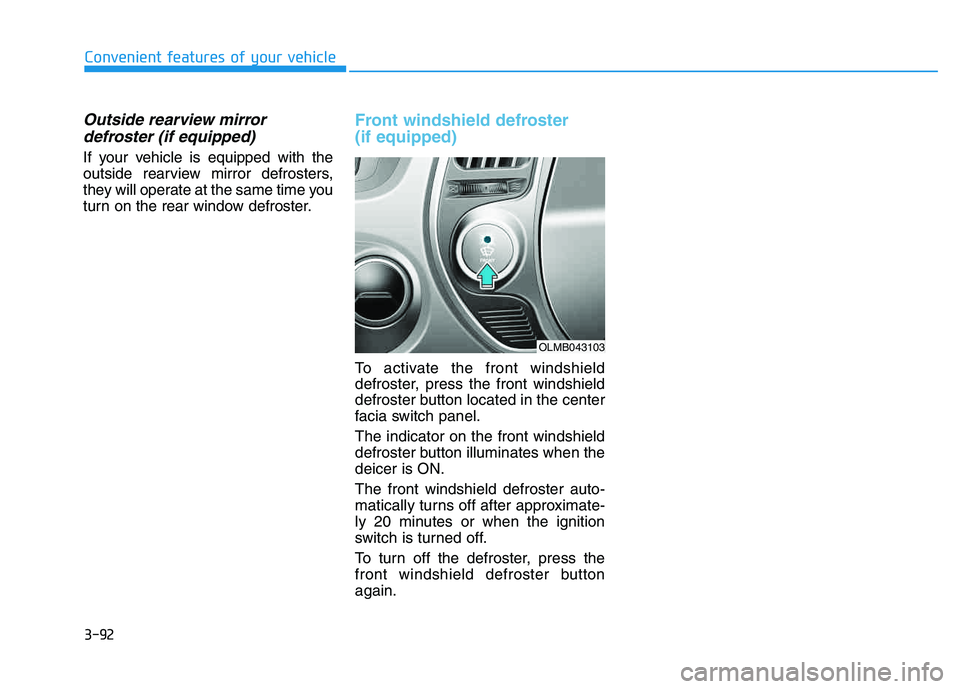

Outside rearview mirrordefroster (if equipped)
If your vehicle is equipped with the
outside rearview mirror defrosters,
they will operate at the same time you
turn on the rear window defroster.
Front windshield defroster (if equipped)
To activate the front windshield
defroster, press the front windshield
defroster button located in the center
facia switch panel. The indicator on the front windshield
defroster button illuminates when thedeicer is ON. The front windshield defroster auto-
matically turns off after approximate-
ly 20 minutes or when the ignition
switch is turned off.
To turn off the defroster, press the
front windshield defroster buttonagain.
OLMB043103

3-93
Convenient features of your vehicle
3

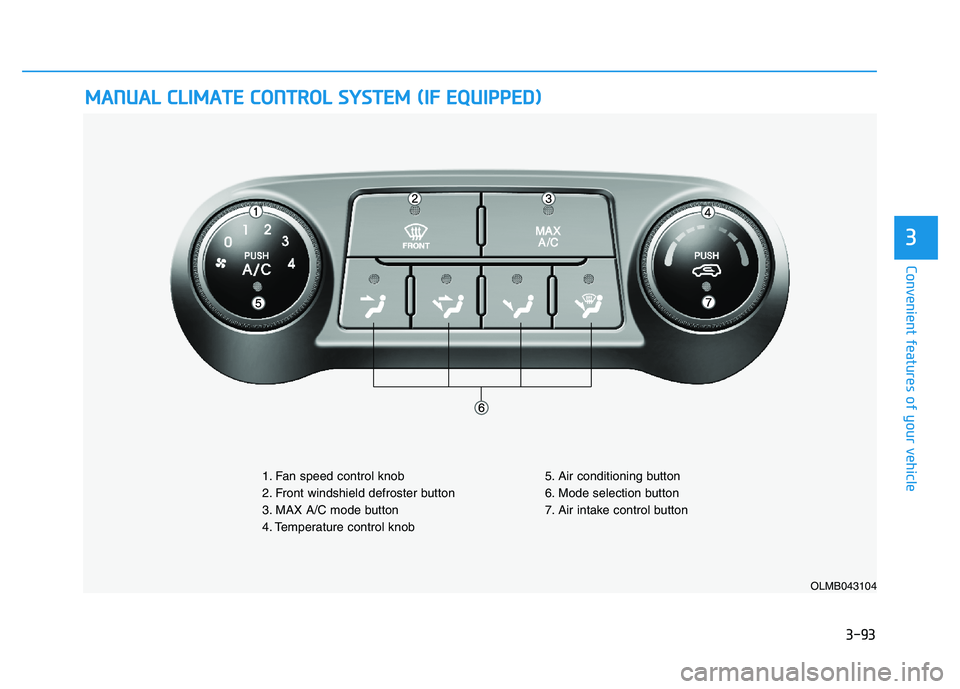

MMAANN UU AALL CC LLIIMM AATTEE CC OO NNTTRR OO LL SS YY SSTT EEMM (( IIFF EE QQ UUIIPP PPEEDD ))
OLMB043104
1. Fan speed control knob
2. Front windshield defroster button
3. MAX A/C mode button
4. Temperature control knob 5. Air conditioning button
6. Mode selection button
7. Air intake control button

3-94
Convenient features of your vehicle

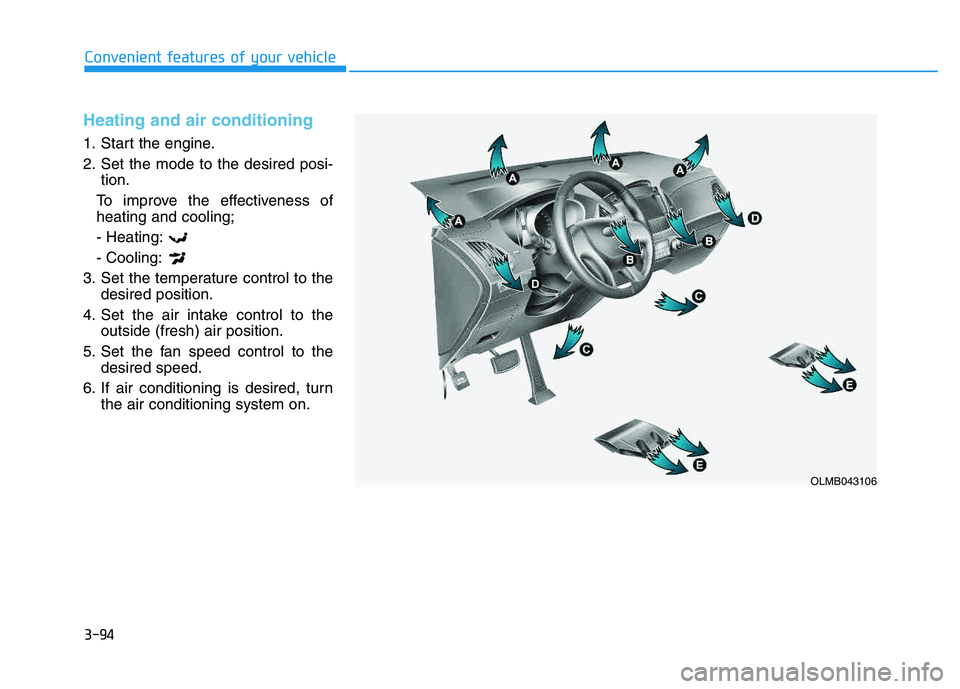

Heating and air conditioning
1. Start the engine.
2. Set the mode to the desired posi-tion.
To improve the effectiveness of heating and cooling; - Heating:- Cooling:
3. Set the temperature control to the desired position.
4. Set the air intake control to the outside (fresh) air position.
5. Set the fan speed control to the desired speed.
6. If air conditioning is desired, turn the air conditioning system on.
OLMB043106
