Page 121 of 685

Hyundai Tucson 2019  Owners Manual - RHD (UK, Australia) 3-29
Convenient features of your vehicle
Outside rearview mirror
Be  sure  to  adjust  mirror  angles
before driving.
The mirror can be adjusted remotely
with the remote switch.
The mirror heads can

Page 122 of 685

Hyundai Tucson 2019  Owners Manual - RHD (UK, Australia) 3-30
Adjusting the rearview mirrors:
1. Press either the L (left side) or R(right side) button (1) to select the
rearview mirror you would like to
adjust.
2. Use  the  mirror  adjustment  control (2)

Page 123 of 685

Hyundai Tucson 2019  Owners Manual - RHD (UK, Australia) 3-31
Convenient features of your vehicle
3

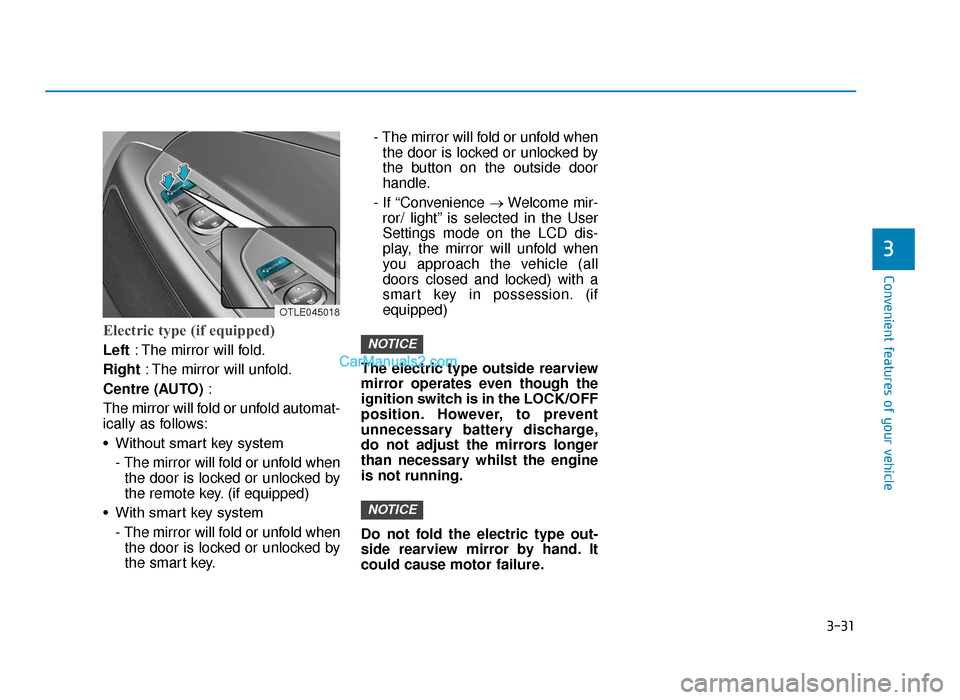

Electric type (if equipped)
Left: The mirror will fold.
Right : The mirror will unfold.
Centre (AUTO) :
The mirror will fold or unfold automat-
ically as fol

Page 124 of 685

Hyundai Tucson 2019  Owners Manual - RHD (UK, Australia) 3-32

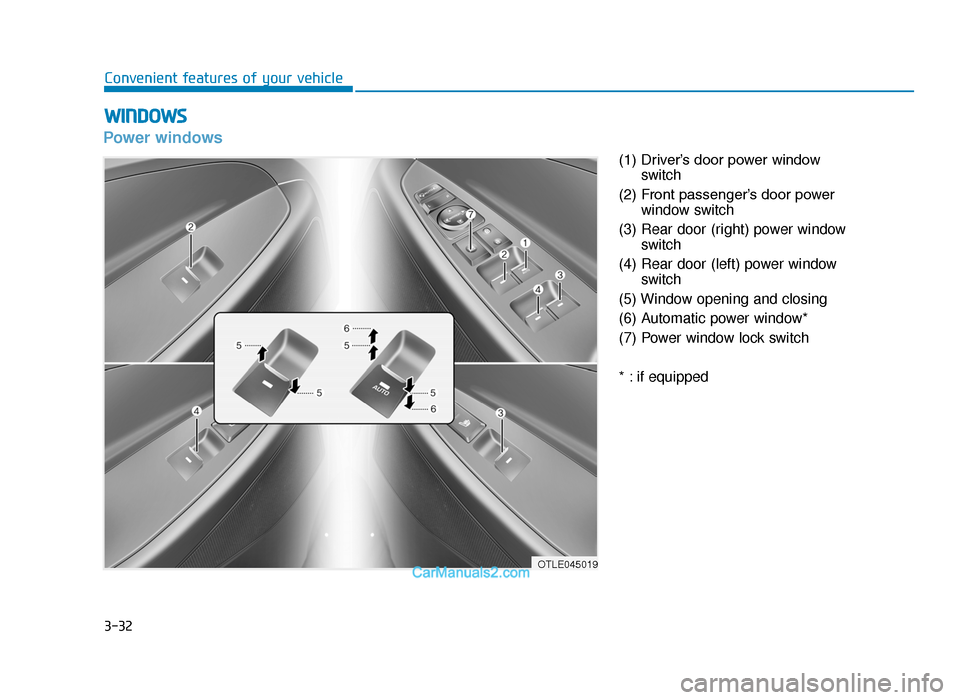

WINDOWS
Convenient features of your vehicle
Power windows
(1) Driver’s door power windowswitch
(2) Front passenger’s door power window switch
(3) Rear door (right) power window switch
(4) Rea

Page 125 of 685

Hyundai Tucson 2019  Owners Manual - RHD (UK, Australia) 3-33
Convenient features of your vehicle
3

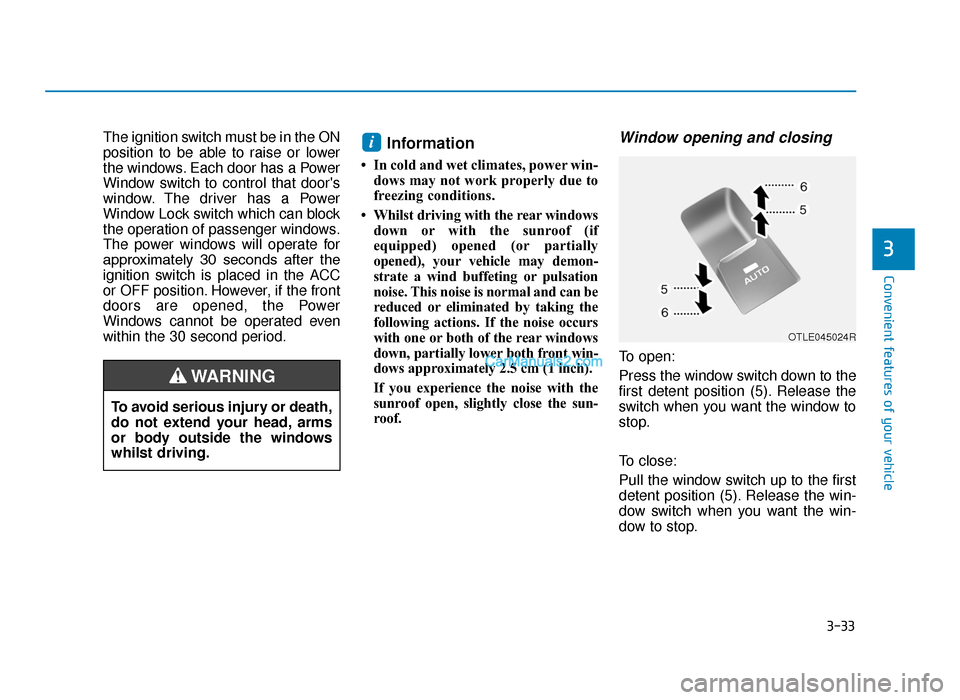

The ignition switch must be in the ON
position to be able to raise or lower
the windows. Each door has a Power
Window switch to control that doors
window. T

Page 126 of 685

Hyundai Tucson 2019  Owners Manual - RHD (UK, Australia) 3-34
Convenient features of your vehicle

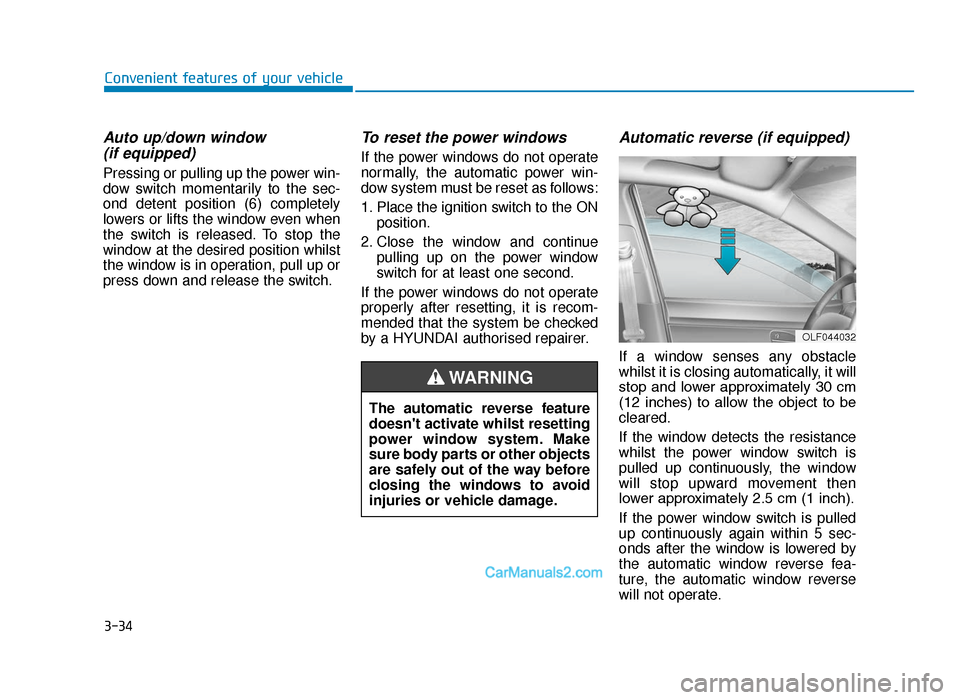

Auto up/down window (if equipped)
Pressing or pulling up the power win-
dow switch momentarily to the sec-
ond detent position (6) completely
lowers or lifts t

Page 127 of 685

Hyundai Tucson 2019  Owners Manual - RHD (UK, Australia) 3-35
Convenient features of your vehicle
3

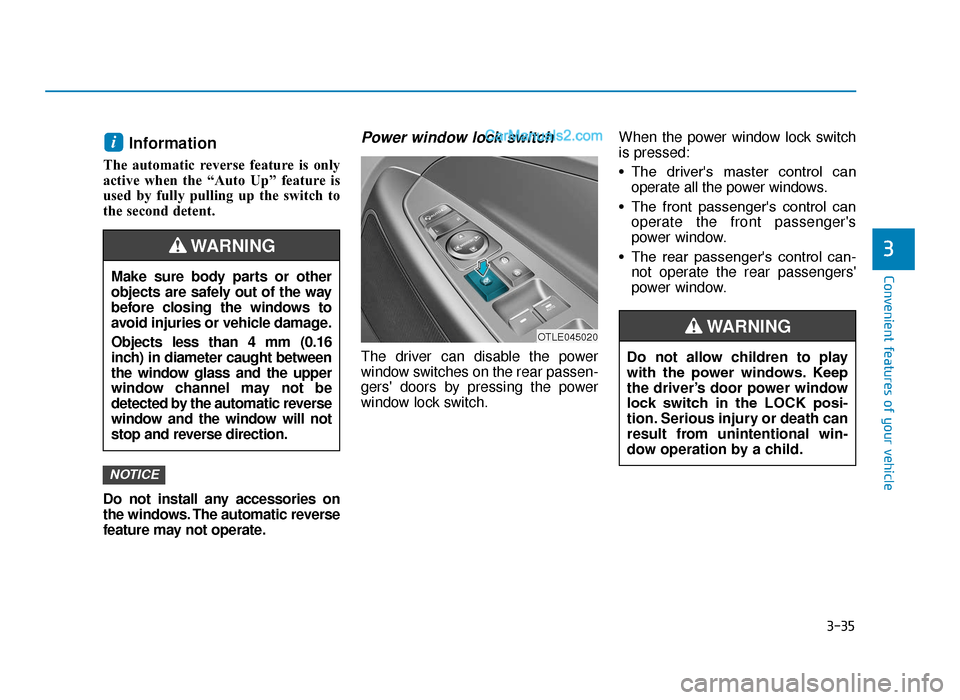

Information
The automatic reverse feature is only
active when the “Auto Up” feature is
used by fully pulling up the switch to
the second detent.
Do not

Page 128 of 685

Hyundai Tucson 2019  Owners Manual - RHD (UK, Australia) 3-36
Convenient features of your vehicle
• To  prevent  possible  damage  to the power window system, do
not open or close two windows
or more at the same time. This
will also ensure the longevity o

Page 129 of 685

Hyundai Tucson 2019  Owners Manual - RHD (UK, Australia) 3-37
Convenient features of your vehicle
3

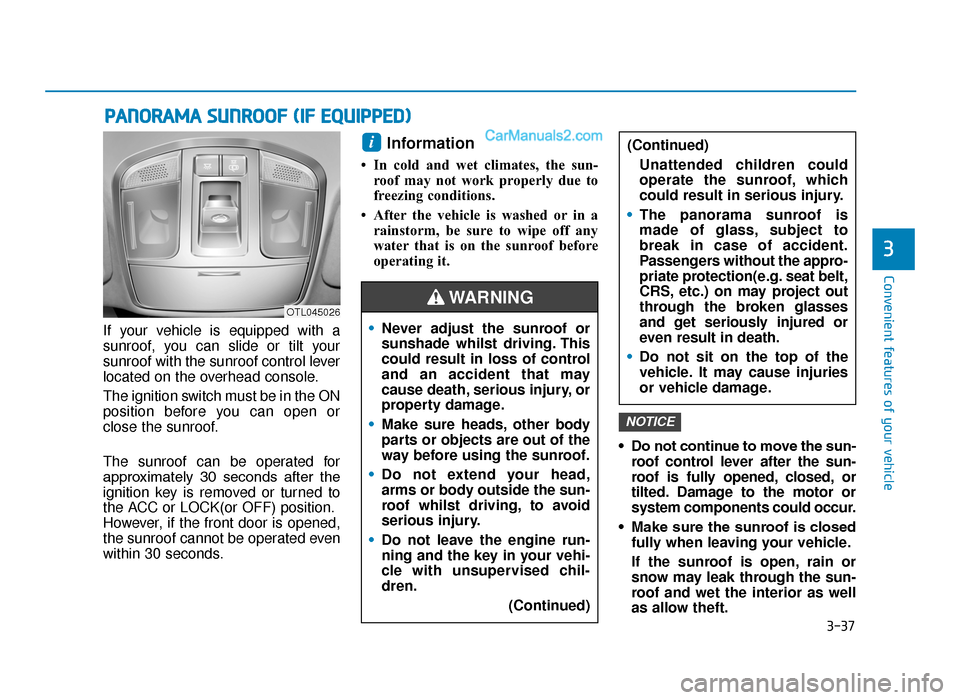

PANORAMA SUNROOF (IF EQUIPPED)
If your vehicle is equipped with a
sunroof, you can slide or tilt your
sunroof with the sunroof control lever
located on the o

Page 130 of 685

Hyundai Tucson 2019  Owners Manual - RHD (UK, Australia) 3-38
Convenient features of your vehicle

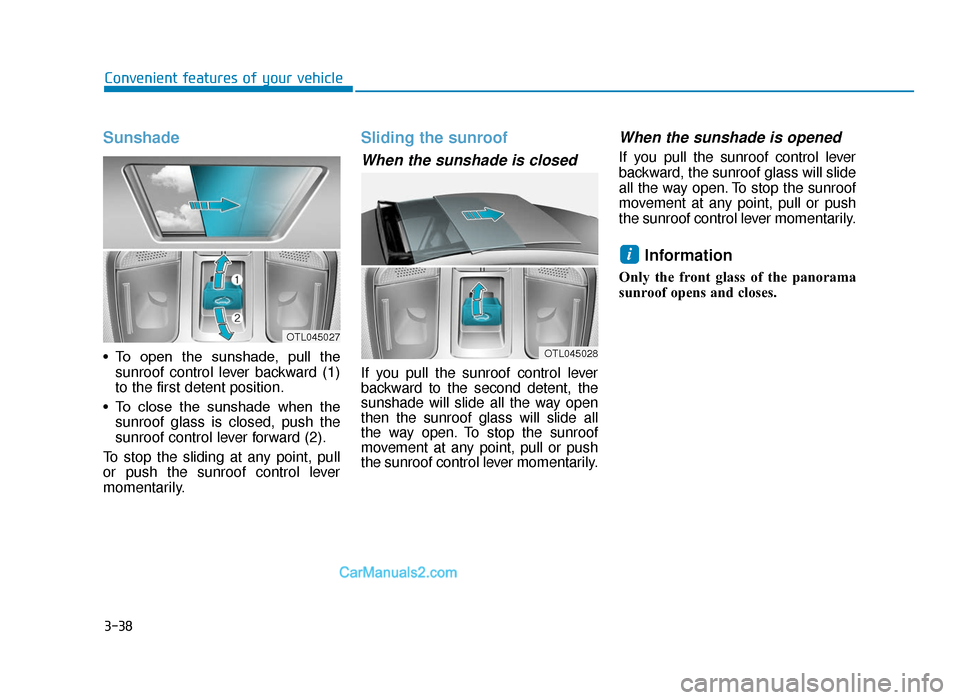

Sunshade
• To  open  the  sunshade,  pull  thesunroof control lever backward (1)
to the first detent position.
• To  close  the  sunshade  when  the sunroo
