4-46
Multimedia System

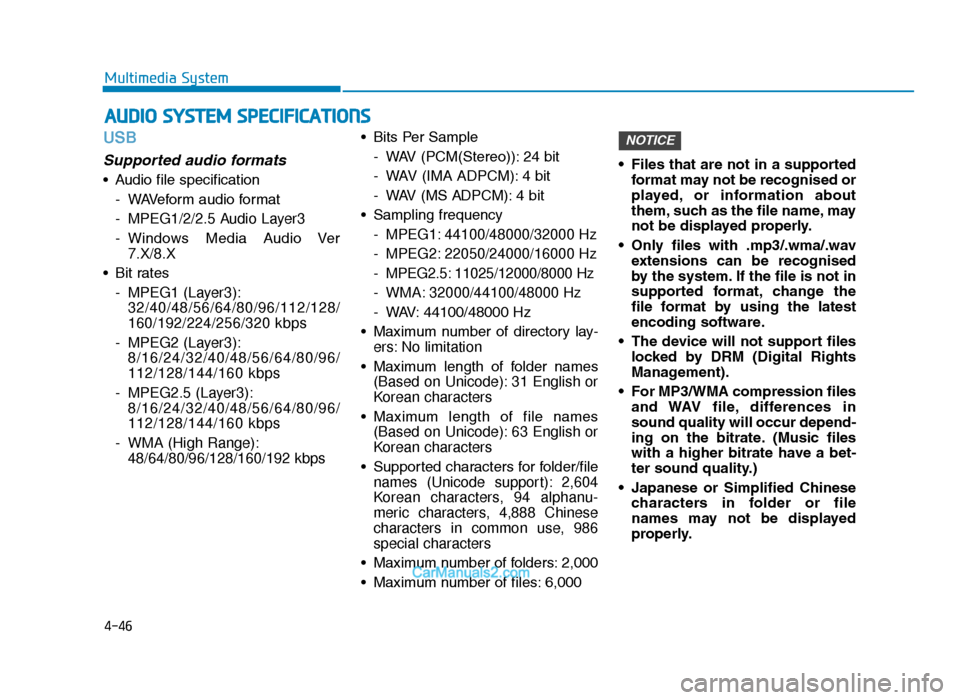

USB
Supported audio formats
• Audio file specification- WAVeform audio format
- MPEG1/2/2.5 Audio Layer3
- Windows Media Audio Ver7.X/8.X
• Bit rates - MPEG1 (Layer3):32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
- MPEG2 (Layer3): 8/16/24/32/40/48/56/64/80/96/
112/128/144/160 kbps
- MPEG2.5 (Layer3): 8/16/24/32/40/48/56/64/80/96/
112/128/144/160 kbps
- WMA (High Range): 48/64/80/96/128/160/192 kbps • Bits Per Sample
- WAV (PCM(Stereo)): 24 bit
- WAV (IMA ADPCM): 4 bit
- WAV (MS ADPCM): 4 bit
• Sampling frequency - MPEG1: 44100/48000/32000 Hz
- MPEG2: 22050/24000/16000 Hz
- MPEG2.5: 11025/12000/8000 Hz
- WMA: 32000/44100/48000 Hz
- WAV: 44100/48000 Hz
• Maximum number of directory lay- ers: No limitation
• Maximum length of folder names (Based on Unicode): 31 English or
Korean characters
• Maximum length of file names (Based on Unicode): 63 English or
Korean characters
• Supported characters for folder/file names (Unicode support): 2,604
Korean characters, 94 alphanu-
meric characters, 4,888 Chinese
characters in common use, 986
special characters
• Maximum number of folders: 2,000
• Maximum number of files: 6,000 • Files that are not in a supported
format may not be recognised or
played, or information about
them, such as the file name, may
not be displayed properly.
• Only files with .mp3/.wma/.wav extensions can be recognised
by the system. If the file is not in
supported format, change the
file format by using the latest
encoding software.
• The device will not support files locked by DRM (Digital Rights
Management).
• For MP3/WMA compression files and WAV file, differences in
sound quality will occur depend-
ing on the bitrate. (Music files
with a higher bitrate have a bet-
ter sound quality.)
• Japanese or Simplified Chinese characters in folder or file
names may not be displayed
properly.
NOTICE
AUDIO SYSTEM SPECIFICATIONS
TLe UK 4.qxp 5/10/2018 12:05 PM Page 46

4-47
Multimedia System
4

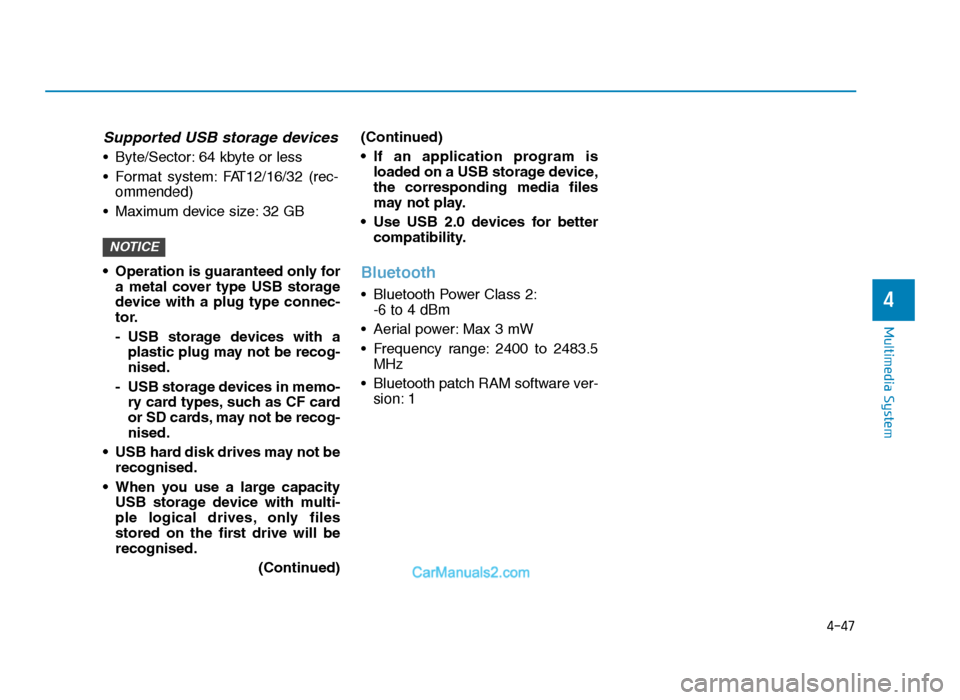

Supported USB storage devices
• Byte/Sector: 64 kbyte or less
• Format system: FAT12/16/32 (rec-ommended)
• Maximum device size: 32 GB
• Operation is guaranteed only for a metal cover type USB storage
device with a plug type connec-
tor.
- USB storage devices with aplastic plug may not be recog-
nised.
- USB storage devices in memo- ry card types, such as CF card
or SD cards, may not be recog-
nised.
• USB hard disk drives may not be recognised.
• When you use a large capacity USB storage device with multi-
ple logical drives, only files
stored on the first drive will be
recognised.
(Continued)(Continued)
• If an application program is
loaded on a USB storage device,
the corresponding media files
may not play.
• Use USB 2.0 devices for better compatibility.
Bluetooth
• Bluetooth Power Class 2:-6 to 4 dBm
• Aerial power: Max 3 mW
• Frequency range: 2400 to 2483.5 MHz
• Bluetooth patch RAM software ver- sion: 1
NOTICE
TLe UK 4.qxp 5/10/2018 12:05 PM Page 47

4-48
Multimedia System

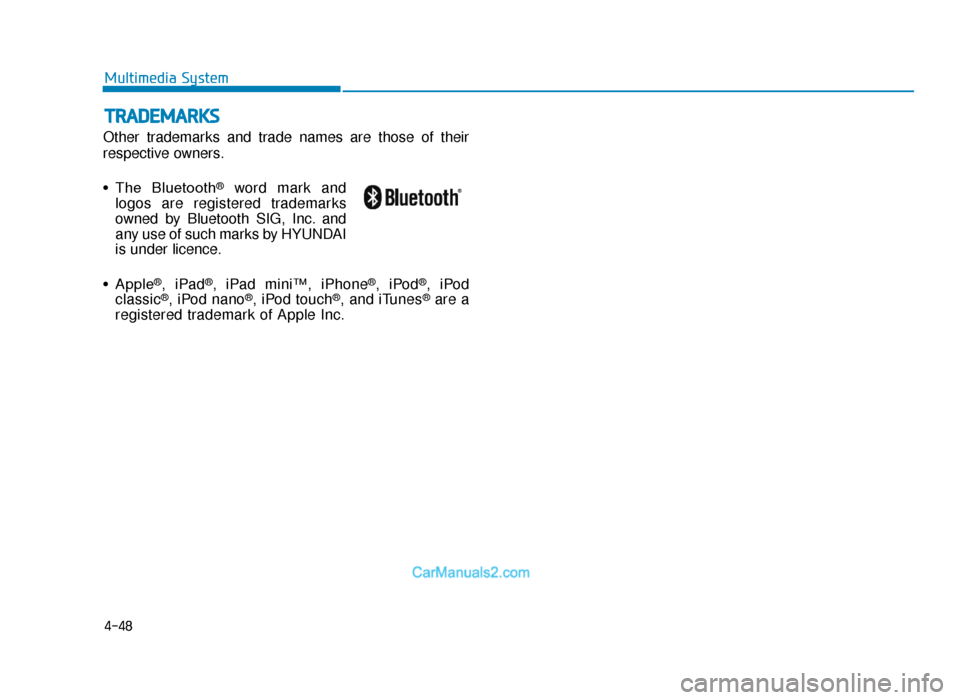

TRADEMARKS
Other trademarks and trade names are those of their
respective owners.
• The Bluetooth
®word mark and
logos are registered trademarks
owned by Bluetooth SIG, Inc. and
any use of such marks by HYUNDAI
is under licence.
• Apple
®, iPad®, iPad mini™, iPhone®, iPod®, iPod
classic®, iPod nano®, iPod touch®, and iTunes®are a
registered trademark of Apple Inc.
TLe UK 4.qxp 5/10/2018 12:05 PM Page 48

4-49
Multimedia System
4

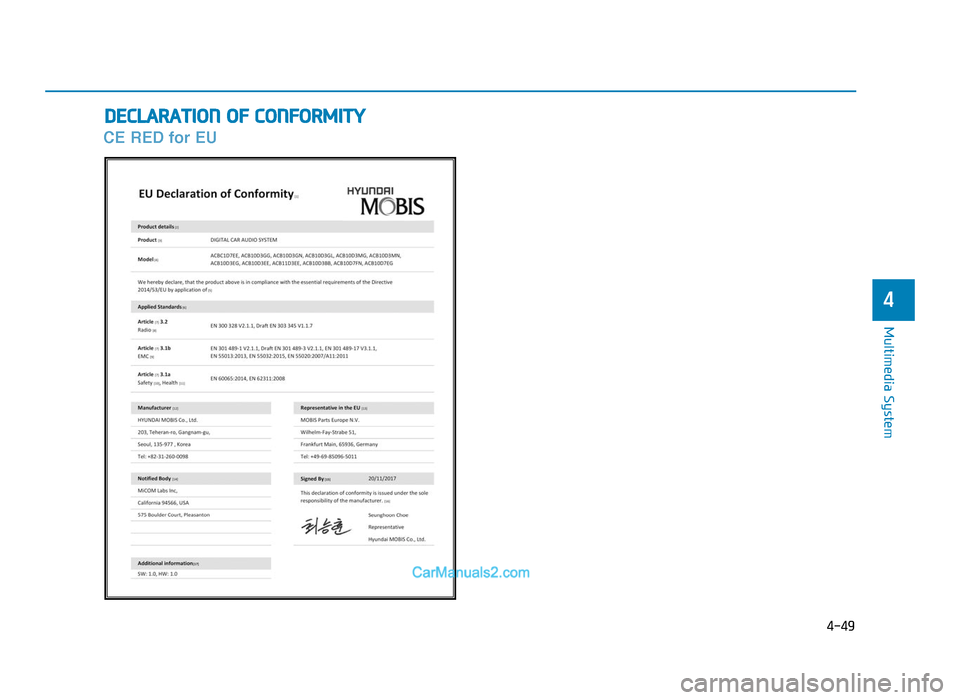

DECLARATION OF CONFORMITY
CE RED for EU
TLe UK 4.qxp 5/10/2018 12:05 PM Page 49

Driving your vehicle

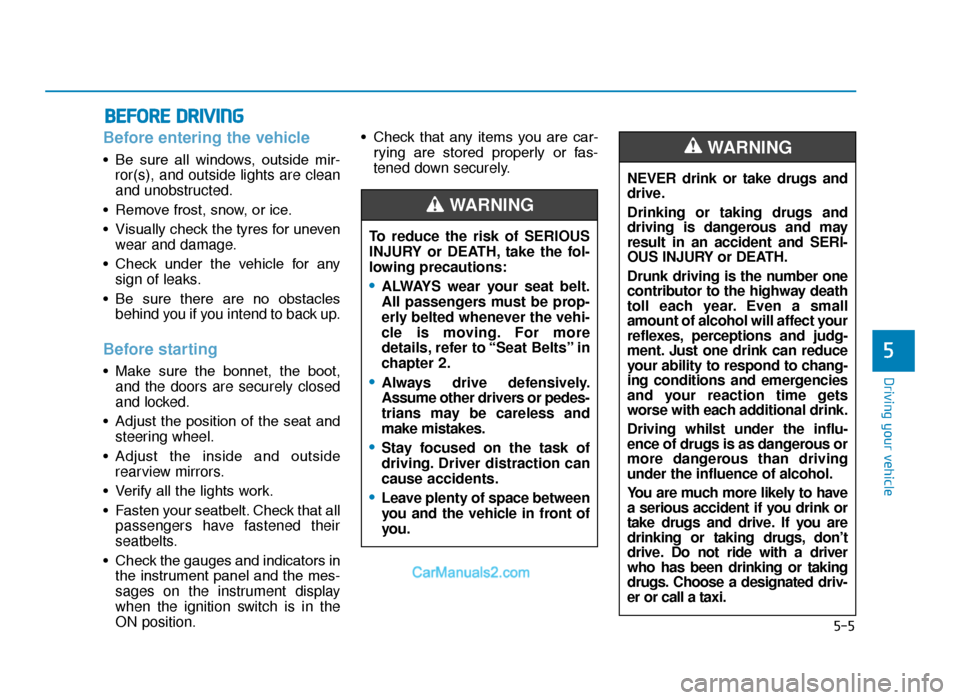

Before driving.........................................................5-5
Before entering the vehicle ...........................................5-5
Before starting...................................................................5-5
Ignition switch ........................................................5-6
Key ignition switch ............................................................5-6
Engine start/Stop button ..............................................5-11
Manual transaxle .................................................5-20
Manual transaxle operation .........................................5-20
Good driving practices ...................................................5-22
Automatic transaxle ............................................5-24
Automatic transaxle operation ....................................5-24
Parking ........................................................................\
.......5-29
Good driving practices ...................................................5-29
Dual clutch transmission .....................................5-31
Dual clutch transmission operation ...........................5-31
LCD display for transmission temperature
and warning message ....................................................5-33
Parking ........................................................................\
.......5-41
Good driving practices ...................................................5-41
Braking system.....................................................5-43
Power brakes ...................................................................5-43
Disc brakes wear indicator ...........................................5-44
Parking brake (hand type) ............................................5-44
Electronic Parking Brake (EPB)...................................5-46
Auto hold ........................................................................\
...5-52
Anti-lock Brake System (ABS) ....................................5-56
Electronic Stability Control (ESC)................................5-58
Vehicle Stability Management (VSM).........................5-62
Hill-Start Assist Control (HAC) ....................................5-63
Downhill Brake Control (DBC) ......................................5-64
Emergency Stop Signal (ESS) ......................................5-66
Good braking practices..................................................5-67
Four wheel drive (4WD) ......................................5-68
4WD operation .................................................................5-69
Emergency precautions .................................................5-73
Reducing the risk of a rollover ...................................5-74
Idle Stop and Go (ISG) system ...........................5-76
To activate the ISG system ...........................................5-76
To deactivate the ISG system ......................................5-80
ISG system malfunction .................................................5-80
The battery sensor deactivation .................................5-81
5
TLe UK 5.qxp 5/10/2018 12:18 PM Page 1

5

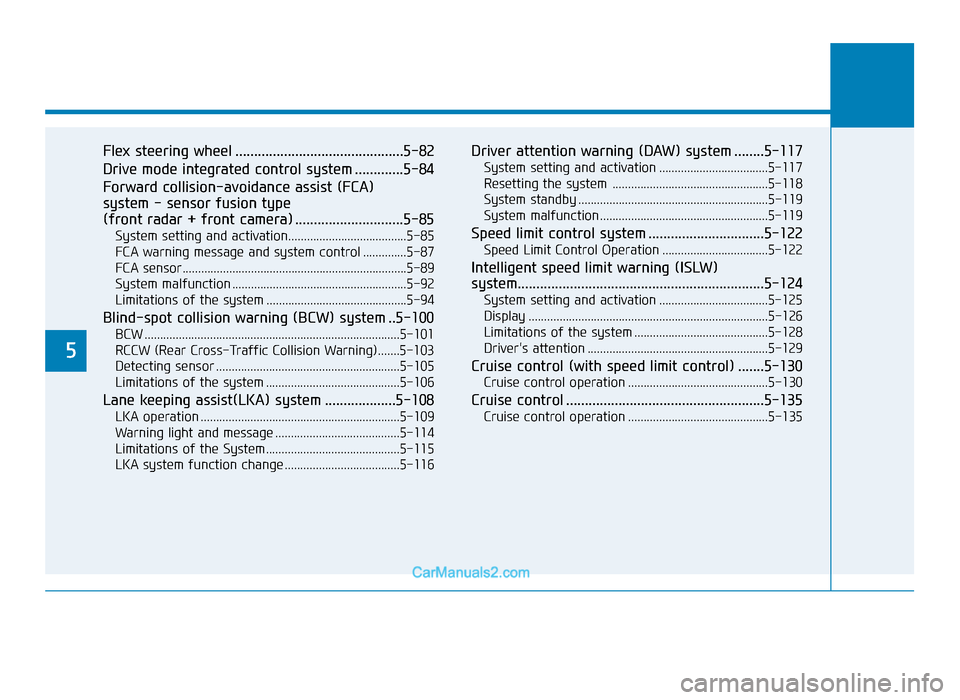

Flex steering wheel .............................................5-82
Drive mode integrated control system .............5-84
Forward collision-avoidance assist (FCA)
system - sensor fusion type
(front radar + front camera) .............................5-85
System setting and activation......................................5-85
FCA warning message and system control ..............5-87
FCA sensor........................................................................\
5-89
System malfunction ........................................................5-92
Limitations of the system .............................................5-94
Blind-spot collision warning (BCW) system ..5-100
BCW ........................................................................\
..........5-101
RCCW (Rear Cross-Traffic Collision Warning).......5-103
Detecting sensor ...........................................................5-105
Limitations of the system ...........................................5-106
Lane keeping assist(LKA) system ...................5-108
LKA operation ................................................................5-109
Warning light and message ........................................5-114
Limitations of the System...........................................5-115
LKA system function change .....................................5-116
Driver attention warning (DAW) system ........5-117
System setting and activation ...................................5-117
Resetting the system ..................................................5-118
System standby .............................................................5-119
System malfunction......................................................5-119
Speed limit control system ...............................5-122
Speed Limit Control Operation ..................................5-122
Intelligent speed limit warning (ISLW)
system..................................................................\
5-124
System setting and activation ...................................5-125
Display ........................................................................\
.....5-126
Limitations of the system ...........................................5-128
Driver's attention ..........................................................5-129
Cruise control (with speed limit control) .......5-130
Cruise control operation .............................................5-130
Cruise control .....................................................5-135
Cruise control operation .............................................5-135
TLe UK 5.qxp 5/10/2018 12:18 PM Page 2

Driving your vehicle
Smart cruise control (SCC) with stop & go
system..................................................................\
5-142
Smart Cruise Control Switch ......................................5-142
Smart Cruise Control speed........................................5-143
Smart Cruise Control Vehicle-to-Vehicle
Distance ........................................................................\
...5-149
Sensor to detect distance to the vehicle ahead ...5-152
To adjust the sensitivity of Smart Cruise
Control ........................................................................\
.....5-154
To convert to Cruise Control mode ..........................5-155
Limitations of the system ...........................................5-155
Special driving conditions .................................5-160
Hazardous driving conditions ....................................5-160
Rocking the vehicle ......................................................5-160
Smooth cornering .........................................................5-161
Driving at night ..............................................................5-161
Driving in the rain .........................................................5-161
Driving in flooded areas..............................................5-162
Highway driving .............................................................5-162
Reducing the risk of a rollover .................................5-163
Winter driving .....................................................5-164
Snow or icy conditions ................................................5-164
Winter Precautions .......................................................5-166
Trailer towing .....................................................5-169
If you decide to pull a trailer?...................................5-170
Trailer towing equipment ............................................5-173
Driving with a trailer ....................................................5-174
Maintenance when towing a trailer .........................5-178
Vehicle weight ....................................................5-179
Overloading ....................................................................5-17\
9
5
TLe UK 5.qxp 5/10/2018 12:18 PM Page 3

5-4

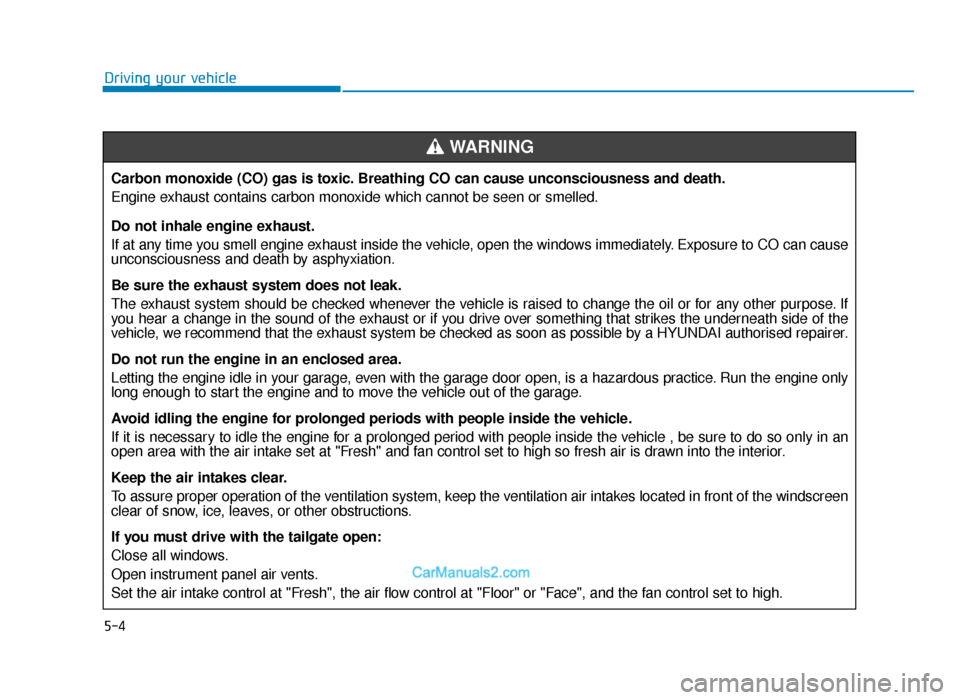

Driving your vehicleCarbon monoxide (CO) gas is toxic. Breathing CO can cause unconsciousness and death.
Engine exhaust contains carbon monoxide which cannot be seen or smelled.
Do not inhale engine exhaust.
If at any time you smell engine exhaust inside the vehicle, open the windows immediately. Exposure to CO can cause
unconsciousness and death by asphyxiation.
Be sure the exhaust system does not leak.
The exhaust system should be checked whenever the vehicle is raised to change the oil or for any other purpose. If
you hear a change in the sound of the exhaust or if you drive over something that strikes the underneath side of the
vehicle, we recommend that the exhaust system be checked as soon as possible by a HYUNDAI authorised repairer.
Do not run the engine in an enclosed area.
Letting the engine idle in your garage, even with the garage door open, is a hazardous practice. Run the engine only
long enough to start the engine and to move the vehicle out of the garage.
Avoid idling the engine for prolonged periods with people inside the vehicle.
If it is necessary to idle the engine for a prolonged period with people inside the vehicle , be sure to do so only in an
open area with the air intake set at "Fresh" and fan control set to high so fresh air is drawn into the interior.
Keep the air intakes clear.
To assure proper operation of the ventilation system, keep the ventilation air intakes located in front of the windscreen
clear of snow, ice, leaves, or other obstructions.
If you must drive with the tailgate open:
Close all windows.
Open instrument panel air vents.
Set the air intake control at "Fresh", the air flow control at "Floor" or "Face", and the fan control set to high.
WARNING
TLe UK 5.qxp 5/10/2018 12:18 PM Page 4

5-5
Driving your vehicle
5
Before entering the vehicle
• Be sure all windows, outside mir-ror(s), and outside lights are clean
and unobstructed.
• Remove frost, snow, or ice.
• Visually check the tyres for uneven wear and damage.
• Check under the vehicle for any sign of leaks.
• Be sure there are no obstacles behind you if you intend to back up.
Before starting
• Make sure the bonnet, the boot,and the doors are securely closed
and locked.
• Adjust the position of the seat and steering wheel.
• Adjust the inside and outside rearview mirrors.
• Verify all the lights work.
• Fasten your seatbelt. Check that all passengers have fastened their
seatbelts.
• Check the gauges and indicators in the instrument panel and the mes-
sages on the instrument display
when the ignition switch is in the
ON position. • Check that any items you are car-
rying are stored properly or fas-
tened down securely.
BEFORE DRIVING
NEVER drink or take drugs and
drive.
Drinking or taking drugs and
driving is dangerous and may
result in an accident and SERI-
OUS INJURY or DEATH.
Drunk driving is the number one
contributor to the highway death
toll each year. Even a small
amount of alcohol will affect your
reflexes, perceptions and judg-
ment. Just one drink can reduce
your ability to respond to chang-
ing conditions and emergencies
and your reaction time gets
worse with each additional drink.
Driving whilst under the influ-
ence of drugs is as dangerous or
more dangerous than driving
under the influence of alcohol.
You are much more likely to have
a serious accident if you drink or
take drugs and drive. If you are
drinking or taking drugs, don’t
drive. Do not ride with a driver
who has been drinking or taking
drugs. Choose a designated driv-
er or call a taxi.
WARNING
To reduce the risk of SERIOUS
INJURY or DEATH, take the fol-
lowing precautions:
•ALWAYS wear your seat belt.
All passengers must be prop-
erly belted whenever the vehi-
cle is moving. For more
details, refer to “Seat Belts” in
chapter 2.
•Always drive defensively.
Assume other drivers or pedes-
trians may be careless and
make mistakes.
•Stay focused on the task of
driving. Driver distraction can
cause accidents.
•Leave plenty of space between
you and the vehicle in front of
you.
WARNING
TLe UK 5.qxp 5/10/2018 12:19 PM Page 5

5-6
Driving your vehicle
IGNITION SWITCH
Key ignition switch•
NEVER turn the ignition switch
to the LOCK or ACC position
whilst the vehicle is in motion
except in an emergency. This
will result in the engine turning
off and loss of power assist for
the steering and brake sys-
tems. This may lead to loss of
directional control and braking
function, which could cause
an accident. (Continued)
WARNING
(Continued)
•Before leaving the driver’s
seat, always make sure the
shift lever is in 1st gear (for
manual transaxle vehicle) or P
(Park, for automatic transaxle
/dual clutch transmission vehi-
cle) position, apply the parking
brake, and turn ignition switch
to the LOCK position.
Unexpected vehicle move-
ment may occur if these pre-
cautions are not followed.To reduce the risk of SERIOUS
INJURY or DEATH, take the fol-
lowing precautions:
•NEVER allow children or any
person who is unfamiliar with
the vehicle to touch the igni-
tion switch or related parts.
Unexpected and sudden vehi-
cle movement can occur.
•NEVER reach through the
steering wheel for the ignition
switch, or any other control,
whilst the vehicle is in motion.
The presence of your hand or
arm in this area may cause a
loss of vehicle control result-
ing in an accident.
WARNING
OED046002
LOCKACC
ON
START
TLe UK 5.qxp 5/10/2018 12:19 PM Page 6
