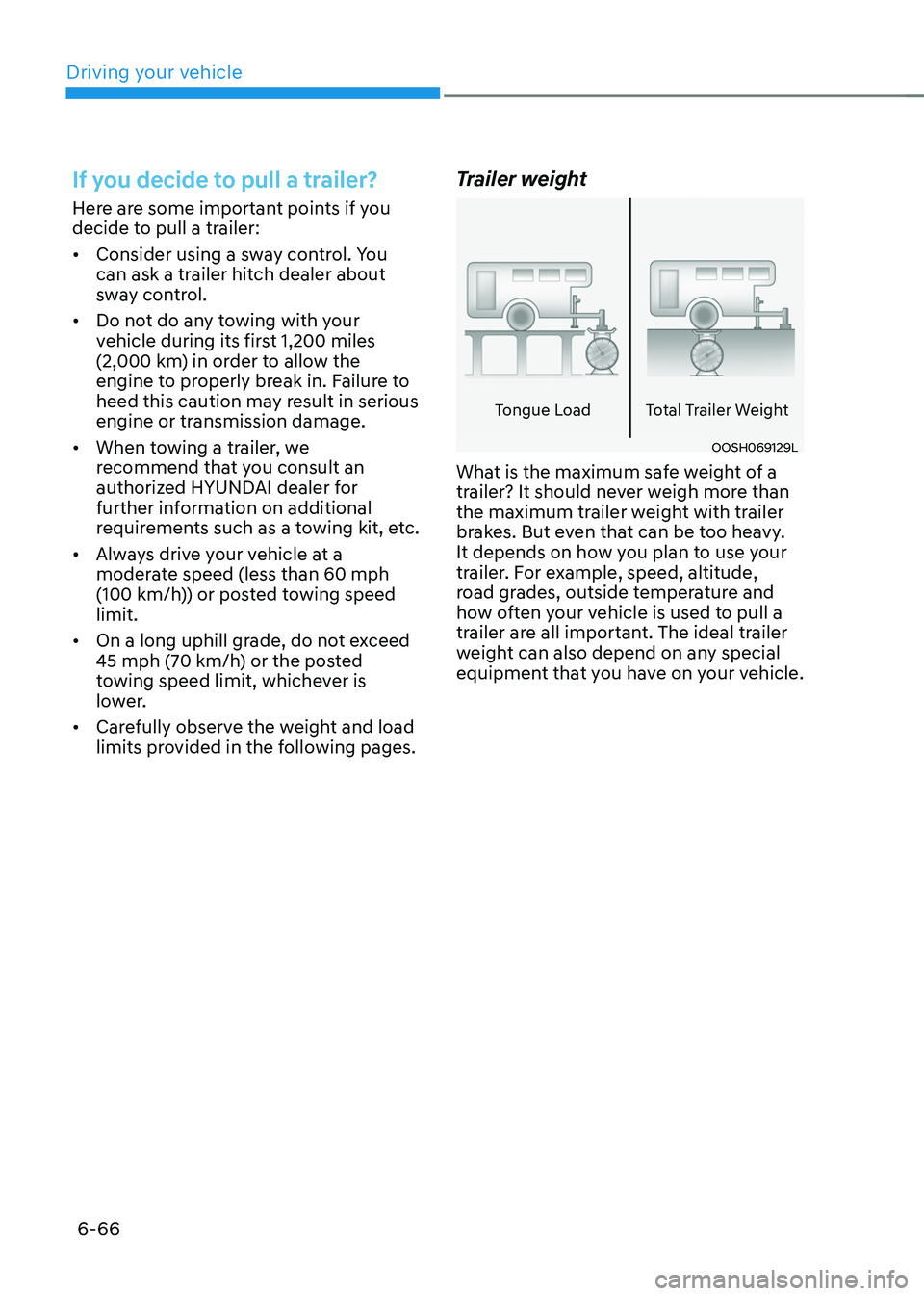

Page 351 of 638

HYUNDAI TUCSON 2022  Owners Manual Driving your vehicle
6-66
If you decide to pull a trailer?
Here are some important points if you
decide to pull a trailer:
•	Consider using a sway control. You
can ask a trailer hitch dealer about

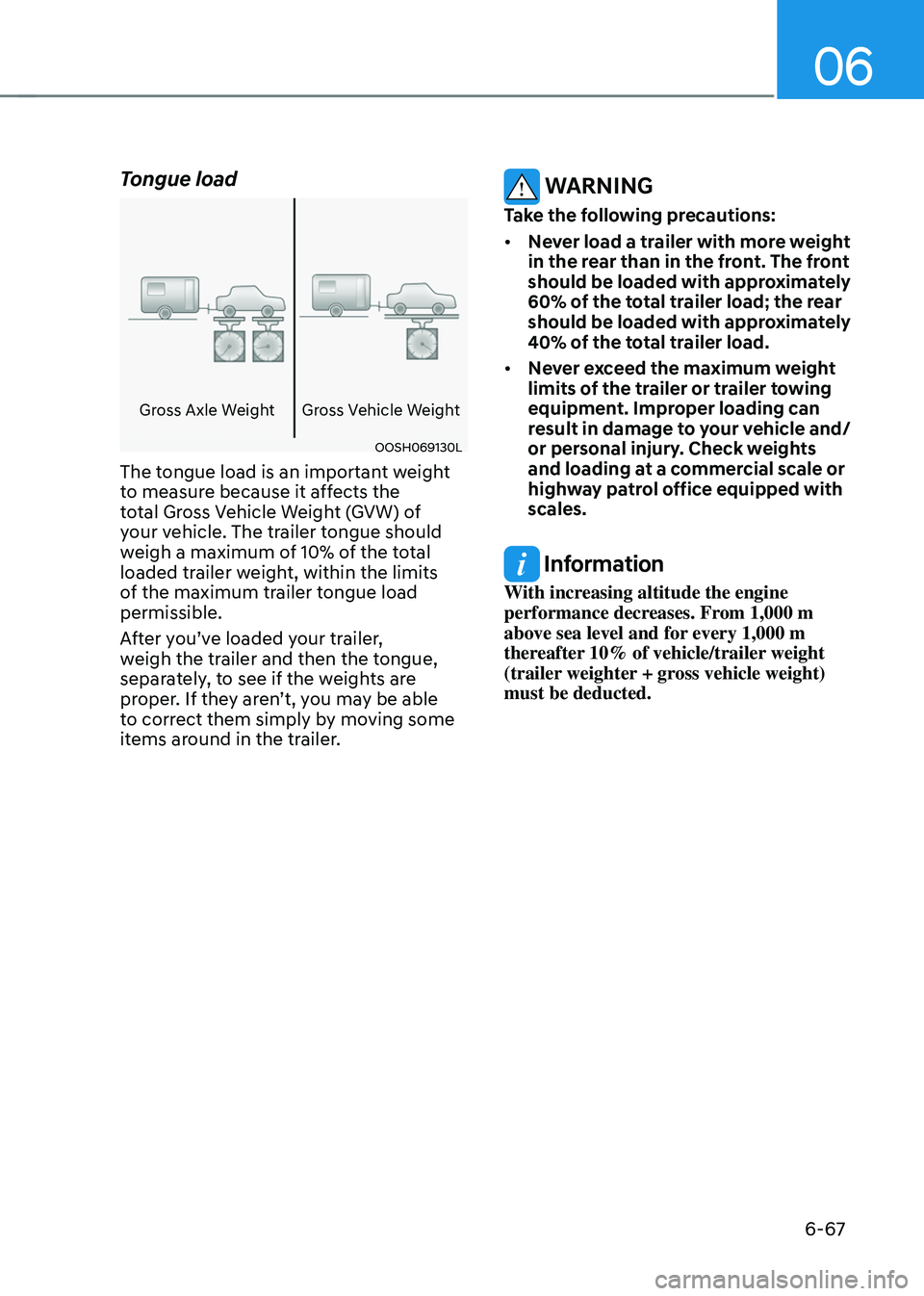

Page 352 of 638

HYUNDAI TUCSON 2022  Owners Manual 06
6-67
Tongue load
Gross Axle WeightGross Vehicle Weight
OOSH069130L
The tongue load is an important weight
to measure because it affects the
total Gross Vehicle Weight (GVW) of
your vehicle. The

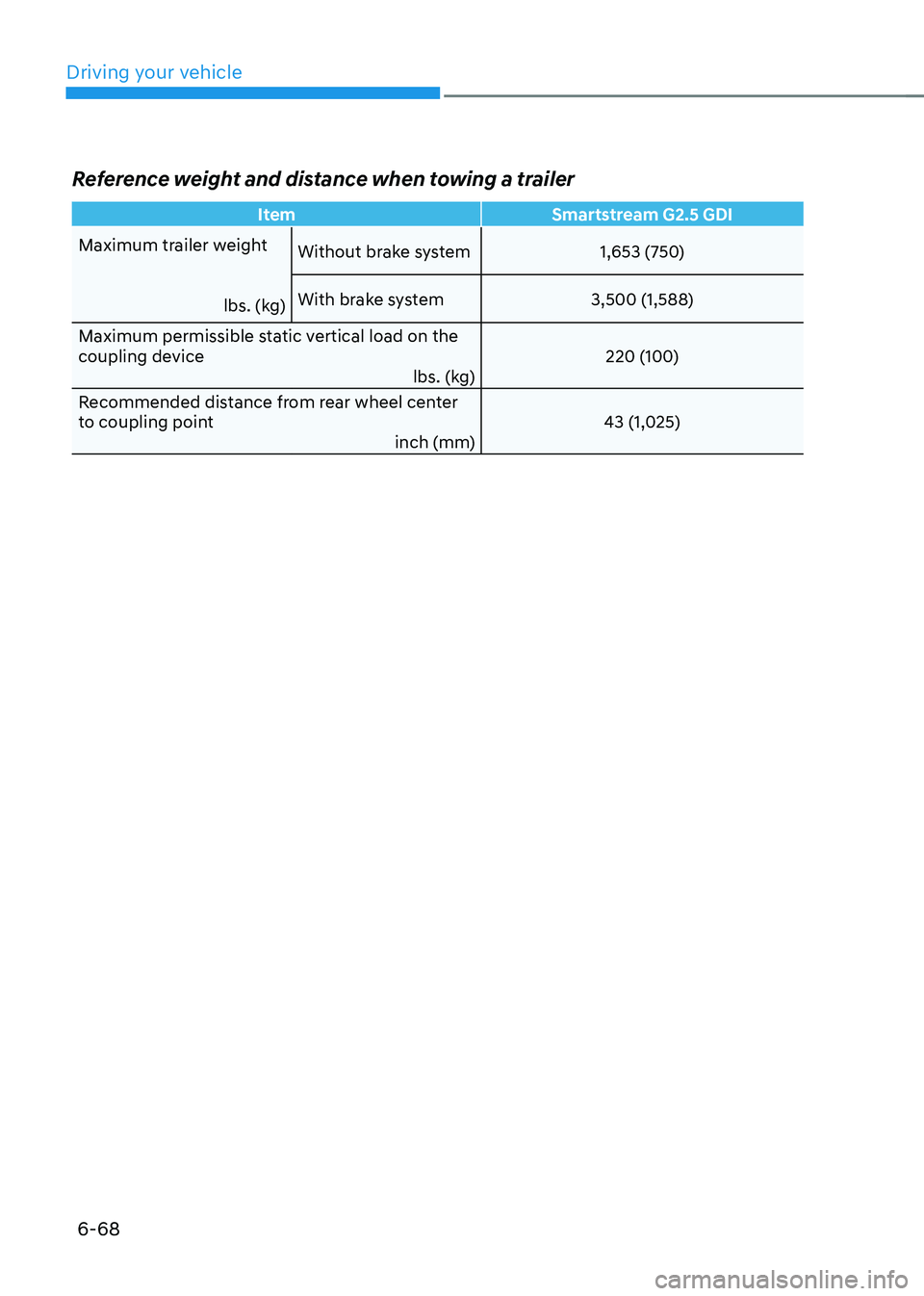

Page 353 of 638

HYUNDAI TUCSON 2022  Owners Manual Driving your vehicle
6-68
Reference weight and distance when towing a trailer
ItemSmartstream G2.5 GDI
Maximum trailer weight
lbs. (kg)Without brake system
1,653 (750)
With brake system 3,500 (1,588)

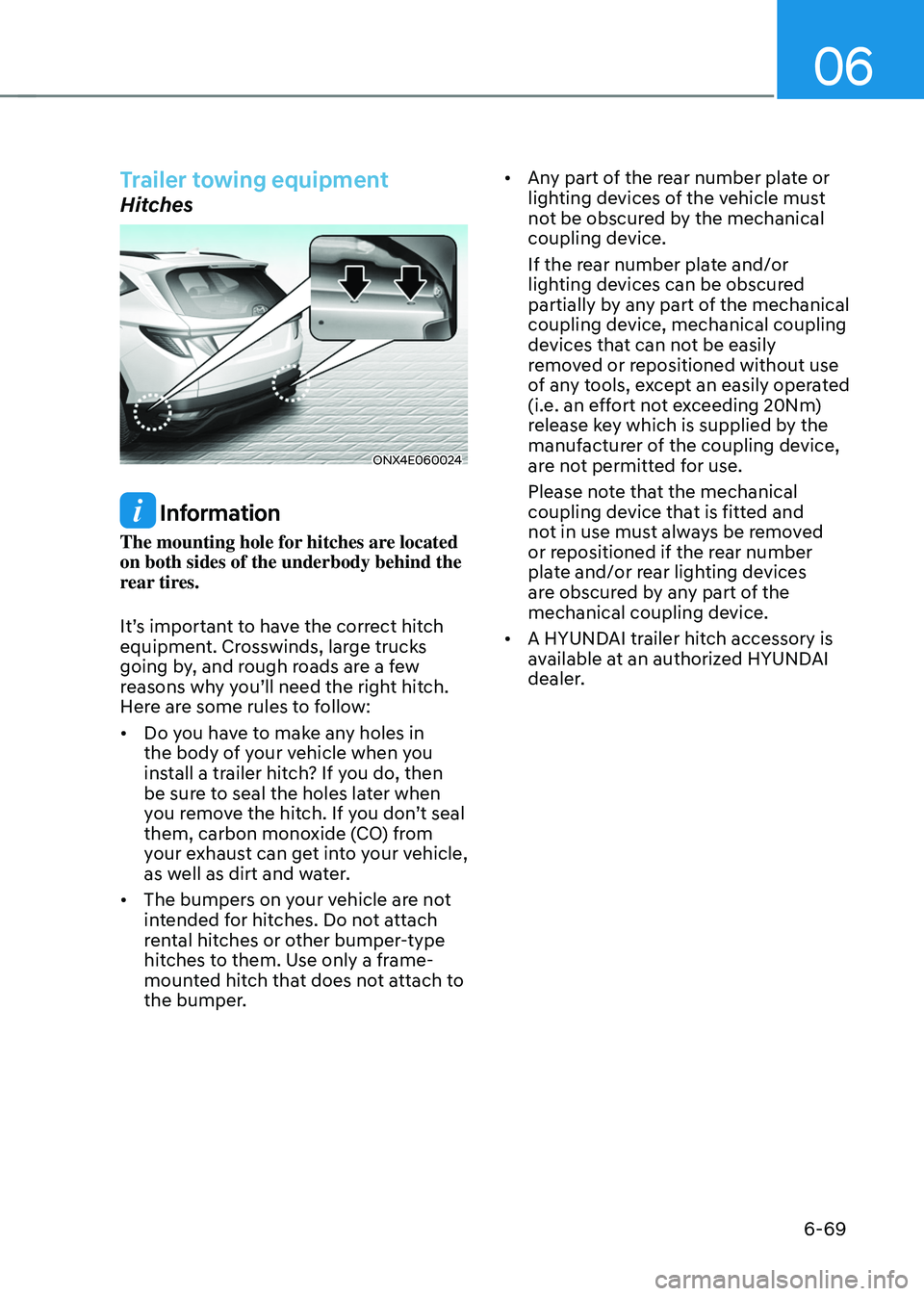

Page 354 of 638

HYUNDAI TUCSON 2022  Owners Manual 06
6-69
Trailer towing equipment
Hitches
ONX4E060024
 Information
The mounting hole for hitches are located
on both sides of the underbody behind the
rear tires.
It’s important to have the correct

Page 355 of 638

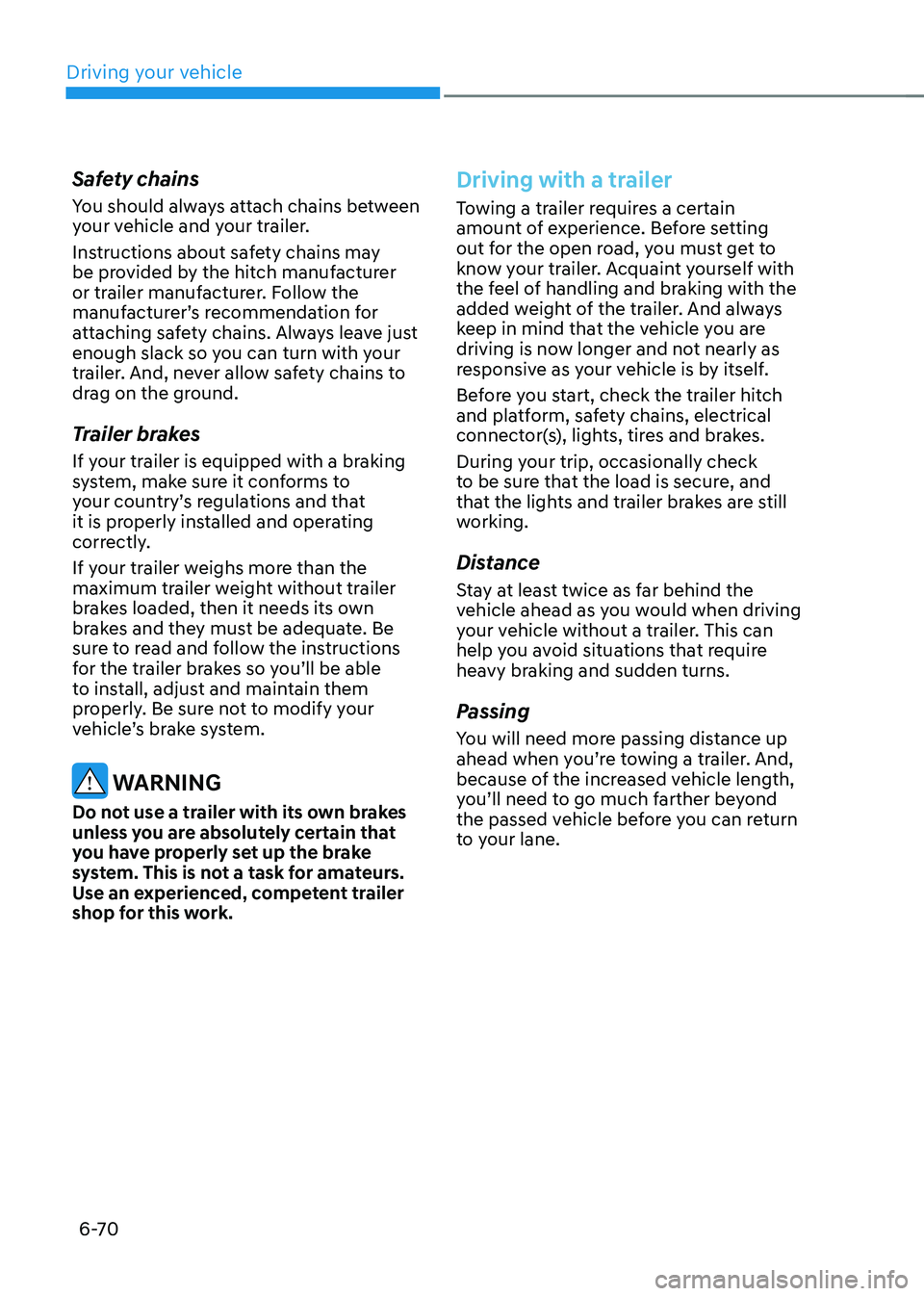

HYUNDAI TUCSON 2022  Owners Manual Driving your vehicle
6-70
Safety chains
You should always attach chains between
your vehicle and your trailer.
Instructions about safety chains may
be provided by the hitch manufacturer
or trailer

Page 356 of 638

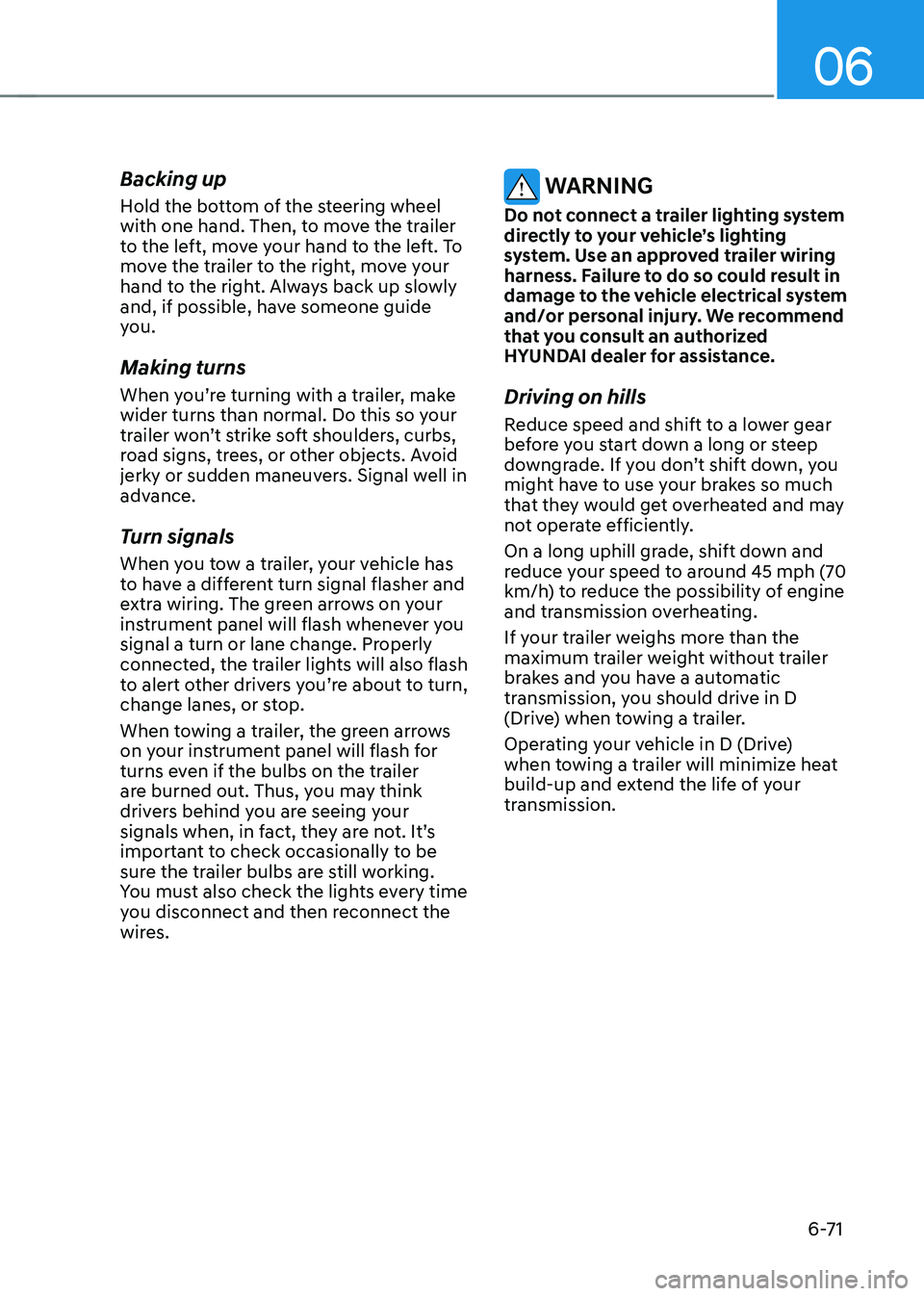

HYUNDAI TUCSON 2022  Owners Manual 06
6-71
Backing up
Hold the bottom of the steering wheel
with one hand. Then, to move the trailer
to the left, move your hand to the left. To
move the trailer to the right, move your
hand to the r

Page 357 of 638

HYUNDAI TUCSON 2022  Owners Manual Driving your vehicle
6-72

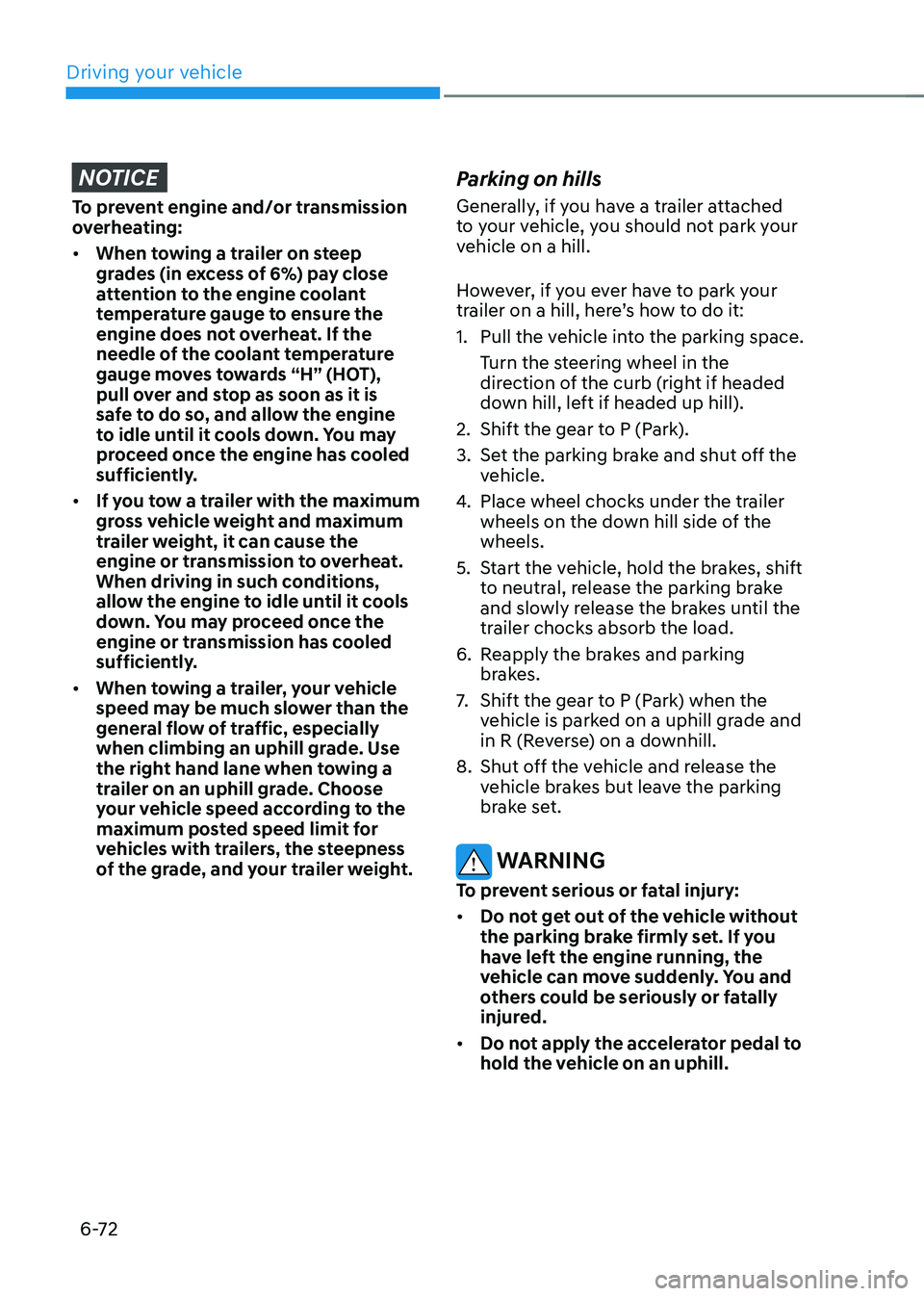

NOTICE
To prevent engine and/or transmission
overheating:
•	When towing a trailer on steep
grades (in excess of 6%) pay close
attention to the engine coolant
temperatur

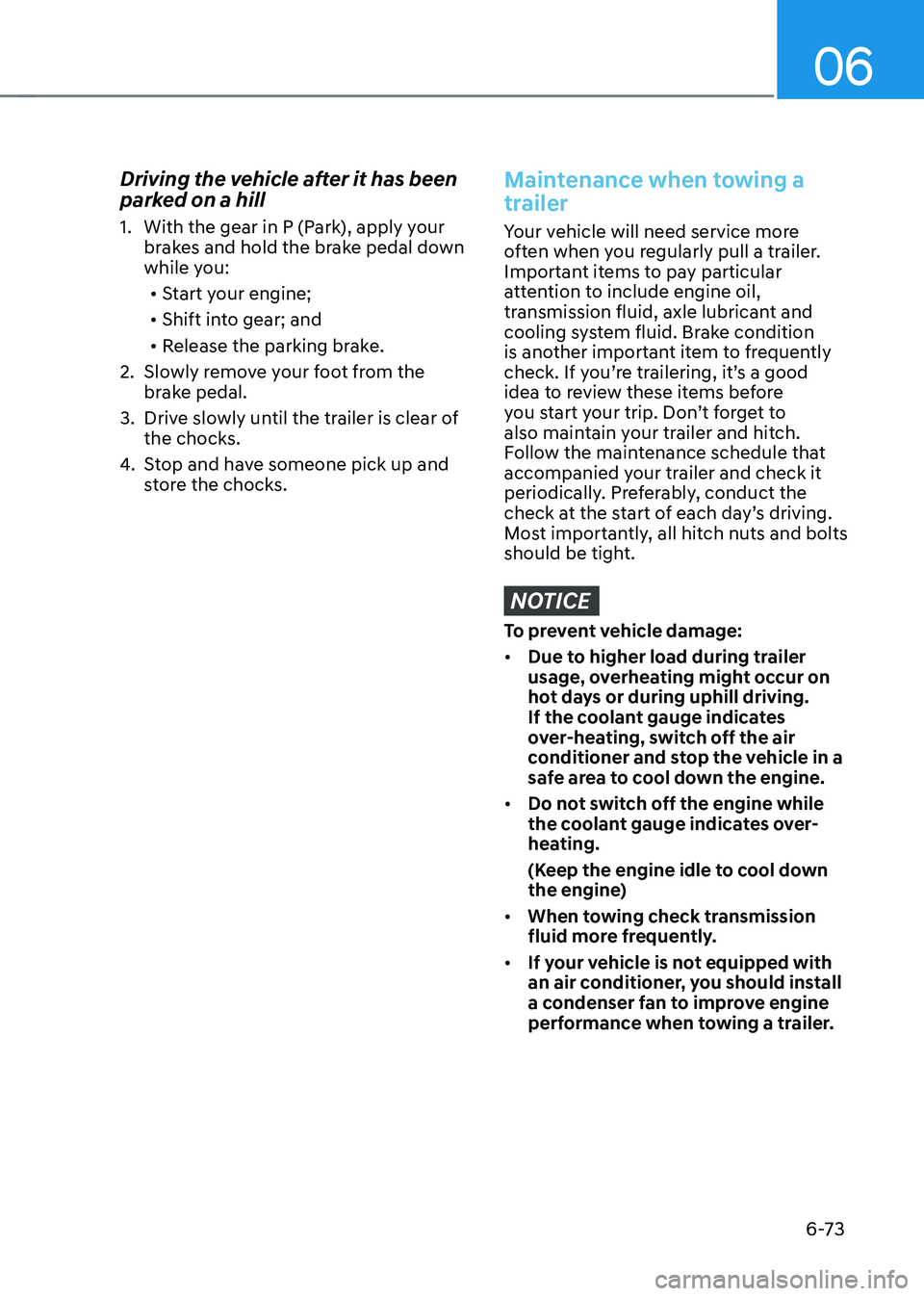

Page 358 of 638

HYUNDAI TUCSON 2022  Owners Manual 06
6-73
Driving the vehicle after it has been
parked on a hill
1. With the gear in P (Park), apply your
brakes and hold the brake pedal down
while you:•	 Start your engine;
•	 Shift into gear;

Page 359 of 638

HYUNDAI TUCSON 2022  Owners Manual Driving your vehicle
6 -74

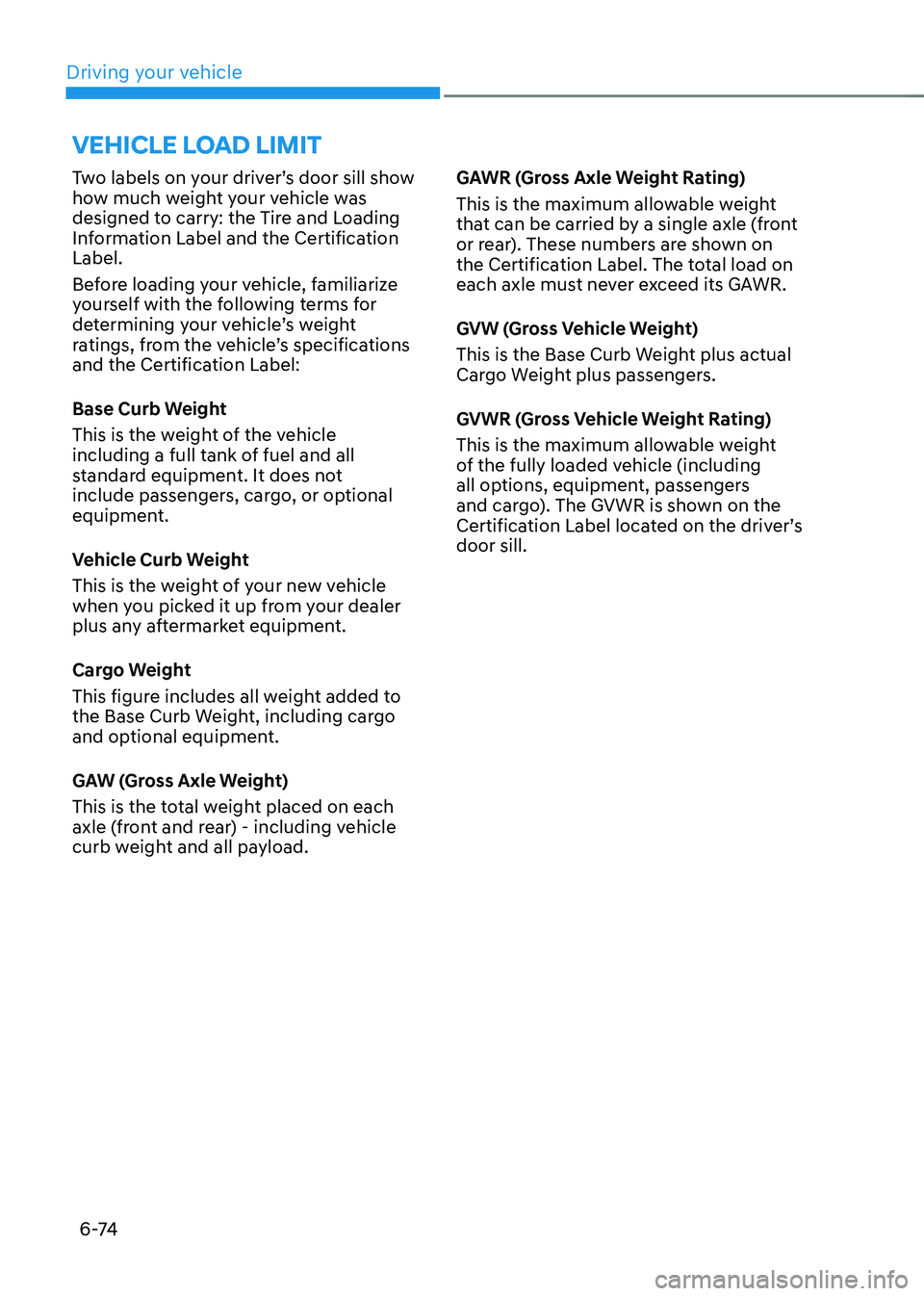

VEHICLE LOAD LIMIT
Two labels on your driver’s door sill show
how much weight your vehicle was
designed to carry: the Tire and Loading
Information Label and the Certifi

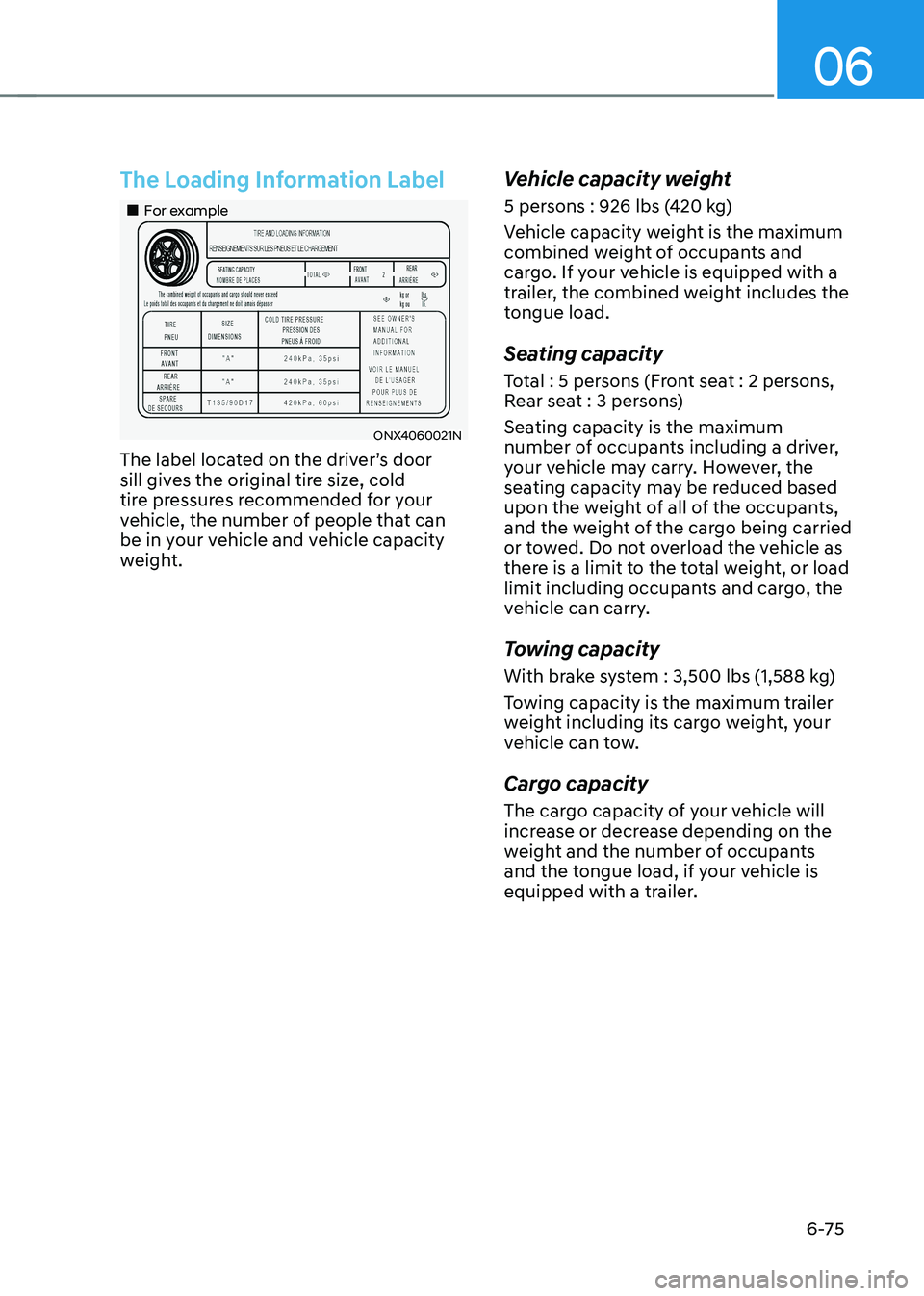

Page 360 of 638

HYUNDAI TUCSON 2022  Owners Manual 06
6-75
The Loading Information Label
„„For example
ONX4060021N
The label located on the driver’s door
sill gives the original tire size, cold
tire pressures recommended for your
vehicl
