HYUNDAI TUCSON HYBRID 2023 Owners Manual

Convenience Features5-86
Turn signals and lane change signals
ODN8A059207ODN8A059207
To signal a turn, push down on the lever
for a left turn or up for a right turn in
position (A).
If an indicator stays on and does not flash
or if it flashes abnormally, one of the turn
signal bulbs may be burned out and will
require replacement.
One touch turn signal
To use One Touch Turn Signal push the
turn signal le
ver up or down to position
(B) and then release it.
The lane change signals will blink 3, 5 or
7 times.
You can enable the One Touch Turn
Signal function or choose the number
of blinking by selecting ‘Setup
Ÿ User
Settings
Ÿ Lights
Ÿ One Touch Turn Signal

Ÿ Off/3 flashes/5 flashes/7 flashes’ in the
instrument panel LCD cluster.
Battery saver function
The purpose of this feature is to prevent
the battery from being discharged.
The system automatically turns off the
position lamp when the driver turns the
vehicle off and opens the driver-side
door.
With this feature, the position lamps will
turn off automatically if the driver parks
on the side of road at night.
If necessary, to keep the lamps on when
the vehicle is turned off, perform the
following:
However, the position lamps stay ON
even when the driver-side door is opened
if the headlight switch is turned to the
position lamp or AUTO (if equipped)
position after the engine is turned off.
If necessary, to keep the lamps on
turn the position lamps OFF and ON
again using the headlight switch on
the steering column after the engine is
turned off.

05
5-87
Headlight delay function
If you place the ignition switch to the
ACC position or the OFF position with
the headlights ON, the headlights (and/
or position lamps) remain on for about
5 minutes. However, if the driver’s door
is opened and closed, the headlights
are turned off after 15 seconds. Also,
with the vehicle off if the driver’s door is
opened and closed, the headlights (and/
or position lamps) are turned off after 15
seconds.
The headlights (and/or position lamps)
can be turned off by pressing the lock
button on the smart key twice or turning
the headlight switch to the OFF or AUTO
position.
You can enable the headlight delay
function by selecting ‘Setup
Ÿ User
Settings
Ÿ Lights
Ÿ Headlight Delay.
NOTICE
If the driver exits the vehicle through
another door besides the driver
door, the battery saver function
does not operate and the headlight
delay function does not turn OFF
automatically.
This may cause the battery to
discharge. To avoid battery discharge,
turn OFF the headlights manually from
the headlight switch before exiting the
vehicle.

Convenience Features5-88

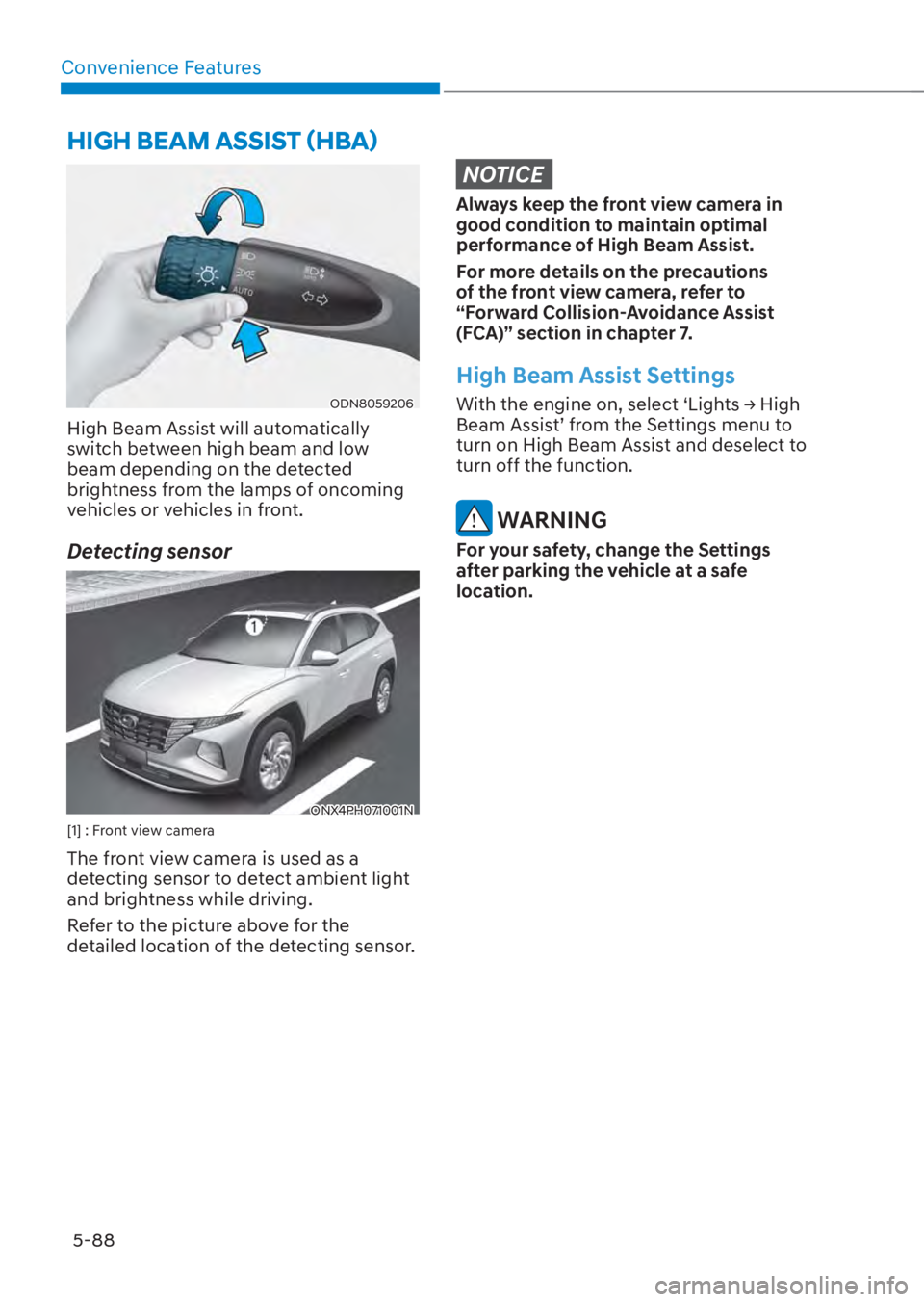

HIGH BEAM ASSIST
ãHBA
ä
ODN8059206ODN8059206
High Beam Assist will automatically
switch between high beam and low
beam depending on the detected
brightness from the lamps of oncoming
vehicles or vehicles in front.
Detecting sensor
ONX4PH071001NONX4PH071001N[1] : Front view camera
The front view camera is used as a
detecting sensor to detect ambient light
and brightness while driving.
Refer to the picture above for the
detailed location of the detecting sensor.
NOTICE
Always keep the front view camera in
good condition to maintain optimal
performance of High Beam Assist.
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
High Beam Assist Settings
With the engine on, select ‘Lights
Ÿ High
Beam Assist’ from the Settings menu to
turn on High Beam Assist and deselect to
turn off the function.
WARNING
For your safety, change the Settings
after parking the vehicle at a safe
location.

05
5-89

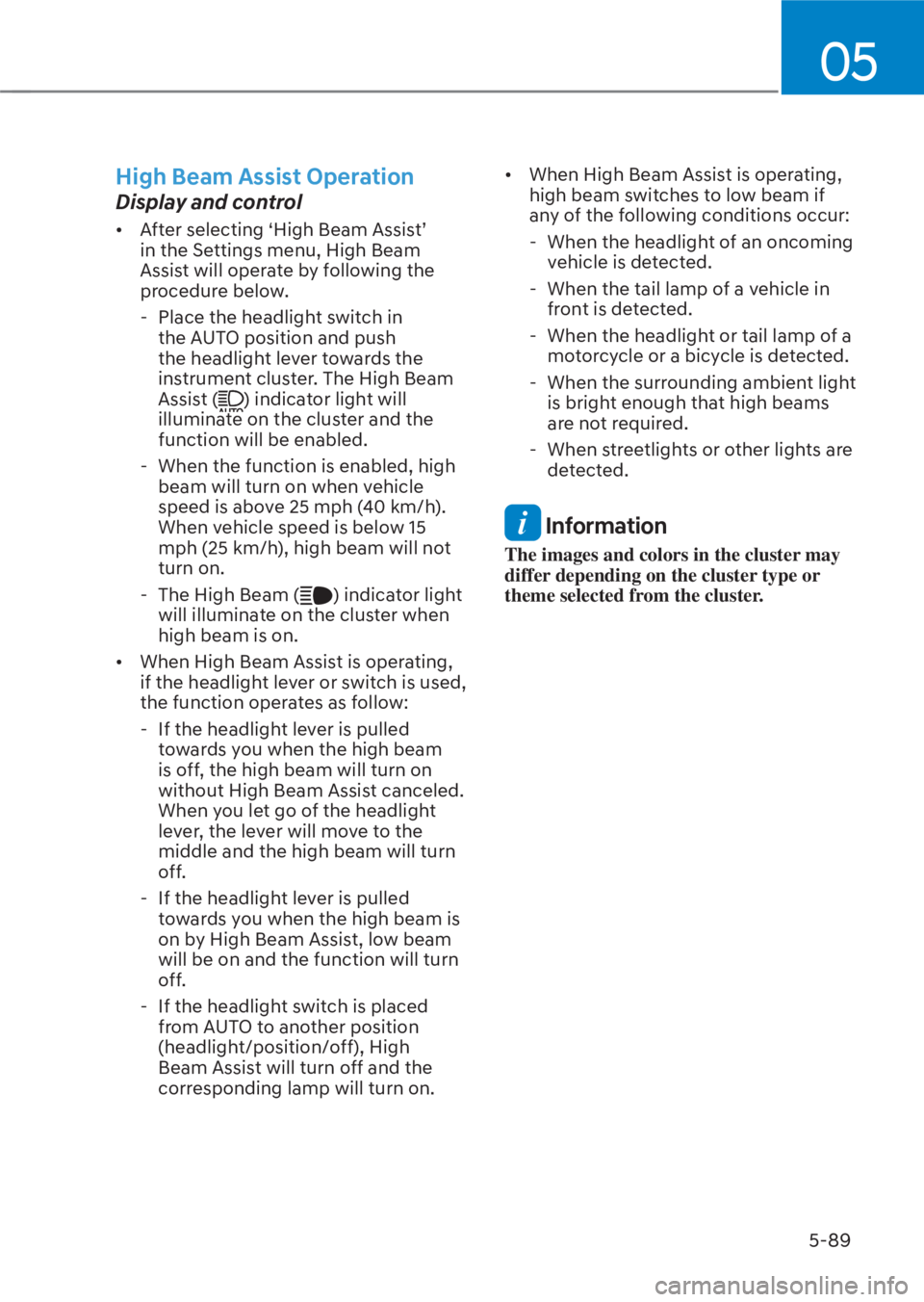

High Beam Assist Operation
Display and control
• After selecting ‘High Beam Assist’ in the Settings menu, High Beam
Assist will operate by following the
procedure below.
- Place the headlight switch in the AUTO position and push
the headlight lever towards the
instrument cluster. The High Beam
Assist (
) indicator light will
illuminate on the cluster and the
function will be enabled.
- When the function is enabled, high beam will turn on when vehicle
speed is above 25 mph (40 km/h).
When vehicle speed is below 15
mph (25 km/h), high beam will not
turn on.
- The High Beam (
) indicator light
will illuminate on the cluster when
high beam is on.
• When High Beam Assist is operating, if the headlight lever or switch is used,
the function operates as follow:
- If the headlight lever is pulled towards you when the high beam
is off, the high beam will turn on
without High Beam Assist canceled.
When you let go of the headlight
lever, the lever will move to the
middle and the high beam will turn
off.
- If the headlight lever is pulled towards you when the high beam is
on by High Beam Assist, low beam
will be on and the function will turn
off.
- If the headlight switch is placed from AUTO to another position
(headlight/position/off), High
Beam Assist will turn off and the
corresponding lamp will turn on. • When High Beam Assist is operating,
high beam switches to low beam if
any of the following conditions occur:
- When the headlight of an oncoming vehicle is detected.
- When the tail lamp of a vehicle in front is detected.
- When the headlight or tail lamp of a motorcycle or a bicycle is detected.

- When the surrounding ambient light
is bright enough that high beams
are not required.

- When streetlights or other lights are
detected.
Information
The images and colors in the cluster may
differ depending on the cluster type or
theme selected from the cluster.

Convenience Features5-90

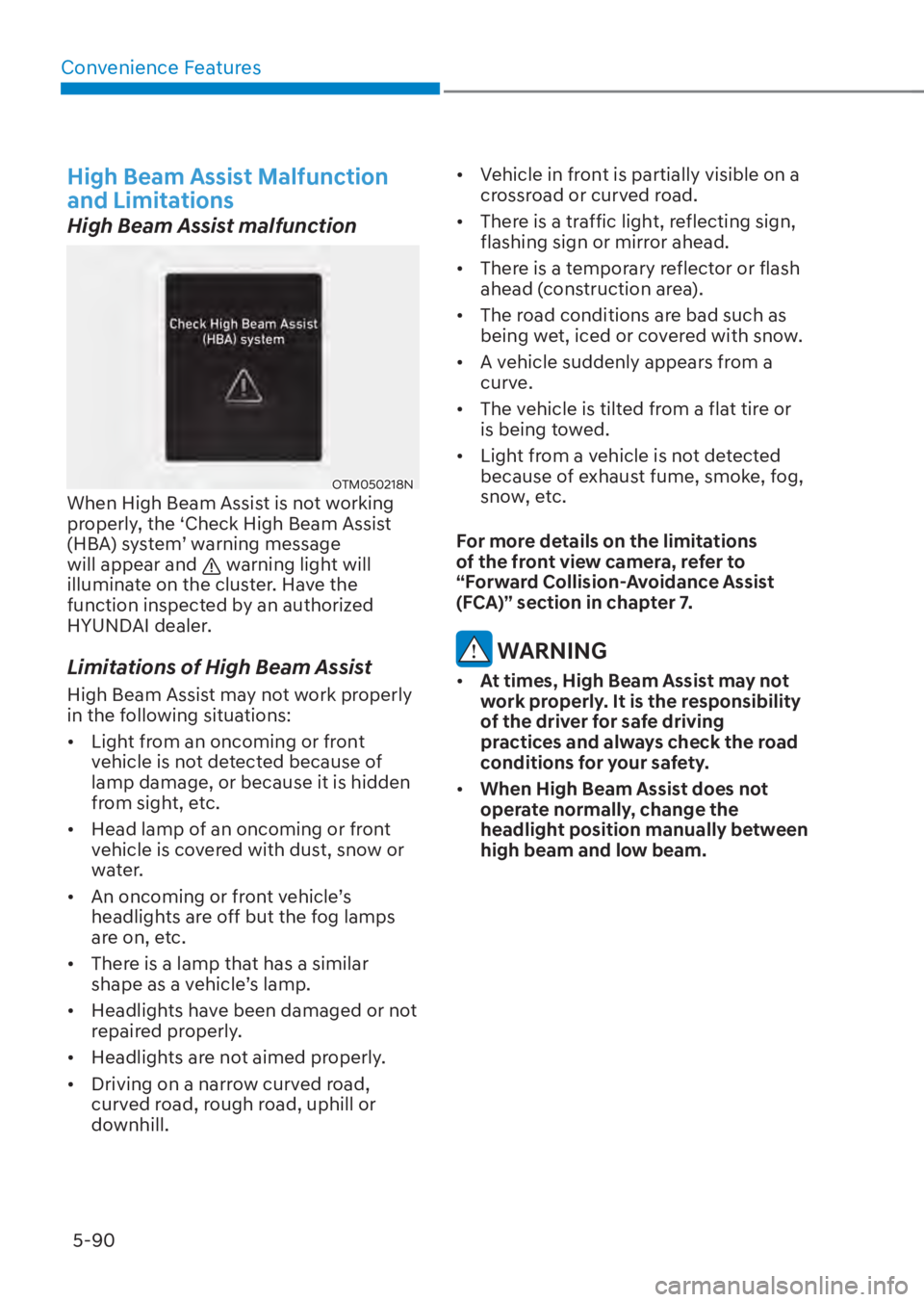

High Beam Assist Malfunction
and Limitations
High Beam Assist malfunction
OTM050218NOTM050218NWhen High Beam Assist is not working
properly, the ‘Check High Beam Assist
(HBA) system’ warning message
will appear and
warning light will
illuminate on the cluster. Have the
function inspected by an authorized
HYUNDAI dealer.
Limitations of High Beam Assist
High Beam Assist may not work properly
in the following situations:
• Light from an oncoming or front vehicle is not detected because of
lamp damage, or because it is hidden
from sight, etc.
• Head lamp of an oncoming or front vehicle is covered with dust, snow or
water.
• An oncoming or front vehicle’s headlights are off but the fog lamps
are on, etc.
• There is a lamp that has a similar shape as a vehicle’s lamp.
• Headlights have been damaged or not repaired properly.
• Headlights are not aimed properly.
• Driving on a narrow curved road, curved road, rough road, uphill or
downhill. • Vehicle in front is partially visible on a
crossroad or curved road.
• There is a traffic light, reflecting sign, flashing sign or mirror ahead.
• There is a temporary reflector or flash ahead (construction area).
• The road conditions are bad such as being wet, iced or covered with snow.
• A vehicle suddenly appears from a curve.
• The vehicle is tilted from a flat tire or is being towed.
• Light from a vehicle is not detected because of exhaust fume, smoke, fog,
snow, etc.
For more details on the limitations
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
WARNING
• At times, High Beam Assist may not
work properly. It is the responsibility
of the driver for safe driving
practices and always check the road
conditions for your safety.
• When High Beam Assist does not
operate normally, change the
headlight position manually between
high beam and low beam.

05
5-91

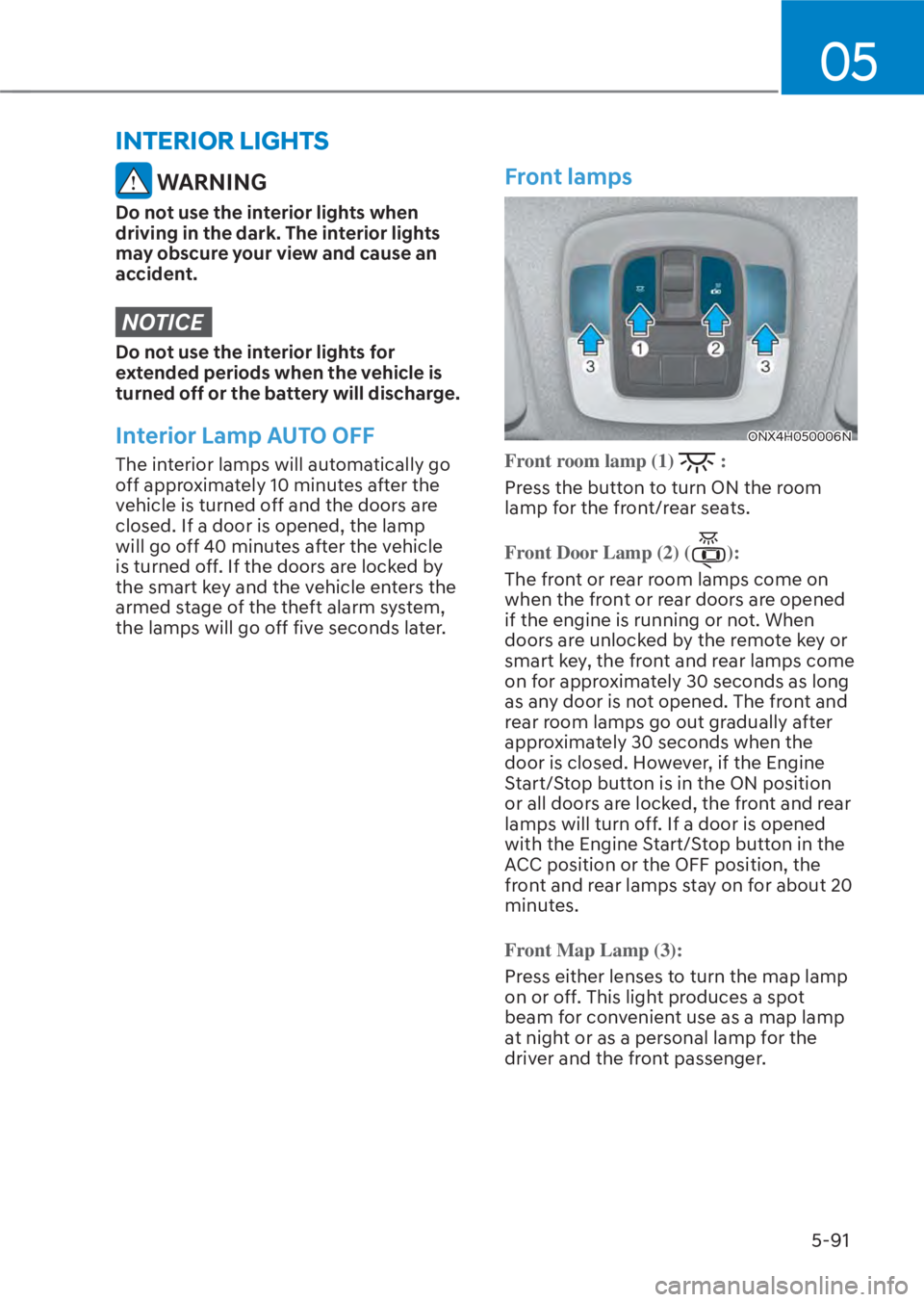

INTERIOR LIGHTS
WARNING
Do not use the interior lights when
driving in the dark. The interior lights
may obscure your view and cause an
accident.
NOTICE
Do not use the interior lights for
extended periods when the vehicle is
turned off or the battery will discharge.
Interior Lamp AUTO OFF
The interior lamps will automatically go
off approximately 10 minutes after the
vehicle is turned off and the doors are
closed. If a door is opened, the lamp
will go off 40 minutes after the vehicle
is turned off. If the doors are locked by
the smart key and the vehicle enters the
armed stage of the theft alarm system,
the lamps will go off five seconds later.
Front lamps
ONX4H050006NONX4H050006N
Front room lamp (1) :
Press the button to turn ON the room
lamp f
or the front/rear seats.
Front Door Lamp (2) (
):
The front or rear room lamps come on
when the fr
ont or rear doors are opened
if the engine is running or not. When
doors are unlocked by the remote key or
smart key, the front and rear lamps come
on for approximately 30 seconds as long
as any door is not opened. The front and
rear room lamps go out gradually after
approximately 30 seconds when the
door is closed. However, if the Engine
Start/Stop button is in the ON position
or all doors are locked, the front and rear
lamps will turn off. If a door is opened
with the Engine Start/Stop button in the
ACC position or the OFF position, the
front and rear lamps stay on for about 20
minutes.
Front Map Lamp (3):
Press either lenses to turn the map lamp
on or o
ff. This light produces a spot
beam for convenient use as a map lamp
at night or as a personal lamp for the
driver and the front passenger.

Convenience Features5-92

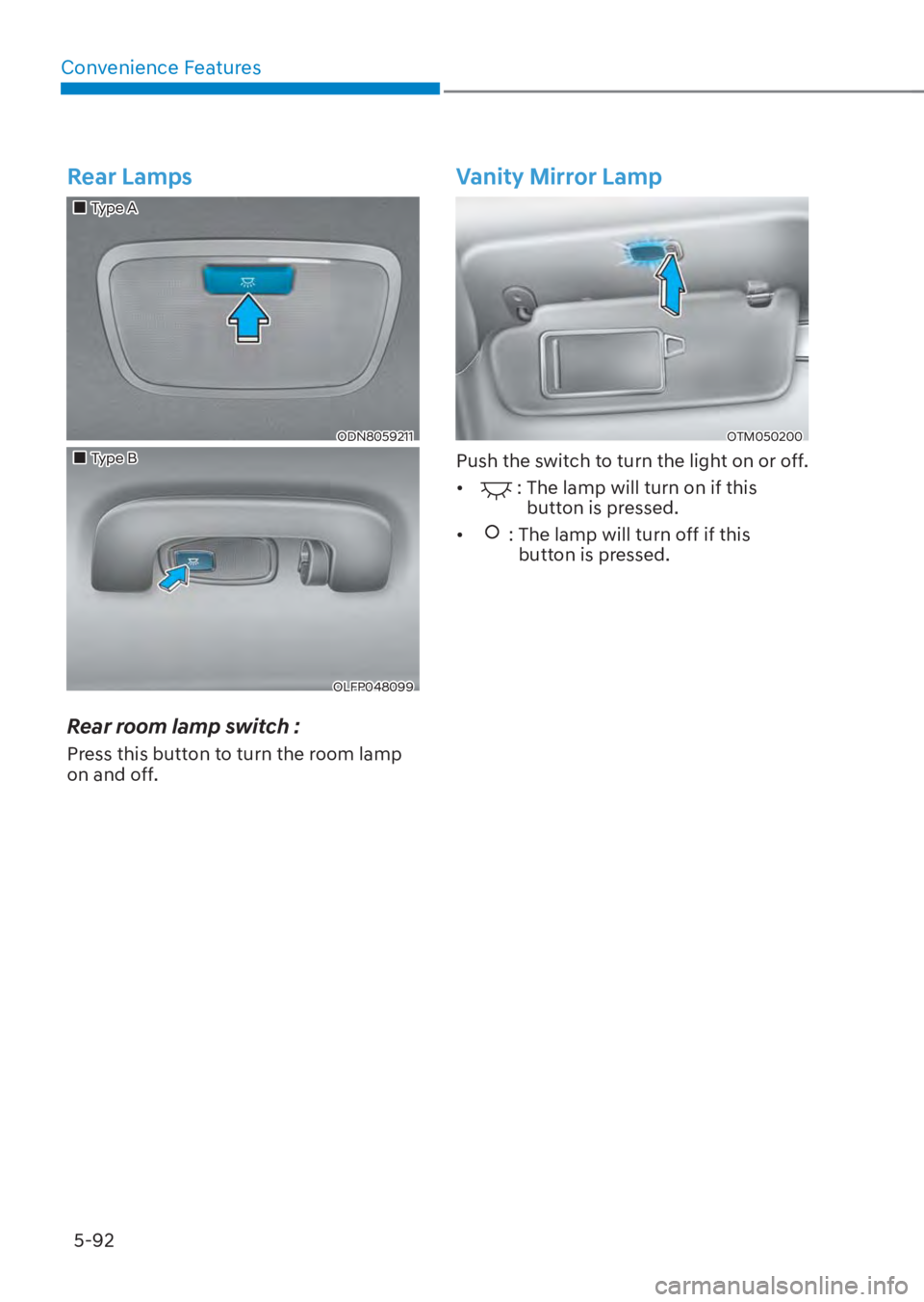

Rear Lamps
„„Type AType A
ODN8059211ODN8059211
„„Type BType B
OLFP048099OLFP048099
Rear room lamp switch :
Press this button to turn the room lamp
on and off.
Vanity Mirror Lamp
OTM050200OTM050200
Push the switch to turn the light on or off.
•
: The lamp will turn on if this button is pressed.
•
: The lamp will turn off if this button is pressed.

05
5-93
Glove Box Lamp
ONX4050039ONX4050039
The glove box lamp turns on when the
glove box is opened.
Luggage Compartment Lamp
ONX4050040ONX4050040
• OFF : The luggage compartment lamp is off.
• ON : The luggage compartment lamp stays on at all times.
- It turns on while the liftgate is opened, and turns off while closed.
If the Engine Start/Stop button is
in OFF position while the liftgate
opened, the lamp stays on for about
10 minutes before turns off.

Convenience Features5-94

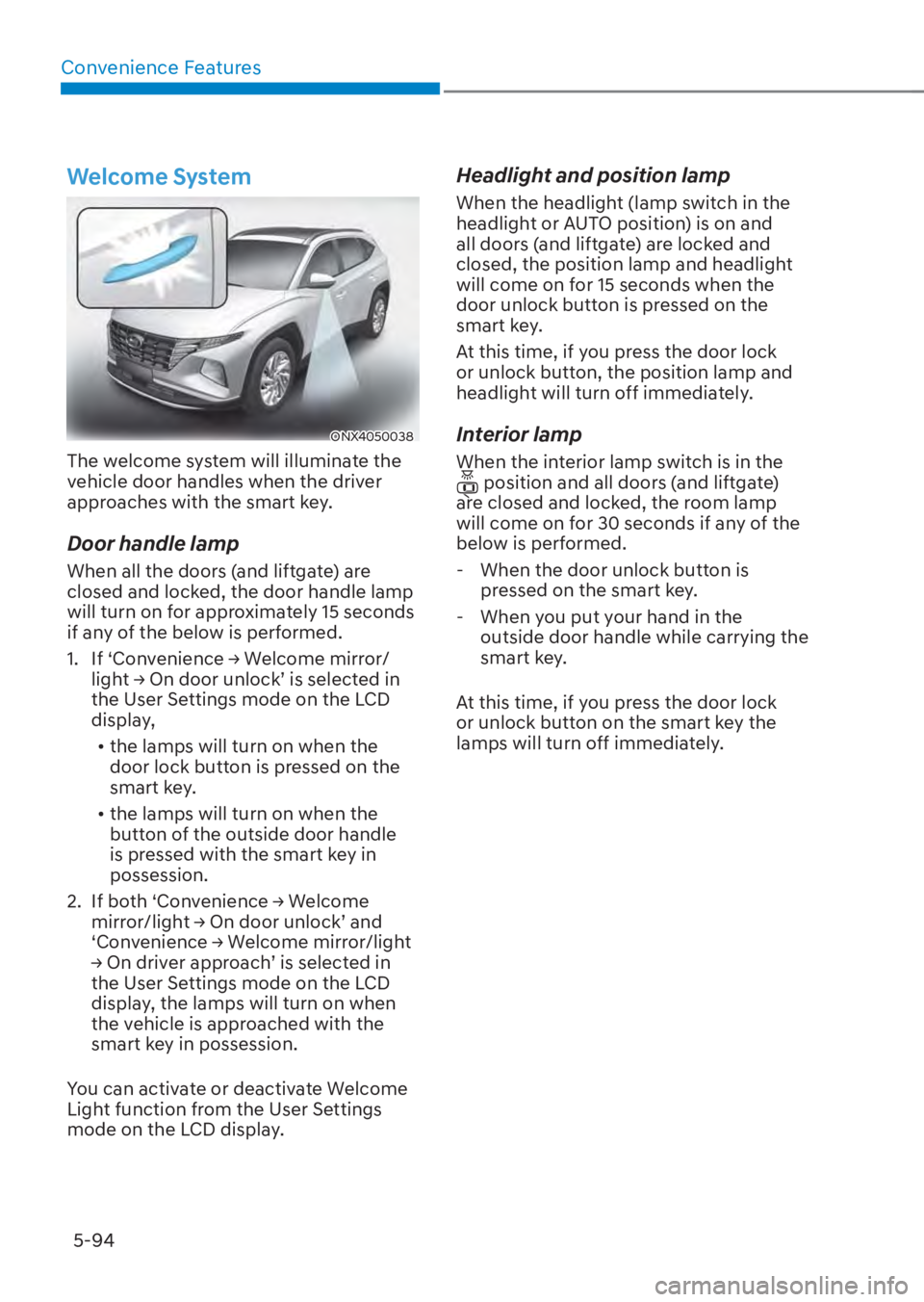

Welcome System
ONX4050038ONX4050038
The welcome system will illuminate the
vehicle door handles when the driver
approaches with the smart key.
Door handle lamp
When all the doors (and liftgate) are
closed and locked, the door handle lamp
will turn on for approximately 15 seconds
if any of the below is performed.
1. If ‘Convenience
Ÿ Welcome mirror/
light
Ÿ On door unlock’ is selected in
the User Settings mode on the LCD
display,
• the lamps will turn on when the door lock button is pressed on the
smart key.
• the lamps will turn on when the button of the outside door handle
is pressed with the smart key in
possession.
2. If both ‘Convenience
Ÿ Welcome mirror/light
Ÿ On door unlock’ and
‘Convenience
Ÿ Welcome mirror/light

Ÿ On driver approach’ is selected in
the User Settings mode on the LCD
display, the lamps will turn on when
the vehicle is approached with the
smart key in possession.
You can activate or deactivate Welcome
Light function from the User Settings
mode on the LCD display.
Headlight and position lamp
When the headlight (lamp switch in the
headlight or AUTO position) is on and
all doors (and liftgate) are locked and
closed, the position lamp and headlight
will come on for 15 seconds when the
door unlock button is pressed on the
smart key.
At this time, if you press the door lock
or unlock button, the position lamp and
headlight will turn off immediately.
Interior lamp
When the interior lamp switch is in the position and all doors (and liftgate)
are closed and locked, the room lamp
will come on for 30 seconds if any of the
below is performed.
- When the door unlock button is pressed on the smart key.
- When you put your hand in the outside door handle while carrying the
smart key.
At this time, if you press the door lock
or unlock button on the smart key the
lamps will turn off immediately.

05
5-95

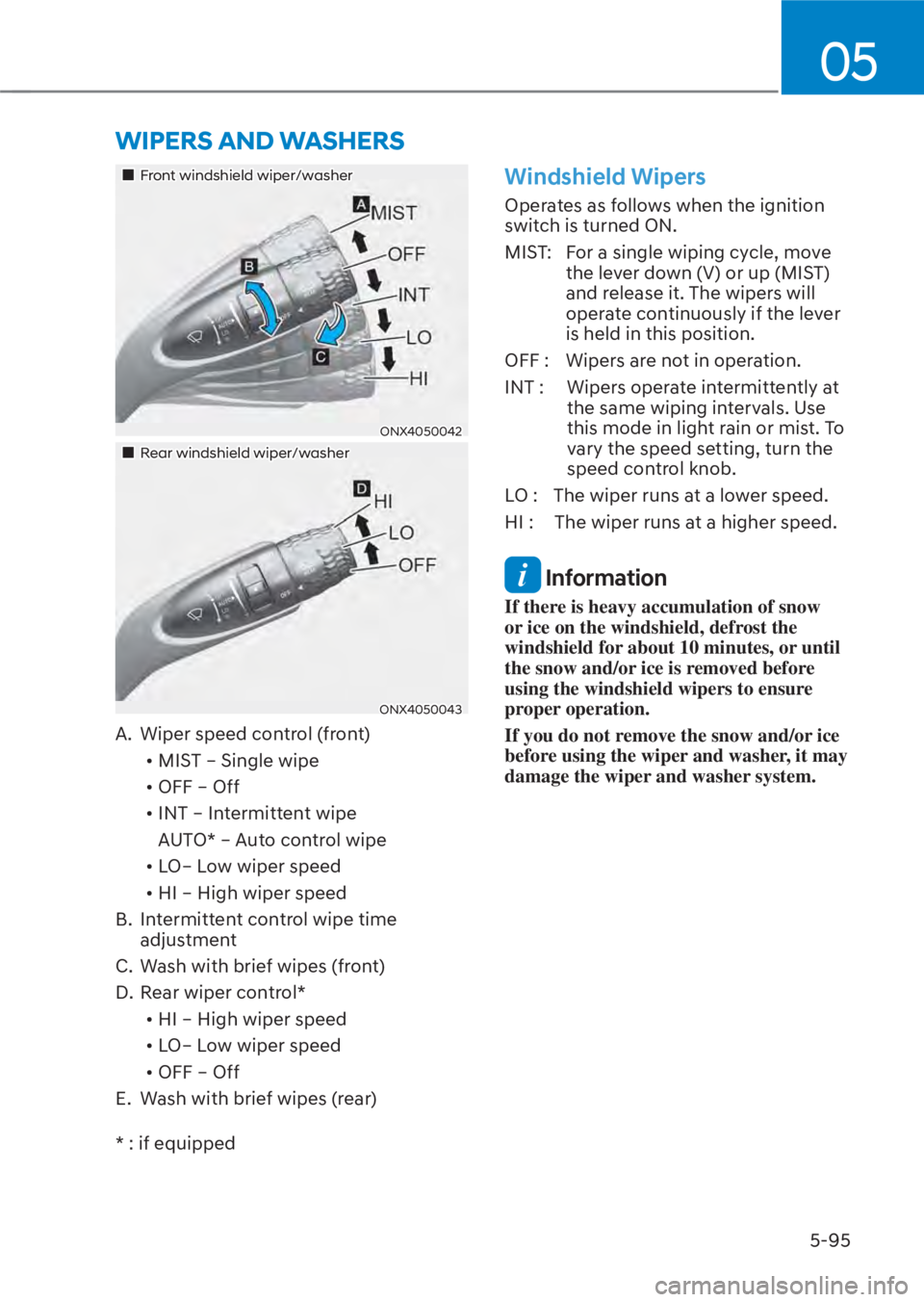

WIPERS AND WASHERS
„„Front windshield wiper/washerFront windshield wiper/washer
ONX4050042ONX4050042
„„Rear windshield wiper/washerRear windshield wiper/washer
ONX4050043ONX4050043
A. Wiper speed control (front)• MIST – Single wipe
• OFF – Off
• INT – Intermittent wipe AUTO* – Auto control wipe
• LO– Low wiper speed
• HI – High wiper speed
B. Intermittent control wipe time adjustment
C. Wash with brief wipes (front)
D. Rear wiper control* • HI – High wiper speed
• LO– Low wiper speed
• OFF – Off
E. Wash with brief wipes (rear)
* : if equipped
Windshield Wipers
Operates as follows when the ignition
switch is turned ON.
MIST: For a single wiping cycle, move the lever down (V) or up (MIST)
and release it. The wipers will
operate continuously if the lever
is held in this position.
OFF : Wipers are not in operation.
INT : Wipers operate intermittently at the same wiping intervals. Use
this mode in light rain or mist. To
vary the speed setting, turn the
speed control knob.
LO : The wiper runs at a lower speed.
HI : The wiper runs at a higher speed.
Information
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or until
the snow and/or ice is removed before
using the windshield wipers to ensure
proper operation.
If you do not remove the snow and/or ice
before using the wiper and washer, it may
damage the wiper and washer system.
