HYUNDAI TUCSON HYBRID 2023 Owners Manual

Convenience Features5-126
Information
This device complies with part 15 of the
FCC Rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.

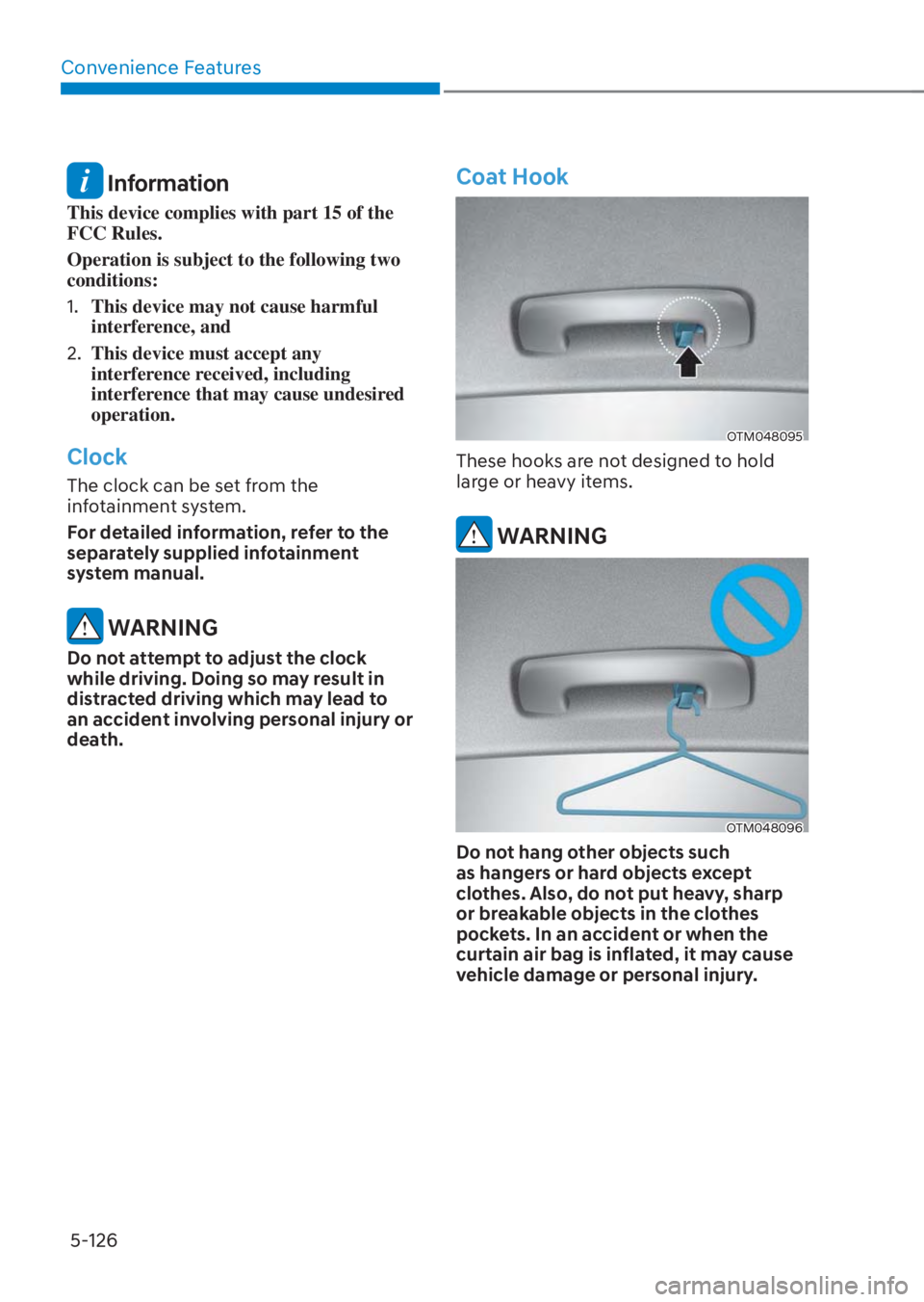

Clock
The clock can be set from the
infotainment system.
For detailed information, refer to the
separately supplied infotainment
system manual.
WARNING
Do not attempt to adjust the clock
while driving. Doing so may result in
distracted driving which may lead to
an accident involving personal injury or
death.
Coat Hook
OTM048095OTM048095
These hooks are not designed to hold
large or heavy items.
WARNING
OTM048096OTM048096
Do not hang other objects such
as hangers or hard objects except
clothes. Also, do not put heavy, sharp
or breakable objects in the clothes
pockets. In an accident or when the
curtain air bag is inflated, it may cause
vehicle damage or personal injury.

05
5-127

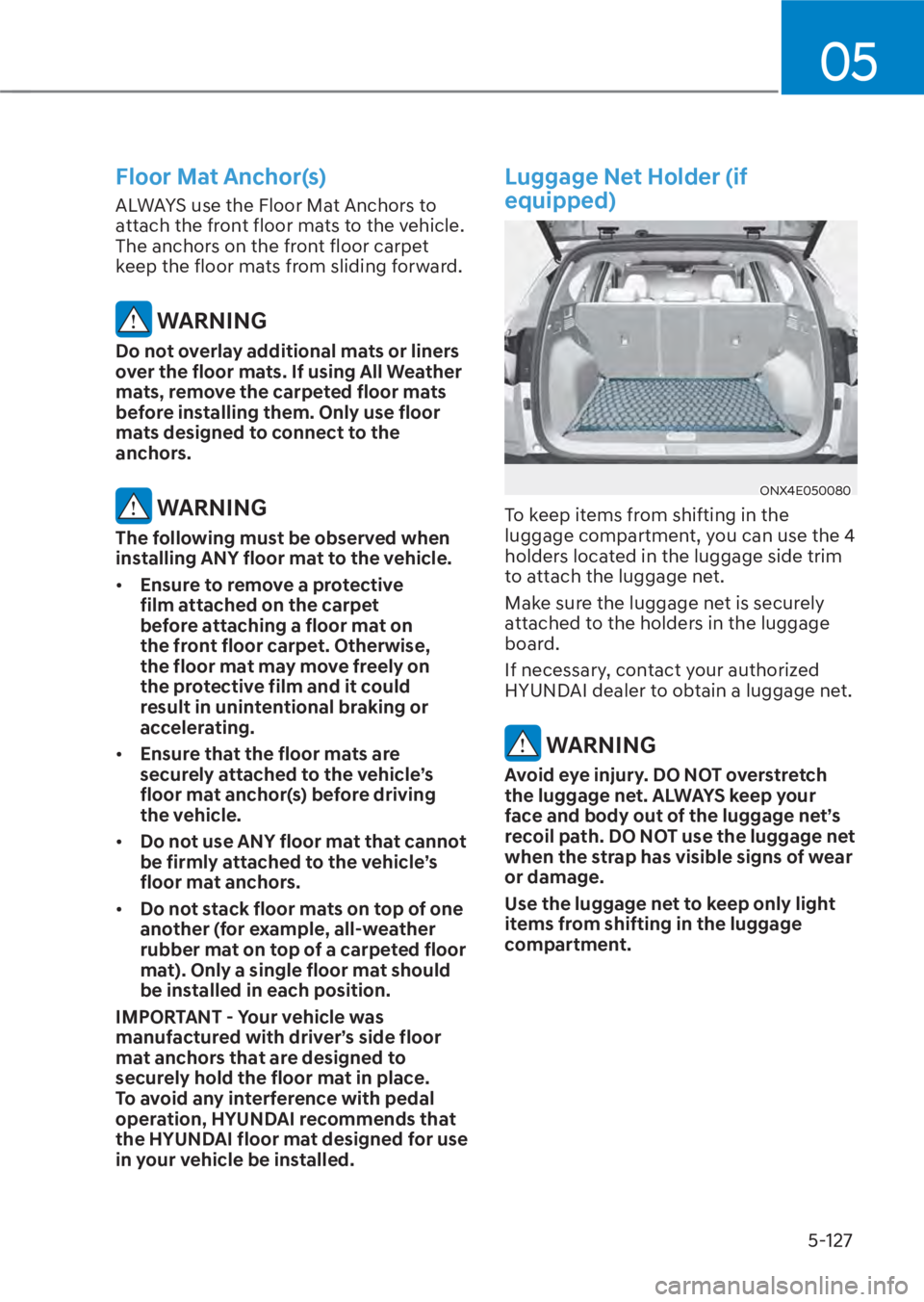

Floor Mat Anchor(s)
ALWAYS use the Floor Mat Anchors to
attach the front floor mats to the vehicle.
The anchors on the front floor carpet
keep the floor mats from sliding forward.
WARNING
Do not overlay additional mats or liners
over the floor mats. If using All Weather
mats, remove the carpeted floor mats
before installing them. Only use floor
mats designed to connect to the
anchors.
WARNING
The following must be observed when
installing ANY floor mat to the vehicle.
• Ensure to remove a protective
film attached on the carpet
before attaching a floor mat on
the front floor carpet. Otherwise,
the floor mat may move freely on
the protective film and it could
result in unintentional braking or
accelerating.
• Ensure that the floor mats are
securely attached to the vehicle’s
floor mat anchor(s) before driving
the vehicle.
• Do not use ANY floor mat that cannot
be firmly attached to the vehicle’s
floor mat anchors.
• Do not stack floor mats on top of one
another (for example, all-weather
rubber mat on top of a carpeted floor
mat). Only a single floor mat should
be installed in each position.
IMPORTANT - Your vehicle was
manufactured with driver’s side floor
mat anchors that are designed to
securely hold the floor mat in place.
To avoid any interference with pedal
operation, HYUNDAI recommends that
the HYUNDAI floor mat designed for use
in your vehicle be installed.
Luggage Net Holder (if
equipped)
ONX4E050080ONX4E050080
To keep items from shifting in the
luggage compartment, you can use the 4
holders located in the luggage side trim
to attach the luggage net.
Make sure the luggage net is securely
attached to the holders in the luggage
board.
If necessary, contact your authorized
HYUNDAI dealer to obtain a luggage net.
WARNING
Avoid eye injury. DO NOT overstretch
the luggage net. ALWAYS keep your
face and body out of the luggage net’s
recoil path. DO NOT use the luggage net
when the strap has visible signs of wear
or damage.
Use the luggage net to keep only light
items from shifting in the luggage
compartment.

Convenience Features5-128

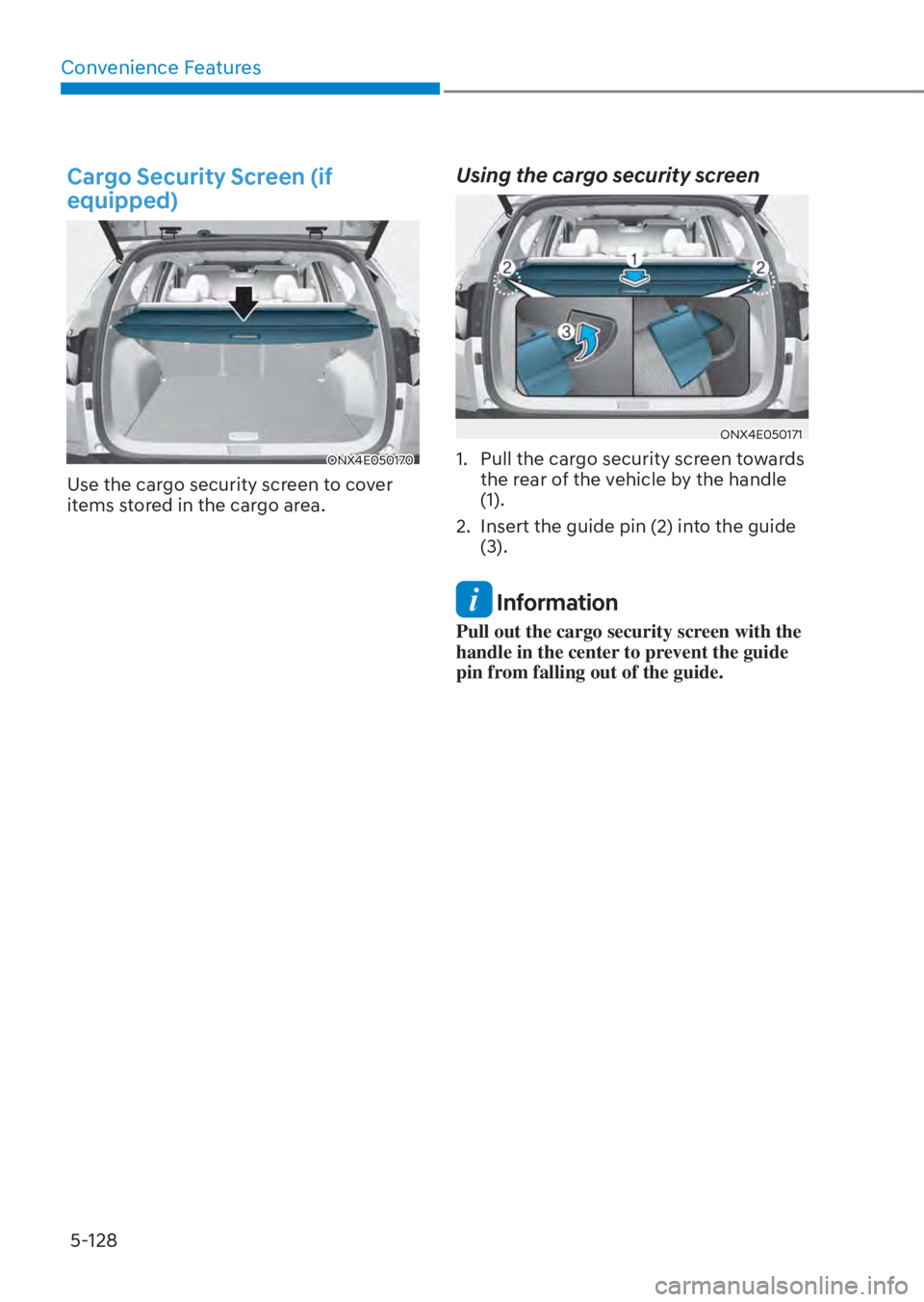

Cargo Security Screen (if
equipped)
ONX4E050170ONX4E050170
Use the cargo security screen to cover
items stored in the cargo area.
Using the cargo security screen
ONX4E050171ONX4E050171
1. Pull the cargo security screen towards the rear of the vehicle by the handle
(1).
2. Insert the guide pin (2) into the guide (3).
Information
Pull out the cargo security screen with the
handle in the center to prevent the guide
pin from falling out of the guide.

05
5-129

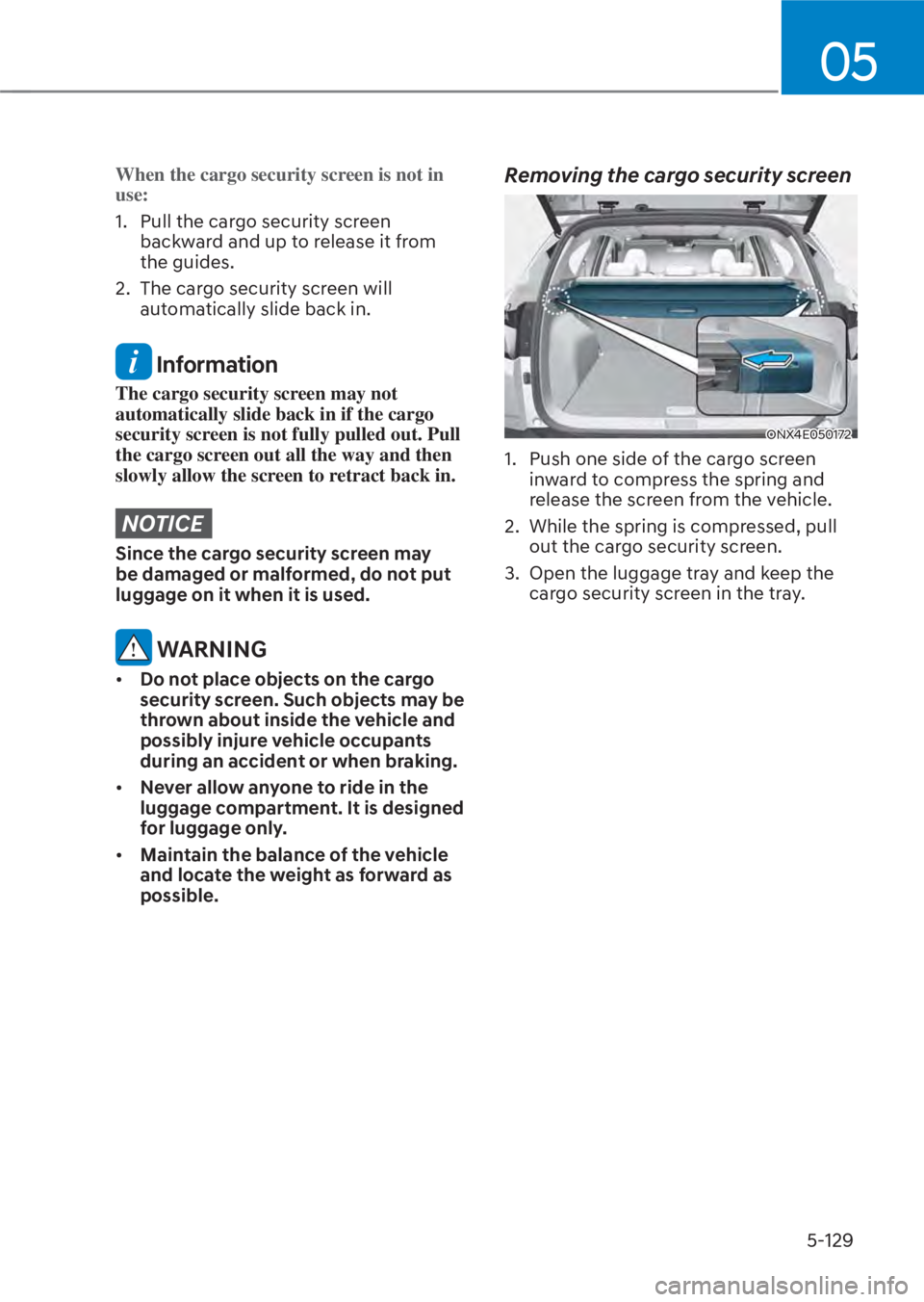

When the cargo security screen is not in
use:
1. Pull the cargo security screen backw
ard and up to release it from
the guides.
2. The cargo security screen will automatically slide back in.
Information
The cargo security screen may not
automatically slide back in if the cargo
security screen is not fully pulled out. Pull
the cargo screen out all the way and then
slowly allow the screen to retract back in.
NOTICE
Since the cargo security screen may
be damaged or malformed, do not put
luggage on it when it is used.
WARNING
• Do not place objects on the cargo
security screen. Such objects may be
thrown about inside the vehicle and
possibly injure vehicle occupants
during an accident or when braking.
• Never allow anyone to ride in the
luggage compartment. It is designed
for luggage only.
• Maintain the balance of the vehicle
and locate the weight as forward as
possible.
Removing the cargo security screen
ONX4E050172ONX4E050172
1. Push one side of the cargo screen
inward to compress the spring and
release the screen from the vehicle.
2. While the spring is compressed, pull out the cargo security screen.
3. Open the luggage tray and keep the cargo security screen in the tray.

Convenience Features5-130

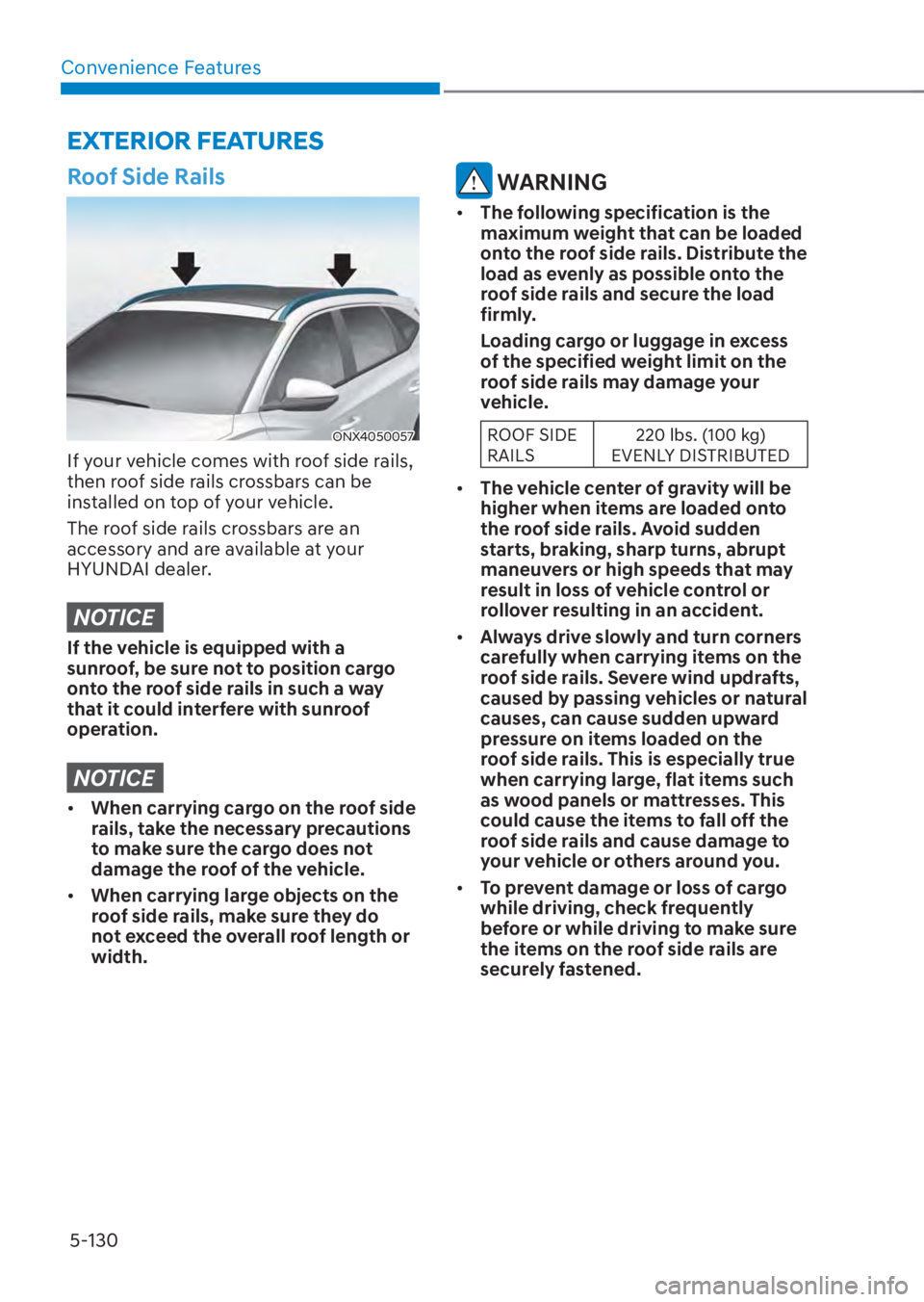

EXTERIOR FEATURES
Roof Side Rails
ONX4050057ONX4050057
If your vehicle comes with roof side rails,
then roof side rails crossbars can be
installed on top of your vehicle.
The roof side rails crossbars are an
accessory and are available at your
HYUNDAI dealer.
NOTICE
If the vehicle is equipped with a
sunroof, be sure not to position cargo
onto the roof side rails in such a way
that it could interfere with sunroof
operation.
NOTICE
• When carrying cargo on the roof side
rails, take the necessary precautions
to make sure the cargo does not
damage the roof of the vehicle.
• When carrying large objects on the
roof side rails, make sure they do
not exceed the overall roof length or
width.
WARNING
• The following specification is the
maximum weight that can be loaded
onto the roof side rails. Distribute the
load as evenly as possible onto the
roof side rails and secure the load
firmly.
Loading cargo or luggage in excess
of the specified weight limit on the
roof side rails may damage your
vehicle.
ROOF SIDE
RAILS 220 lbs. (100 kg)
EVENLY DISTRIBUTED
• The vehicle center of gravity will be
higher when items are loaded onto
the roof side rails. Avoid sudden
starts, braking, sharp turns, abrupt
maneuvers or high speeds that may
result in loss of vehicle control or
rollover resulting in an accident.
• Always drive slowly and turn corners
carefully when carrying items on the
roof side rails. Severe wind updrafts,
caused by passing vehicles or natural
causes, can cause sudden upward
pressure on items loaded on the
roof side rails. This is especially true
when carrying large, flat items such
as wood panels or mattresses. This
could cause the items to fall off the
roof side rails and cause damage to
your vehicle or others around you.
• To prevent damage or loss of cargo
while driving, check frequently
before or while driving to make sure
the items on the roof side rails are
securely fastened.

05
5-131

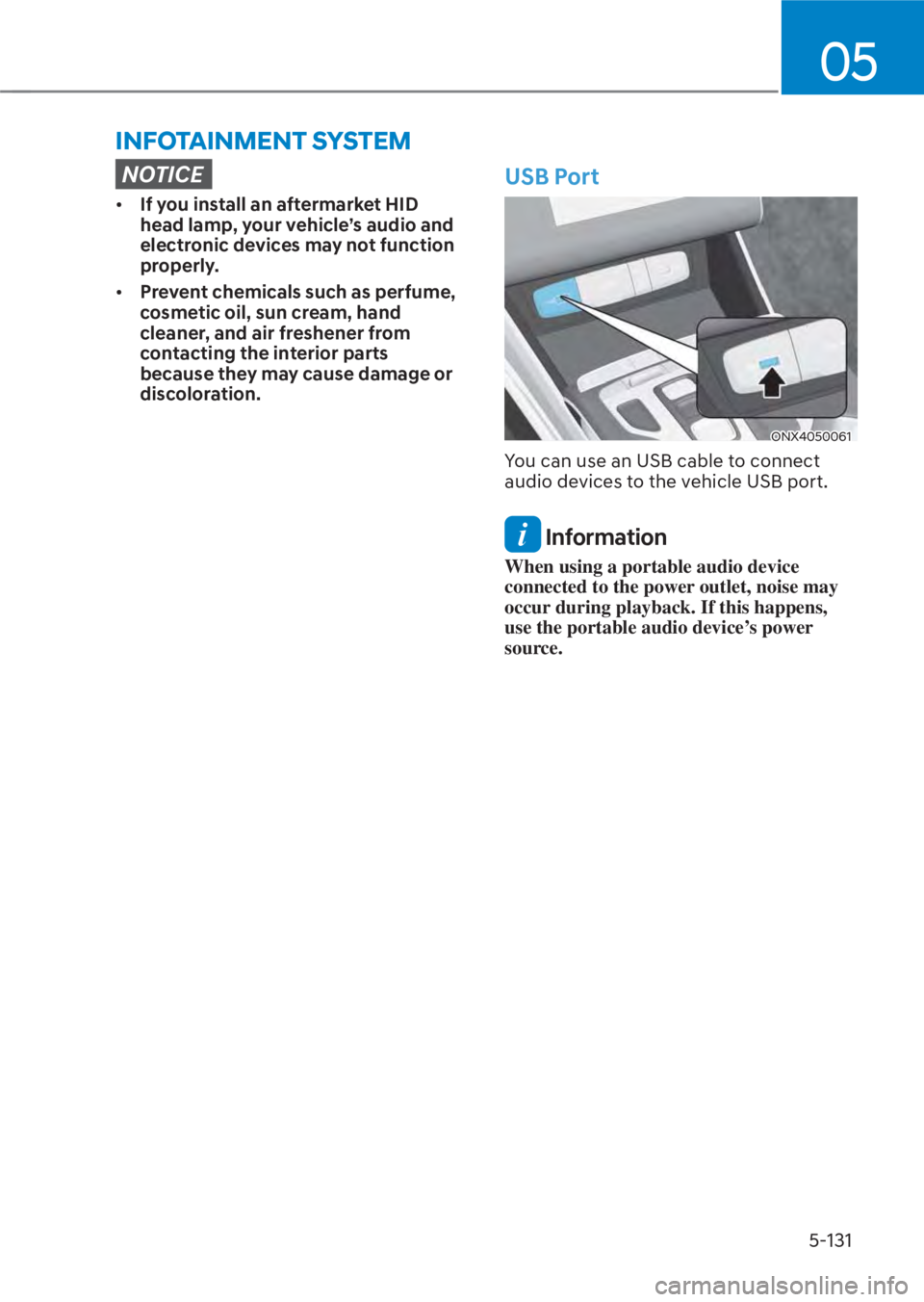

INFOTAINMENT SYSTEM
NOTICE
• If you install an aftermarket HID
head lamp, your vehicle’s audio and
electronic devices may not function
properly.
• Prevent chemicals such as perfume,
cosmetic oil, sun cream, hand
cleaner, and air freshener from
contacting the interior parts
because they may cause damage or
discoloration.
USB PortONX4050061ONX4050061
You can use an USB cable to connect
audio devices to the vehicle USB port.
Information
When using a portable audio device
connected to the power outlet, noise may
occur during playback. If this happens,
use the portable audio device’s power
source.

Convenience Features5-132

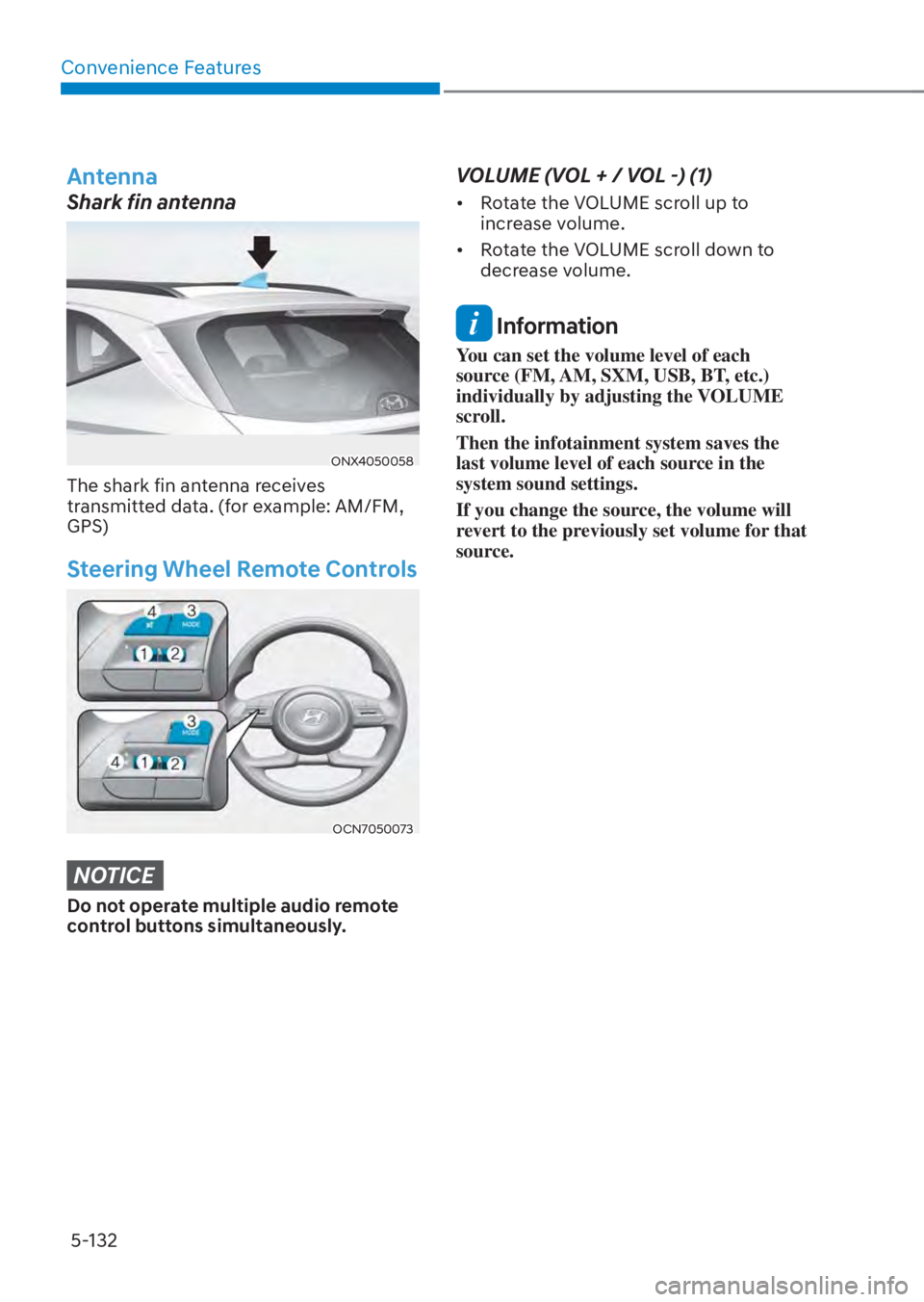

Antenna
Shark fin antenna
ONX4050058ONX4050058
The shark fin antenna receives
transmitted data. (for example: AM/FM,
GPS)
Steering Wheel Remote Controls
OCN7050073OCN7050073
NOTICE
Do not operate multiple audio remote
control buttons simultaneously.
VOLUME (VOL + / VOL -) (1)
• Rotate the VOLUME scroll up to increase volume.
• Rotate the VOLUME scroll down to decrease volume.
Information
You can set the volume level of each
source (FM, AM, SXM, USB, BT, etc.)
individually by adjusting the VOLUME
scroll.
Then the infotainment system saves the
last volume level of each source in the
system sound settings.
If you change the source, the volume will
revert to the previously set volume for that
source.

05
5-133

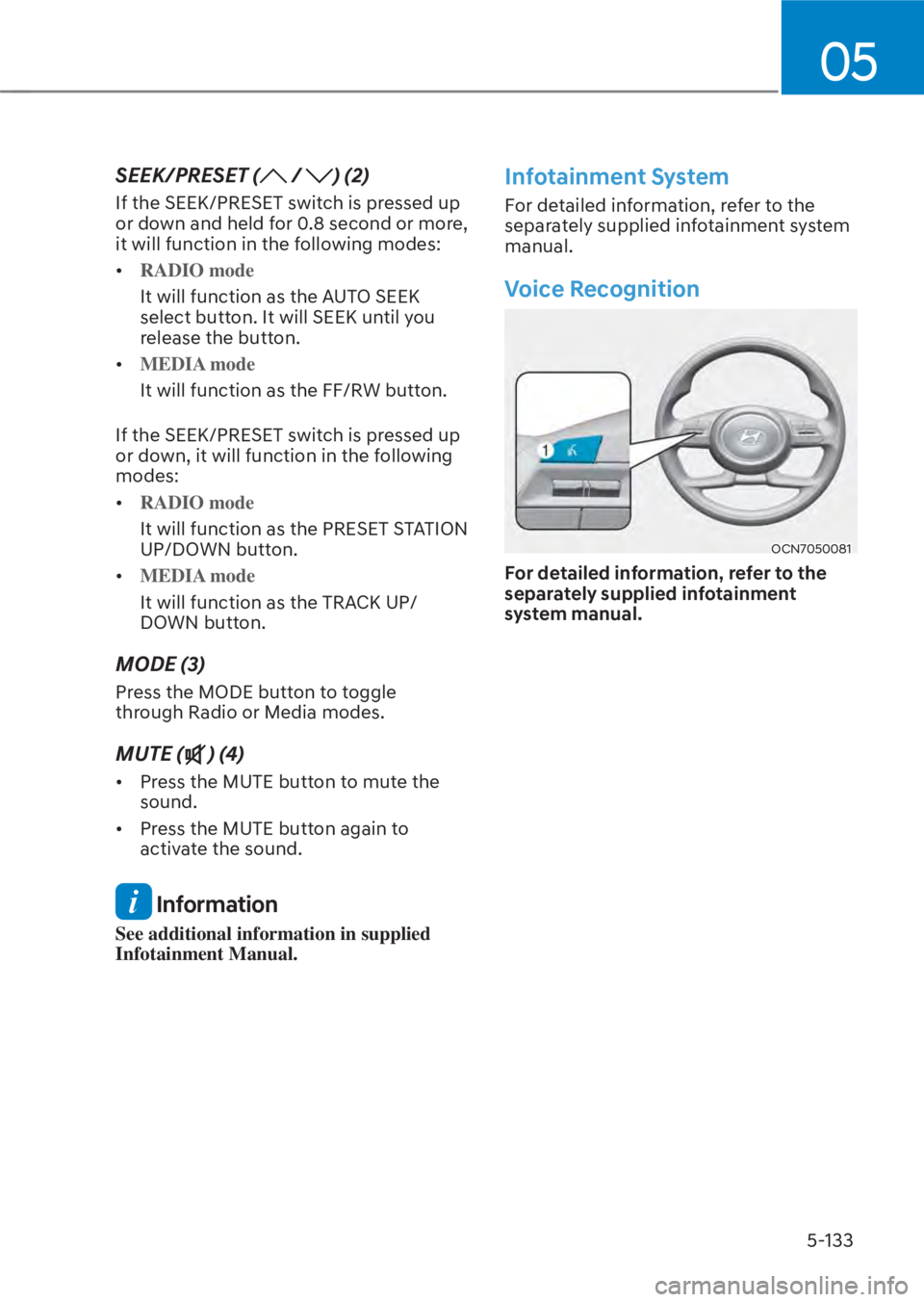

SEEK/PRESET ( / ) (2)
If the SEEK/PRESET switch is pressed up
or down and held for 0.8 second or more,
it will function in the following modes:
• RADIO mode
It will function as the AUTO SEEK
select butt

on. It will SEEK until you
release the button.
• MEDIA mode
It will function as the FF/RW button.
If the SEEK/PRESET s
witch is pressed up
or down, it will function in the following
modes:
• RADIO mode
It will function as the PRESET STATION
UP/DOWN butt

on.
• MEDIA mode
It will function as the TRACK UP/
DOWN butt

on.
MODE (3)
Press the MODE button to toggle
through Radio or Media modes.
MUTE () (4)
• Press the MUTE button to mute the sound.
• Press the MUTE button again to activate the sound.
Information
See additional information in supplied
Infotainment Manual.
Infotainment System
For detailed information, refer to the
separately supplied infotainment system
manual.
Voice Recognition
OCN7050081OCN7050081
For detailed information, refer to the
separately supplied infotainment
system manual.

Convenience Features5-134
Bluetooth® Wireless Technology
ONX4050062ONX4050062
ONX4E050174ONX4E050174
(1) Call / Answer button
(2) Call end button
(3) Microphone
For detailed information, refer to the
separately supplied infotainment
system manual.
CAUTION
To avoid driver distractions, do not
excessively operate the device while
driving the vehicle which may lead to
an accident.

6
6. Driving Your Vehicle
Before Driving ........................................................................\
........................... 6-4Before Entering the Vehicle ........................................................................\
................ 6-4
Before Starting ........................................................................\
.................................... 6-4
Ignition Switch ........................................................................\
.......................... 6-5Engine Start/Stop Button ........................................................................\
....................6-5
Remote Start ........................................................................\
........................................ 6-9
Automatic Transmission ........................................................................\
..........6-10Automatic Transmission Operation ........................................................................\
... 6-10
Parking .................................................................\
.......................................................6-13
LCD Display Message ........................................................................\
......................... 6-14
Paddle Shifter ........................................................................\
..................................... 6-15
Good Driving Practices ........................................................................\
...................... 6-15
Coasting Guide ........................................................................\
......................... 6-17
Braking System ........................................................................\
........................6-18
Power Brakes ........................................................................\
...................................... 6-18
Disc Brakes Wear Indicator......................................................................\
.................. 6-19
Electronic Parking Brake (EPB) ........................................................................\
.......... 6-19
Auto Hold ........................................................................\
............................................ 6-23
Anti-lock Brake System (ABS) ........................................................................\
............ 6-27
Electronic Stability Control (ESC) ........................................................................\
.....6-28
Vehicle Stability Management (VSM) ....................................................................... 6-31
Hill-Start Assist Control (HAC) ........................................................................\
........... 6-32
Trailer Stability Assist (TSA) .....................................................................\
..................6-33
Downhill Brake Control (DBC) ........................................................................\
...........6-33
Good Braking Practices ................................................................\
............................ 6-36
All Wheel Drive (AWD) ........................................................................\
............ 6-37All Wheel Drive (AWD) Operation ........................................................................\
..... 6-38
Emergency Precautions ........................................................................\
.................... 6-42
Reducing the Risk of a Rollover .....................................................................\
.......... 6-44
Electronic Control Suspension ....................................................................... 6-45System Malfunction ........................................................................\
.......................... 6-45
