glove box HYUNDAI TUCSON HYBRID 2023 Owners Manual

2-5
02
1. Instrument cluster .................................. 4-4
2. Driver’s front air bag ............................. 3-45
3. Engine Start/Stop button ....................... 6-8
4. Infotainment system .............................. 4-58
5. Hazard warning lamp switch ................. 8-2
6. Climate control system ........................ 5-99
7. Air ventilation seat ................................ 3-20
8. Seat warmer .......................................... 3-18
9. Heated steering wheel ......................... 5-41
10. Parking Safety button ......................... 7-139
11. Parking/View button .......................... 7-153
12. Transmission shift button ..................... 6-1313. EPB (Electronic Parking Brake) switch ...6-19
14. Auto Hold switch ................................. 6-23
15. Drive mode button .............................. 6-46
16. Passenger’s front air bag ..................... 3-45
17. Glove box ..............................................5-119
18. USB port ................................................ 5-131
19. Power outlet ..........................................5-119
20. USB charger .......................................... 5-121
21. Wireless charging system pad ............ 5-123
22. DBC (Downhill Brake Control) button . 6-33
The actual shape may differ from the illustration.
ONX4H010005N
,167580(173$1(/29(59,(:

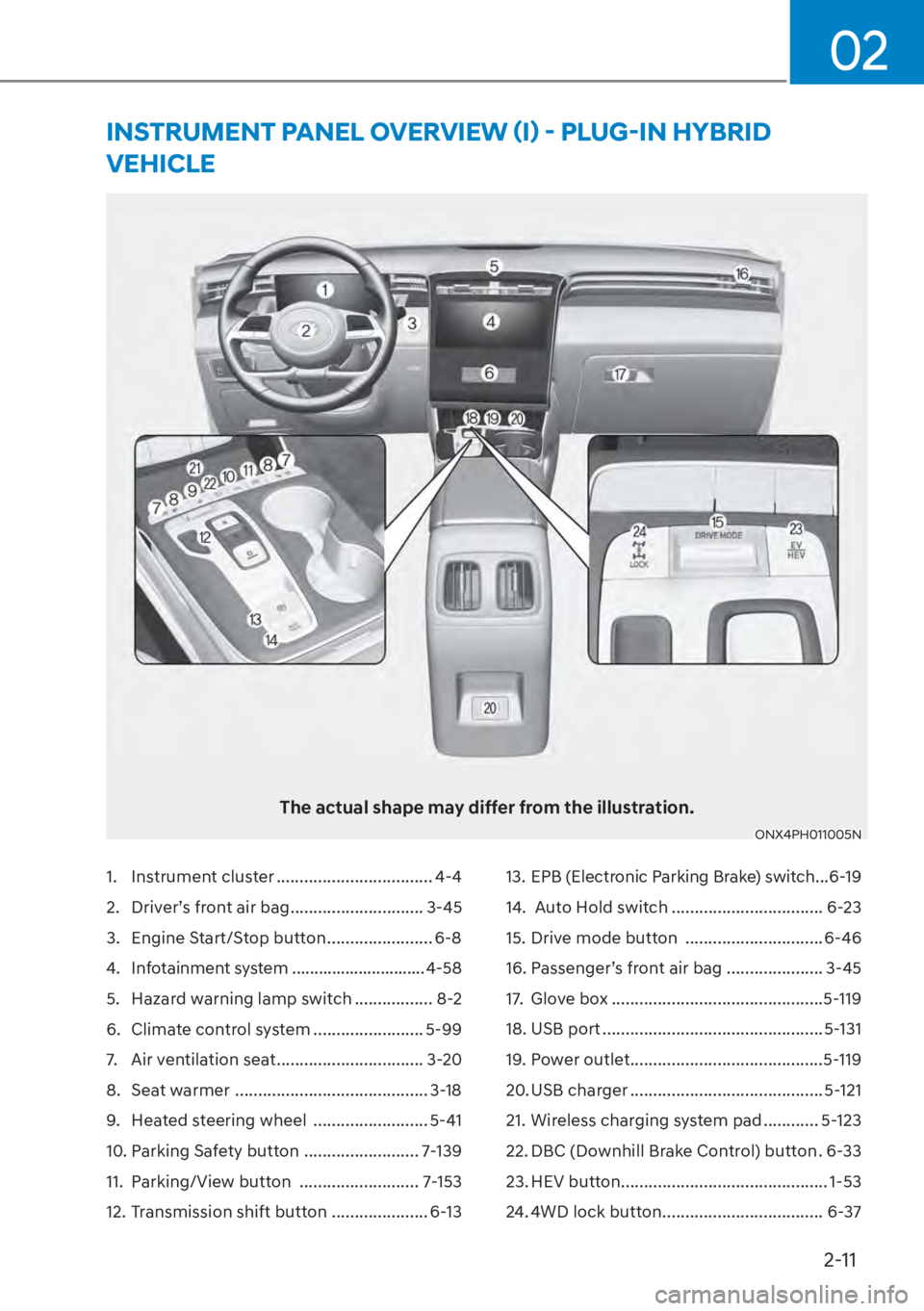

2-11
02
1. Instrument cluster .................................. 4-4
2. Driver’s front air bag ............................. 3-45
3. Engine Start/Stop button ....................... 6-8
4. Infotainment system .............................. 4-58
5. Hazard warning lamp switch ................. 8-2
6. Climate control system ........................ 5-99
7. Air ventilation seat ................................ 3-20
8. Seat warmer .......................................... 3-18
9. Heated steering wheel ......................... 5-41
10. Parking Safety button ......................... 7-139
11. Parking/View button .......................... 7-153
12. Transmission shift button ..................... 6-1313. EPB (Electronic Parking Brake) switch ...6-19
14. Auto Hold switch ................................. 6-23
15. Drive mode button .............................. 6-46
16. Passenger’s front air bag ..................... 3-45
17. Glove box ..............................................5-119
18. USB port ................................................ 5-131
19. Power outlet ..........................................5-119
20. USB charger .......................................... 5-121
21. Wireless charging system pad ............ 5-123
22. DBC (Downhill Brake Control) button . 6-33
23. HEV button............................................. 1-53
24. 4WD lock button ................................... 6-37
,167580(173$1(/29(59,(:

02
2-15
Light bulbBulb type Wattage
Front H
eadlight
High
LED LED
Low LED LED
Daytime running lamp (DRL) /
position lamp LED LED
Turn signal lamp LED LED
Turn signal lamp (Outside mirror) LED LED
Rear Type A
Tail lamp
P21/5W 5/21
Tail/Stop lamp P21/5W 5/21
Side marker lamp P21/5W 5/21
Type B Tail lamp
LED LED
Tail/Stop lamp LED LED
Side marker lamp LED LED
Turn signal lamp PY21W 21
Reverse lamp W16W 16
License plate lamp Type A W5W
5
Type B LED LED
High mounted stop lamp LED LED
Interior Map lamp
Type A W10W 10
Type B
LED LED
Room lamp* FESTOON 10
Personal lamp* LED LED
Glove box lamp W5W5
Sunvisor lamp FESTOON 5
Luggage compartment lamp FESTOON 10
* : if equipped
%8/%:$77$*(

03
3-45
Where are the Air Bags?
Driver’s and passenger’s front air
bags
„Driver’s front air bag
OCN7030036
„Passenger’s front air bag
ONX4030037
Your vehicle is equipped with a
Supplemental Restraint System (SRS)
and lap/shoulder belts at both the driver
and passenger seating positions.
The SRS consists of air bags which are
located in the center of the steering
wheel and the passenger’s side front
panel pad above the glove box.
The air bags are labeled with the letters
“AIR BAG” embossed on the pad covers.
The purpose of the SRS is to provide the
vehicle’s driver and front passengers with
additional protection than that offered
by the seat belt system alone in case of a
frontal impact of sufficient severity.The SRS uses sensors to gather
information about the driver’s and front
passenger's seat belt usage and impact
severity.
The seat belt buckle sensors determine
if the driver and front passenger's seat
belts are fastened. These sensors provide
the ability to control the SRS deployment
based on whether or not the seat belts
are fastened, and how severe the impact
is.
The advanced SRS offers the ability to
control the air bag inflation within two
levels. A first stage level is provided for
moderate-severity impacts. A second
stage level is provided for more severe
impacts.
According to the impact severity, and
seat belt usage, the SRS Control Module
(SRSCM) controls the air bag inflation.
Failure to properly wear seat belts can
increase the risk or severity of injury in an
accident.

Seats & Safety System3-46
WARNING
To reduce the risk of serious injury or
death from inflating front air bags, take
the following precautions:

[ Seat belts must be worn at all times
to help keep occupants positioned
properly.

[ Move your seat as far back as
possible from front air bags, while
still maintaining control of the
vehicle.

[ Never lean against the door or center
console.

[ Do not allow the front passenger
to place their feet or legs on the
dashboard.

[ No objects (such as crash pad cover,
mobile phone holder, cup holder,
air fresheners or stickers) should
be placed over or near the air bag
modules on the steering wheel,
instrument panel, windshield glass,
and the front passenger’s panel
above the glove box. Such objects
could cause harm if the vehicle is in a
crash severe enough to cause the air
bags to deploy.

[ Do not attach any objects on the
front windshield and inside mirror.
Side air bags
„Side air bag
ONX4030039
OTM030030
Your vehicle is equipped with a side air
bag in each front seat. The purpose of
the air bag is to provide the vehicle’s
driver and the front passenger with
additional protection than that offered by
the seat belt alone.
The side air bags are designed to deploy
during certain side impact collisions,
depending on the crash severity.
The side air bags on both sides of the
vehicle are designed to deploy when a
rollover is detected by a rollover sensor.
(if equipped with rollover sensor)
The side air bags are not designed to
deploy in all side impact or rollover
situations.

Seats & Safety System3-52
„Driver’s front air bag (3)
ODN8039079L
„Passenger’s front air bag
ODN8039080L
After complete inflation, the air bag
immediately starts deflating, enabling
the driver to maintain forward visibility
and the ability to steer or operate other
controls.
WARNING
To prevent objects from becoming
dangerous projectiles when the
passenger’s air bag inflates:

[ Do not install or place any objects
(drink holder, CD holder, stickers,
etc.) on the front passenger’s panel
above the glove box where the
passenger’s air bag is located.

[ Do not install a container of liquid
air freshener near the instrument
cluster or on the instrument panel
surface.
What to Expect after an Air Bag
Inflates
After a frontal or side air bag inflates, it
will deflate very quickly. Air bag inflation
will not prevent the driver from seeing
out of the windshield or being able
to steer. Curtain air bags may remain
partially inflated for some time after they
deploy.
WARNING
After an air bag inflates, take the
following precautions:

[Open your windows and doors as
soon as possible after impact to
reduce prolonged exposure to the
smoke and powder released by the
inflating air bag.

[ Do not touch the air bag storage
area’s internal components
immediately after an air bag has
inflated. The parts that come into
contact with an inflating air bag may
be very hot.

[ Always wash exposed skin areas
thoroughly with cold water and mild
soap.

[ Have an authorized HYUNDAI dealer
replace the air bag immediately after
deployment. Air bags are designed to
be used only once.

Seats & Safety System3-64
SRS Care
The SRS is virtually maintenance-free
and there are no parts you can safely
service by yourself. If the SRS air bag
warning light does not illuminate when
the Engine Start/Stop button is in the
ON position, or continuously remains on,
have your vehicle immediately inspected
by an authorized HYUNDAI dealer.
Any work on the SRS system, such as
removing, installing, repairing, or any
work on the steering wheel, the front
passenger’s panel, front seats and roof
rails must be performed by an authorized
HYUNDAI dealer. Improper handling of
the SRS system may result in serious
personal injury. WARNING
To reduce the risk of serious injury or
death take the following precautions:

[ Do not attempt to modify or
disconnect the SRS components or
wiring, including the addition of any
kind of badges to the pad covers or
modifications to the body structure.

[ Do not place objects over or near
the air bag modules on the steering
wheel, instrument panel, and the
front passenger’s panel above the
glove box.

[ Clean the air bag pad covers with
a soft cloth moistened with plain
water. Solvents or cleaners could
adversely affect the air bag covers
and proper deployment of the
system.

[ Always have inflated air bags
replaced by an authorized HYUNDAI
dealer.

[ If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed.
Consult an authorized HYUNDAI
dealer for the necessary information.
Failure to follow these precautions
could increase the risk of personal
injury.

5
Exterior Features ........................................................................\
..................... 5-66Hood ....................................................................\
....................................................... 5-66
Liftgate ......................................................................\
................................................ .. 5-67
Power Liftgate ........................................................................\
................................... 5-69
Smart Liftgate ........................................................................\
..................................... 5-75
Fuel Filler Door (Hybrid vehicle) ........................................................................\
........ 5-77
Fuel Filler Door (Plug-in hybrid vehicle) ................................................................... 5-79
Lighting ...............................................................\
............................................. 5-84Exterior Lights ........................................................................\
................................... 5-84
High Beam Assist (HBA) ........................................................................\
......... 5-88High Beam Assist Settings ........................................................................\
................ 5-88
High Beam Assist Operation ........................................................................\
............. 5-89
High Beam Assist Malfunction and Limitations ...................................................... 5-90
Interior Lights ........................................................................\
........................... 5-91Interior Lamp AUTO OFF ........................................................................\
.................... 5-91
Front lamps ........................................................................\
......................................... 5-91
Rear Lamps ........................................................................\
.........................................5-92
Vanity Mirror Lamp ........................................................................\
.............................5-92
Glove Box Lamp ........................................................................\
.................................5-93
Luggage Compartment Lamp ........................................................................\
...........5-93
Welcome System ........................................................................\
............................... 5-94
Wipers and Washers ........................................................................\
............... 5-95Windshield Wipers ........................................................................\
.............................5-95
Front Windshield Washers ........................................................................\
................. 5-97
Rear Window Wiper and Washer ........................................................................\
..... 5-98
Automatic Climate Control System ............................................................... 5-99Automatic Heating and Air Conditioning ............................................................... 5-100
Manual Heating and Air Conditioning ..................................................................... 5-101
Multi Air Mode ........................................................................\
.................................. 5-108
System Operation ........................................................................\
............................. 5-109
System Maintenance ........................................................................\
......................... 5-111
Windshield Defrosting and Defogging ..........................................................5-113Automatic Climate Control System......................................................................\
.... 5-113
Auto Defogging System on Models with Automatic Temperature Control ........... 5-114
Rear Window Defroster........................................................................\
..................... 5-115

5
Climate Control Additional Features .............................................................5-116A/C Automatic Drying ........................................................................\
....................... 5-116
Auto Defogging System on Models with Automatic Temperature Control ........... 5-116
Auto Dehumidify ........................................................................\
............................... 5-117
Recirculating Air when Washer Fluid is Used .......................................................... 5-118
Sunroof Inside Air Recirculation ........................................................................\
....... 5-118
Automatic Controls for the Driver Based on Climate Control System Settings .... 5-118
Storage Compartment ........................................................................\
............5-119Center Console Storage ........................................................................\
.................... 5-119
Glove Box ........................................................................\
........................................... 5-119
Luggage Tray ........................................................................\
..................................... 5-119
Interior Features ........................................................................\
..................... 5-120Cup Holder ........................................................................\
........................................ 5-120
Sunvisor ..................................................................\
................................................... 5-121
Power Outlet ........................................................................\
...................................... 5-121
USB Charger ........................................................................\
......................................5-122
Wireless Smart Phone Charging System .................................................................5-123
Clock ..................................................................\
....................................................... 5-126
Coat Hook ........................................................................\
......................................... 5-126
Floor Mat Anchor(s) ........................................................................\
........................... 5-127
Luggage Net Holder ........................................................................\
.......................... 5-127
Cargo Security Screen ........................................................................\
..................... 5-128
Exterior Features ........................................................................\
....................5-130Roof Side Rails ........................................................................\
.................................. 5-130
Infotainment System ........................................................................\
..............5-131USB Port ........................................................................\
............................................. 5-131
Antenna ...................................................................\
...................................................5 -132
Steering Wheel Remote Controls ........................................................................\
.....5-132
Infotainment System ........................................................................\
........................ 5-133
Voice Recognition ........................................................................\
............................ 5-133
Bluetooth® Wireless Technology ........................................................................\
..... 5-134
5. Convenience Features

05
5-93
Glove Box Lamp
ONX4050039ONX4050039
The glove box lamp turns on when the
glove box is opened.
Luggage Compartment Lamp
ONX4050040ONX4050040
• OFF : The luggage compartment lamp is off.
• ON : The luggage compartment lamp stays on at all times.
- It turns on while the liftgate is opened, and turns off while closed.
If the Engine Start/Stop button is
in OFF position while the liftgate
opened, the lamp stays on for about
10 minutes before turns off.
