VELOSTER TURBO 2
www.hyundai.com
Roadside Assistance: 1-800-243-7766
Consumer Affairs: 1-800-633-5151
Sirius
XM
®Radio: 1-800-967-2346
Blue Link: 1-855-2BLUELINK
(1-855-225-8354)HYUNDAI VELOSTER TURBO

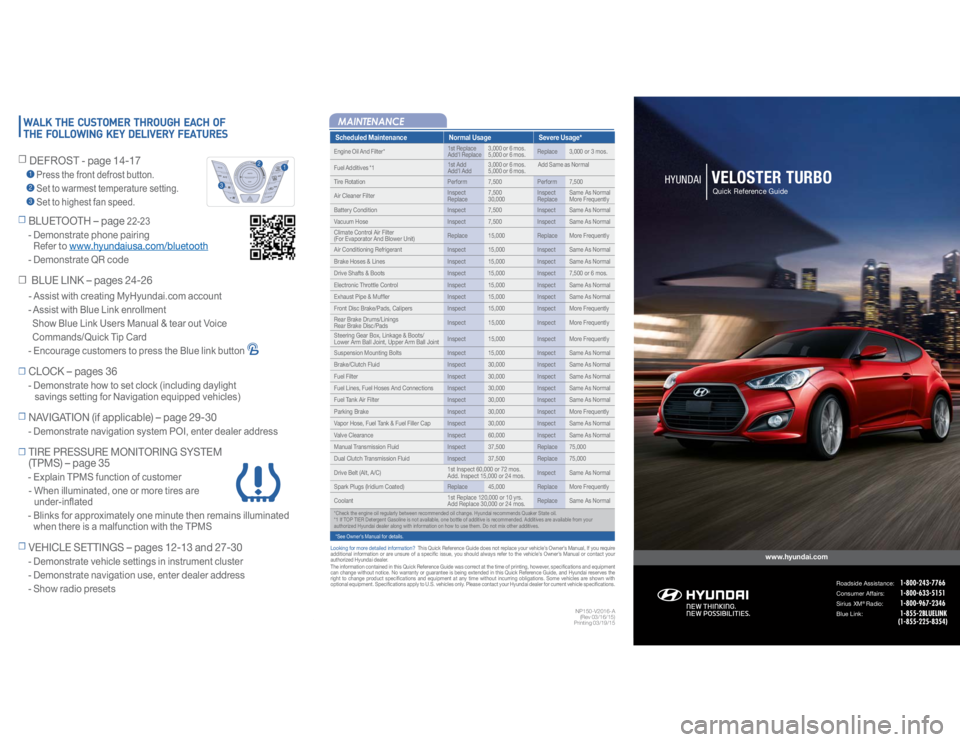

Quick Reference GuideScheduled Maintenance Normal Usage Severe Usage*
Engine Oil And Filter* 1st Replace
Add'l Replace 3,000 or 6 mos.
5,000 or 6 mos. Replace 3,000 or 3 mos.
Fuel Additives *1 1st Add
Add'l Add 3,000 or 6 mos. Add Same as Normal
5,000 or 6 mos.
Tire Rotation Perform 7,500 Perform 7,500
Air Cleaner Filter Inspect
Replace 7,500
30,000 Inspect
Replace Same As Normal
More Frequently
Battery Condition Inspect 7,500 Inspect Same As Normal
Vacuum Hose Inspect 7,500 Inspect Same As Normal
Climate Control Air Filter
(For Evaporator And Blower Unit) Replace 15,000 Replace More Frequently
Air Conditioning Refrigerant Inspect 15,000 Inspect Same As Normal
Brake Hoses & Lines Inspect 15,000 Inspect Same As Normal
Drive Shafts & Boots Inspect 15,000 Inspect 7,500 or 6 mos.
Electronic Throttle Control Inspect 15,000 Inspect Same As Normal
Exhaust Pipe & Muffler Inspect 15,000 Inspect Same As Normal
Front Disc Brake/Pads, Calipers Inspect 15,000 Inspect More Frequently
Rear Brake Drums/Linings
Rear Brake Disc/Pads Inspect 15,000 Inspect More Frequently
Steering Gear Box, Linkage & Boots/
Lower Arm Ball Joint, Upper Arm Ball Joint Inspect 15,000 Inspect More Frequently
Suspension Mounting Bolts Inspect 15,000 Inspect Same As Normal
Brake/Clutch Fluid Inspect 30,000 Inspect Same As Normal
Fuel Filter Inspect 30,000 Inspect Same As Normal
Fuel Lines, Fuel Hoses And Connections Inspect 30,000 Inspect Same As Normal
Fuel Tank Air Filter Inspect 30,000 Inspect Same As Normal
Parking Brake Inspect 30,000 Inspect More Frequently
Vapor Hose, Fuel Tank & Fuel Filler Cap Inspect 30,000 Inspect Same As Normal
Valve Clearance Inspect 60,000 Inspect Same As Normal
Manual Transmission Fluid Inspect 37,500 Replace 75,000
Dual Clutch Transmission Fluid Inspect 37,500 Replace 75,000
Drive Belt (Alt, A/C) 1st Inspect 60,000 or 72 mos.
Add. Inspect 15,000 or 24 mos. Inspect Same As Normal
Spark Plugs (Iridium Coated) Replace 45,000 Replace More Frequently
Coolant 1st Replace 120,000 or 10 yrs.
Add Replace 30,000 or 24 mos. Replace Same As Normal
*Check the engine oil regularly between recommended oil change. Hyundai recommends Quaker State oil.
*1 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your
authorized Hyundai dealer along with information on how to use them. Do not mix other additives.
*See Owner’s Manual for details.
Looking for more detailed information? This Quick Reference Guide does not replace your vehicle’s Owner’s Manual, If you require
additional information or are unsure of a specific issue, you should always refer to the vehicle’s Owner’s Manual or contact yo ur
authorized Hyundai dealer.
The information contained in this Quick Reference Guide was correct at the time of printing, however, specifications and equipm ent
can change without notice. No warranty or guarantee is being extended in this Quick Reference Guide, and Hyundai reserves the
right to change product specifications and equipment at any time without incurring obligations. Some vehicles are shown with
optional equipment. Specifications apply to U.S. vehicles only. Please contact your Hyundai dealer for current vehicle specific ations.MAINTENANCE
NP150-V2016-A
(Rev 03/16/15)
Printing 03/19/15☐ BLUETOOTH – page
22-23
- Demonstrate phone pairing
Refer to www.hyundaiusa.com/bluetooth
- Demonstrate QR code☐
BLUE LINK – pages 24-26
- Assist with creating MyHyundai.com account
- Assist with Blue Link enrollment
Show Blue Link Users Manual & tear out Voice
Commands/Quick Tip Card
- Encourage customers to press the Blue link button
☐ CLOCK – pages 36
- Demonstrate how to set clock (including daylight
savings setting for Navigation equipped vehicles)
☐ NAVIGATION (if applicable) – page 29-30
- Demonstrate navigation system POI, enter dealer address
☐ TIRE PRESSURE MONITORING SYSTEM
(TPMS) – page 35
- Explain TPMS function of customer
- When illuminated, one or more tires are
under-inflated
- Blinks for approximately one minute then remains illuminated
when there is a malfunction with the TPMS
☐ VEHICLE SETTINGS – pages 12-13 and 27-30
- Demonstrate vehicle settings in instrument cluster
- Demonstrate navigation use, enter dealer address
- Show radio presetsWALK THE CUSTOMER THROUGH EACH OF
THE FOLLOWING KEY DELIVERY FEATURES
☐
DEFROST - page 14-17
1 Press the front defrost button.
2 Set to warmest temperature setting.
3 Set to highest fan speed.
MODE
CLIM AT EAUTO
OFF12
3
Page 2 of 20

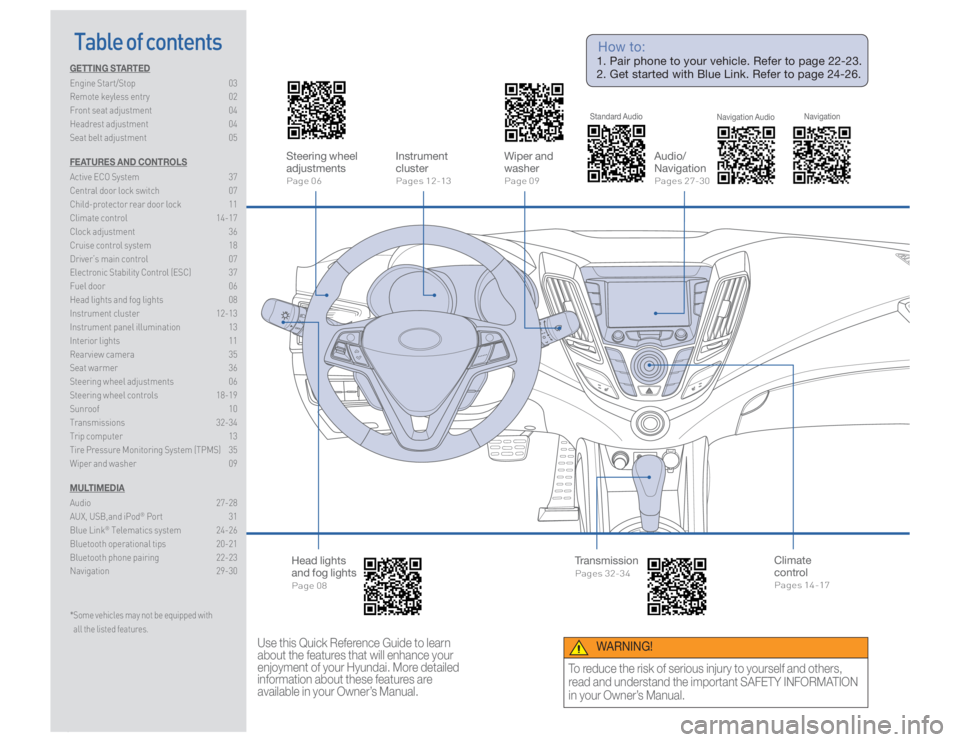

Table of contents
GETTING STARTED
Engine Start/Stop 03
Remote keyless entry 02
Front seat adjustment 04
Headrest adjustment 04
Seat belt adjustment 05
FEATURES AND CONTROLS
Active ECO System 37
Central door lock switch 07
Child-protector rear door lock 11
Climate control 14-17
Clock adjustment 36
Cruise control system 18
Driver’s main control 07
Electronic Stability Control (ESC) 37
Fuel door 06
Head lights and fog lights 08
Instrument cluster 12-13
Instrument panel illumination 13
Interior lights 11
Rearview camera 35
Seat warmer 36
Steering wheel adjustments 06
Steering wheel controls 18-19
Sunroof 10
Transmissions 32-34
Trip computer 13
Tire Pressure Monitoring System (TPMS) 35
Wiper and washer 09
MULTIMEDIA
Audio 27-28
AUX, USB,and iPod
® Port 31
Blue Link
® Telematics system 24-26
Bluetooth operational tips 20-21
Bluetooth phone pairing 22-23
Navigation 29-30
* Some vehicles may not be equipped with
all the listed features. Steering wheel
adjustments
Page 06
Head lights
and fog lights
Page 08 Audio/
Navigation
Pages 27-30 Wiper and
washer
Page 09
Climate
control
Pages 14-17Instrument
cluster
Pages 12-13
Transmission
Pages 32-34Use this Quick Reference Guide to learn
about the features that will enhance your
enjoyment of your Hyundai. More detailed
information about these features are
available in your Owner’s Manual. How to:
1. Pair phone to your vehicle. Refer to page 22-23.
2. Get started with Blue Link. Refer to page 24-26.
WARNING!
To reduce the risk of serious injury to yourself and others,
read and understand the important SAFETY INFORMATION
in your Owner’s Manual. Standard Audio
Navigation Audio Navigation
Page 3 of 20
GETTING STARTED
VELOSTER TURBO 0302

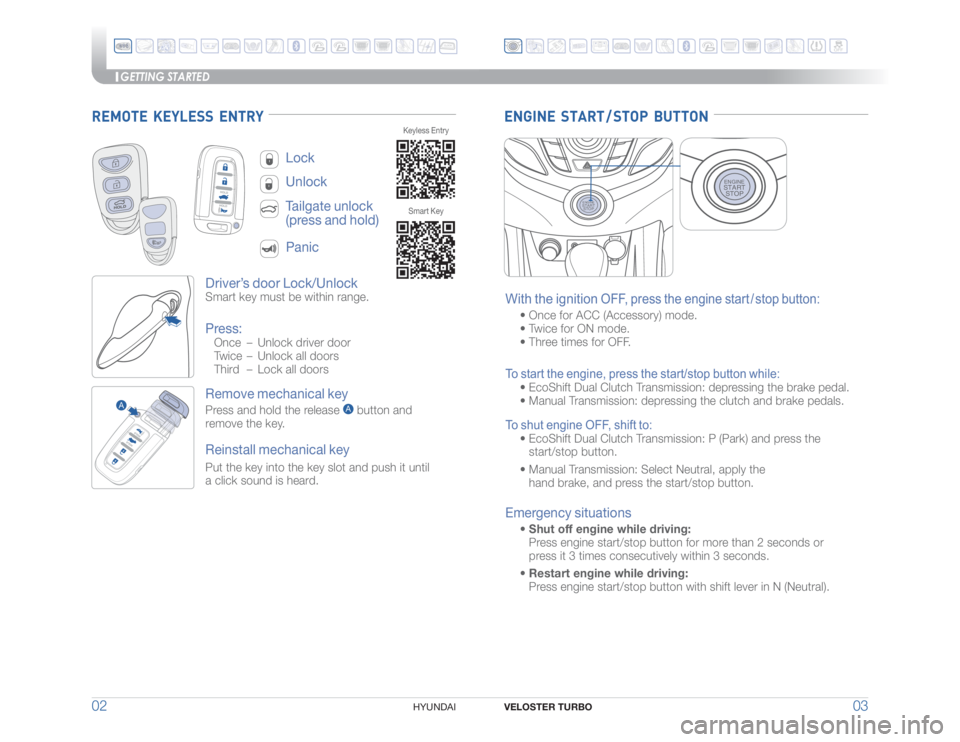

HYUNDAI REMOTE KEYLESS ENTRY
Driver’s door Lock/Unlock
Smart key must be within range.Press:
Once – Unlock driver door
Twice – Unlock all doors
Third – Lock all doorsRemove mechanical key
Press and hold the release
A button and
remove the key.Reinstall mechanical key
Put the key into the key slot and push it until
a click sound is heard. Lock
Unlock
Tailgate unlock
(press and hold)
Panic
A ENGINE START / STOP BUTTON
ENGINESTART
STOPWith the ignition OFF, press the engine start / stop button:
t 0 O D F G P S " $ $ " D D F T T P S Z
N P E F
t 5 X J D F G P S 0 / N P E F
t 5 I S F F U J N F T G P S 0 ' '
To start the engine, press the start/stop button while:
t & D P 4 I J G U % V B M $ M V U D I 5 S B O T N J T T J P O E F Q S F T T J O H U I F C S B L F Q F E B M
t . B O V B M 5 S B O T N J T T J P O E F Q S F T T J O H U I F D M V U D I B O E C S B L F Q F E B M T
To shut engine OFF, shift to:
t & D P 4 I J G U % V B M $ M V U D I 5 S B O T N J T T J P O 1 1 B S L
B O E Q S F T T U I F
start/stop button.
t . B O V B M 5 S B O T N J T T J P O 4 F M F D U / F V U S B M
B Q Q M Z U I F
hand brake, and press the start/stop button.Emergency situations
t Shut off engine while driving:
Press engine start/stop button for more than 2 seconds or
press it 3 times consecutively within 3 seconds.
t Restart engine while driving:
Press engine start/stop button with shift lever in N (Neutral). ENGINESTART
STOPKeyless Entry
Smart Key
ENGINESTART
STOP
Page 4 of 20
GETTING STARTED
VELOSTER TURBO 0504
HYUNDAI GETTING STARTED

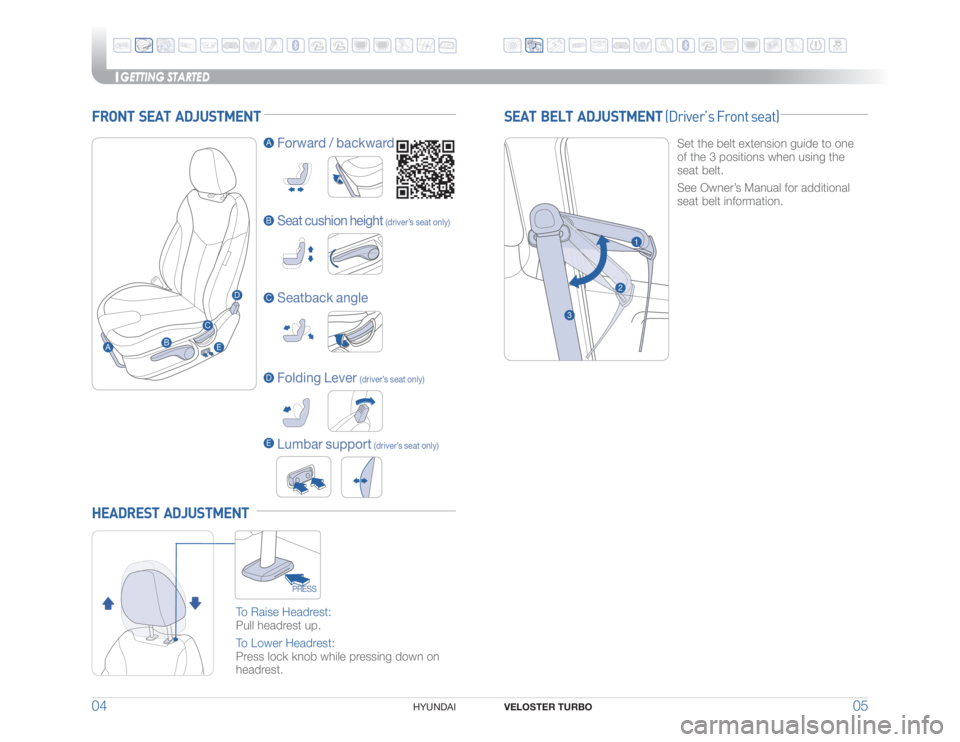

FRONT SEAT ADJUSTMENT
A
B
B Forward / backward
Seat cushion height
(driver’s seat only)Seatback angle
Folding Lever
(driver’s seat only)C
C
A
DDHEADREST ADJUSTMENT
5 P 3 B J T F ) F B E S F T U
Pull headrest up.
5 P - P X F S ) F B E S F T U
Press lock knob while pressing down on
headrest.
PRESSSEAT BELT ADJUSTMENT (Driver’s Front seat)
Set the belt extension guide to one
of the 3 positions when using the
seat belt.
See Owner’s Manual for additional
seat belt information.
1
2
3Lumbar support
(driver’s seat only)E
E
ENGINESTAR T
STOP
Page 5 of 20
FEATURES AND CONTROLS
VELOSTER TURBO 0706

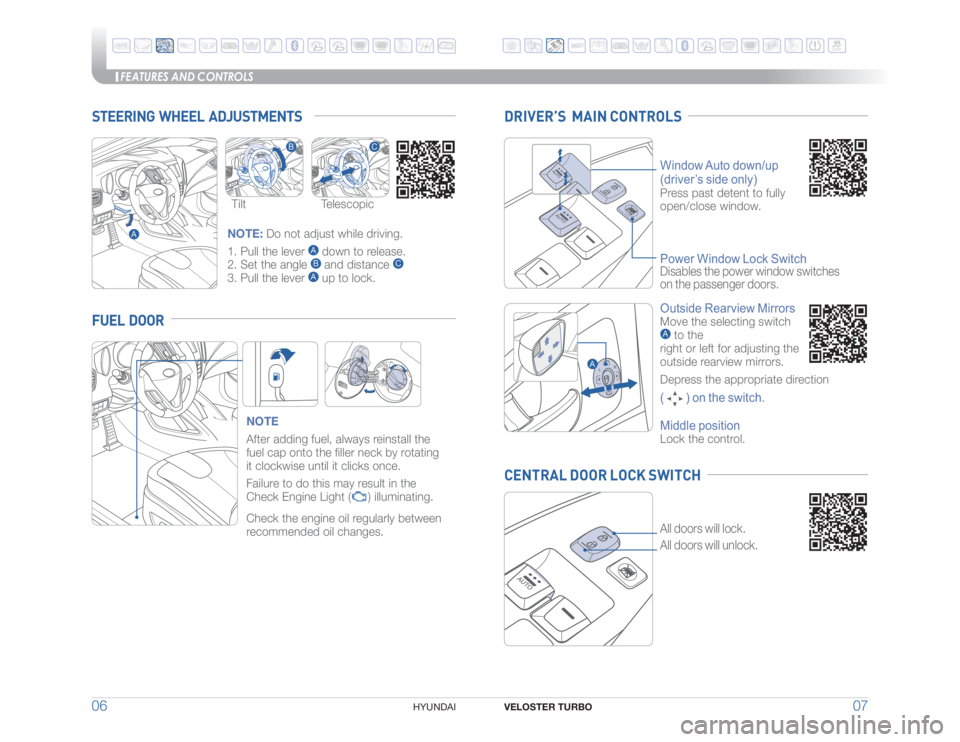

HYUNDAI TiltSTEERING WHEEL ADJUSTMENTS
NOTE: % P O P U B E K V T U X I J M F E S J W J O H
1. Pull the lever
A down to release.
2. Set the angle
B and distance
C3. Pull the lever
A up to lock. Telescopic
A B
C
NOTE
After adding fuel, always reinstall the
fuel cap onto the filler neck by rotating
it clockwise until it clicks once.
Failure to do this may result in the
$ I F D L & O H J O F - J H I U
) illuminating.FUEL DOOR DRIVER’S MAIN CONTROLS
Outside Rearview Mirrors
Move the selecting switch
A to the
right or left for adjusting the
outside rearview mirrors.
% F Q S F T T U I F B Q Q S P Q S J B U F E J S F D U J P O ( ) on the switch.
Middle position
Lock the control.Window Auto down/up
(driver’s side only)
Press past detent to fully
open/close window.
Power Window Lock Switch
% J T B C M F T U I F Q P X F S X J O E P X T X J U D I F T
on the passenger doors.
CENTRAL DOOR LOCK SWITCH
AAll doors will lock.
All doors will unlock. $ I F D L U I F F O H J O F P J M S F H V M B S M Z C F U X F F O
recommended oil changes.
ENGINESTAR T
STOP
Page 6 of 20
FEATURES AND CONTROLS
VELOSTER TURBO 0908

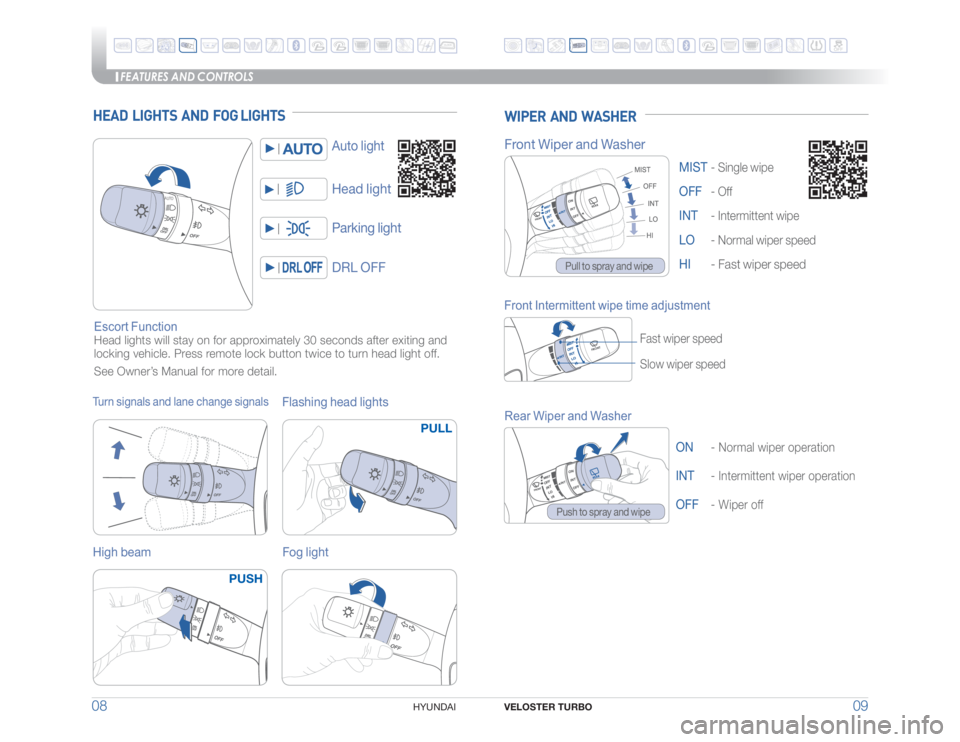

HYUNDAI WIPER AND WASHER
Rear Wiper and Washer
ON -
Normal wiper operation
INT -
Intermittent wiper operation
OFF -
Wiper offMIST -
Single wipe
OFF -
Off
INT -
Intermittent wipe
LO -
Normal wiper speed
HI -
Fast wiper speed
Front Intermittent wipe time adjustment
Fast wiper speed
Slow wiper speedFront Wiper and Washer
Pull to spray and wipe
Push to spray and wipeHEAD LIGHTS AND FOG LIGHTS
AUTOParking light
DRL OFFHead light Auto light
Escort Function
Head lights will stay on for approximately 30 seconds after exiting and
locking vehicle. Press remote lock button twice to turn head light off.
See Owner’s Manual for more detail.
High beam Fog lightTurn signals and lane change signals Flashing head lights
PULL
PUSH
ENGINESTAR T
STOP
Page 7 of 20
FEATURES AND CONTROLS
VELOSTER TURBO 1110

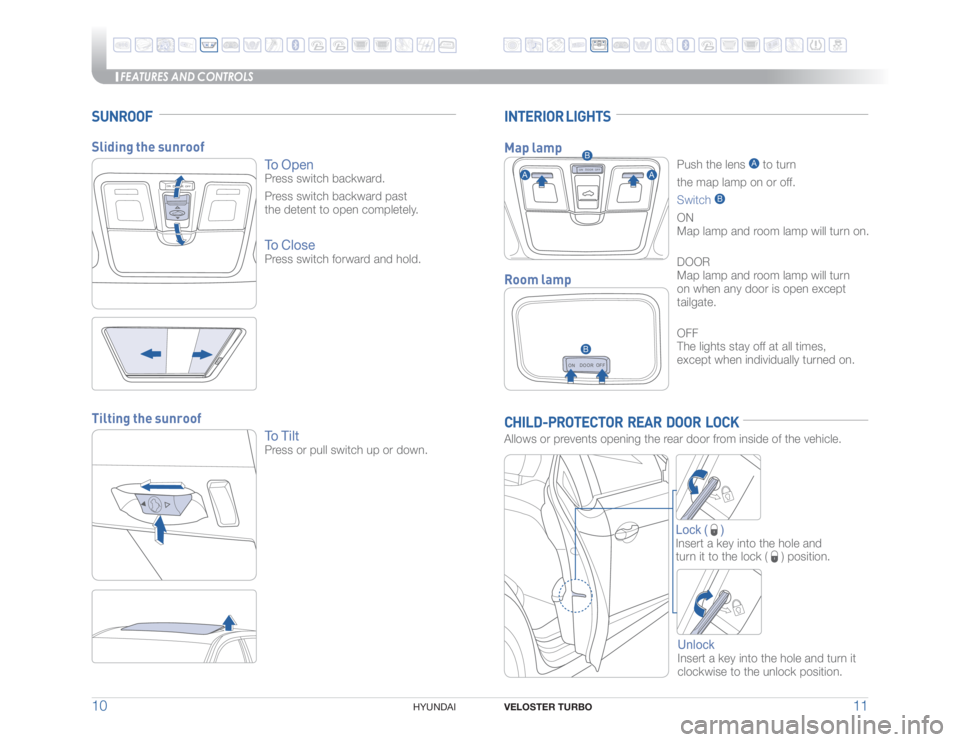

HYUNDAI SUNROOF
Sliding the sunroof
To Open
Press switch backward.
Press switch backward past
the detent to open completely.
To Close
Press switch forward and hold.
To Tilt
Press or pull switch up or down.Tilting the sunroof INTERIOR LIGHTS
Push the lens
A to turn
the map lamp on or off.
Switch
BON
Map lamp and room lamp will turn on.
% 0 0 3
Map lamp and room lamp will turn
on when any door is open except
tailgate.
OFF
The lights stay off at all times,
except when individually turned on. A B
B AMap lamp
Room lamp
CHILD-PROTECTOR REAR DOOR LOCK
Lock ( )
Insert a key into the hole and
turn it to the lock ( ) position.Allows or prevents opening the rear door from inside of the vehicle.
Unlock
Insert a key into the hole and turn it
clockwise to the unlock position.
ENGINESTAR T
STOP
Page 8 of 20
FEATURES AND CONTROLS
VELOSTER TURBO 1312

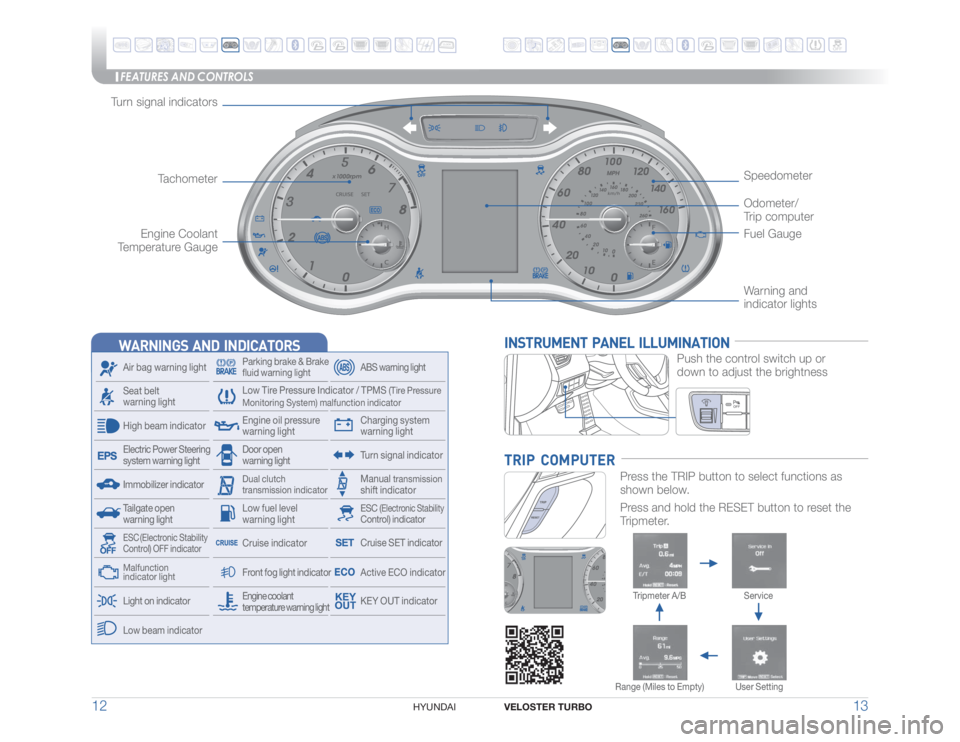

HYUNDAI Range (Miles to Empty) User Setting ServiceINSTRUMENT PANEL ILLUMINATION
Push the control switch up or
down to adjust the brightnessWARNINGS AND INDICATORS
Seat belt
warning lightAir bag warning light
Low Tire Pressure Indicator / TPMS
(Tire Pressure
Monitoring System) malfunction indicator ABS warning light
Front fog light indicator
Light on indicatorTailgate open
warning lightElectric Power Steering
system warning light
Manual
transmission shift indicatorHigh beam indicator
Cruise indicator Parking brake & Brake
fluid warning light
Engine oil pressure
warning light Charging system
warning light
Malfunction
indicator light ESC ( Electronic Stability
Control) indicatorLow fuel level
warning light
ESC (Electronic Stability
Control) OFF indicator Cruise SET indicatorDual clutch
transmission indicatorDoor open
warning
light
Engine coolant
temperature warning light Turn signal indicator
Active ECO indicatorImmobilizer indicator
KEY OUT indicator
Low beam indicatorTurn signal indicators
Speedometer
Fuel Gauge
Warning and
indicator lightsTachometer
Odometer/
Trip computer
Press the TRIP button to select functions as
shown below.
Press and hold the RESET button to reset the
Tripmeter.
Tripmeter A/BTRIP COMPUTER & O H J O F $ P P M B O U
Temperature Gauge
ENGINESTAR T
STOP
Page 9 of 20
FEATURES AND CONTROLS
VELOSTER TURBO 1514
HYUNDAI REAR WINDOW DEFROSTERDEFROSTING / DEFOGGING
Press to activate / deactivate the rear defroster.1. Press the front windshield defrost control.
2. Set the temperature control to the warmest setting.
3. Set the fan speed to the highest setting.
NOTE
To reduce the tendency of the glass fogging and improve visibility,
keep the interior surface of the windshield clean by wiping it with a
clean cloth and glass cleaner. In addition, select air intake control to
the outside (fresh) air position whenever possible while operating the
vehicle.MODE SELECTION
Face Level
Bi Level
Floor Level
' M P P S % F G S P T U - F W F M This is used to
select outside
(fresh) air position
or recirculated air
position.AIR INTAKE CONTROL
Outside (fresh) air position

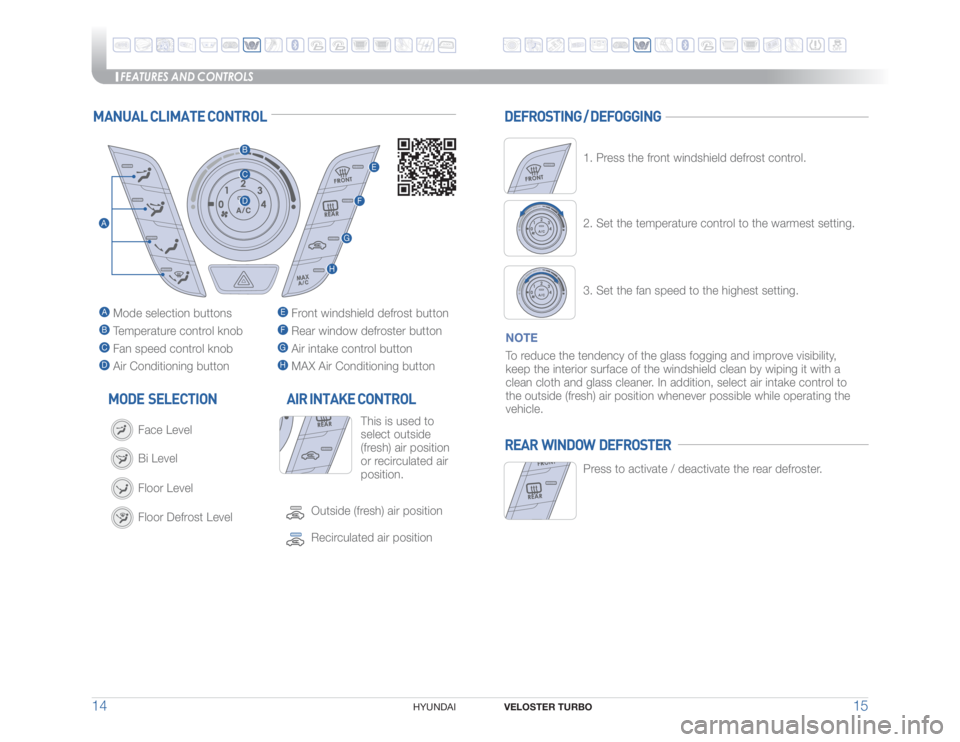

Recirculated air positionMANUAL CLIMATE CONTROL
A Mode selection buttons
B Temperature control knob
C Fan speed control knob
D " J S $ P O E J U J P O J O H C V U U P O A D E
F
G
HC B
E Front windshield defrost button
F Rear window defroster button
G Air intake control button
H . " 9 " J S $ P O E J U J P O J O H C V U U P O
ENGINESTAR T
STOP
Page 10 of 20
FEATURES AND CONTROLS
VELOSTER TURBO 1716
HYUNDAI A Mode selection button
B Temperature control knob
C Fan speed control buttons
D " J S $ P O E J U J P O J O H C V U U P O
E Front windshield defrost button
F Rear window defroster button
G Air intake control button
H $ M J N B U F C V U U P O MO D E
CLIM AT EAUTO
OFF E
F
G
HB
MODE SELECTION
Face Level
Bi Level
Floor Level
' M P P S % F G S P T U - F W F M This is used to
select outside
(fresh) air position
or recirculated air
position.AIR INTAKE CONTROL
Outside (fresh) air position

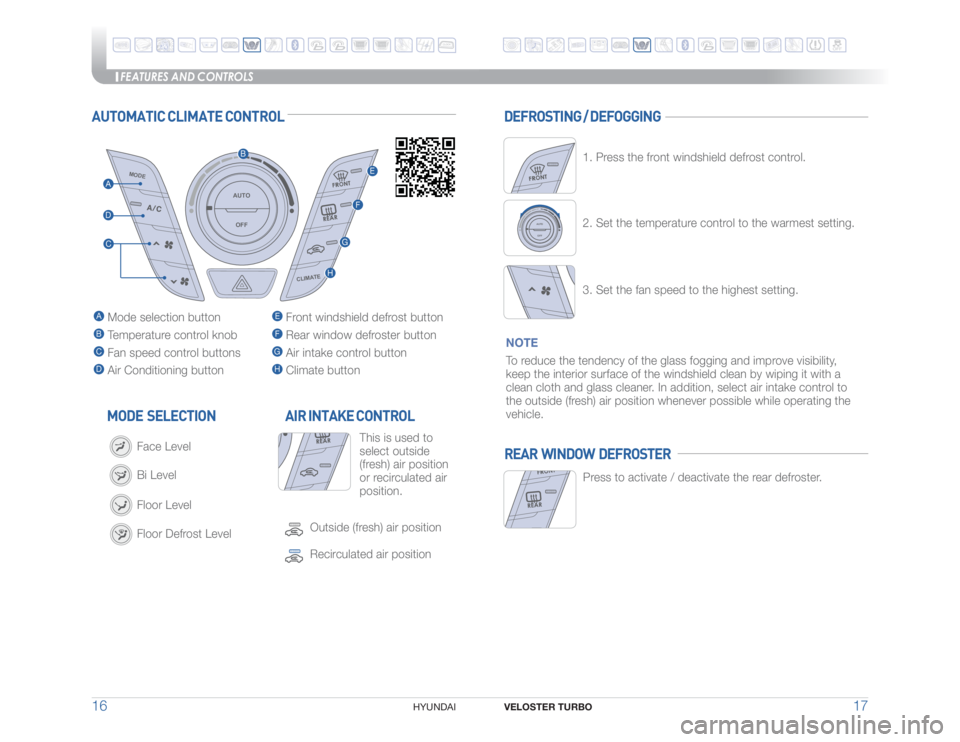

Recirculated air positionAUTOMATIC CLIMATE CONTROL
C A
D
A U TO
O FFREAR WINDOW DEFROSTERDEFROSTING / DEFOGGING
Press to activate / deactivate the rear defroster.1. Press the front windshield defrost control.
2. Set the temperature control to the warmest setting.
3. Set the fan speed to the highest setting.
NOTE
To reduce the tendency of the glass fogging and improve visibility,
keep the interior surface of the windshield clean by wiping it with a
clean cloth and glass cleaner. In addition, select air intake control to
the outside (fresh) air position whenever possible while operating the
vehicle.
ENGINESTAR T
STOP
