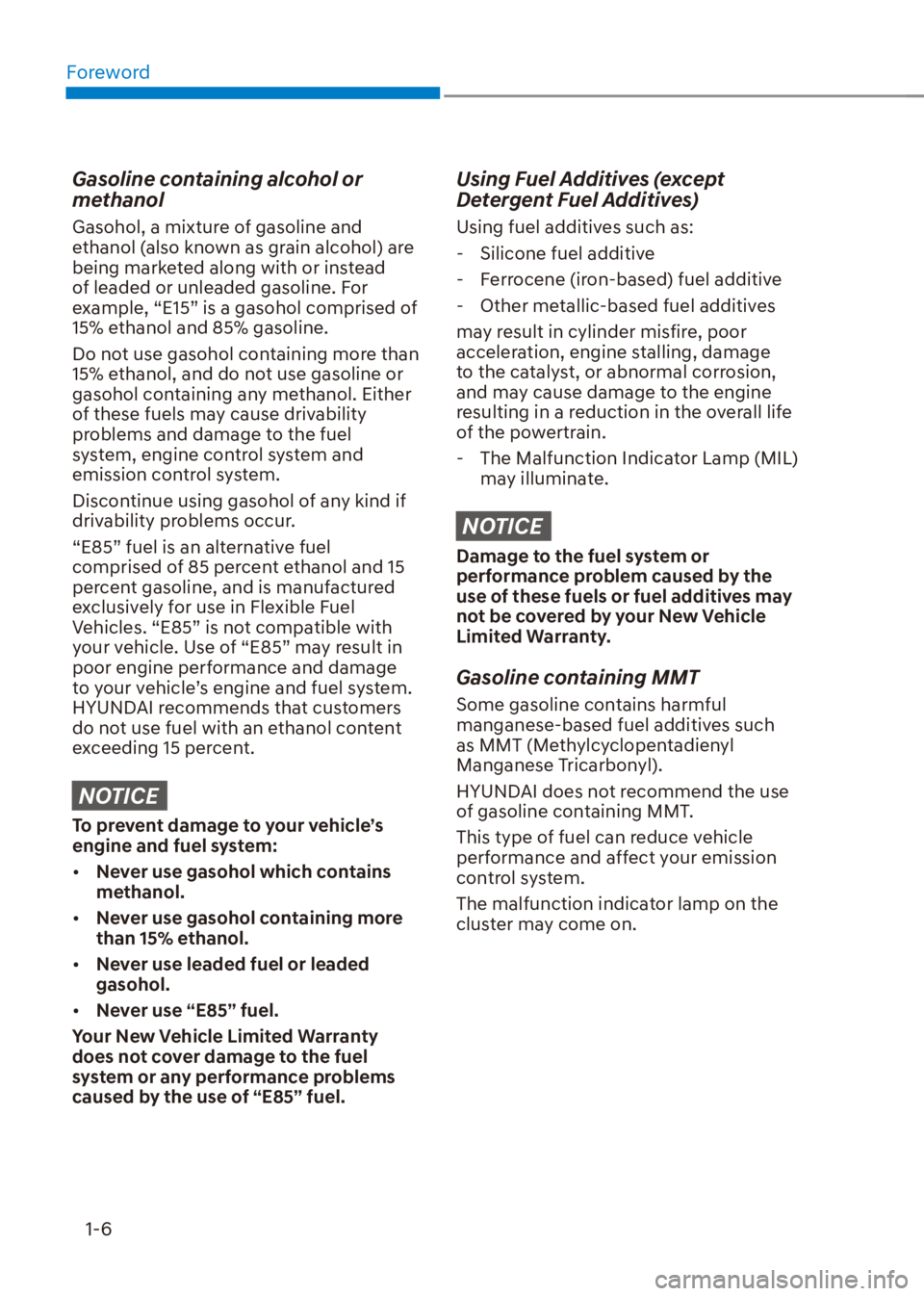

Foreword
1-6
Gasoline containing alcohol or
methanol
Gasohol, a mixture of gasoline and
ethanol (also known as grain alcohol) are
being marketed along with or instead
of leaded or unleaded gasoline. For
example, “E15” is a gasohol comprised of
15% ethanol and 85% gasoline.
Do not use gasohol containing more than
15% ethanol, and do not use gasoline or
gasohol containing any methanol. Either
of these fuels may cause drivability
problems and damage to the fuel
system, engine control system and
emission control system.
Discontinue using gasohol of any kind if
drivability problems occur.
“E85” fuel is an alternative fuel
comprised of 85 percent ethanol and 15
percent gasoline, and is manufactured
exclusively for use in Flexible Fuel
Vehicles. “E85” is not compatible with
your vehicle. Use of “E85” may result in
poor engine performance and damage
to your vehicle’s engine and fuel system.
HYUNDAI recommends that customers
do not use fuel with an ethanol content
exceeding 15 percent.
NOTICE
To prevent damage to your vehicle’s
engine and fuel system:

[Never use gasohol which contains
methanol.

[Never use gasohol containing more
than 15% ethanol.

[Never use leaded fuel or leaded
gasohol.

[Never use “E85” fuel.
Your New Vehicle Limited Warranty
does not cover damage to the fuel
system or any performance problems
caused by the use of “E85” fuel.
Using Fuel Additives (except
Detergent Fuel Additives)
Using fuel additives such as:
- Silicone fuel additive
- Ferrocene (iron-based) fuel additive
- Other metallic-based fuel additives
may result in cylinder misfire, poor
acceleration, engine stalling, damage
to the catalyst, or abnormal corrosion,
and may cause damage to the engine
resulting in a reduction in the overall life
of the powertrain.
- The Malfunction Indicator Lamp (MIL)
may illuminate.
NOTICE
Damage to the fuel system or
performance problem caused by the
use of these fuels or fuel additives may
not be covered by your New Vehicle
Limited Warranty.
Gasoline containing MMT
Some gasoline contains harmful
manganese-based fuel additives such
as MMT (Methylcyclopentadienyl
Manganese Tricarbonyl).
HYUNDAI does not recommend the use
of gasoline containing MMT.
This type of fuel can reduce vehicle
performance and affect your emission
control system.
The malfunction indicator lamp on the
cluster may come on.

01
1-7

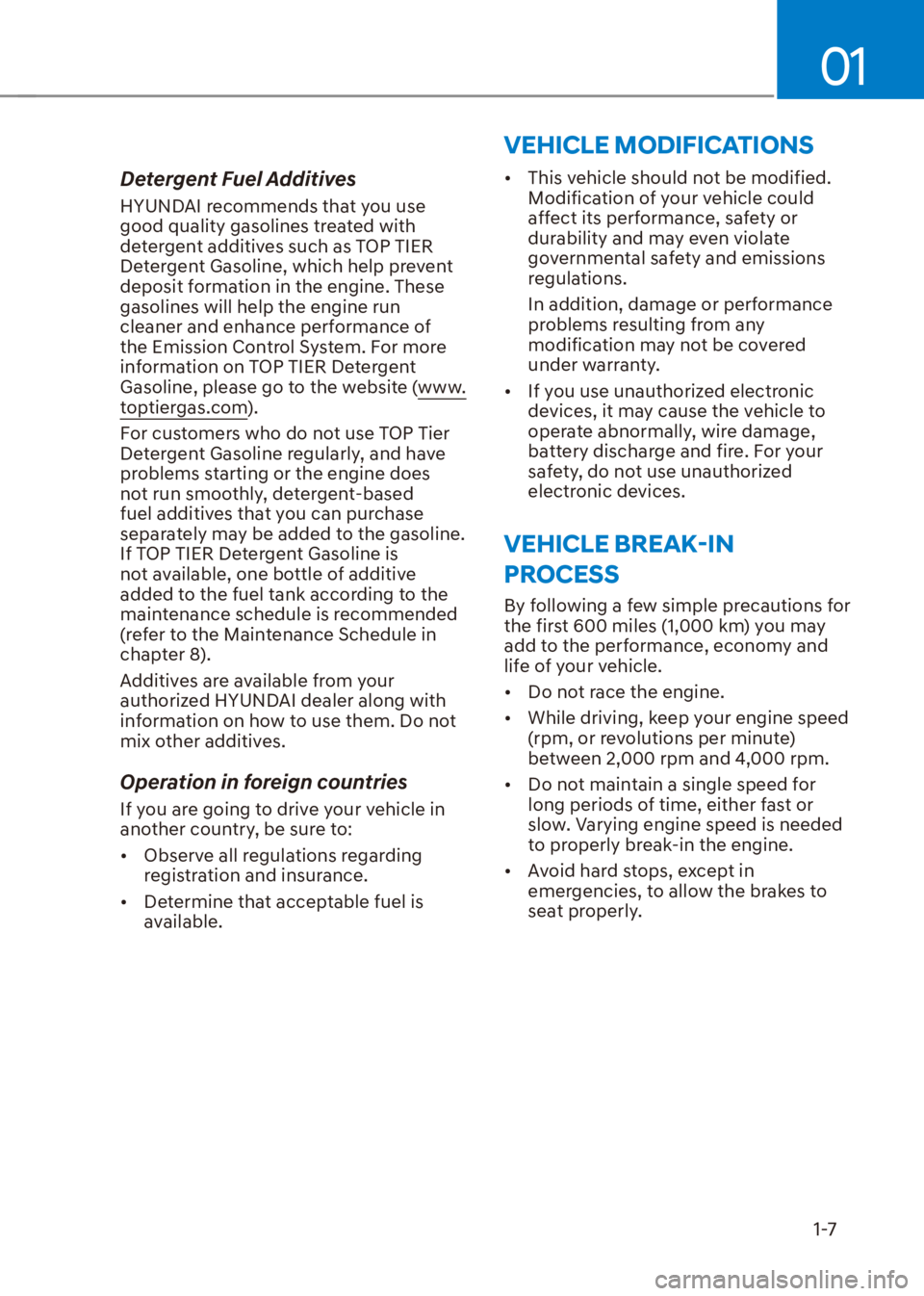

Detergent Fuel Additives
HYUNDAI recommends that you use
good quality gasolines treated with
detergent additives such as TOP TIER
Detergent Gasoline, which help prevent
deposit formation in the engine. These
gasolines will help the engine run
cleaner and enhance performance of
the Emission Control System. For more
information on TOP TIER Detergent
Gasoline, please go to the website (www.
toptiergas.com).
For customers who do not use TOP Tier
Detergent Gasoline regularly, and have
problems starting or the engine does
not run smoothly, detergent-based
fuel additives that you can purchase
separately may be added to the gasoline.
If TOP TIER Detergent Gasoline is
not available, one bottle of additive
added to the fuel tank according to the
maintenance schedule is recommended
(refer to the Maintenance Schedule in
chapter 8).
Additives are available from your
authorized HYUNDAI dealer along with
information on how to use them. Do not
mix other additives.
Operation in foreign countries
If you are going to drive your vehicle in
another country, be sure to:

[Observe all regulations regarding
registration and insurance.

[Determine that acceptable fuel is
available.
[This vehicle should not be modified.
Modification of your vehicle could
affect its performance, safety or
durability and may even violate
governmental safety and emissions
regulations.
In addition, damage or performance
problems resulting from any
modification may not be covered
under warranty.

[If you use unauthorized electronic
devices, it may cause the vehicle to
operate abnormally, wire damage,
battery discharge and fire. For your
safety, do not use unauthorized
electronic devices.
9(+,&/(%5($.
Ø,1
PROCESS
By following a few simple precautions for
the first 600 miles (1,000 km) you may
add to the performance, economy and
life of your vehicle.

[Do not race the engine.

[While driving, keep your engine speed
(rpm, or revolutions per minute)
between 2,000 rpm and 4,000 rpm.

[Do not maintain a single speed for
long periods of time, either fast or
slow. Varying engine speed is needed
to properly break-in the engine.

[Avoid hard stops, except in
emergencies, to allow the brakes to
seat properly.
VEHICLE MODIFICATIONS

Foreword
1-8
VEHICLE DATA COLLECTION
AND EVENT DATA
RECORDERS
This vehicle is equipped with an event
data recorder (EDR). The main purpose
of an EDR is to record, in certain crash
or near crash-like situations, such as
an air bag deployment or hitting a
road obstacle, data that will assist in
understanding how a vehicle’s systems
performed. The EDR is designed to
record data related to vehicle dynamics
and safety systems for a short period of
time, typically 30 seconds or less. The
EDR in this vehicle is designed to record
such data as:

[How various systems in your vehicle
were operating;

[Whether or not the driver and
passenger safety belts were buckled/
fastened;

[How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,

[How fast the vehicle was traveling.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur. NOTE:
EDR data are recorded by your vehicle
only if a non-trivial crash situation
occurs; no data are recorded by the
EDR under normal driving conditions
and no personal data (e.g., name,
gender, age, and crash location) are
recorded. However, other parties, such
as law enforcement, could combine the
EDR data with the type of personally
identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR,
special equipment is required, and
access to the vehicle or the EDR is
needed. In addition to the vehicle
manufacturer, other parties, such as
law enforcement, that have the special
equipment, can read the information if
they have access to the vehicle or the
EDR.

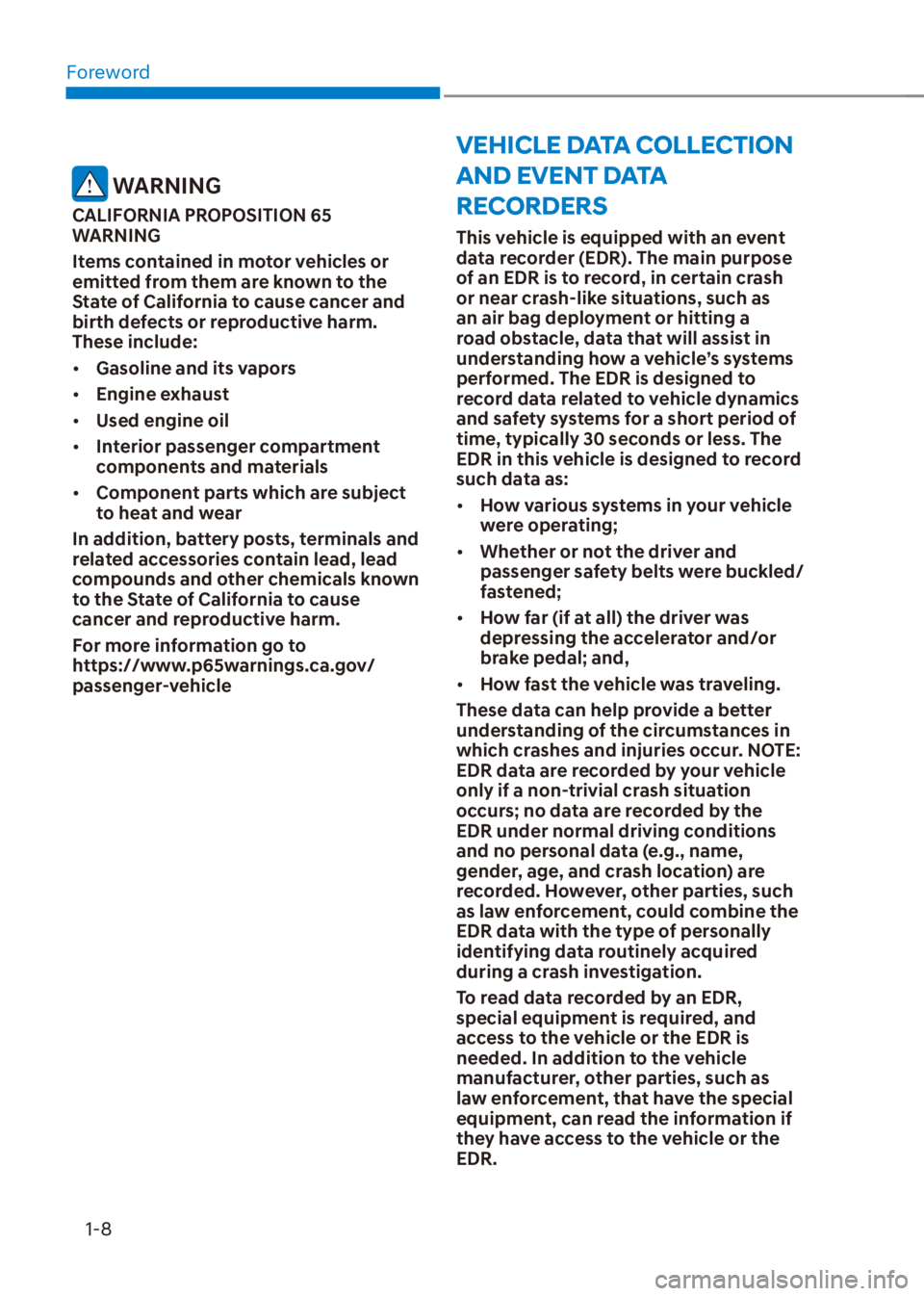

WARNING
CALIFORNIA PROPOSITION 65
WARNING
Items contained in motor vehicles or
emitted from them are known to the
State of California to cause cancer and
birth defects or reproductive harm.
These include:

[Gasoline and its vapors

[Engine exhaust

[Used engine oil

[Interior passenger compartment
components and materials

[Component parts which are subject
to heat and wear
In addition, battery posts, terminals and
related accessories contain lead, lead
compounds and other chemicals known
to the State of California to cause
cancer and reproductive harm.
For more information go to
https://www.p65warnings.ca.gov/
passenger-vehicle

2

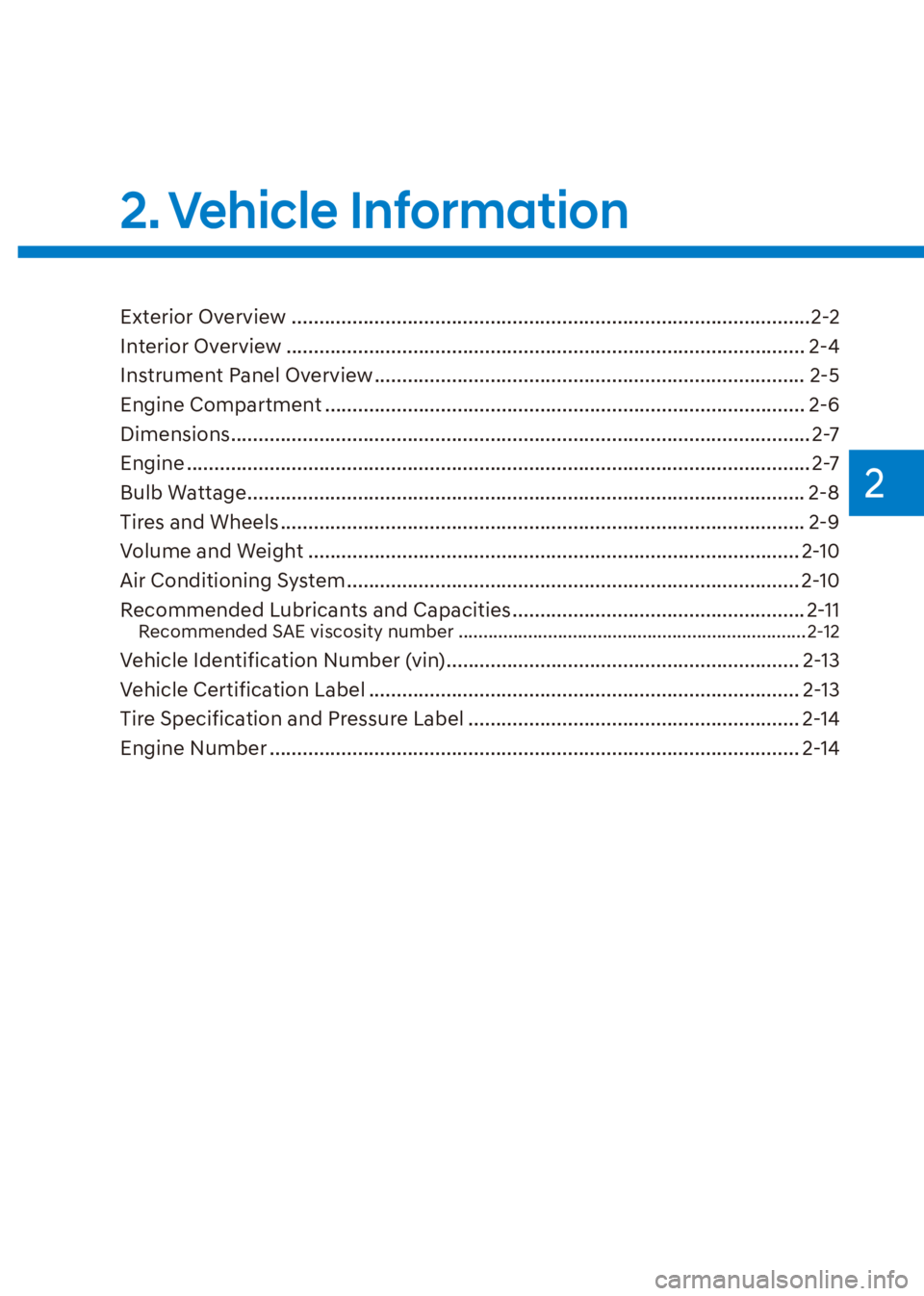

2. Vehicle Information
Exterior Overview ..............................................................................................2-2
Interior Overview .............................................................................................. 2-4
Instrument Panel Overview .............................................................................. 2-5

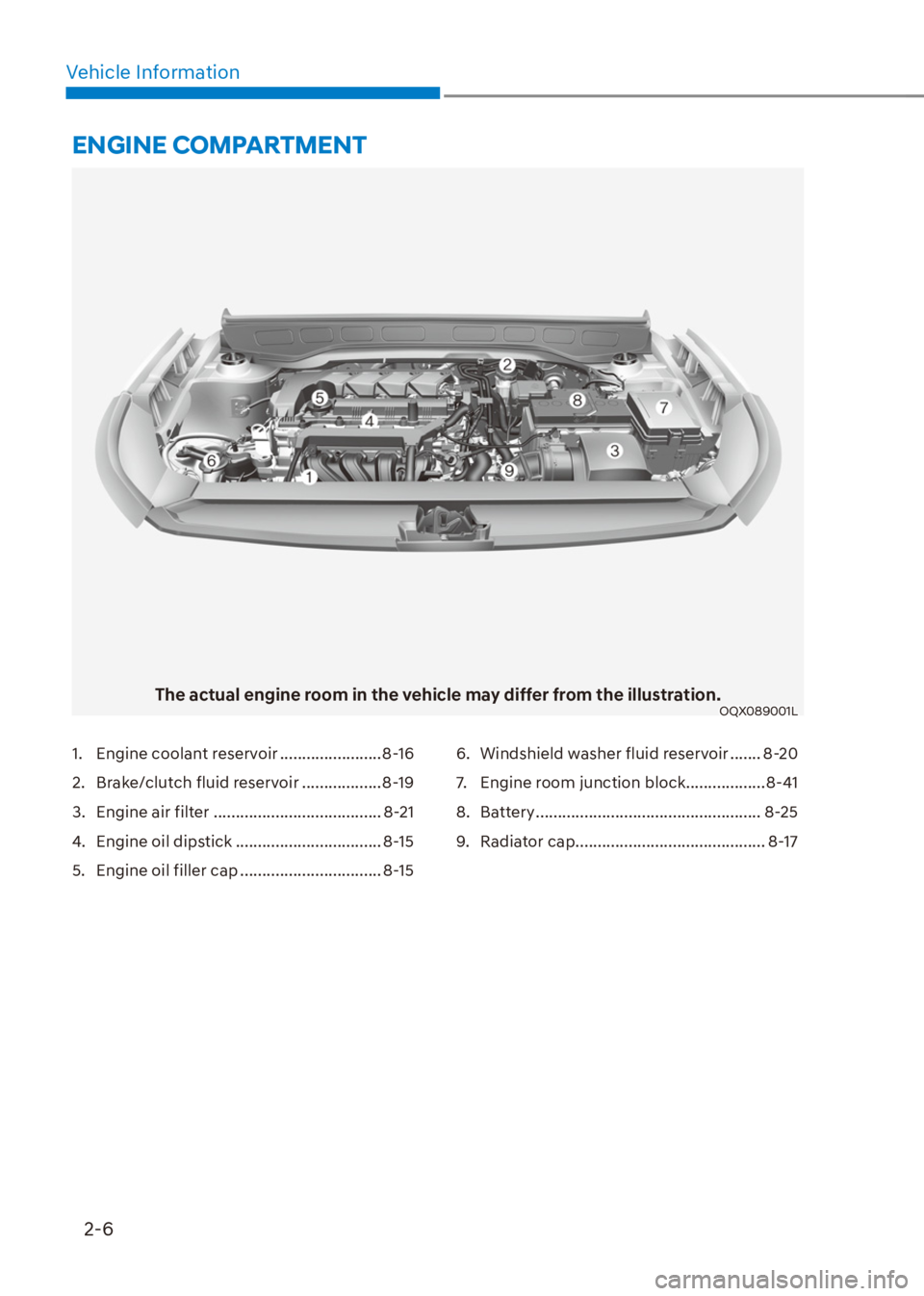

Engine Compartment ....................................................................................... 2-6
Dimensions ......................................................................................................... 2-7
Engine ................................................................................................................. 2-7
Bulb Wattage ..................................................................................................... 2-8
Tires and Wheels ............................................................................................... 2-9
Volume and Weight ......................................................................................... 2-10
Air Conditioning System .................................................................................. 2-10
Recommended Lubricants and Capacities ..................................................... 2-11
Recommended SAE viscosity number ...................................................................... 2-12
Vehicle Identification Number (vin) ................................................................ 2-13
Vehicle Certification Label .............................................................................. 2-13
Tire Specification and Pressure Label ............................................................ 2-14
Engine Number ................................................................................................ 2-14

2-2
Vehicle Information

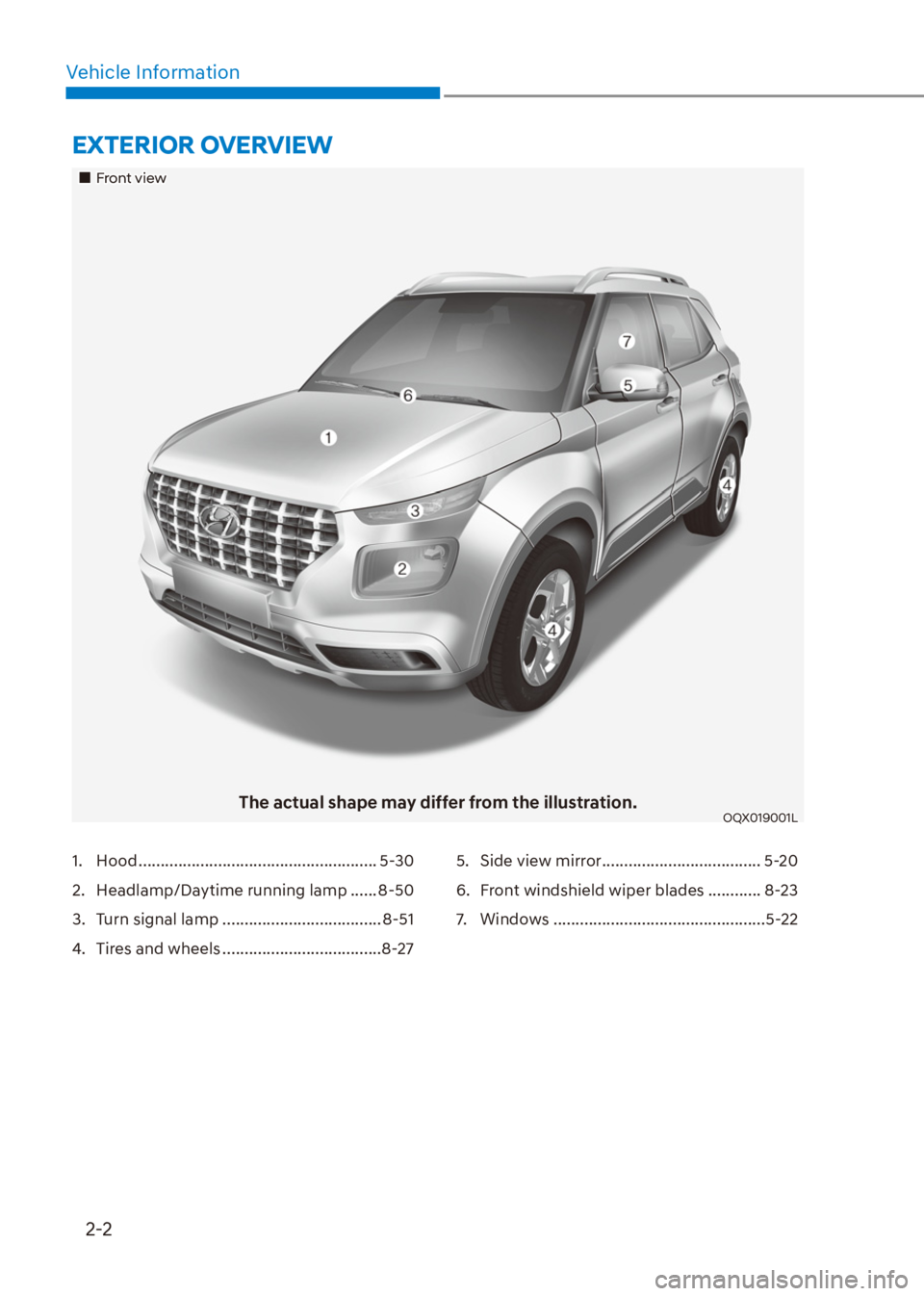

EXTERIOR OVERVIEW
„Front view
The actual shape may differ from the illustration.OQX019001L
1. Hood ...................................................... 5-30
2. Headlamp/Daytime running lamp ...... 8-50
3. Turn signal lamp .................................... 8-51
4. Tires and wheels ....................................8-275. Side view mirror .................................... 5-20
6. Front windshield wiper blades ............ 8-23
7. Windows ................................................5-22

2-3
02

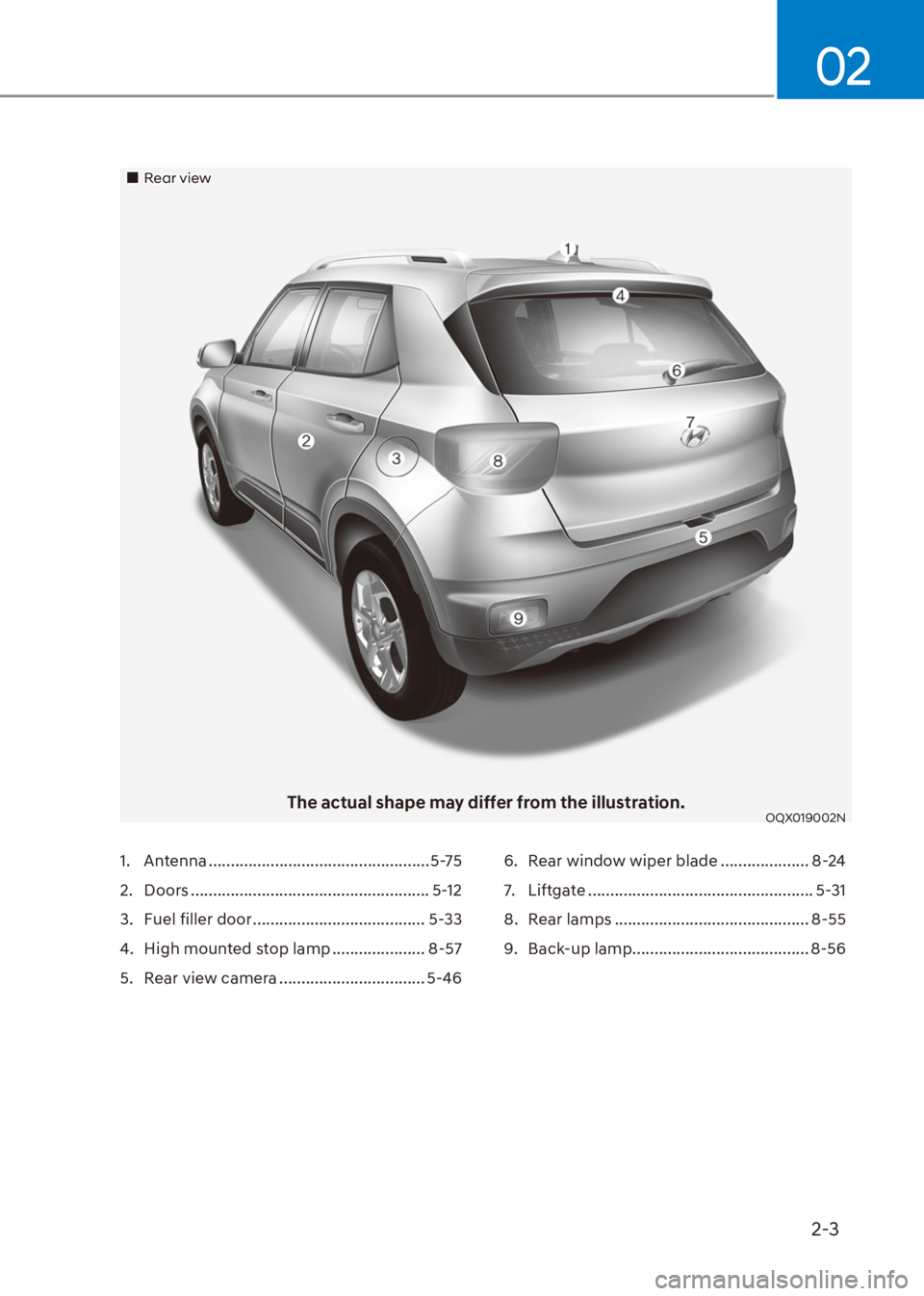

„Rear view
The actual shape may differ from the illustration.OQX019002N
1. Antenna .................................................. 5-75
2. Doors ...................................................... 5-12
3. Fuel filler door ....................................... 5-33
4. High mounted stop lamp ..................... 8-57
5. Rear view camera ................................. 5-466. Rear window wiper blade .................... 8-24
7. Liftgate ................................................... 5-31
8. Rear lamps ............................................ 8-55
9. Back-up lamp ........................................ 8-56

2-4
Vehicle Information
The actual shape may differ from the illustration.OQX019003N

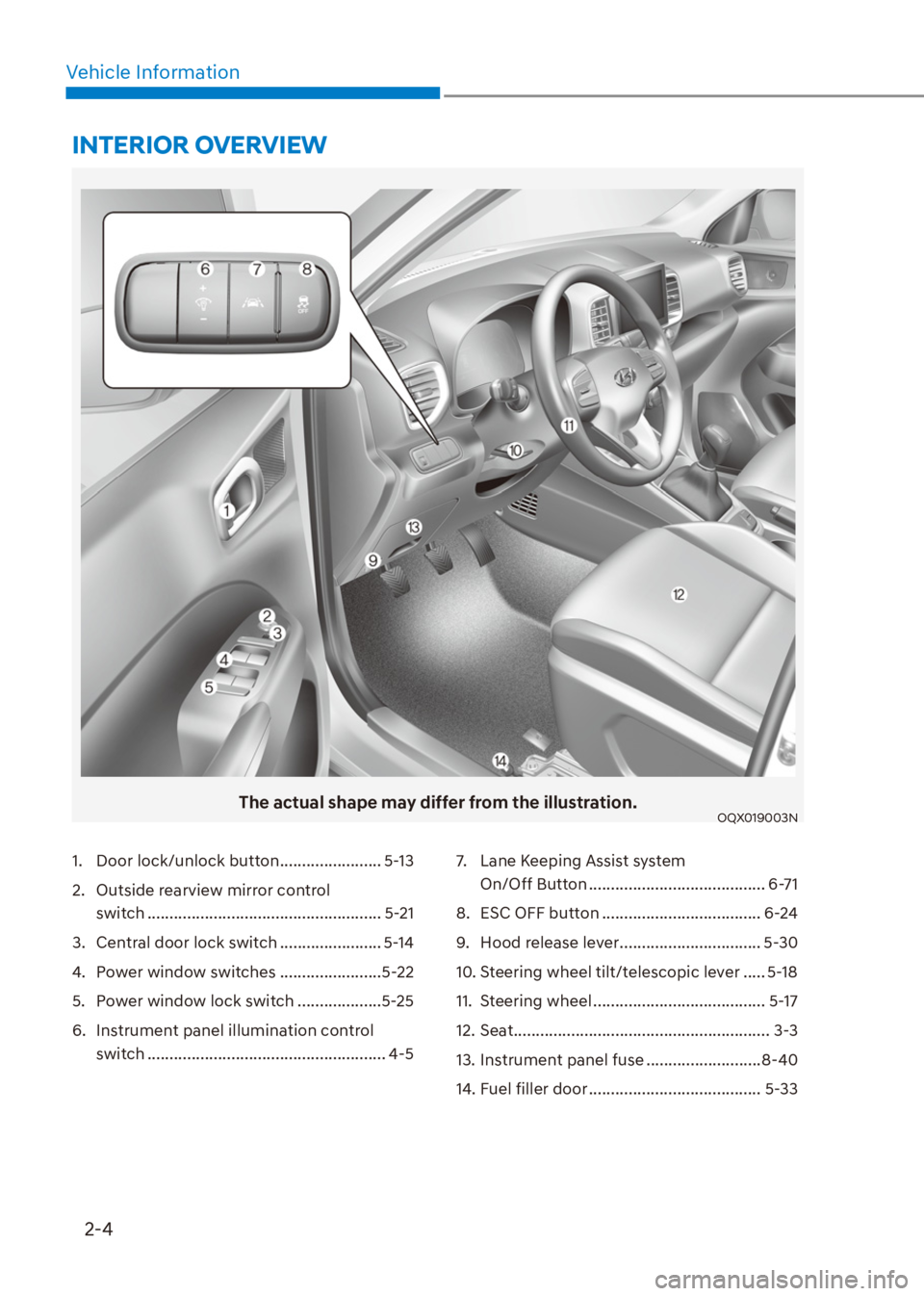

1. Door lock/unlock button ....................... 5-13
2. Outside rearview mirror control
switch ..................................................... 5-21
3. Central door lock switch ....................... 5-14
4. Power window switches .......................5-22
5. Power window lock switch ...................5-25
6. Instrument panel illumination control
switch ...................................................... 4-57. Lane Keeping Assist system
On/Off Button ........................................ 6-71
8. ESC OFF button .................................... 6-24
9. Hood release lever ................................ 5-30
10. Steering wheel tilt/telescopic lever ..... 5-18
11. Steering wheel ....................................... 5-17
12. Seat .......................................................... 3-3
13. Instrument panel fuse ..........................8-40
14. Fuel filler door ....................................... 5-33

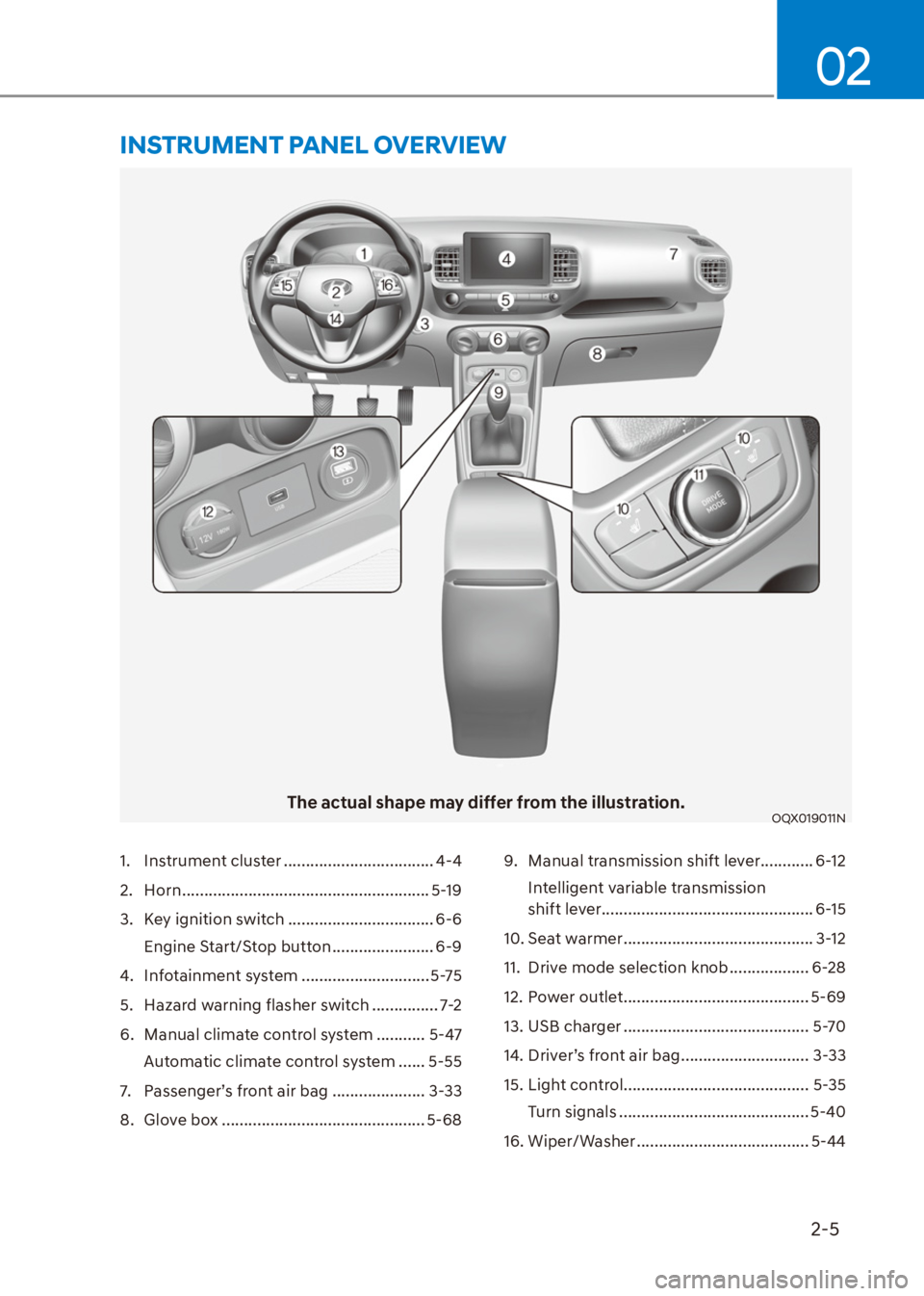

INTERIOR OVERVIEW

2-5
02
The actual shape may differ from the illustration.OQX019011N
1. Instrument cluster .................................. 4-4
2. Horn ........................................................ 5-19
3. Key ignition switch ................................. 6-6
Engine Start/Stop button ....................... 6-9
4. Infotainment system ............................. 5-75
5. Hazard warning flasher switch ............... 7-2
6. Manual climate control system ........... 5-47
Automatic climate control system ...... 5-55
7. Passenger’s front air bag ..................... 3-33
8. Glove box .............................................. 5-689. Manual transmission shift lever ............ 6-12
Intelligent variable transmission
shift lever................................................ 6-15
10. Seat warmer ........................................... 3-12
11. Drive mode selection knob .................. 6-28
12. Power outlet .......................................... 5-69
13. USB charger .......................................... 5-70
14. Driver’s front air bag ............................. 3-33
15. Light control .......................................... 5-35
Turn signals ........................................... 5-40
16. Wiper/Washer ....................................... 5-44
INSTRUMENT PANEL OVERVIEW

2-6
Vehicle Information
The actual engine room in the vehicle may differ from the illustration.OQX089001L
ENGINE COMPARTMENT
1. Engine coolant reservoir .......................8-16
2. Brake/clutch fluid reservoir ..................8-19
3. Engine air filter ...................................... 8-21
4. Engine oil dipstick ................................. 8-15
5. Engine oil filler cap ................................ 8-156. Windshield washer fluid reservoir ....... 8-20
7. Engine room junction block ..................8-41
8. Battery ................................................... 8-25
9. Radiator cap ........................................... 8-17

02
2-7

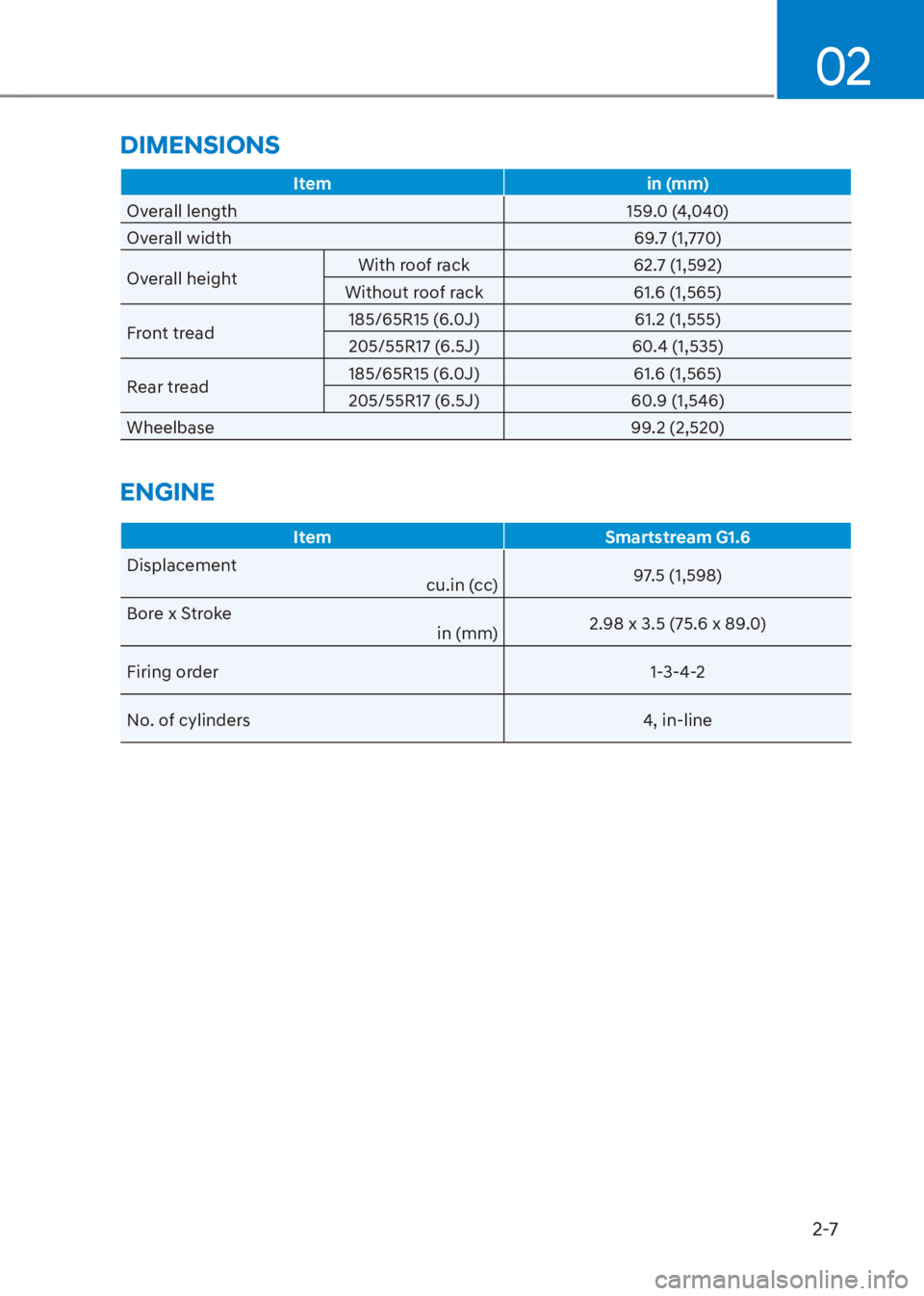

DIMENSIONS
Item in (mm)
Overall length 159.0 (4,040)
Overall width 69.7 (1,770)
Overall heightWith roof rack 62.7 (1,592)
Without roof rack 61.6 (1,565)
Front tread185/65R15 (6.0J) 61.2 (1,555)
205/55R17 (6.5J) 60.4 (1,535)
Rear tread185/65R15 (6.0J) 61.6 (1,565)
205/55R17 (6.5J) 60.9 (1,546)
Wheelbase 99.2 (2,520)
ENGINE
Item Smartstream G1.6
Displacement
cu.in (cc)97.5 (1,598)
Bore x Stroke
in (mm)2.98 x 3.5 (75.6 x 89.0)
Firing order 1-3-4-2
No. of cylinders 4, in-line
