HYUNDAI VENUE 2022 Owner's Manual

Vehicle Information
2-8

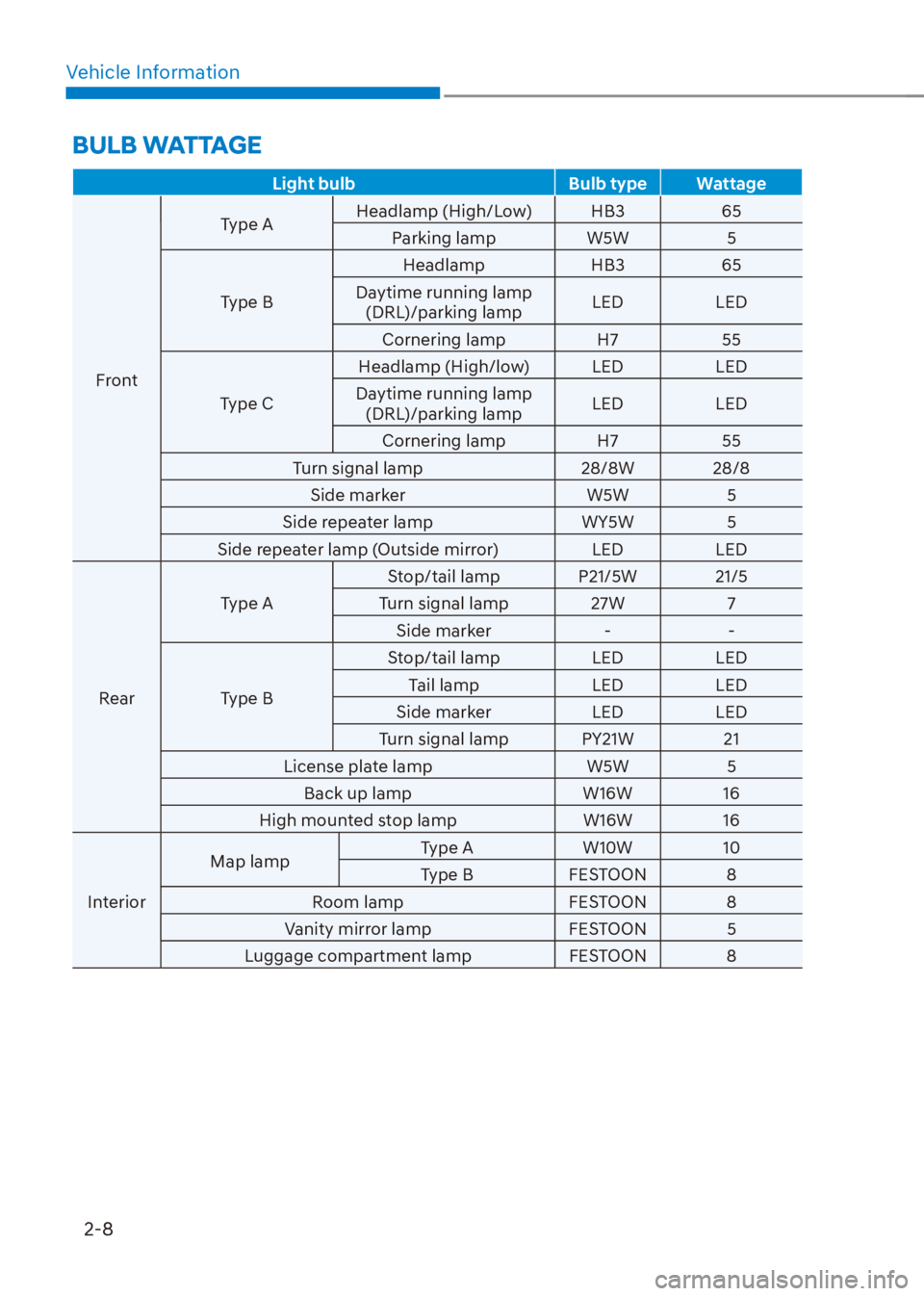

BULB WATTAGE
Light bulb Bulb type Wattage
FrontType AHeadlamp (High/Low) HB3 65
Parking lamp W5W 5
Type BHeadlamp HB3 65
Daytime running lamp
(DRL)/parking lampLED LED
Cornering lamp H7 55
Type CHeadlamp (High/low) LED LED
Daytime running lamp
(DRL)/parking lampLED LED
Cornering lamp H7 55
Turn signal lamp 28/8W 28/8
Side marker W5W 5
Side repeater lamp WY5W 5
Side repeater lamp (Outside mirror) LED LED
RearType AStop/tail lamp P21/5W 21/5
Turn signal lamp 27W 7
Side marker - -
Type BStop/tail lamp LED LED
Tail lamp LED LED
Side marker LED LED
Turn signal lamp PY21W 21
License plate lamp W5W 5
Back up lamp W16W 16
High mounted stop lamp W16W 16
InteriorMap lampType A W10W 10
Type B FESTOON 8
Room lamp FESTOON 8
Vanity mirror lamp FESTOON 5
Luggage compartment lamp FESTOON 8

02
2-9

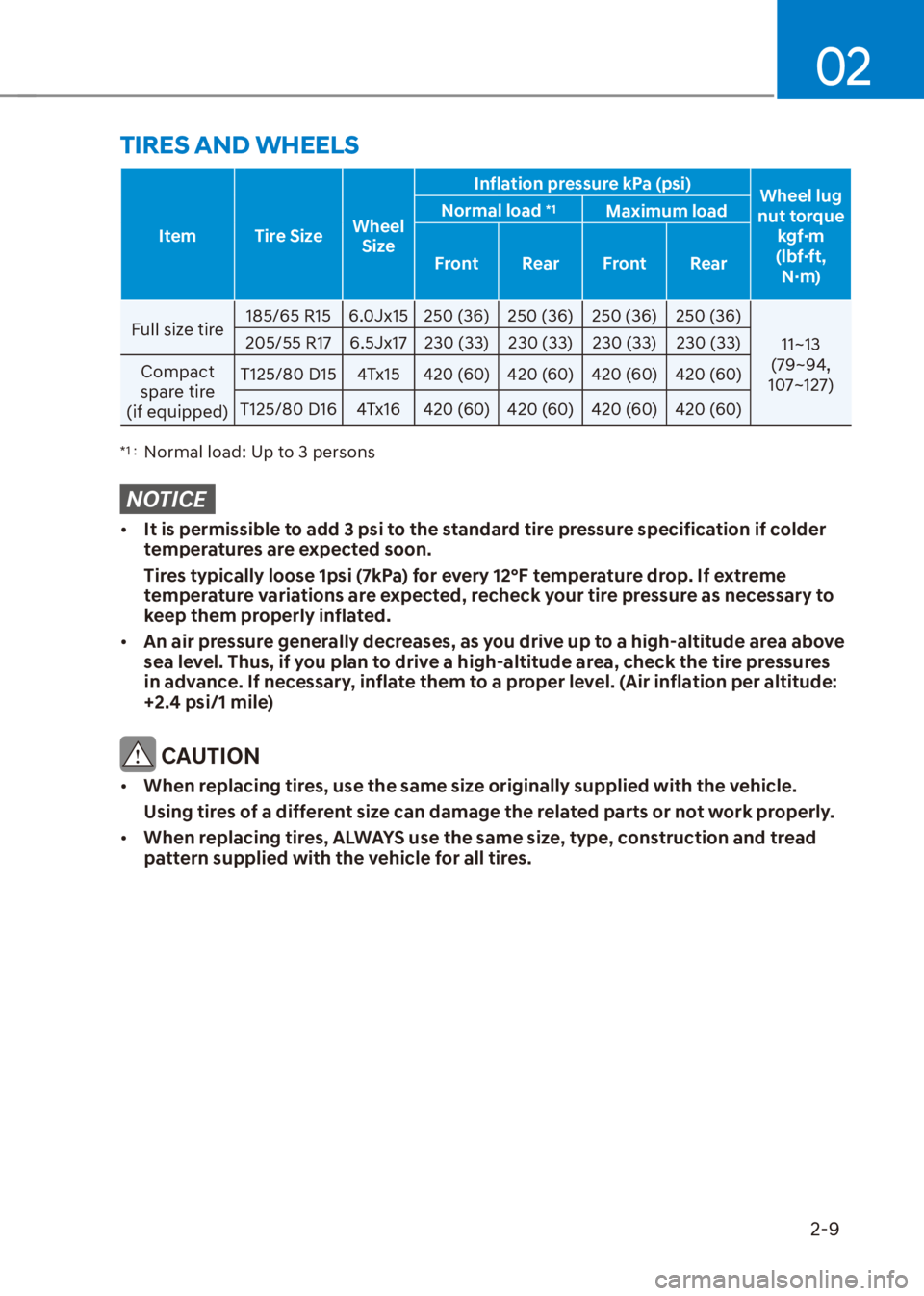

TIRES AND WHEELS
Item Tire SizeWheel
SizeInflation pressure kPa (psi)
Wheel lug
nut torque
kgf·m
(lbf·ft,
N·m) Normal load
*1Maximum load
Front Rear Front Rear
Full size tire185/65 R15 6.0Jx15 250 (36) 250 (36) 250 (36) 250 (36)
11~13
(79~94,
107~127) 205/55 R17 6.5Jx17 230 (33) 230 (33) 230 (33) 230 (33)
Compact
spare tire
(if equipped)T125/80 D15 4Tx15 420 (60) 420 (60) 420 (60) 420 (60)
T125/80 D16 4Tx16 420 (60) 420 (60) 420 (60) 420 (60)
*1 : Normal load: Up to 3 persons
NOTICE

[It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.

[An air pressure generally decreases, as you drive up to a high-altitude area above
sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures
in advance. If necessary, inflate them to a proper level. (Air inflation per altitude:
+2.4 psi/1 mile)
CAUTION

[When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.

[When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.

Vehicle Information
2-10

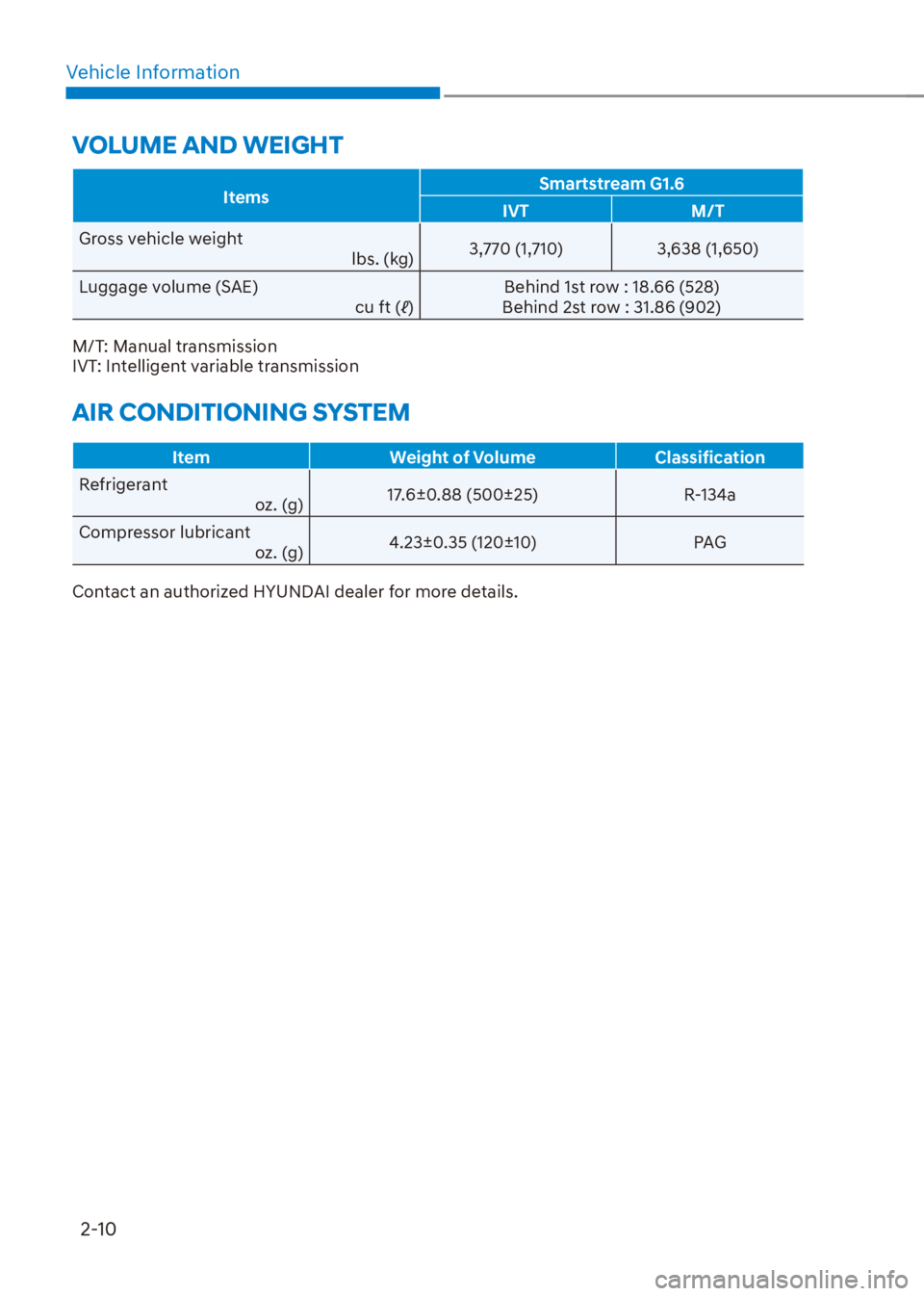

VOLUME AND WEIGHT
ItemsSmartstream G1.6
IVT M/T
Gross vehicle weight
lbs. (kg)3,770 (1,710) 3,638 (1,650)
Luggage volume (SAE)
cu ft (
b)Behind 1st row : 18.66 (528)
Behind 2st row : 31.86 (902)
M/T: Manual transmission
IVT: Intelligent variable transmission
AIR CONDITIONING SYSTEM
Item Weight of Volume Classification
Refrigerant
oz. (g)17.6±0.88 (500±25) R-134a
Compressor lubricant
oz. (g)4.23±0.35 (120±10) PAG
Contact an authorized HYUNDAI dealer for more details.

02
2-11

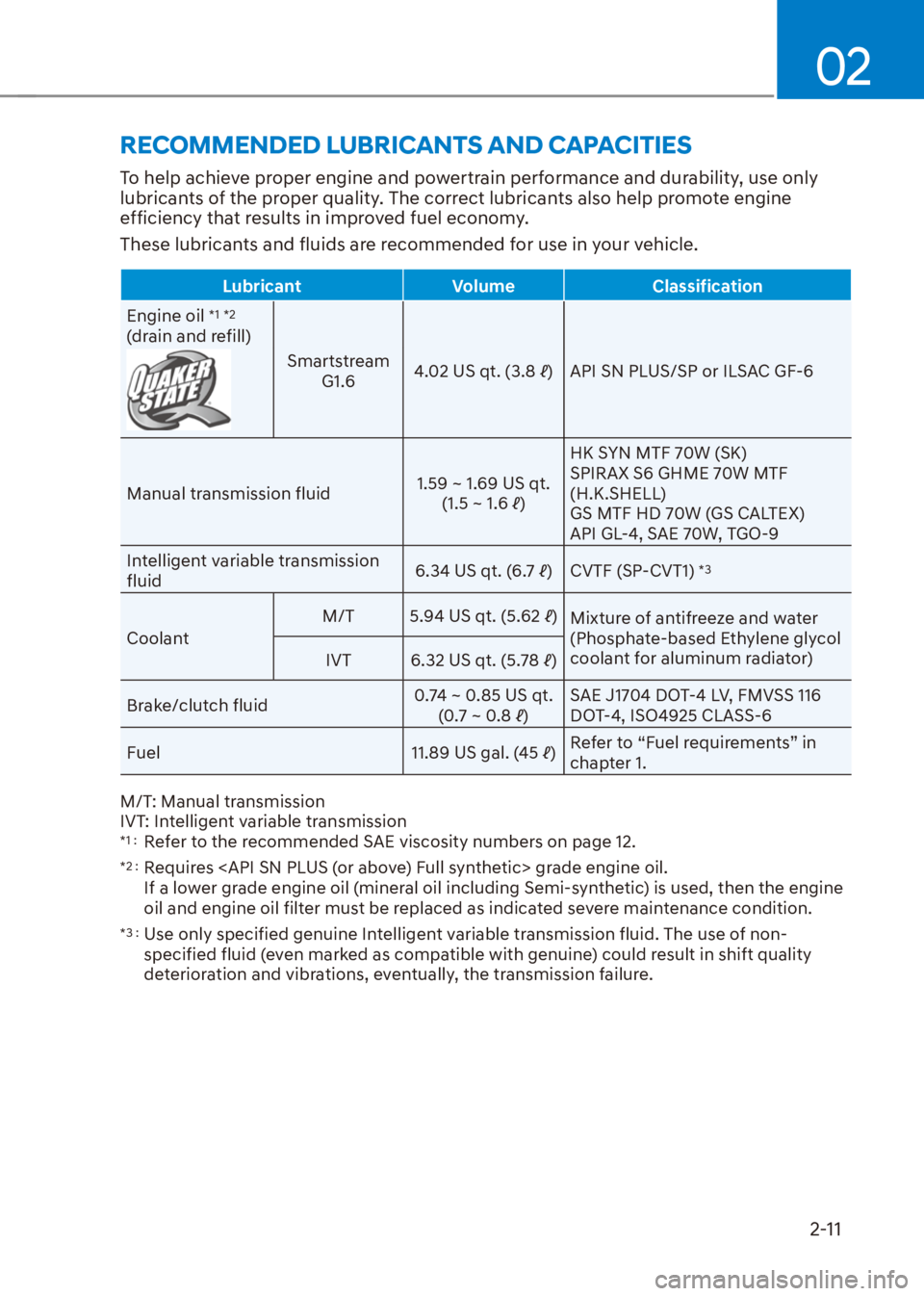

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1 *2
(drain and refill)
Smartstream
G1.64.02 US qt. (3.8
b) API SN PLUS/SP or ILSAC GF-6
Manual transmission fluid1.59 ~ 1.69 US qt.
(1.5 ~ 1.6
b)HK SYN MTF 70W (SK)
SPIRAX S6 GHME 70W MTF
(H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
API GL-4, SAE 70W, TGO-9
Intelligent variable transmission
fluid6.34 US qt. (6.7
b) CVTF (SP-CVT1)
*3
CoolantM/T 5.94 US qt. (5.62
b)
Mixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
IVT 6.32 US qt. (5.78
b)
Brake/clutch fluid0.74 ~ 0.85 US qt.
(0.7 ~ 0.8
b)SAE J1704 DOT-4 LV, FMVSS 116
DOT-4, ISO4925 CLASS-6
Fuel 11.89 US gal. (45
b)Refer to “Fuel requirements” in
chapter 1.
M/T: Manual transmission
IVT: Intelligent variable transmission
*1 : Refer to the recommended SAE viscosity numbers on page 12.
*2 : Requires grade engine oil.
If a lower grade engine oil (mineral oil including Semi-synthetic) is used, then the engine
oil and engine oil filter must be replaced as indicated severe maintenance condition.
*3 : Use only specified genuine Intelligent variable transmission fluid. The use of non-
specified fluid (even marked as compatible with genuine) could result in shift quality
deterioration and vibrations, eventually, the transmission failure.

Vehicle Information
2-12

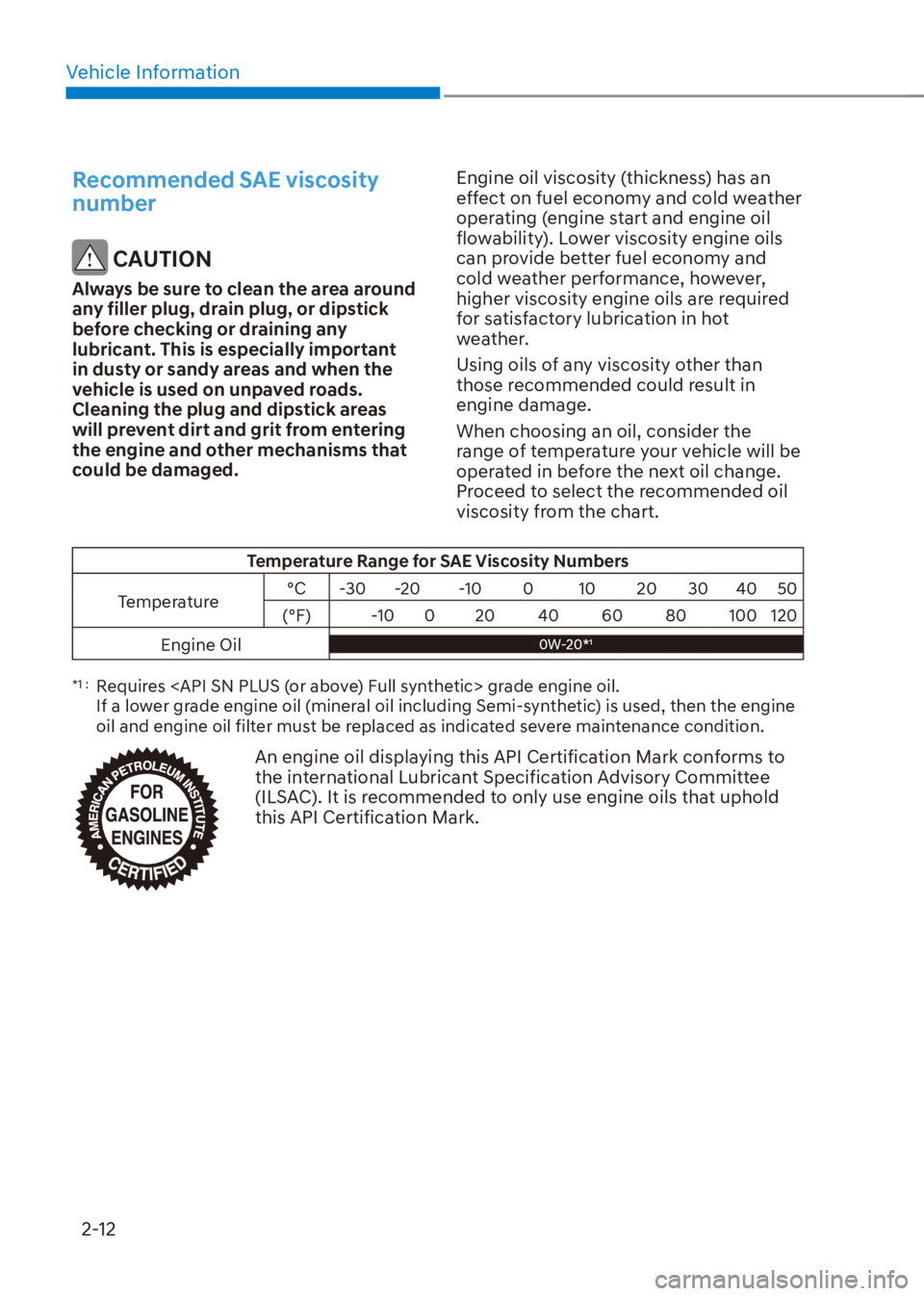

Recommended SAE viscosity
number
CAUTION
Always be sure to clean the area around
any filler plug, drain plug, or dipstick
before checking or draining any
lubricant. This is especially important
in dusty or sandy areas and when the
vehicle is used on unpaved roads.
Cleaning the plug and dipstick areas
will prevent dirt and grit from entering
the engine and other mechanisms that
could be damaged.Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and
cold weather performance, however,
higher viscosity engine oils are required
for satisfactory lubrication in hot
weather.
Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the
range of temperature your vehicle will be
operated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C -30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
Engine Oil
0W-20*
Î 0W-20*
Î
*1 : Requires grade engine oil.
If a lower grade engine oil (mineral oil including Semi-synthetic) is used, then the engine
oil and engine oil filter must be replaced as indicated severe maintenance condition.
An engine oil displaying this API Certification Mark conforms to
the international Lubricant Specification Advisory Committee
(ILSAC). It is recommended to only use engine oils that uphold
this API Certification Mark.

02
2-13

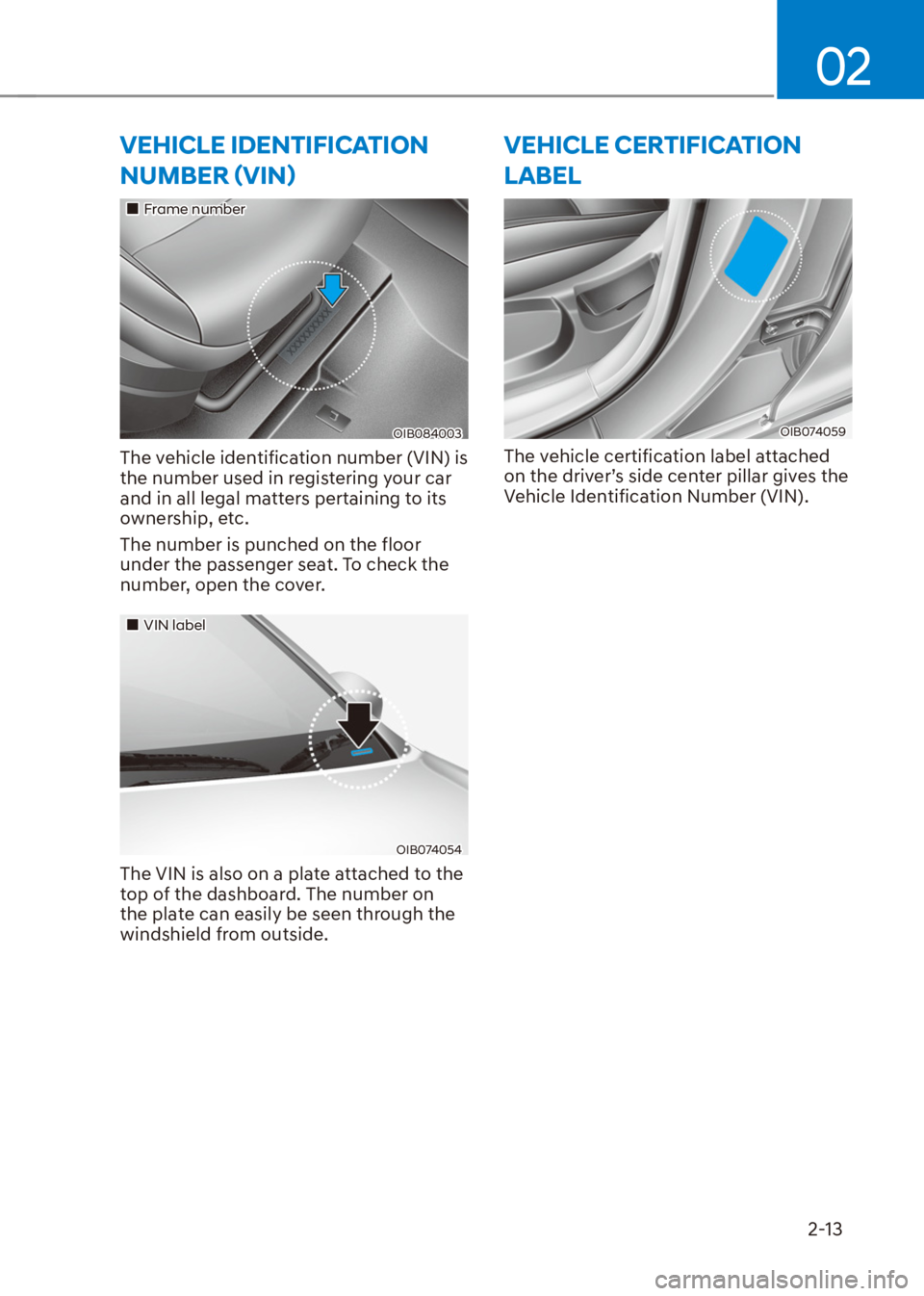

VEHICLE IDENTIFICATION
180%(5
ã9,1
ä
„Frame number
OIB084003
The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.
The number is punched on the floor
under the passenger seat. To check the
number, open the cover.
„VIN label
OIB074054
The VIN is also on a plate attached to the
top of the dashboard. The number on
the plate can easily be seen through the
windshield from outside.
VEHICLE CERTIFICATION
LABEL
OIB074059
The vehicle certification label attached
on the driver’s side center pillar gives the
Vehicle Identification Number (VIN).

Vehicle Information
2-14

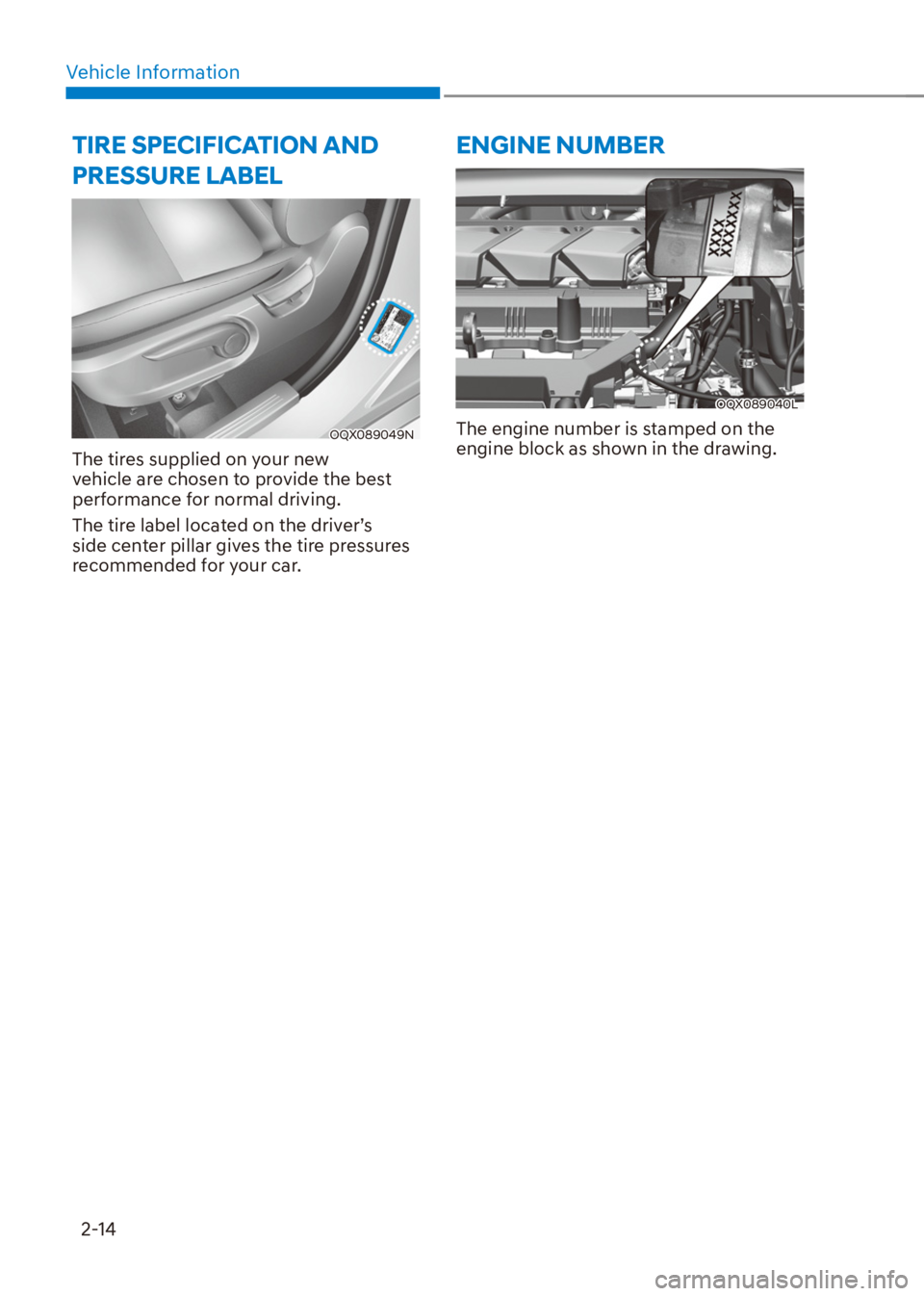

TIRE SPECIFICATION AND
PRESSURE LABEL
OQX089049N
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your car.
ENGINE NUMBER
OQX089040L
The engine number is stamped on the
engine block as shown in the drawing.

3

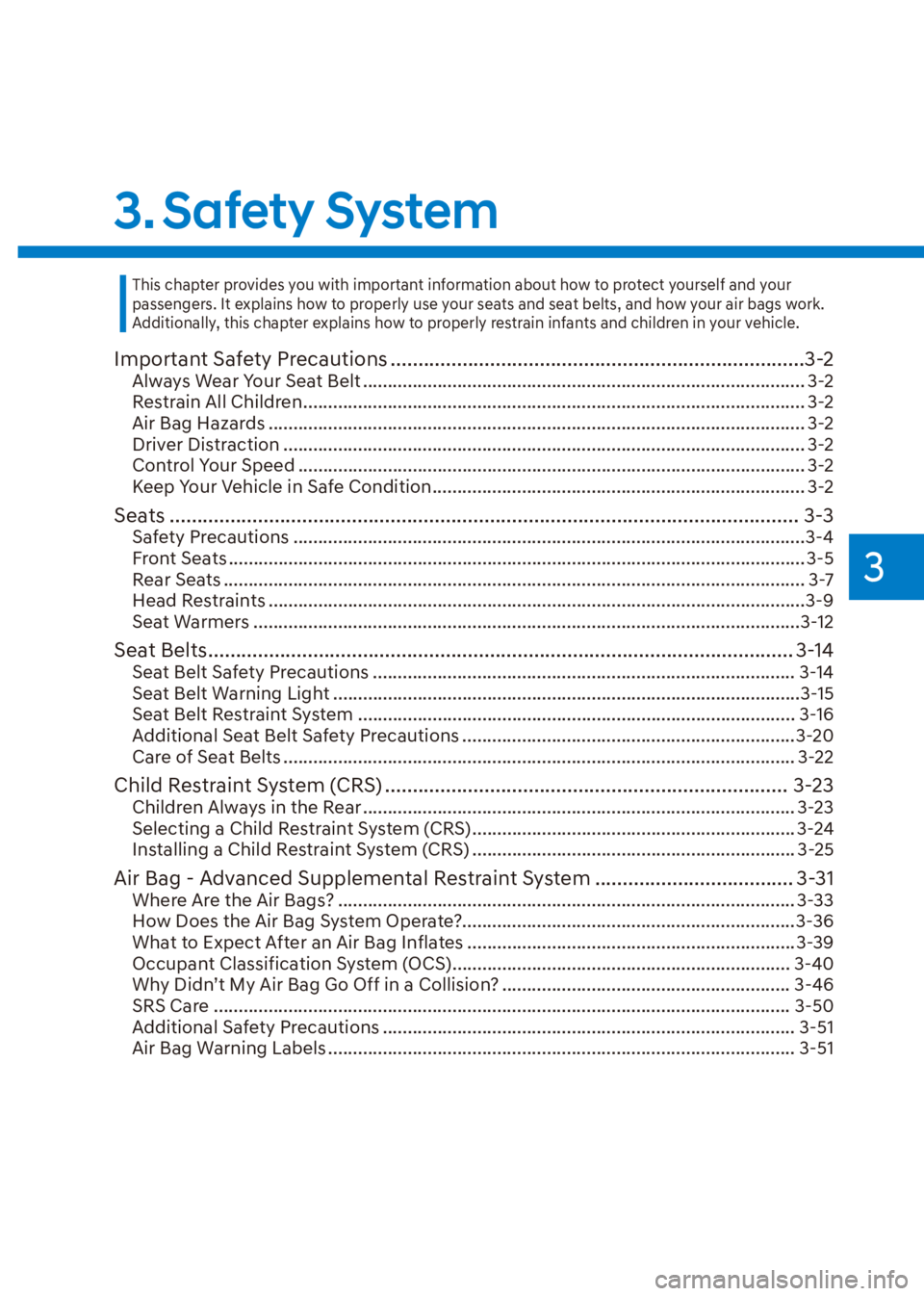

3. Safety System
Important Safety Precautions ...........................................................................3-2
Always Wear Your Seat Belt ......................................................................................... 3-2
Restrain All Children ..................................................................................................... 3-2
Air Bag Hazards ............................................................................................................ 3-2
Driver Distraction ......................................................................................................... 3-2
Control Your Speed ...................................................................................................... 3-2
Keep Your Vehicle in Safe Condition ........................................................................... 3-2
Seats .................................................................................................................. 3-3
Safety Precautions .......................................................................................................3-4
Front Seats .................................................................................................................... 3-5
Rear Seats .....................................................................................................................3-7
Head Restraints ............................................................................................................3-9
Seat Warmers ..............................................................................................................3-12
Seat Belts .......................................................................................................... 3-14Seat Belt Safety Precautions ..................................................................................... 3-14
Seat Belt Warning Light ..............................................................................................3-15
Seat Belt Restraint System ........................................................................................ 3-16
Additional Seat Belt Safety Precautions ...................................................................3-20
Care of Seat Belts ....................................................................................................... 3-22
Child Restraint System (CRS) ......................................................................... 3-23Children Always in the Rear ....................................................................................... 3-23
Selecting a Child Restraint System (CRS) ................................................................. 3-24
Installing a Child Restraint System (CRS) ................................................................. 3-25
Air Bag - Advanced Supplemental Restraint System .................................... 3-31Where Are the Air Bags? ............................................................................................ 3-33
How Does the Air Bag System Operate? ...................................................................3-36
What to Expect After an Air Bag Inflates ..................................................................3-39
Occupant Classification System (OCS) .................................................................... 3-40
Why Didn’t My Air Bag Go Off in a Collision? .......................................................... 3-46
SRS Care .................................................................................................................... 3-50
Additional Safety Precautions ................................................................................... 3-51
Air Bag Warning Labels .............................................................................................. 3-51
This chapter provides you with important information about how to protect yourself and your
passengers. It explains how to properly use your seats and seat belts, and how your air bags work.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.

Safety System
3-2

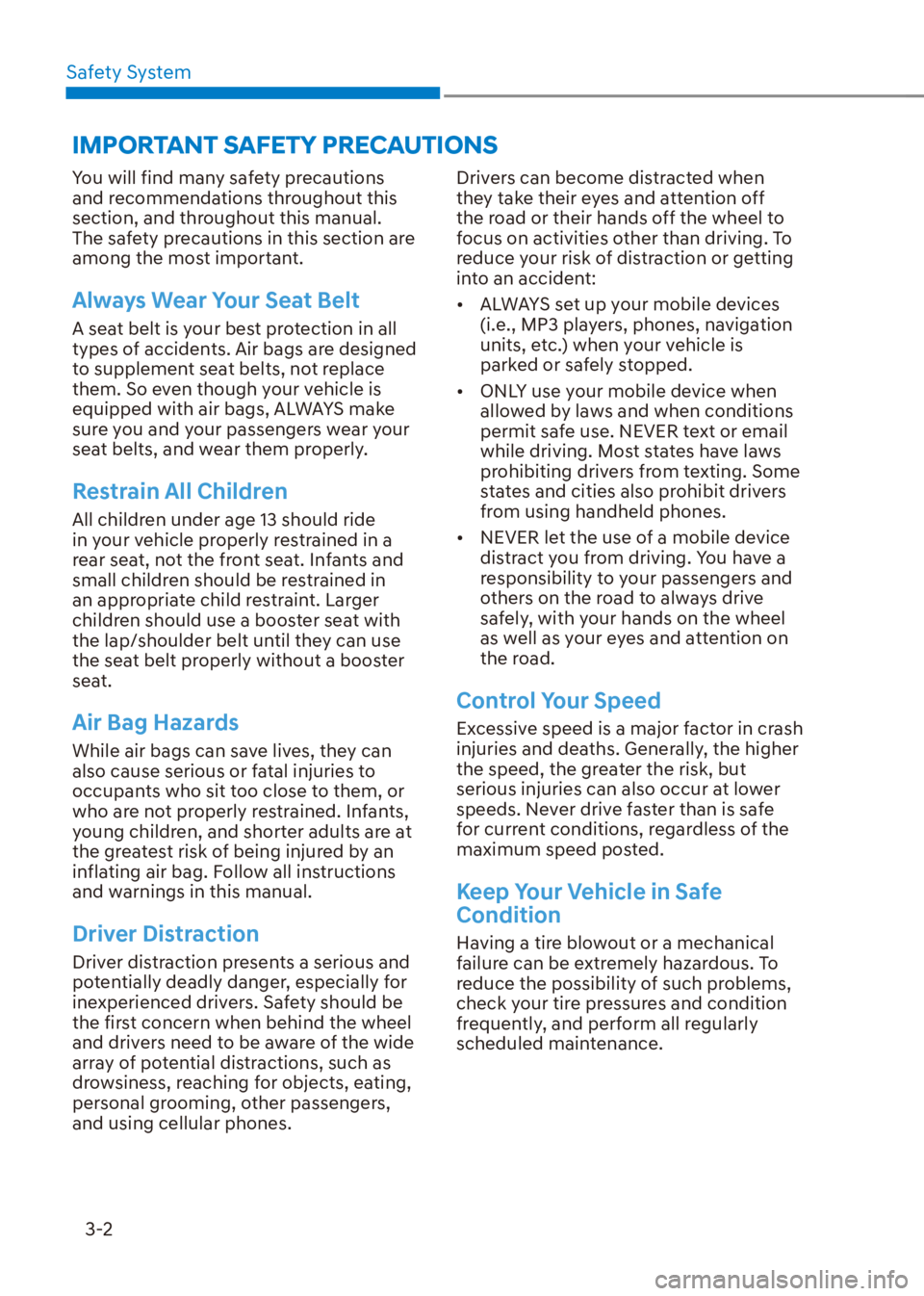

You will find many safety precautions
and recommendations throughout this
section, and throughout this manual.
The safety precautions in this section are
among the most important.
Always Wear Your Seat Belt
A seat belt is your best protection in all
types of accidents. Air bags are designed
to supplement seat belts, not replace
them. So even though your vehicle is
equipped with air bags, ALWAYS make
sure you and your passengers wear your
seat belts, and wear them properly.
Restrain All Children
All children under age 13 should ride
in your vehicle properly restrained in a
rear seat, not the front seat. Infants and
small children should be restrained in
an appropriate child restraint. Larger
children should use a booster seat with
the lap/shoulder belt until they can use
the seat belt properly without a booster
seat.
Air Bag Hazards
While air bags can save lives, they can
also cause serious or fatal injuries to
occupants who sit too close to them, or
who are not properly restrained. Infants,
young children, and shorter adults are at
the greatest risk of being injured by an
inflating air bag. Follow all instructions
and warnings in this manual.
Driver Distraction
Driver distraction presents a serious and
potentially deadly danger, especially for
inexperienced drivers. Safety should be
the first concern when behind the wheel
and drivers need to be aware of the wide
array of potential distractions, such as
drowsiness, reaching for objects, eating,
personal grooming, other passengers,
and using cellular phones.Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel to
focus on activities other than driving. To
reduce your risk of distraction or getting
into an accident:

[ALWAYS set up your mobile devices
(i.e., MP3 players, phones, navigation
units, etc.) when your vehicle is
parked or safely stopped.

[ONLY use your mobile device when
allowed by laws and when conditions
permit safe use. NEVER text or email
while driving. Most states have laws
prohibiting drivers from texting. Some
states and cities also prohibit drivers
from using handheld phones.

[NEVER let the use of a mobile device
distract you from driving. You have a
responsibility to your passengers and
others on the road to always drive
safely, with your hands on the wheel
as well as your eyes and attention on
the road.
Control Your Speed
Excessive speed is a major factor in crash
injuries and deaths. Generally, the higher
the speed, the greater the risk, but
serious injuries can also occur at lower
speeds. Never drive faster than is safe
for current conditions, regardless of the
maximum speed posted.
Keep Your Vehicle in Safe
Condition
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tire pressures and condition
frequently, and perform all regularly
scheduled maintenance.
IMPORTANT SAFETY PRECAUTIONS

3-3
03

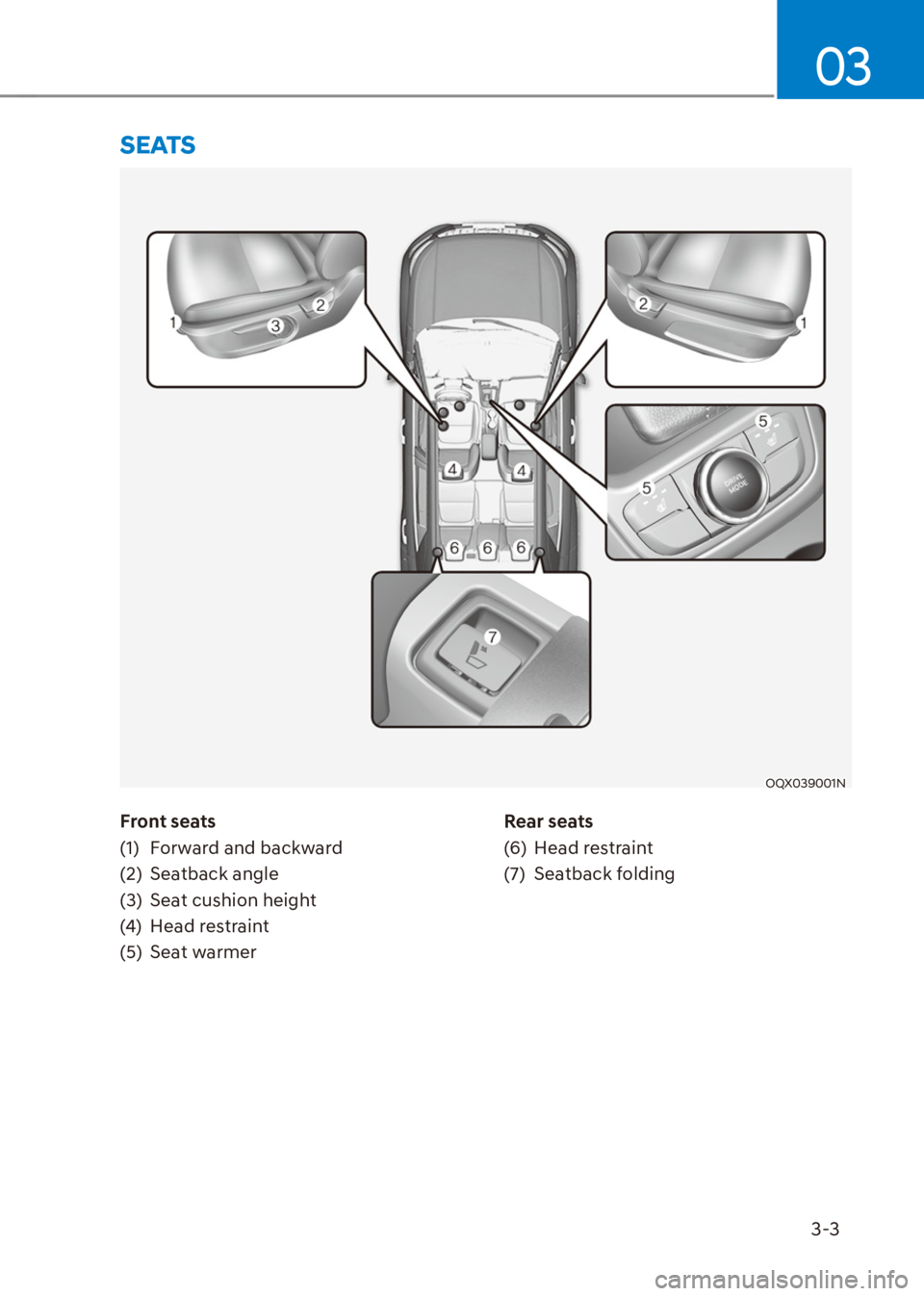

Front seats
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height
(4) Head restraint
(5) Seat warmerRear seats
(6) Head restraint
(7) Seatback folding
SEATS
OQX039001N
