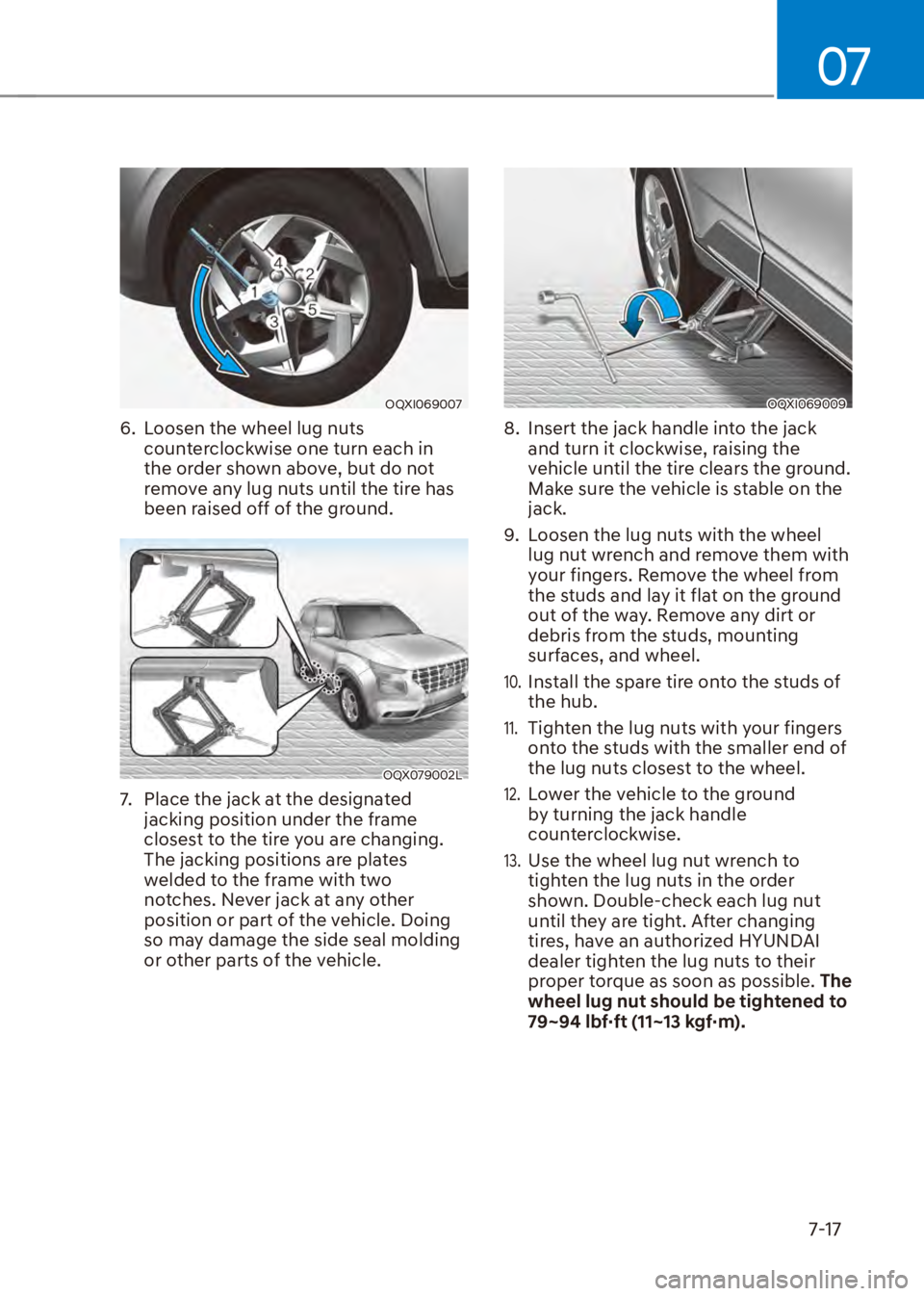

6. Loosen the wheel lug nuts counterclockwise one turn each in
the order shown above, but do not
remove any lug nuts until the tire has
been raised off of the ground.
OQX079002L
7. Place the jack at the designated jacking position under the frame
closest to the tire you are changing.
The jacking positions are plates
welded to the frame with two
notches. Never jack at any other
position or part of the vehicle. Doing
so may damage the side seal molding
or other parts of the vehicle.
OQXI069009
8. Insert the jack handle into the jack and turn it clockwise, raising the
vehicle until the tire clears the ground.
Make sure the vehicle is stable on the
jack.
9. Loosen the lug nuts with the wheel lug nut wrench and remove them with
your fingers. Remove the wheel from
the studs and lay it flat on the ground
out of the way. Remove any dirt or
debris from the studs, mounting
surfaces, and wheel.
10. Install the spare tire onto the studs of
the hub.
11. Tighten the lug nuts with your fingers
onto the studs with the smaller end of
the lug nuts closest to the wheel.
12. Lower the vehicle to the ground
by turning the jack handle
counterclockwise.
13. Use the wheel lug nut wrench to
tighten the lug nuts in the order
shown. Double-check each lug nut
until they are tight. After changing
tires, have an authorized HYUNDAI
dealer tighten the lug nuts to their
proper torque as soon as possible. The
wheel lug nut should be tightened to
79~94 lbf·ft (11~13 kgf·m).

Emergency Situations7-18

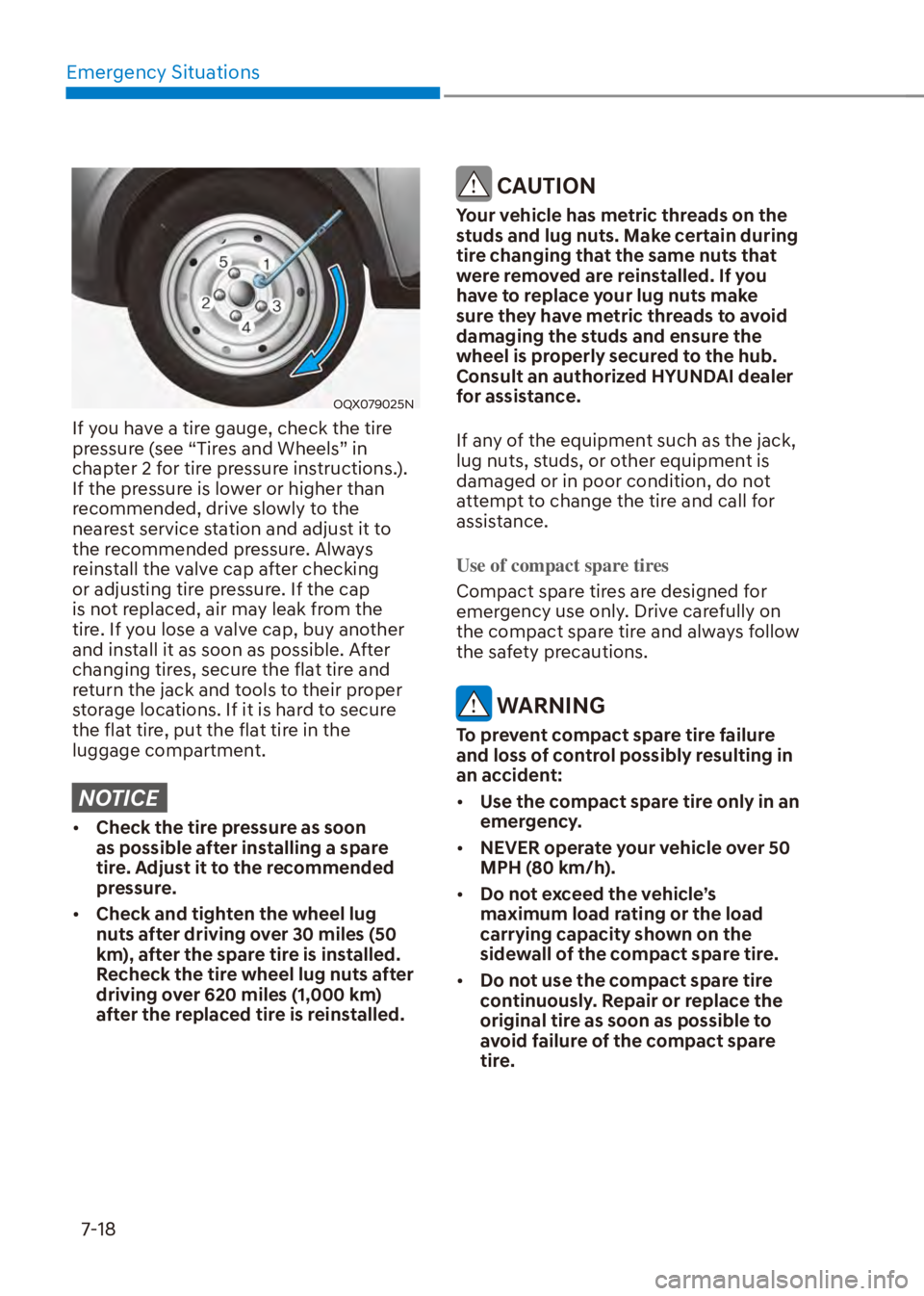

OQX079025N
If you have a tire gauge, check the tire
pressure (see “Tires and Wheels” in
chapter 2 for tire pressure instructions.).
If the pressure is lower or higher than
recommended, drive slowly to the
nearest service station and adjust it to
the recommended pressure. Always
reinstall the valve cap after checking
or adjusting tire pressure. If the cap
is not replaced, air may leak from the
tire. If you lose a valve cap, buy another
and install it as soon as possible. After
changing tires, secure the flat tire and
return the jack and tools to their proper
storage locations. If it is hard to secure
the flat tire, put the flat tire in the
luggage compartment.
NOTICE

[ Check the tire pressure as soon
as possible after installing a spare
tire. Adjust it to the recommended
pressure.

[ Check and tighten the wheel lug
nuts after driving over 30 miles (50
km), after the spare tire is installed.
Recheck the tire wheel lug nuts after
driving over 620 miles (1,000 km)
after the replaced tire is reinstalled.
CAUTION
Your vehicle has metric threads on the
studs and lug nuts. Make certain during
tire changing that the same nuts that
were removed are reinstalled. If you
have to replace your lug nuts make
sure they have metric threads to avoid
damaging the studs and ensure the
wheel is properly secured to the hub.
Consult an authorized HYUNDAI dealer
for assistance.
If any of the equipment such as the jack,
lug nuts, studs, or other equipment is
damaged or in poor condition, do not
attempt to change the tire and call for
assistance.
Use of compact spare tires
Compact spare tires are designed for
emer

gency use only. Drive carefully on
the compact spare tire and always follow
the safety precautions.
WARNING
To prevent compact spare tire failure
and loss of control possibly resulting in
an accident:

[ Use the compact spare tire only in an
emergency.

[ NEVER operate your vehicle over 50
MPH (80 km/h).

[ Do not exceed the vehicle’s
maximum load rating or the load
carrying capacity shown on the
sidewall of the compact spare tire.

[ Do not use the compact spare tire
continuously. Repair or replace the
original tire as soon as possible to
avoid failure of the compact spare
tire.

07
7-19

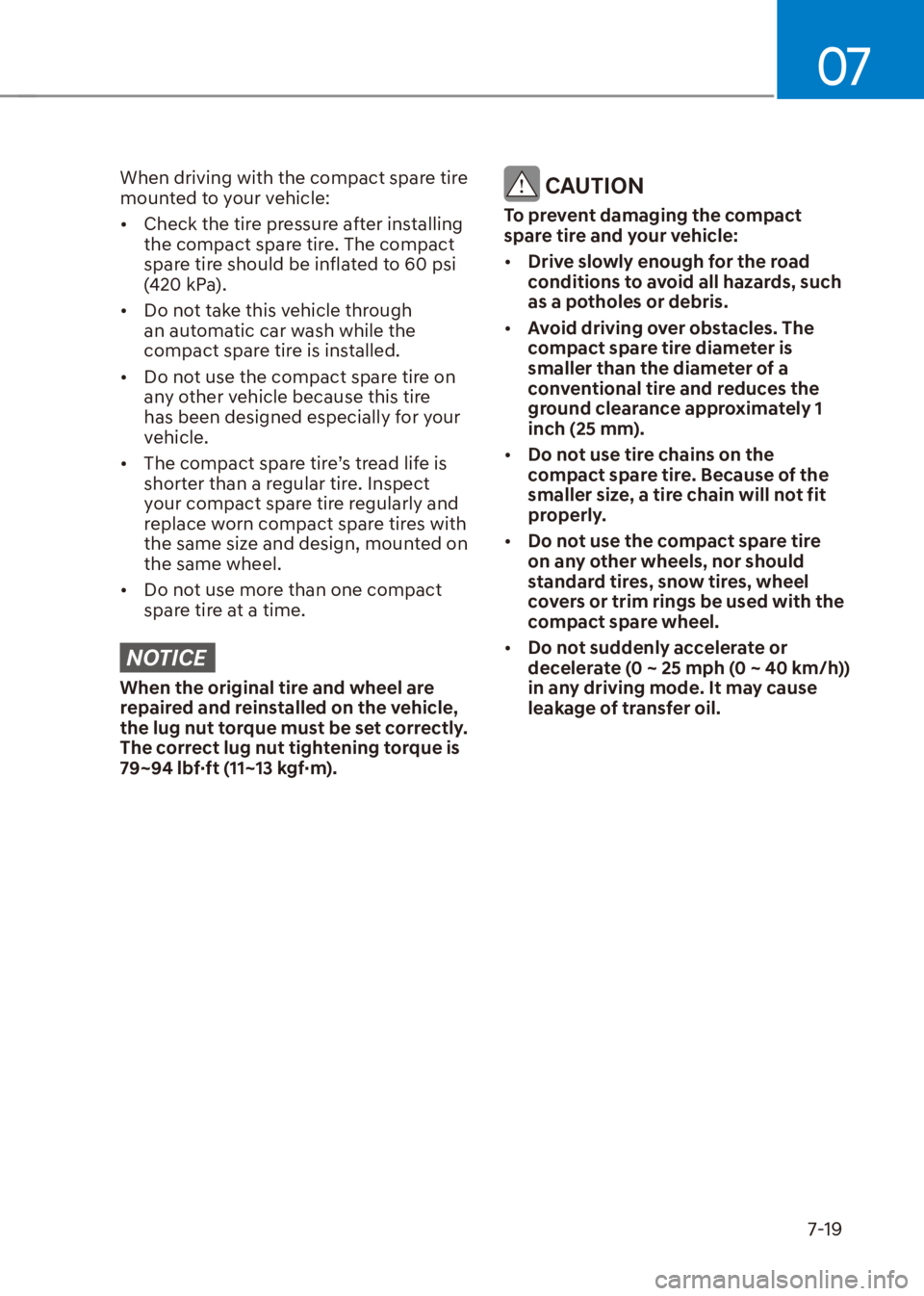

When driving with the compact spare tire
mounted to your vehicle:

[Check the tire pressure after installing
the compact spare tire. The compact
spare tire should be inflated to 60 psi
(420 kPa).

[ Do not take this vehicle through
an automatic car wash while the
compact spare tire is installed.

[ Do not use the compact spare tire on
any other vehicle because this tire
has been designed especially for your
vehicle.

[ The compact spare tire’s tread life is
shorter than a regular tire. Inspect
your compact spare tire regularly and
replace worn compact spare tires with
the same size and design, mounted on
the same wheel.

[ Do not use more than one compact
spare tire at a time.
NOTICE
When the original tire and wheel are
repaired and reinstalled on the vehicle,
the lug nut torque must be set correctly.
The correct lug nut tightening torque is
79~94 lbf·ft (11~13 kgf·m).
CAUTION
To prevent damaging the compact
spare tire and your vehicle:

[Drive slowly enough for the road
conditions to avoid all hazards, such
as a potholes or debris.

[ Avoid driving over obstacles. The
compact spare tire diameter is
smaller than the diameter of a
conventional tire and reduces the
ground clearance approximately 1
inch (25 mm).

[ Do not use tire chains on the
compact spare tire. Because of the
smaller size, a tire chain will not fit
properly.

[ Do not use the compact spare tire
on any other wheels, nor should
standard tires, snow tires, wheel
covers or trim rings be used with the
compact spare wheel.

[ Do not suddenly accelerate or
decelerate (0 ~ 25 mph (0 ~ 40 km/h))
in any driving mode. It may cause
leakage of transfer oil.

Emergency Situations7-20

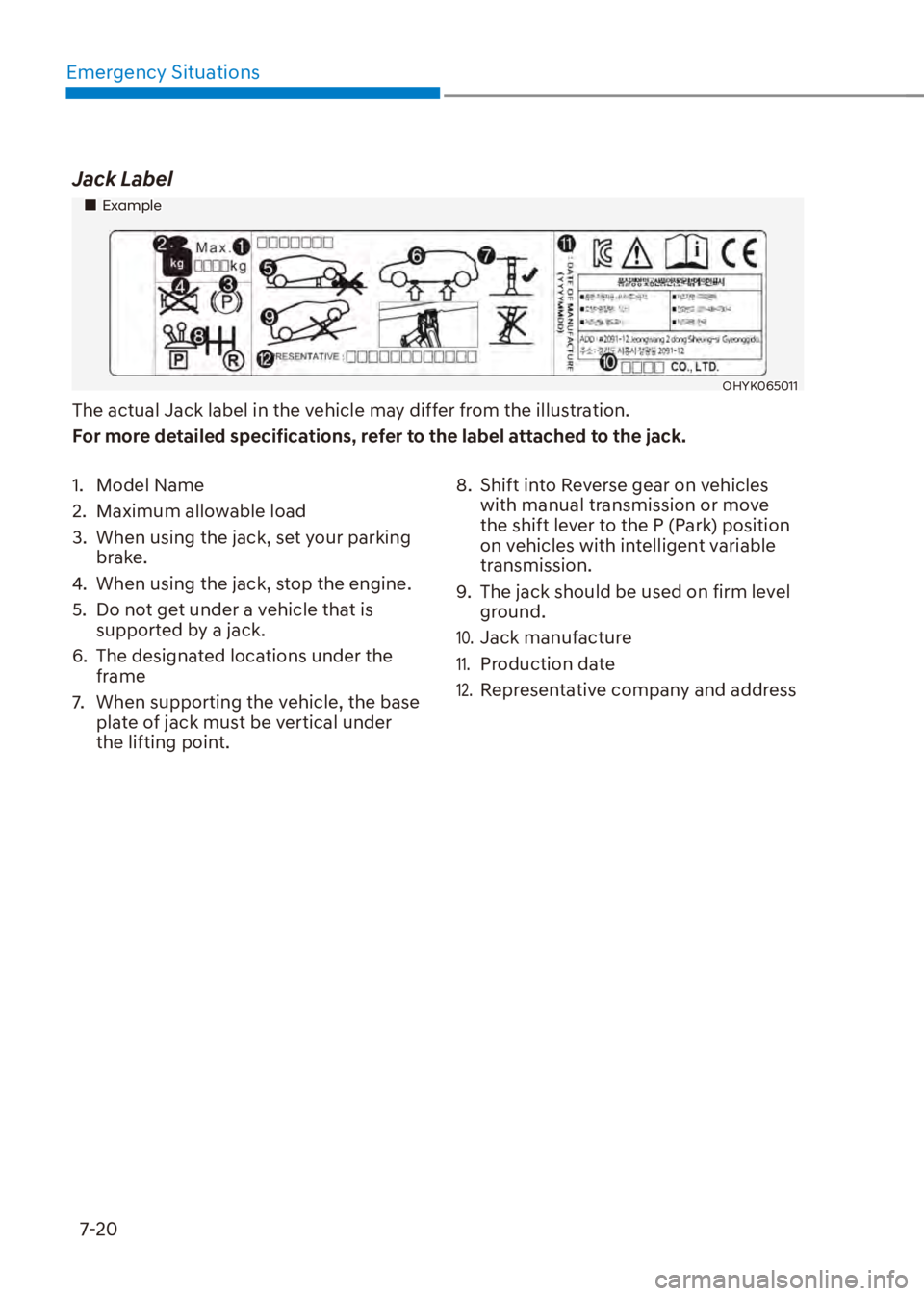

Jack Label
„Example
OHYK065011
The actual Jack label in the vehicle may differ from the illustration.
For more detailed specifications, refer to the label attached to the jack.
1. Model Name
2. Maximum allowable load
3. When using the jack, set your parking brake.
4. When using the jack, stop the engine.
5. Do not get under a vehicle that is supported by a jack.
6. The designated locations under the frame
7. When supporting the vehicle, the base plate of jack must be vertical under
the lifting point. 8. Shift into Reverse gear on vehicles
with manual transmission or move
the shift lever to the P (Park) position
on vehicles with intelligent variable
transmission.
9. The jack should be used on firm level ground.
10. Jack manufacture
11. Production date
12. Representative company and address

07
7-21
TOWING

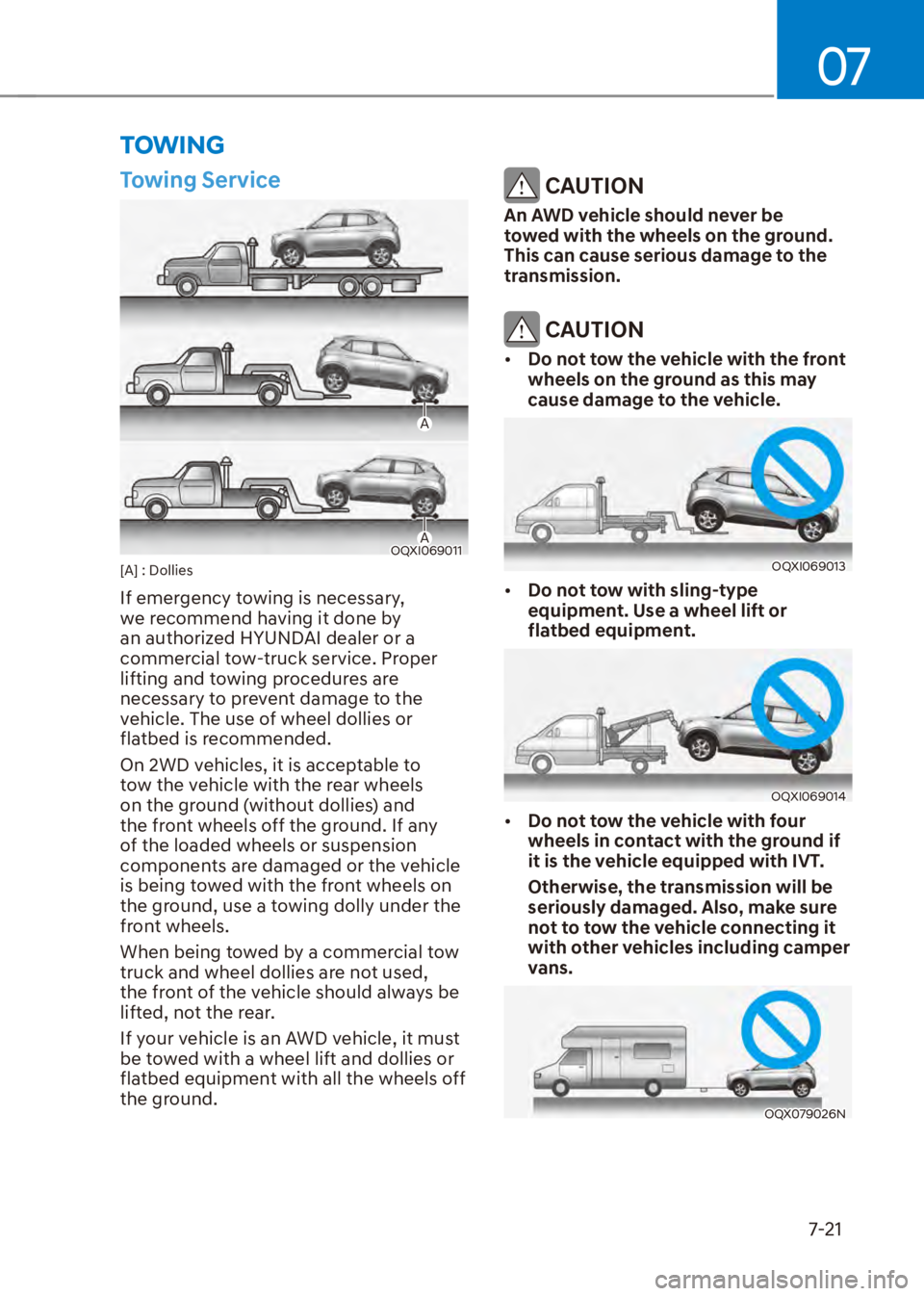

Towing Service
A
AOQXI069011[A] : Dollies
If emergency towing is necessary,
we recommend having it done by
an authorized HYUNDAI dealer or a
commercial tow-truck service. Proper
lifting and towing procedures are
necessary to prevent damage to the
vehicle. The use of wheel dollies or
flatbed is recommended.
On 2WD vehicles, it is acceptable to
tow the vehicle with the rear wheels
on the ground (without dollies) and
the front wheels off the ground. If any
of the loaded wheels or suspension
components are damaged or the vehicle
is being towed with the front wheels on
the ground, use a towing dolly under the
front wheels.
When being towed by a commercial tow
truck and wheel dollies are not used,
the front of the vehicle should always be
lifted, not the rear.
If your vehicle is an AWD vehicle, it must
be towed with a wheel lift and dollies or
flatbed equipment with all the wheels off
the ground.
CAUTION
An AWD vehicle should never be
towed with the wheels on the ground.
This can cause serious damage to the
transmission.
CAUTION

[Do not tow the vehicle with the front
wheels on the ground as this may
cause damage to the vehicle.
OQXI069013

[Do not tow with sling-type
equipment. Use a wheel lift or
flatbed equipment.
OQXI069014

[Do not tow the vehicle with four
wheels in contact with the ground if
it is the vehicle equipped with IVT.
Otherwise, the transmission will be
seriously damaged. Also, make sure
not to tow the vehicle connecting it
with other vehicles including camper
vans.
OQX079026N

Emergency Situations7-22
WARNING
If your vehicle is equipped with a
rollover sensor, place the ignition
switch in the LOCK/OFF or ACC position
when the vehicle is being towed.
The side impact and curtain air bag
may deploy if the sensor detects the
situation as a rollover.
When towing your vehicle in an
emergency without wheel dollies:
1. Place the ignition switch in the ACC position.
2. Place the shift lever in N (Neutral).
3. Release the parking brake.
CAUTION
Failure to place the shift lever in N
(Neutral) when being towed with the
front wheels on the ground can cause
internal damage to the transmission.

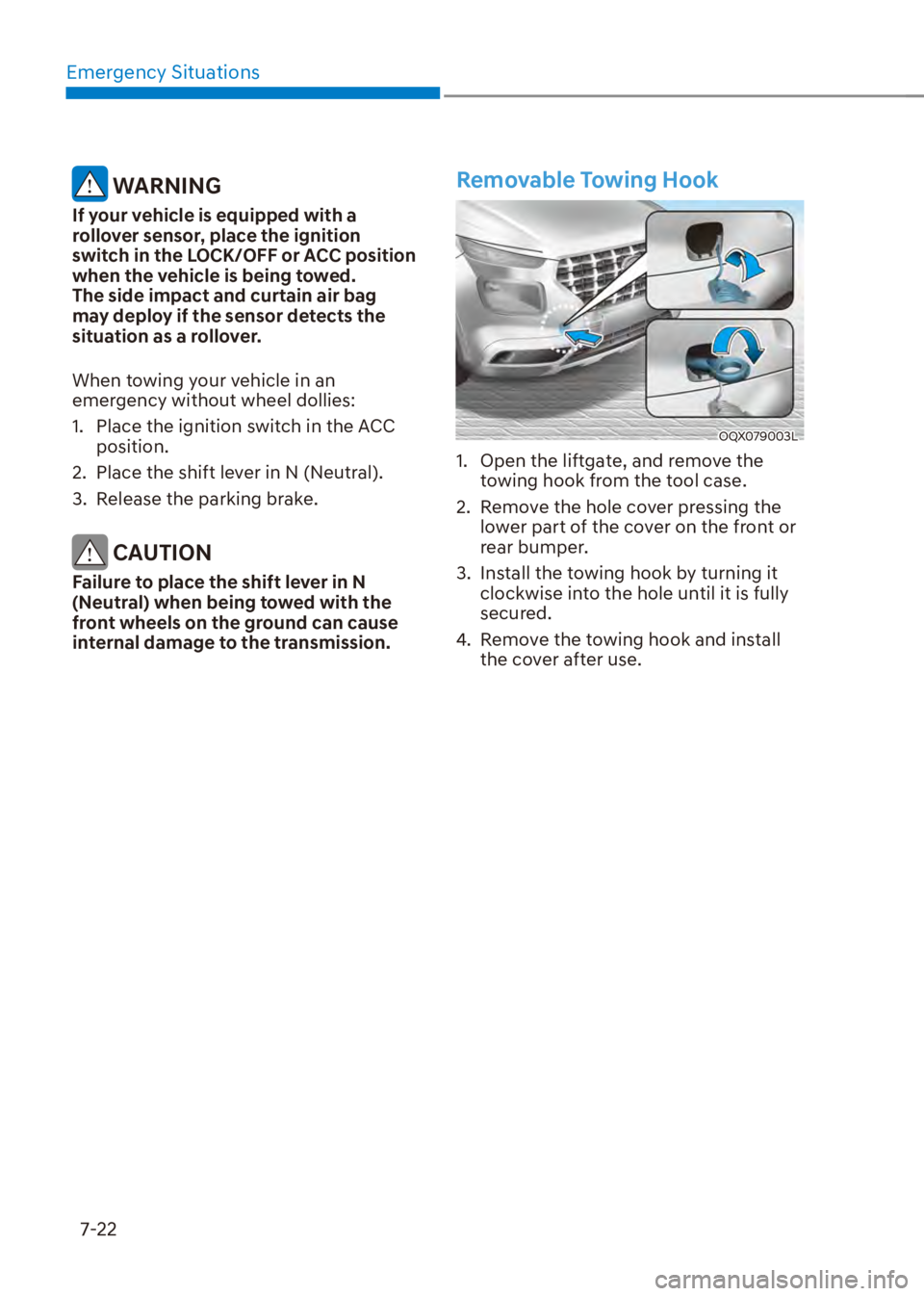

Removable Towing Hook
OQX079003L
1. Open the liftgate, and remove the towing hook from the tool case.
2. Remove the hole cover pressing the lower part of the cover on the front or
rear bumper.
3. Install the towing hook by turning it clockwise into the hole until it is fully
secured.
4. Remove the towing hook and install the cover after use.

07
7-23

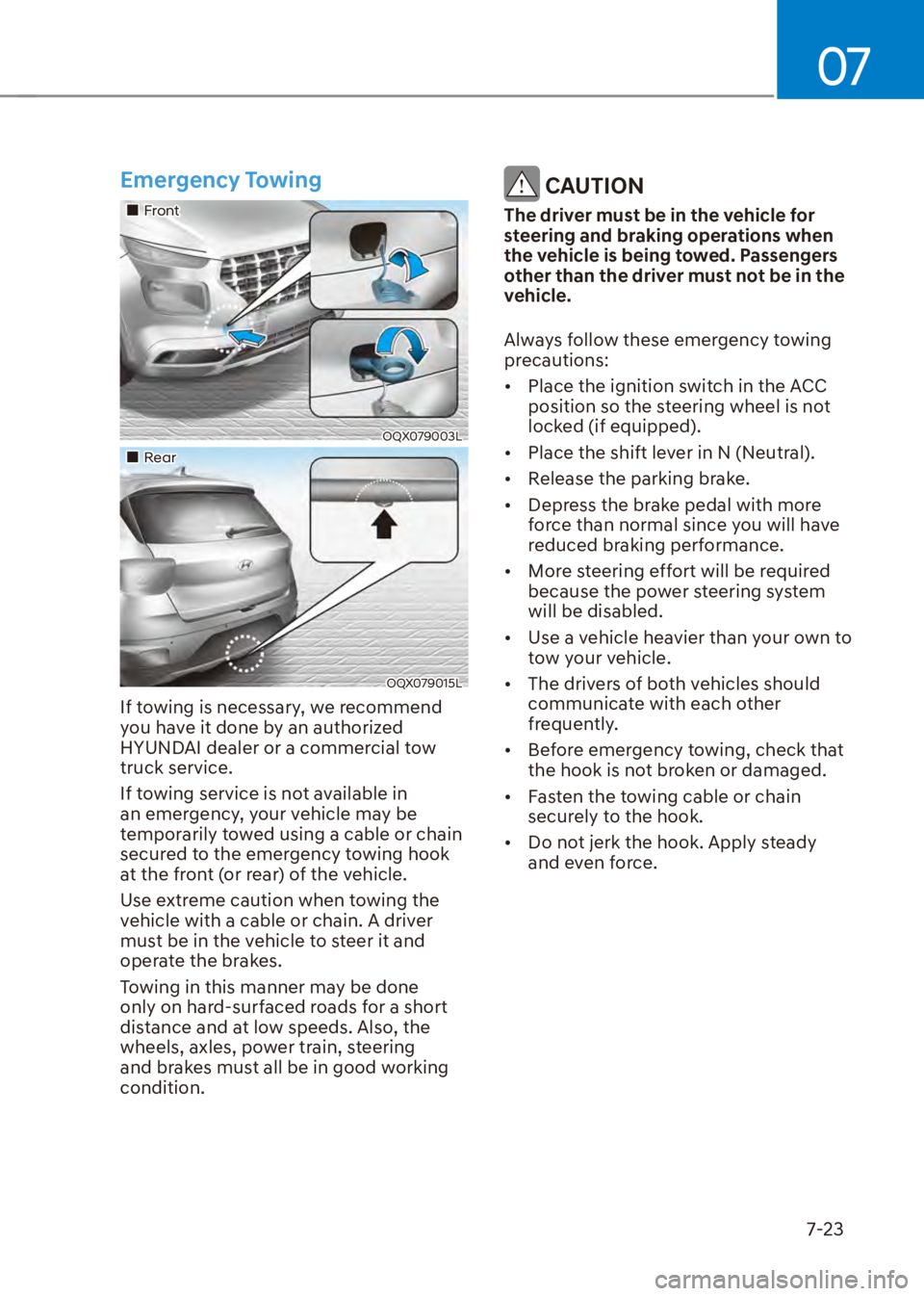

Emergency Towing
„Front
OQX079003L
„Rear
OQX079015L
If towing is necessary, we recommend
you have it done by an authorized
HYUNDAI dealer or a commercial tow
truck service.
If towing service is not available in
an emergency, your vehicle may be
temporarily towed using a cable or chain
secured to the emergency towing hook
at the front (or rear) of the vehicle.
Use extreme caution when towing the
vehicle with a cable or chain. A driver
must be in the vehicle to steer it and
operate the brakes.
Towing in this manner may be done
only on hard-surfaced roads for a short
distance and at low speeds. Also, the
wheels, axles, power train, steering
and brakes must all be in good working
condition.
CAUTION
The driver must be in the vehicle for
steering and braking operations when
the vehicle is being towed. Passengers
other than the driver must not be in the
vehicle.
Always follow these emergency towing
precautions:

[Place the ignition switch in the ACC
position so the steering wheel is not
locked (if equipped).

[ Place the shift lever in N (Neutral).

[ Release the parking brake.

[ Depress the brake pedal with more
force than normal since you will have
reduced braking performance.

[ More steering effort will be required
because the power steering system
will be disabled.

[ Use a vehicle heavier than your own to
tow your vehicle.

[ The drivers of both vehicles should
communicate with each other
frequently.

[ Before emergency towing, check that
the hook is not broken or damaged.

[ Fasten the towing cable or chain
securely to the hook.

[ Do not jerk the hook. Apply steady
and even force.

Emergency Situations7-24
OQXI069018

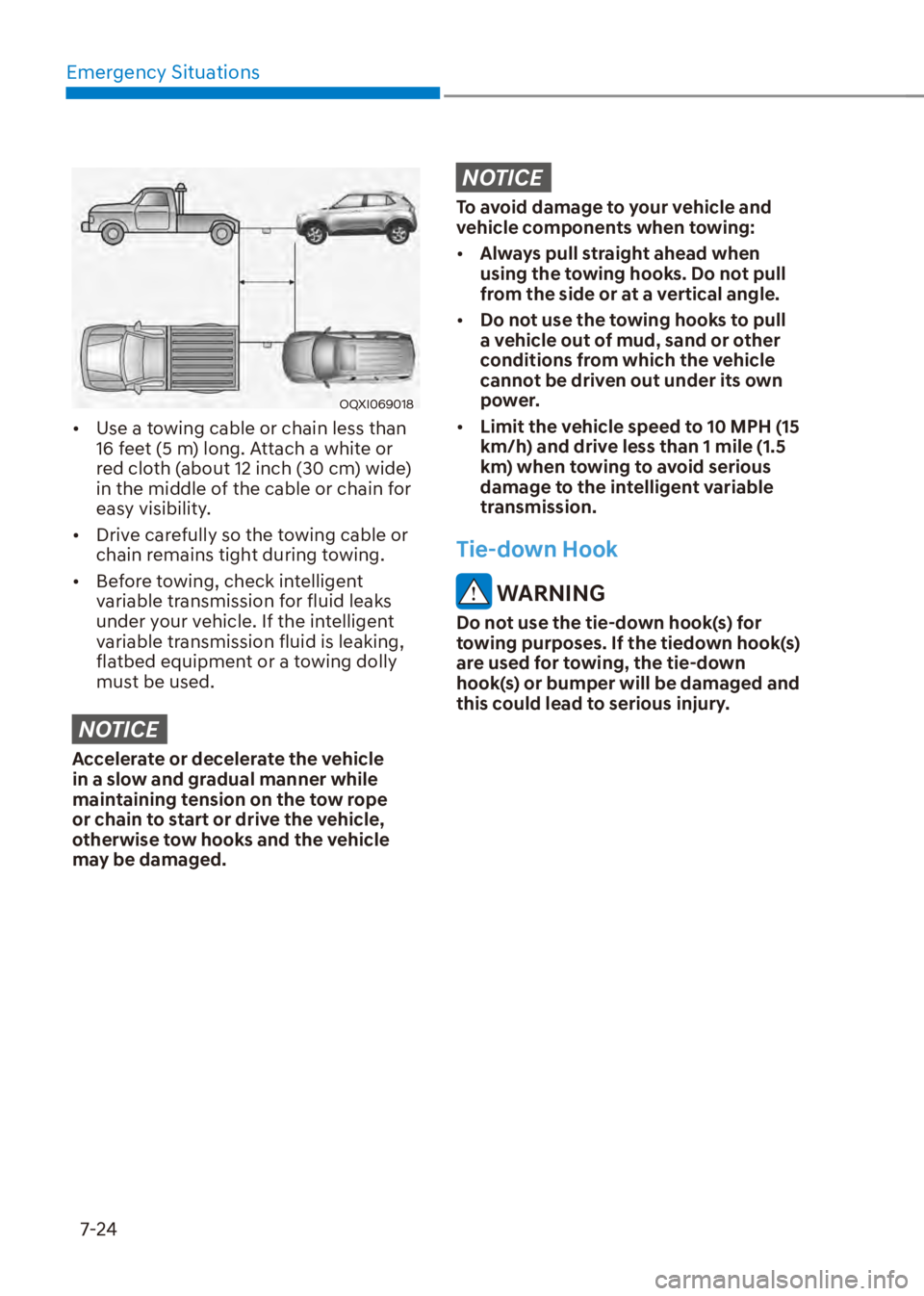

[ Use a towing cable or chain less than
16 feet (5 m) long. Attach a white or
red cloth (about 12 inch (30 cm) wide)
in the middle of the cable or chain for
easy visibility.

[ Drive carefully so the towing cable or
chain remains tight during towing.

[ Before towing, check intelligent
variable transmission for fluid leaks
under your vehicle. If the intelligent
variable transmission fluid is leaking,
flatbed equipment or a towing dolly
must be used.
NOTICE
Accelerate or decelerate the vehicle
in a slow and gradual manner while
maintaining tension on the tow rope
or chain to start or drive the vehicle,
otherwise tow hooks and the vehicle
may be damaged.
NOTICE
To avoid damage to your vehicle and
vehicle components when towing:

[Always pull straight ahead when
using the towing hooks. Do not pull
from the side or at a vertical angle.

[ Do not use the towing hooks to pull
a vehicle out of mud, sand or other
conditions from which the vehicle
cannot be driven out under its own
power.

[ Limit the vehicle speed to 10 MPH (15
km/h) and drive less than 1 mile (1.5
km) when towing to avoid serious
damage to the intelligent variable
transmission.
Tie-down Hook
WARNING
Do not use the tie-down hook(s) for
towing purposes. If the tiedown hook(s)
are used for towing, the tie-down
hook(s) or bumper will be damaged and
this could lead to serious injury.

8
Engine Compartment ........................................................................\
............... 8-3
Maintenance Services ........................................................................\
.............. 8-4
Owner’s Responsibility ........................................................................\
....................... 8-4
Owner Maintenance Precautions ........................................................................\
....... 8-4
Owner Maintenance ........................................................................\
................. 8-5Owner Maintenance Schedule ........................................................................\
............8-5
Scheduled Maintenance Services ....................................................................8-7Normal Maintenance Schedule ........................................................................\
.......... 8-8
Maintenance Under Severe Usage Conditions ......................................................... 8-11
Severe Driving Conditions ........................................................................\
.................. 8-11
Explanation of Scheduled Maintenance Items .............................................. 8-12
Engine Oil ........................................................................\
................................. 8-15
Checking the Engine Oil Level ........................................................................\
........... 8-15
Checking the Engine Oil and Filter ........................................................................\
... 8-15
Engine Coolant ........................................................................\
.........................8-16
Checking the Engine Coolant Level ........................................................................\
.. 8-16
Changing Engine Coolant ........................................................................\
.................. 8-18
Brake/Clutch Fluid ........................................................................\
...................8-19
Checking the Brake/Clutch Fluid Level .................................................................... 8-19
Washer Fluid ........................................................................\
............................ 8-20Checking the Washer Fluid Level ........................................................................\
..... 8-20
Parking Brake ........................................................................\
.......................... 8-20
Checking the Parking Brake ........................................................................\
............. 8-20
Air Cleaner ........................................................................\
................................ 8-21Filter Replacement ........................................................................\
............................. 8-21
Climate Control Air Filter ........................................................................\
........ 8-22Filter Inspection........................................................................\
.................................. 8-22
Wiper Blades ........................................................................\
........................... 8-23Blade Inspection ........................................................................\
................................ 8-23
Blade Replacement ........................................................................\
............................ 8-23
Battery ....................................................................\
......................................... 8-25For Best Battery Service ........................................................................\
....................8-26
Battery Recharging ........................................................................\
............................8-26
Reset Features ........................................................................\
....................................8-26
8. Maintenance

8
Tires and Wheels ........................................................................\
......................8-27Tire Care ........................................................................\
..............................................8-27
Recommended Cold Tire Inflation Pressures ........................................................... 8-27
Check Tire Inflation Pressure ........................................................................\
.............8-28
Tire Rotation ........................................................................\
.......................................8-29
Wheel Alignment and Tire Balance ........................................................................\
...8-29
Tire Replacement ........................................................................\
.............................. 8-30
Wheel Replacement ........................................................................\
........................... 8-31
Tire Traction ........................................................................\
........................................ 8-31
Tire Maintenance..................................................................\
...................................... 8-31
Tire Sidewall Labeling ........................................................................\
........................ 8-31
Tire Terminology and Definitions ........................................................................\
......8-35
All Season Tires ........................................................................\
................................... 8-37
Summer Tires ........................................................................\
..................................... 8-37
Snow Tires......................................................................\
............................................. 8-37
Radial-Ply Tires ........................................................................\
.................................. 8-38
Low Aspect Ratio Tires ........................................................................\
...................... 8-38
Fuses ...................................................................\
............................................. 8-39Instrument Panel Fuse Replacement ....................................................................... 8-40
Engine Compartment Panel Fuse Replacement ...................................................... 8-41
Fuse/Relay Panel Description........................................................................\
........... 8-43
Light Bulbs ........................................................................\
............................... 8-50
Headlamp, Parking Lamp, Daytime Running Light, Turn Signal Lamp, Cornering
Lamp and Side Marker ........................................................................\
...................... 8-50
Side Repeater Lamp Replacement ........................................................................\
.. 8-54
Rear Combination Light Bulb Replacement .............................................................8-55
High Mounted Stop Lamp Replacement .................................................................. 8-57
License Plate Light Bulb Replacement ..................................................................... 8-57
Interior Light Bulb Replacement ........................................................................\
...... 8-58
Appearance Care ........................................................................\
.................... 8-59Exterior Care ........................................................................\
...................................... 8-59
Interior Care ........................................................................\
....................................... 8-63
Emission Control System ........................................................................\
........ 8-65
Crankcase Emission Control System ....................................................................... 8-66
Evaporative Emission Control System Including Onboard Refueling Vapor Recovery
(ORVR) ...................................................................\
..................................................... 8-66
Exhaust Emission Control System ........................................................................\
.... 8-66
California Perchlorate Notice ........................................................................\
.8-68
Consumer Information ........................................................................\
...........8-69
Reporting Safety Defects ........................................................................\
....... 8-70
