Page 311 of 390

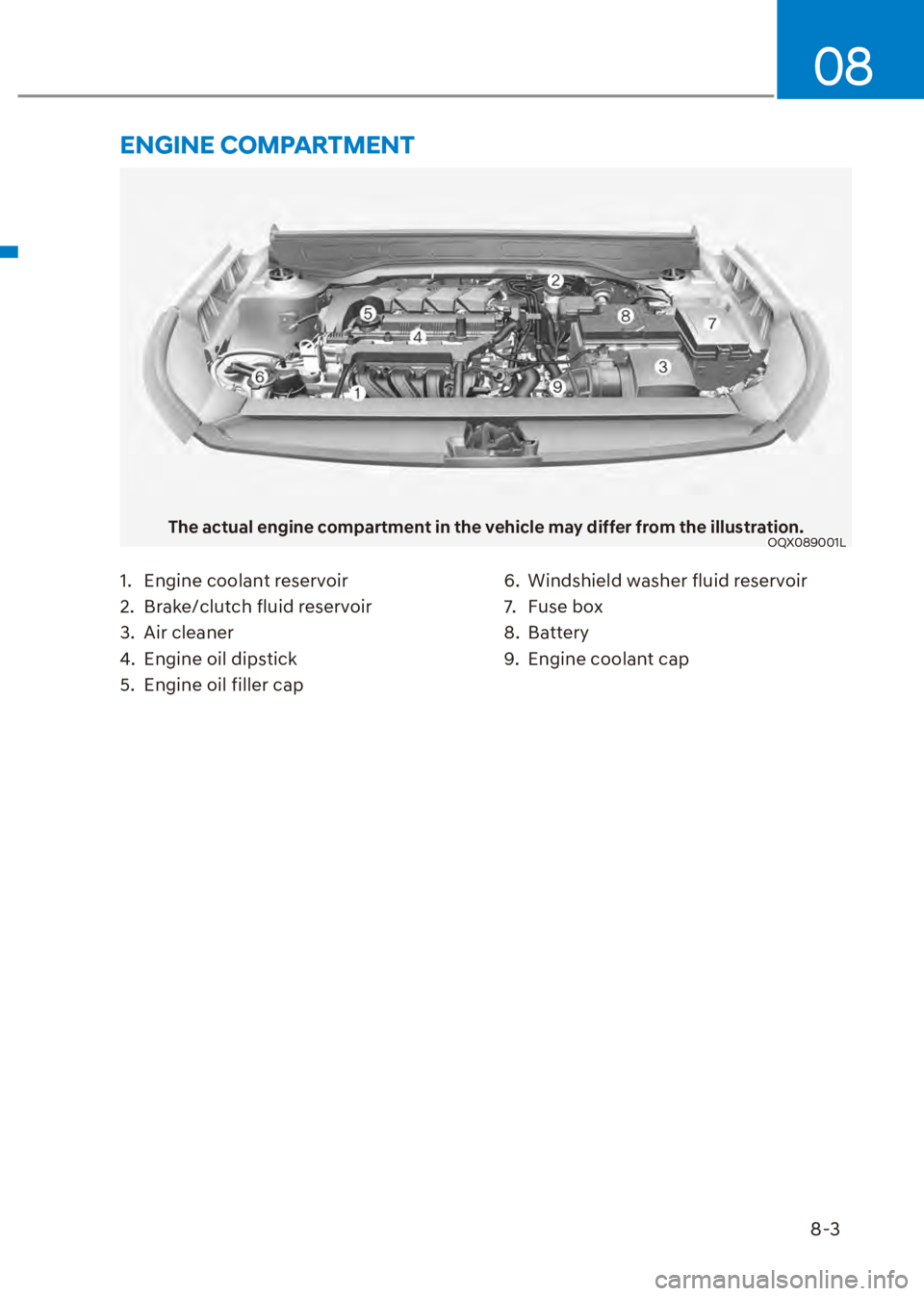

HYUNDAI VENUE 2023  Owners Manual 8-3
08
1.  Engine coolant reservoir
2.  Brake/clutch fluid reservoir
3. Air cleaner
4.  Engine oil dipstick
5.  Engine oil filler cap6.  Windshield washer fluid reservoir
7. Fuse box
8. Battery
9.  En

Page 312 of 390

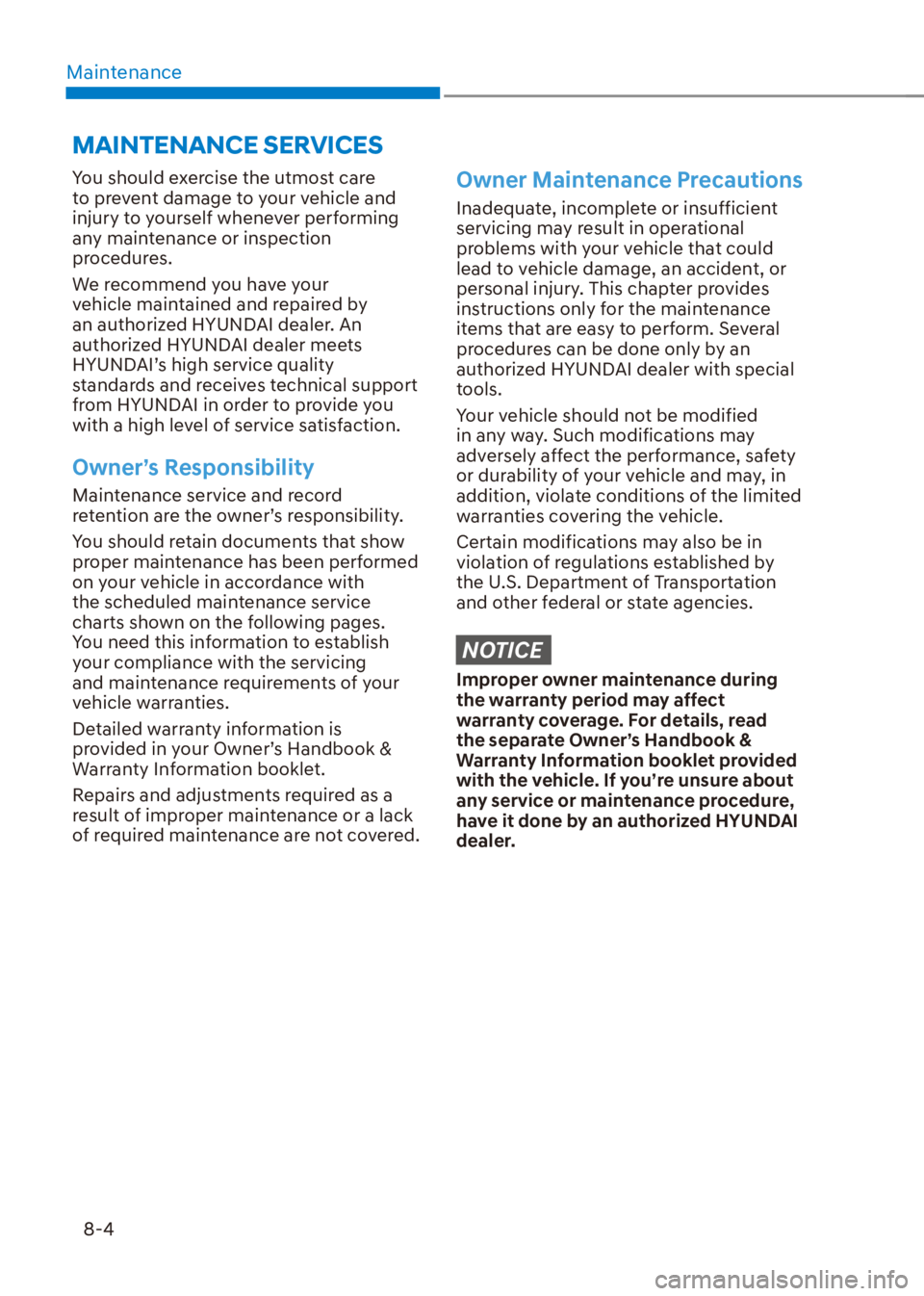

HYUNDAI VENUE 2023  Owners Manual Maintenance8-4
You should exercise the utmost care
to prevent damage to your vehicle and
injury to yourself whenever performing
any maintenance or inspection
procedures.
We recommend you have your

Page 313 of 390

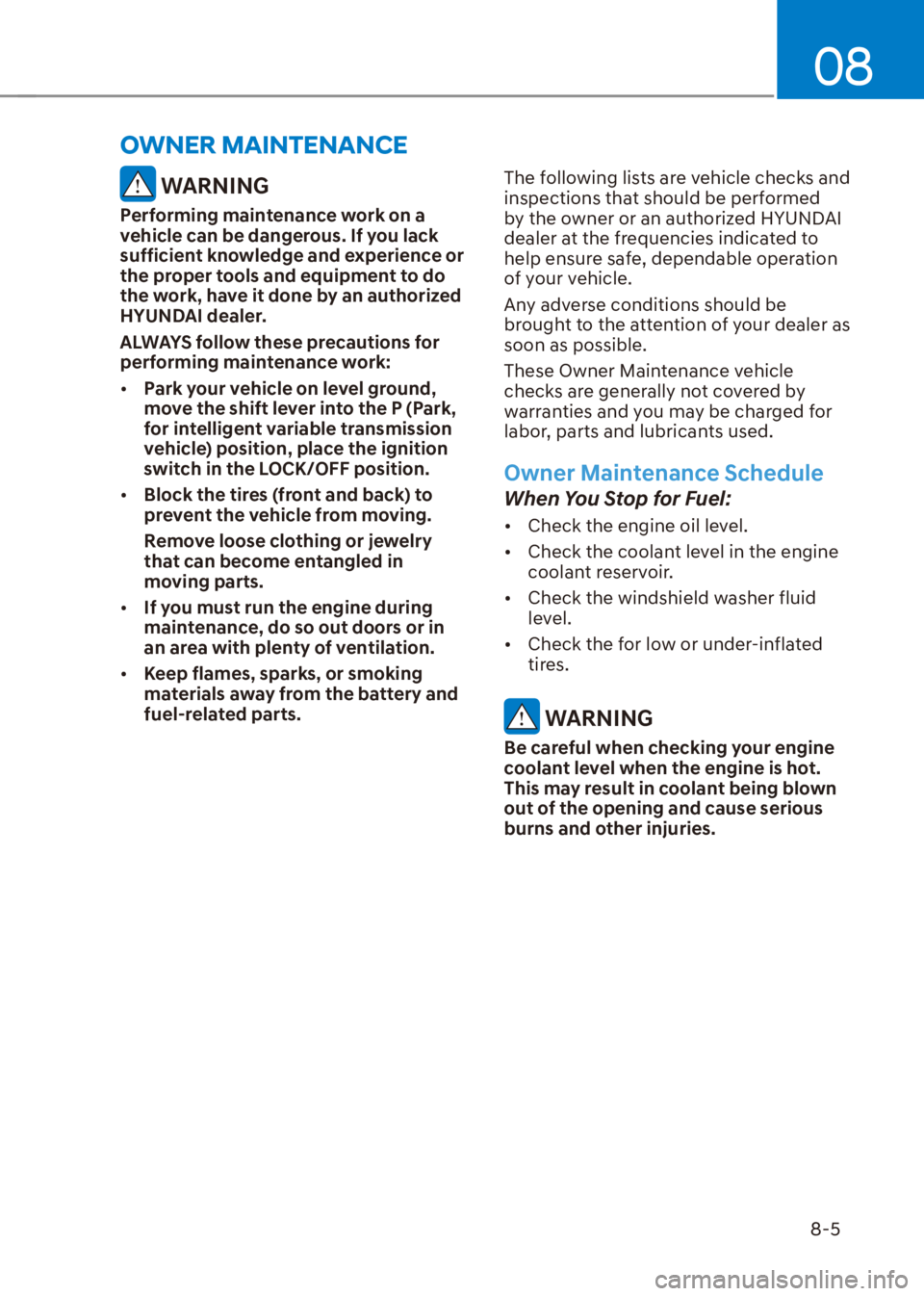

HYUNDAI VENUE 2023  Owners Manual 08
8-5
 WARNING
Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience or
the proper tools and equipment to do
the work, have it done by an auth

Page 314 of 390

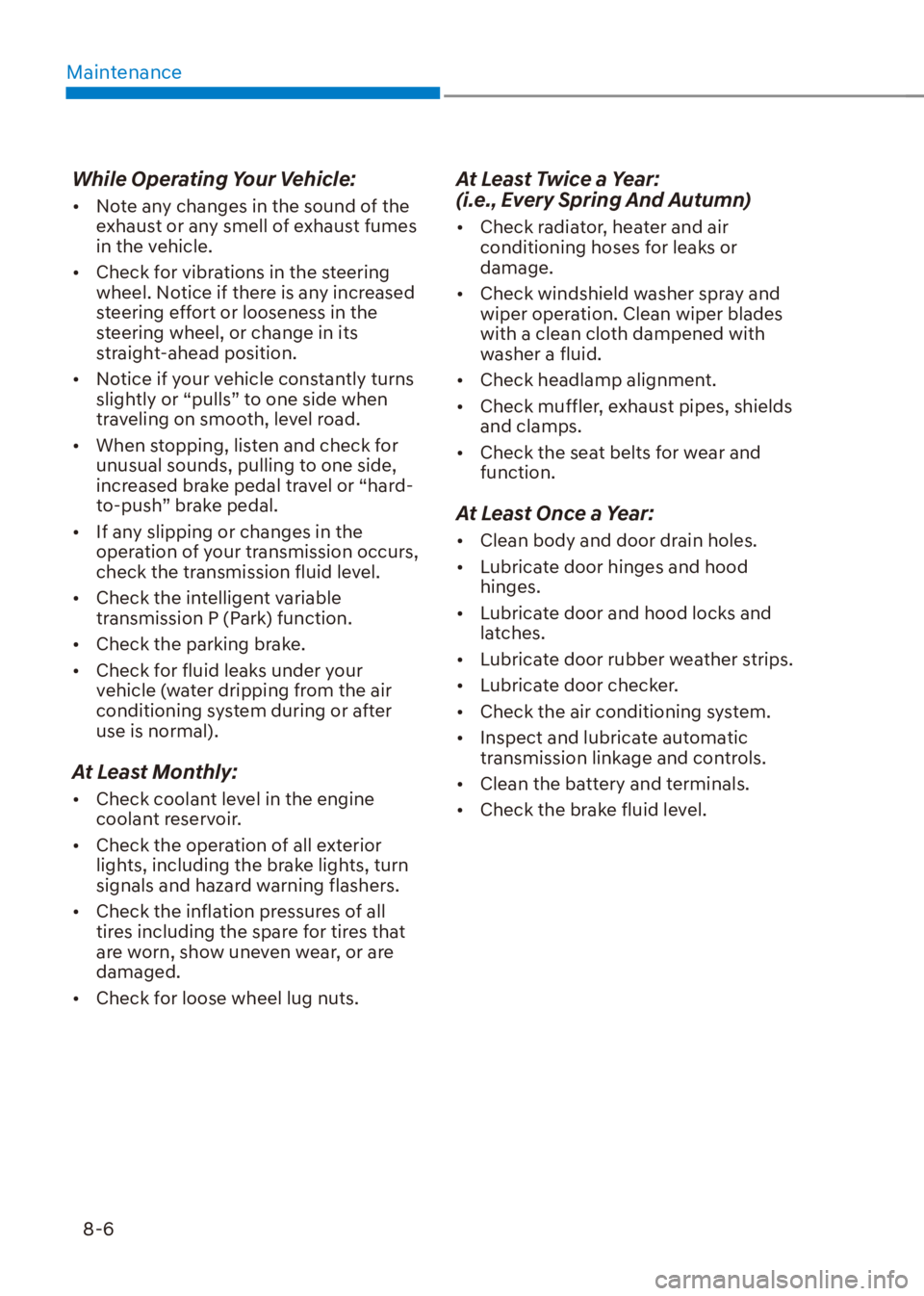

HYUNDAI VENUE 2023  Owners Manual Maintenance8-6
While Operating Your Vehicle:
[� Note any changes in the sound of the
exhaust or any smell of exhaust fumes
in the vehicle.
[� Check for vibrations in the steering
wheel. Notice

Page 315 of 390

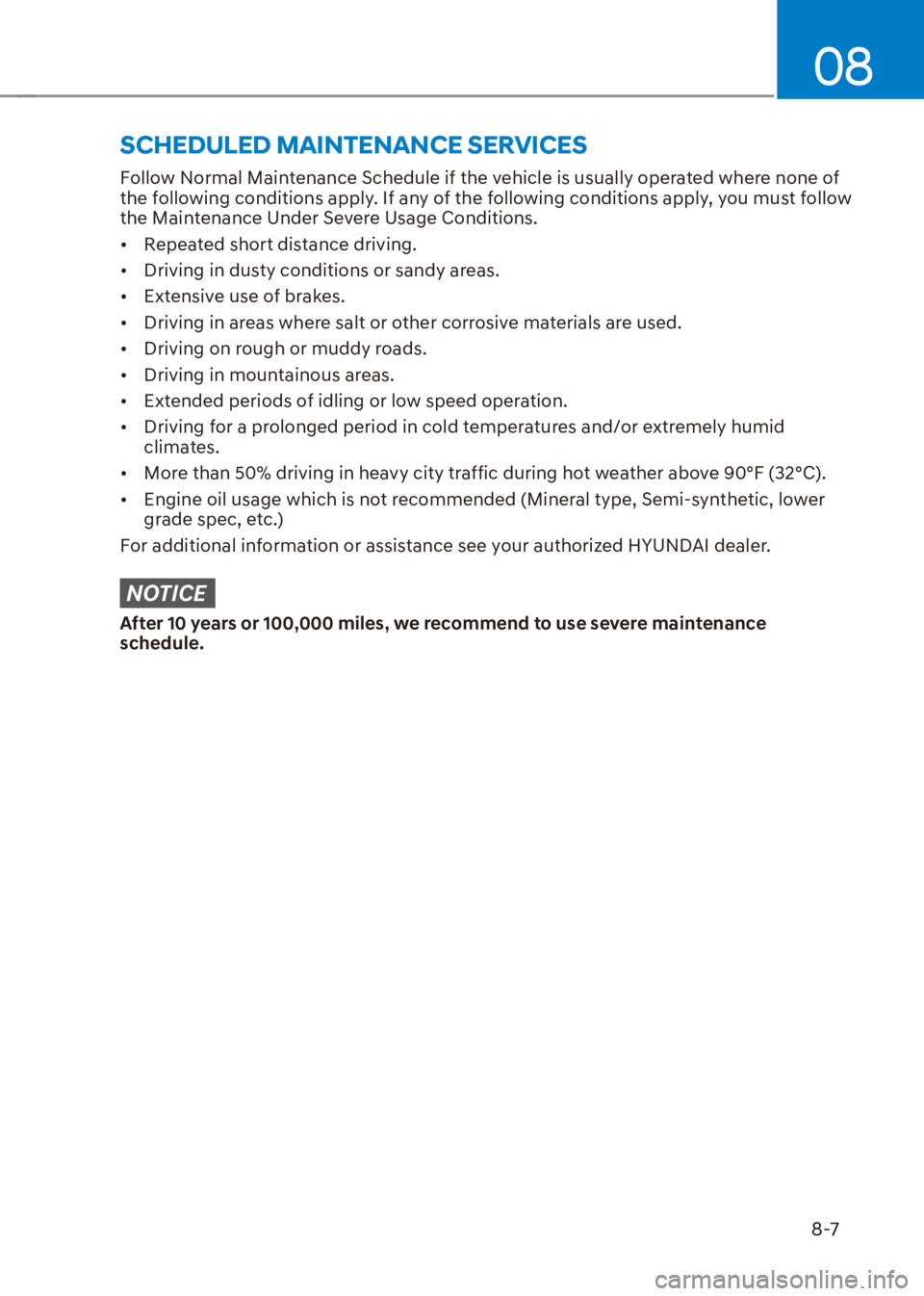

HYUNDAI VENUE 2023  Owners Manual 08
8-7
Follow Normal Maintenance Schedule if the vehicle is usually operated where none of
the following conditions apply. If any of the following conditions apply, you must follow
the Maintenance U

Page 316 of 390

HYUNDAI VENUE 2023  Owners Manual Maintenance8-8
Normal Maintenance Schedule
MAINTENANCE   INTERVALS
MAINTENANCE
ITEM Months 12 24 36 48 60 72 84 96 108 120 132 144 156
Miles×1,000 8 16 24 32 40 48 56 64 72 80 88 96 104 Km×1,000 1

Page 317 of 390

HYUNDAI VENUE 2023  Owners Manual 08
8-9
Normal Maintenance Schedule (CONT)
MAINTENANCE  INTERVALS
MAINTENANCE
ITEM Months 12 24 36 48 60 72 84 96 108 120 132 144 156
Miles×1,000 8 16 24 32 40 48 56 64 72 80 88 96 104 Km×1,000 13

Page 318 of 390

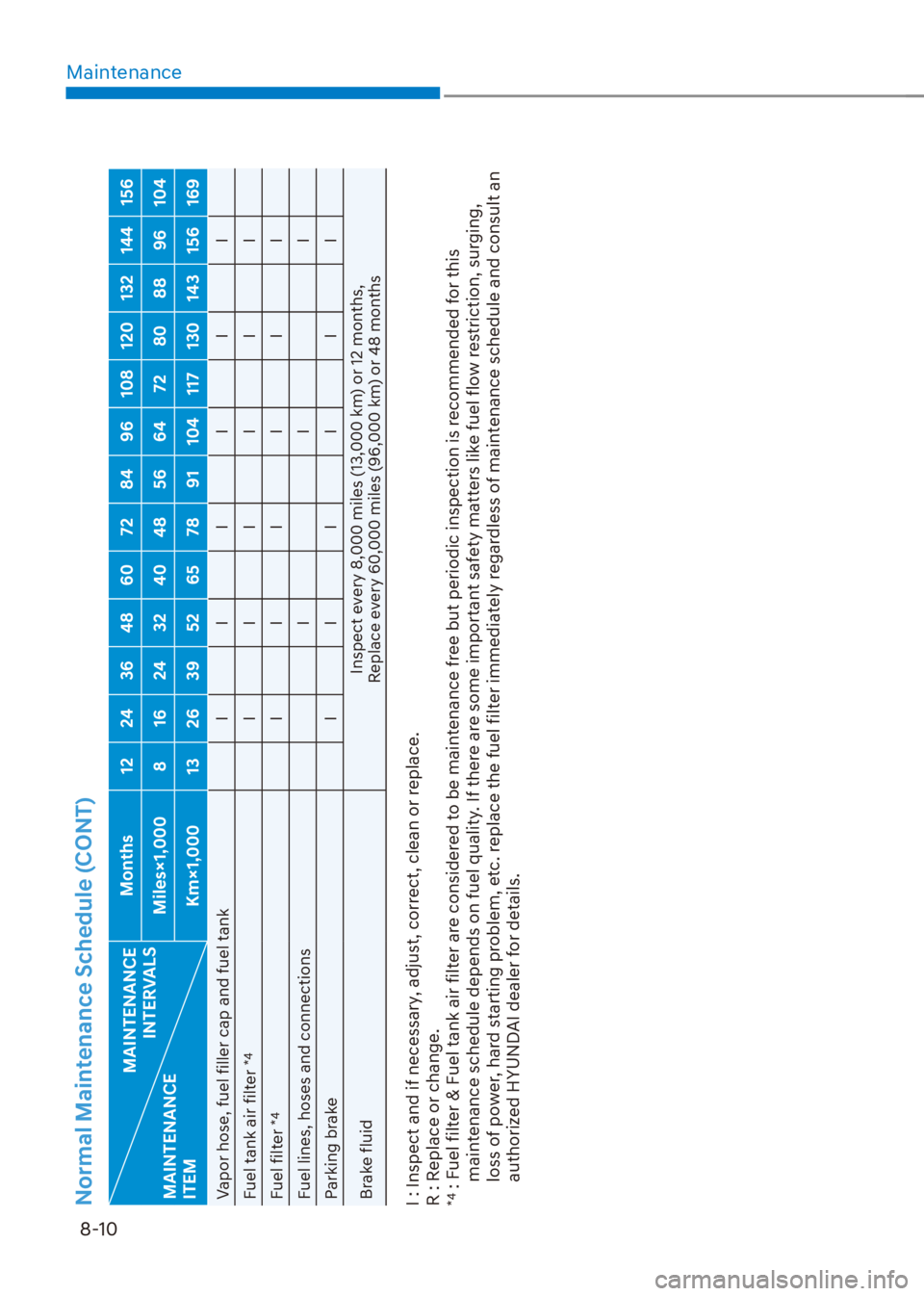

HYUNDAI VENUE 2023  Owners Manual Maintenance8-10
Normal Maintenance Schedule (CONT)
MAINTENANCE   INTERVALS
MAINTENANCE
ITEM Months 12 24 36 48 60 72 84 96 108 120 132 144 156
Miles×1,000 8 16 24 32 40 48 56 64 72 80 88 96 104 Km

Page 319 of 390

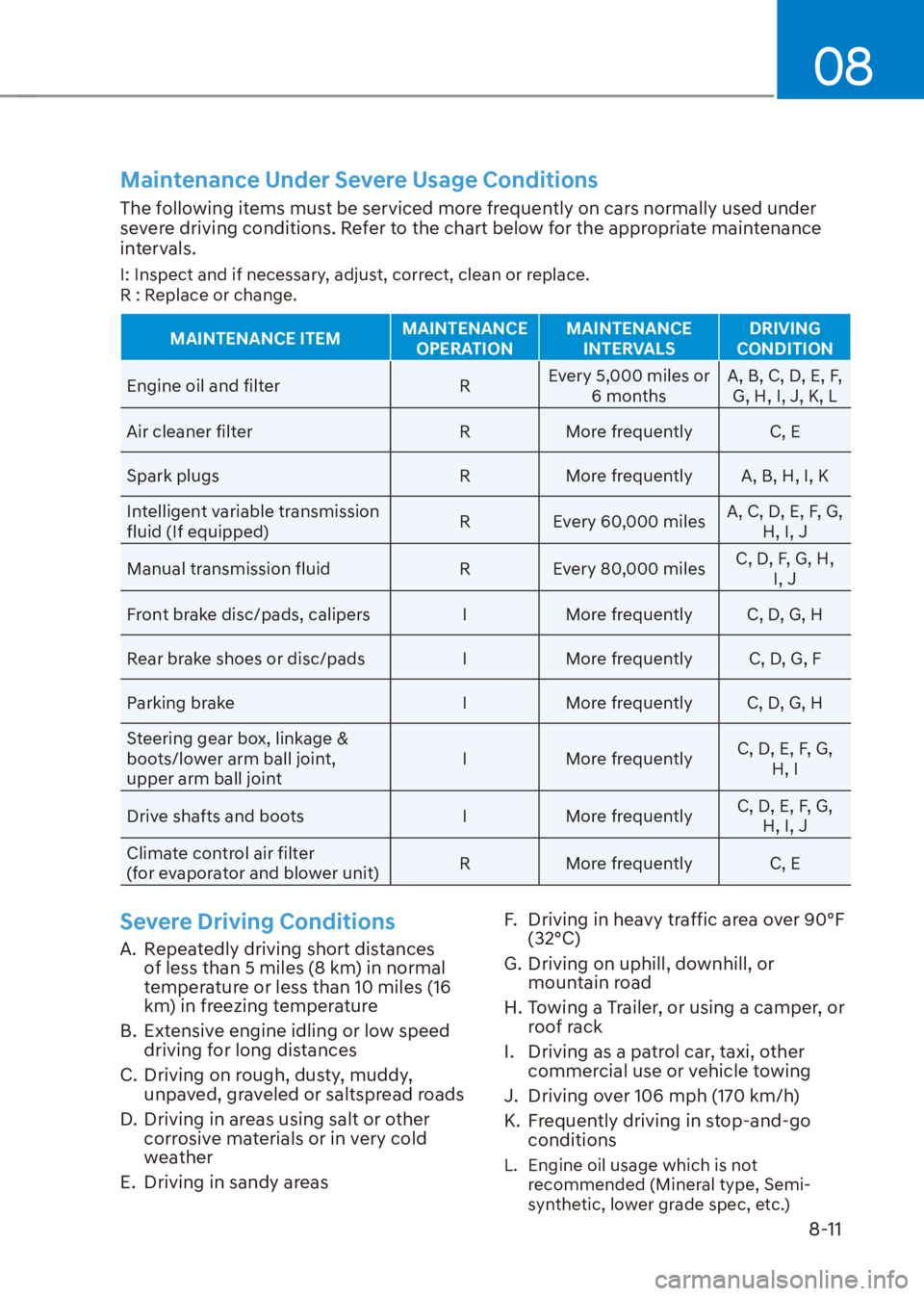

HYUNDAI VENUE 2023  Owners Manual 08
8-11
Maintenance Under Severe Usage Conditions
The following items must be serviced more frequently on cars normally used under
severe driving conditions. Refer to the chart below for the appropri

Page 320 of 390

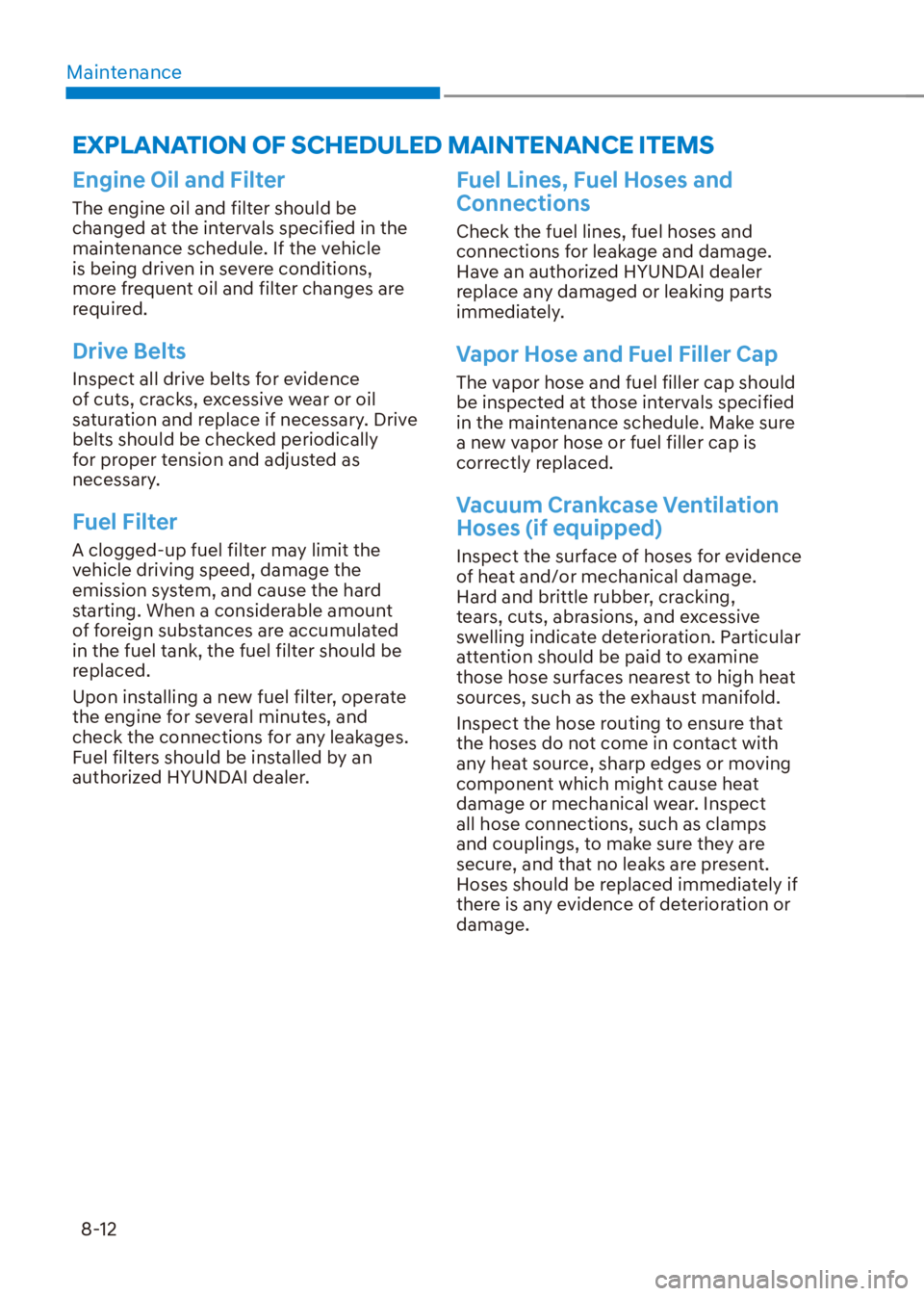

HYUNDAI VENUE 2023  Owners Manual Maintenance8-12
Engine Oil and Filter
The engine oil and filter should be
changed at the intervals specified in the
maintenance schedule. If the vehicle
is being driven in severe conditions,
more
