HYUNDAI VERACRUZ 2007 Owners Manual

49
Features of your vehicle
D040500AENBattery replacementA smart key battery should last for sever-
al years, but if the indicator light gets
weak or the smart key is not working
properly, try replacing the battery with a
new one. If you are unsure how to use
your smart key or replace the battery,
contact an authorized HYUNDAI dealer.✽ ✽
NOTICEThe circuit inside the smart key can
have a problem if exposed to moisture
or static electricity. If you are unsure
how to use your smart key or replace the
battery, contact an authorized
HYUNDAI dealer.
1. Pry open the rear cover of the smart
key.
2. Replace the battery with a new battery
(CR2032). When replacing the battery,
make sure the battery positive “+”
symbol faces up as indicated in the
illustration.
3. Install the battery in the reverse order
of removal.✽ ✽
NOTICE• Using the wrong battery can cause the
smart key to malfunction. Be sure to
use the correct battery.
• Circuits inside the smart key may
develop problems when dropped,
exposed to moisture or static electrici-
ty.
• If you suspect that your smart key
might have sustained some damage,
or you feel your smart key is not
working correctly, contact an author-
ized HYUNDAI dealer.
OEN046208
EN hma 4~83.qxd 11/28/2006 3:22 PM Page 9
procarmanuals.com

Features of your vehicle10 4Remote keyless entry system
operationsD020101AEN-EULock (1)All doors (and tailgate) are locked if the
lock button is pressed.
If all doors (and tailgate) are closed, the
hazard warning lights blink and the
chime sounds once to indicate that all
doors (and tailgate) are locked.However, if any door (or tailgate) remains
open, the hazard warning lights and the
chime will not operate. If all doors (and
tailgate) are closed after the lock button
is pressed, the hazard warning lights
blink.
D020102AEN-EUUnlock (2) Driver's door is unlocked if the unlock
button is pressed once. The hazard
warning lights will blink twice to indicate
that the driver's door is unlocked.
All doors (and tailgate) are unlocked if
the unlock button is pressed once more
within 4 seconds. The hazard warning
lights will blink and the chime will sound
twice again to indicate that all doors (and
tailgate) are unlocked.
After depressing this button, the doors
(and tailgate) will be locked automatical-
ly unless you open any door within 30
seconds.
D020104AEN-EETailgate unlock (3)Without power tailgate
The tailgate is unlocked if the button is
pressed for more than 0.5 second.
The hazard warning lights will blink twice
to indicate that the tailgate is unlocked.
After depressing this button, the tailgate
will be locked automatically unless you
open the tailgate within 30 seconds.
Also, once the tailgate is opened and
then closed, the tailgate will be locked
automatically.
With power tailgate
The tailgate is opened or closed auto-
matically if the button is pressed for more
than 0.5 second.
The hazard warning lights will blink and
the chime will sound 3 times to indicate
that the tailgate will swing upward or
downward.
REMOTE KEYLESS ENTRY
OEN046002OEN046301
Type AType B
EN hma 4~83.qxd 11/28/2006 3:23 PM Page 10
procarmanuals.com

411
Features of your vehicle

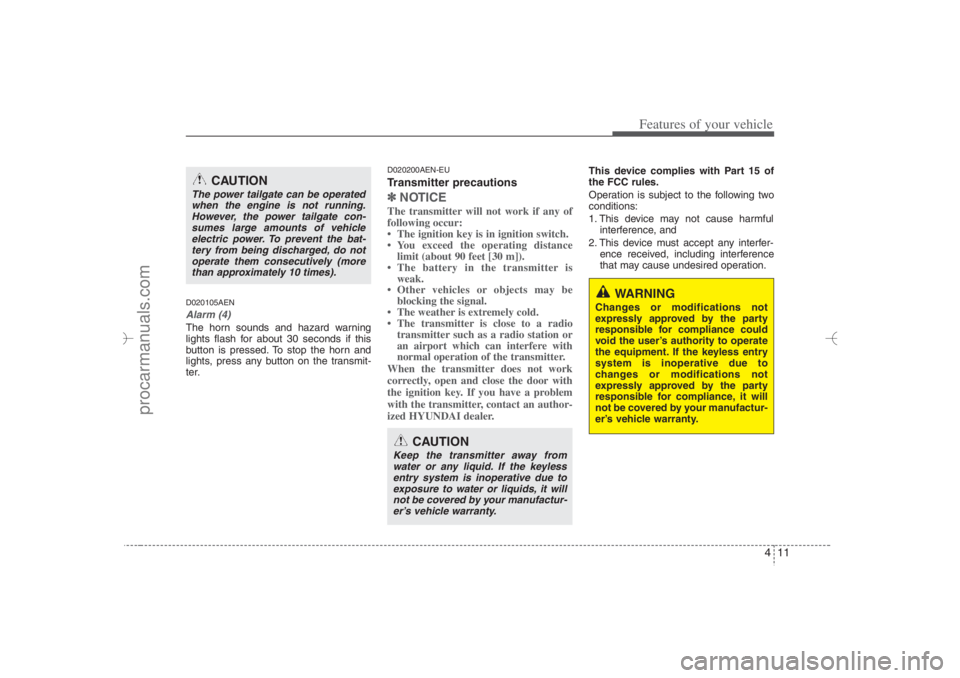

D020105AENAlarm (4)The horn sounds and hazard warning
lights flash for about 30 seconds if this
button is pressed. To stop the horn and
lights, press any button on the transmit-
ter.
D020200AEN-EUTransmitter precautions✽ ✽
NOTICEThe transmitter will not work if any of
following occur:
• The ignition key is in ignition switch.
• You exceed the operating distance
limit (about 90 feet [30 m]).
• The battery in the transmitter is
weak.
• Other vehicles or objects may be
blocking the signal.
• The weather is extremely cold.
• The transmitter is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
When the transmitter does not work
correctly, open and close the door with
the ignition key. If you have a problem
with the transmitter, contact an author-
ized HYUNDAI dealer.
This device complies with Part 15 of
the FCC rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interfer-
ence received, including interference
that may cause undesired operation.
CAUTION
The power tailgate can be operated
when the engine is not running.
However, the power tailgate con-
sumes large amounts of vehicle
electric power. To prevent the bat-
tery from being discharged, do not
operate them consecutively (more
than approximately 10 times).
CAUTION
Keep the transmitter away from
water or any liquid. If the keyless
entry system is inoperative due to
exposure to water or liquids, it will
not be covered by your manufactur-
er’s vehicle warranty.
WARNING
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment. If the keyless entry
system is inoperative due to
changes or modifications not
expressly approved by the party
responsible for compliance, it will
not be covered by your manufactur-
er’s vehicle warranty.
EN hma 4~83.qxd 11/28/2006 3:23 PM Page 11
procarmanuals.com

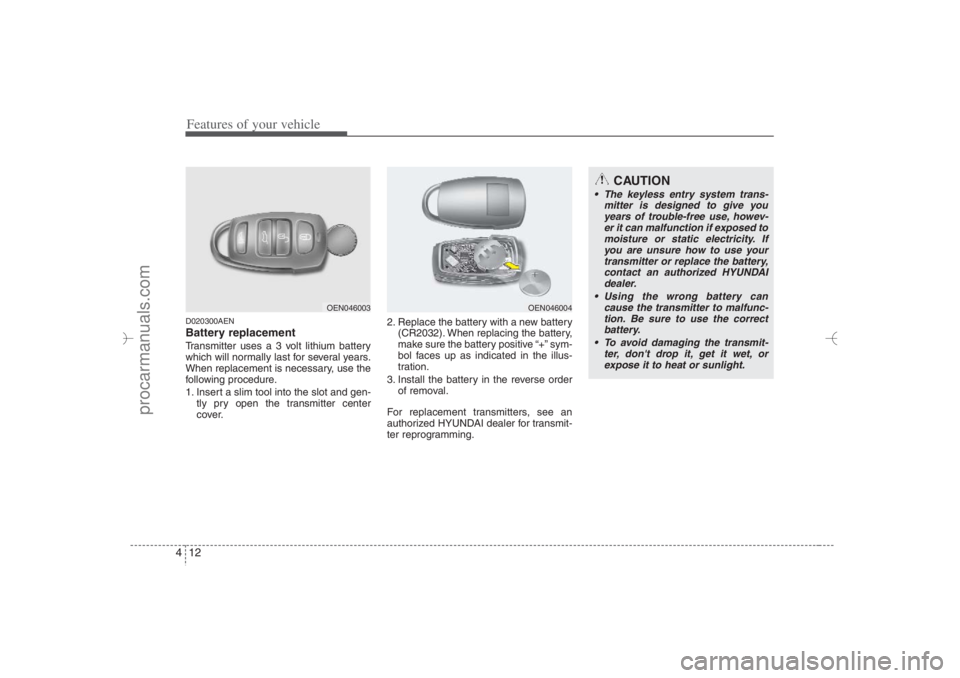

Features of your vehicle12 4D020300AENBattery replacementTransmitter uses a 3 volt lithium battery
which will normally last for several years.
When replacement is necessary, use the
following procedure.
1. Insert a slim tool into the slot and gen-
tly pry open the transmitter center
cover.2. Replace the battery with a new battery
(CR2032). When replacing the battery,
make sure the battery positive “+” sym-
bol faces up as indicated in the illus-
tration.
3. Install the battery in the reverse order
of removal.
For replacement transmitters, see an
authorized HYUNDAI dealer for transmit-
ter reprogramming.
OEN046004
CAUTION
 The keyless entry system trans-
mitter is designed to give you
years of trouble-free use, howev-
er it can malfunction if exposed to
moisture or static electricity. If
you are unsure how to use your
transmitter or replace the battery,
contact an authorized HYUNDAI
dealer.
 Using the wrong battery can
cause the transmitter to malfunc-
tion. Be sure to use the correct
battery.
 To avoid damaging the transmit-
ter, don't drop it, get it wet, or
expose it to heat or sunlight.
OEN046003
EN hma 4~83.qxd 11/28/2006 3:23 PM Page 12
procarmanuals.com

413
Features of your vehicle
D030000AENThis system is designed to provide pro-
tection from unauthorized entry into the
car. This system is operated in three
stages: the first is the "Armed" stage, the
second is the "Theft-alarm" stage, and
the third is the "Disarmed" stage. If trig-
gered, the system provides an audible
alarm with blinking of the hazard warning
lights.
D030100AEN-EUArmed stagePark the car and stop the engine. Arm
the system as described below.
1. Remove the ignition key from the igni-
tion switch and exit the vehicle.
2. Make sure that all doors (and tailgate)
and engine hood are closed and
latched.
3. Lock the doors using the transmitter of
the keyless entry system (or smart
key).
After completion of the steps above, the
hazard warning lights will blink and the
chime will sound once to indicate that the
system is armed.
If any door (or tailgate) or engine hood
remains open, the hazard warning lights
and the chime will not operate and the
theft-alarm will not arm. If all doors (and
tailgate) and engine hood are closed
after the lock button is pressed, the haz-
ard warning lights blink once.The system can also be armed by lock-
ing the doors with the key from the front
doors; however, the hazard warning
lights will not blink using this method.
✽ ✽
NOTICEThe theft-alarm system by the key can
be deactivated by an authorized
HYUNDAI dealer.
If you want this feature, consult an
authorized HYUNDAI dealer.Do not arm the system until all pas-
sengers have left the vehicle. If the
system is armed while a passenger(s)
remains in the vehicle, the alarm may
be activated when the remaining pas-
senger(s) leave the vehicle. If any
door (or tailgate) or engine hood is
opened within 30 seconds after the
system enters the armed stage, the
system is disarmed to prevent an
unnecessary alarm.
THEFT-ALARM SYSTEM
Armed
stage
Theft-alarm
stage
Disarmed
stage
EN hma 4~83.qxd 11/28/2006 3:23 PM Page 13
procarmanuals.com

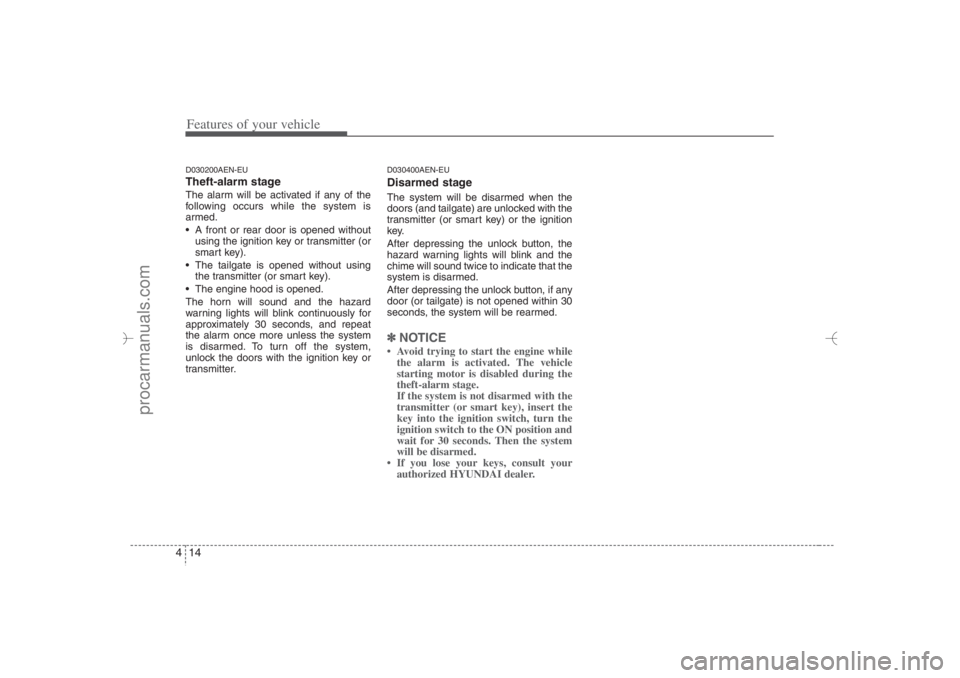

Features of your vehicle14 4D030200AEN-EUTheft-alarm stageThe alarm will be activated if any of the
following occurs while the system is
armed.
 A front or rear door is opened without
using the ignition key or transmitter (or
smart key).
 The tailgate is opened without using
the transmitter (or smart key).
 The engine hood is opened.
The horn will sound and the hazard
warning lights will blink continuously for
approximately 30 seconds, and repeat
the alarm once more unless the system
is disarmed. To turn off the system,
unlock the doors with the ignition key or
transmitter.
D030400AEN-EUDisarmed stageThe system will be disarmed when the
doors (and tailgate) are unlocked with the
transmitter (or smart key) or the ignition
key.
After depressing the unlock button, the
hazard warning lights will blink and the
chime will sound twice to indicate that the
system is disarmed.
After depressing the unlock button, if any
door (or tailgate) is not opened within 30
seconds, the system will be rearmed.✽ ✽
NOTICE• Avoid trying to start the engine while
the alarm is activated. The vehicle
starting motor is disabled during the
theft-alarm stage.
If the system is not disarmed with the
transmitter (or smart key), insert the
key into the ignition switch, turn the
ignition switch to the ON position and
wait for 30 seconds. Then the system
will be disarmed.
• If you lose your keys, consult your
authorized HYUNDAI dealer.
EN hma 4~83.qxd 11/28/2006 3:23 PM Page 14
procarmanuals.com

415
Features of your vehicle

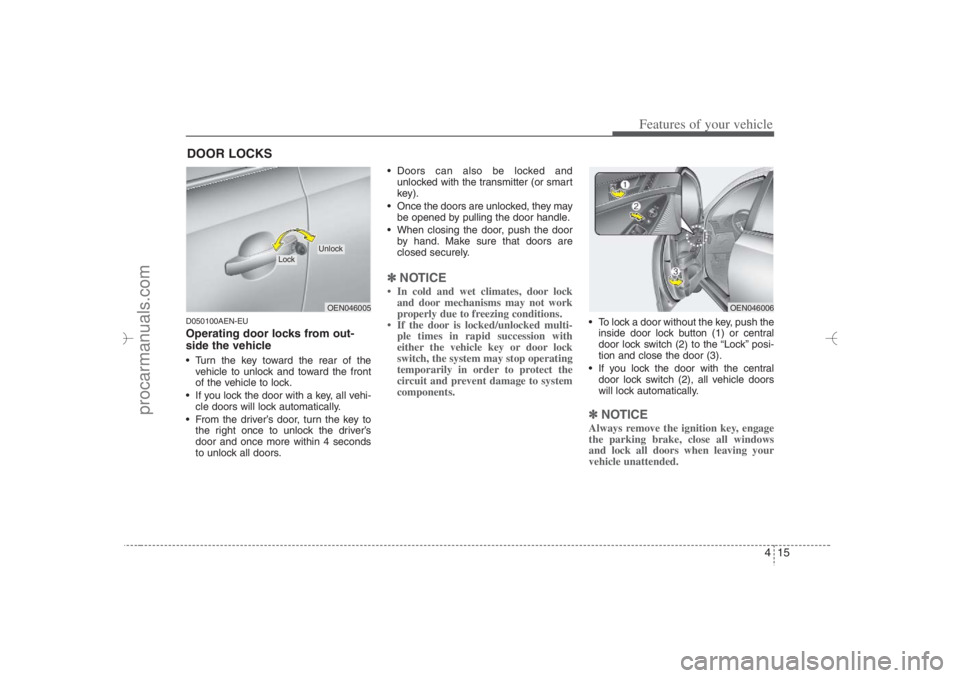

D050100AEN-EUOperating door locks from out-
side the vehicle  Turn the key toward the rear of the
vehicle to unlock and toward the front
of the vehicle to lock.
 If you lock the door with a key, all vehi-
cle doors will lock automatically.
 From the driver’s door, turn the key to
the right once to unlock the driver’s
door and once more within 4 seconds
to unlock all doors. Doors can also be locked and
unlocked with the transmitter (or smart
key).
 Once the doors are unlocked, they may
be opened by pulling the door handle.
 When closing the door, push the door
by hand. Make sure that doors are
closed securely.
✽ ✽
NOTICE• In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
• If the door is locked/unlocked multi-
ple times in rapid succession with
either the vehicle key or door lock
switch, the system may stop operating
temporarily in order to protect the
circuit and prevent damage to system
components.

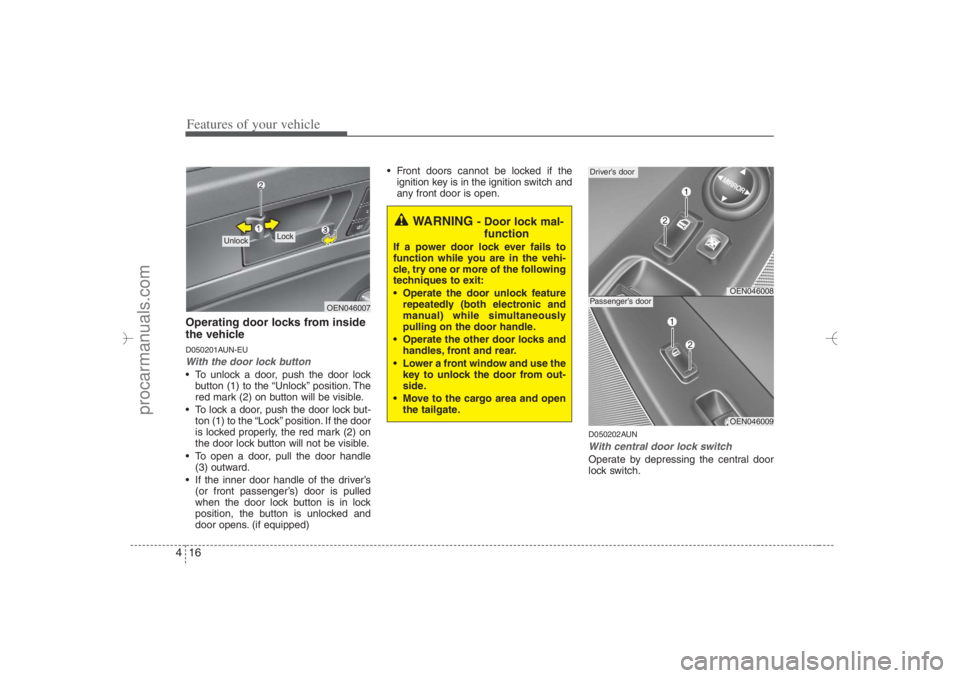

 To lock a door without the key, push the
inside door lock button (1) or central
door lock switch (2
) to the “Lock” posi-
tion and close the door (3).
 If you lock the door with the central
door lock switch (2), all vehicle doors
will lock automatically.✽ ✽
NOTICEAlways remove the ignition key, engage
the parking brake, close all windows
and lock all doors when leaving your
vehicle unattended.
DOOR LOCKS
OEN046005
Lock
Unlock
OEN046006
EN hma 4~83.qxd 11/28/2006 3:24 PM Page 15
procarmanuals.com

Features of your vehicle16 4Operating door locks from inside
the vehicleD050201AUN-EUWith the door lock button To unlock a door, push the door lock
button (1) to the “Unlock” position. The
red mark (2) on button will be visible.
 To lock a door, push the door lock but-
ton (1) to the “Lock” position. If the door
is locked properly, the red mark (2) on
the door lock button will not be visible.
 To open a door, pull the door handle
(3) outward.
 If the inner door handle of the driver’s
(or front passenger’s) door is pulled
when the door lock button is in lock
position, the button is unlocked and
door opens. (if equipped) Front doors cannot be locked if the
ignition key is in the ignition switch and
any front door is open.
D050202AUNWith central door lock switchOperate by depressing the central door
lock switch.
OEN046007
Lock
Unlock
WARNING
- Door lock mal-
function
If a power door lock ever fails to
function while you are in the vehi-
cle, try one or more of the following
techniques to exit:
 Operate the door unlock feature
repeatedly (both electronic and
manual) while simultaneously
pulling on the door handle.
 Operate the other door locks and
handles, front and rear.
 Lower a front window and use the
key to unlock the door from out-
side.
 Move to the cargo area and open
the tailgate.
OEN046008
Driver’s door
OEN046009
Passenger’s door
EN hma 4~83.qxd 11/28/2006 3:24 PM Page 16
procarmanuals.com

417
Features of your vehicle

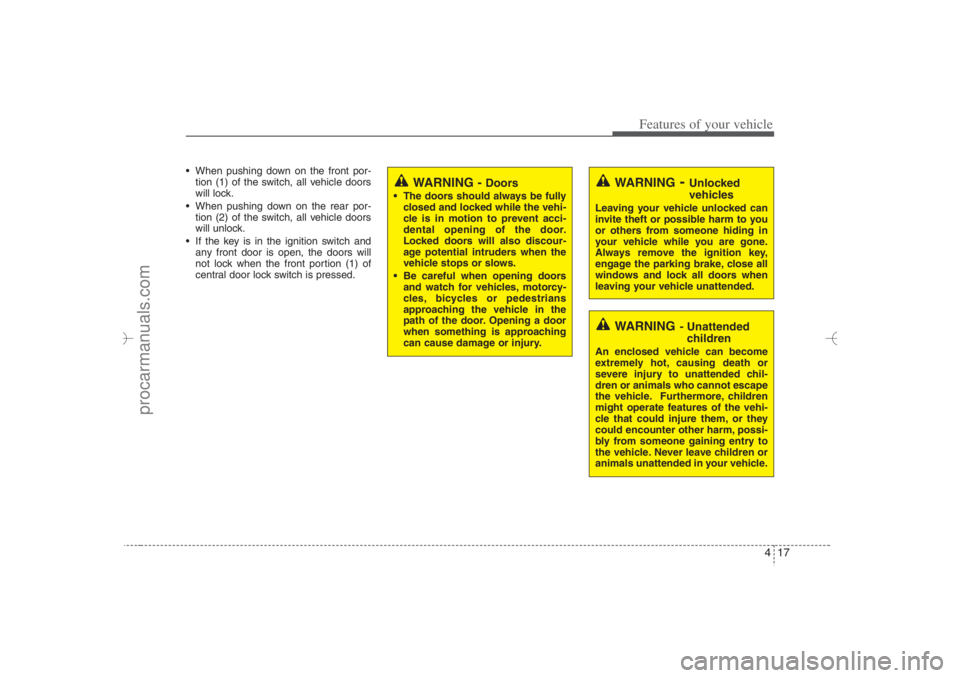

 When pushing down on the front por-
tion (1) of the switch, all vehicle doors
will lock.
 When pushing down on the rear por-
tion (2) of the switch, all vehicle doors
will unlock.
 If the key is in the ignition switch and
any front door is open, the doors will
not lock when the front portion (1) of
central door lock switch is pressed.
WARNING
- Unlocked
vehicles
Leaving your vehicle unlocked can
invite theft or possible harm to you
or others from someone hiding in
your vehicle while you are gone.
Always remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
WARNING
- Unattended
children
An enclosed vehicle can become
extremely hot, causing death or
severe injury to unattended chil-
dren or animals who cannot escape
the vehicle. Furthermore, children
might operate features of the vehi-
cle that could injure them, or they
could encounter other harm, possi-
bly from someone gaining entry to
the vehicle. Never leave children or
animals unattended in your vehicle.
WARNING -
Doors
 The doors should always be fully
closed and locked while the vehi-
cle is in motion to prevent acci-
dental opening of the door.
Locked doors will also discour-
age potential intruders when the
vehicle stops or slows.
 Be careful when opening doors
and watch for vehicles, motorcy-
cles, bicycles or pedestrians
approaching the vehicle in the
path of the door. Opening a door
when something is approaching
can cause damage or injury.
EN hma 4~83.qxd 11/28/2006 3:24 PM Page 17
procarmanuals.com

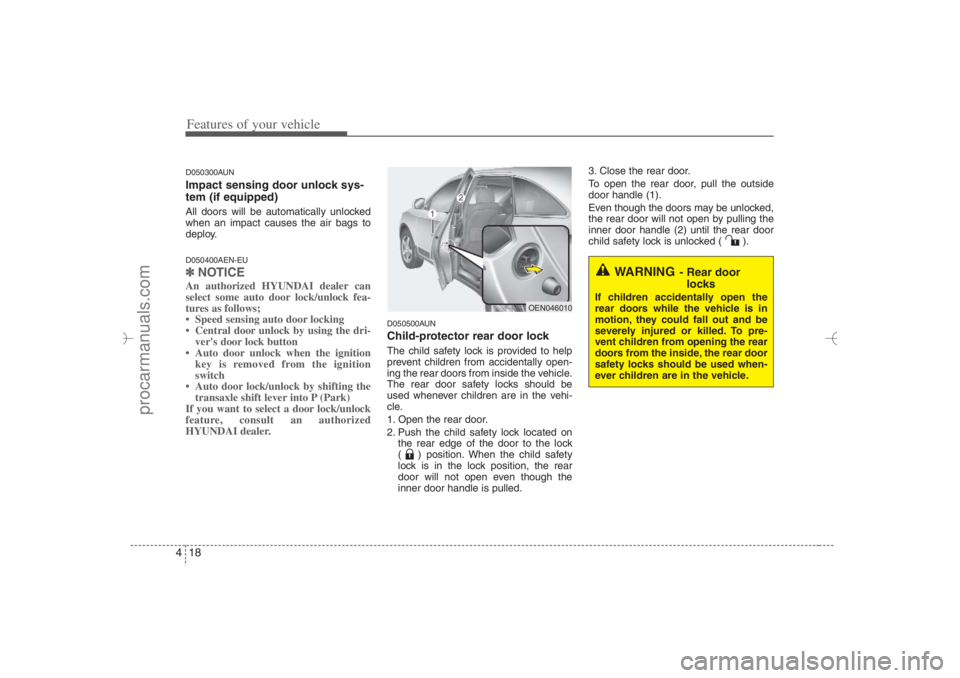

Features of your vehicle18 4D050300AUNImpact sensing door unlock sys-
tem (if equipped)All doors will be automatically unlocked
when an impact causes the air bags to
deploy.D050400AEN-EU✽ ✽
NOTICEAn authorized HYUNDAI dealer can
select some auto door lock/unlock fea-
tures as follows;
• Speed sensing auto door locking
• Central door unlock by using the dri-
ver's door lock button
• Auto door unlock when the ignition
key is removed from the ignition
switch
• Auto door lock/unlock by shifting the
transaxle shift lever into P (Park)
If you want to select a door lock/unlock
feature, consult an authorized
HYUNDAI dealer.
D050500AUNChild-protector rear door lockThe child safety lock is provided to help
prevent children from accidentally open-
ing the rear doors from inside the vehicle.
The rear door safety locks should be
used whenever children are in the vehi-
cle.
1. Open the rear door.
2. Push the child safety lock located on
the rear edge of the door to the lock
( ) position. When the child safety
lock is in the lock position, the rear
door will not open even though the
inner door handle is pulled.3. Close the rear door.
To open the rear door, pull the outside
door handle (1).
Even though the doors may be unlocked,
the rear door will not open by pulling the
inner door handle (2) until the rear door
child safety lock is unlocked ( ).
WARNING
- Rear door
locks
If children accidentally open the
rear doors while the vehicle is in
motion, they could fall out and be
severely injured or killed. To pre-
vent children from opening the rear
doors from the inside, the rear door
safety locks should be used when-
ever children are in the vehicle.
OEN046010
EN hma 4~83.qxd 11/28/2006 3:25 PM Page 18
procarmanuals.com
