HYUNDAI VERACRUZ 2007 Owners Manual

4 109
Features of your vehicle

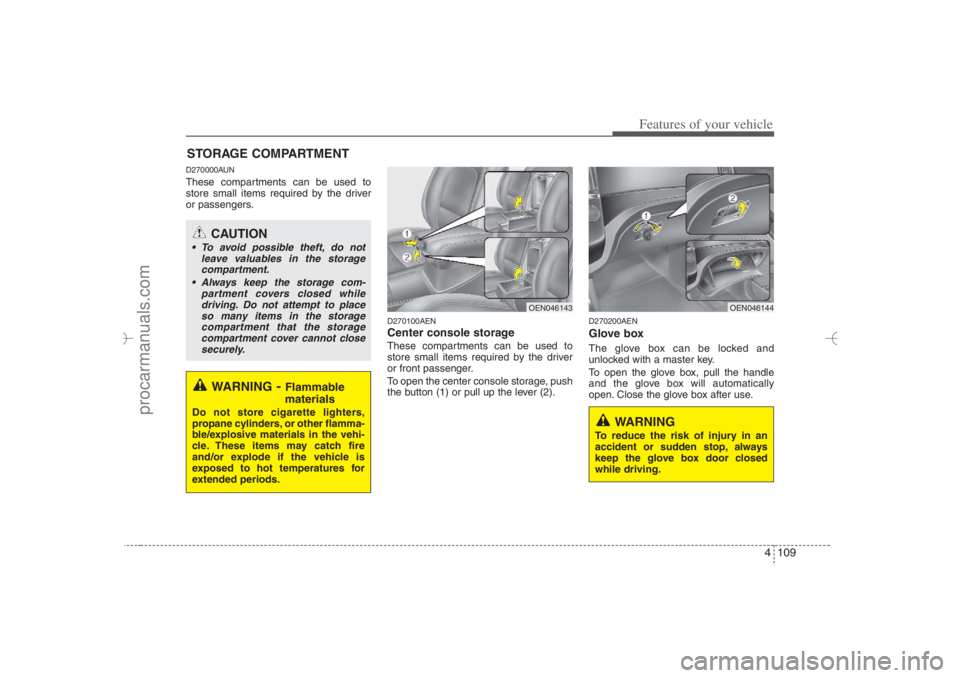

D270000AUNThese compartments can be used to
store small items required by the driver
or passengers.
D270100AENCenter console storage These compartments can be used to
store small items required by the driver
or front passenger.
To open the center console storage, push
the button (1) or pull up the lever (2).
D270200AENGlove boxThe glove box can be locked and
unlocked with a master key.
To open the glove box, pull the handle
and the glove box will automatically
open. Close the glove box after use.
STORAGE COMPARTMENT
WARNING
- Flammable
materials
Do not store cigarette lighters,
propane cylinders, or other flamma-
ble/explosive materials in the vehi-
cle. These items may catch fire
and/or explode if the vehicle is
exposed to hot temperatures for
extended periods.
CAUTION
 To avoid possible theft, do not
leave valuables in the storage
compartment.
 Always keep the storage com-
partment covers closed while
driving. Do not attempt to place
so many items in the storage
compartment that the storage
compartment cover cannot close
securely.
OEN046144
OEN046143
WARNING
To reduce the risk of injury in an
accident or sudden stop, always
keep the glove box door closed
while driving.
EN hma 4-84~120.qxd 11/27/2006 5:35 PM Page 109
procarmanuals.com

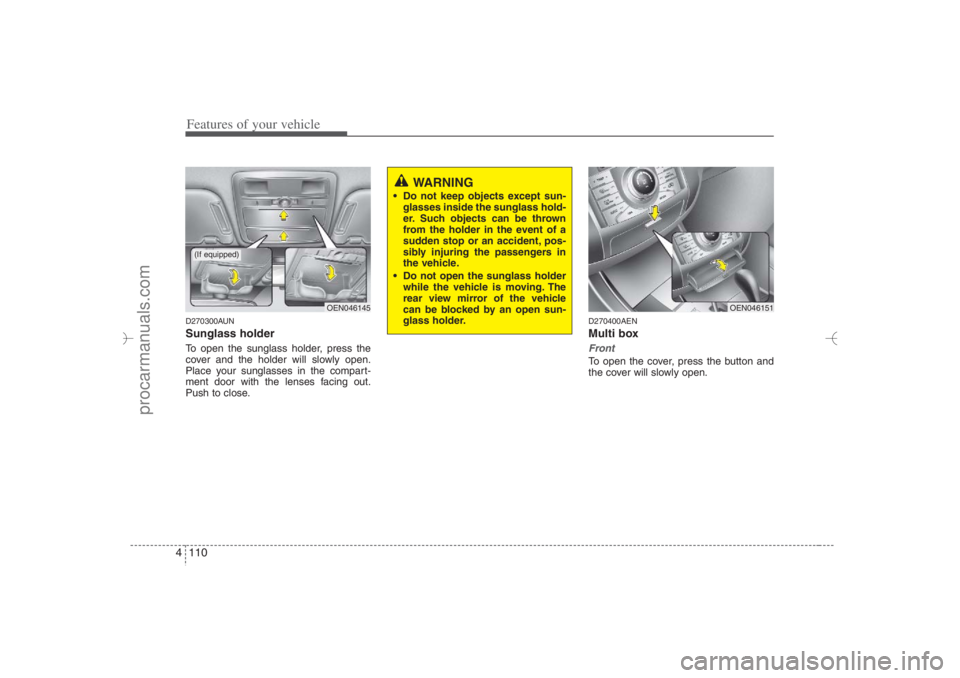

Features of your vehicle110 4D270300AUNSunglass holder To open the sunglass holder, press the
cover and the holder will slowly open.
Place your sunglasses in the compart-
ment door with the lenses facing out.
Push to close.
D270400AENMulti boxFrontTo open the cover, press the button and
the cover will slowly open.
OEN046145
OEN046151
WARNING
 Do not keep objects except sun-
glasses inside the sunglass hold-
er. Such objects can be thrown
from the holder in the event of a
sudden stop or an accident, pos-
sibly injuring the passengers in
the vehicle.
 Do not open the sunglass holder
while the vehicle is moving. The
rear view mirror of the vehicle
can be blocked by an open sun-
glass holder.
(If equipped)
EN hma 4-84~120.qxd 11/27/2006 5:36 PM Page 110
procarmanuals.com

4 111
Features of your vehicle

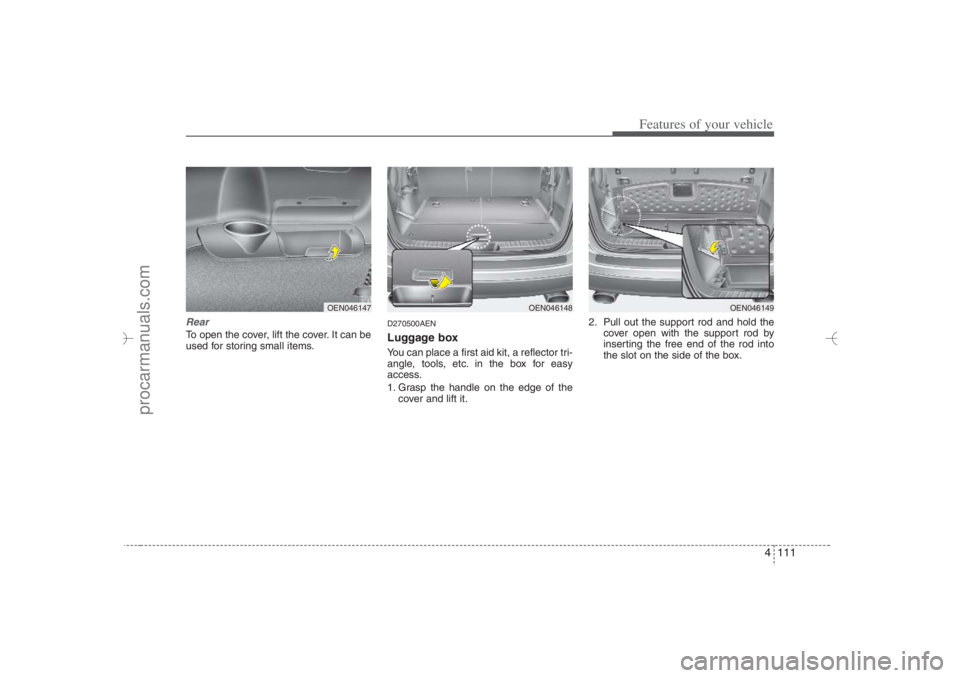

RearTo open the cover, lift the cover. It can be
used for storing small items.
D270500AENLuggage boxYou can place a first aid kit, a reflector tri-
angle, tools, etc. in the box for easy
access.
1. Grasp the handle on the edge of the
cover and lift it.2. Pull out the support rod and hold the
cover open with the support rod by
inserting the free end of the rod into
the slot on the side of the box.
OEN046147
OEN046148
OEN046149
EN hma 4-84~120.qxd 11/27/2006 5:36 PM Page 111
procarmanuals.com

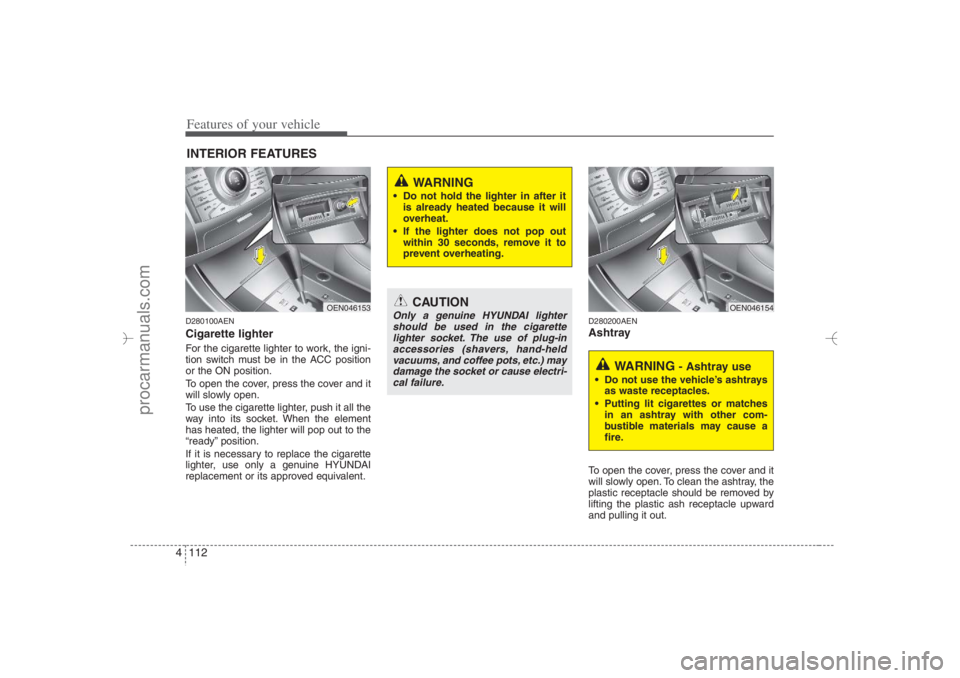

Features of your vehicle112 4D280100AENCigarette lighterFor the cigarette lighter to work, the igni-
tion switch must be in the ACC position
or the ON position.
To open the cover, press the cover and it
will slowly open.
To use the cigarette lighter, push it all the
way into its socket. When the element
has heated, the lighter will pop out to the
“ready” position.
If it is necessary to replace the cigarette
lighter, use only a genuine HYUNDAI
replacement or its approved equivalent.
D280200AENAshtrayTo open the cover, press the cover and it
will slowly open. To clean the ashtray, the
plastic receptacle should be removed by
lifting the plastic ash receptacle upward
and pulling it out.
INTERIOR FEATURES
CAUTION
Only a genuine HYUNDAI lighter
should be used in the cigarette
lighter socket. The use of plug-in
accessories (shavers, hand-held
vacuums, and coffee pots, etc.) may
damage the socket or cause electri-
cal failure.
WARNING
 Do not hold the lighter in after it
is already heated because it will
overheat.
 If the lighter does not pop out
within 30 seconds, remove it to
prevent overheating.
OEN046153
WARNING
- Ashtray use
 Do not use the vehicle’s ashtrays
as waste receptacles.
 Putting lit cigarettes or matches
in an ashtray with other com-
bustible materials may cause a
fire.
OEN046154
EN hma 4-84~120.qxd 11/27/2006 5:36 PM Page 112
procarmanuals.com

4 113
Features of your vehicle

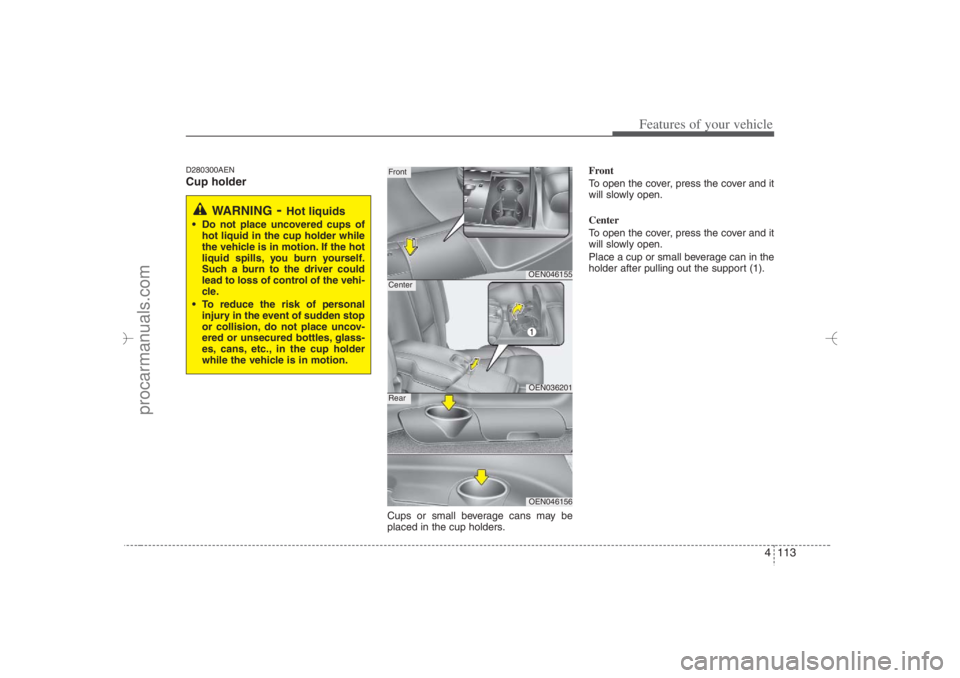

D280300AENCup holder
Cups or small beverage cans may be
placed in the cup holders.Front
To open the cover, press the cover and it
will slowly open.
Center
To open the cover, press the cover and it
will slowly open.
Place a cup or small beverage can in the
holder after pulling out the support (1).
WARNING
- Hot liquids
 Do not place uncovered cups of
hot liquid in the cup holder while
the vehicle is in motion. If the hot
liquid spills, you burn yourself.
Such a burn to the driver could
lead to loss of control of the vehi-
cle.
 To reduce the risk of personal
injury in the event of sudden stop
or collision, do not place uncov-
ered or unsecured bottles, glass-
es, cans, etc., in the cup holder
while the vehicle is in motion.
OEN046155OEN036201
FrontCenter
OEN046156
Rear
EN hma 4-84~120.qxd 11/27/2006 5:37 PM Page 113
procarmanuals.com

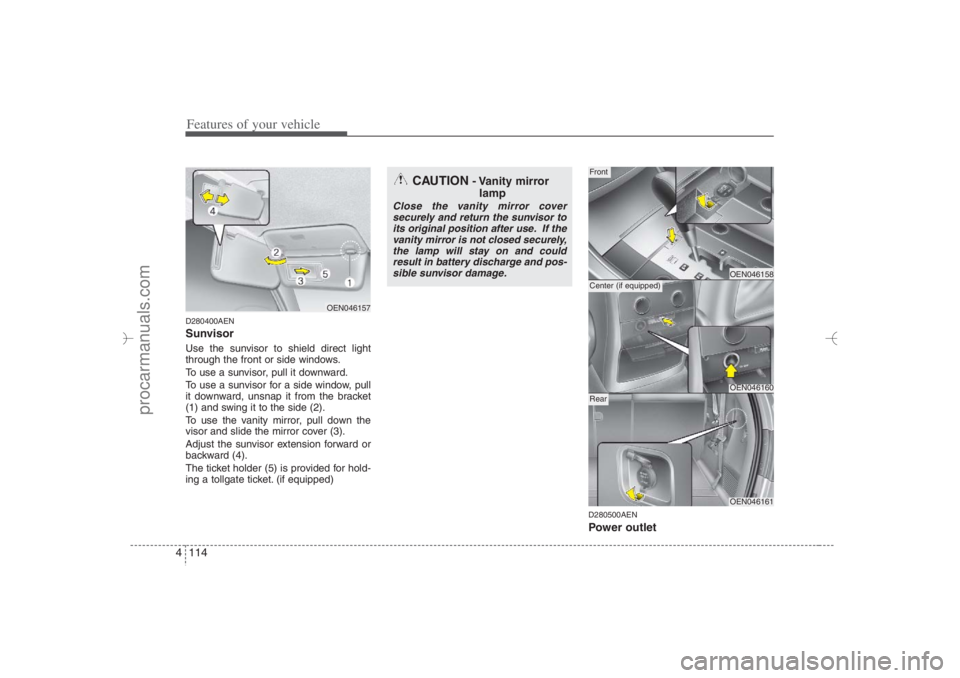

Features of your vehicle114 4D280400AENSunvisorUse the sunvisor to shield direct light
through the front or side windows.
To use a sunvisor, pull it downward.
To use a sunvisor for a side window, pull
it downward, unsnap it from the bracket
(1) and swing it to the side (2).
To use the vanity mirror, pull down the
visor and slide the mirror cover (3).
Adjust the sunvisor extension forward or
backward (4).
The ticket holder (5) is provided for hold-
ing a tollgate ticket. (if equipped)
D280500AENPower outlet
OEN046157
CAUTION
- Vanity mirror
lamp
Close the vanity mirror cover
securely and return the sunvisor to
its original position after use. If the
vanity mirror is not closed securely,
the lamp will stay on and could
result in battery discharge and pos-
sible sunvisor damage.
OEN046158OEN046160
FrontCenter (if equipped)
OEN046161
Rear
EN hma 4-84~120.qxd 11/27/2006 5:37 PM Page 114
procarmanuals.com

4 115
Features of your vehicle

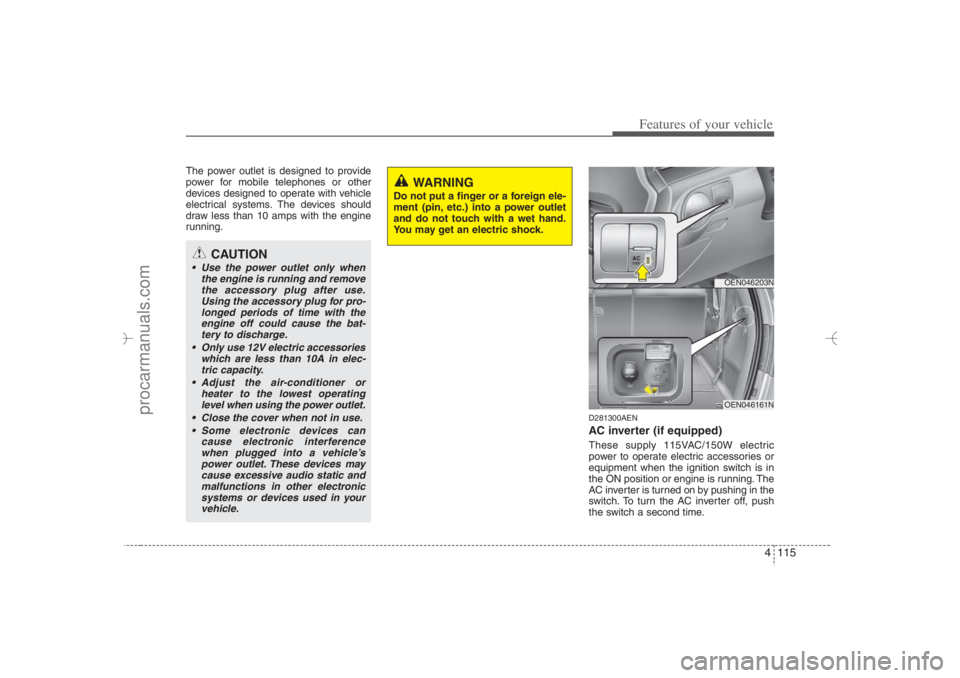

The power outlet is designed to provide
power for mobile telephones or other
devices designed to operate with vehicle
electrical systems. The devices should
draw less than 10 amps with the engine
running.
D281300AENAC inverter (if equipped)These supply 115VAC/150W electric
power to operate electric accessories or
equipment when the ignition switch is in
the ON position or engine is running. The
AC inverter is turned on by pushing in the
switch. To turn the AC inverter off, push
the switch a second time.
CAUTION
 Use the power outlet only when
the engine is running and remove
the accessory plug after use.
Using the accessory plug for pro-
longed periods of time with the
engine off could cause the bat-
tery to discharge.
 Only use 12V electric accessories
which are less than 10A in elec-
tric capacity.
 Adjust the air-conditioner or
heater to the lowest operating
level when using the power outlet.
 Close the cover when not in use.
 Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices may
cause excessive audio static and
malfunctions in other electronic
systems or devices used in your
vehicle.
WARNING
Do not put a finger or a foreign ele-
ment (pin, etc.) into a power outlet
and do not touch with a wet hand.
You may get an electric shock.
OEN046203NOEN046161N
EN hma 4-84~120.qxd 11/27/2006 5:38 PM Page 115
procarmanuals.com

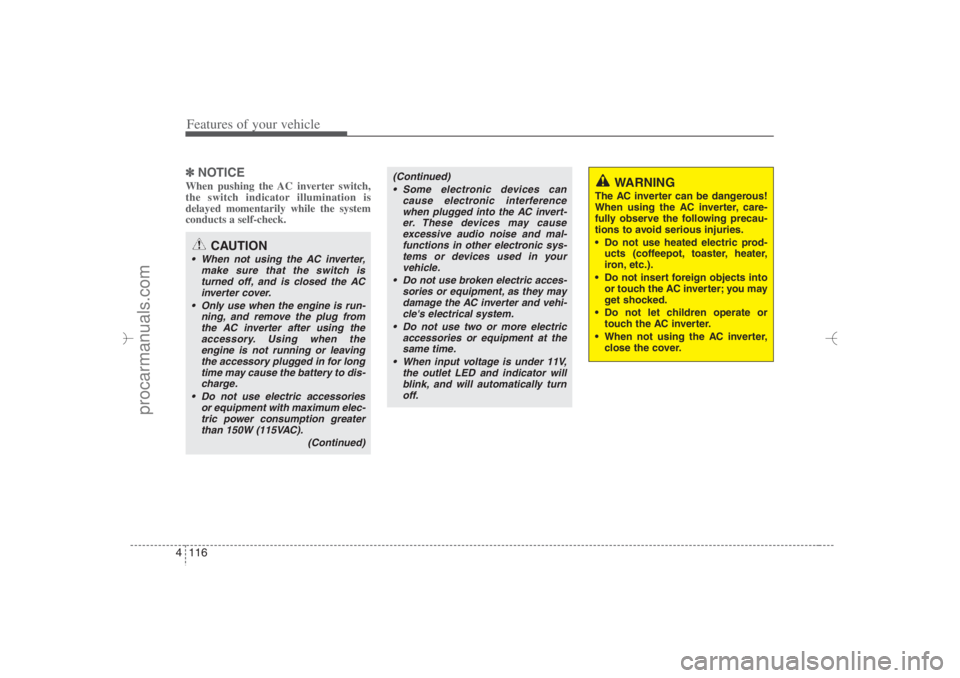

Features of your vehicle116 4✽
✽
NOTICEWhen pushing the AC inverter switch,
the switch indicator illumination is
delayed momentarily while the system
conducts a self-check.
WARNING
The AC inverter can be dangerous!
When using the AC inverter, care-
fully observe the following precau-
tions to avoid serious injuries.
 Do not use heated electric prod-
ucts (coffeepot, toaster, heater,
iron, etc.).
 Do not insert foreign objects into
or touch the AC inverter; you may
get shocked.
 Do not let children operate or
touch the AC inverter.
 When not using the AC inverter,
close the cover.
CAUTION
 When not using the AC inverter,
make sure that the switch is
turned off, and is closed the AC
inverter cover.
 Only use when the engine is run-
ning, and remove the plug from
the AC inverter after using the
accessory. Using when the
engine is not running or leaving
the accessory plugged in for long
time may cause the battery to dis-
charge.
 Do not use electric accessories
or equipment with maximum elec-
tric power consumption greater
than 150W (115VAC).
(Continued)
(Continued)
 Some electronic devices can
cause electronic interference
when plugged into the AC invert-
er. These devices may cause
excessive audio noise and mal-
functions in other electronic sys-
tems or devices used in your
vehicle.
 Do not use broken electric acces-
sories or equipment, as they may
damage the AC inverter and vehi-
cle's electrical system.
 Do not use two or more electric
accessories or equipment at the
same time.
 When input voltage is under 11V,
the outlet LED and indicator will
blink, and will automatically turn
off.
EN hma 4-84~120.qxd 11/27/2006 5:38 PM Page 116
procarmanuals.com

4 117
Features of your vehicle

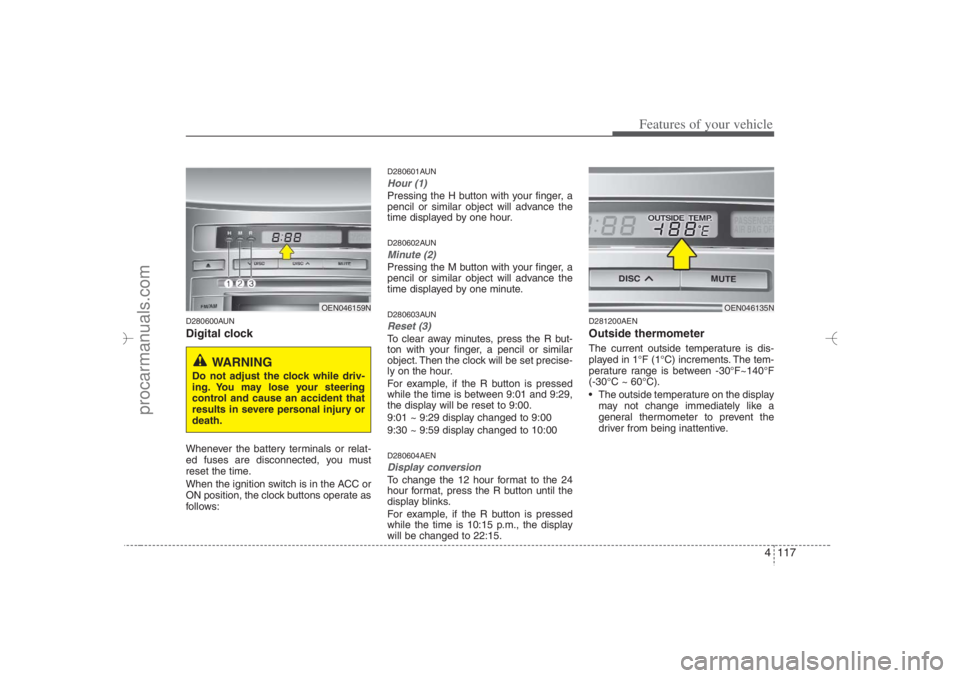

D280600AUNDigital clockWhenever the battery terminals or relat-
ed fuses are disconnected, you must
reset the time.
When the ignition switch is in the ACC or
ON position, the clock buttons operate as
follows:
D280601AUNHour (1)Pressing the H button with your finger, a
pencil or similar object will advance the
time displayed by one hour.D280602AUNMinute (2)Pressing the M button with your finger, a
pencil or similar object will advance the
time displayed by one minute.D280603AUNReset (3)To clear away minutes, press the R but-
ton with your finger, a pencil or similar
object. Then the clock will be set precise-
ly on the hour.
For example, if the R button is pressed
while the time is between 9:01 and 9:29,
the display will be reset to 9:00.
9:01 ~ 9:29 display changed to 9:00
9:30 ~ 9:59 display changed to 10:00D280604AENDisplay conversionTo change the 12 hour format to the 24
hour format, press the R button until the
display blinks.
For example, if the R button is pressed
while the time is 10:15 p.m., the display
will be changed to 22:15.
D281200AENOutside thermometerThe current outside temperature is dis-
played in 1°F (1°C) increments. The tem-
perature range is between -30°F~140°F
(-30°C ~ 60°C).
 The outside temperature on the display
may not change immediately like a
general thermometer to prevent the
driver from being inattentive.
OEN046159N
WARNING
Do not adjust the clock while driv-
ing. You may lose your steering
control and cause an accident that
results in severe personal injury or
death.
OEN046135N
EN hma 4-84~120.qxd 11/27/2006 5:38 PM Page 117
procarmanuals.com

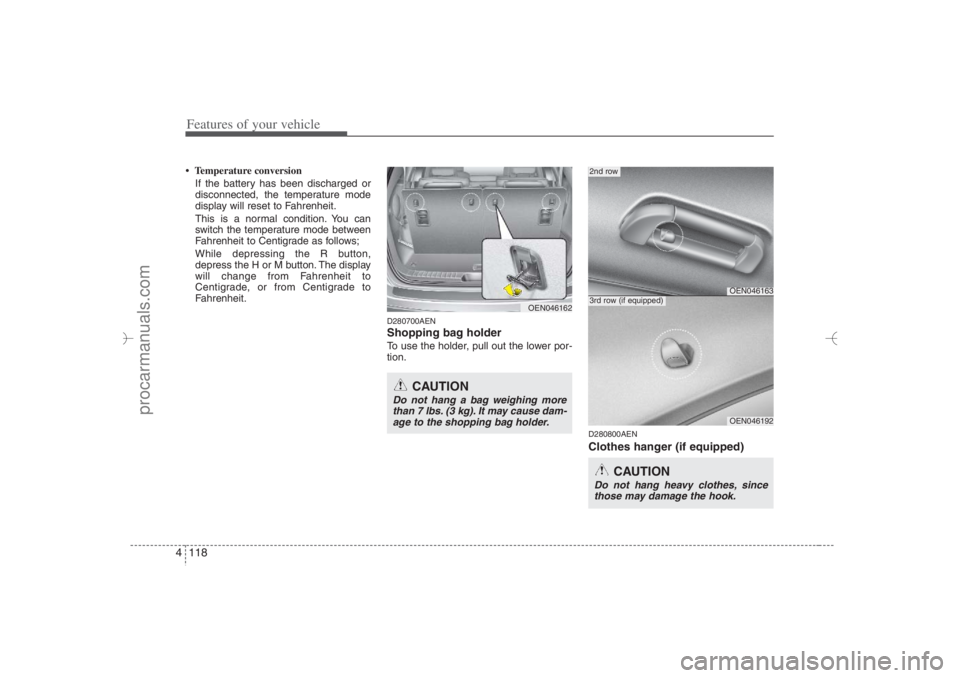

Features of your vehicle118 4• Temperature conversion
If the battery has been discharged or
disconnected, the temperature mode
display will reset to Fahrenheit.
This is a normal condition. You can
switch the temperature mode between
Fahrenheit to Centigrade as follows;
While depressing the R button,
depress the H or M button. The display
will change from Fahrenheit to
Centigrade, or from Centigrade to
Fahrenheit.
D280700AENShopping bag holderTo use the holder, pull out the lower por-
tion.
D280800AENClothes hanger (if equipped)
OEN046163
2nd row
OEN046192
3rd row (if equipped)
CAUTION
Do not hang heavy clothes, since
those may damage the hook.
OEN046162
CAUTION
Do not hang a bag weighing more
than 7 lbs. (3 kg). It may cause dam-
age to the shopping bag holder.
EN hma 4-84~120.qxd 11/27/2006 5:38 PM Page 118
procarmanuals.com
