INFINITI EX 2011 Owners Manual

Command List
Category Command:
CommandAction
Phone Operates the Phone function
Navigation Operates the Navigation function
Information Displays the vehicle Information function
Audio Operates the Audio function.
Help Displays User Guide
●Phone Command:
Command Action
Dial Number Makes a call to a spoken phone number up to 10 digits.
Vehicle Phonebook Makes a call to a contact that is stored in the Vehicle Phonebook.
Handset Phonebook Makes a call to a contact that is stored in the mobile phone.
Call history Incoming Calls Makes a call to the incoming call number. Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Change Number Corrects the recognized phone number (available during phone number entry).
4-122Monitor, climate, audio, phone and voice recognition systems

●Navigation Command:
Command Action
Home Sets a route to your home that is stored in the Address Book.
Address Searches for a location by the street address specified, and sets a route to the location.
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for stored information in the Address Book.
Previous Destinations Sets a route to a previous destination.
●Information Command:
Command Action
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Traffic Information Turns the traffic information system ON and OFF.
Where am I? Displays your current location.
●Audio Command:
Command Action
AM Turns to the AM band, selecting the station last played.
FM Turns to the FM band, selecting the station last played.
XM Turns to the XM Satellite band, selecting the channel last played.
Music Box Turns on the “Music Box” hard drive audio system.
CD Starts to play a CD.
Monitor, climate, audio, phone and voice recognition systems4-123

●General Commands
Command Action
Go back Corrects the last recognition result to return to the previous screen
Exit Cancels Voice Recognition
4-124Monitor, climate, audio, phone and voice recognition systems

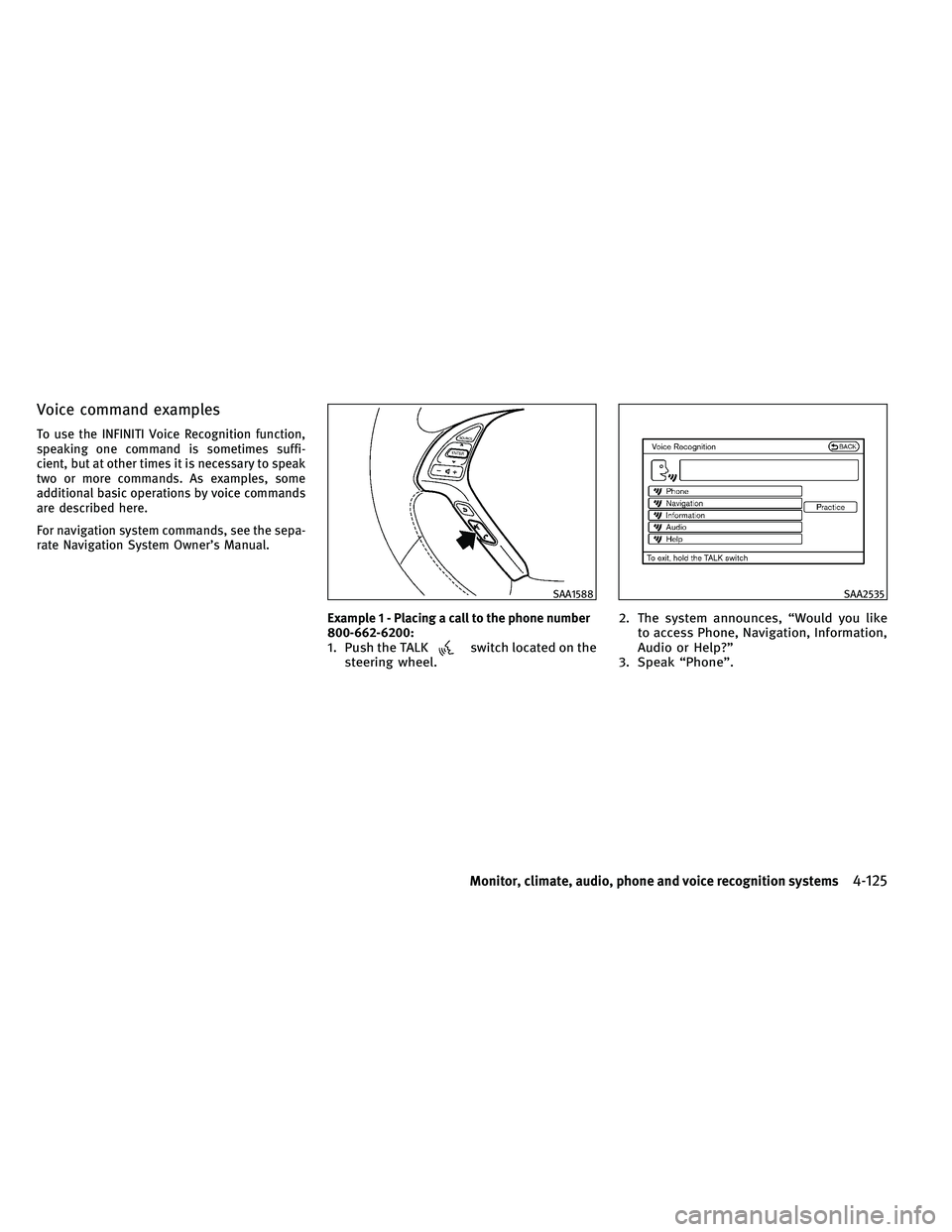

Voice command examples
To use the INFINITI Voice Recognition function,
speaking one command is sometimes suffi-
cient, but at other times it is necessary to speak
two or more commands. As examples, some
additional basic operations by voice commands
are described here.
For navigation system commands, see the sepa-
rate Navigation System Owner’s Manual.Example 1 - Placing a call to the phone number
800-662-6200:
1. Push the TALKswitch located on the
steering wheel. 2. The system announces, “Would you like
to access Phone, Navigation, Information,
Audio or Help?”
3. Speak “Phone”.
SAA1588SAA2535
Monitor, climate, audio, phone and voice recognition systems4-125

4. Speak “Dial Number”.5. Speak “8 0 0”.
Selecting the “Manual Controls” key
switches the screen to the keypad to input
the phone number manually.
6. The system announces, “Please say the
next three digits or dial, or say change
number.”
7. Speak “6 6 2”.
SAA2536SAA2537SAA2538
4-126Monitor, climate, audio, phone and voice recognition systems

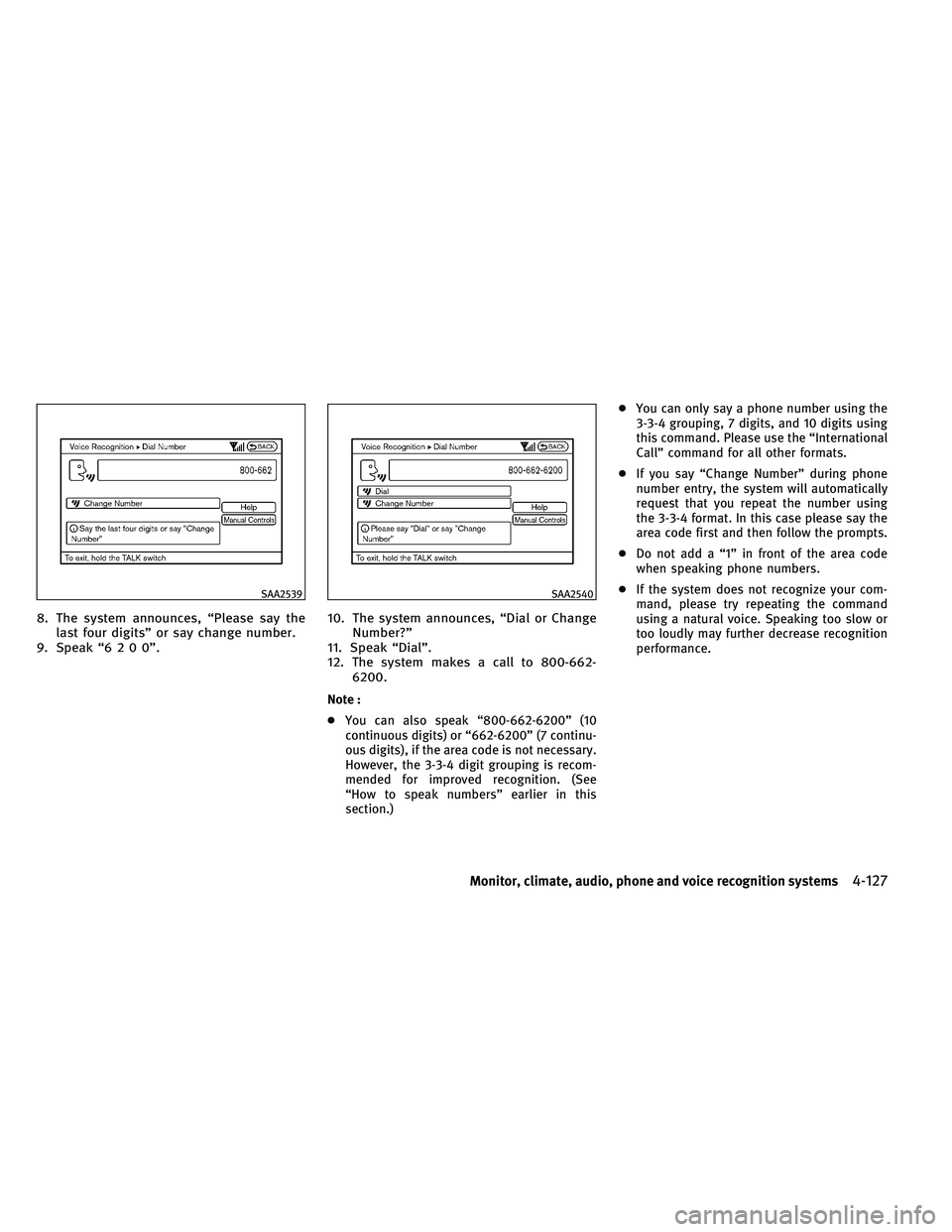

8. The system announces, “Please say thelast four digits” or say change number.
9. Speak “6200”. 10. The system announces, “Dial or Change
Number?”
11. Speak “Dial”.
12. The system makes a call to 800-662- 6200.
Note :
●You can also speak “800-662-6200” (10
continuous digits) or “662-6200” (7 continu-
ous digits), if the area code is not necessary.
However, the 3-3-4 digit grouping is recom-
mended for improved recognition. (See
“How to speak numbers” earlier in this
section.) ●
You can only say a phone number using the
3-3-4 grouping, 7 digits, and 10 digits using
this command. Please use the “International
Call” command for all other formats.
● If you say “Change Number” during phone
number entry, the system will automatically
request that you repeat the number using
the 3-3-4 format. In this case please say the
area code first and then follow the prompts.
● Do not add a “1” in front of the area code
when speaking phone numbers.
● If the system does not recognize your com-
mand, please try repeating the command
using a natural voice. Speaking too slow or
too loudly may further decrease recognition
performance.
SAA2539SAA2540
Monitor, climate, audio, phone and voice recognition systems4-127

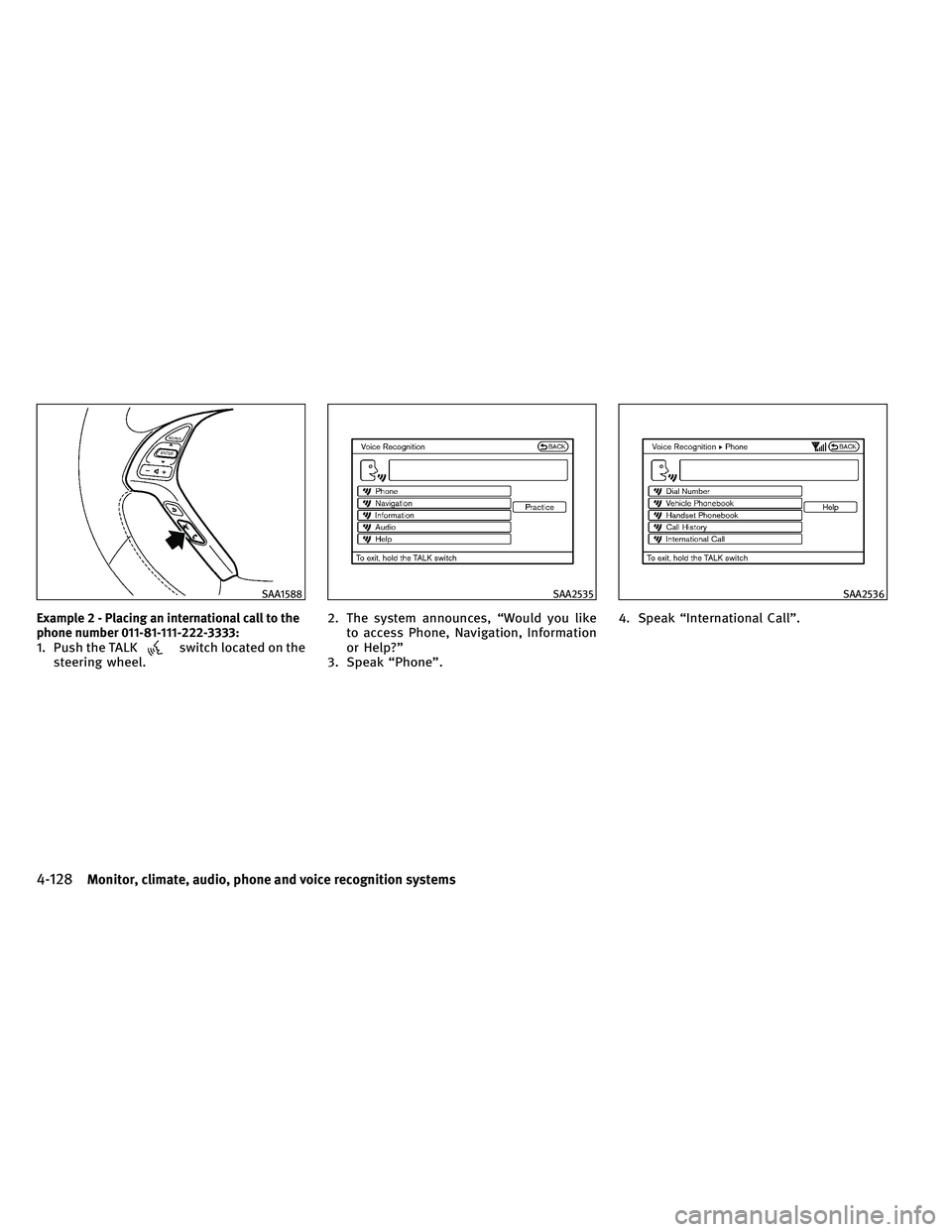

Example 2 - Placing an international call to the
phone number 011-81-111-222-3333:
1. Push the TALKswitch located on the
steering wheel. 2. The system announces, “Would you like
to access Phone, Navigation, Information
or Help?”
3. Speak “Phone”. 4. Speak “International Call”.
SAA1588SAA2535SAA2536
4-128Monitor, climate, audio, phone and voice recognition systems

5. Speak “011811112223333”.6. Speak “Dial”.
7. System makes a call to 011-81-111-222- 3333.
Note :
Any digit input format is available in the Inter-
national Number input process.
INFINITI VOICE RECOGNITION
ALTERNATE COMMAND MODE
The following section is applicable when Alter-
nate Command Mode is activated.
When Alternate Command Mode is activated, an
expanded list of commands can be used after
pressing the TALK
switch. In this mode,
available commands are not fully shown on the
display or prompted. Review the expanded
command list when this mode is active. See
examples of Alternate Command Mode screens.
Please note that in this mode the recognition
success rate may be affected as the number of
available commands and ways of speaking each
command are increased. To improve the recog-
nition success rate, try using the Speaker Ad-
aptation Function available in that mode. (See
“Speaker adaptation function (for Alternate
Command Mode)” later in this section.) Other-
wise it is recommended that Alternate Com-
mand Mode be turned OFF and Standard Mode
be used for the best recognition performance.
SAA2541SAA2542
Monitor, climate, audio, phone and voice recognition systems4-129

Activating Alternate Command Mode
When the Standard Mode is active, perform the
following steps to switch to the Alternate Com-
mand Mode.
1. Push the SETTING button on the instru-ment panel.
2. Highlight the “Others” key.
3. Highlight the “Voice Recognition” key. 4. Highlight the “Alternate Command Mode”
key.
5. The confirmation message is displayed on the screen. Push the “OK” key to activate
the Alternate Command Mode.Displaying command list
If you are controlling the system by voice
commands for the first time or do not know the
appropriate voice command, perform the fol-
lowing procedure for displaying the voice com-
mand list (available only in Alternate Command
Mode).
1. Push the INFO button on the instrumentpanel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key.
4. Select the “Command List” key.
SAA2529SAA2543SAA2544
4-130Monitor, climate, audio, phone and voice recognition systems

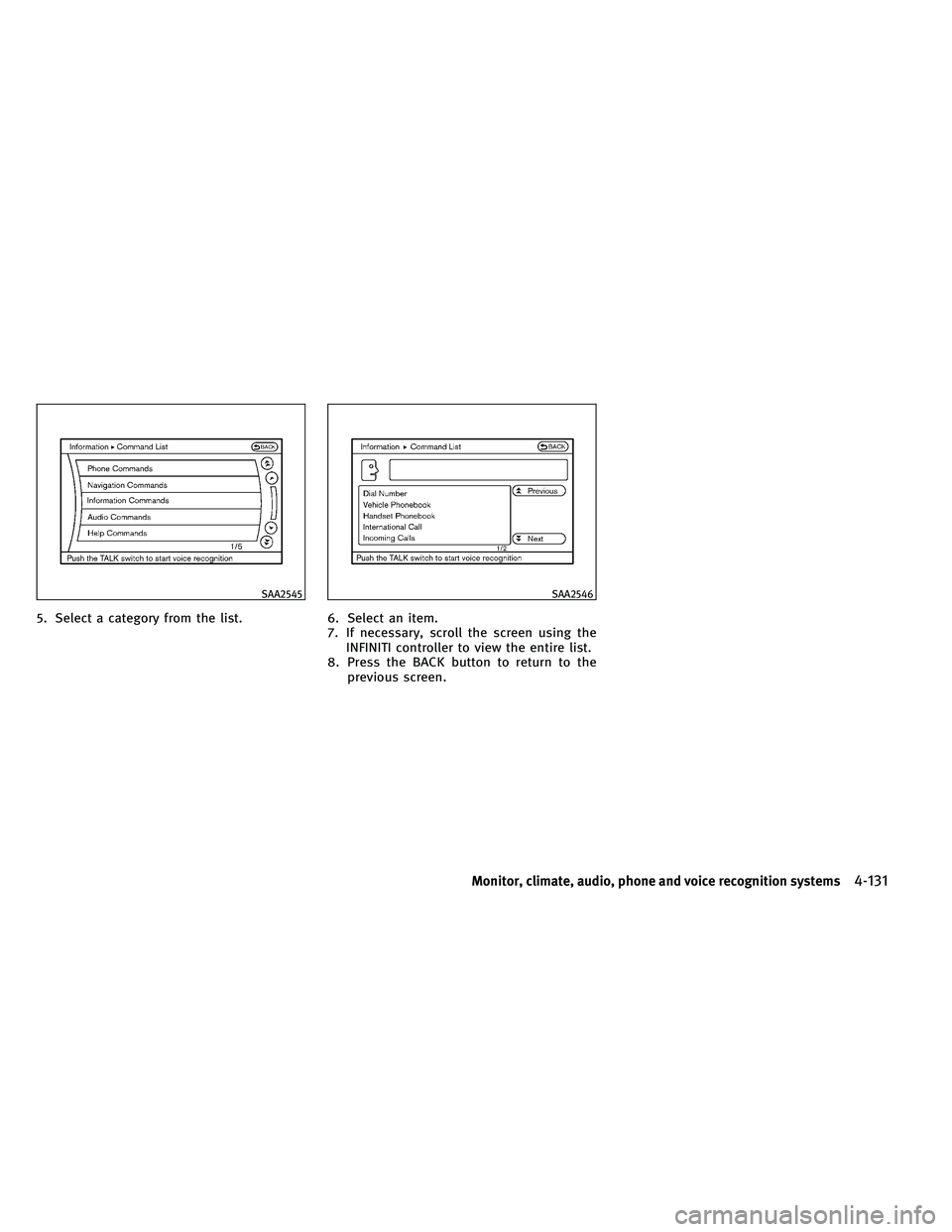

5. Select a category from the list.6. Select an item.
7. If necessary, scroll the screen using the INFINITI controller to view the entire list.
8. Press the BACK button to return to the previous screen.
SAA2545SAA2546
