INFINITI EX 2011 Owner's Manual

WARNING
●Do not ride in a moving vehicle when the
seatback is reclined. This can be dangerous.
The shoulder belt will not be against your
body. In an accident, you could be thrown
into it and receive neck or other serious inju-
ries. You could also slide under the lap belt
and receive serious internal injuries. ●
For the most effective protection when the
vehicle is in motion, the seat should be up-
right. Always sit well back in the seat with
both feet on the floor and adjust the seat
properly. See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.
● After adjustment, gently rock in the seat to
make sure it is securely locked.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents. ●
The seatback should not be reclined further
than necessary for comfort. Seat belts are
most effective when the passenger sits well
back and straight up in the seat. If the seat
back is reclined, the risk of sliding under the
lap belt and being injured is increased.
FRONT SEATS
Front power seat adjustment
Operating tips :
● The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “AUTOMATIC DRIVE POSITIONER” in the “3.
Pre-driving checks and adjustments” section for
the seat position memory function.
CAUTION
When adjusting the seat positions, be sure not
to contact any moving parts to avoid possible
injuries and/or damages.
SSS0133
SEATS
1-2Safety — Seats, seat belts and supplemental restraint system

Forward and backward :
Moving the switch
1forward or backward will
slide the seat forward or backward to the
desired position.
Reclining :
Move the recline switch
2backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
2forward. The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.) Also, the seatback
can be reclined to allow occupants to rest when
the vehicle is stopped and the transmission is
in the P (Park) position.
Seat lifter :
Push the front or rear end of the switch up or
down to adjust the angle or height of the seat.
SSS1051SSS1052
Safety — Seats, seat belts and supplemental restraint system1-3

Lumbar support (if so equipped) :
The lumbar support feature provides lower back
support to the driver.
Type A
Push the front
1or back2end of the switch
to adjust the seatback lumbar area. Type B
Move the lever
1up or down to adjust the
seatback lumbar area.
REAR SEATS
CAUTION
When folding or returning the seatback(s) to
the upright position, to avoid injury to yourself
and others:
● Make sure that the seat path is clear before
moving the seat. ●
When operating the rear power seatback re-
turn, make sure that the vehicle is stopped
and the transmission is in the P (Park)
position.
● Make sure the lid of the rear seat cup holders
is closed before folding the rear seatback.
WARNING
● Never allow anyone to ride in the cargo area
or on the rear seat when it is in the fold-down
position. Use of these areas by passengers
without proper restraints could result in se-
rious injury in an accident or sudden stop.
● When returning the seatbacks to the upright
position, be certain they are completely se-
cured in the latched position. If they are not
completely secured, passengers may be in-
jured in an accident or sudden stop.
● Properly secure all cargo to help prevent it
from sliding or shifting. Do not place cargo
higher than the seatbacks. In a sudden stop
or collision, unsecured cargo could cause
personal injury.
Type A
SSS1028
Type B
SSS0836
1-4Safety — Seats, seat belts and supplemental restraint system

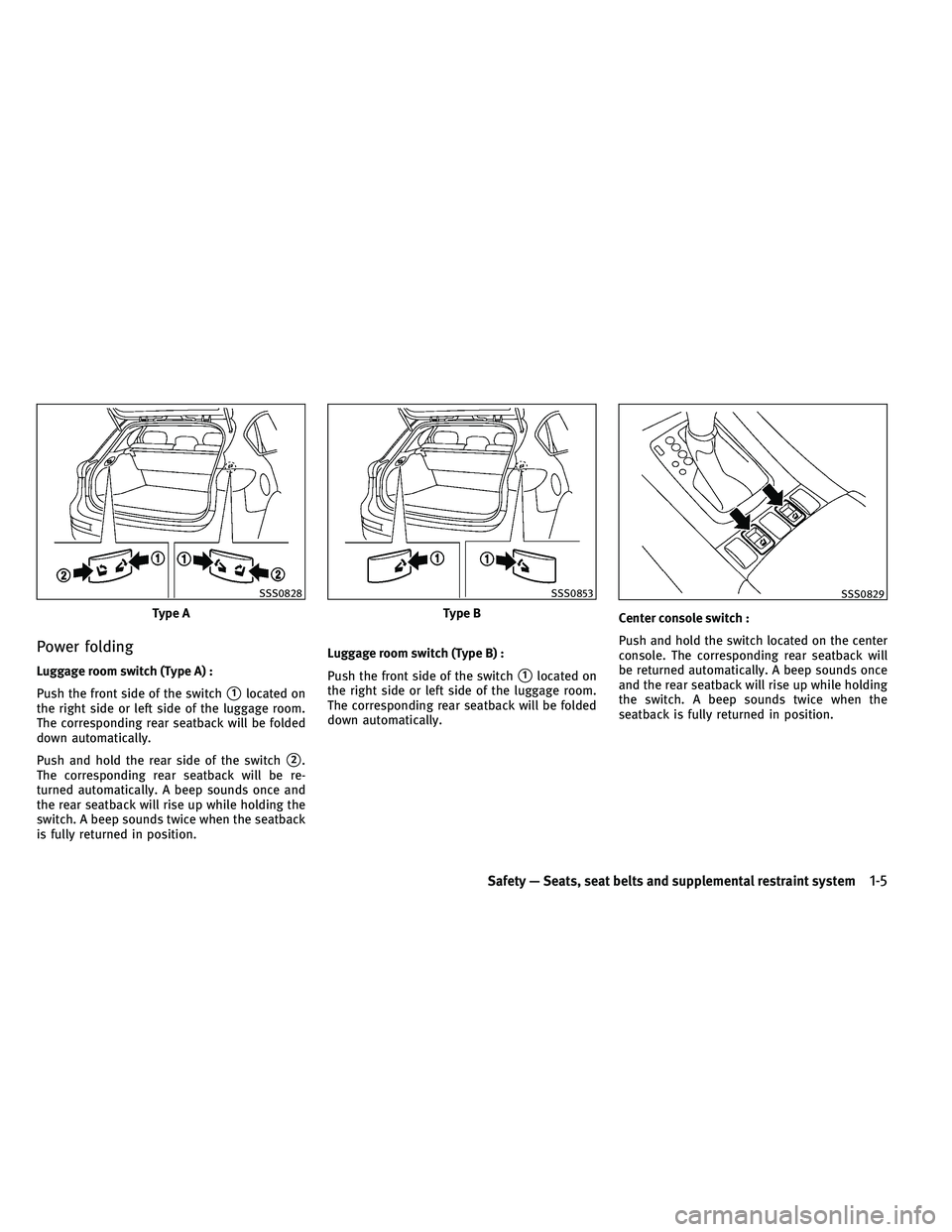

Power folding
Luggage room switch (Type A) :
Push the front side of the switch
1located on
the right side or left side of the luggage room.
The corresponding rear seatback will be folded
down automatically.
Push and hold the rear side of the switch
2.
The corresponding rear seatback will be re-
turned automatically. A beep sounds once and
the rear seatback will rise up while holding the
switch. A beep sounds twice when the seatback
is fully returned in position. Luggage room switch (Type B) :
Push the front side of the switch
1located on
the right side or left side of the luggage room.
The corresponding rear seatback will be folded
down automatically. Center console switch :
Push and hold the switch located on the center
console. The corresponding rear seatback will
be returned automatically. A beep sounds once
and the rear seatback will rise up while holding
the switch. A beep sounds twice when the
seatback is fully returned in position.
Type A
SSS0828
Type B
SSS0853SSS0829
Safety — Seats, seat belts and supplemental restraint system1-5

Manual folding
Pull the leverAlocated on the right side or left
side of the seatback before folding down the
corresponding seatback.
Part of the release lever is marked with a red
indicator. The red indicator is visible if the
seatback is not fully latched.
Return the rear seatback manually until it se-
curely locks in position. Make sure the red
indicator on the release lever is not visible
when the seats are in the upright and latched
position.
HEAD RESTRAINTS
WARNING
Head restraints supplement the other vehicle
safety systems. They may provide additional
protection against injury in certain rear end
collisions. Adjust the head restraints properly,
as specified in this section. Check the adjust-
ment after someone else uses the seat. Do not
attach anything to the head restraint stalks or
remove the head restraint. Do not use the seat
if the head restraint has been removed. If the
head restraint was removed, reinstall and prop-
erly adjust the head restraint before an occu-
pant uses the seating position. Failure to follow
these instructions can reduce the effectiveness
of the head restraints. This may increase the
risk of serious injury or death in a collision. The illustration shows the seating positions
equipped with head restraints. The head re-
straints are adjustable.
Indicates the seating position is
equipped with a head restraint.
SSS0830SSS1013
1-6Safety — Seats, seat belts and supplemental restraint system

Components
1. Head restraint
2. Adjustment notches
3. Lock knob
4. Stalks
Adjustment
Adjust the head restraint so the center is level
with the center of your ears.To raise the head restraint, pull it up.
SSS0992SSS0997SSS0993
Safety — Seats, seat belts and supplemental restraint system1-7

To lower, push and hold the lock knob and push
the head restraint down.Removal
Use the following procedure to remove the
adjustable head restraints.
1. Pull the head restraint up to the highestposition.
2. Push and hold the lock knob.
3. Remove the head restraint from the seat.
4. Store the head restraint properly in a secure place so it is not loose in the
vehicle.
5. Install and properly adjust the head re- straint before an occupant uses the seat-
ing position.
Install
1. Align the head restraint stalks with theholes in the seat. Make sure that the head
restraint is facing the correct direction.
The stalk with the adjustment notches
1
must be installed in the hole with the lock
knob
2.
2. Push and hold the lock knob and push the head restraint down.
3. Properly adjust the head restraint before an occupant uses the seating position.
SSS0994SSS0995SSS0996
1-8Safety — Seats, seat belts and supplemental restraint system

FRONT-SEAT ACTIVE HEAD RESTRAINT
The Active Head Restraint moves forward utiliz-
ing the force that the seatback receives from
the occupant in a rear-end collision. The move-
ment of the head restraint helps support the
occupant’s head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash-type injuries.
Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is
said that whiplash injury occurs most.
Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original positions.Adjust the Active Head Restraints properly as
described earlier in this section.
ADJUSTABLE HEADREST
WARNING
The adjustable headrests supplement the
other vehicle safety systems. They may provide
additional protection against injury in certain
rear end collisions. Adjust the headrests prop-
erly, as specified in this section. Check the ad-
justment after someone else uses the seat. Do
not attach anything to the adjustable headrest
stalks or remove the adjustable headrests. Do
not use the seat if the adjustable headrests
have been removed. If the headrest was re-
moved, re-install and properly adjust the head-
rest before an occupant uses the seating posi-
tion. Failure to follow these instructions can
reduce the effectiveness of the adjustable
headrests. This may increase the risk of serious
injury or death in a collision.
The illustration shows the seating positions
equipped with adjustable headrests. The head-
rests are adjustable.
Indicates the seating position is
equipped with an adjustable headrest.
SSS0508SSS1014
Safety — Seats, seat belts and supplemental restraint system1-9

Components
1. Adjustable headrest
2. Adjustment notches
3. Lock knob
4. Stalks
Adjustment
Adjust the headrest so the center is level with
the center of your ears.To raise the headrest, pull it up.
SSS0992SSS0997SSS0993
1-10Safety — Seats, seat belts and supplemental restraint system

To lower, push and hold the lock knob and push
the headrest down.Removal
Use the following procedure to remove the
adjustable headrests.
1. Pull the headrest up to the highest posi-tion.
2. Push and hold the lock knob.
3. Remove the headrest from the seat.
4. Store the headrest properly in a secure place so it is not loose in the vehicle.
5. Install and properly adjust the headrest before an occupant uses the seating po-
sition.
Install
1. Align the headrest stalks with the holes inthe seat. Make sure that the headrest is
facing the correct direction. The stalk with
the adjustment notches
1must be in-
stalled in the hole with the lock knob
2.
2. Push and hold the lock knob and push the headrest down.
3. Properly adjust the headrest before an occupant uses the seating position.
SSS0994SSS0995SSS0996
Safety — Seats, seat belts and supplemental restraint system1-11
