5. Allow the seat belt to retract. Pull up onthe shoulder belt to remove any slack in
the belt. 6. Remove any additional slack from the
seat belt; press downward and rearward
firmly in the center of the child restraint
with your knee to compress the vehicle
seat cushion and seatback while pulling
up on the seat belt.
7. Tighten the tether strap according to the manufacturer’s instructions to remove any
slack. 8. After attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The child
restraint should not move more than 1
inch (25 mm), from side to side. Try to tug
it forward and check to see if the belt
holds the restraint in place. If the re-
straint is not secure, tighten the seat belt
as necessary, or put the restraint in an-
other seat and test it again. You may need
to try a different child restraint. Not all
child restraints fit in all types of vehicles.
Forward-facing — step 5
SSS0652
Forward-facing — step 6
SSS0653
Forward-facing — step 8
SSS0641
1-32Safety — Seats, seat belts and supplemental restraint system

9. Check to make sure the child restraint isproperly secured prior to each use. If the
seat belt is not locked, repeat steps 2
through 8.
10. If the child restraint is installed in thefront passenger seat, place the ignition
switch in the ON position. The front
passenger air bag status light
should illuminate. If this light is not
illuminated, see “Front passenger air
bag and status light” in this section.
Move the child restraint to another seat-
ing position. Have the system checked
by an INFINITI retailer.
After the child restraint is removed and the seat
belt is fully retracted, the ALR mode (child
restraint mode) is canceled.
INSTALLING TOP TETHER STRAP
First, secure the child restraint with the LATCH
lower anchors (rear outboard seating positions
only) or the seat belt, as applicable.
1. If necessary, raise or remove the headrest
to position the top tether strap over the
top of the seatback. If the headrest is
removed, store it in a secure place. Be
sure to reinstall the headrest when the
child restraint is removed. See “ADJUST-
ABLE HEADREST” earlier in this section for
headrest adjustment, removal and instal-
lation information.
2. Secure the top tether strap to the tether anchor point on the back of seatback
behind the child restraint.
Forward-facing — step 10
SSS0676SSS0841
Safety — Seats, seat belts and supplemental restraint system1-33

If necessary, raise or remove the headrest to
position the top tether strap over the top of the
seatback. If the headrest is removed, store it in
a secure place. Be sure to reinstall the headrest
when the child restraint is removed. SeeAd-
justable headrest in this section for headrest
adjustment, removal and installation
information.
3. Refer to the appropriate child restraint installation procedure steps in this sec-
tion before tightening the tether strap.
If you have any questions when installing a top
tether strap, consult your INFINITI retailer for
details.
BOOSTER SEATS
Precautions on booster seats
WARNING
If a booster seat and seat belt are not used
properly, the risk of a child being injured in a
sudden stop or collision greatly increases:
– Make sure the shoulder portion of the beltis away from the child’s face and neck and
the lap portion of the belt does not cross
the stomach. Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:
●
Choose only a booster seat with a label
certifying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213. ●
Check the booster seat in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.
● Make sure the child’s head will be properly
supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child’s ears. For example, if a
low back booster seat
1is chosen, the
vehicle seatback must be at or above the
center of the child’s ears. If the seatback is
lower than the center of the child’s ears, a
high back booster seat
2should be used.
LRS0455LRS0453
1-34Safety — Seats, seat belts and supplemental restraint system

●If the booster seat is compatible with your
vehicle, place your child in the booster seat
and check the various adjustments to be
sure the booster seat is compatible with
your child. Always follow all recommended
procedures.
All U.S. states and Canadian provinces or territo-
ries require that infants and small children be
restrained in an approved child restraint at all
times while the vehicle is being operated.
The instructions in this section apply to booster
seat installation in the rear seats or the front
passenger seat.
Booster seat installation
CAUTION
Do not use the lap/shoulder belt Automatic
Locking Retractor (ALR) mode when using a
booster seat with the seat belts.
Refer to all warnings and cautions in the “CHILD
SAFETY” earlier in this section, “CHILD RE-
STRAINTS” earlier in this section and “BOOSTER
SEATS” earlier in this section before installing a
booster seat.
Follow these steps to install a booster seat in
the rear seat or in the front passenger seat:
1. If you must install a booster seat in the
front seat, move the seat to the rearmost
position.
2. Position the booster seat on the seat. Only place it in a forward-facing direction.
Always follow the booster seat manufac-
turer’s instructions.
LRS0464SSS0640
Safety — Seats, seat belts and supplemental restraint system1-35

3. The booster seat should be positioned onthe vehicle seat so that it is stable.
If necessary, adjust or remove the head
restraint or headrest to obtain the correct
booster seat fit. If the head restraint or
headrest is removed, store it in a secure
place. Be sure to reinstall the head restraint
or headrest when the booster seat is re-
moved. See “HEAD RESTRAINTS” earlier in
this section or “ADJUSTABLE HEADREST” ear-
lier in this section for head restraint or
headrest adjustment, removal and installa-
tion information. If the seating position does not have an
adjustable head restraint or headrest and it
is interfering with the proper booster seat
fit, try another seating position or a different
booster seat.
4. Position the lap portion of the seat belt
low and snug on the child’s hips. Be sure
to follow the booster seat manufacturer’s
instructions for adjusting the seat belt
routing.
5. Pull the shoulder belt portion of the seat belt toward the retractor to take up extra
slack. Be sure the shoulder belt is posi-
tioned across the top, middle portion of
the child’s shoulder. Be sure to follow the
booster seat manufacturer’s instructions
for adjusting the seat belt routing.
6. Follow the warnings, cautions and in- structions for properly fastening a seat
belt shown in the “SEAT BELTS” earlier in
this section. 7. If the booster seat is installed in the front
passenger seat, push the ignition switch
to the ON position. The front passenger
air bag status light
may or may not
illuminate depending on the size of the
child and the type of booster seat used.
(See “Front passenger air bag and status
light” later in this section.)
Front passenger position
LRS0454SSS0676
1-36Safety — Seats, seat belts and supplemental restraint system

PRECAUTIONS ON SUPPLEMENTAL
RESTRAINT SYSTEM
This Supplemental Restraint System (SRS) sec-
tion contains important information concerning
the following systems.
●Driver and passenger supplemental front-
impact air bag (INFINITI Advanced Air Bag
System)
● Front seat-mounted side-impact supplemen-
tal air bag
● Roof-mounted curtain side-impact supple-
mental air bag
● Seat belt with pretensioner cap
Supplemental front-impact air bag system: The
INFINITI Advanced Air Bag System can help
cushion the impact force to the head and chest
of the driver and front passenger in certain
frontal collisions.
Front seat-mounted side-impact supplemental
air bag system: This system can help cushion
the impact force to the chest and pelvis area of
the driver and front passenger in certain side
impact collisions. The front seat side-impact
supplemental air bags are designed to inflate
on the side where the vehicle is impacted. Roof-mounted curtain side-impact supplemen-
tal air bag system:
This system can help cushion
the impact force to the head of occupants in
front and rear outboard seating positions in
certain side impact collisions. The curtain air
bags are designed to inflate on the side where
the vehicle is impacted.
These supplemental restraint systems are de-
signed to supplement the crash protection pro-
vided by the driver and passenger seat belts
and are not a substitute for them. Seat belts
should always be correctly worn and the occu-
pant seated a suitable distance away from the
steering wheel, instrument panel and door fin-
ishers. (See “SEAT BELTS” earlier in this section
for instructions and precautions on seat belt
usage.)
The supplemental air bags operate only when
the ignition switch is in the ON position.
After pushing the ignition switch to the ON posi-
tion, the supplemental air bag warning light illu-
minates. The supplemental air bag warning light
will turn off after about 7 seconds if the systems
are operational.
SUPPLEMENTAL RESTRAINT SYSTEM
Safety — Seats, seat belts and supplemental restraint system1-37

WARNING
●The front air bags ordinarily will not inflate in
the event of a side impact, rear impact, roll-
over, or lower severity frontal collision. Al-
ways wear your seat belts to help reduce the
risk or severity of injury in various kinds of
accidents.
● The front passenger air bag will not inflate if
the passenger air bag status light is lit or if
the front passenger seat is unoccupied. See
“Front passenger air bag and status light”
later in this section.
● The seat belts and the front air bags are most
effective when you are sitting well back and
upright in the seat. The front air bags inflate
with great force. Even with the INFINITI Ad-
vanced Air Bag System, if you are unre-
strained, leaning forward, sitting sideways
or out of position in any way, you are at
greater risk of injury or death in a crash. You
may also receive serious or fatal injuries
from the front air bag if you are up against it
when it inflates. Always sit back against the
seatback and as far-away as practical from
the steering wheel or instrument panel. Al-
ways use the seat belts.
SSS0131
SSS0132
1-38Safety — Seats, seat belts and supplemental restraint system

●The driver and front passenger seat belt
buckles are equipped with sensors that de-
tect if the seat belts are fastened. The Ad-
vanced Air Bag System monitors the severity
of a collision and seat belt usage then in-
flates the air bags as needed. Failure to prop-
erly wear seat belts can increase the risk or
severity of injury in an accident.
● The front passenger seat is equipped with an
occupant classification sensor (pattern sen-
sor) that turns the front passenger air bag
OFF under some conditions. This sensor is
only used in this seat. Failure to be properly
seated and wearing the seat belt can in-
crease the risk or severity of injury in an
accident. See “Front passenger air bag and
status light” later in this section.
● Keep hands on the outside of the steering
wheel. Placing them inside the steering
wheel rim could increase the risk of injury if
the supplemental front air bag inflates.
SSS0007
SSS0006
SSS0008
SSS0009
Safety — Seats, seat belts and supplemental restraint system1-39

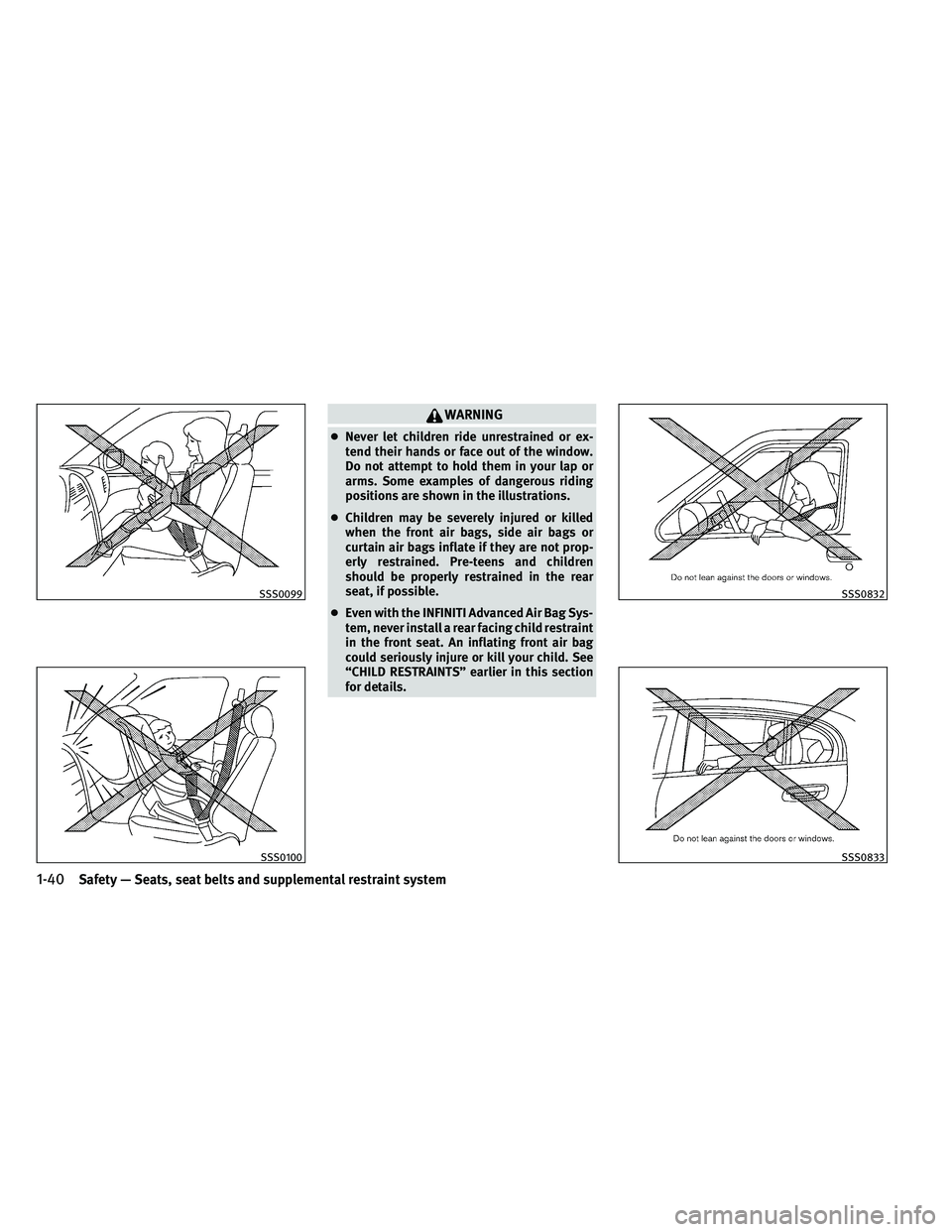

WARNING
●Never let children ride unrestrained or ex-
tend their hands or face out of the window.
Do not attempt to hold them in your lap or
arms. Some examples of dangerous riding
positions are shown in the illustrations.
● Children may be severely injured or killed
when the front air bags, side air bags or
curtain air bags inflate if they are not prop-
erly restrained. Pre-teens and children
should be properly restrained in the rear
seat, if possible.
● Even with the INFINITI Advanced Air Bag Sys-
tem, never install a rear facing child restraint
in the front seat. An inflating front air bag
could seriously injure or kill your child. See
“CHILD RESTRAINTS” earlier in this section
for details.
SSS0099
SSS0100
SSS0832
SSS0833
1-40Safety — Seats, seat belts and supplemental restraint system

WARNING
Front seat-mounted side-impact supplemental
air bags and roof-mounted curtain side-impact
supplemental air bags:
●The side air bags and curtain air bags ordi-
narily will not inflate in the event of a frontal
impact, rear impact, rollover or lower sever-
ity side collision. Always wear your seat
belts to help reduce the risk or severity of
injury in various kinds of accidents. ●
The seat belts, the side air bags and curtain
air bags are most effective when you are
sitting well back and upright in the seat. The
side air bags and curtain air bags inflate with
great force. Do not allow anyone to place
their hand, leg or face near the side air bags
on the side of the seatback of the front seat
or near the side roof rails. Do not allow any-
one sitting in the front seats or rear outboard
seats to extend their hand out of the window
or lean against the door. Some examples of
dangerous riding positions are shown in the
previous illustrations.
● When sitting in the rear seat, do not hold
onto the seatback of the front seat. If the
side air bags inflates, you may be seriously
injured. Be especially careful with children,
who should always be properly restrained.
Some examples of dangerous riding posi-
tions are shown in the illustrations.
● Do not use seat covers on the front seat-
backs. They may interfere with side air bags
inflation.
SSS0140
SSS0162
SSS0159
Safety — Seats, seat belts and supplemental restraint system1-41
