PHONE SETTING
To set up the BluetoothHands-Free Phone
System to your preferred settings, push the
SETTING button on the instrument panel and
select the “PHONE” key.
Edit Vehicle Phonebook
To edit the vehicle phonebook, use the same
procedure as described in “VEHICLE PHONE-
BOOK” earlier in this section.
Delete Phonebook
The vehicle phonebook entries can be deleted
all at the same time or one by one.
Download Handset Phonebook
Download the contacts registered in a
Bluetooth cellular phone. Availability of this
function depends on each cellular phone. The
memory downloading procedure from the cellu-
lar phone also varies according to each cellular
phone. See cellular phone Owner’s Manual for
details.
Volume
The following kinds of phone volume can be set.
● Ringtone/Incoming Call/Outgoing Call
To increase or decrease the volume, select
the “Ringtone”, “Incoming Call” or “Outgo-
ing Call” key and adjust it with the INFINITI
controller.
● Automatic Hold
When this function is activated, an incoming
phone call is automatically held.
● Vehicle Ringtone
When this function is activated, a specific
ringtone that is different from the cellular
phone will sound when receiving a call.
Auto Download
When this item is activated, the phonebook of a
hands-free phone is automatically downloaded
at the same time that the hands-free phone is
connected.
SAA2527
Monitor, climate, audio, phone and voice recognition systems4-101

WARNING
●Use a phone after stopping your vehicle in a
safe location. If you have to use a phone
while driving, exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If you find yourself unable to devote full at-
tention to vehicle operation while talking on
the phone, pull off the road to a safe location
and stop your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery, use a
phone after starting the engine.
Your vehicle is equipped with Bluetooth
Hands-Free Phone System. If you are an owner
of a Bluetooth enabled cellular phone, you can
set up the wireless connection between your
cellular phone and the in-vehicle phone mod-
ule. With Bluetooth wireless technology, you
can make or receive a telephone call with your
cellular phone in your pocket.
Once your cellular phone is paired to the in-
vehicle phone module, no phone connecting
procedure is required. Your phone is automati-
cally connected with the in-vehicle phone mod- ule when the ignition switch is pushed to the
“ON” position with the registered cellular
phone turned on and carried in the vehicle.
You can register up to 5 different Bluetooth
cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular
phone at a time.
When a call is active, the audio system and
microphone (located in the ceiling in front of the
rearview mirror) are used for the handsfree
communications.
If the audio system is being used at the time,
the audio mode will mute and will stay muted
until the active call is ended.
The INFINITI Voice Recognition system supports
the phone commands, so dialing a phone num-
ber using your voice is possible.
Before using the Bluetooth
Hands-Free Phone
System, refer to the following notes.
● Set up the wireless connection between a
cellular phone and the in-vehicle phone
module before using the Bluetooth Hands-
Free Phone System.
● Some Bluetooth enabled cellular phones
may not be recognized by the in-vehicle
phone module. ●
You will not be able to use a hands-free
phone under the following conditions:
– Your vehicle is outside of the telephone service area.
– Your vehicle is in an area where it is difficult to receive radio waves; such as in
a tunnel, in an underground parking ga-
rage, behind a tall building or in a moun-
tainous area.
– Your cellular phone is locked in order not to be dialed.
● When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.
● Immediately after the ignition switch is
pushed to the “ON” position, it may be
impossible to receive a call for a short period
of time.
● Do not place the cellular phone in an area
surrounded by metal or far away from the
in-vehicle phone module to prevent tone
quality degradation and wireless connection
disruption.
● While a cellular phone is connected through
the Bluetooth wireless connection, the bat-
tery power of the cellular phone may dis-
charge quicker than usual.
BLUETOOTH HANDS-FREE PHONE SYSTEM
(models without navigation system) (if so
equipped)
Monitor, climate, audio, phone and voice recognition systems4-103

●If the Bluetooth Hands-Free Phone System
seems to be malfunctioning, please contact
an INFINITI retailer.
● Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers. Stor-
ing the device in a different location may
reduce or eliminate the noise.
● Refer to the cellular phone Owner’s Manual
regarding the telephone pairing procedure
specific to your phone, battery charging,
cellular phone antenna, etc.
● The antenna display on the monitor will not
coincide with the antenna display of some
cellular phones.
● Keep the interior of the vehicle as quiet as
possible to hear the caller’s voice clearly as
well as to minimize its echoes.
● If reception between callers is unclear, ad-
justing the incoming or outgoing call volume
may improve the clarity. ●
This wireless hands free car kit is based on
Bluetooth technology,
– Frequency: 2402 MHz - 2480 MHz
– Output Power: 4.14 dBm E.I.R.P
– Modulation: FHSS GFSK 8DPSK, /4DQPSK
– Number of Channels: 79
– This wireless equipment cannot be used for any services related to safety because
there is the possibility of radio interfer-
ence.
REGULATORY INFORMATION
Bluetooth is a trademark
owned by Bluetooth SIG,
Inc., U.S.A.
CONTROL BUTTONS
1. PHONE SENDbutton
Push the button to initiate a VR session or
answer an incoming call. You can also use
the button to skip through system feed-
back and to enter commands during a call.
2. PHONE END
button
Push the button to cancel a VR session or
end a call.
VOICE RECOGNITION SYSTEM
You can also use the Bluetooth hands-free
phone system with Voice Recognition System.
SAA2642
4-104Monitor, climate, audio, phone and voice recognition systems

List of voice commands:
COMMANDACTION
“Call/Dial” “” Dials the specified .
“Call/Dial” “Redial” Dials the last number.
“Call” “” Dials the specified .
“Phonebook” “” Displays the specified in the phonebook.
“Phonebook” “List Names” Displays all the names in the phonebook.
“Phonebook” “Transfer Entry” Transfers the phonebook data to the system.
“Phonebook” “Delete Entry” Deletes the phonebook registered in the system.
“Connect Phone” “Software Version” Displays the software version of the system to be connected.
“Connect Phone” “Add Phone” Connects a cellular phone to the system.
“Connect Phone” “Select Phone” Selects a registered cellular phone.
“Connect Phone” “Delete Phone” Deletes a registered cellular phone.
“Connect Phone” “Bluetooth Off” Turns the Bluetooth connection off.
“Connect Phone” “Replace Phone” Changes the registered order of the cellular phones.
“Connect Phone” “Delete Phone” “All Phones” Deletes all registered cellular phones.
“Connect Phone” “Delete Phone” “List Phones” Selects a registered cellular phone and deletes it.
4-108Monitor, climate, audio, phone and voice recognition systems

PAIRING PROCEDURE
Up to 5 cellular phones can be registered.1. Push thebutton on the steering
wheel. The system announces the avail-
able commands.
2. Speak: “Connect Phone”. The system ac- knowledges the command and announces
the next set of available commands. 3. Speak: “Add Phone”. The system ac-
knowledges the command and asks you
to initiate connecting from the phone
handset.
INFO:
The Add Phone command is not available when
the vehicle is moving.
4. When asked to enter a PIN code to con- nect a Bluetooth cellular phone, enter
the code “1234”.
The code is always “1234” regardless of the
number of phones paired.
The connecting procedure of a cellular
phone varies according to each cellular
phone. See the cellular phone Owner’s
Manual for more information.
SAA2575SAA2576SAA2577
Monitor, climate, audio, phone and voice recognition systems4-109

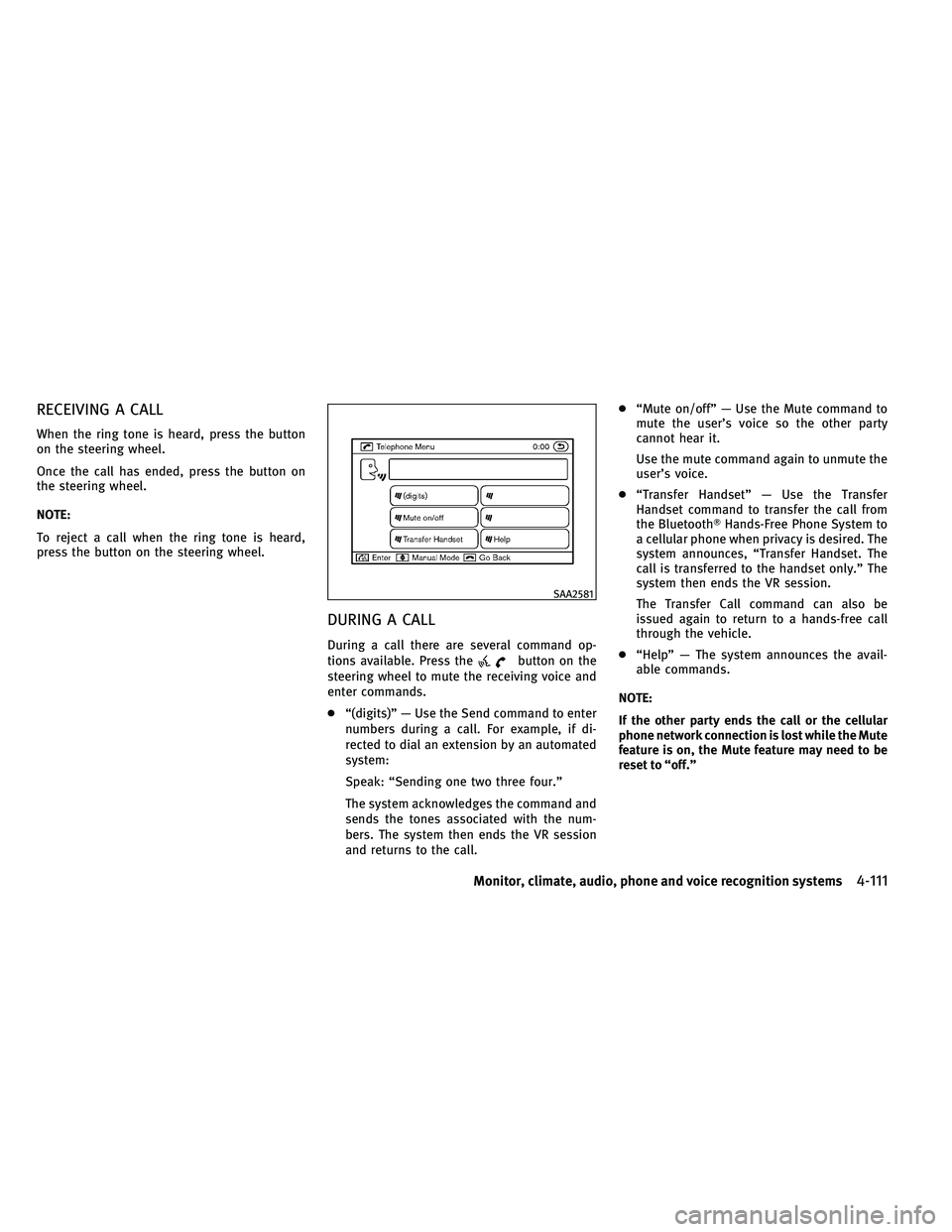

RECEIVING A CALL
When the ring tone is heard, press the button
on the steering wheel.
Once the call has ended, press the button on
the steering wheel.
NOTE:
To reject a call when the ring tone is heard,
press the button on the steering wheel.
DURING A CALL
During a call there are several command op-
tions available. Press thebutton on the
steering wheel to mute the receiving voice and
enter commands.
● “(digits)” — Use the Send command to enter
numbers during a call. For example, if di-
rected to dial an extension by an automated
system:
Speak: “Sending one two three four.”
The system acknowledges the command and
sends the tones associated with the num-
bers. The system then ends the VR session
and returns to the call. ●
“Mute on/off” — Use the Mute command to
mute the user’s voice so the other party
cannot hear it.
Use the mute command again to unmute the
user’s voice.
● “Transfer Handset” — Use the Transfer
Handset command to transfer the call from
the Bluetooth Hands-Free Phone System to
a cellular phone when privacy is desired. The
system announces, “Transfer Handset. The
call is transferred to the handset only.” The
system then ends the VR session.
The Transfer Call command can also be
issued again to return to a hands-free call
through the vehicle.
● “Help” — The system announces the avail-
able commands.
NOTE:
If the other party ends the call or the cellular
phone network connection is lost while the Mute
feature is on, the Mute feature may need to be
reset to “off.”
SAA2581
Monitor, climate, audio, phone and voice recognition systems4-111

the command, the system announces all
voicetags registered in the system.
Playback of the list can be stopped at any
time by pressing a button on the steering
wheel. The system ends the VR session.
● Transfer Entry
Use the Transfer Entry command to transfer
the phonebook data stored in a cellular
phone to the system.
The system acknowledges the command and
asks the user to initiate a transfer from the
phone handset. The new contact phone
number will be transferred from the cellular
phone via a Bluetooth communication link.
The transfer procedure varies according to
each cellular phone. See the cellular phone
Owner’s Manual for more information. The
system repeats the number and prompts the
user for the next command. After entering
numbers, choose “Store.”
The system confirms the name, location and
number. The system then asks if the user
would like to store another location for the
same name. If the user does not wish to
store another location, the system ends the
VR session. ●
Delete Entry
Use the Delete Entry command to delete a
specific number or all numbers in the phone-
book. The system announces the names of
the phone numbers already stored in the
system. The system then gives the option to
delete a specific number or all numbers.
Once the user chooses to delete a number or
all numbers, the system asks the user to
confirm.
● Help
The system announces the available com-
mands.
Recent Calls
● Incoming
Use the Incoming command to make a call
viewing the list of incoming calls.
● Missed
Use the Missed command to make a call
viewing the list of missed calls.
● Outgoing
Use the Outgoing command to make a call
viewing the list of outgoing calls.
● Redial
Use the Redial command to dial the last
outgoing call.
SAA2584
Monitor, climate, audio, phone and voice recognition systems4-113

●Callback
Use the Callback command to dial the last
incoming call.
● Help
The system announces the available com-
mands.
Connect Phone
● Add Phone
Use the Pair Phone command to connect a
compatible phone to the Bluetooth Hands-
Free Phone System.
When asked to enter a PIN code to connect a
Bluetooth cellular phone, enter the code
“1234”.
The code is always “1234” regardless of the
number of phones connected. Up to 5
phones can be connected. If the user tries to
connect a sixth phone, the system an-
nounces that the user must first delete one
phone or replace an existing phone. If the
user tries to connect a phone that has already been connected to the vehicle sys-
tem, the system announces the name that
the phone is already using. The connecting
procedure will then be cancelled.
The Add Phone command is not available
when the vehicle is moving.
● Select Phone
Use the Select Phone command to select a
phone of lesser priority when two or more
phones connected with Bluetooth Hands-
Free Phone System are in the vehicle at the
same time.
The system asks the user to name the phone
and confirm the selection.
Once the selection is confirmed, the selected
phone remains active until the ignition
switch is turned OFF or a new phone is
selected.
● Delete Phone
Use the Delete Phone command to delete a
specific phone or all phones from
Bluetooth Hands-Free Phone System. The
system announces the names of the phones
already paired with the system and their
priority level. The system then gives the
option to delete a specific phone, all phones
or listen to the list again. Once the user
SAA2585
4-114Monitor, climate, audio, phone and voice recognition systems

chooses to delete a phone or all phones, the
system asks the user to confirm.
NOTE:
When the user deletes a phone, the associated
phone book for that phone will also be deleted.
● Replace Phone
Use the Replace Phone command to change
the priority level of the active phone.
The priority level determines which phone is
active when more than one paired
Bluetooth phone is in the vehicle.
The system states the priority level of the
active phone and asks for a new priority
level (1, 2, 3, 4, 5).
If the new priority level is already being used
for another phone, the two phones will swap
priority levels.
For example, if the current priority levels are: Priority Level 1 = Phone A
Priority Level 2 = Phone B
Priority Level 3 = Phone C and you change the priority level of Phone C to
Level 1, then:
Priority Level 1 = Phone C
Priority Level 2 = Phone B
Priority Level 3 = Phone A
● Bluetooth On/Off
Use the Bluetooth On/Off command to turn
on/off Bluetooth Hands-Free Phone Sys-
tem.
● Help
The system announces the available com-
mands.
VOICE ADAPTATION MODE
The Voice Adaptation mode allows up to two
users with different dialects to train the system
to improve recognition accuracy. By repeating a
number of commands, the users can create a
voice model of their own voice that is stored in
the system. The system is capable of storing a
different voice adaptation model for each con-
nected phone.
Training procedure
1. Position the vehicle in a reasonably quiet outdoor location.
2. Sit in the driver’s seat with the engine running, the parking brake on, and the
transmission in Park. 3. Press the
button.
4. Speak: “Help”. The system acknowledges the command and announces the next set
of available commands.
5. Speak: Voice Adaptation. The system
acknowledges the command and displays
the voice adaptation mode screen.
6. Voice memory A or memory B is selected automatically. If both memory locations
are already in use, the system will prompt
you to overwrite one. Follow the instruc-
tions provided by the system.
7. When preparation is complete and you are ready to begin, press the
button.
8. The voice adaptation mode will be ex- plained. Follow the instructions provided
by the system.
9. When training is finished, the system will tell you an adequate number of phrases
have been recorded.
10. The system will ask you to say your name. Follow the instructions to register
your name.
11. The system will announce that voice ad- aptation has been completed and the
system is ready.
Monitor, climate, audio, phone and voice recognition systems4-115

Information Commands:
CommandAction
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Where am I? Displays your current location.
Traffic Information Turns the traffic information system ON and OFF.
Weather Information Displays weather information.
Weather Map Displays a weather map.
Audio Commands:
Command Action
Music Box Turns on the “Music Box” hard drive audio system.
CD Starts to play a CD.
FM Turns to the FM band, selecting the station last played.
AM Turns to the AM band, selecting the station last played.
XM Turns to the XM Satellite Radio band, selecting the channel last played.
USB Turns on the USB memory.
Bluetooth Audio Turns on the Bluetoothaudio player.
Monitor, climate, audio, phone and voice recognition systems4-133
