INFINITI EX 2011 Manual PDF

2 Instruments and controls
Cockpit........................................... 2-2
Instrument panel .................................. 2-4
Meters and gauges ................................ 2-5
Speedometer and odometer ..................... 2-6
Tachometer .................................... 2-7
Engine coolant temperature gauge ............... 2-7
Fuel gauge ..................................... 2-8
Compass (if so equipped) .......................... 2-8
Zone variation change procedure ...............2-10
Warning/indicator lights and audible reminders ......2-11
Checking bulbs ............................... 2-12
Warning lights ................................ 2-12
Indicator lights ................................. 2-17
Audible reminders ............................. 2-20
Dot matrix liquid crystal display ...................2-20
Indicators for operation ........................ 2-23
Indicators for maintenance .....................2-26
Trip computer ................................. 2-27
Security systems ................................. 2-29
Vehicle security system ........................ 2-29
INFINITI Vehicle Immobilizer System ............2-31
Windshield wiper and washer switch ...............2-32
Windshield wiper and washer operation .........2-33
Rear window wiper and washer operation .......2-33 Rear window and outside mirror defroster switch . . . 2-34
Headlight and turn signal switch
..................2-34
Xenon headlights (if so equipped) ..............2-34
Headlight switch .............................. 2-35
Turn signal switch ............................. 2-39
Fog light switch ............................... 2-39
Hazard warning flasher switch .....................2-39
Horn ............................................ 2-40
Heated seats (if so equipped) .....................2-40
Warning systems switch (if so equipped) ...........2-42
SNOW mode switch .............................. 2-43
Intelligent Brake Assist (IBA) OFF switch (if so
equipped) ....................................... 2-43
Vehicle Dynamic Control (VDC) OFF switch ..........2-43
Clock ............................................ 2-44
Adjusting

the time ............................. 2-44
Power outlet ..................................... 2-44
Storage ......................................... 2-45
Cup holders .................................. 2-45
Sunglasses holder ............................. 2-46
Glove box .................................... 2-46
Console box .................................. 2-47

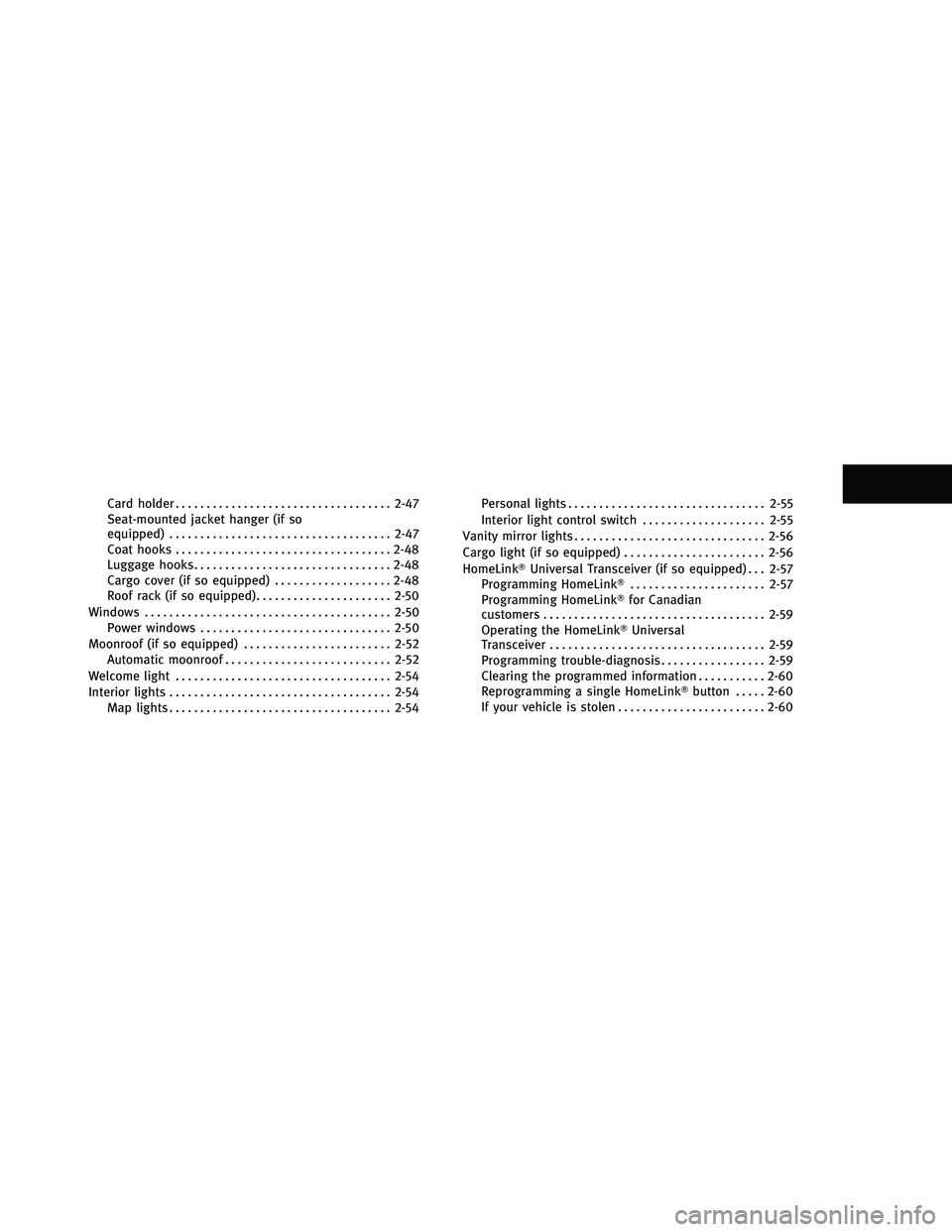

Card holder................................... 2-47
Seat-mounted jacket hanger (if so
equipped) .................................... 2-47
Coat hooks ................................... 2-48
Luggage hooks ................................ 2-48
Cargo cover (if so equipped) ...................2-48
Roof rack (if so equipped) ......................2-50
Windows ........................................ 2-50
Power windows ............................... 2-50
Moonroof (if so equipped) ........................2-52
Automatic moonroof ........................... 2-52
Welcome light ................................... 2-54
Interior lights .................................... 2-54
Map lights .................................... 2-54Personal lights
................................ 2-55
Interior light control switch ....................2-55
Vanity mirror lights ............................... 2-56
Cargo light (if so equipped) .......................2-56
HomeLink Universal Transceiver (if so equipped) . . . 2-57
Programming HomeLink ......................2-57
Programming HomeLink for Canadian
customers .................................... 2-59
Operating the HomeLink Universal
Transceiver ................................... 2-59
Programming trouble-diagnosis .................2-59
Clearing the programmed information ...........2-60
Reprogramming a single HomeLink button.....2-60
If your vehicle is stolen ........................ 2-60

1. TRIP/RESET switch for twin trip odometer(P. 2-6)
2. Instrument brightness control switch (P. 2-38)
3. Headlight, fog light and turn signal switch (P. 2-34) 4. Trip computer switch (P. 2-27)
5. Windshield wiper and washer switch
(P. 2-32) 6. Warning systems switch (if so equipped)
— Forward Collision Warning (FCW)
(P. 5-66)
— Lane Departure Warning (LDW)
(P. 5-17)
— Blind Spot Warning (BSW)
(P. 5-25)
7. Hood release handle (P. 3-16)
8. Intelligent Key port (P. 5-10)
9. Vehicle Dynamic Control (VDC) OFF switch (P. 5-82)
10. Intelligent Brake Assist (IBA) off switch (if so equipped) (P. 2-43)
11. Electric tilting/telescopic steering wheel lever (if so equipped) (P. 3-19)
12. Steering-wheel-mounted controls (Left side)
— For audio system (P. 4-90)
— For Bluetooth Hands-Free Phone Sys-
tem (with navigation system)
(P. 4-93)
— For Bluetooth Hands-Free Phone Sys-
tem (without navigation system)
(P. 4-103)
— For INFINITI Voice Recognition System
(if so equipped) (P. 4-116)
13. Manual tilting/telescopic steering wheel lever (if so equipped) (P. 3-19)
14. Steering wheel — Horn (P. 2-40)
— Driver supplemental air bag (P. 1-37)
SSI0623
COCKPIT
2-2Instruments and controls

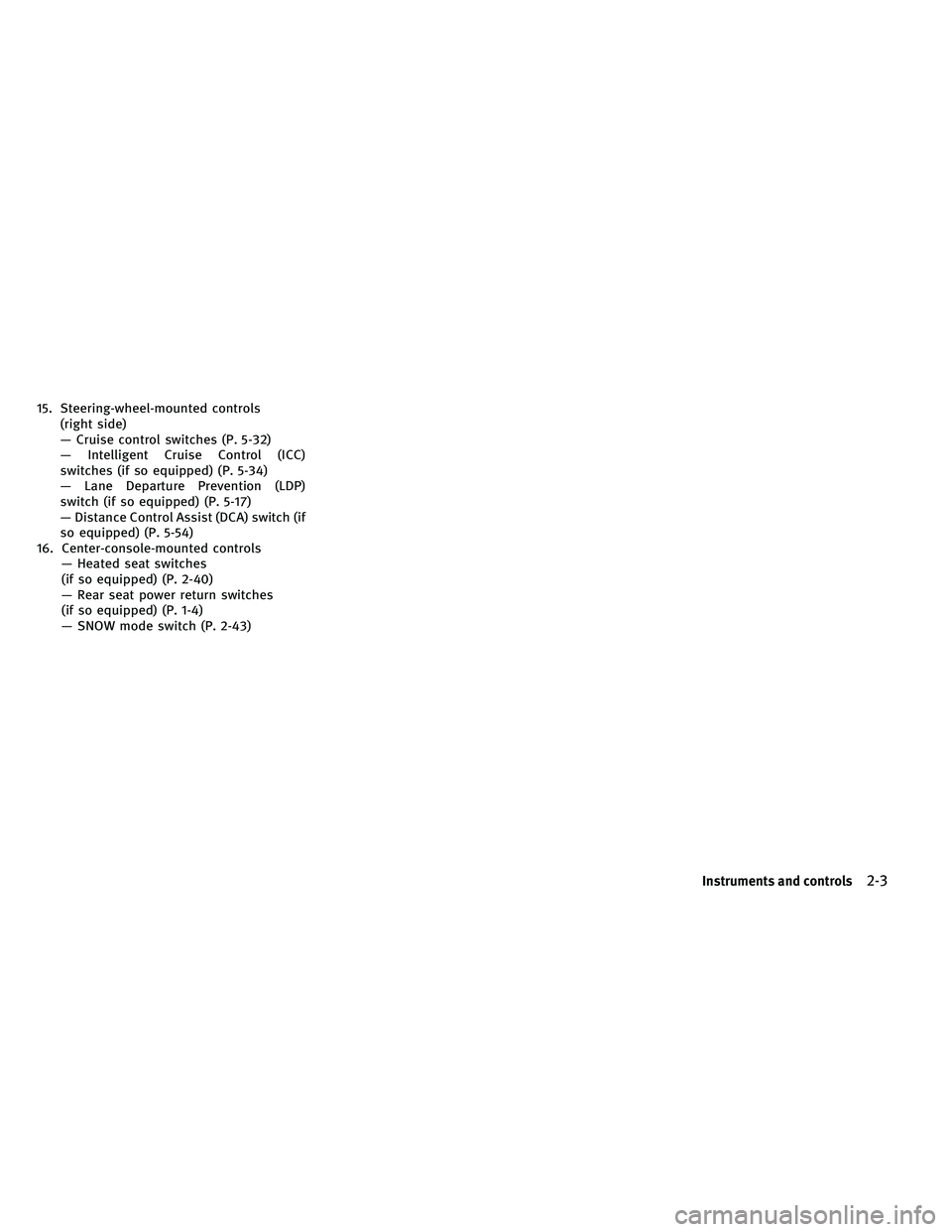

15. Steering-wheel-mounted controls(right side)
— Cruise control switches (P. 5-32)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-34)
— Lane Departure Prevention (LDP)
switch (if so equipped) (P. 5-17)
— Distance Control Assist (DCA) switch (if
so equipped) (P. 5-54)
16. Center-console-mounted controls — Heated seat switches
(if so equipped) (P. 2-40)
— Rear seat power return switches
(if so equipped) (P. 1-4)
— SNOW mode switch (P. 2-43)
Instruments and controls2-3

1. Side ventilator (P. 4-38)
2. Meters and gauges (P. 2-5)
3. Center ventilator (P. 4-38)
4. Center display (P. 4-2)
5. Clock (P. 2-44)
6. Hazard warning flasher switch (P. 2-39)7. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-8)
— Bluetooth Hands-Free Phone System
(with navigation system) (P. 4-93) — Bluetooth
Hands-Free Phone System
(if so equipped) (without navigation sys-
tem) (P. 4-103)
— Around View Monitor (if so equipped)
(P. 4-27)
— Rearview monitor (if so equipped)
(P. 4-22)
8. Front passenger supplemental air bag (P. 1-37)
9. Fuse box cover (P. 8-20)
10. Parking brake (P. 5-16)
11. Push-button ignition switch (P. 5-8)
12. Front passenger air bag status light (P. 1-42)
13. Power outlet (P. 2-44)
14. Rear window defogger switch (P. 2-34)
15. Automatic climate control system (P. 4-39)
16. Audio system (P. 4-48)
17. Glove box lid release handle (P. 2-46)
*: Refer to the separate Navigation System Owner’s Manual.
SSI0624
INSTRUMENT PANEL
2-4Instruments and controls

1. Tachometer (P. 2-7)
2. Warning/Indicator lights (P. 2-11)
3. Speedometer (P. 2-6)
4. Engine coolant temperature gauge(P. 2-7) 5. Dot matrix liquid crystal
display/Odometer/twin trip odometer
(P. 2-20)
6. Fuel gauge (P. 2-8)
*: The needle indicators in the speedometer, ta- chometer, engine coolant temperature gauge
and fuel gauge may move slightly after the
ignition switch is pushed to the OFF position.
This is not a malfunction.
SIC4694
METERS AND GAUGES
Instruments and controls2-5

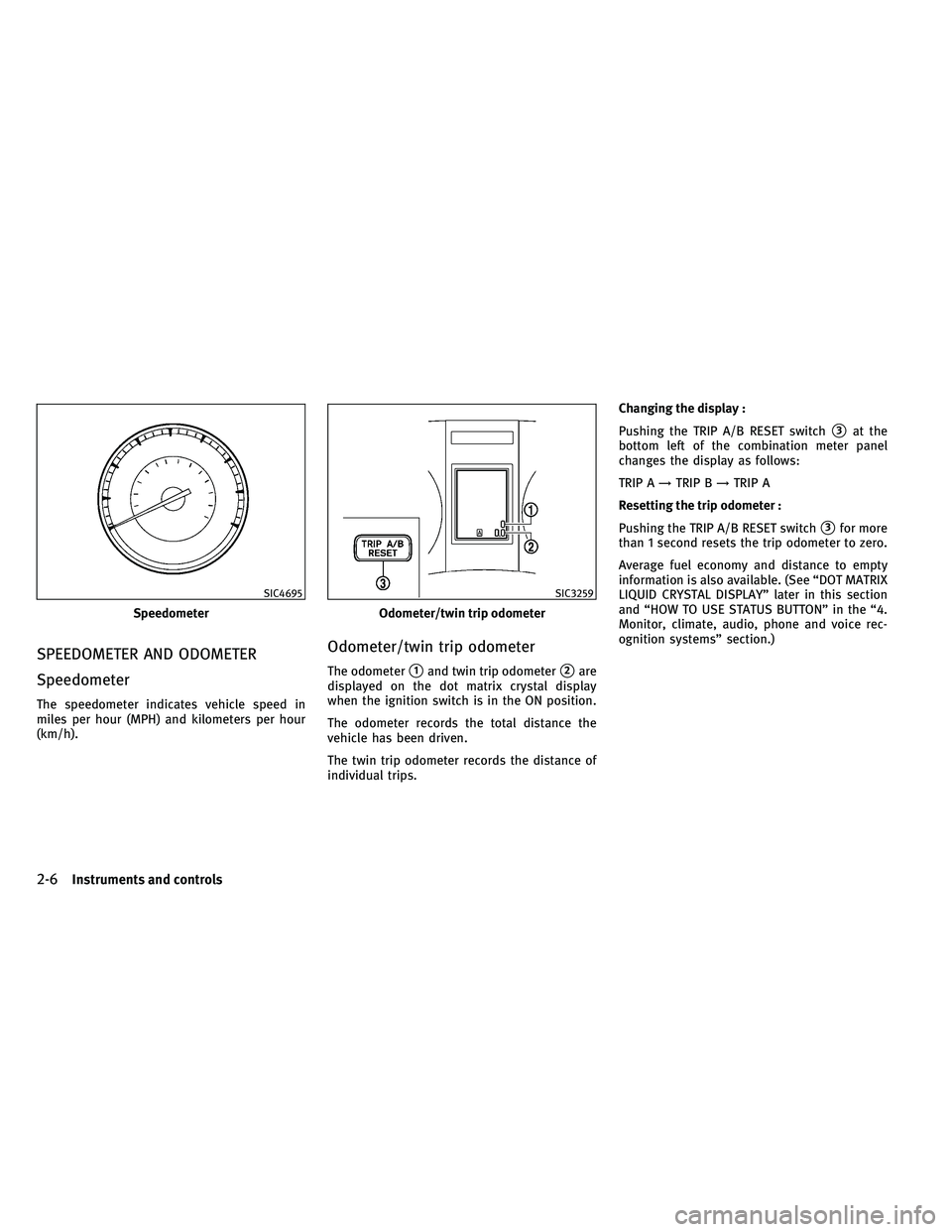

SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h).
Odometer/twin trip odometer
The odometer1and twin trip odometer2are
displayed on the dot matrix crystal display
when the ignition switch is in the ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips. Changing the display :
Pushing the TRIP A/B RESET switch
3at the
bottom left of the combination meter panel
changes the display as follows:
TRIP A →TRIP B →TRIP A
Resetting the trip odometer :
Pushing the TRIP A/B RESET switch
3for more
than 1 second resets the trip odometer to zero.
Average fuel economy and distance to empty
information is also available. (See “DOT MATRIX
LIQUID CRYSTAL DISPLAY” later in this section
and “HOW TO USE STATUS BUTTON” in the “4.
Monitor, climate, audio, phone and voice rec-
ognition systems” section.)
Speedometer
SIC4695
Odometer/twin trip odometer
SIC3259
2-6Instruments and controls

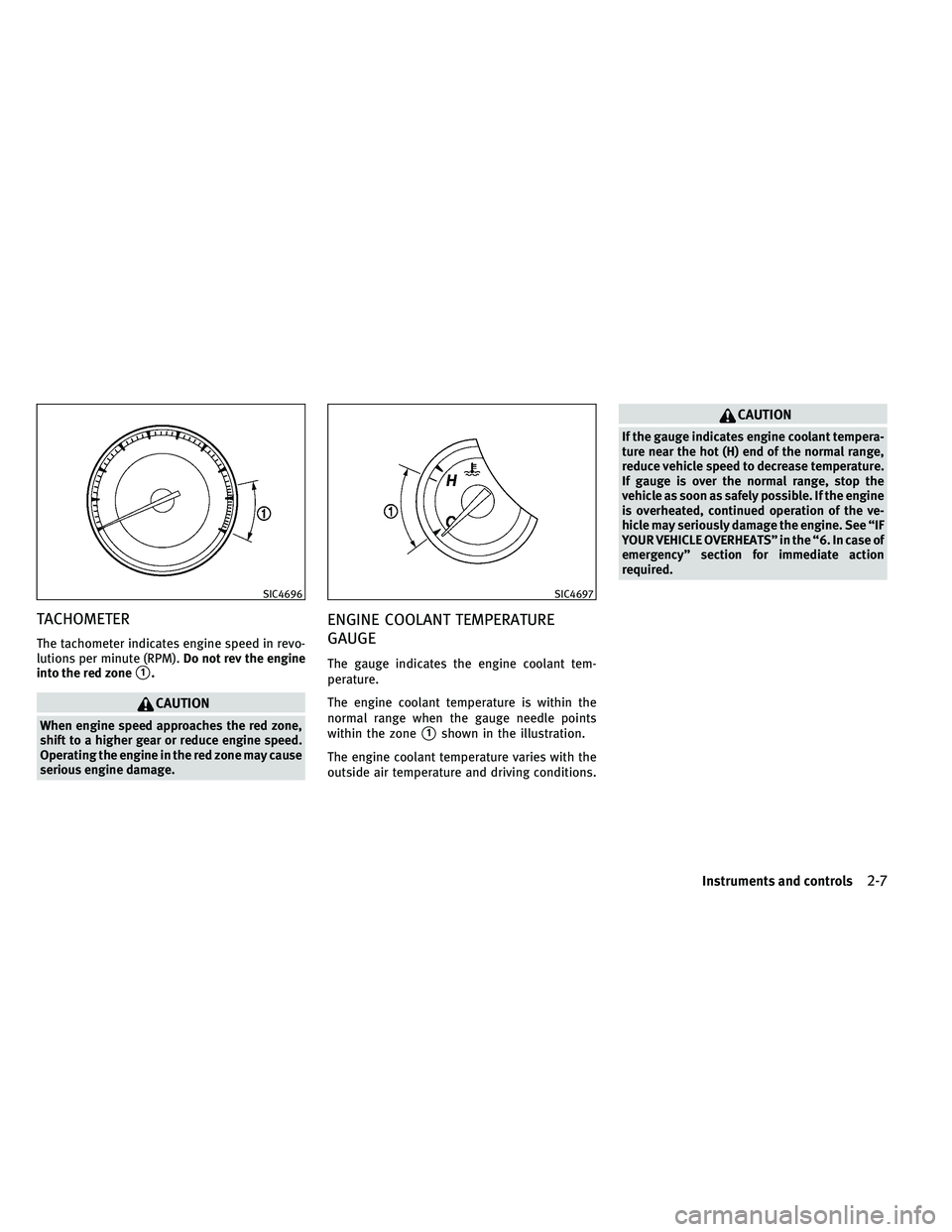

TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (RPM).Do not rev the engine
into the red zone
1.
CAUTION
When engine speed approaches the red zone,
shift to a higher gear or reduce engine speed.
Operating the engine in the red zone may cause
serious engine damage.
ENGINE COOLANT TEMPERATURE
GAUGE
The gauge indicates the engine coolant tem-
perature.
The engine coolant temperature is within the
normal range when the gauge needle points
within the zone
1shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates engine coolant tempera-
ture near the hot (H) end of the normal range,
reduce vehicle speed to decrease temperature.
If gauge is over the normal range, stop the
vehicle as soon as safely possible. If the engine
is overheated, continued operation of the ve-
hicle may seriously damage the engine. See “IF
YOUR VEHICLE OVERHEATS” in the “6. In case of
emergency” section for immediate action
required.
SIC4696SIC4697
Instruments and controls2-7

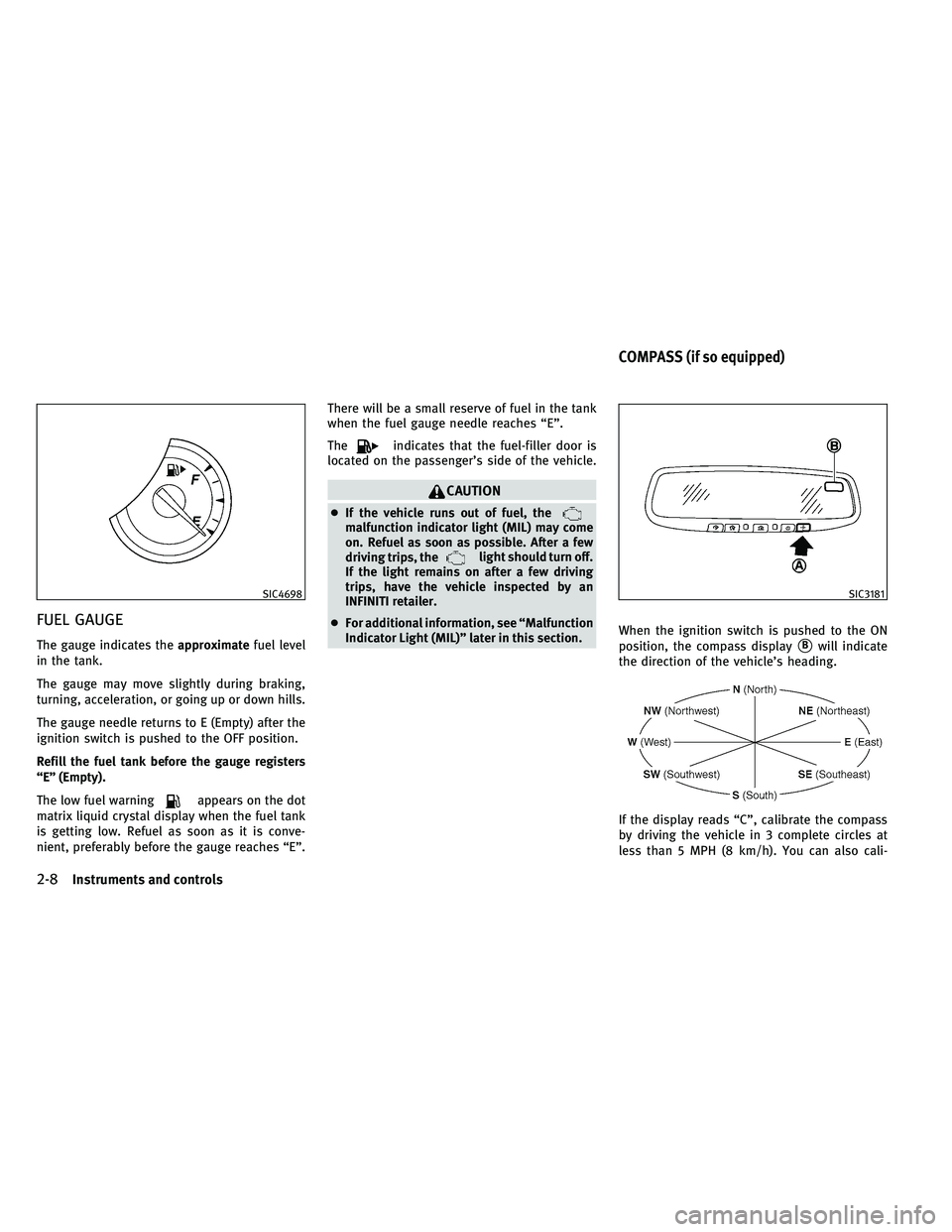

FUEL GAUGE
The gauge indicates theapproximatefuel level
in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
The gauge needle returns to E (Empty) after the
ignition switch is pushed to the OFF position.
Refill the fuel tank before the gauge registers
“E” (Empty).
The low fuel warning
appears on the dot
matrix liquid crystal display when the fuel tank
is getting low. Refuel as soon as it is conve-
nient, preferably before the gauge reaches “E”. There will be a small reserve of fuel in the tank
when the fuel gauge needle reaches “E”.
The
indicates that the fuel-filler door is
located on the passenger’s side of the vehicle.
CAUTION
● If the vehicle runs out of fuel, themalfunction indicator light (MIL) may come
on. Refuel as soon as possible. After a few
driving trips, the
light should turn off.
If the light remains on after a few driving
trips, have the vehicle inspected by an
INFINITI retailer.
● For additional information, see “Malfunction
Indicator Light (MIL)” later in this section. When the ignition switch is pushed to the ON
position, the compass display
Bwill indicate
the direction of the vehicle’s heading.
If the display reads “C”, calibrate the compass
by driving the vehicle in 3 complete circles at
less than 5 MPH (8 km/h). You can also cali-
SIC4698SIC3181
COMPASS (if so equipped)
2-8Instruments and controls

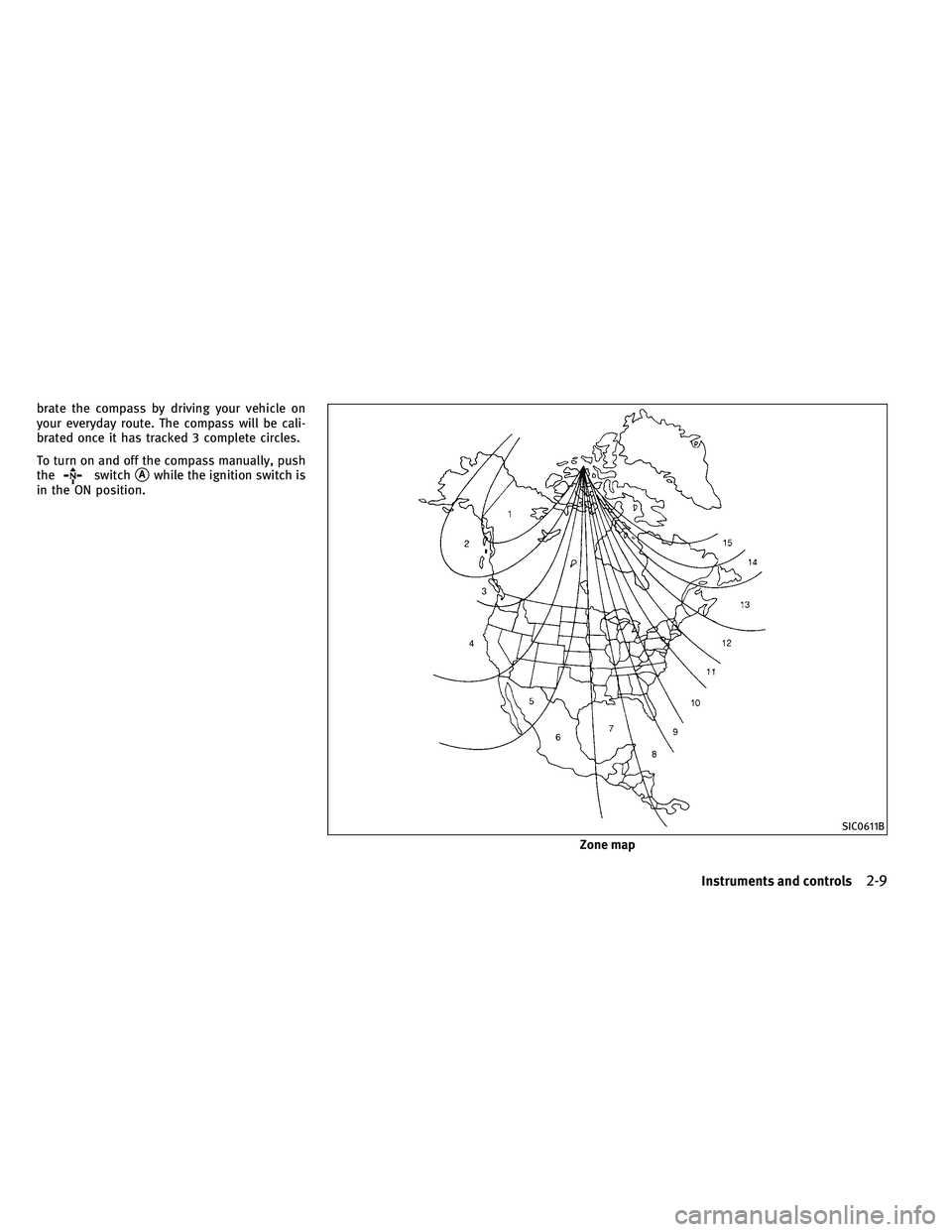

brate the compass by driving your vehicle on
your everyday route. The compass will be cali-
brated once it has tracked 3 complete circles.
To turn on and off the compass manually, push
the
switchAwhile the ignition switch is
in the ON position.
Zone map
SIC0611B
Instruments and controls2-9
