ABS INFINITI EX 2011 Owners Manual

Warninglight Name Page
All-Wheel Drive (AWD) warning
light (AWD models)* 2-12
Anti-lock Braking System (ABS)
warning light2-12
Automatic Transmission (AT)
check warning light 2-13
Brake warning light
2-13
Blind Spot Warning (BSW) sys-
tem warning light (orange)*2-13
Charge warning light
2-13
Distance Control Assist (DCA)
system warning light (orange)*2-14
Engine oil pressure warning
light2-14
Intelligent Cruise Control (ICC)
system warning light (orange)*2-14
Warning
light Name Page
Intelligent Key system warning
light 2-14
Lane departure warning light
(orange)*2-14
Low tire pressure warning light 2-15
Low washer fluid warning light 2-16
Master warning light
2-16
Preview Function warning light
(orange)*2-16
Seat belt warning light
2-16
Supplemental air bag warning
light2-16
Vehicle Dynamic Control (VDC)
warning light 2-17
Indica-
tor light Name Page
Adaptive Front lighting System
(AFS) indicator light 2-17
Indica-
tor light Name Page
Automatic Transmission (AT)
position indicator light 2-17
Front fog light indicator light 2-18
Front passenger air bag status
light2-18
High beam indicator light
2-18
Intelligent Brake Assist (IBA) off
indicator light*2-18
Lane Departure Prevention
(LDP) ON indicator light
(green)*2-18
Malfunction Indicator Light
(MIL)
2-18
Security indicator light
2-19
Low beam indicator lights 2-19
Turn signal/hazard indicator
lights2-19
Vehicle Dynamic Control (VDC)
off indicator light2-19
*: if so equipped
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-11

FRONT-SEAT ACTIVE HEAD RESTRAINT
The Active Head Restraint moves forward utiliz-
ing the force that the seatback receives from
the occupant in a rear-end collision. The move-
ment of the head restraint helps support the
occupant’s head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash-type injuries.
Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is
said that whiplash injury occurs most.
Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original positions.Adjust the Active Head Restraints properly as
described earlier in this section.
ADJUSTABLE HEADREST
WARNING
The adjustable headrests supplement the
other vehicle safety systems. They may provide
additional protection against injury in certain
rear end collisions. Adjust the headrests prop-
erly, as specified in this section. Check the ad-
justment after someone else uses the seat. Do
not attach anything to the adjustable headrest
stalks or remove the adjustable headrests. Do
not use the seat if the adjustable headrests
have been removed. If the headrest was re-
moved, re-install and properly adjust the head-
rest before an occupant uses the seating posi-
tion. Failure to follow these instructions can
reduce the effectiveness of the adjustable
headrests. This may increase the risk of serious
injury or death in a collision.
The illustration shows the seating positions
equipped with adjustable headrests. The head-
rests are adjustable.
Indicates the seating position is
equipped with an adjustable headrest.
SSS0508SSS1014
Safety — Seats, seat belts and supplemental restraint system1-9

All-Wheel Drive (AWD) warning light (AWD
models)*Intelligent Key warning lightFront fog light indicator light
Anti-lock Braking System (ABS) warning
lightLane departure warning light (orange)*Front passenger air bag status light
Low tire pressure warning lightHigh beam indicator light
Automatic transmission check warning
lightLow washer fluid warning lightIntelligent Brake Assist (IBA) off indicator
light*
Brake warning lightMaster warning lightLane Departure Prevention (LDP) ON indi-
cator light (green)*
Preview Function warning light (orange)*Malfunction Indicator Light (MIL)
Blind Spot Warning (BSW) system warn-
ing light (orange)*Seat belt warning lightSecurity indicator light
Charge warning lightSupplemental air bag warning lightLow beam indicator light
Distance Control Assist (DCA) system
warning light (orange)*Vehicle Dynamic Control (VDC) warning
lightTurn signal/hazard indicator lights
Engine oil pressure warning lightAdaptive Front lighting System (AFS) indi-
cator light*Vehicle Dynamic Control (VDC) off indica-
tor light
Intelligent Cruise Control (ICC) system
warning light (orange)*Automatic transmission position indicator
light*: if so equipped
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Instruments and controls2-11

CHECKING BULBS
With all doors closed, apply the parking brake
and push the ignition switch to the ON position
without starting the engine. The following lights
will come on (if so equipped):
,or,,,,,
The following lights come on briefly and then go
off (if so equipped):
,or,,,,
,,,,
If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the elec-
trical system. Have the system checked by an
INFINITI retailer.
Some indicators and warnings are also dis-
played on the dot matrix crystal display be-
tween the speedometer and tachometer. (See
“DOT MATRIX LIQUID CRYSTAL DISPLAY” later in
this section.)
WARNING LIGHTS
All-Wheel Drive (AWD)
warning light (AWD models)
Thewarning light comes on when the
ignition switch is pushed to ON. It turns off
soon after the engine is started.
If the AWD system malfunctions, or the diam-
eter of the front and the rear wheels are differ-
ent, the warning light will either remain illumi-
nated or blink. (See “ALL-WHEEL DRIVE (AWD)”
in the “5. Starting and driving” section.)
CAUTION
● If the warning light comes on while driving
there may be a malfunction in the AWD sys-
tem. Reduce the vehicle speed and have your
vehicle checked by an INFINITI retailer as
soon as possible.
● If the AWD warning light blinks on when you
are driving:
– blinks rapidly (about twice a second): Pull off the road in a safe area, and idle the
engine. The driving mode will change to
2WD to prevent the AWD system from
malfunctioning. If the warning light turns
off, you can drive again. – blinks slowly (about once every 2 sec-
onds):
Pull off the road in a safe area, and idle the
engine. Check that all tire sizes are the
same, tire pressure is correct and tires are
not worn.
● If the warning light is still on after the above
operations, have your vehicle checked by an
INFINITI retailer as soon as possible.
orAnti-lock Braking
System (ABS)
warning light
When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indi-
cates the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by an INFINITI retailer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. (See “BRAKE SYSTEM” in the “5. Starting
and driving” section.)
2-12Instruments and controls

Automatic transmission
check warning light
When the ignition switch is pushed to the ON
position, the light comes on for 2 seconds. If
the light comes on at any other time, it may
indicate the transmission is not functioning
properly. Have your INFINITI retailer check and
repair the transmission.
orBrake warning
light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator :
When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light :
When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brakefluid as necessary. (See “BRAKE FLUID” in
the “8. Maintenance and do-it-yourself”
section.) 2. If the brake fluid level is correct, have the
warning system checked by an INFINITI
retailer.
Anti-lock Braking System (ABS) warning indica-
tor :
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. Have the
brake system checked, and if necessary re-
paired, by an INFINITI retailer promptly. (See
“Anti-lock Braking System (ABS) warning light”
earlier in this section.)
WARNING
●Your brake system may not be working prop-
erly if the warning light is on. Driving could
be dangerous. If you judge it to be safe, drive
carefully to the nearest service station for
repairs. Otherwise, have your vehicle towed
because driving it could be dangerous.
● Pressing the brake pedal with the engine
stopped and/or low brake fluid level may
increase your stopping distance and braking
will require greater pedal effort as well as
pedal travel. ●
If the brake fluid level is below the minimum
or MIN mark on the brake fluid reservoir, do
not drive until the brake system has been
checked at an INFINITI retailer.
Blind Spot Warning (BSW)
system warning light
(orange; if so equipped)
If the light comes on in orange and remains on,
it may indicate that the BSW system is not
functioning properly. Although the vehicle is
still driveable, have the system checked by an
INFINITI retailer. See “BLIND SPOT WARNING
(BSW) SYSTEM” in the “5. Starting and driving”
section.
Charge warning light
If the light comes on while the engine is run-
ning, it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see
an INFINITI retailer immediately.
Instruments and controls2-13

Ion control :
This unit generates highly concentrated Plas-
macluster ions into the air blown from the
ventilators and reduces odor absorbed into the
interior trim.
When the air conditioner is turned on, the
system generates Plasmacluster ions automati-
cally.
The amount of Plasmacluster ions increases
according to the amount of air flow. When the
air flow is high, “
” is displayed on the
screen and when the air flow is low, the indica-
tion in the screen changes to “
”.
Exhaust gas/outside odor detecting sensor :
This vehicle is equipped with an exhaust
gas/outside odor detecting sensor. When the
automatic intake air control is ON, the sensor
detects odors and exhaust gas and the system
then automatically changes from the outside air
circulation mode to the recirculation mode.
When the intake air control button is pushed
under the following conditions, the indicator
light on the “
” side will illuminate and the
exhaust gas/outside odor detecting sensor will
turn on. ●
The air flow control is not in the front
defogger mode (the indicator light on the
“
” front defogger button is turned off).
● The outside temperature is about 32°F (0°C)
or more.
● The exhaust gas/outside odor detecting sen-
sor detects industrial odors such as pulp or
chemicals and exhaust gas such as gasoline
or diesel.
When the automatic intake air control is ON, for
the first 5 minutes, the recirculation mode is
selected to prevent dust, dirt and pollen from
entering the vehicle and cleans the air inside of
the vehicle with Plasumacluster ion that are
emitted from the ventilator.
After 5 minutes, the sensor detects outside odor
and exhaust gas and automatically alternates
between the recirculation mode and outside air
circulation mode.
OPERATING TIPS
When the engine coolant temperature and out-
side air temperature are low, the air flow from
the foot outlets may not operate. This is not a
malfunction. After the coolant temperature
warms up, air will flow normally from the foot
outlets.
Models with navigation system
SAA2734
Models without navigation system
SAA2735
4-46Monitor, climate, audio, phone and voice recognition systems

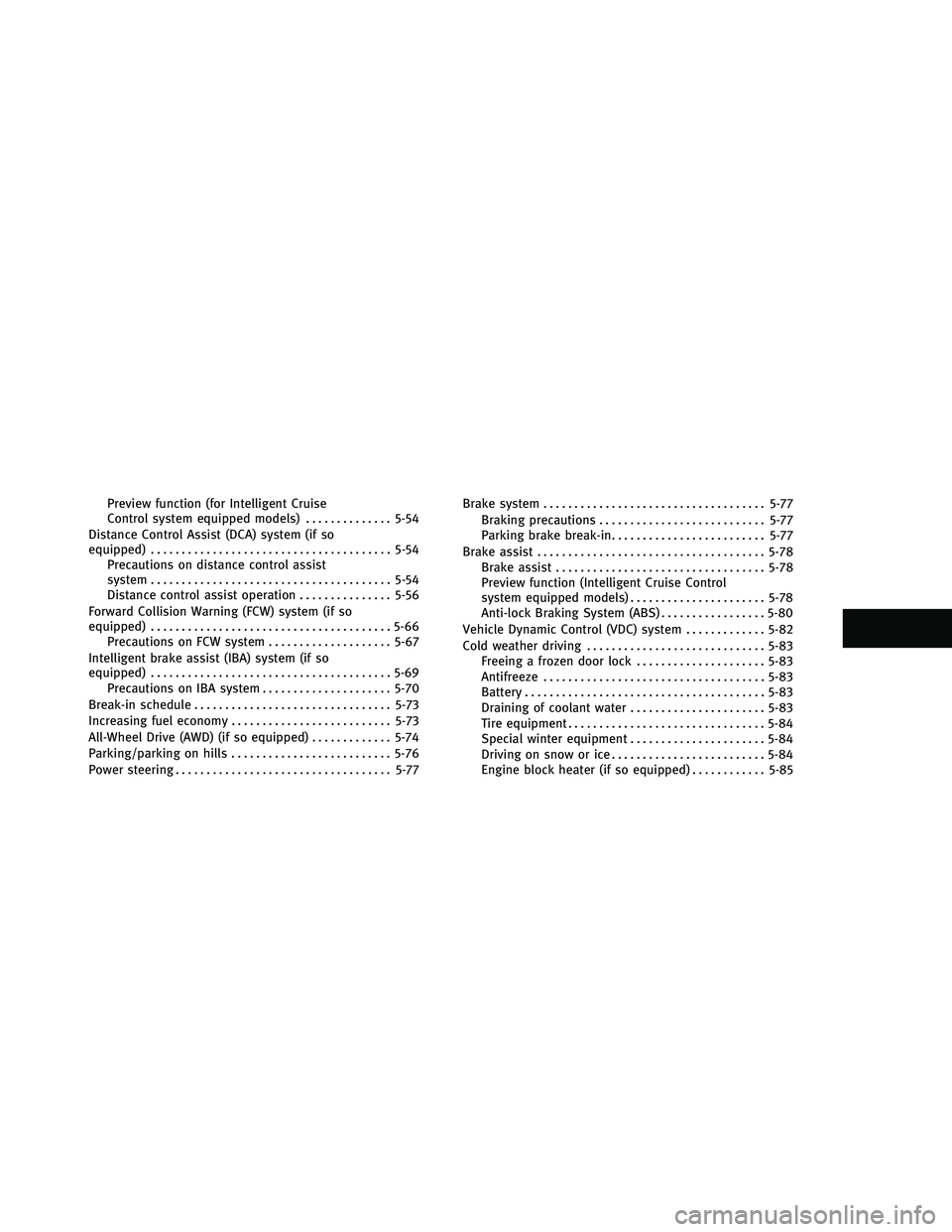

Preview function (for Intelligent Cruise
Control system equipped models)..............5-54
Distance Control Assist (DCA) system (if so
equipped) ....................................... 5-54
Precautions on distance control assist
system ....................................... 5-54
Distance control assist operation ...............5-56
Forward Collision Warning (FCW) system (if so
equipped) ....................................... 5-66
Precautions on FCW system ....................5-67
Intelligent brake assist (IBA) system (if so
equipped) ....................................... 5-69
Precautions on IBA system .....................5-70
Break-in schedule ................................ 5-73
Increasing fuel economy .......................... 5-73
All-Wheel Drive (AWD) (if so equipped) .............5-74
Parking/parking on hills .......................... 5-76
Power steering ................................... 5-77Brake system
.................................... 5-77
Braking precautions ........................... 5-77
Parking brake break-in ......................... 5-77
Brake assist ..................................... 5-78
Brake assist .................................. 5-78
Preview function (Intelligent Cruise Control
system equipped models) ......................5-78
Anti-lock Braking System (ABS) .................5-80
Vehicle Dynamic Control (VDC) system .............5-82
Cold weather driving ............................. 5-83
Freeing a frozen door lock .....................5-83
Antifreeze .................................... 5-83
Battery ....................................... 5-83
Draining of coolant water ......................5-83
Tire equipment ................................ 5-84
Special winter equipment ......................5-84
Driving on snow or ice ......................... 5-84
Engine block heater (if so equipped) ............5-85

3. To set the LDP system to on or off, high-light the “Lane Departure Prevention”
key, select ON or OFF and push the ENTER
2button.
If you set all of the systems to disable and push
the dynamic driver assistance switch, the indi-
cator of the disabled system will blink for
approximately 4 seconds and turn off. (See
“DISTANCE CONTROL ASSIST (DCA) SYSTEM”
later in this section.)
Automatic deactivation
Condition A :
The warning and assist functions of the LDP
system are not designed to work under the
following conditions: ●
When you operate the lane change signal
and change the traveling lanes in the direc-
tion of the signal. (The LDP system will be
deactivated for approximately 2 seconds af-
ter the lane change signal is turned off.)
● When the vehicle speed lowers to less than
approximately 45 MPH (70 km/h).
After the above conditions have finished and
the necessary operating conditions are satis-
fied, the warning and assist functions will re-
sume.
Condition B :
The assist function of the LDP system is not
designed to work under the following condi-
tions (warning is still functional):
● When the brake pedal is depressed.
● When the steering wheel is turned as far as
necessary for the vehicle to change lanes.
● When the accelerator pedal is depressed
while the brake control assist is provided.
● When the Intelligent Cruise Control (ICC)
approach warning occurs.
● When the hazard warning flashers are oper-
ated.
● When driving on a curve at high speed. After the above conditions have finished and
the necessary operating conditions are satis-
fied, the LDP brake control assist function will
resume.
Condition C :
Under the following conditions, a beep will
sound and the LDP system will be canceled
automatically. The LDP ON indicator light will
blink in green, and the LDP system cannot be
activated:
●
When the VDC system (except TCS function)
or ABS operates.
● When the VDC system is turned off.
● When the SNOW mode switch is turned on.
Action to take:
When the above conditions no longer exist, turn
off the LDP system by pushing the LDP switch.
Push the LDP switch again to turn the LDP
system back on.
Temporary disabled status at high temperature :
If the vehicle is parked in direct sunlight under
high temperature conditions (over approxi-
mately 104°F (40°C)) and then the LDP system is
turned on, the LDP system may be deactivated
automatically. The LDP ON indicator (green) will
blink.
SSD0886
Starting and driving5-23

PRECAUTIONS ON VEHICLE-TO-
VEHICLE DISTANCE CONTROL MODE
The system is intended to enhance the opera-
tion of the vehicle when following a vehicle
traveling in the same lane and direction.
If the distance sensor
Adetects a slower
moving vehicle ahead, the system will reduce
the vehicle speed so that your vehicle follows
the vehicle in front at the selected distance.
The system automatically controls the throttle
and applies the brakes (up to 25% of vehicle
braking power) if necessary.
The detection range of the sensor is approxi-
mately 390 ft (120 m) ahead.
WARNING
● This system is only an aid to assist the driver
and is not a collision warning or avoidance
device. It is the driver’s responsibility to stay
alert, drive safely and be in control of the
vehicle at all times.
● The system is primarily intended for use on
straight, dry, open roads with light traffic. It
is not advisable to use the system in city
traffic or congested areas.
● This system will not adapt automatically to
road conditions. This system should be used
in evenly flowing traffic. Do not use the sys-
tem on roads with sharp curves, or on icy
roads, in heavy rain or in fog.
The distance sensor will not detect the follow-
ing objects:
● Stationary and slow moving vehicles
● Pedestrians or objects in the roadway
● Oncoming vehicles in the same lane
● Motorcycles traveling offset in the travel
lane
WARNING
● As there is a performance limit to the dis-
tance control function, never rely solely on
the Intelligent Cruise Control system. This
system does not correct careless, inatten-
tive or absent-minded driving, or overcome
poor visibility in rain, fog, or other bad
weather. Decelerate the vehicle speed by de-
pressing the brake pedal, depending on the
distance to the vehicle ahead and the sur-
rounding circumstances in order to maintain
a safe distance between vehicles.
● If the vehicle ahead comes to a stop, the
vehicle decelerates to a standstill within the
limitations of the system. The system will
cancel once it judges that the vehicle has
come to a standstill and sound a warning
chime. To prevent the vehicle from moving,
the driver must depress the brake pedal.
● The system may not detect the vehicle in
front of you in certain road or weather condi-
tions. To avoid accidents, never use the In-
telligent Cruise Control system under the
following conditions:
– On roads where the traffic is heavy or there are sharp curves
– On slippery road surfaces such as on ice or snow, etc.
SSD0701
5-36Starting and driving

When the SET/COAST switch is pushed under
the following conditions, the system cannot be
set and the ICC indicators will blink for approxi-
mately 2 seconds:
●When traveling below 20 MPH (32 km/h) and
the vehicle ahead is not detected
● When the selector lever is not in the D, DS or
Manual mode
● When the windshield wipers are operating at
low (LO) or high speed (HI). If the vehicle is
equipped with a rain-sensing auto wiper, the
system may cancel when the wipers are
operating at the intermittent (INT) speed.
● When the parking brake is applied ●
When the brakes are operated by the driver
When the SET/COAST switch is pushed under
the following conditions, the system cannot be
set.
A warning chime will sound and the ICC indica-
tors will blink.
● When the SNOW mode switch is ON (To use
the ICC system, turn off the SNOW mode
switch, push the MAIN switch to turn off the
ICC and reset the ICC switch by pressing the
MAIN switch again.)
For details about the SNOW mode switch,
see “SNOW MODE SWITCH” in the “2. Instru-
ments and controls” section. ●
When the VDC system is off (To use the ICC
system, turn on the VDC system. Push the
MAIN switch to turn off the ICC system and
reset the ICC switch by pushing the MAIN
switch again.)
For details about the VDC system, see “VE-
HICLE DYNAMIC CONTROL (VDC) SYSTEM”
later in this section.
● When ABS or VDC (including the traction
control system) is operating
● When driving into a strong light (i.e., sun-
light)
● When a wheel is slipping (To use the ICC
system, make sure the wheels are no longer
slipping. Push the MAIN switch to turn off
the ICC, and reset the ICC system by pushing
the MAIN switch again.)
SSD0784SSD0614
Starting and driving5-43
