NOTE:
The Intelligent Key port does not charge the In-
telligent Key battery. If you see the low battery
indicator in the dot matrix liquid crystal display,
replace the battery as soon as possible. (See
“INTELLIGENT KEY BATTERY REPLACEMENT” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
CAUTION
●Never place anything except the Intelligent
Key in the Intelligent Key port. Doing so may
cause damage to the equipment.
● Make sure the Intelligent Key is in the cor-
rect direction when inserting it to the Intelli-
gent Key port. The engine may not start if it is
in the incorrect direction.
● Remove the Intelligent Key from the Intelli-
gent Key port after the ignition switch is
pushed to the OFF position. ●
Make sure the area around the vehicle is
clear.
● Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.
● Check that all windows and lights are clean.
● Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
● Lock all doors.
● Position seat and adjust head restraints.
● Adjust inside and outside mirrors.
● Fasten seat belts and ask all passengers to
do likewise.
● Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (See “WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS” in the “2. Instru-
ments and controls” section.)
1. Apply the parking brake.
2. Move the selector lever to the P (Park) or
N (Neutral) position. (P is recommended.)
The starter is designed not to operate unless
the selector lever is in either of the above
positions.
3. Push the ignition switch to the ON posi-tion. Depress the brake pedal and push
the ignition switch to start the engine.
To start the engine immediately, push and
release the ignition switch while depressing
the brake pedal with the ignition switch in
any position.
● If the engine is very hard to start in
extremely cold weather or when restart-
ing, depress the accelerator pedal a little
(approximately 1/3 to the floor) and while
holding, crank the engine. Release the
accelerator pedal when the engine starts.
● If the engine is very hard to start because
it is flooded, depress the accelerator
pedal all the way to the floor and hold it.
Push the ignition switch to the ON posi-
tion to start cranking the engine. After 5
or 6 seconds, stop cranking by pushing
the ignition switch to OFF. After cranking
the engine, release the accelerator pedal.
Crank the engine with your foot off the
accelerator pedal by depressing the brake
BEFORE STARTING THE ENGINE STARTING THE ENGINE
Starting and driving5-11

4. Lower the vehicle slowly until the tiretouches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts se-
curely in the sequence as illustrated.
Lower the vehicle completely.
WARNING
●Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become
loose or come off. This could cause an
accident.
● Do not use oil or grease on the wheel studs or
nuts. This could cause the nuts to become
loose.
● Retighten the wheel nuts when the vehicle
has been driven for 600 miles (1,000 km)
(also in cases of a flat tire, etc.).
● As soon as possible, tighten the wheel nuts
to the specified torque with a torque wrench. Wheel nut tightening torque:
80 ft-lb (108 N·m)
The wheel nuts must be kept tightened to speci-
fication at all times. It is recommended that
wheel nuts be tightened to specifications at
each lubrication interval.
● Adjust tire pressure to the COLD pressure.
COLD pressure:
After the vehicle has been parked for three
hours or more or driven less than 1 mile
(1.6 km).
COLD tire pressures are shown on the Tire
and Loading Information label affixed to the
driver side center pillar.
Stowing the damaged tire and tools
1. Securely store the damaged tire, jack and tools in the storage area.
2. Close the luggage floor board.
3. Close the lift gate.
WARNING
● Always make sure that the spare tire and
jacking equipment are properly secured af-
ter use. Such items can become dangerous
projectiles in an accident or sudden stop.
● The T-type spare tire and small size spare
tire are designed for emergency use. See
specific instructions under the heading
“WHEELS AND TIRES” in the “8. Maintenance
and do-it-yourself” section.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty Information
Booklet (Canada).
In case of emergency6-7

of coolant or the use of non-distilled water will
reduce the life expectancy of the factory-fill
coolant. Refer to the INFINITI Service and Main-
tenance Guide for more details.
If the cooling system requires coolant fre-
quently, have it checked by an INFINITI retailer.
CHANGING ENGINE COOLANT
Major cooling system repairs should be per-
formed by an INFINITI retailer. The service pro-
cedures can be found in the appropriate INFINITI
Service Manual.
Improper servicing can result in reduced heater
performance and engine overheating.
WARNING
●To avoid the danger of being scalded, never
change the coolant when the engine is hot.
●
Never remove the radiator cap when the engine
is hot. Serious burns could be caused by high
pressure fluid escaping from the radiator.
●Avoid direct skin contact with used coolant. If
skin contact is made, wash thoroughly with
soap or hand cleaner as soon as possible.
● Keep coolant out of reach of children and
pets.
Engine coolant must be disposed of properly.
Check your local regulations.
CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface and apply the parking brake.
2. Run the engine until it reaches operating temperature.
3. Turn off the engine. Wait more than 15
minutes for the oil to drain back into the oil
pan.
4. Remove the dipstick and wipe it clean. Reinsert it all the way.
5. Remove the dipstick again and check the oil level. It should be within the range
1.
If the oil level is below
2, remove the oil
filler cap and pour recommended oil
through the opening. Do not overfill
3.
6. Recheck oil level with the dipstick.
It is normal to add some oil between oil mainte-
nance intervals or during the break-in period,
depending on the severity of operating condi-
tions.
CAUTION
Oil level should be checked regularly. Operat-
ing the engine with an insufficient amount of oil
can damage the engine, and such damage is
not covered by warranty.
CHANGING ENGINE OIL AND FILTER
Vehicle set-up
1. Park the vehicle on a level surface and apply the parking brake.
2. Run the engine until it reaches operating temperature.
3. Turn the engine off and wait more than 15 minutes.
4. Raise and support the vehicle using a suitable floor jack and safety jack stands.
●Place the safety jack stands under the
vehicle jack-up points.
● A suitable adapter should be attached to
the jack stand saddle.
SDI2045
ENGINE OIL
8-8Maintenance and do-it-yourself

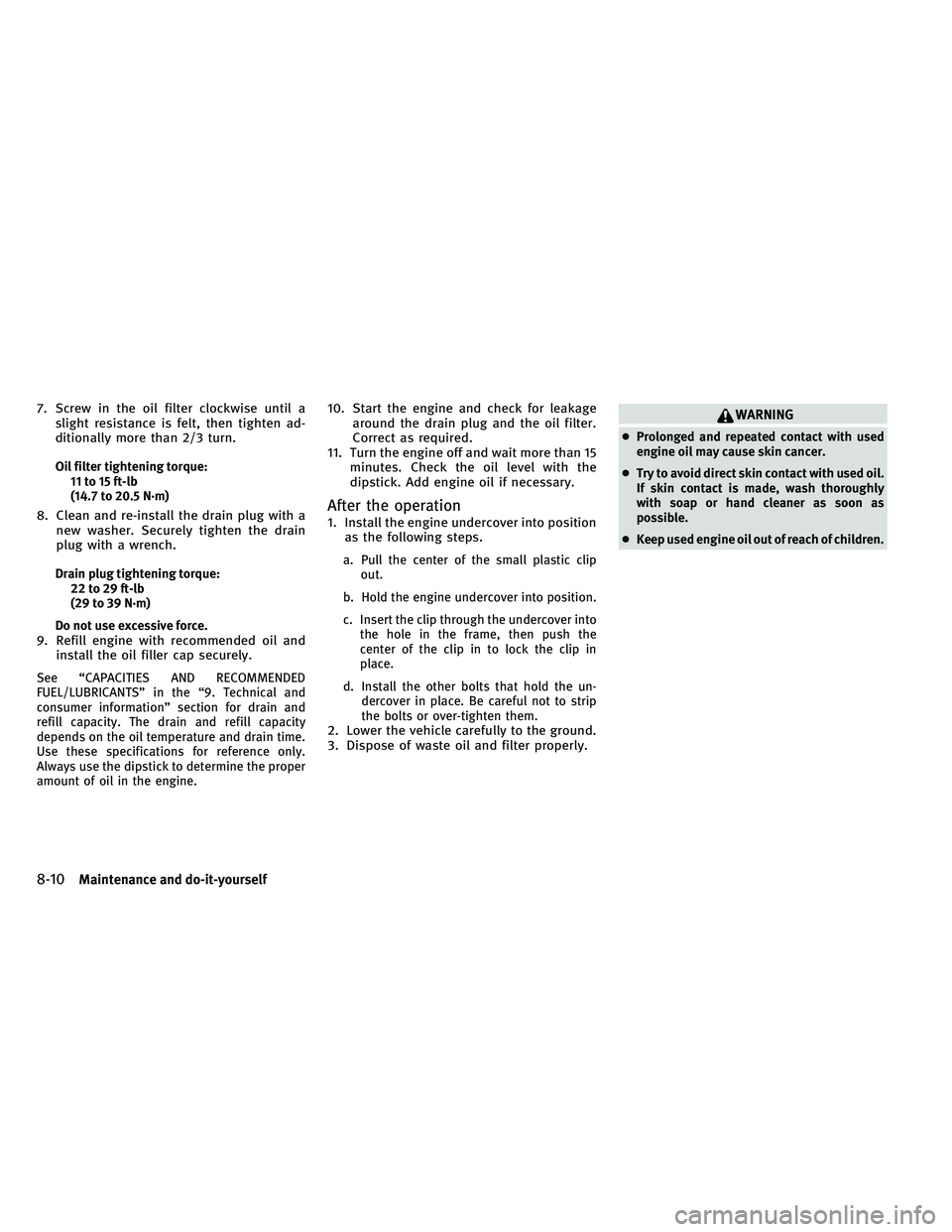

7. Screw in the oil filter clockwise until aslight resistance is felt, then tighten ad-
ditionally more than 2/3 turn.
Oil filter tightening torque:11 to 15 ft-lb
(14.7 to 20.5 N·m)
8. Clean and re-install the drain plug with a new washer. Securely tighten the drain
plug with a wrench.
Drain plug tightening torque:22 to 29 ft-lb
(29 to 39 N·m)
Do not use excessive force.
9. Refill engine with recommended oil and install the oil filler cap securely.
See “CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS” in the “9. Technical and
consumer information” section for drain and
refill capacity. The drain and refill capacity
depends on the oil temperature and drain time.
Use these specifications for reference only.
Always use the dipstick to determine the proper
amount of oil in the engine.
10. Start the engine and check for leakage around the drain plug and the oil filter.
Correct as required.
11. Turn the engine off and wait more than 15 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.
After the operation
1. Install the engine undercover into positionas the following steps.
a. Pull the center of the small plastic clip out.
b. Hold the engine undercover into position.
c. Insert the clip through the undercover into the hole in the frame, then push the
center of the clip in to lock the clip in
place.
d. Install the other bolts that hold the un- dercover in place. Be careful not to strip
the bolts or over-tighten them.
2. Lower the vehicle carefully to the ground.
3. Dispose of waste oil and filter properly.
WARNING
●Prolonged and repeated contact with used
engine oil may cause skin cancer.
● Try to avoid direct skin contact with used oil.
If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as
possible.
● Keep used engine oil out of reach of children.
8-10Maintenance and do-it-yourself

9 Technical and consumer information
Capacities and recommended fuel/lubricants........ 9-2
Fuel recommendation ........................... 9-3
Engine oil and oil filter recommendation ......... 9-5
Air conditioning system refrigerant and
lubricant recommendations ..................... 9-6
Specifications ..................................... 9-7
Engine ........................................ 9-7
Wheels and tires ............................... 9-8
Dimensions .................................... 9-9
When traveling or registering your vehicle in
another country ................................... 9-9
Vehicle identification ............................. 9-10
Vehicle Identification Number (VIN) plate ........9-10
Vehicle identification number (chassis
number) ...................................... 9-10
Engine serial number .......................... 9-10
F.M.V.S.S./C.M.V.S.S. certification label ..........9-11
Emission control information label ...............9-11
Tire and loading information label ...............9-11
Air conditioner specification label ...............9-12Installing front license plate
.......................9-12
Vehicle loading information .......................9-13
Terms ........................................ 9-13
Vehicle load capacity ........................... 9-15
Loading tips .................................. 9-16
Measurement of weights ....................... 9-16
Towing a trailer .................................. 9-17
Flat towing ................................... 9-17
Uniform tire quality grading .......................9-17
Treadwear .................................... 9-17
Traction AA, A, B and C ........................ 9-17
Temperature A, B and C ....................... 9-18
Emission control system warranty .................9-18
Reporting safety defects .......................... 9-19
Readiness for Inspection/Maintenance (I/M) test ....9-20
Event Data Recorders (EDR) .......................9-21
Owner’s Manual/Service Manual order
information ...................................... 9-21
In the event of a collision ......................9-22

The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure instructed in the “8.
Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended specifications
US measure Imp measure Liter
Fuel 20 gal16-5/8 gal 76 See “FUEL RECOMMENDATION” later in this section.
Engine oil*1
Drain and refill With oil filter change 5-1/8 qt4-3/8 qt4.9 •Engine oil with API Certification Mark*2*3
•Viscosity SAE 5W-30
Without oil filter change 4-7/8 qt4 qt4.6
Cooling system With reservoir9-1/8 qt7-5/8 qt8.6 Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
Reservoir 7/8 qt3/4 qt0.8
Automatic transmission fluid ——— Genuine NISSAN Matic S ATF*4
Differential gear oil ——— Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API GL-5 Viscosity SAE
80W-90*5
Transfer fluid ——— Genuine NISSAN Matic J ATF*6
Power steering fluid (PSF) Refill to the proper oil level according to the instructions
in the “8. Maintenance and do-it-yourself” section. Genuine NISSAN PSF or equivalent*7
Brake fluid Genuine NISSAN Super Heavy Duty Brake Fluid*8 or equivalent DOT 3
Multi-purpose grease NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant ——— HFC-134a (R-134a)*9
Air conditioning system lubricants ——— NISSAN A/C System Oil
Type S or exact equivalent
Window washer fluid ——— Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or equivalent
*1: For additional information, see “ENGINE OIL” in the “8. Maintenance and do-it-yourself” section for changing engine oil.
*2: For additional information, see later in this paragraph for engine oil and oil filter recommendation.
*3: INFINITI recommends Genuine NISSAN Ester Oil available from an INFINITI retailer.
*4:Using automatic transmission fluid other than Genuine NISSAN Matic S ATF will cause deterioration in driveability and automatic transmission durability, and may damage the
automatic transmission, which is not covered by the INFINITI new vehicle limited warranty.
*5: For hot climates, viscosity SAE 90 is suitable for ambient temperatures above 32°F (0°C).
*6: Using transfer fluid other than Genuine NISSAN Matic J ATF will cause deterioration in driveability and transfer durability, and may damage the transfer, which is not covered by the
INFINITI new vehicle limited warranty.
*7: DEXRON
TMVI type ATF
*8: Available in mainland US through an INFINITI retailer.
*9: For additional information, see “VEHICLE IDENTIFICATION” later in this section for air conditioner specification label.
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
9-2Technical and consumer information

1. API certification mark
2. API service symbol
ENGINE OIL AND OIL FILTER
RECOMMENDATION
Selecting the correct oil
It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure sat-
isfactory engine life and performance, see “CA-
PACITIES AND RECOMMENDED
FUEL/LUBRICANTS” earlier in this section.
INFINITI recommends the use of an energy
conserving oil in order to improve fuel economy.Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and Approval
Committee (ILSAC) certification and SAE viscos-
ity standard. These oils have the API certifica-
tion mark on the front of the container. Oils
which do not have the specified quality label
should not be used as they could cause engine
damage.
Oil additives
INFINITI does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is impor-
tant that the engine oil viscosity be selected
based on the temperatures at which the vehicle
will be operated before the next oil change.
Choosing an oil viscosity other than that recom-
mended could cause serious engine damage.
Selecting the correct oil filter
Your new vehicle is equipped with a high-
quality genuine NISSAN oil filter. When replac-
ing, use the genuine oil filter or its equivalent
for the reason described in change intervals.
Change intervals
The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Oil and filter other than
the specified quality, or oil and filter change
intervals longer than recommended could re-
duce engine life. Damage to engines caused by
improper maintenance or use of incorrect oil
and filter quality and/or viscosity is not covered
by the new INFINITI vehicle limited warranties.
Your engine was filled with a high quality
engine oil when it was built. You do not have to
STI0505
Technical and consumer information9-5

change the oil before the first recommended
change interval. Oil and filter change intervals
depend upon how you use your vehicle. Opera-
tion under the following conditions may require
more frequent oil and filter changes.
●repeated short distance driving at cold out-
side temperatures,
● driving in dusty conditions,
● extensive idling,
● stop and go “rush hour” traffic,
Refer to the “INFINITI Service and Maintenance
Guide” for the maintenance schedule.AIR CONDITIONING SYSTEM
REFRIGERANT AND LUBRICANT
RECOMMENDATIONS
The air conditioning system in your INFINITI ve-
hicle must be charged with the refrigerant HFC-
134a (R-134a) and the lubricant, NISSAN A/C sys-
tem oil Type S or the exact equivalents.
CAUTION
The use of any other refrigerant or lubricant will
cause severe damage to the air conditioning
system and will require the replacement of all
air conditioner system components.
The refrigerant HFC-134a (R-134a) in your
INFINITI vehicle will not harm the earth’s ozone
layer. Although this refrigerant does not affect
the earth’s atmosphere, certain governmental
regulations require the recovery and recycling
of any refrigerant during automotive air condi-
tioning system service. Your INFINITI retailer
has the trained technicians and equipment
needed to recover and recycle your air condi-
tioning system refrigerant.
Contact an INFINITI retailer when servicing your
air conditioning system.
9-6Technical and consumer information

Cargo light................... .2-56
Catalytic converter, Three way catalyst .....5-2
CD/CF/USB memory care and cleaning . . . .4-88
Center multi-function control panel .......4-2
Child restraints ................. .1-20
Booster seats ................ .1-34
LATCH system ................ .1-22
Precautions on child restraints .......1-21
Child safety ................... .1-19
Child safety rear door lock ............3-6
Chimes Audible reminders ............. .2-20
Seat belt warning light and chime .....2-16
Circuit breaker, Fusible link ..........8-20
Cleaning exterior and interior ........7-2, 7-4
Climate control, Automatic climate control . .4-39
Clock ...................... .2-44
Coat hooks ................... .2-48
Cockpit ...................... .2-2
Cold weather driving .............. .5-83
Compact Disc (CD) player (See audio
system) ..................... .4-65
Compact spare tire ............... .8-37
Compass ..................... .2-8
Console box .................. .2-47
Controller, Center multi-function control
panel ....................... .4-5
Controls Control panel button .............4-2
INFINITI Controller .............. .4-5
Coolant Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine coolant ...........8-8
Checking engine coolant level ........8-7
Corrosion protection .............. .7-6Cover, Cargo cover
............... .2-48
Cruise control .................. .5-32
Fixed speed cruise control (on ICC
system) ................... .5-50
Cup holders ................... .2-45
Current fuel consumption ............2-27
D
Daytime

running light system ..........2-37
Defroster switch, Rear window and
outside mirror defroster switch .........2-34
Dimensions ................... .9-9
Distance Control Assist (DCA) system .....5-54
Distance Control Assist (DCA) system
warning light .................. .2-14
Distance to empty ............... .2-28
Door/lift gate open warning ..........2-24
Dot matrix liquid crystal display ........2-20
Drive belts ................... .8-15
Drive positioner ................ .3-24
Driving All-wheel drive (AWD) ............5-74
All-wheel drive (AWD) safety precautions . .5-7
Cold weather driving .............5-83
Driving with automatic transmission . . . .5-12
On-pavement and off-road driving ......5-5
Precautions when starting and driving . . .5-2
DS (Drive Sport) mode ..............5-14
DVD player operation ............. .4-66
E
Economy, Fuel ................. .5-73
Elapsed time .................. .2-27Elapsed time and trip odometer . . .
.....2-27
Emission control information label .......9-11
Emission control system warranty . ......9-18
Engine Before starting the engine ..........5-11
Break-in schedule ............. .5-73
Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine coolant ...........8-8
Changing engine oil and filter ........8-8
Checking engine coolant level ........8-7
Checking engine oil level ...........8-8
Coolant temperature gauge .........2-7
Emergency engine shut off .........5-10
Engine block heater .............5-85
Engine compartment check locations . . . .8-6
Engine

cooling system............8-6
Engine oil .................. .8-8
Engine oil and oil filter recommendation . .9-5
Engine oil replacement indicator ......2-26
Engine oil viscosity ............. .9-5
Engine serial number ............9-10
Engine specifications .............9-7
Engine start operation indicator . . . . . .2-23
If your vehicle overheats ..........6-10
Starting the engine ............. .5-11
Entry/exit function, Automatic drive
positioner .................... .3-24
Event Data Recorders (EDR) ...........9-21
Exhaust gas (carbon monoxide) .........5-2
F
F.M.V.S.S./C.M.V.S.S. certification label . . . .9-11
10-2

FilterAir cleaner housing filter ..........8-16
Changing engine oil and filter ........8-8
Flashers (See hazard warning flasher
switch) ..................... .2-39
Flat tire ...................... .6-2
Flat towing ................... .9-17
Floor mat cleaning ................ .7-5
Fluid Automatic transmission fluid (ATF) .....8-11
Brake fluid ................. .8-12
Capacities and recommended fuel/
lubricants .................. .9-2
Engine coolant ................ .8-6
Engine oil .................. .8-8
Power steering fluid .............8-11
Window washer fluid .............8-12
FM-AM-SAT radio with Compact Disc (CD)
player ...................... .4-62
Fog light switch ................ .2-39
Forward Collision Warning (FCW) system . . .5-66
Front passenger air bag and status light . . .1-44
Front power seat adjustment ...........1-2
Front seat, Front seat adjustment ........1-2
Front-seat active head restraint .........1-9
Fuel Capacities and recommended fuel/
lubricants .................. .9-2
Fuel economy ................ .5-73
Fuel economy information (display) . . . .4-10
Fuel octane rating .............. .9-3
Fuel recommendation .............9-3
Fuel-filler cap ................ .3-17
Fuel-filler door ............... .3-17
Gauge .................... .2-8
LOOSE FUEL CAP warning ..........3-19Fuses
...................... .8-20
Fusible links .................. .8-20
G
Garage door opener, HomeLink Universal
Transceiver ................... .2-57
Gascap..................... .3-17
Gauge ....................... .2-5
Engine coolant temperature gauge .....2-7
Fuel
gauge .................. .2-8
Odometer ................... .2-6
Speedometer ................. .2-6
Tachometer .................. .2-7
Trip computer ................ .2-27
General maintenance .............. .8-2
Glove box .................... .2-46
H
Hands-free phone system, Bluetooth
(models with navigation system) ........4-93
Hands-free phone system, Bluetooth
(models without navigation system) .....4-103
Hazard warning flasher switch .........2-39
Head restraints .................. .1-6
Headlights Aiming control (See adaptive front
lighting system (AFS)) ............2-37
Bulb replacement ............. .8-25
Headlight switch .............. .2-35
Xenon headlights ............. .2-34
Headrest, Adjustable headrest ..........1-9
Heated seats .................. .2-40Heater
Automatic climate control ..........4-39
Engine block heater .............5-85
HomeLink Universal Transceiver ........2-57
Hood release .................. .3-16
Hook Coat hooks ................. .2-48
Luggage hook ............... .2-48
Horn ....................... .2-40
I
Ignition switch (Push-button) ...........5-8
Immobilizer system .............. .2-31
In-cabin microfilter ............... .4-47
Indicator Dot matrix display ............. .2-20
Lights .................... .2-17
INFINITI

Vehicle Immobilizer System . .....2-31
INFINITI voice recognition system .......4-116
INFO button ................... .4-8
Inside mirror .................. .3-21
Inspection/maintenance (I/M) test . . . . . . .9-20
Instrument brightness control .........2-38
Instrument panel ................ .2-4
Intelligent Brake Assist (IBA) off indicator
light ....................... .2-18
Intelligent Brake Assist (IBA) system .....5-69
Intelligent cruise control (ICC) system,
Preview function ................ .5-54
Intelligent Cruise Control (ICC) system (Full
Speed Range) .................. .5-34
Intelligent Cruise Control (ICC) system
warning light .................. .2-14
Intelligent Key .................. .3-2
10-3
