●TIRE
Select this submenu to set or reset the
distance for replacing tires.
● OTHER
Select this submenu and set or reset the
distance for replacing items other than the
engine oil, oil filter and tires.
The maintenance distance will increase by 250
miles (500 km) up to 18,500 miles (30,000 km).
To increase the number by 500 miles (1,000
km), push and hold the
button.
DISPLAY :
There are 3 submenus under the display menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● LANGUAGE
Select this submenu to choose English or
French for display.
● UNIT
Select this submenu to choose the unit from
MPG or l/100 km.
7. Warning check
SKIP :
Push the
switchAto move to the
warning check mode.
Push the
switchBto select other
menus.
DETAIL :
This item is available only when a warning is
displayed.
Select this menu to see the details of warnings.
Your vehicle has two types of security systems,
as follows:
●Vehicle security system
● INFINITI Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEM
The vehicle security system provides visual and
audio alarm signals if someone opens the
doors, hood, or lift gate when the system is
armed. It is not, however, a motion detection
type system that activates when a vehicle is
moved or when a vibration occurs.
SIC2133
SECURITY SYSTEMS
Instruments and controls2-29

Others settings (models with
navigation system)
The Others settings display will appear when
pushing the SETTING button and selecting the
“Others” key.
The following items are available:
●Comfort
● Language & Units
● Voice Recognition
● Image Viewer
Comfort settings
Models with navigation system
The display illustrated will appear when push-
ing the SETTING button, selecting the “Others”
key and then selecting the “Comfort” key. This
key does not appear on the display until the
ignition switch is pushed to the ON position.
Models without navigation system
The display illustrated will appear when push-
ing the SETTING button and selecting the “Com-
fort” key. This key does not appear on the
display until the ignition switch is pushed to the
ON position.
Auto Interior Illumination :
When this item is turned on, the interior lights
will illuminate if any door is unlocked.
Light Sensitivity :
Adjust the sensitivity of the automatic head-
lights higher (right) or lower (left).
SAA2489
With navigation system
SAA2488
Without navigation system
SAA3150
4-18Monitor, climate, audio, phone and voice recognition systems

Lift Steering Wheel on Exit (if so equipped) :
When this item is turned on, the steering wheel
moves upward for easy exit if the ignition
switch is in the LOCK position and the driver’s
door is opened. After getting into the vehicle
and pushing the ignition switch to the ACC
position, the steering wheel moves to the pre-
vious position.
Slide Driver Seat Back on Exit (if so equipped) :
When this item is turned on, the driver’s seat
moves backward for easy exit if the ignition
switch is in the OFF position and the driver’s
door is opened. After getting into the vehicle
and pushing the ignition switch to the ACC
position, the driver’s seat moves to the previous
position.
Light Off Delay :
Choose the duration of the automatic headlight
off timer from 0, 30, 45, 60, 90, 120, 150 and
180 second periods.
Speed Sensing Wiper Interval :
When this item is turned on, the wiper interval
is adjusted automatically according to the ve-
hicle speed.Selective Door Unlock :
When this item is turned on, only the driver’s
door is unlocked first after the door unlock
operation. When the door handle request
switch on the driver’s or front passenger’s side
door is pushed to be unlocked, only the corre-
sponding door is unlocked first. All the doors
can be unlocked if the door unlock operation is
performed again within 60 seconds.
When this item is turned to OFF, all the doors
will be unlocked after the door unlock operation
is performed once.
Intelligent Key Lock/Unlock :
When this item is turned to ON, door
lock/unlock function by pushing the door
handle request switch will be activated.
Return All Settings to Default :
Select this item and then select “YES” to return
all settings to the default.
Language & Units settings
The Language & Units settings display will
appear when pushing the SETTING button, se-
lecting the “Language/Units” key with the
INFINITI controller and pushing the ENTER but-
ton.
For models with the navigation system, select
the “Others” key to show the “Language/Units”
key.
Select Language :
Select the “Select Language” key. Choose “Eng-
lish”, “Français” or “Español” for your favorite
display appearance.
SAA2490
Monitor, climate, audio, phone and voice recognition systems4-19

If you select the “Français” key, the French
language will be displayed, so please use the
French Owner’s Manual. To obtain a French
Owner’s Manual, see “OWNER’S
MANUAL/SERVICE MANUAL ORDER INFORMA-
TION” in the “9. Technical and consumer infor-
mation” section.
Select Units :
Select the “Select Units” key. Choose “US”
(Mile, °F, MPG) or “Metric” (km, °C, L/100 km)
for your favorite display appearance.
Voice Recognition settings (models
with navigation system)
For details about the “Voice Recognition” set-
tings, see “INFINITI VOICE RECOGNITION SYS-
TEM (models with navigation system)” later in
this section.
Image Viewer (models with
navigation system)
The image files in the USB memory will be
displayed. To display the Image Viewer, push
the SETTING button, select the “Other” key and
then select the “Image Viewer” key. The image
of the selected file is displayed on the right side
of the screen.
When a number of folders are included in the
USB memory, select a folder from the list to
display the file list.Images will not be shown on the display while
the vehicle is in any drive position in order to
reduce driver distraction. To view images, stop
the vehicle in a safe location and apply the
parking brake.
SAA2491
4-20Monitor, climate, audio, phone and voice recognition systems

●Dolby digital is manufactured under license
from Dolby Laboratories, Inc.
● Dolby and the double D mark “
” are
trademarks of Dolby Laboratories, Inc.
● DTS and DTS Digital Surround “
” are
registered trademarks of Digital Theater Sys-
tems, Inc.
Parental level (parental control) :
DVDs with the parental control setting can be
played with this system. Please use your own
judgement to set the parental control with the
system.
Disc selection :
The following disc formats can be played with
the DVD drive.
● DVD-VIDEO
● VIDEO-CD
● CD-DA (Conventional Compact Disc)
● DTS-CD
USB (Universal Serial Bus)
This system supports various USB memory
sticks, USB hard drives and iPod players.
There are some USB devices which may not be
supported with this system. ●
Make sure that the USB device is connected
correctly into the USB connector.
● Do not force the memory stick or USB cable
into the USB connector. This could damage
the connector.
● During cold weather or rainy days, the player
may malfunction due to humidity. If this
occurs, remove the USB device and dehu-
midify or ventilate the USB player com-
pletely.
● The USB player sometimes cannot function
when the passenger compartment tempera-
ture is extremely high. Decrease the tem-
perature before use.
● Do not leave USB memory in a place prone to
static electricity or where the air conditioner
blows directly. The data in the USB memory
may be damaged.
● The vehicle is not equipped with a USB
memory stick.
● A USB device cannot be formatted with this
system. To format a USB device, use a
personal computer.
● Partitioned USB devices may not be played
correctly.
● Some characters used in other languages
(Chinese, Japanese, etc.) are not displayed properly on the vehicle center screen. Using
English language characters with a USB de-
vice is recommended.
● Do not connect a USB device if a connector
or cable is wet. Allow the cable and/or
connectors to dry completely before con-
necting the USB device. If the connector is
exposed to fluids other than water, evapora-
tive residue may cause a short between the
connector pins.
● Large video podcast files cause slow re-
sponses in an iPod. The vehicle center
display may momentarily black out, but it
will soon recover.
● If an iPod automatically selects large video
podcast files while in the shuffle mode, the
vehicle center display may momentarily
black out, but it will soon recover.
● Audiobooks may not play in the same order
as they appear on an iPod.
● An iPod nano (1st Generation) may remain
in fast forward or rewind mode if it is
connected during a seek operation. In this
case, please manually reset the iPod.
● An iPod nano (2nd Generation) will con-
tinue to fast forward or rewind if it is discon-
nected during a seek operation.
4-52Monitor, climate, audio, phone and voice recognition systems

Angle (DVD-VIDEO) :
If the DVD contains different angles (such as
moving images), the current image angle can be
switched to another one. Select the “Angle”
key. The angle will change each time the “+”
side or “” side is selected.
Angle Mark (DVD-VIDEO) :
When this item is turned on, an angle mark will
be shown on the bottom of the screen if the
scene can be seen from a different angle.
Menu Skip (DVD-VIDEO) :
DVD menus are automatically configured and
the contents will be played directly when the
“Menu Skip” key is turned on. Note that some
discs may not be played directly even if this
item is turned on.
CM Skip (DVD-VIDEO) :
Select the “CM Skip” key. Choose the setting
time from 15, 30 or 60 seconds by selecting the
“+” side or “” side.
DRC (DVD-VIDEO, DVD-VR) :
DRC (Dynamic Range Compression) automati-
cally adjusts the soundtrack volume level to
maintain a more even sound to the speakers. DVD Language (DVD-VIDEO, VIDEO-CD) :
Select the “DVD Language” key to open the
number entry screen. Input the number corre-
sponding to the preferred language and select
the “OK” key. The DVD top menu language will
be changed to the one specified.
Display :
To adjust the image quality of the screen, select
the preferred adjustment items.
Audio :
Select the preferred language for audio.
Subtitle (DVD-VIDEO, DVD-VR) :
Select the preferred language for subtitles.
Display Mode (DVD-VIDEO, VIDEO-CD,
DVD-VR) :
Select from the “Full”, “Wide”, “Normal” or
“Cinema” modes.
Title List (DVD-VR) :
Select the preferred title from the list.
Play Mode :
Select the preferred play mode.
PG/PL Mode (DVD-VR) :
Select the “PG” or “PL” mode.
Monitor, climate, audio, phone and voice recognition systems4-69

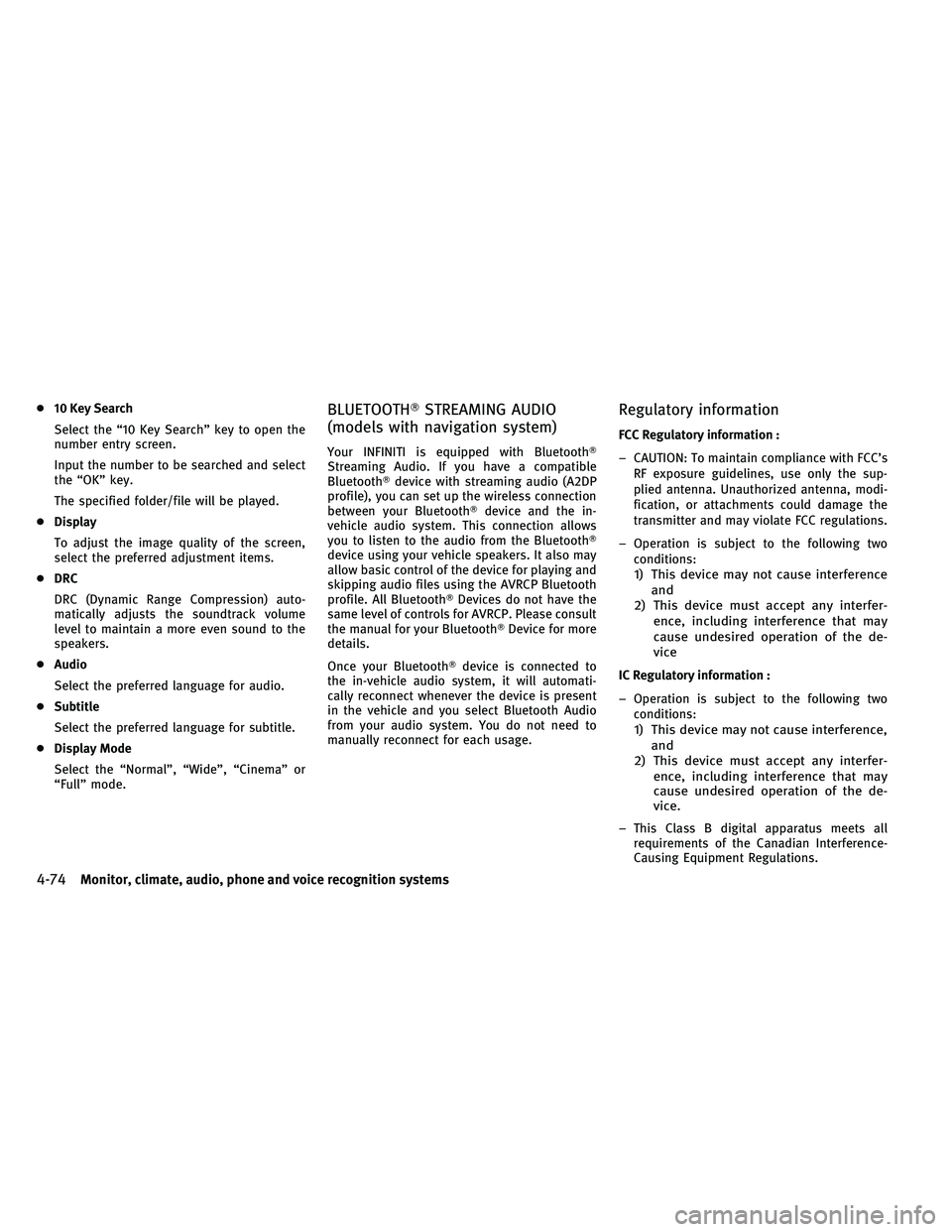

●10 Key Search
Select the “10 Key Search” key to open the
number entry screen.
Input the number to be searched and select
the “OK” key.
The specified folder/file will be played.
● Display
To adjust the image quality of the screen,
select the preferred adjustment items.
● DRC
DRC (Dynamic Range Compression) auto-
matically adjusts the soundtrack volume
level to maintain a more even sound to the
speakers.
● Audio
Select the preferred language for audio.
● Subtitle
Select the preferred language for subtitle.
● Display Mode
Select the “Normal”, “Wide”, “Cinema” or
“Full” mode.BLUETOOTH STREAMING AUDIO
(models with navigation system)
Your INFINITI is equipped with Bluetooth
Streaming Audio. If you have a compatible
Bluetooth device with streaming audio (A2DP
profile), you can set up the wireless connection
between your Bluetooth device and the in-
vehicle audio system. This connection allows
you to listen to the audio from the Bluetooth
device using your vehicle speakers. It also may
allow basic control of the device for playing and
skipping audio files using the AVRCP Bluetooth
profile. All Bluetooth Devices do not have the
same level of controls for AVRCP. Please consult
the manual for your Bluetooth Device for more
details.
Once your Bluetooth device is connected to
the in-vehicle audio system, it will automati-
cally reconnect whenever the device is present
in the vehicle and you select Bluetooth Audio
from your audio system. You do not need to
manually reconnect for each usage.
Regulatory information
FCC Regulatory information :
– CAUTION: To maintain compliance with FCC’s
RF exposure guidelines, use only the sup-
plied antenna. Unauthorized antenna, modi-
fication, or attachments could damage the
transmitter and may violate FCC regulations.
– Operation is subject to the following two conditions:
1) This device may not cause interference and
2) This device must accept any interfer- ence, including interference that may
cause undesired operation of the de-
vice
IC Regulatory information :
– Operation is subject to the following twoconditions:
1) This device may not cause interference, and
2) This device must accept any interfer- ence, including interference that may
cause undesired operation of the de-
vice.
– This Class B digital apparatus meets allrequirements of the Canadian Interference-
Causing Equipment Regulations.
4-74Monitor, climate, audio, phone and voice recognition systems

INFO
●The available voice commands are only ap-
plicable to the relevant language set in the
LANGUAGE setting screen. (See “HOW TO
USE SETTING BUTTON” earlier in this sec-
tion.)
● If the vehicle is in motion, some commands
may not be available so full attention may be
given to vehicle operation.
Using system
Initialization :
When the ignition switch is pushed to the ON
position, Voice Recognition System is initial-
ized, which may take up to one minute. When
completed, the system is ready to accept voice
commands. If the
switch on the steering
wheel is pushed before the initialization com-
pletes, the system will not accept any
command. Before starting :
To get the best performance out of the Voice
Recognition System, observe the following:
●
Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.), which may prevent the system
from recognizing the voice commands cor-
rectly.
● Wait until a tone sounds before speaking a
command.
● Speak a voice command within 5 seconds
after the beep sound. If no voice command is
given, the system will ask you for a number.
If no further command is given, the session
ends.
● Speak in a natural voice without pausing
between words. Giving voice command:
1. Push and release theswitch located
on the steering wheel.
SAA2643
Monitor, climate, audio, phone and voice recognition systems4-105
