navigation update INFINITI EX 2011 Owners Manual

Vehicle information display
1. Push the INFO button on the control panel.
2. Select an item from the INFO menu.
3. After viewing or adjusting the informationon the following screens, push the BACK
button to return to the INFO menu.
See the separate Navigation System Owner’s
Manual for the following items:
●Where am I?
● Traffic Info
● Weather Info
● Map Update
● Navigation Version
With navigation system
SAA2478
Without navigation system
SAA1511
SAA2479
With navigation system
SAA2480
Monitor, climate, audio, phone and voice recognition systems4-9

1. AM·FM·SAT band select button
2. DISC·AUX button1. RADIO AM·FM band select button
2. DISC/DISC·AUX button
FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER
For all operation precautions, see “AUDIO OP-
ERATION PRECAUTIONS” earlier in this section.
The satellite radio mode requires an active XM
Satellite Radio subscription. The satellite radio
is not available in Alaska, Hawaii and Guam.
It may take some time to receive the activation
signal after subscribing the XM Satellite Radio.
After receiving the activation signal, an avail-
able channel list will be automatically updated
in the radio. For XM, push the ignition switch
from LOCK to ACC to update the channel list.
Audio main operation
Head unit :
The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
ON·OFF/Volume control :
Push the ignition switch to the ACC or ON
position, and then push the ON·OFF button
while the system is off to turn on the last audio
source (i.e. FM or CD), which was playing im-
With navigation system
SAA1533
Without navigation system (Type A)
SAA1504
Without navigation system (Type B)
SAA2101A
4-62Monitor, climate, audio, phone and voice recognition systems

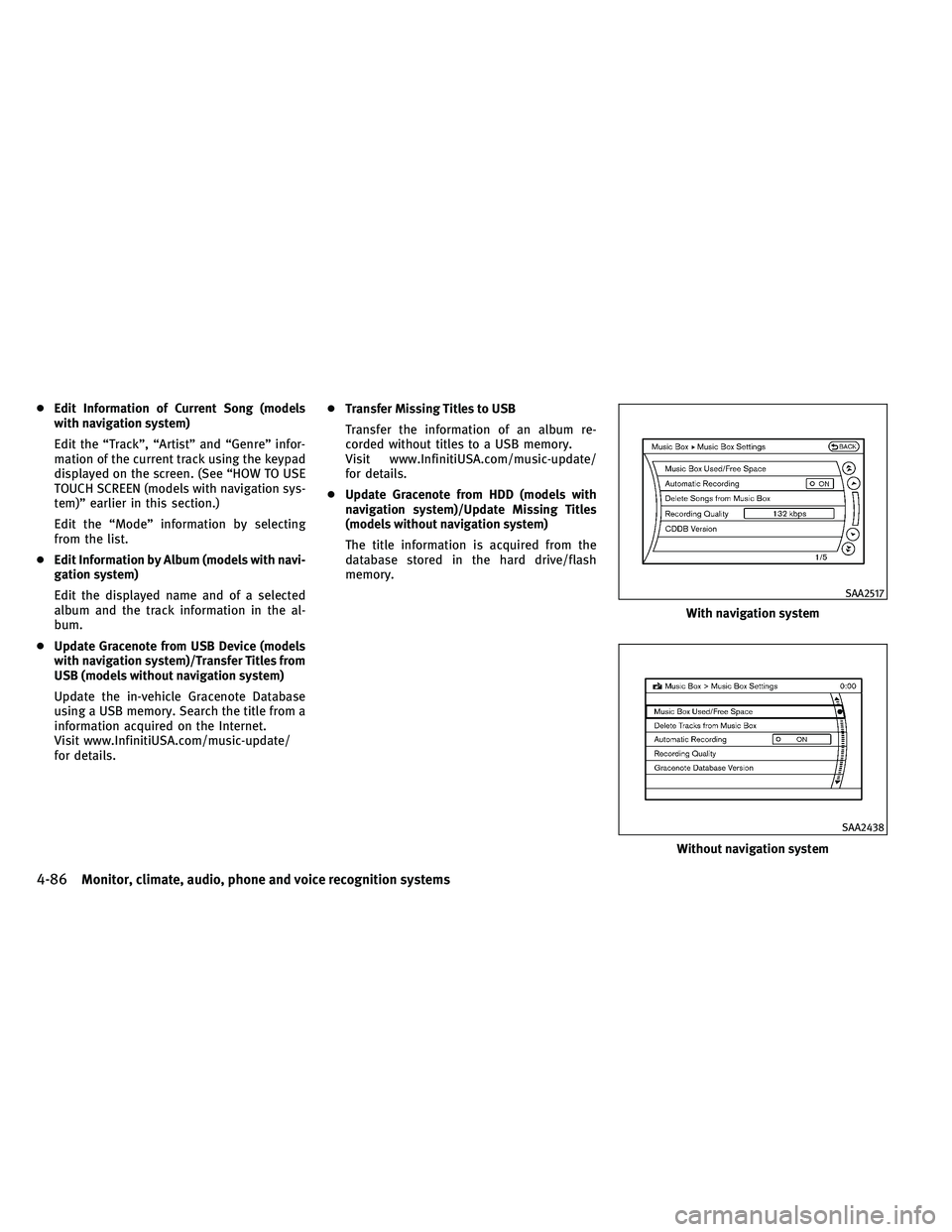

●Edit Information of Current Song (models
with navigation system)
Edit the “Track”, “Artist” and “Genre” infor-
mation of the current track using the keypad
displayed on the screen. (See “HOW TO USE
TOUCH SCREEN (models with navigation sys-
tem)” earlier in this section.)
Edit the “Mode” information by selecting
from the list.
● Edit Information by Album (models with navi-
gation system)
Edit the displayed name and of a selected
album and the track information in the al-
bum.
● Update Gracenote from USB Device (models
with navigation system)/Transfer Titles from
USB (models without navigation system)
Update the in-vehicle Gracenote Database
using a USB memory. Search the title from a
information acquired on the Internet.
Visit www.InfinitiUSA.com/music-update/
for details. ●
Transfer Missing Titles to USB
Transfer the information of an album re-
corded without titles to a USB memory.
Visit www.InfinitiUSA.com/music-update/
for details.
● Update Gracenote from HDD (models with
navigation system)/Update Missing Titles
(models without navigation system)
The title information is acquired from the
database stored in the hard drive/flash
memory.
With navigation system
SAA2517
Without navigation system
SAA2438
4-86Monitor, climate, audio, phone and voice recognition systems
