Headphones
Headphones are a wireless type and no cables
are necessary. You can use them in almost all
the ranges in the rear seat for listening to the
sound from DVD or AUX. (It is not possible to
use the headphones in the front seat.)
Power ON/OFF :
Push the POWER button to turn the headphones
on or off.Volume control :
Turn the volume control knob to adjust the
volume.
The headphones will automatically be turned
off in approximately 5 minutes if there is no
sound during that period (when the head-
phones cannot receive infrared rays). To pre-
vent the battery from being discharged, keep
the power turned off when not in use.
If the sound from the headphones is not clear it
may be because:
●
of an infrared communication device or cel-
lular phone, turn down the headphone vol-
ume or stop using the headphones, or ●
the headphones maybe out of the range of
the transmitter installed in the rear flip-down
display screen. This is not a malfunction, or
● the sound may be interrupted temporarily
when there is an obstacle between the head-
phones and the transmitter. Remove the
obstacle, such as opaque materials, hands,
hair, etc.
SAA0720SAA0721
4-94Monitor, climate, audio, phone and voice recognition systems
—
—
07/30/09—pattie


Remote controller
The remote controller has the following con-
trols:
1. REAR DISPLAY OPEN/CLOSE button
2. DVD button3. Joystick
4. AUX button
5. ENTER button
6. DISP button
7. VOLUME CONTROL button
(
or)
8. TRACK/CHANNEL button (
or)
9. DISPLAY TILT button (
or)
10. USB button
11. BACK button
12. ASPECT button
13. SOUND button
14. Keypad
See “PLAYING A DVD” later in this section for
the function of each buttons.
SAA2831
Remote controller
SAA0978
Headphones
SAA0723
Monitor, climate, audio, phone and voice recognition systems4-95
—
—
07/30/09—pattie


Remote controller and headphones
battery replacement
Replace the battery as follows:
1. Open the lid.
2. Replace both batteries with new ones.
●Size AA (remote control)
● Size AAA (headphones)
● Make sure that the and ends on the
batteries match the markings inside the
compartment.
3. Close the lid securely.
If the battery is removed for any reason other
than replacement, close the lid securely.
● If you will not be using the remote control
for long periods of time, remove the bat-
teries.
● Replacement of the batteries is needed
when the remote control only functions at
extremely close distances to the MES or
not at all.
● Be careful not to touch the battery termi-
nal.
● An improperly disposed battery can harm
the environment. Always confirm local
regulations for battery disposal. ●
When changing batteries, do not let dust
or oil get on the remote control and
headphones.
FCC Notice :
Changes or modifications not expressly ap-
proved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
This device complies with Part 15 of the FCC
Rules and RSS-210 of Industry Canada. Opera-
tion is subject to the following two conditions:
(1) This device may not cause harmful interfer-
ence, and (2) this device must accept any inter-
ference received, including interference that
may cause undesired operation of the device.
BEFORE OPERATING THE DVD MOBILE
ENTERTAINMENT SYSTEM
Precautions
Start the engine when using the DVD entertain-
ment system.
WARNING
The driver must not attempt to operate the DVD
system or wear the headphones while the ve-
hicle is in motion so that full attention may be
given to vehicle operation.
CAUTION
● Only operate the DVD while the vehicle en-
gine is running. Operating the DVD for ex-
tended periods of time with the engine OFF
can discharge the vehicle battery.
● Do not allow the system to get wet. Exces-
sive moisture such as spilled liquids may
cause the system to malfunction.
● While playing VIDEO-CD media, this DVD
player does not guarantee complete func-
tionality of all VIDEO-CD formats.
4-96Monitor, climate, audio, phone and voice recognition systems
—
—
07/30/09—pattie


●Do not force a compact disc into the CD/DVD
insert slot. This could damage the CD/DVD
player.
● During cold weather or rainy days, the player
may malfunction due to humidity. If this
occurs, remove the CD/DVD and dehumidify
or ventilate the player completely. ●
The player may skip while driving on rough
roads.
● The CD/DVD player sometimes cannot func-
tion when the passenger compartment tem-
perature is extremely high. Decrease the
temperature before use.
● Only use high quality 4.7 in (12 cm) round
discs that have the “COMPACT disc DIGITAL
AUDIO” or “DVD Video” logo on the disc or
packaging.
● Do not expose the CD/DVD to direct sunlight.
● CD/DVDs that are of poor quality, dirty,
scratched, covered with fingerprints, or that
have pinholes may not work properly.
● The following CD/DVDs are not guaranteed
to play:
– Copy control compact discs (CCCD)
– Recordable compact discs (CD-R)
– Rewritable compact discs (CD-RW)
– Recordable DVDs (DVD±R, DVD±R DL)
– Rewritable DVDs (DVD±RW, DVD±RW DL)
● Do not use the following CD/DVDs as they
may cause the CD/DVD player to malfunc-
tion.
– 3.1 in (8 cm) discs – CD/DVDs that are not round
– CD/DVDs with a paper label
– CD/DVDs that are warped, scratched or
have abnormal edges
– This audio system can only play prere- corded CD/DVDs. It has no capabilities to
record or burn CD/DVDs.
● If the CD/DVD cannot be played, one of the
following messages will be displayed.
Disc Read Error:
– Confirm that the CD/DVD is inserted cor- rectly (the label side is facing up, etc.).
– Confirm that the CD/DVD is not bent or warped and it is free of scratches.
Please Eject Disc: – This may be an error due to the tempera- ture inside the player being too high.
Remove the CD/DVD by pushing the EJECT
button, and after a short time reinsert the
CD/DVD. The CD/DVD can be played when
the temperature of the player returns to
normal. If the error persists, consult your
local retailership.
Unplayable File: – The file may be copy protected.
LHA0484
Monitor, climate, audio, phone and voice recognition systems4-97
—
—
07/30/09—pattie


– The file is not MP3, WMA, AAC, M4A orDivX type.
Region Invalid: – The DVD is not for region 1 or all regions. Use DVDs with a region code “1”, “ALL” or
“1 included” for your DVD entertainment
system. (The region code
Ais displayed
as a small symbol printed on the top of
the DVD
B.) This vehicle-installed DVD
player cannot play DVDs with a region
code other than “1”, “ALL” or “1 in-
cluded”.
Copyright and trademark
● The technology protected by the U.S. patent
and other intellectual property rights owned
by Macrovision Corporation and other right
holders is adopted for this system.
● This copyright protected technology cannot
be used without a permit from Macrovision
Corporation. It is limited to be personal use,
etc., as long as the permit from Macrovision
Corporation is not issued.
● Modifying or disassembling is prohibited.
● Dolby digital is manufactured under license
from Dolby Laboratories, Inc.
● Dolby and the double D mark “
” are
trademarks of Dolby Laboratories, Inc. ●
DTS and DTS Digital Surround “
” are
registered trademarks of Digital Theater Sys-
tems, Inc.
Parental level (parental control)
DVDs with the parental control setting can be
played with this system. Please use your own
judgement to set the parental control with the
system.
Disc selection
The following disc formats can be played with
the DVD drive.
● DVD-VIDEO
● DVD-AUDIO
● VIDEO-CD
● DTS-CD
Display settings
Front display :
To adjust the front display mode, push the
SETTING button while the DVD is being played,
select the “Others” key and then select the
“Display” key. To adjust the display ON/OFF, brightness, tint,
color and contrast, select the “Display Adjust-
ment” key and then select preferred key for
setting.
Then you can adjust each item using the
INFINITI controller. After changes have been
made press the BACK button to save the set-
ting.
Rear display :
To adjust the rear display mode, push the
“DISP” (Display) button on the remote control-
ler.
To adjust the display brightness, tint, color and
contrast, select each key using the joystick on
the remote controller and tilt the joystick to
right or left.
Push the
BACKbutton to apply the settings and
return to the previous display.
4-98Monitor, climate, audio, phone and voice recognition systems
—
—
07/30/09—pattie


PLAYING A DVD
DISC·AUX button
Park the vehicle in a safe location for the front
seat occupants to operate the DVD drive while
watching the images.
Push theDISC·AUX button on the instrument
panel and turn the display to the DVD mode.
When a DVD is loaded, it will be replayed
automatically.
The operation screen will be turned on when the
DISC·AUX button located on the instrument
panel is pushed while a DVD is being played, and it will turn off automatically after a period of
time. To turn it on again, push the
DISC·AUX
button again.
DVD operation keys
To operate the DVD drive, select the desired key
displayed on the operation screen using the
INFINITI controller.
PAUSE :
Select the “
” key to pause the DVD. To
resume playing the DVD, use the “PLAY” key.
To pause the DVD, it is also possible to push the
“
” button on the keypad of the remote
controller.
PLAY :
Select the “
” key to start playing the DVD,
for example, after pausing the DVD.
To start playing the DVD, it is also possible to
push the “
” button on the keypad of the
remote controller.
STOP :
Select the “
” key to stop playing the DVD. To stop playing the DVD, it is also possible to
push the “
” button on the keypad of the
remote controller.
SKIP (FORWARD) :
Select the “
” key to skip the chapter(s) of
the disc forward. The chapters will advance the
number of times the ENTERbutton is pushed.
To skip the chapter(s) forward, it is also pos-
sible to push the “
” button on the keypad
of the remote controller.
SKIP (REWIND) :
Select the “
” key to skip the chapter(s) of
the disc backward. The chapters will go back
the number of times the ENTERbutton is
pushed.
To skip the chapter(s) backward, it is also
possible to push the “
” button on the
keypad of the remote controller.
SAA1829
Monitor, climate, audio, phone and voice recognition systems4-99
—
—
07/30/09—pattie

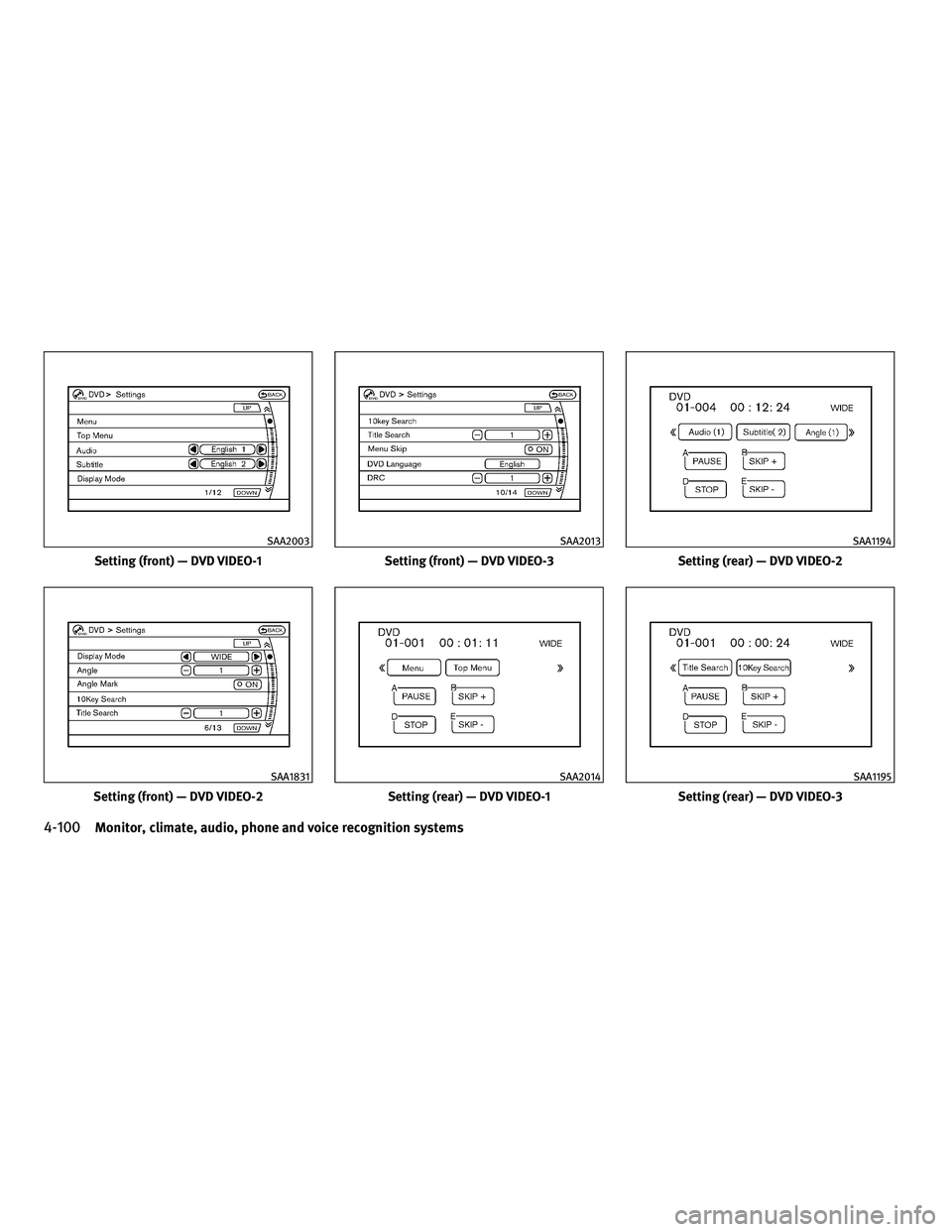

Setting (front) — DVD VIDEO-1
SAA2003
Setting (front) — DVD VIDEO-2
SAA1831
Setting (front) — DVD VIDEO-3
SAA2013
Setting (rear) — DVD VIDEO-1
SAA2014
Setting (rear) — DVD VIDEO-2
SAA1194
Setting (rear) — DVD VIDEO-3
SAA1195
4-100Monitor, climate, audio, phone and voice recognition systems
—
—
07/30/09—pattie


DVD settings
Select the “Settings” key with the INFINITI
controller and push the ENTERbutton to adjust
the following settings.
The items indicated with “*” can also be set
from the rear display. Push the “DVD” button on
the remote controller while a DVD is being
played. Select the preferred item using the
joystick “
” on the remote controller and
push the ENTER“
” button.
Menu* (DVD-VIDEO) :
Some menus specific to each disc will be
shown. For details, see the instructions at-
tached to the disc.
Top Menu* (DVD-VIDEO) :
Each title menu in the disc will be shown. For
details, see the instructions attached to the
disc.
Audio* (DVD-VIDEO, VIDEO-CD) / Subtitle*
(DVD-VIDEO) :
Choose the preferred language using the
INFINITI controller and push the ENTERbutton.
To turn off the subtitle, push and hold the
ENTER button until a beep sounds. Display Mode* (DVD-VIDEO, VIDEO-CD) :
Choose from the “Full”, “Wide”, “Normal” or
“Cinema” mode using the INFINITI controller
and push the
ENTERbutton again.
Angle* (DVD-VIDEO) :
If the DVD contains different angles (such as
moving images), the current image angle can be
switched to another one.
Select the “Angle ” key and push the ENTER
button. When the “+” side or “” side is
selected, the angle will change.
Angle Mark (DVD-VIDEO) :
When this item is turned on, an angle mark will
be shown on the bottom of the screen if the
scene can be seen from a different angle.
10 Key Search* (DVD-VIDEO, VIDEO-CD, CD-DA) :
Select the “10 Key Search ” key and push the
ENTER button to open the number entry screen.
Input the number you want to search for and
select the “OK ” key with the INFINITI controller.
Then push the ENTERbutton. The specified
Title/Chapter or Group/Track will be played. Title Search* (DVD-VIDEO) :
The scene with the specified title will be dis-
played the number of times the “+” side or “
”
side is selected.
Select No.* (VIDEO-CD) :
Select the “Select No. ” key and push theENTER
button to open the number entry screen.
Input the number you wish to search for and
select the “OK ” key with the INFINITI controller,
and then push the ENTERbutton. The specified
scene will be played.
Menu Skip (DVD-VIDEO) :
DVD menus are automatically configured and
the contents will be played directly when the
“Menu Skip ” key is turned on. Note that some
discs may not be played directly even if this
item is turned on.
DVD Language (DVD-VIDEO, VIDEO-CD) :
Select the “DVD Language ” key and push the
ENTER button to open the number entry screen.
Input the number corresponding to the pre-
ferred language and select the “OK ” key with
the INFINITI controller. Then push the ENTER
button. The DVD top menu language will be
changed to the one specified.
Monitor, climate, audio, phone and voice recognition systems4-101
—
—
08/03/09—tbrooks


DRC (DVD-VIDEO) :
DRC (Dynamic Range Compression) allows you
to tune the dynamic range of the sound re-
corded in the Dolby Digital format.
Remote controller operation
Use the remote controller to adjust the follow-
ing items.
Rear display open/close :
To open or close the flip-down rear display,
push the “
” button.
Joystick :
Use the joystick “
” to select the items
displayed on the rear screen.
ENTER button :
Push the ENTER “
” button to make the
selected item complete on the rear screen.
BACK button :
Push to go back to the previous screen or cancel
the selection.
Display tilt :
Adjust the display angle by pushing the DIS-
PLAY TILT button “
”. DVD mode :
To select the DVD mode, push the DVD button.
AUX mode :
To select the AUX (auxiliary input jacks), mode,
push the AUX button.
Volume :
To control the volume level, push the VOL
button “
”.
Display :
To adjust the rear display screen (brightness,
tint, contrast, etc.), push the DISP button.
Aspect :
To change the display size, push the ASPECT
button. Each time the button is pushed, the
display size will change to “Cinema”, “Wide”,
“Full” or “Normal”.
Sound :
To change the language, push the SOUND but-
ton. Each time the button is pushed, the lan-
guage will change to each language stored in
the DVD.
Headphones :
The DVD sound can be heard through the
headphones. Each time the button is pushed, the head-
phones mode will switch to ON or OFF.
To control the volume of sound from the head-
phones, use the volume control knob attached
to the headphones.
Track/Channel :
To skip to the previous or next DVD scene
selection, push the TRACK CH button
“”.
Keypad :
: PLAY/PAUSE button
: STOP button
: FORWARD button
: REWIND button
: FORWARD button for still images (for DVD-AUDIO)
: REWIND button for still images (forDVD-AUDIO)
4-102Monitor, climate, audio, phone and voice recognition systems
—
—
07/30/09—pattie


CARE AND MAINTENANCE
Use a lightly dampened, lint free cloth to clean
the surfaces of your Mobile Entertainment Sys-
tem. (DVD player face, screen, remote control-
ler, etc.)
●Do not attempt to operate the system in
extreme temperature conditions [below
4°F (20°C) and above 158°F (70°C)].
● Do not attempt to operate the system in
extreme humidity conditions (less than 10%
or more than 75%).
CAUTION
● Do not use any solvents or cleaning solu-
tions when cleaning the video system.
● Do not use excessive force on the monitor
screen.
● Avoid touching or scratching the monitor
screen as it may become dirty or damaged. When installing a car phone or a CB radio in
your INFINITI, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
●
A cellular telephone should not be used
while driving so full attention may be given
to vehicle operation. Some jurisdictions pro-
hibit the use of cellular telephones while
driving.
● If you must make a call while your vehicle is
in motion, the hands-free cellular phone op-
erational mode (if so equipped) is highly rec-
ommended. Exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If a conversation in a moving vehicle requires
you to take notes, pull off the road to a safe
location and stop your vehicle before doing
so.
CAUTION
● Keep the antenna as far away as possible
from the electronic control modules.
● Keep the antenna wire more than 8 in (20 cm)
away from the electronic control system har-
ness. Do not route the antenna wire next to
any harness.
● Adjust the antenna standing-wave ratio as
recommended by the manufacturer.
● Connect the ground wire from the CB radio
chassis to the body.
● For details, consult an INFINITI retailer.
CAR PHONE OR CB RADIO
Monitor, climate, audio, phone and voice recognition systems4-103
—
—
07/30/09—pattie
