WARNING
●Use a phone after stopping your vehicle in a
safe location. If you have to use a phone
while driving, exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If you find yourself unable to devote full at-
tention to vehicle operation while talking on
the phone, pull off the road to a safe location
and stop your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery, use a
phone after starting the engine.
Your INFINITI is equipped with Bluetooth
Hands-Free Phone System. If you are an owner
of a compatible Bluetooth enabled cellular
phone, you can set up the wireless connection
between your cellular phone and the in-vehicle
phone module. With Bluetooth wireless tech-
nology, you can make or receive a telephone
call with your cellular phone in your pocket.
Once a cellular phone is connected to the
in-vehicle phone module, no phone connecting
procedure is required anymore. Your phone is
automatically connected with the in-vehicle phone module when the ignition switch is
pushed to the ON position with the registered
cellular phone turned on and carried in the
vehicle.
You can register up to 5 different Bluetooth
cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular
phone at a time.
The INFINITI Voice Recognition system supports
the phone commands, so dialing a phone num-
ber using your voice is possible. For more
details, see “INFINITI VOICE RECOGNITION SYS-
TEM (models with navigation system)” later in
this section; page 4-129.
Before using the Bluetooth
Hands-Free Phone
System, refer to the following notes.
● Set up the wireless connection between a
compatible cellular phone and the in-vehicle
phone module before using the Bluetooth
Hands-Free Phone System.
● Some Bluetooth enabled cellular phones
may not be recognized by the in-vehicle
phone module. Please visit
www.InfinitiUSA.com/bluetooth for a recom-
mended phone list. ●
You will not be able to use a hands-free
phone under the following conditions:
– Your vehicle is outside of the telephone service area.
– Your vehicle is in an area where it is difficult to receive radio waves; such as in
a tunnel, in an underground parking ga-
rage, behind a tall building or in a moun-
tainous area.
– Your cellular phone is locked in order not to be dialed.
● When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.
● Immediately after the ignition switch is
pushed to the ON position, it may be impos-
sible to receive a call for a short period of
time.
● Do not place the cellular phone in an area
surrounded by metal or far away from the
in-vehicle phone module to prevent tone
quality degradation and wireless connection
disruption.
● While a cellular phone is connected through
the Bluetooth wireless connection, the bat-
tery power of the cellular phone may dis-
charge quicker than usual.
BLUETOOTH HANDS-FREE PHONE SYSTEM
(models with navigation system)
4-104Monitor, climate, audio, phone and voice recognition systems
—
—
10/19/09—tbrooks


●If the Bluetooth Hands-Free Phone System
seems to be malfunctioning, please visit
www.InfinitiUSA.com/bluetooth for trouble-
shooting help.
● Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers. Stor-
ing the device in a different location may
reduce or eliminate the noise.
● Refer to the cellular phone Owner’s Manual
regarding the telephone pairing procedure
specific to your phone, battery charging,
cellular phone antenna, etc.
● The antenna display on the monitor will not
coincide with the antenna display of some
cellular phones.
● Keep the interior of the vehicle as quiet as
possible to hear the caller’s voice clearly as
well as to minimize its echoes.
● If reception between callers is unclear, ad-
justing the incoming or outgoing call volume
may improve the clarity.REGULATORY INFORMATION
FCC Regulatory information
– CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the sup-
plied antenna. Unauthorized antenna, modi-
fication, or attachments could damage the
transmitter and may violate FCC regulations.
– Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interfer- ence, including interference that may
cause undesired operation of the de-
vice
IC Regulatory information
– Operation is subject to the following twoconditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the device.
–
This Class B digital apparatus meets all re-
quirements of the Canadian Interference-
Causing Equipment Regulations.
Bluetooth trademark:
BLUETOOTH is a trade-
mark owned by Bluetooth
SIG, Inc., U.S.A.
VOICE COMMANDS
You can use voice commands to operate various
Bluetooth Hands-Free Phone System features
using the INFINITI Voice Recognition system.
For more details, see “INFINITI VOICE RECOGNI-
TION SYSTEM (models with navigation system)”
later in this section; page 4-129.
Monitor, climate, audio, phone and voice recognition systems4-105
—
—
08/03/09—tbrooks


CONTROL BUTTONS
1) PHONE button
2) TALK/PHONE SEND button
CONNECTING PROCEDURE
1. Push the PHONE button or thebutton, and select the “Connect Phone”
key.
SAA2162
SAA2519
4-106Monitor, climate, audio, phone and voice recognition systems
—
—
07/30/09—pattie


2. When a PIN code appears on the screen,operate the compatible Bluetooth cellu-
lar phone to enter the PIN code.
The connecting procedure of the cellular
phone varies according to each cellular
phone. See the cellular phone Owner’s
Manual for the details. You can also visit
www.InfinitiUSA.com/bluetooth or call
INFINITI Consumer Affairs Department for
instructions on pairing INFINITI recom-
mended cellular phones.
When the connection process is completed,
the screen will return to the Phone menu
display.
PHONE SELECTION
Up to 5 cellular phones can be registered to the
system. To switch to connect another cellular
phone, push PHONE button and select the
“Connected Phones” key. The registered cellu-
lar phones are shown on the list. If you select a
cellular phone that is different from the one
currently connected, the newly selected phone
will be connected to the system.
VEHICLE PHONEBOOK
This vehicle has two phonebooks available for
hands-free use. Depending on the phone, the
system may automatically download the entire
cell phone’s phonebook into the “Handset
Phonebook”. For the details about downloading
a phonebook, see “PHONE SETTING” later in
this section. If a phonebook does not automati-
cally download, the vehicle phonebook may be
set for up to 40 entries. This phonebook allows
the recording of a name to speak while using
voice recognition.
1. Push the PHONE button and select the “Vehicle Phonebook” key.
2. Select the “Add New” key at the top of the screen.
SAA2520SAA2521
Monitor, climate, audio, phone and voice recognition systems4-107
—
—
07/30/09—pattie


3. Choose the method for entering thephonebook entry. For this example, select
“Enter Number by Keypad”.
4. Enter the digits and select the “OK” key. (See “HOW TO USE TOUCH SCREEN (mod-
els with navigation system)” earlier in this
section.) 5. Select the “Voicetag” key to record a
name to speak when using the INFINITI
Voice Recognition system.
6. Select the “Store” key and prepare to speak the name after the tone.
7. When the voicetag is successfully saved, select the “OK” key to save the phone-
book entry.
8. After the phonebook entry is saved, it will show a screen that is ready to call the
number. Press the BACK button to return
to the Vehicle Phonebook.
There are different methods to input a phone
number. Select one of the following options
instead of “Enter Number by Keypad” in step 3.
–Copy from Call History
The system will show a list of incoming,
outgoing or missed calls that were down-
loaded from the connected cellular phone
(depending on the phone’s compatibility).
Select one of these entries to save in the
vehicle phonebook.
– Copy from the Handset
The system will show the connected cellular
phone’s phonebook that was downloaded
(depending on the phone’s compatibility).
Select one of these entries to save in the
vehicle phonebook.
SAA2522SAA2523
4-108Monitor, climate, audio, phone and voice recognition systems
—
—
07/30/09—pattie


Editing the Vehicle Phonebook
1. Push the PHONE button and select the“Vehicle Phonebook” key.
2. Select the desired entry from the dis- played list.
3. Select the “Edit” key.
4. Select the desired item to change.
The following editing items are available:
● Entry #
Changes the displayed number of the se-
lected entry.
● Name
Edit the name of the entry using the keypad
displayed on the screen.
● Number
Edit the phone number using the keypad
displayed on the screen.
● Type
Select an icon from the icon list. ●
Voicetag
Confirm and store the voicetag. Voicetags
allow easy dialing using the INFINITI Voice
Recognition system. (See “INFINITI VOICE
RECOGNITION SYSTEM (models with naviga-
tion system)” later in this section.)
To delete an entry, select the “Delete” key at
step 3.
SAA2620SAA2523
Monitor, climate, audio, phone and voice recognition systems4-109
—
—
07/30/09—pattie


MAKING A CALL
To make a call, follow this procedure.
1. Push the PHONE button on the instrumentpanel or the
button on the steering
wheel. The “PHONE” screen will appear on
the display.
2. Select the “Handset Phonebook” key on the “PHONE” menu.
3. Select the desired entry from the list.
4. Confirm the correct entry by selecting for the correct number from the list. 5. Select the “Call” key to start dialing the
number.
There are different methods to make a call.
Select one of the following options instead of
“Handset Phonebook” in step 2 above.
● Vehicle Phonebook
Select an entry stored in the Vehicle’s
Phonebook.
● Call History
Select an outgoing, incoming or missed call
downloaded from your cell phone (depend-
ing on your phone’s compatibility). ●
Dial Number
Input the phone number manually using the
keypad displayed on the screen. (See “HOW
TO USE TOUCH SCREEN (models with naviga-
tion system)” earlier in this section.)
SAA2524SAA2621
4-110Monitor, climate, audio, phone and voice recognition systems
—
—
07/30/09—pattie


RECEIVING A CALL
When you hear a phone ring, the display will
change to the incoming call mode. To receive a
call, perform one of the following procedures
listed below.
a) Select the “Answer” key.
b) Push the PHONE button on the instrumentpanel.
c) Push the
button on the steering
wheel.
There are some options available when receiv-
ing a call. Select one of the following displayed
on the screen. ●
Answer
Accept an incoming call to talk.
● Hold Call
Put an incoming call on hold.
● Reject Call
Reject an incoming call.
To finish the call, perform one of the follow-
ing procedures listed below.
a) Select the “Hang up” key.
b) Push the PHONE button on the instrument panel.
c) Push the
button on the steering
wheel.DURING A CALL
There are some options available during a call.
Select one of the following displayed on the
screen if necessary.
● Hang up
Finish the call.
● Use Handset
Transfer the call to the cellular phone.
● Mute
Mute your voice to the person.
SAA2525SAA2526
Monitor, climate, audio, phone and voice recognition systems4-111
—
—
07/30/09—pattie


●Keypad
Using the touch tone, send digits to the
connected party for using services such as
voicemail.
● Cancel Mute
This will appear after “Mute” is selected.
Mute will be canceled.
To adjust the person’s voice to be louder or
quieter, push the volume control switch (+ or )
on the steering wheel or turn the volume control
knob on the instrument panel while talking on
the phone. This adjustment is also available in
the SETTING mode.
PHONE SETTING
To set up the Bluetooth Hands-Free Phone
System to your preferred settings, push the
SETTING button on the instrument panel and
select the “PHONE” key.
Edit Vehicle Phonebook
To edit the vehicle phonebook, use the same
procedure as described in “VEHICLE PHONE-
BOOK” earlier in this section.
Delete Phonebook
The vehicle phonebook entries can be deleted
all at the same time or one by one.
Download Handset Phonebook
Download the contacts registered in a
Bluetooth cellular phone. Availability of this
function depends on each cellular phone. The
memory downloading procedure from the cellu-
lar phone also varies according to each cellular
phone. See cellular phone Owner’s Manual for
details.
Volume
The following kinds of phone volume can be set.
Pushing the PHONE button and selecting the
“Volume” key can also operate the same set-
tings.
● Ringtone/Incoming Call/Outgoing Call
To increase or decrease the volume, select
the “Ringtone”, “Incoming Call” or “Outgo-
ing Call” key and adjust it with the INFINITI
controller.
● Automatic Hold
When this function is activated, an incoming
phone call is automatically held.
● Vehicle Ringtone
When this function is activated, a specific
ringtone that is different from the cellular
phone will sound when receiving a call.
SAA2527
4-112Monitor, climate, audio, phone and voice recognition systems
—
—
07/30/09—pattie

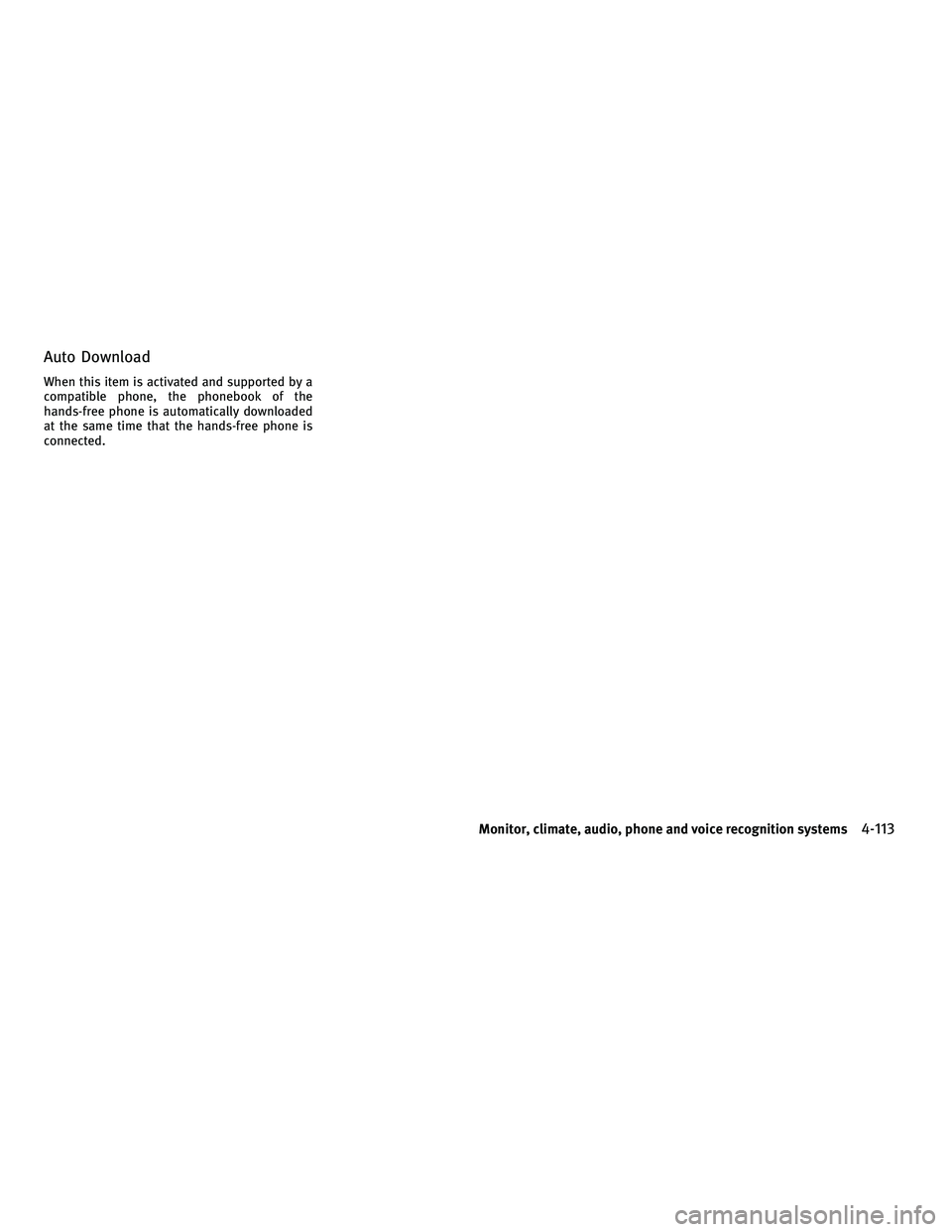

Auto Download
When this item is activated and supported by a
compatible phone, the phonebook of the
hands-free phone is automatically downloaded
at the same time that the hands-free phone is
connected.
Monitor, climate, audio, phone and voice recognition systems4-113
—
—
07/30/09—pattie
