Page 11 of 509

1. Rear view camera (if so equipped)(P. 4-22)
2. Lift gate (P. 3-16) — Intelligent Key system (P. 3-6)
— Remote keyless entry system (P. 3-13)
3. Rear window defroster (P. 2-35) 4. High-mounted stop light (Bulb replace-
ment) (P. 8-25)
5. Rear window wiper and washer (P. 2-34) — Maintenance (P. 8-21)
6. Antenna (P. 4-47) 7. Sonar sensor
— Around View Monitor (if so equipped)
(P. 4-28)
8. Rear combination light (Bulb replace- ment) (P. 8-25)
9. Fuel-filler door (P. 3-18) — Fuel recommendation (P. 9-4)
10. Child safety rear door locks (P. 3-6)
SSI0446
EXTERIOR REAR
0-4Illustrated table of contents
—
—
08/03/09—tbrooks
Page 12 of 509

1. Coat hooks (P. 2-49)
2. Rear personal light (P. 2-58)3. Mobile Entertainment System (MES)
(if so equipped)
— Flip-down screen (P. 4-91)
— Digital Versatile Disc (DVD) drive
(P. 4-91)
— Headphones (P. 4-94)
— DVD remote controller (P. 4-95) 4. Power window controls (P. 2-53)
5. Automatic drive positioner switch
(if so equipped) (P. 3-24)
6. Sun visors (P. 3-21)
7. Moonroof switch (P. 2-56)
8. Map light (P. 2-58)
9. Sunglasses holder (P. 2-47)
10. Inside rearview mirror (P. 3-21) — HomeLink (if so equipped) (P. 2-60)
— Compass (if so equipped) (P. 2-9)
11. Cargo cover (if so equipped) (P. 2-51)
12. Rear cup holders (P. 2-46)
13. Console box — Power outlet (P. 2-45)
— Auxiliary input jacks (P. 4-87)
— USB memory operation (P. 4-69)
— iPod player operation (P. 4-78)
14. Front cup holders (P. 2-46)
SSI0447
PASSENGER COMPARTMENT
Illustrated table of contents0-5
—
—
08/03/09—tbrooks
Page 13 of 509

1. Outside mirror remote control switch(P. 3-23)
2. Instrument brightness control switch (P. 2-39)
3. Headlight, fog light and turn signal switch (P. 2-35) 4. Steering-wheel-mounted controls
(left side)
— For audio system (P. 4-46)
— For Bluetooth Hands-Free Phone Sys-
tem (with navigation system) (P. 4-104)
— For INFINITI Voice Recognition System
(with navigation system) (P. 4-129) 5. Trip computer switch (P. 2-27)
6. Windshield wiper and washer switch
(P. 2-32)
7. Steering-wheel-mounted controls (right side)
— Cruise control switches (P. 5-26)
— Intelligent Cruise Control (ICC) switches
(if so equipped) (P. 5-28)
— Lane Departure Prevention (LDP) switch
(if so equipped) (P. 5-18)
— Distance Control Assist (DCA) switch
(if so equipped) (P. 5-49)
8. Intelligent Brake Assist (IBA) off switch (if so equipped) (P. 2-44)
9. Vehicle Dynamic Control (VDC) OFF switch (P. 5-77)
10. Intelligent Key port (P. 5-11)
11. Forward Collision Warning (FCW) and Lane Departure Warning (LDW) switch
(if so equipped)
— Forward Collision Warning (FCW)
(P. 2-43, 5-61)
— Lane Departure Warning (LDW)
(P. 2-42, 5-18)
12. TRIP/RESET switch for twin trip odometer (P. 2-6)
13. Electric tilting/telescopic steering wheel lever (if so equipped) (P. 3-19)
SIC4246
COCKPIT
0-6Illustrated table of contents
—
—
08/03/09—tbrooks

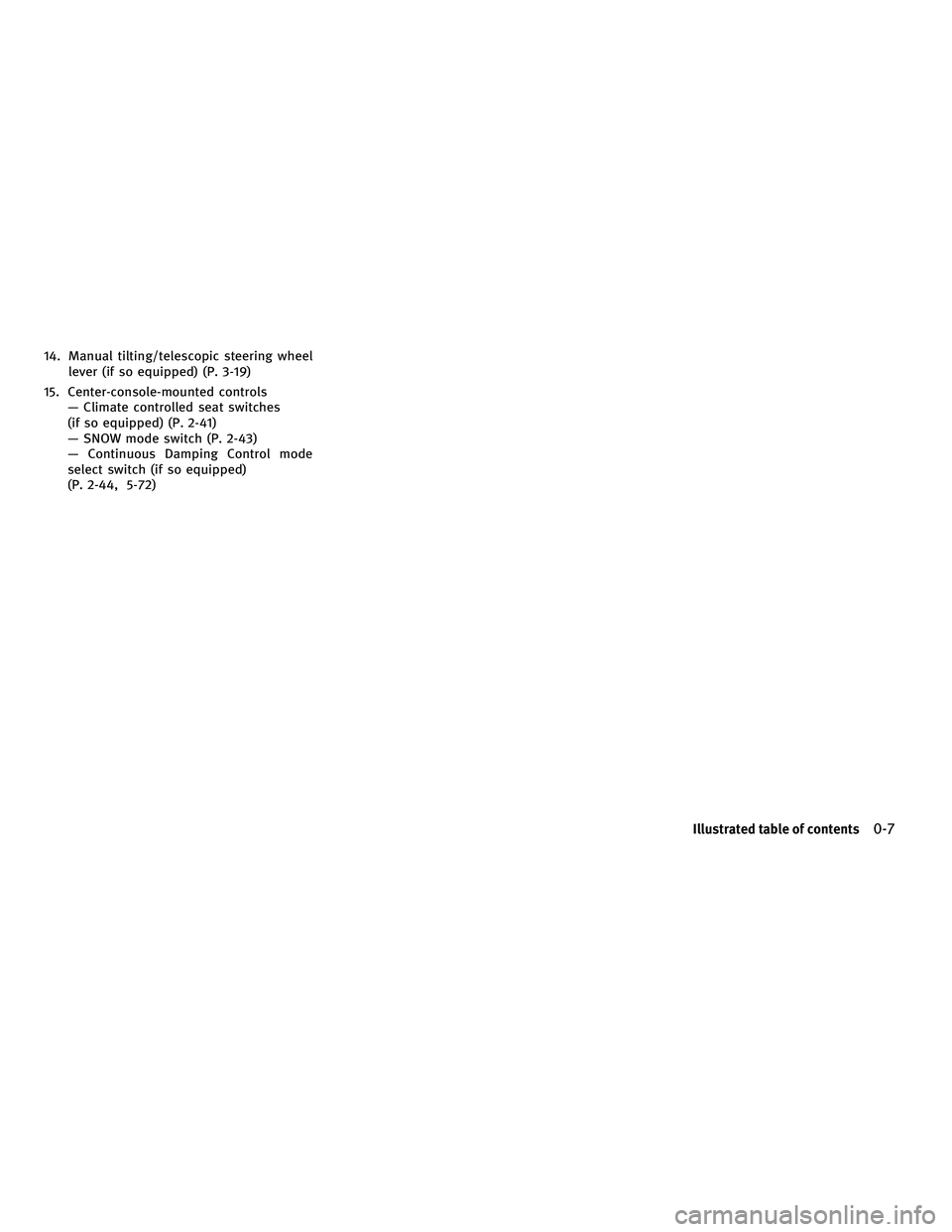

Page 14 of 509

14. Manual tilting/telescopic steering wheellever (if so equipped) (P. 3-19)
15. Center-console-mounted controls — Climate controlled seat switches
(if so equipped) (P. 2-41)
— SNOW mode switch (P. 2-43)
— Continuous Damping Control mode
select switch (if so equipped)
(P. 2-44, 5-72)
Illustrated table of contents0-7
—
—
07/30/09—pattie
Page 15 of 509

1. Side ventilator (P. 4-39)
2. Paddle shifter (if so equipped) (P. 5-15)
3. Meters and gauges (P. 2-5)
4. Center ventilator (P. 4-39)5. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth Hands-Free Phone System
(with navigation system) (P. 4-104) — Around View Monitor (if so equipped)
(P. 4-28)
6. Center display (P. 4-2)
7. Clock (P. 2-45)
8. Hazard warning flasher switch (P. 2-40)
9. Front passenger supplemental air bag (P. 1-40)
10. Hood release handle (P. 3-16)
11. Fuse box cover (P. 8-22)
12. Parking brake (P. 5-17)
13. Steering wheel — Horn (P. 2-41)
— Driver supplement air bag (P. 1-40)
14. Push-button ignition switch (P. 5-9)
15. Front passenger air bag status light (P. 1-45)
16. Power outlet (P. 2-45)
17. Rear window defogger switch (P. 2-35)
18. Automatic climate control system (P. 4-40)
19. Audio system (P. 4-46)
20. Glove box lid release handle (P. 2-48)
*: Refer to the separate Navigation System Owner’s Manual.
SSI0635
INSTRUMENT PANEL
0-8Illustrated table of contents
—
—
08/03/09—tbrooks
Page 16 of 509

1. Tachometer (P. 2-7)
2. Warning/Indicator lights (P. 2-12)
3. Speedometer (P. 2-6)
4. Engine coolant temperature gauge(P. 2-7) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-21)
6. Fuel gauge (P. 2-8)
SIC3825
METERS AND GAUGES
Illustrated table of contents0-9
—
—
08/03/09—tbrooks
Page 17 of 509

VQ35HR ENGINE
1. Fuse/fusible link holder (P. 8-22)
2. Battery (P. 8-15)
3. Radiator filler cap (P. 8-9)
4. Engine oil dipstick (P. 8-10)5. Engine oil filler cap (P. 8-10)
6. Brake fluid reservoir (P. 8-14)
7. Window washer fluid reservoir (P. 8-14)
8. Power steering fluid reservoir (P. 8-13)
9. Air cleaner (P. 8-19)10. Drive belts (P. 8-17)
11. Coolant reservoir (P. 8-9)
SDI2262
ENGINE COMPARTMENT
0-10Illustrated table of contents
—
—
07/30/09—pattie
Page 18 of 509

VK50VE ENGINE
1. Fuse/fusible link holder (P. 8-22)
2. Battery (P. 8-15)
3. Engine oil filler cap (P. 8-10)
4. Radiator filler cap (P. 8-9)5. Engine oil dipstick (P. 8-10)
6. Brake fluid reservoir (P. 8-14)
7. Window washer fluid reservoir (P. 8-14)
8. Power steering fluid reservoir (P. 8-13)
9. Air cleaner (P. 8-19)10. Drive belt location (P. 8-17)
11. Coolant reservoir (P. 8-9)
SDI2264
Illustrated table of contents0-11
—
—
07/30/09—pattie
Page 19 of 509

Warninglight Name Page
All-Wheel Drive (AWD) warning
light (AWD models)* 2-13
Anti-lock Braking System (ABS)
warning light2-13
Automatic Transmission (AT)
check warning light2-13
Brake warning light
2-13
Charge warning light2-14
Distance Control Assist (DCA)
system warning light (orange)*2-14
Engine oil pressure warning
light2-14
Intelligent Cruise Control (ICC)
system warning light (orange)* 2-15
Intelligent Key system warning
light2-15
Lane departure warning light
(orange)*2-15
Warning
light Name Page
Low tire pressure warning light 2-15
Master warning light
2-17
Preview Function warning light
(orange)*2-17
Rear Active Steer warning light* 2-17
Seat belt warning light
2-17
Supplemental air bag warning
light2-17
Indica-
tor light Name Page
Adaptive Front lighting System
(AFS) indicator light 2-18
Automatic Transmission (AT)
position indicator light2-18
Front passenger air bag status
light2-18
High beam indicator light
2-18
Indica-
tor light Name Page
Intelligent Brake Assist (IBA) off
indicator light* 2-18
Lane Departure Prevention
(LDP) ON indicator light
(green)* 2-19
Malfunction Indicator Light
(MIL)
2-19
Security indicator light
2-20
Slip indicator light2-20
Low beam indicator lights 2-20
SPORT mode indicator light* 2-20
Turn signal/hazard indicator
lights2-20
Vehicle Dynamic Control (VDC)
off indicator light2-20
*: if so equipped
WARNING AND INDICATOR LIGHTS
0-12Illustrated table of contents
—
—
10/16/09—tbrooks
Page 20 of 509

1 Safety — Seats, seat belts and supplemental
restraint system
Seats.............................................1-2
Front seats .....................................1-2
Rear seats ......................................1-5
Head restraints .................................1-6
Adjustable headrest .............................1-9
Armrest (if so equipped) ........................ 1-12
Seat belts ........................................ 1-12
Precautions on seat belt usage ..................1-12
Child safety .................................... 1-15
Pregnant women ............................... 1-16
Injured persons ................................ 1-16
Pre-crash seat belts with comfort function
(front seats) (if so equipped) ....................1-16
Three-point type seat belt .......................1-17
Seat belt extenders ............................. 1-19
Seat belt maintenance ......................... 1-20
Child restraints .................................. 1-20
Precautions on child restraints .................1-20
Lower Anchors and Tethers for CHildren
System (LATCH) ............................... 1-22Top tether strap child restraint
.................1-24
Child restraint installation using LATCH ..........1-25
Child restraint installation using the seat
belts ......................................... 1-29
Booster seats ..................................... 1-35
Precautions on booster seats ....................1-35
Booster seat installation ....................... 1-38
Supplemental restraint system ....................1-40
Precautions on supplemental restraint
system ....................................... 1-40
INFINITI Advanced Air Bag System
(front seats) ................................... 1-45
Front seat-mounted side-impact
supplemental air bag and roof-mounted
curtain side-impact and rollover
supplemental air bag systems ..................1-50
Seat belts with pretensioners (front seats) .......1-52
Supplemental air bag warning labels ............1-53
Supplemental air bag warning light ..............1-53
Repair and replacement procedure ...............1-54
—
—
08/03/09—tbrooks
