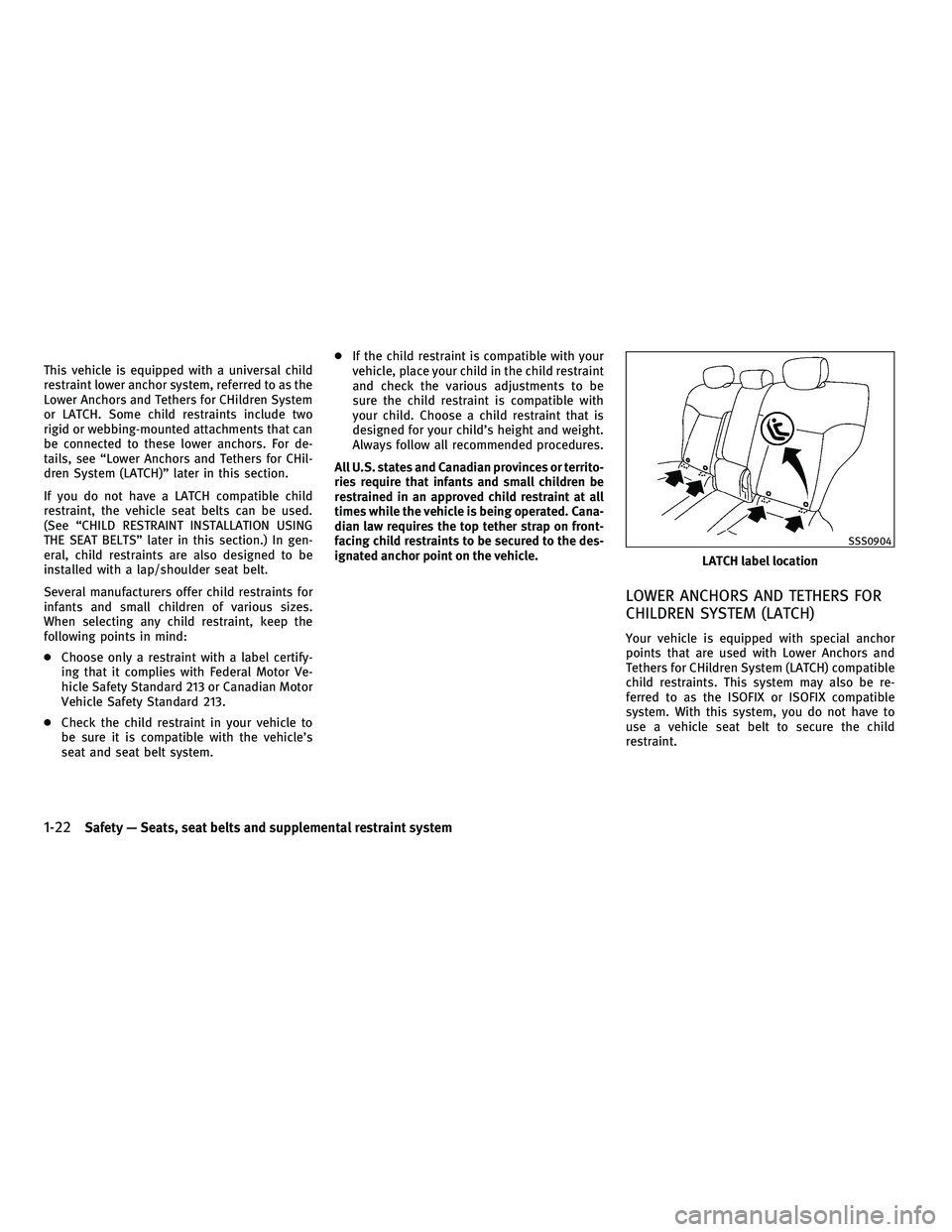

This vehicle is equipped with a universal child
restraint lower anchor system, referred to as the
Lower Anchors and Tethers for CHildren System
or LATCH. Some child restraints include two
rigid or webbing-mounted attachments that can
be connected to these lower anchors. For de-
tails, see “Lower Anchors and Tethers for CHil-
dren System (LATCH)” later in this section.
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
(See “CHILD RESTRAINT INSTALLATION USING
THE SEAT BELTS” later in this section.) In gen-
eral, child restraints are also designed to be
installed with a lap/shoulder seat belt.
Several manufacturers offer child restraints for
infants and small children of various sizes.
When selecting any child restraint, keep the
following points in mind:
●Choose only a restraint with a label certify-
ing that it complies with Federal Motor Ve-
hicle Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.
● Check the child restraint in your vehicle to
be sure it is compatible with the vehicle’s
seat and seat belt system. ●
If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.
All U.S. states and Canadian provinces or territo-
ries require that infants and small children be
restrained in an approved child restraint at all
times while the vehicle is being operated. Cana-
dian law requires the top tether strap on front-
facing child restraints to be secured to the des-
ignated anchor point on the vehicle.
LOWER ANCHORS AND TETHERS FOR
CHILDREN SYSTEM (LATCH)
Your vehicle is equipped with special anchor
points that are used with Lower Anchors and
Tethers for CHildren System (LATCH) compatible
child restraints. This system may also be re-
ferred to as the ISOFIX or ISOFIX compatible
system. With this system, you do not have to
use a vehicle seat belt to secure the child
restraint.
LATCH label location
SSS0904
1-22Safety — Seats, seat belts and supplemental restraint system
—
—
07/30/09—pattie


The LATCH anchor points are provided to install
child restraints in the rear outboard seating
positions only. Do not attempt to install a child
restraint in the center position using the LATCH
anchors.

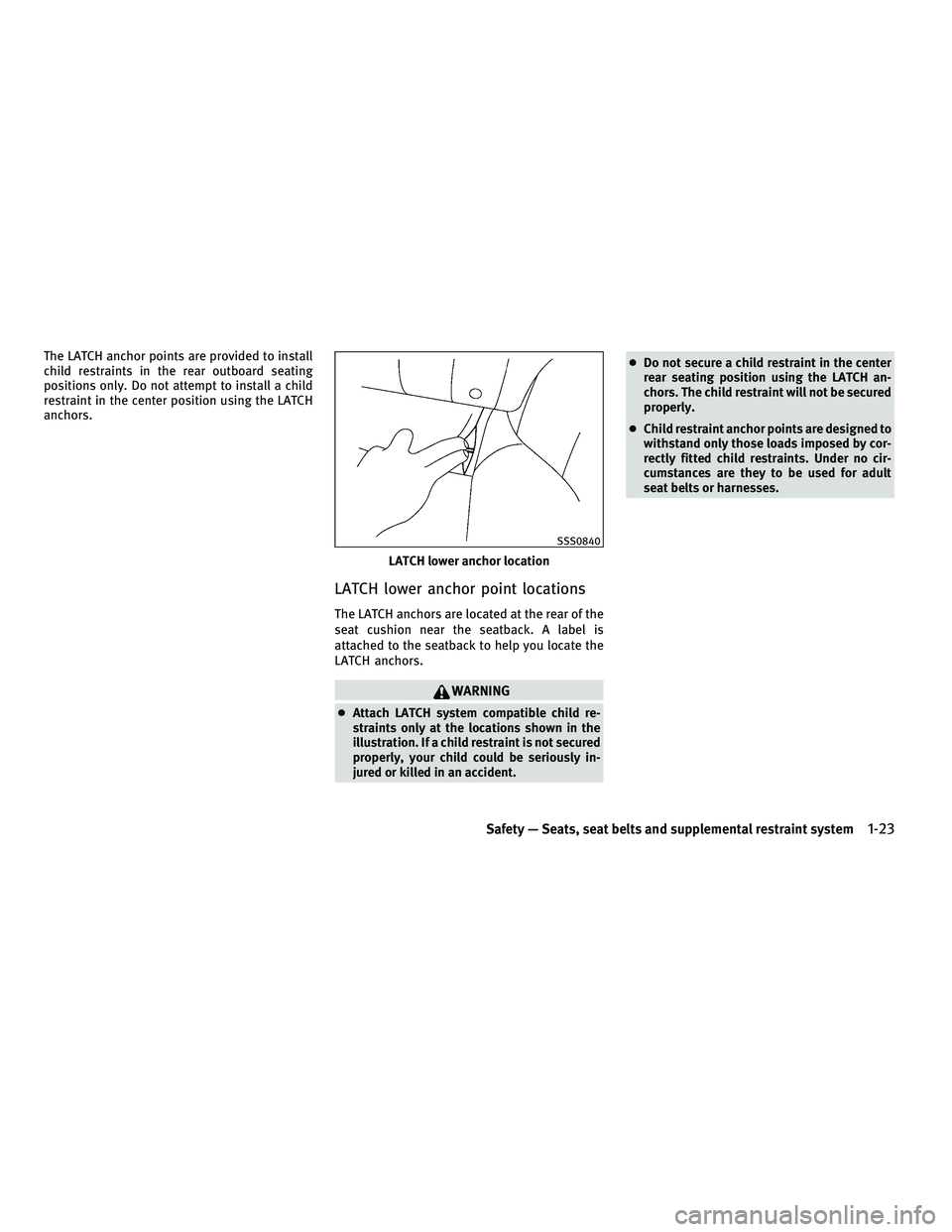

LATCH lower anchor point locations
The LATCH anchors are located at the rear of the
seat cushion near the seatback. A label is
attached to the seatback to help you locate the
LATCH anchors.
WARNING
●Attach LATCH system compatible child re-
straints only at the locations shown in the
illustration. If a child restraint is not secured
properly, your child could be seriously in-
jured or killed in an accident. ●
Do not secure a child restraint in the center
rear seating position using the LATCH an-
chors. The child restraint will not be secured
properly.
● Child restraint anchor points are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no cir-
cumstances are they to be used for adult
seat belts or harnesses.
LATCH lower anchor location
SSS0840
Safety — Seats, seat belts and supplemental restraint system1-23
—
—
07/30/09—pattie

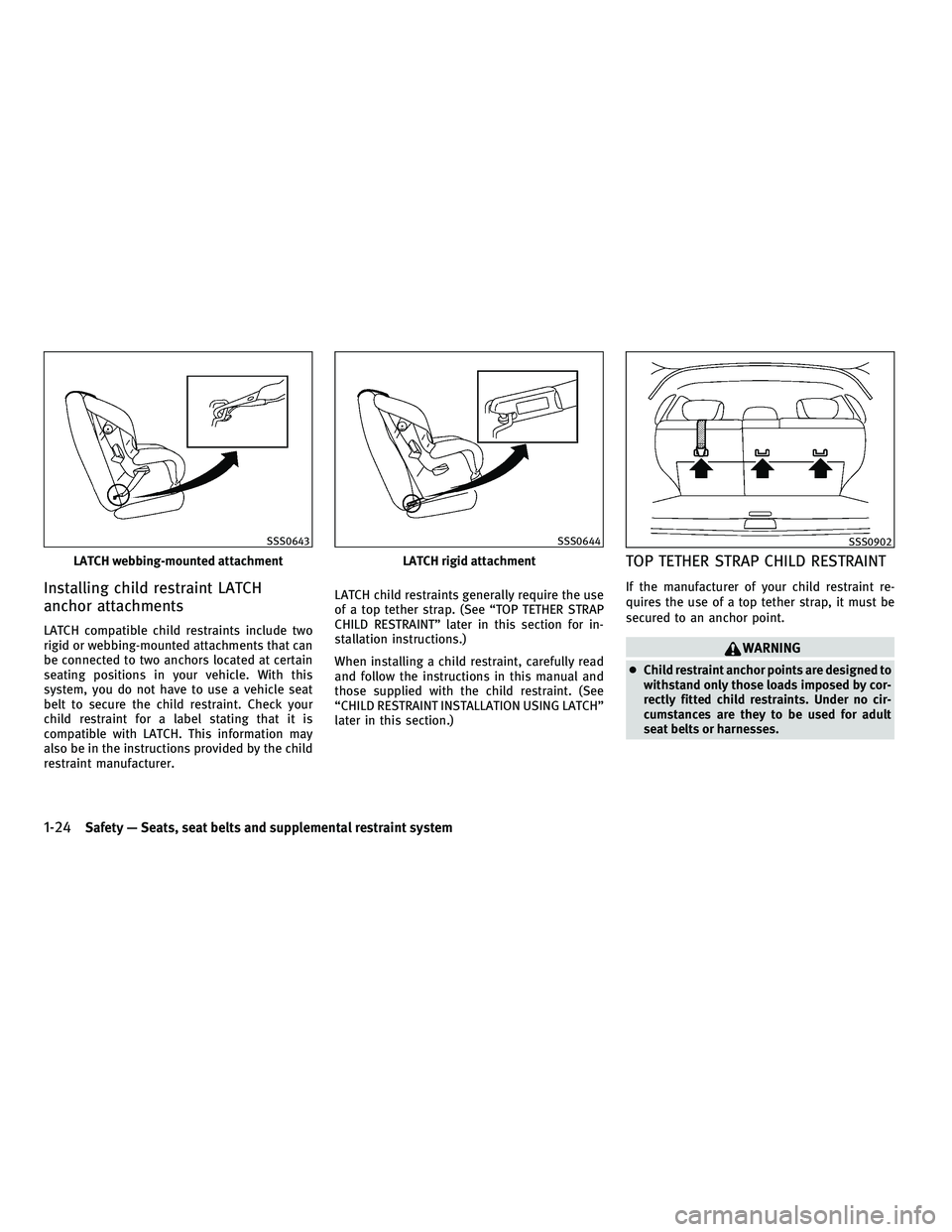

Installing child restraint LATCH
anchor attachments
LATCH compatible child restraints include two
rigid or webbing-mounted attachments that can
be connected to two anchors located at certain
seating positions in your vehicle. With this
system, you do not have to use a vehicle seat
belt to secure the child restraint. Check your
child restraint for a label stating that it is
compatible with LATCH. This information may
also be in the instructions provided by the child
restraint manufacturer.LATCH child restraints generally require the use
of a top tether strap. (See “TOP TETHER STRAP
CHILD RESTRAINT” later in this section for in-
stallation instructions.)
When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint. (See
“CHILD RESTRAINT INSTALLATION USING LATCH”
later in this section.)
TOP TETHER STRAP CHILD RESTRAINT
If the manufacturer of your child restraint re-
quires the use of a top tether strap, it must be
secured to an anchor point.
WARNING
●
Child restraint anchor points are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no cir-
cumstances are they to be used for adult
seat belts or harnesses.
LATCH webbing-mounted attachment
SSS0643
LATCH rigid attachment
SSS0644SSS0902
1-24Safety — Seats, seat belts and supplemental restraint system
—
—
07/30/09—pattie


●If the cargo cover contacts the top tether
strap when it is attached to the top tether
anchor, remove the cargo cover from the ve-
hicle or secure it on the cargo floor below its
attachment location. If the cargo cover is not
removed, it may damage the top tether strap
during a collision. Your child could be seri-
ously injured or killed in a collision if the
child restraint top tether strap is damaged.
● Do not allow cargo to contact the top tether
strap when it is attached to the top tether
anchor. Properly secure the cargo so it does
not contact the top tether strap. Cargo that is
not properly secured or cargo that contacts
the top tether strap may damage the top
tether strap during a collision. Your child
could be seriously injured or killed in a colli-
sion if the child restraint top tether strap is
damaged.

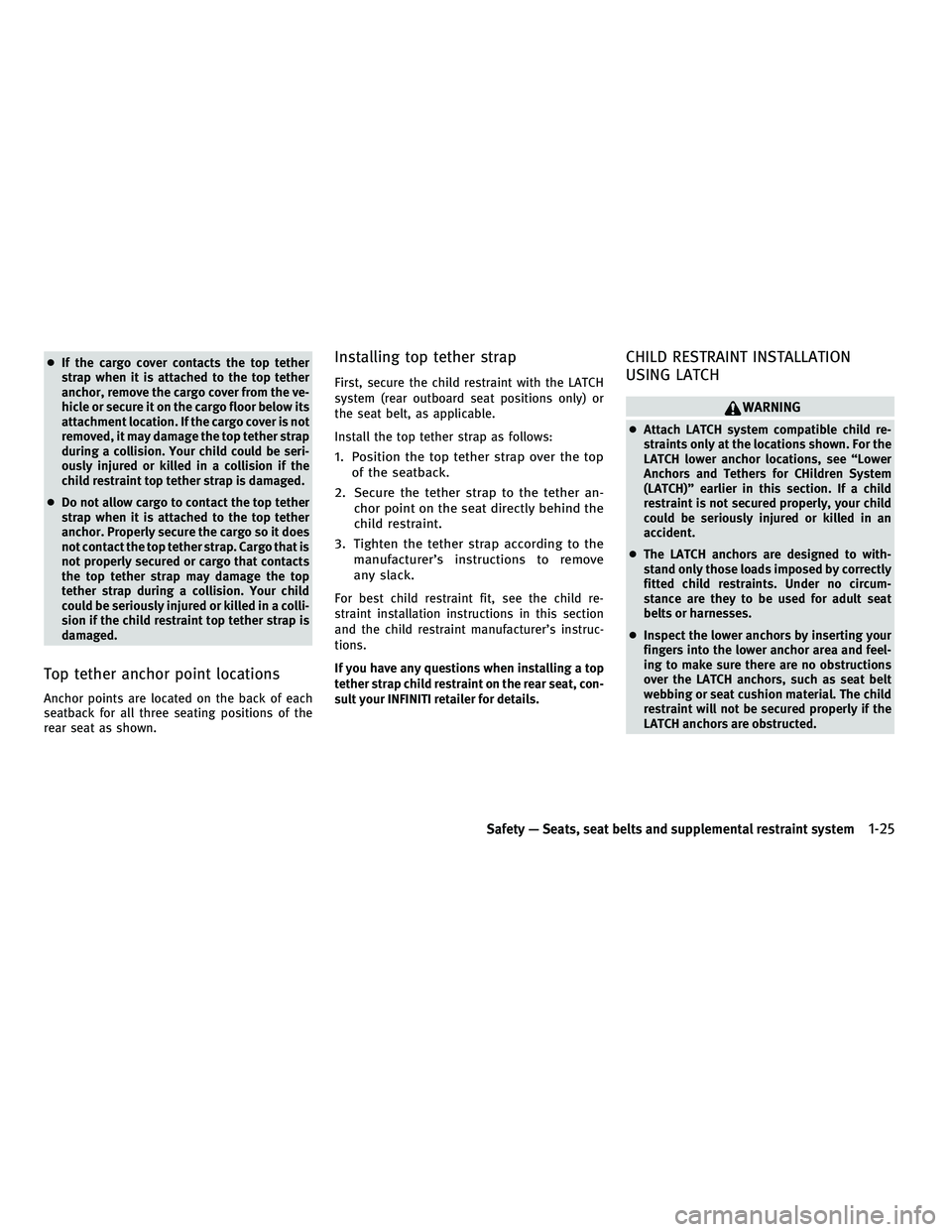

Top tether anchor point locations
Anchor points are located on the back of each
seatback for all three seating positions of the
rear seat as shown.
Installing top tether strap
First, secure the child restraint with the LATCH
system (rear outboard seat positions only) or
the seat belt, as applicable.
Install the top tether strap as follows:
1. Position the top tether strap over the top
of the seatback.
2. Secure the tether strap to the tether an- chor point on the seat directly behind the
child restraint.
3. Tighten the tether strap according to the manufacturer’s instructions to remove
any slack.
For best child restraint fit, see the child re-
straint installation instructions in this section
and the child restraint manufacturer’s instruc-
tions.
If you have any questions when installing a top
tether strap child restraint on the rear seat, con-
sult your INFINITI retailer for details.
CHILD RESTRAINT INSTALLATION
USING LATCH
WARNING
●Attach LATCH system compatible child re-
straints only at the locations shown. For the
LATCH lower anchor locations, see “Lower
Anchors and Tethers for CHildren System
(LATCH)” earlier in this section. If a child
restraint is not secured properly, your child
could be seriously injured or killed in an
accident.
● The LATCH anchors are designed to with-
stand only those loads imposed by correctly
fitted child restraints. Under no circum-
stance are they to be used for adult seat
belts or harnesses.
● Inspect the lower anchors by inserting your
fingers into the lower anchor area and feel-
ing to make sure there are no obstructions
over the LATCH anchors, such as seat belt
webbing or seat cushion material. The child
restraint will not be secured properly if the
LATCH anchors are obstructed.
Safety — Seats, seat belts and supplemental restraint system1-25
—
—
07/30/09—pattie


Front-facing
Follow these steps to install a front-facing child
restraint using the LATCH system:
1. Position the child restraint on the seat.Always follow the child restraint manufac-
turer’s instructions. 2. Secure the child restraint anchor attach-
ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is
properly attached to the lower anchors. 3. The back of the child restraint should be
secured against the vehicle seatback.
If necessary, adjust or remove the headrest
to obtain the correct child restraint fit. (See
“HEAD RESTRAINTS” earlier in this section.)
If the headrest is removed, store it in a
secure place. Be sure to reinstall the head-
rest when the child restraint is removed. If
the seating position does not have an ad-
justable headrest and it is interfering with
the proper child restraint fit, try another
seating position or a different child re-
straint.
Front-facing — step 2
SSS0645
Front-facing — step 2
SSS0646
1-26Safety — Seats, seat belts and supplemental restraint system
—
—
07/30/09—pattie

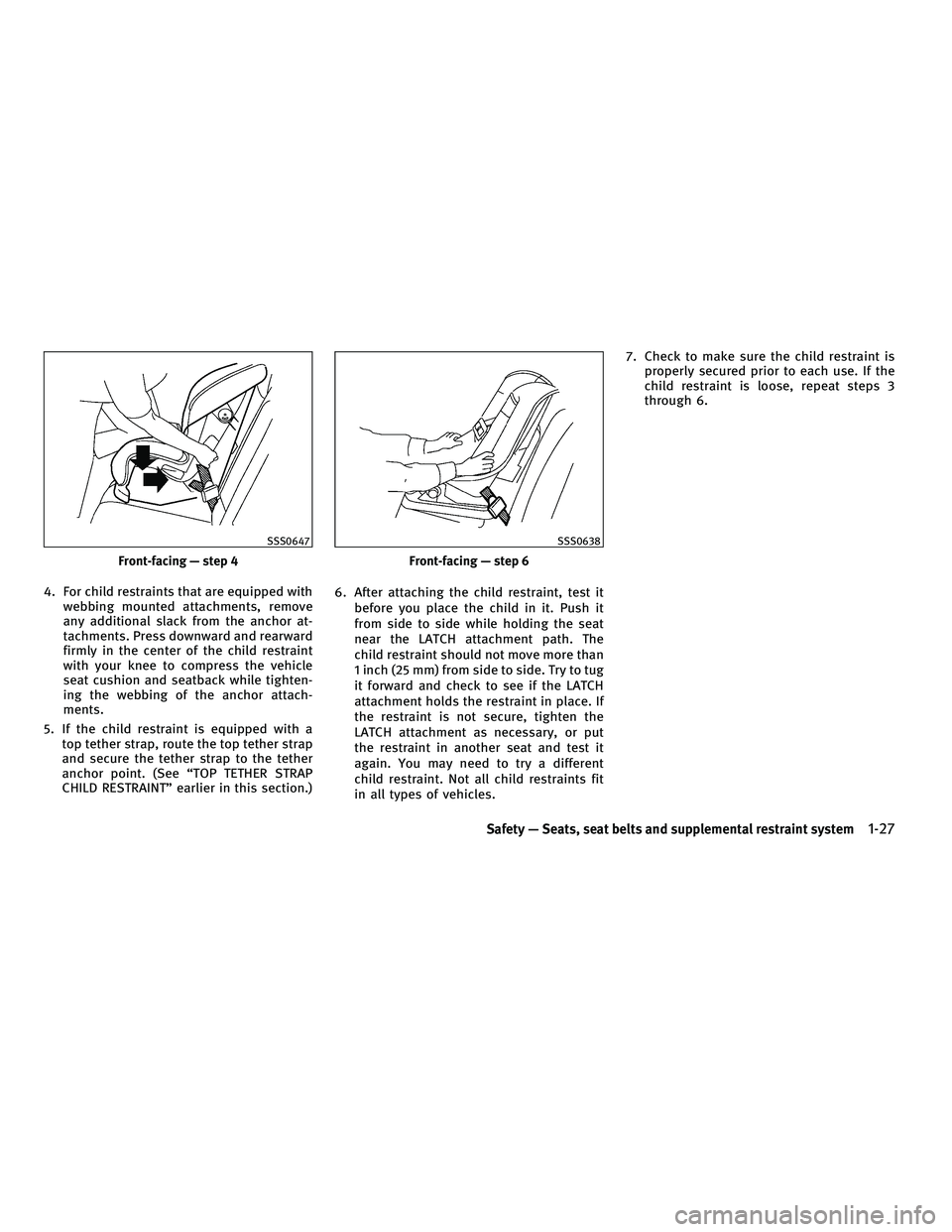

4. For child restraints that are equipped withwebbing mounted attachments, remove
any additional slack from the anchor at-
tachments. Press downward and rearward
firmly in the center of the child restraint
with your knee to compress the vehicle
seat cushion and seatback while tighten-
ing the webbing of the anchor attach-
ments.
5. If the child restraint is equipped with a top tether strap, route the top tether strap
and secure the tether strap to the tether
anchor point. (See “TOP TETHER STRAP
CHILD RESTRAINT” earlier in this section.) 6. After attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the seat
near the LATCH attachment path. The
child restraint should not move more than
1 inch (25 mm) from side to side. Try to tug
it forward and check to see if the LATCH
attachment holds the restraint in place. If
the restraint is not secure, tighten the
LATCH attachment as necessary, or put
the restraint in another seat and test it
again. You may need to try a different
child restraint. Not all child restraints fit
in all types of vehicles. 7. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 3
through 6.
Front-facing — step 4
SSS0647
Front-facing — step 6
SSS0638
Safety — Seats, seat belts and supplemental restraint system1-27
—
—
07/30/09—pattie

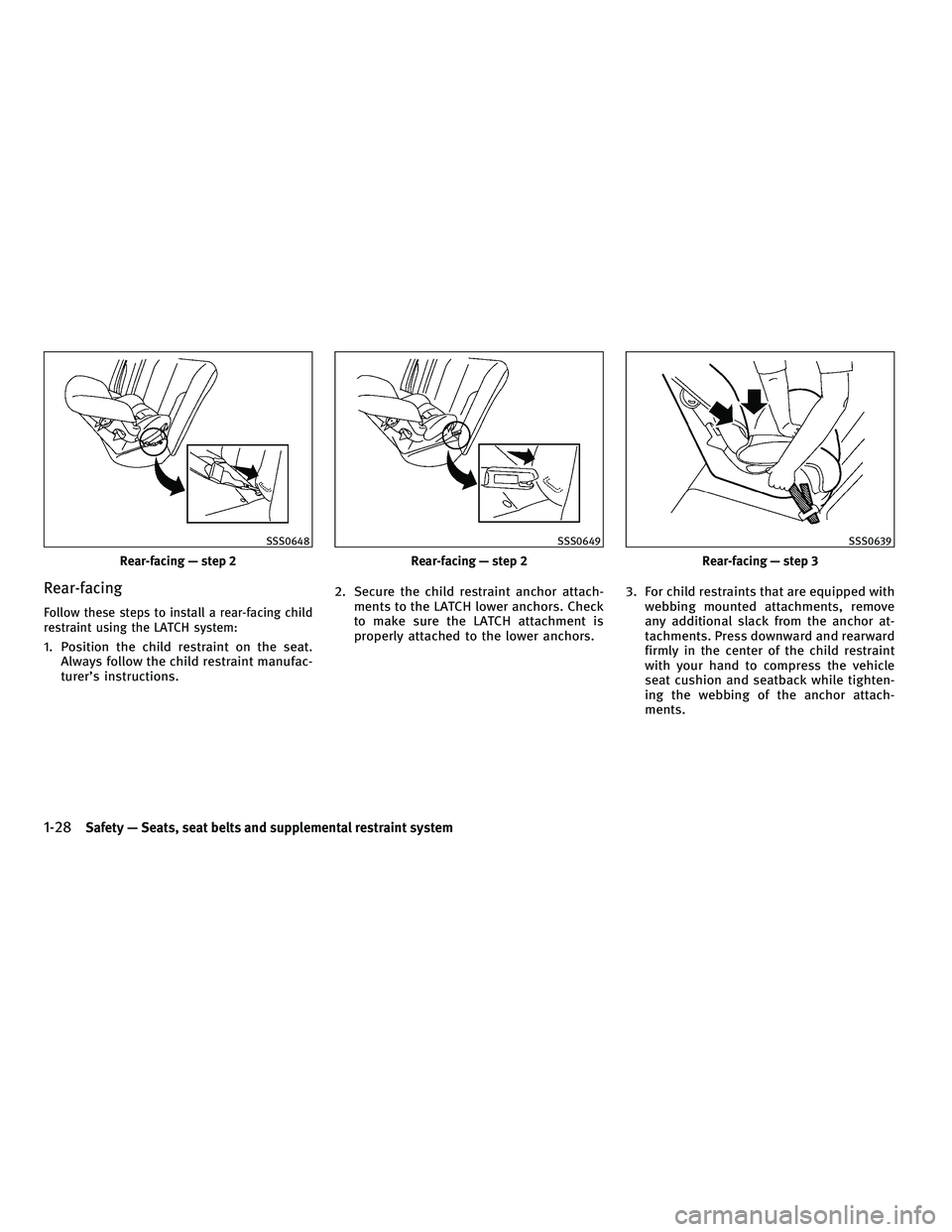

Rear-facing
Follow these steps to install a rear-facing child
restraint using the LATCH system:
1. Position the child restraint on the seat.Always follow the child restraint manufac-
turer’s instructions. 2. Secure the child restraint anchor attach-
ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is
properly attached to the lower anchors. 3. For child restraints that are equipped with
webbing mounted attachments, remove
any additional slack from the anchor at-
tachments. Press downward and rearward
firmly in the center of the child restraint
with your hand to compress the vehicle
seat cushion and seatback while tighten-
ing the webbing of the anchor attach-
ments.
Rear-facing — step 2
SSS0648
Rear-facing — step 2
SSS0649
Rear-facing — step 3
SSS0639
1-28Safety — Seats, seat belts and supplemental restraint system
—
—
07/30/09—pattie

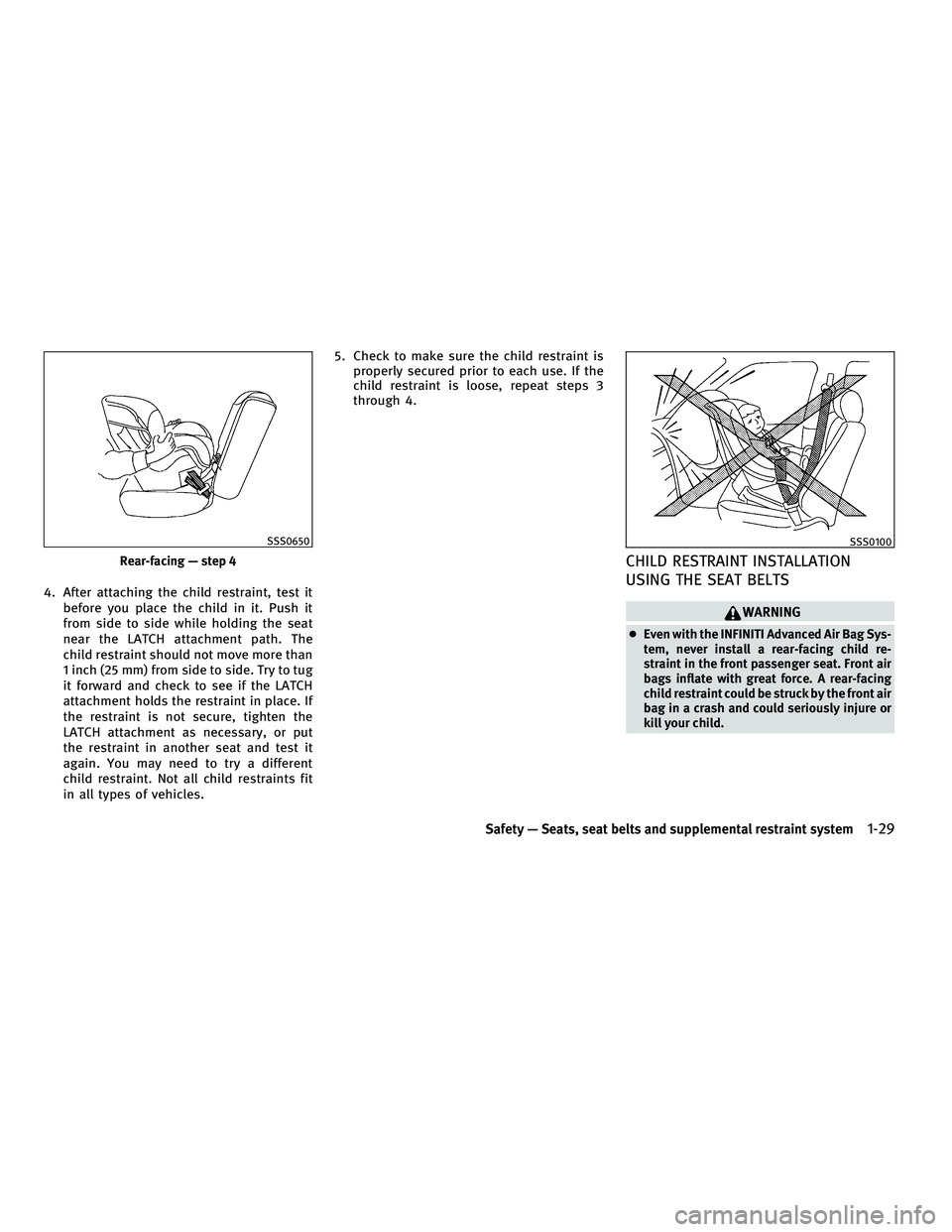

4. After attaching the child restraint, test itbefore you place the child in it. Push it
from side to side while holding the seat
near the LATCH attachment path. The
child restraint should not move more than
1 inch (25 mm) from side to side. Try to tug
it forward and check to see if the LATCH
attachment holds the restraint in place. If
the restraint is not secure, tighten the
LATCH attachment as necessary, or put
the restraint in another seat and test it
again. You may need to try a different
child restraint. Not all child restraints fit
in all types of vehicles. 5. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 3
through 4.
CHILD RESTRAINT INSTALLATION
USING THE SEAT BELTS
WARNING
●Even with the INFINITI Advanced Air Bag Sys-
tem, never install a rear-facing child re-
straint in the front passenger seat. Front air
bags inflate with great force. A rear-facing
child restraint could be struck by the front air
bag in a crash and could seriously injure or
kill your child.
Rear-facing — step 4
SSS0650SSS0100
Safety — Seats, seat belts and supplemental restraint system1-29
—
—
07/30/09—pattie


●INFINITI recommends that child restraints be
installed in the rear seat. However, if you
must install a front-facing child restraint in
the front passenger seat, move the passen-
ger seat to the rearmost position. Also, be
sure the front passenger air bag status light
is illuminated to indicate the passenger air
bag is OFF. See “Front passenger air bag and
status light” later in this section for details.
● The three-point seat belt in your vehicle is
equipped with an Automatic Locking Retrac-
tor (ALR) which must be used when installing
a child restraint.
● Failure to use the ALR mode will result in the
child restraint not being properly secured.
The restraint could tip over or otherwise be
unsecured and cause injury to the child in a
sudden stop or collision.
● A child restraint with a top tether strap
should not be used in the front passenger
seat.
The instructions in this section apply to child
restraint installation using the vehicle seat
belts in the rear seat or the front passenger
seat.
Front-facing
Follow these steps to install a front-facing child
restraint using the vehicle seat belt in the rear
seat or in the front passenger seat:
1. If you must install a child restraint in the
front seat, it should be placed in a front-
facing direction only. Move the seat to the
rearmost position. Child restraints for in-
fants must be used in the rear-facing direc-
tion and therefore must not be used in the
front seat. 2. Position the child restraint on the seat.
Always follow the child restraint manufac-
turer’s instructions.
The back of the child restraint should be
secured against the vehicle seatback.
If necessary, adjust or remove the head
restraint/headrest to obtain the correct
child restraint fit. (See “HEAD RESTRAINTS”
earlier in this section.)
If the head restraint/headrest is removed,
store it in a secure place. Be sure to reinstall
the head restraint/headrest when the child
restraint is removed.
If the seating position does not have an
adjustable head restraint/headrest and it is
interfering with the proper child restraint fit,
try another seating position or a different
child restraint.
Front-facing (front passenger seat) — step 1
SSS0640
1-30Safety — Seats, seat belts and supplemental restraint system
—
—
07/30/09—pattie

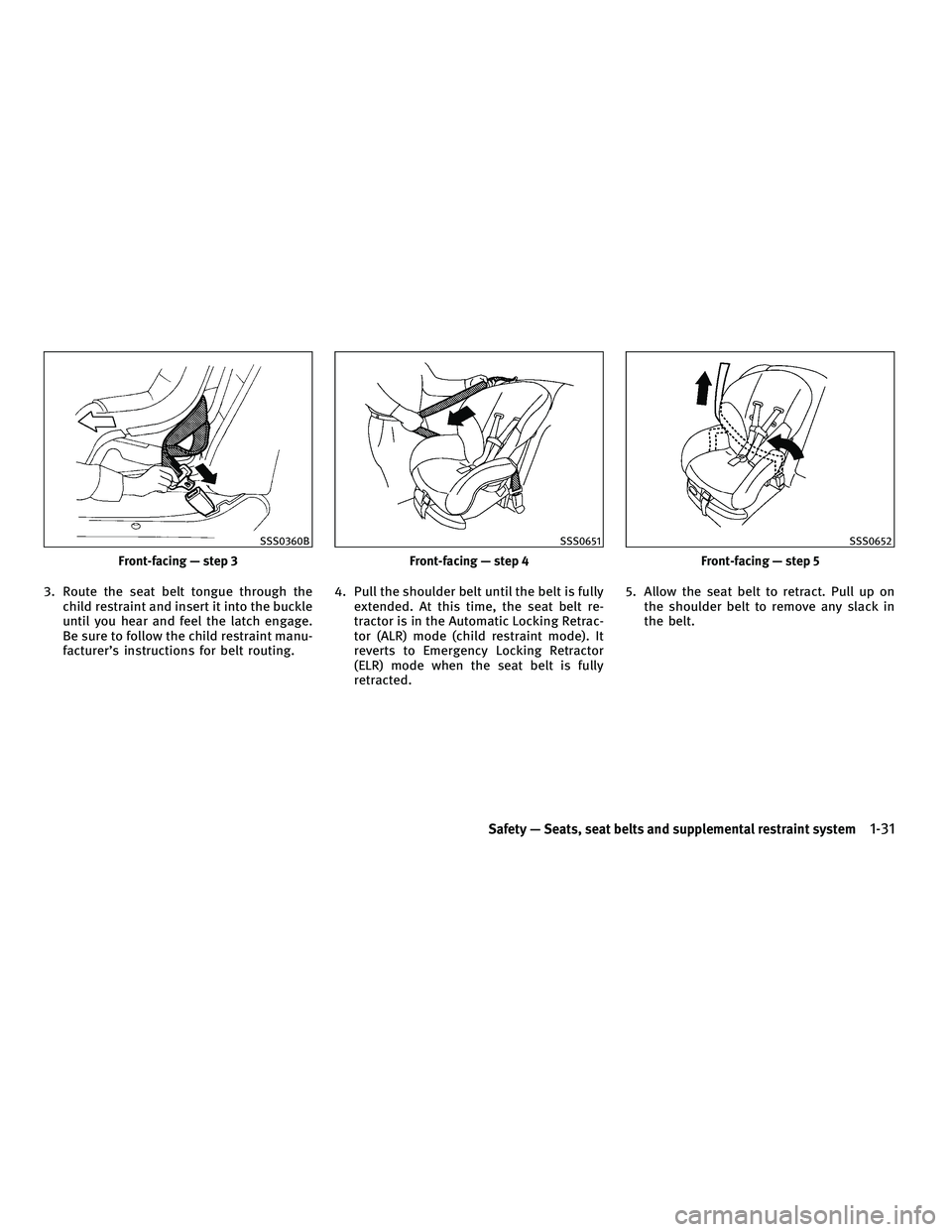

3. Route the seat belt tongue through thechild restraint and insert it into the buckle
until you hear and feel the latch engage.
Be sure to follow the child restraint manu-
facturer’s instructions for belt routing. 4. Pull the shoulder belt until the belt is fully
extended. At this time, the seat belt re-
tractor is in the Automatic Locking Retrac-
tor (ALR) mode (child restraint mode). It
reverts to Emergency Locking Retractor
(ELR) mode when the seat belt is fully
retracted. 5. Allow the seat belt to retract. Pull up on
the shoulder belt to remove any slack in
the belt.
Front-facing — step 3
SSS0360B
Front-facing — step 4
SSS0651
Front-facing — step 5
SSS0652
Safety — Seats, seat belts and supplemental restraint system1-31
—
—
07/30/09—pattie
