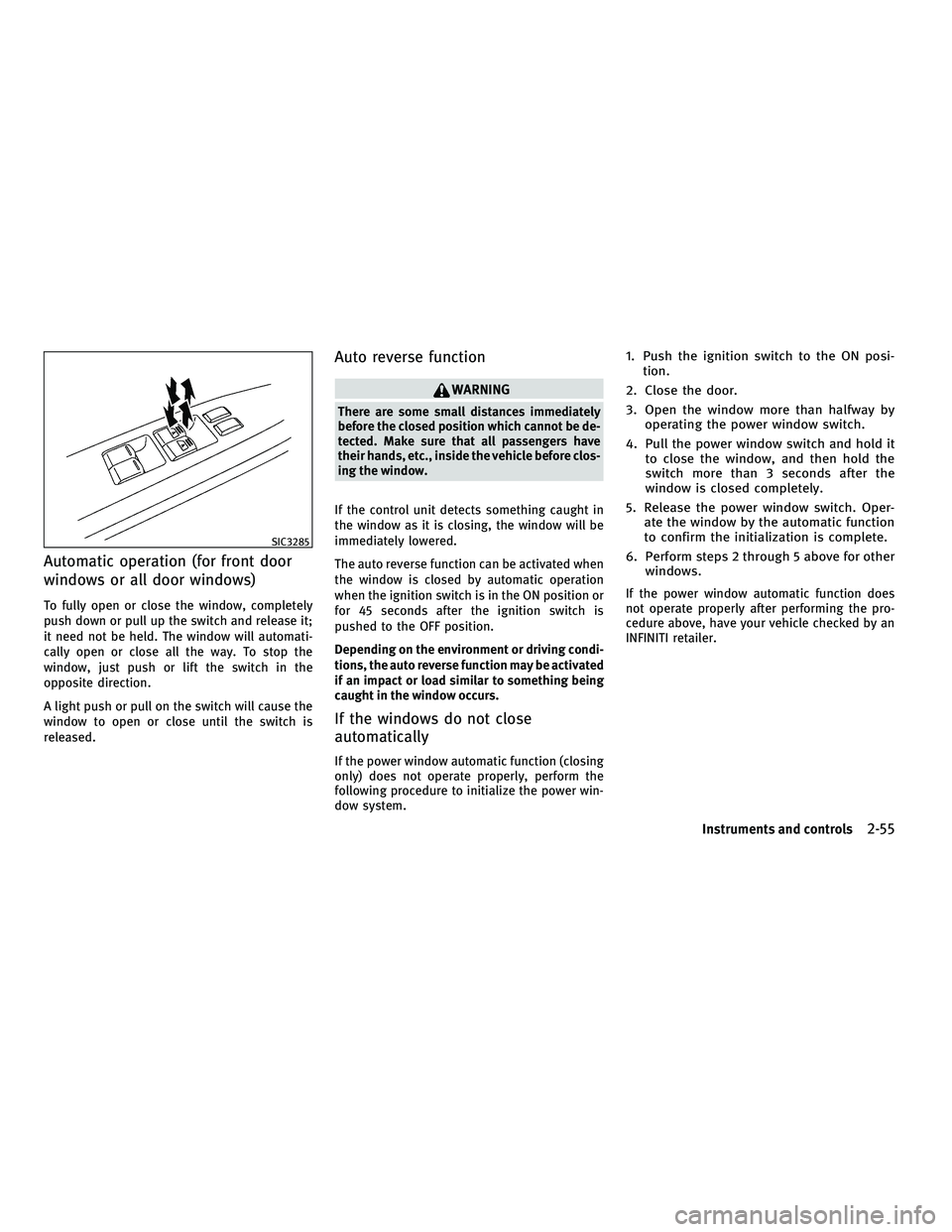

window INFINITI FX 2010 Owner's Manual

Automatic operation (for front door
windows or all door windows)
To fully open or close the window, completely
push down or pull up the switch and release it;
it need not be held. The window will automati-
cally open or close all the way. To stop the
window, just push or lift the switch in the
opposite direction.
A light push or pull on the switch will cause the
window to open or close until the switch is
released.
Auto reverse function
WARNING
There are some small distances immediately
before the closed position which cannot be de-
tected. Make sure that all passengers have
their hands, etc., inside the vehicle before clos-
ing the window.
If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.
The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is
pushed to the OFF position.
Depending on the environment or driving condi-
tions, the auto reverse function may be activated
if an impact or load similar to something being
caught in the window occurs.
If the windows do not close
automatically
If the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power win-
dow system.
1. Push the ignition switch to the ON posi- tion.
2. Close the door.
3. Open the window more than halfway by operating the power window switch.
4. Pull the power window switch and hold it to close the window, and then hold the
switch more than 3 seconds after the
window is closed completely.
5. Release the power window switch. Oper- ate the window by the automatic function
to confirm the initialization is complete.
6. Perform steps 2 through 5 above for other windows.
If the power window automatic function does
not operate properly after performing the pro-
cedure above, have your vehicle checked by an
INFINITI retailer.
SIC3285
Instruments and controls2-55
—
—
07/30/09—pattie


3 Pre-driving checks and adjustments
Keys............................................. 3-2
Intelligent Key ................................. 3-2
Valet hand-off .................................. 3-3
Doors ............................................ 3-4
Locking with mechanical key .................... 3-4
Opening and closing windows with the
mechanical key ................................ 3-4
Locking with inside lock knob ................... 3-5
Locking with power door lock switch ............. 3-5
Automatic door locks ........................... 3-5
Child safety rear door lock ...................... 3-6
Intelligent Key system ............................. 3-6
Intelligent Key operating range .................. 3-8
Door locks/unlocks precaution .................. 3-9
Intelligent Key operation ........................ 3-9
Battery saver system ........................... 3-11
Warning signals ................................ 3-11
Troubleshooting guide ......................... 3-12
Remote keyless entry system ......................3-13
How to use remote keyless entry system ........3-13 Hood
............................................ 3-16
Lift gate ......................................... 3-16
Lift gate release lever ........................... 3-17
Auto closure ................................... 3-17
Fuel-filler door ................................... 3-18
Opening the fuel-filler door ....................3-18
Fuel-filler cap ................................. 3-18
Tilt/telescopic steering ........................... 3-19
Manual operation (if so equipped) ..............3-20
Electric operation (if so equipped) ..............3-20
Sun visors ....................................... 3-21
Mirrors .......................................... 3-21
Inside mirror .................................. 3-21
Outside mirrors ............................... 3-23
Vanity mirror .................................. 3-24
Automatic drive positioner (if so equipped) .........3-25
Entry/exit function ............................ 3-25
Seat synchronization function ..................3-26
Memory storage ............................... 3-26
System operation ............................. 3-27
—
—
10/16/09—tbrooks


WARNING
●Always have the doors locked while driving.
Along with the use of seat belts, this pro-
vides greater safety in the event of an acci-
dent by helping to prevent persons from be-
ing thrown from the vehicle. This also helps
keep children and others from unintention-
ally opening the doors, and will help keep
out intruders.
● Before opening any door, always look for and
avoid oncoming traffic.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents.
LOCKING WITH MECHANICAL KEY
The power door lock system allows you to lock
or unlock all doors simultaneously using the
mechanical key.
● Turning the driver’s door key cylinder to the
front of the vehicle
1will lock all doors.
● Turning the driver’s door key cylinder once
to the rear of the vehicle
2will unlock the
driver’s door. After returning the key to the
neutral position
3, turning it to the rear
again within 60 seconds will unlock all
doors.
● You can switch the lock system to the mode
that allows you to open all the doors when
the key is turned once. (See “HOW TO USE SETTING BUTTON” in the “4. Monitor, cli-
mate, audio, phone and voice recognition
systems” section.)
OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY
The driver’s door key operation also allows you
to open and close all door windows.
To open the windows, turn the driver’s door key
cylinder to the rear of the vehicle for
longer than
1 second . The door is unlocked and the window
keeps opening while turning the key.
This function can also be performed by pushing
and holding the door UNLOCK button of the
Intelligent Key. (See “REMOTE KEYLESS ENTRY
SYSTEM” later in this section.)
To close the windows, turn the driver’s door key
cylinder to the front of the vehicle for longer
than 1 second . The door is locked and the
window keeps closing while turning the key.
SPA2457B
DOORS
3-4Pre-driving checks and adjustments
—
—
07/30/09—pattie


WARNING
The Intelligent Key transmits radio waves when
the buttons are pushed. The FAA advises that
radio waves may affect aircraft navigation and
communication systems. Do not operate the
Intelligent Key while on an airplane. Make sure
the buttons are not operated unintentionally
when the unit is stored for a flight.
It is possible to lock/unlock all doors, fuel-filler
door, activate the panic alarm and open the
windows by pushing the buttons on the Intelli-
gent Key from outside the vehicle.
Before locking the doors, make sure the Intelli-
gent Key is not left in the vehicle.
The LOCK/UNLOCK button on the Intelligent Key
can operate at a distance of approximately 33 ft
(10 m) from the vehicle. (The effective distance
depends upon the conditions around the ve-
hicle.)
As many as 4 Intelligent Keys can be used with
one vehicle. For information concerning the
purchase and use of additional Intelligent Keys,
contact an INFINITI retailer. The lock and unlock buttons on the Intelligent
Key will not operate when:
●
the distance between the Intelligent Key and
the vehicle is over 33 ft (10 m).
● the Intelligent Key battery runs down.
After locking with the remote keyless entry
function, pull the door handle to make sure the
doors are securely locked.
The LOCK/UNLOCK operating range varies de-
pending on the environment. To securely oper-
ate the lock and unlock buttons, approach the
vehicle to about 3 ft (1 m) from the door.
HOW TO USE REMOTE KEYLESS ENTRY
SYSTEM
When you lock or unlock the doors or the lift
gate, the hazard indicator will flash and the
horn (or the outside chime) will sound as a
confirmation. For details, see “Setting hazard
indicator and horn mode” later in this section.
Locking doors and fuel-filler door
1. Move the selector lever to the P (Park) position, push the ignition switch to the
OFF position and make sure you carry the
Intelligent Key with you.*1
2. Close all the doors and the lift gate.*2
SPA2252
REMOTE KEYLESS ENTRY SYSTEM
Pre-driving checks and adjustments3-13
—
—
07/30/09—pattie

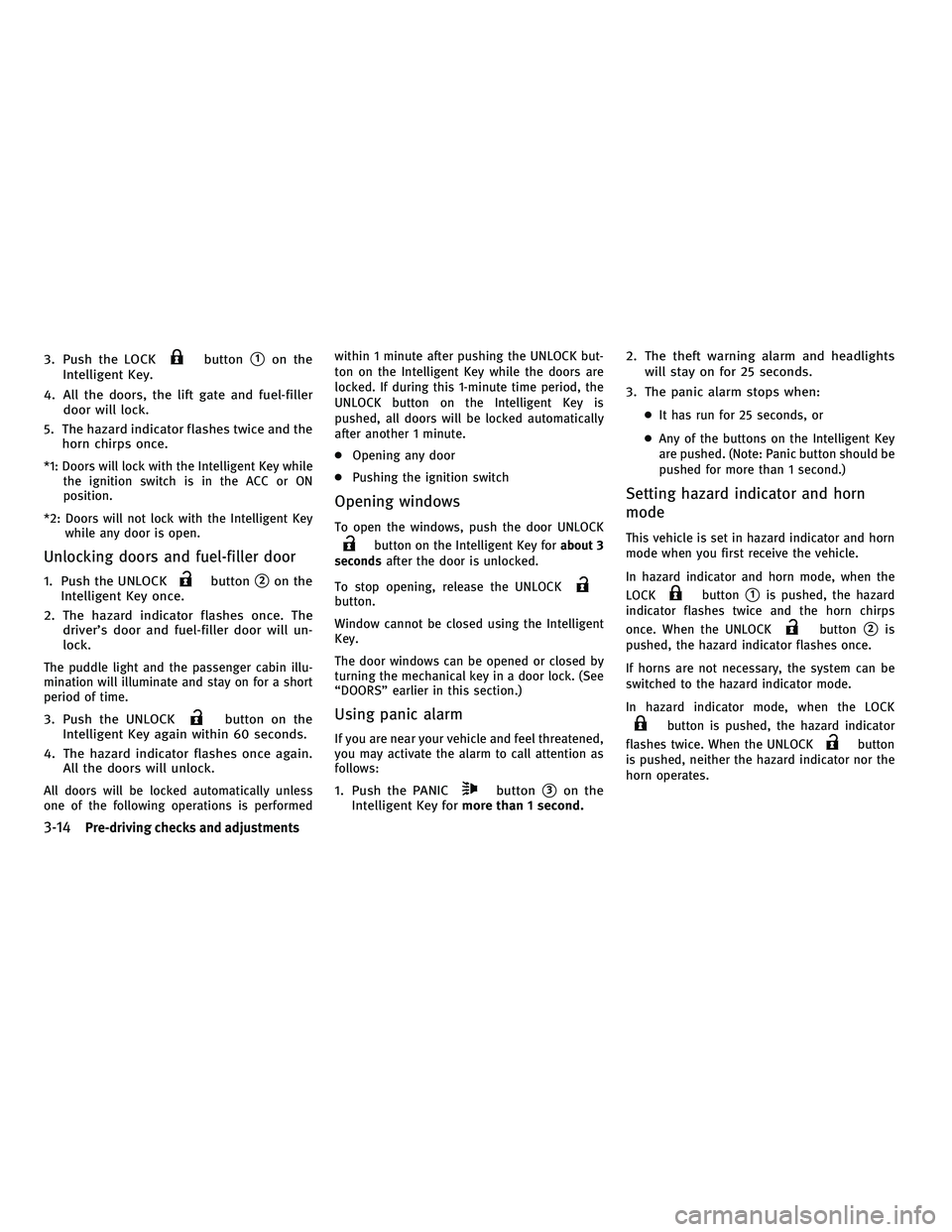

3. Push the LOCKbutton1on the
Intelligent Key.
4. All the doors, the lift gate and fuel-filler door will lock.
5. The hazard indicator flashes twice and the horn chirps once.
*1: Doors will lock with the Intelligent Key while the ignition switch is in the ACC or ON
position.
*2: Doors will not lock with the Intelligent Key while any door is open.
Unlocking doors and fuel-filler door
1. Push the UNLOCKbutton2on the
Intelligent Key once.
2. The hazard indicator flashes once. The driver’s door and fuel-filler door will un-
lock.
The puddle light and the passenger cabin illu-
mination will illuminate and stay on for a short
period of time.
3. Push the UNLOCKbutton on the
Intelligent Key again within 60 seconds.
4. The hazard indicator flashes once again. All the doors will unlock.
All doors will be locked automatically unless
one of the following operations is performed within 1 minute after pushing the UNLOCK but-
ton on the Intelligent Key while the doors are
locked. If during this 1-minute time period, the
UNLOCK button on the Intelligent Key is
pushed, all doors will be locked automatically
after another 1 minute.
●
Opening any door
● Pushing the ignition switch
Opening windows
To open the windows, push the door UNLOCK
button on the Intelligent Key for about 3
seconds after the door is unlocked.
To stop opening, release the UNLOCK
button.
Window cannot be closed using the Intelligent
Key.
The door windows can be opened or closed by
turning the mechanical key in a door lock. (See
“DOORS” earlier in this section.)
Using panic alarm
If you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANICbutton3on the
Intelligent Key for more than 1 second. 2. The theft warning alarm and headlights
will stay on for 25 seconds.
3. The panic alarm stops when:
● It has run for 25 seconds, or
● Any of the buttons on the Intelligent Key
are pushed. (Note: Panic button should be
pushed for more than 1 second.)
Setting hazard indicator and horn
mode
This vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK
button1is pushed, the hazard
indicator flashes twice and the horn chirps
once. When the UNLOCK
button2is
pushed, the hazard indicator flashes once.
If horns are not necessary, the system can be
switched to the hazard indicator mode.
In hazard indicator mode, when the LOCK
button is pushed, the hazard indicator
flashes twice. When the UNLOCK
button
is pushed, neither the hazard indicator nor the
horn operates.
3-14Pre-driving checks and adjustments
—
—
07/30/09—pattie


OUTSIDE MIRRORS
WARNING
Objects viewed in the outside mirror on the
passenger side are closer than they appear. Be
careful when moving to the right. Using only
this mirror could cause an accident. Use the
inside mirror or glance over your shoulder to
properly judge distances to other objects.
Adjusting outside mirrors
The outside mirror control switch is located at
the lower part of the instrument panel.
The outside mirror will operate only when the
ignition switch is in the ACC or ON position.Move the switch right
1or left2to select the
right or left side mirror, then adjust
3using
the control switch.
Defrosting outside mirrors
The outside mirrors will be heated when the
rear window defroster switch is operated. (See
“REAR WINDOW AND OUTSIDE MIRROR DE-
FROSTER SWITCH” in the “2. Instruments and
controls” section.)
CAUTION
● Do not touch the mirrors while they are mov-
ing. Your hand may be pinched, and the mir-
ror may malfunction.
● Do not drive with the mirrors stored. You will
be unable to see behind the vehicle.
●
If the mirrors were folded or unfolded by hand,
there is a chance that the mirror will move for-
ward or backward during driving. If the mirrors
were folded or unfolded by hand, be sure to
adjust them again electrically before driving.
Foldable outside mirrors
The outside rearview mirror remote control op-
erates when the ignition switch is in the “ACC”
or “ON” position.
SPA2214SPA1732A
Pre-driving checks and adjustments3-23
—
—
10/16/09—tbrooks


●Do not use alcohol, benzine or thinner to
clean the camera. This will cause discolora-
tion. To clean the camera, wipe with a cloth
dampened with diluted mild cleaning agent
and then wipe with a dry cloth.
● Do not damage the camera as the monitor
screen may be adversely affected.
● Do not use wax on the camera window. Wipe
off any wax with a clean cloth dampened
with mild detergent diluted with water.When you push the CAMERAbutton or shift the
selector lever into the “R” (Reverse) position
while the ignition switch is in the ON position, the
Around View Monitor operates. The monitor dis-
plays various views of the position of the vehicle.
Available views:
● Bird-Eye View
The surrounding view of the vehicle.
● Front-Side View
The view around and ahead of the front
passenger’s side wheel.
● Front View
The view to the front of the vehicle.
● RearView
The view to the rear of the vehicle.
● Rear-Wide View
An approximately 180-degree view of the
rear of the vehicle.
The system is designed as an aid to the driver in
situations such as slot parking or parallel
parking. There are some areas where the system will not
detect objects. When in the front or the rearview
display, an object below the bumper or on the
ground may not be detected
1. When in the
bird-eye view, a tall object near the seam of the
camera detecting areas will not appear in the
monitor
2.
SAA2148
AROUND VIEW MONITOR (if so equipped)
4-28Monitor, climate, audio, phone and voice recognition systems
—
—
03/16/10—tbrooks


WARNING
●The Around View Monitor is a convenience
but it is not a substitute for proper vehicle
operation because it has areas where ob-
jects cannot be viewed. Always look out the
windows and check mirrors to be sure that it
is safe to move before operating the vehicle.
Always operate the vehicle slowly.
● Do not use the Around View Monitor with the
outside mirror in the stored position, and
make sure that the lift gate is securely
closed when operating the vehicle using the
Around View Monitor.
● The distance between objects viewed on the
Around View Monitor differs from the actual
distance.
● The cameras are installed above the front
grille, the outside mirrors and above the rear
license plate. Do not put anything on the
cameras.
● When washing the vehicle with high-
pressure water, be sure not to spray it
around the cameras. Otherwise, water may
enter the camera unit causing water conden-
sation on the lens, a malfunction, fire or an
electric shock. ●
Do not strike the cameras. They are precision
instruments. Doing so could cause a mal-
function or cause damage resulting in a fire
or an electric shock.
CAUTION
Do not scratch the lens when cleaning dirt or
snow from the front of the camera.
NOTE:
The color of the view on the Around View Monitor
display is different from the actual view because
the system uses infrared cameras.
Monitor, climate, audio, phone and voice recognition systems4-29
—
—
03/16/10—tbrooks


Sonar Beep:
When this item is turned to ON, you will hear a
tone sound when the corner sonar indicator
appears.
Parking Sonar Display:
When this item is turned to ON, the corner sonar
indicator is displayed in the front-side view.
Corner Sensor Sensitivity:
Adjust the sensitivity level of the corner sonar
higher (right) or lower (left).
OPERATING TIPS
●The screen displayed on the Around View
Monitor will automatically return to the pre-
vious screen 3 minutes after the CAMERA
button has been pushed while the shift lever
is in a position other than the R (Reverse)
position.
● The display of images on the screen may be
delayed after screens are switched. Objects
in the Around View Monitor may be distorted
momentarily until the Around View Monitor
screen is displayed completely.
● When the temperature is extremely high or
low, the screen may not display objects
clearly. This is not a malfunction. ●
When strong light directly shines on the
camera, objects may not be displayed
clearly. This is not a malfunction.
● The screen may flicker under fluorescent
light. This is not a malfunction.
● The colors of objects on the Around View
Monitor may differ somewhat from those of
the actual object.
●
Objects on the monitor may not be clear and
the color of the object may differ in a dark
location or at night. This is not a malfunction.
●There may be differences in clearness be-
tween each camera view of the bird-eye view.
● If dirt, rain or snow attaches to the camera,
the Around View Monitor may not display
objects clearly. Clean the camera.
● Do not use alcohol, benzine or thinner to
clean the camera. This will cause discolora-
tion. To clean the camera, wipe with a cloth
that has been dampened with a diluted mild
cleaning agent and then wipe with a dry
cloth.
● Do not damage the camera because the
monitor screen may be adversely affected.
● Do not use wax on the camera window. Wipe
off any wax with a clean cloth that has been
dampened with a mild detergent diluted
with water.
Center ventilators
SAA2149
Side ventilators
SAA2150
VENTILATORS
Monitor, climate, audio, phone and voice recognition systems4-39
—
—
03/16/10—tbrooks


Open or close, and adjust the air flow direction
of ventilators.
: This symbol indicates that the vents areclosed.
: This symbol indicates that the vents areopen.
WARNING
● The air conditioner cooling function oper-
ates only when the engine is running.
● Do not leave children or adults who would
normally require the support of others alone
in your vehicle. Pets should not be left alone
either. On hot, sunny days, temperatures in
a closed vehicle could quickly become high
enough to cause severe or possibly fatal in-
juries to people or animals.
● Do not use the recirculation mode for long
periods as it may cause the interior air to
become stale and the windows to fog up.
Start the engine and operate the automatic
climate control system.
When the “STATUS” button is pushed, the
automatic climate control status screen will
appear. (See “HOW TO USE STATUS BUTTON”
earlier in this section.)
Rear
SAA2151
Models with navigation system
SAA2723
Models without navigation system
SAA1520
AUTOMATIC CLIMATE CONTROL
4-40Monitor, climate, audio, phone and voice recognition systems
—
—
03/16/10—tbrooks
