display INFINITI FX 2010 Workshop Manual

Backing up behind a projecting
object
The positionCis shown further than the
position
Bin the display. However, the posi-
tion
Cis actually at the same distance as the
position
A. The vehicle may hit the object when backing up to the position
Aif the object
projects over the actual backing up course.
HOW TO ADJUST SCREEN
To adjust the Display ON/OFF, Brightness, Tint,
Color, Contrast and Black Level of the rearview
monitor, push the SETTINGbutton with the
rearview monitor on, select the “Display” key
on the screen and select the item key and
adjust the level using the INFINITI controller.
Do not adjust the Brightness, Tint, Color, Con-
trast and Black Level of the rearview monitor
while the vehicle is moving. Make sure the
parking brake is firmly applied and the engine
is not running.
The display of the predicted course lines can be
set to ON or OFF. For details, see “CAMERA
settings” earlier in this section.
OPERATING TIPS
● When the selector lever is shifted to the “R”
(Reverse) position, the monitor screen auto-
matically changes to the rearview monitor
mode. However, the radio can be heard. ●
It may take some time until the rearview
monitor is displayed after the selector lever
has been shifted to “R” from another posi-
tion or to another position from “R”. Objects
may be distorted momentarily until the rear-
view monitor screen is displayed completely.
● When the temperature is extremely high or
low, the screen may not clearly display
objects. This is not a malfunction.
● When strong light directly enters the cam-
era, objects may not be displayed clearly.
This is not a malfunction.
● Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper. This is not a malfunction.
● The screen may flicker under fluorescent
light. This is not a malfunction.
● The colors of objects on the rearview monitor
may differ somewhat from those of the ac-
tual object.
● Objects on the monitor may not be clear in a
dark place or at night. This is not a malfunc-
tion.
● If dirt, rain or snow attaches to the camera,
the rearview monitor may not clearly display
objects. Clean the camera.
SAA1980
Monitor, climate, audio, phone and voice recognition systems4-27
—
—
07/30/09—pattie


●Do not use alcohol, benzine or thinner to
clean the camera. This will cause discolora-
tion. To clean the camera, wipe with a cloth
dampened with diluted mild cleaning agent
and then wipe with a dry cloth.
● Do not damage the camera as the monitor
screen may be adversely affected.
● Do not use wax on the camera window. Wipe
off any wax with a clean cloth dampened
with mild detergent diluted with water.When you push the CAMERAbutton or shift the
selector lever into the “R” (Reverse) position
while the ignition switch is in the ON position, the
Around View Monitor operates. The monitor dis-
plays various views of the position of the vehicle.
Available views:
● Bird-Eye View
The surrounding view of the vehicle.
● Front-Side View
The view around and ahead of the front
passenger’s side wheel.
● Front View
The view to the front of the vehicle.
● RearView
The view to the rear of the vehicle.
● Rear-Wide View
An approximately 180-degree view of the
rear of the vehicle.
The system is designed as an aid to the driver in
situations such as slot parking or parallel
parking. There are some areas where the system will not
detect objects. When in the front or the rearview
display, an object below the bumper or on the
ground may not be detected
1. When in the
bird-eye view, a tall object near the seam of the
camera detecting areas will not appear in the
monitor
2.
SAA2148
AROUND VIEW MONITOR (if so equipped)
4-28Monitor, climate, audio, phone and voice recognition systems
—
—
03/16/10—tbrooks


WARNING
●The Around View Monitor is a convenience
but it is not a substitute for proper vehicle
operation because it has areas where ob-
jects cannot be viewed. Always look out the
windows and check mirrors to be sure that it
is safe to move before operating the vehicle.
Always operate the vehicle slowly.
● Do not use the Around View Monitor with the
outside mirror in the stored position, and
make sure that the lift gate is securely
closed when operating the vehicle using the
Around View Monitor.
● The distance between objects viewed on the
Around View Monitor differs from the actual
distance.
● The cameras are installed above the front
grille, the outside mirrors and above the rear
license plate. Do not put anything on the
cameras.
● When washing the vehicle with high-
pressure water, be sure not to spray it
around the cameras. Otherwise, water may
enter the camera unit causing water conden-
sation on the lens, a malfunction, fire or an
electric shock. ●
Do not strike the cameras. They are precision
instruments. Doing so could cause a mal-
function or cause damage resulting in a fire
or an electric shock.
CAUTION
Do not scratch the lens when cleaning dirt or
snow from the front of the camera.
NOTE:
The color of the view on the Around View Monitor
display is different from the actual view because
the system uses infrared cameras.
Monitor, climate, audio, phone and voice recognition systems4-29
—
—
03/16/10—tbrooks


HOW TO SWITCH THE DISPLAY
The Around View Monitor display consists of the
left and the right screens. You can see a
combination of different views on the screens
as illustrated above.
Starting with the selector lever
operation
●When the selector lever is shifted into the
“R” (Reverse) position
1while another
screen
Ais displayed, Around View Monitor
operates and the rearview and bird-eye view
Bare displayed.
The Around View Monitor screen switches to
the previous screen when the selector is
shifted out of the “R” (Reverse) position
2.
● The view on the screen on the passenger’s
side switches to the front-side view
Cwhen
the CAMERA button is pushed
3. When the
CAMERA button is pushed again
5, the
rear-wide view
Dis displayed. When the
CAMERA button is pushed again
7, the
view on the screen on the passenger’s side
switches to the bird-eye view
B.
The passenger’s side screen returns to an-
other by operating the same procedures
again.
SAA3263
4-30Monitor, climate, audio, phone and voice recognition systems
—
—
03/16/10—tbrooks


When selecting the “Wide”, “Side” or “Top”
key on the screen using the INFINITI control-
ler and pushing theENTERbutton, the view
on the screen will change to the one previ-
ously selected
4,6,8.
● Once you have changed the view on the
screen on the passenger’s side, the view on
the driver’s side will change to the front view
by shifting the selector lever out of the “R”
(Reverse) position
12,14.
When the selector lever is moved to any
other position than the “R” (Reverse) posi-
tion while the rear-wide view
Dis dis-
played, another view that is set to a higher
priority will be displayed
16.
Starting with the CAMERA button
operation
● When the CAMERAbutton is pushed9
while another screenAis displayed,
Around View Monitor operates and the front
view and bird-eye view
Eare displayed.
● The view on the screen on the passenger’s
side switches to the front-side view
Fwhen
the CAMERA button is pushed
10. When the
CAMERA button is pushed again
11, the
view on the screen on the passenger’s side
switches to the bird-eye view
E. ●
When selecting the “Side” or “Top” key on
the screen using the INFINITI controller and
pushing the ENTERbutton, the view on the
screen will change to the one previously
selected
10,11.
● The left screen switches to the rearview
B,
Cwhen the selector lever is shifted into the
“R” (Reverse) position
13,15and returns to
the front view
E,Fwhen the selector lever
is shifted out of the “R” (Reverse) position
12,14.
● Push another button on the control panel to
quit the Around View Monitor.
HOW TO SEE EACH VIEW
WARNING
● The distance guide line and the vehicle
width line should be used as a reference only
when the vehicle is on a paved, level surface.
The distance viewed on the monitor is for
reference only and may be different than the
actual distance between the vehicle and dis-
played objects.
● Use the displayed lines and the bird-eye
view as a reference. The lines and the bird-
eye view are greatly affected by the number
of occupants, fuel level, vehicle position,
road condition and road grade. ●
If the tires are replaced with different sized
tires, the predicted course line and the bird-
eye view may be displayed incorrectly.
● When driving the vehicle up a hill, objects
viewed in the monitor are further than they
appear. When driving the vehicle down a hill,
objects viewed in the monitor are closer than
they appear. Use the mirrors or actually look
to properly judge distances to other objects.
The vehicle width and predicted course lines
are wider than the actual width and course.
Monitor, climate, audio, phone and voice recognition systems4-31
—
—
07/30/09—pattie


Front and rearview
Guiding lines, which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
A, are displayed on the
monitor.
Distance guide lines:
Indicate distances from the vehicle body.
● Red line
1: approx. 1.5 ft (0.5 m)
● Yellow line
2: approx. 3 ft (1 m)
● Green line
3: approx. 7 ft (2 m)
● Green line
4: approx. 10 ft (3 m)
Vehicle width guide lines
5:
Indicate the vehicle width when backing up.
Predicted course lines
6:
Indicate the predicted course when operating
the vehicle. The predicted course lines will be
displayed on the monitor when the steering
wheel is turned. The predicted course lines will
move depending on how much the steering
wheel is turned and will not be displayed while
the steering wheel is in the neutral position.
The front view will not be displayed when the
vehicle speed is above 6 MPH (10 km/h).
WARNING
● The distance between objects viewed in the
rearview differs from actual distance be-
cause a wide-angle lens is used. Objects in
the rearview will appear visually opposite
than when viewed in the rearview and out-
side mirrors.
● On a snow-covered or slippery road, there
may be a difference between the predicted
course line and the actual course line.
● If the battery is disconnected or becomes
discharged, the predicted course lines may
be displayed incorrectly. If this occurs, per-
form the following procedure:
– Drive the vehicle on a straight road for more than 5 minutes.
● When the steering wheel is turned with the
ignition switch in the “ACC” position, the
predicted course lines may be displayed
incorrectly.
● The displayed lines on the rearview will ap-
pear slightly off to the right because the
rearview camera is not installed in the rear
center of the vehicle.
Front view
SAA1840
Rearview
SAA1896
4-32Monitor, climate, audio, phone and voice recognition systems
—
—
07/30/09—pattie

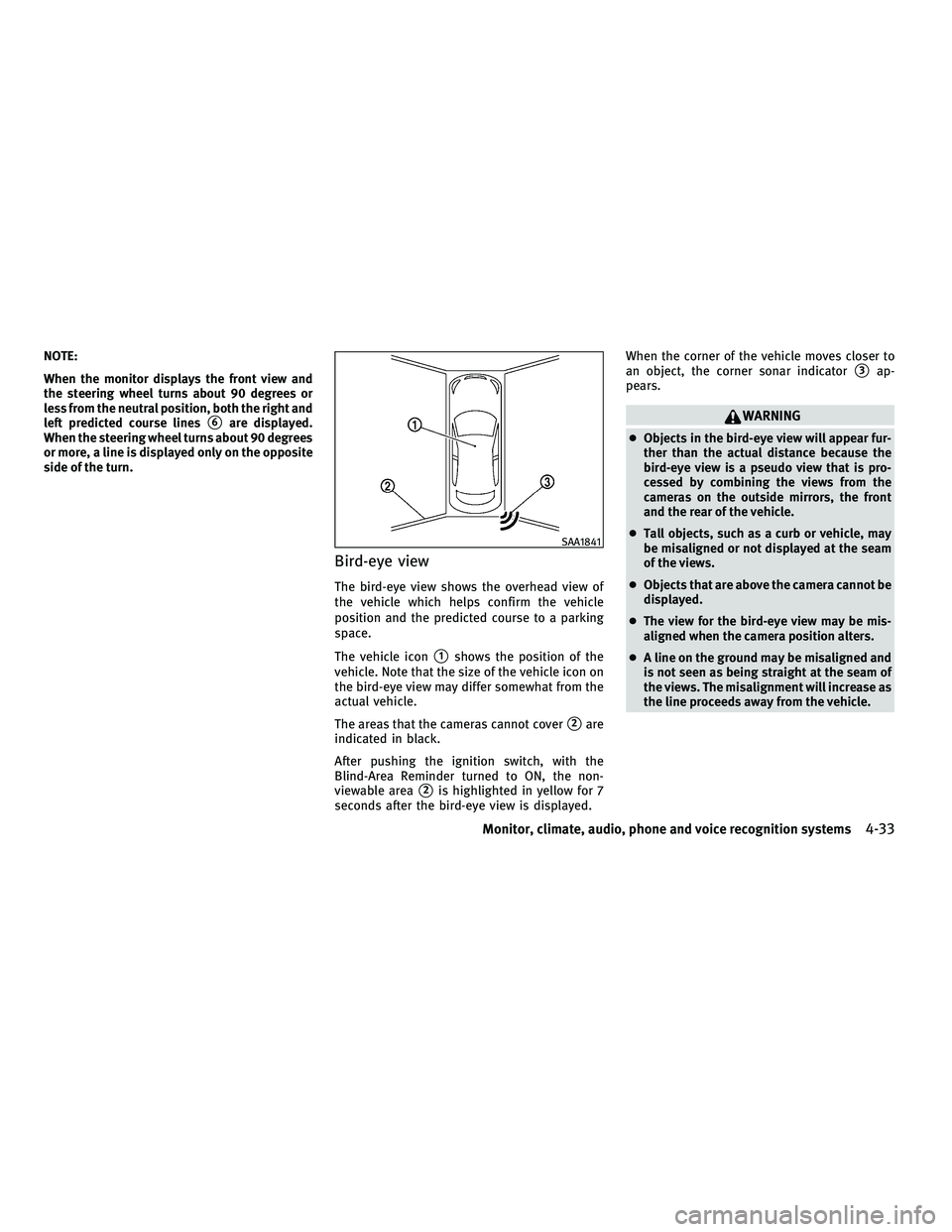

NOTE:
When the monitor displays the front view and
the steering wheel turns about 90 degrees or
less from the neutral position, both the right and
left predicted course lines
6are displayed.
When the steering wheel turns about 90 degrees
or more, a line is displayed only on the opposite
side of the turn.
Bird-eye view
The bird-eye view shows the overhead view of
the vehicle which helps confirm the vehicle
position and the predicted course to a parking
space.
The vehicle icon
1shows the position of the
vehicle. Note that the size of the vehicle icon on
the bird-eye view may differ somewhat from the
actual vehicle.
The areas that the cameras cannot cover
2are
indicated in black.
After pushing the ignition switch, with the
Blind-Area Reminder turned to ON, the non-
viewable area
2is highlighted in yellow for 7
seconds after the bird-eye view is displayed. When the corner of the vehicle moves closer to
an object, the corner sonar indicator
3ap-
pears.
WARNING
● Objects in the bird-eye view will appear fur-
ther than the actual distance because the
bird-eye view is a pseudo view that is pro-
cessed by combining the views from the
cameras on the outside mirrors, the front
and the rear of the vehicle.
● Tall objects, such as a curb or vehicle, may
be misaligned or not displayed at the seam
of the views.
● Objects that are above the camera cannot be
displayed.
● The view for the bird-eye view may be mis-
aligned when the camera position alters.
● A line on the ground may be misaligned and
is not seen as being straight at the seam of
the views. The misalignment will increase as
the line proceeds away from the vehicle.
SAA1841
Monitor, climate, audio, phone and voice recognition systems4-33
—
—
07/30/09—pattie


Front-side view
Guiding lines:
Guiding lines that indicate the width and the
front end of the vehicle are displayed on the
monitor.
The front-of-vehicle line
1shows the front part
of the vehicle.
The side-of-vehicle line
2shows the vehicle
width including the outside mirror.
The extensions
3of both the front1and side
2lines are shown with a green dotted line.
The corner sonar indicator
4will appear when
a corner of the vehicle moves closer to an
object. The corner sonar indicator
4can be turned off.
See “AROUND VIEW MONITOR SETTINGS” later
in this section.
CAUTION
The turn signal light may overlap with the side-
of-vehicle line. This is not a malfunction.
Infrared illumination:
The images on the front-side view can be dis-
played at night using the infrared illumination
on the outside mirror.
Rear-wide view
The rear-wide view shows a wider area on the
entire screen and allows the checking of the
blind corners on the right and left sides. The
rear-wide view displays an approximately 180-
degree area while the front view and the rear-
view display an approximately 150-degree area.
The predicted course lines are not displayed on
the rear-wide view.
SAA1842SAA2629
4-34Monitor, climate, audio, phone and voice recognition systems
—
—
07/30/09—pattie


Distance guide lines:
Indicates distances from the vehicle body.
●Red line
1: approx. 1.5 ft (0.5 m)
● Yellow line
2: approx. 3 ft (1 m)
● Green line
3: approx. 7 ft (2 m)
● Green line
4: approx. 10 ft (3 m)
Vehicle width guide lines
5:
Indicates the vehicle width when backing up.
The corner sonar indicator
6will appear when
a corner of the vehicle moves closer to an
object.
DIFFERENCE BETWEEN PREDICTED AND
ACTUAL DISTANCES
The distance guide line and the vehicle width
guide line on the front and the rearview should
be used as a reference only when the vehicle is
on a level, paved surface. The distance viewed
on the monitor is for reference only and may be
different than the actual distance between the
vehicle and displayed objects.
Moving to a steep uphill
When moving the vehicle up a hill, the distance
guide lines and the vehicle width guide lines
are shown closer than the actual distance. For
example, the display shows 3 ft (1.0 m) to the
place
A, but the actual 3 ft (1.0 m) distance on the hill is the place
B. Note that any object on
the hill is viewed in the monitor further than it
appears.
SAA1978
Monitor, climate, audio, phone and voice recognition systems4-35
—
—
07/30/09—pattie


Moving to a steep downhill
When moving the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown further than the actual
distance. For example, the display shows 3 ft
(1.0 m) to the place
A, but the actual 3 ft (1.0m) distance on the hill is the place
B. Note that
any object on the hill is viewed in the monitor
closer than it appears.
Moving near a projecting object
The predicted course linesAdo not touch the
object in the display. However, the vehicle may
hit the object if it projects over the actual
moving course.
SAA1979SAA1923
4-36Monitor, climate, audio, phone and voice recognition systems
—
—
07/30/09—pattie
