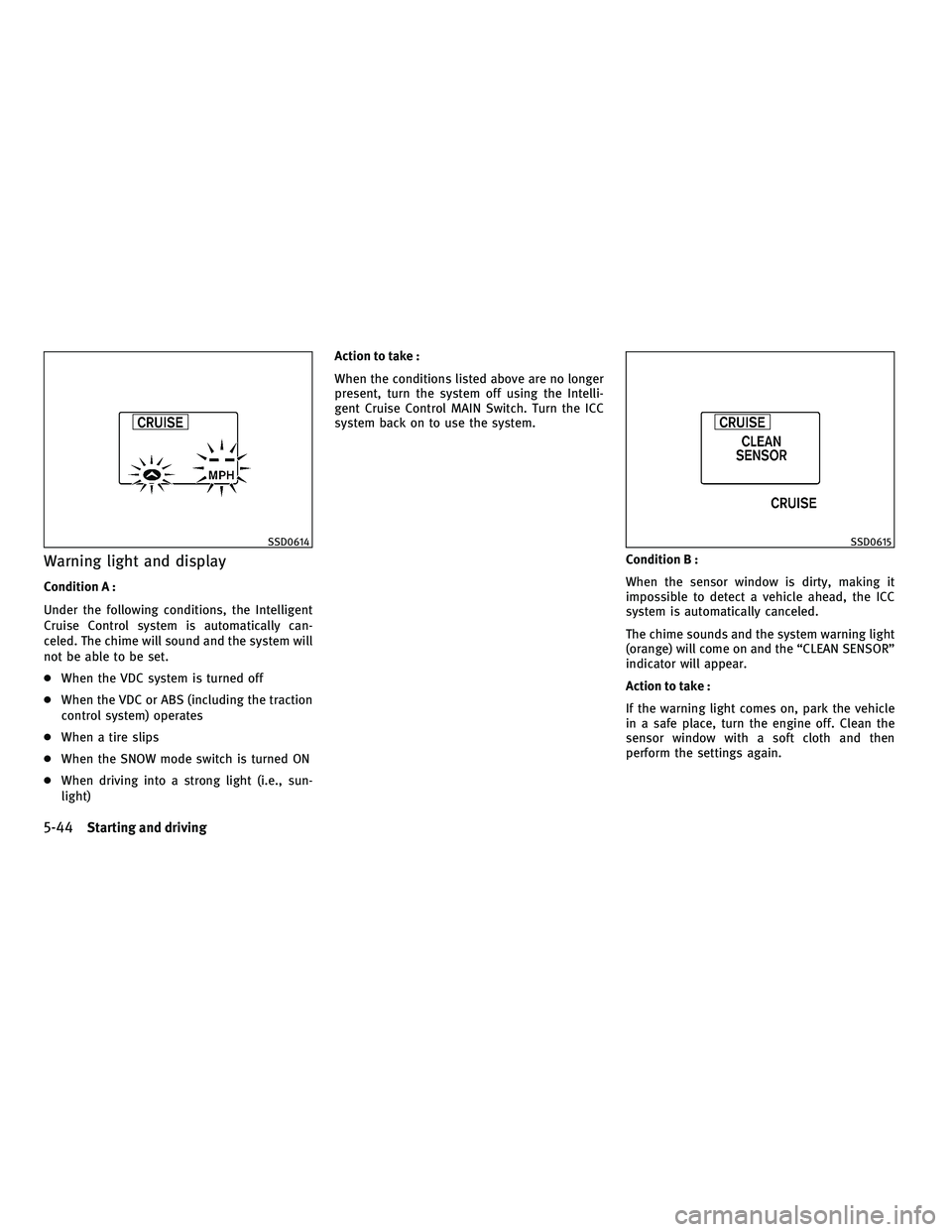

Warning light and display
Condition A :
Under the following conditions, the Intelligent
Cruise Control system is automatically can-
celed. The chime will sound and the system will
not be able to be set.
●When the VDC system is turned off
● When the VDC or ABS (including the traction
control system) operates
● When a tire slips
● When the SNOW mode switch is turned ON
● When driving into a strong light (i.e., sun-
light) Action to take :
When the conditions listed above are no longer
present, turn the system off using the Intelli-
gent Cruise Control MAIN Switch. Turn the ICC
system back on to use the system.
Condition B :
When the sensor window is dirty, making it
impossible to detect a vehicle ahead, the ICC
system is automatically canceled.
The chime sounds and the system warning light
(orange) will come on and the “CLEAN SENSOR”
indicator will appear.
Action to take :
If the warning light comes on, park the vehicle
in a safe place, turn the engine off. Clean the
sensor window with a soft cloth and then
perform the settings again.
SSD0614SSD0615
5-44Starting and driving
—
—
08/03/09—pattie


Condition C :
When the ICC system is not operating properly,
the chime sounds and the system warning light
(orange) will come on.
Action to take :
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and set the ICC system
again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the sys-
tem is malfunctioning. Although the vehicle is
still driveable under normal conditions, have the
vehicle checked at an INFINITI retailer.Sensor maintenance
The sensor for the ICC systemAis located
below the front bumper.
To keep the ICC system operating properly, be
sure to observe the following:
● Always keep the sensor clean. Wipe with a
soft cloth carefully so as not to damage the
sensor.
● Do not strike or damage the areas around
the sensor. Do not touch or remove the
screw located on the sensor. Doing so could
cause failure or malfunction. If the sensor is
damaged due to an accident, contact an
INFINITI retailer. ●
Do not attach a sticker (including transpar-
ent material) or install an accessory near the
sensor. This could cause failure or malfunc-
tion.
CONVENTIONAL (FIXED SPEED) CRUISE
CONTROL MODE
This mode allows driving at a speed between 25
to 90 MPH (40 to 144 km/h) without keeping
your foot on the accelerator pedal.
WARNING
● In the conventional (fixed speed) cruise con-
trol mode, a warning chime does not sound
to warn you if you are too close to the vehicle
ahead, as neither the presence of the vehicle
ahead nor the vehicle-to-vehicle distance is
detected.
● Pay special attention to the distance be-
tween your vehicle and the vehicle ahead of
you or a collision could occur.
● Always confirm the setting in the Intelligent
Cruise Control system display.
● Do not use the conventional (fixed speed)
cruise control mode when driving under the
following conditions:
– when it is not possible to keep the vehicle at a set speedSSD0621SSD0738
Starting and driving5-45
—
—
08/03/09—pattie


b) Tap the brake pedal. The SET indicatorwill go out.
c) Turn the MAIN switch off. Both the CRUISE indicator and SET indicator will go out.
To reset at a faster cruising speed, use one of
the following three methods:
a) Depress the accelerator pedal. When the vehicle attains the desired speed, push
and release the SET/COAST switch.
b) Push and hold the RESUME/ACCELERATE set switch. When the vehicle attains the
speed you desire, release the switch.
c) Push, then quickly release the RESUME/ACCELERATE switch. Each time
you do this, the set speed will increase by
about 1 MPH (1.6 km/h).
To reset at a slower cruising speed, use one of
the following three methods:
a) Lightly tap the brake pedal. When the vehicle attains the desired speed, push
the SET/COAST switch and release it.
b) Push and hold the SET/COAST switch. Release the switch when the vehicle
slows down to the desired speed.
c) Push, then quickly release the SET/COAST switch. Each time you do this, the set
speed will decrease by about 1 MPH (1.6
km/h).
To resume the preset speed, push and release
the RESUME/ACCELERATE switch. The vehicle
will resume the last set cruising speed when the
vehicle speed is over 25 MPH (40 km/h).
Automatic cancellation
Under the following condition, a chime will
sound and the system control is automatically
canceled.
● When the vehicle slows down more than 8
MPH (13 km/h) below the set speed
● When the vehicle speed falls below approxi-
mately 20 MPH (32 km/h)
● When the selector lever is not in the D, DS or
Manual mode
● When the parking brake is applied
● When the VDC (including the traction control
system) operates
● When a wheel slips
Warning light
When the system is not operating properly, the
chime sounds and the system warning light
(orange) will come on.
Action to take :
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and then perform the
setting again.
If it is not possible to set or the indicator stays
on, it may indicate that the system is malfunc-
tioning. Although the vehicle is still driveable
under normal conditions, have the vehicle
checked at an INFINITI retailer.
SSD0621
5-48Starting and driving
—
—
08/03/09—pattie


Operating Distance Control Assist
(DCA) system
To turn on the DCA system, push the DCA switch
on the steering wheel after starting the engine.
The Distance Control Assist (DCA) system switch
indicator light in the dot matrix liquid crystal
display will illuminate. Push the DCA switch
again to turn off the DCA system. The Distance
Control Assist (DCA) system switch indicator
light will turn off.
The system will start to operate after the vehicle
speed becomes above approximately 3 MPH
(5 km/h).
WARNING
When the DCA system is not necessary, be sure
to turn off the DCA switch. Using the system
when it is not necessary may result in an
accident.
The DCA switch is used as both the LDP and DCA
system. When the DCA switch is pushed, the
LDP system will also turn on or off simulta-
neously. The DCA system can be individually set
to on or off on the display. If the system is set
to off, the system will not turn on even if the
DCA switch is pushed to on. To set the system
to on or off on the display, see “Setting DCA
system to ON/OFF” later in this section.
SSD0920SSD0884
SSD0885
5-54Starting and driving
—
—
08/03/09—pattie


●When ABS or VDC (including the traction
control system) is operating
● When driving into a strong light (i.e., sun-
light)
When the Conventional (fixed speed) cruise
control mode is operating, the DCA system will
not operate. (To use the DCA system, turn the
Conventional (fixed speed) cruise control mode
off, then push the DCA switch.)
For details about the Conventional (fixed speed)
cruise control mode, see “INTELLIGENT CRUISE
CONTROL (ICC) SYSTEM (FULL SPEED RANGE)”
earlier in this section.
When the engine is turned off, the system is
automatically turned off.
5-56Starting and driving
—
—
08/03/09—pattie


Action to take :
When the conditions listed above are no longer
present, turn the system off with the DCA
switch. Turn the DCA system back on to use the
system.Condition B :
When the sensor window is dirty, making it
impossible to detect a vehicle ahead, the DCA
system is automatically canceled.
The chime sounds and the system warning light
(orange) will come on and the “CLEAN SENSOR”
indicator will appear.
Action to take :
If the warning light comes on, park the vehicle
in a safe place, turn the engine off. Clean the
sensor window with a soft cloth and then
perform the settings again.Condition C :
When the DCA system is not operating properly,
the chime sounds and the system warning light
(“CRUISE” orange) will come on.
Action to take :
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, and turn on the DCA system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the sys-
tem is malfunctioning. Although the vehicle is
still driveable under normal conditions, have the
vehicle checked at an INFINITI retailer.
SSD0772SSD0787
5-60Starting and driving
—
—
08/03/09—pattie


– When abruptly accelerating ordecelerating.
– On a steep downhill slope or on roads with sharp curves.
– When there is a highly reflective object near the vehicle ahead (i.e., being very
close to another vehicle, signboard, etc.)
– When you are towing a trailer.
● Depending on certain road conditions
(curved or beginning of a curve), vehicle con-
ditions (steering position or vehicle posi-
tion), or the preceding vehicle’s conditions
(position in lane, etc.), the system may not
function properly. The system may detect
highly reflective objects such as reflectors,
signs, white markers, and other stationary
objects on the road or near the traveling lane
and provide unnecessary warning.
● The system may not function in offset
conditions.
● The system may not function when the dis-
tance to the vehicle ahead is extremely
close. ●
The system is designed to automatically
check the sensor’s functionality. If the sen-
sor is covered with ice, a transparent or
translucent plastic bag, etc., the system may
not detect them. In these instances the sys-
tem may not be able to warn the driver prop-
erly. Be sure to check and clean the sensor
regularly.
● Excessive noise will interfere with the warn-
ing chime sound, and the chime may not be
heard.
● A sudden appearance of a vehicle in front
(i.e., it abruptly cuts in) may not be detected
and the system may not warn the driver soon
enough.
● The system will be cancelled automatically
with a beep sound and the IBA OFF indicator
light will illuminate under the following
conditions:
– When the sensor window is dirty
– When the system malfunctions If the IBA OFF indicator light
Ailluminates with
a beep sound, pull off the road to a safe
location, stop the vehicle and turn the engine
off. Check to see if the sensor window is dirty.
If the sensor window is dirty, clean it with a soft
cloth and restart the engine. If the sensor
window is not dirty, restart the engine. If the
IBA OFF indicator light continues to illuminate
even if the IBA system is turned on with the IBA
OFF switch
B, have the system checked by an
INFINITI retailer.
To turn on the IBA system, see “INTELLIGENT
BRAKE ASSIST (IBA) SYSTEM” later in this sec-
tion.
SSD0748
Starting and driving5-63
—
—
08/03/09—pattie


●The system is designed to automatically
check the sensor’s functionality. If the sen-
sor is covered with ice, a transparent or
translucent plastic bag, etc., the system may
not detect them. In these instances the sys-
tem may not be able to warn the driver prop-
erly. Be sure to check and clean the sensor
regularly.
● Excessive noise will interfere with the warn-
ing chime sound, and the chime may not be
heard.
● Never place your foot under the brake pedal
when the IBA system turns on. Your foot may
be caught when the system controls the
brake.
● A sudden appearance of a vehicle in front
(i.e., it abruptly cuts in) may not be detected
and the system may not warn the driver soon
enough.
● The system will be cancelled automatically
with a beep sound and the IBA warning light
will illuminate under the following
conditions:
– When the sensor window is dirty
– When the system malfunctions If the IBA OFF indicator light illuminates with a
beep sound, pull off the road to a safe location,
stop the vehicle and turn the engine off. Check
to see if the sensor window is dirty. If the
sensor window is dirty, clean it with a soft cloth
and restart the engine. If the sensor window is
not dirty, restart the engine. If the IBA OFF
indicator light continues to illuminate even if
the IBA system is turned on, have the system
checked by an INFINITI retailer.
IBA system operation
The IBA system will function when your vehicle
is driven at speeds of approximately 10 MPH (15
km/h) or above, and when the vehicle’s speed
is approximately 10 MPH (15 km/h) faster than
that of the vehicle ahead.
To turn the system off/on, push and hold the
IBA OFF switch
Bfor more than 1 second after
starting the engine. When the IBA OFF indicator
light
Aon the instrument panel turns off and
the IBA OFF switch is pushed, the system will
turn off and the IBA OFF indicator light will
illuminate. When the IBA OFF switch is pushed
again, the system will turn on and the IBA OFF
indicator light will turn off.
SSD0748
Starting and driving5-67
—
—
08/03/09—pattie


The IBA system will remain in the last ON or OFF
state it was left in until it is manually changed
by pressing the IBA OFF switch.
Illumination of the IBA OFF indicator light with-
out the warning chime sound is an indication
that the IBA system is temporarily unavailable.
It will occur under the following conditions:
– When driving into a strong light (for example,sunlight)
The IBA OFF indicator light will turn off when the
system returns to its normal operating condi-
tions.
For the sensor maintenance, see “INTELLIGENT
CRUISE CONTROL (ICC) SYSTEM (FULL SPEED
RANGE)” earlier in this section.CAUTION
During the first 1,200 miles (2,000 km), follow
these recommendations to obtain maximum
engine performance and ensure the future reli-
ability and economy of your new vehicle.
Failure to follow these recommendations may
result in shortened engine life and reduced en-
gine performance.
● Avoid driving for long periods at constant
speed, either fast or slow. Do not run the
engine over 4,000 rpm.
● Do not accelerate at full throttle in any gear.
● Avoid quick starts.
● Avoid hard braking as much as possible.
● Do not tow a trailer for the first 500 miles
(805 km). ●
Accelerate slowly and smoothly. Maintain
cruising speeds with a constant accelerator
position.
● Drive at moderate speeds on the highway.
● Avoid unnecessary stopping and braking.
Keep a safe distance behind other vehicles.
● Select a gear range suitable to road condi-
tions.
● Avoid unnecessary prolonged engine idling.
● Keep your engine tuned up.
● Follow the recommended periodic mainte-
nance schedule.
● Keep the tires inflated at the correct pres-
sure. Improper tire pressure will increase
wear and waste fuel.
● Make sure the front wheels are properly
aligned. Improper alignment will cause pre-
mature tire wear and lower fuel economy.
● Climate control operation lowers fuel
economy. Use the air conditioner only when
necessary.
● When cruising at highway speeds, it is more
economical to use the air conditioner and
leave the windows closed to reduce drag.
BREAK-IN SCHEDULE INCREASING FUEL ECONOMY
5-68Starting and driving
—
—
08/03/09—pattie


The AWD warning light is located in the meter.
The AWD warning light comes on when the
ignition switch is pushed to the ON position. It
turns off soon after the engine is started.If any malfunction occurs in the AWD system
while the engine is running, the warning light
will come on.
The warning light may blink rapidly (about twice
per second) while trying to free a stuck vehicle
due to high power train oil temperature. The
driving mode may change to two-wheel drive. If
the warning light blinks rapidly during opera-
tion, stop the vehicle with the engine idling in a
safe place immediately. Then if the light goes
off after a while, you can continue driving.
A large difference between the diameters of
front and rear wheels will make the warning
light blink slowly (about once per two seconds).
Pull off the road in a safe area, and idle the
engine. Check that all tire sizes are the same,
tire pressure is correct and tires are not worn.
If the warning light is blinking after the above
operation, have your vehicle checked by an
INFINITI retailer as soon as possible.
WARNING
●
For AWD equipped vehicles, do not attempt
to raise two wheels off the ground and shift
the transmission to any drive or reverse po-
sition with the engine running. Doing so may
result in drivetrain damage or unexpected
vehicle movement which could result in seri-
ous vehicle damage or personal injury.
● Do not attempt to test an AWD equipped ve-
hicle on a 2-wheel dynamometer (such as
the dynamometers used by some states for
emissions testing) or similar equipment
even if the other two wheels are raised off
the ground. Make sure that you inform the
test facility personnel that your vehicle is
equipped with AWD before it is placed on a
dynamometer. Using the wrong test equip-
ment may result in drivetrain damage or un-
expected vehicle movement which could re-
sult in serious vehicle damage or personal
injury.
CAUTION
● Do not operate the engine on a free roller
when any of the wheels are raised.
SSD0336
ALL-WHEEL DRIVE (AWD) (if so equipped)
Starting and driving5-69
—
—
08/03/09—pattie
