Activating Alternate Command Mode
When the Standard Mode is active, perform the
following steps to switch to the Alternate Com-
mand Mode.
1. Push the SETTING button on the instru-ment panel.
2. Highlight the “Others” key.
3. Highlight the “Voice Recognition” key. 4. Highlight the “Alternate Command Mode”
key.
5. The confirmation message is displayed on the screen. Push the “OK” key to activate
the Alternate Command Mode.Displaying command list
If you are controlling the system by voice
commands for the first time or do not know the
appropriate voice command, perform the fol-
lowing procedure for displaying the voice com-
mand list (available only in Alternate Command
Mode).
1. Push the INFO button on the instrumentpanel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key.
4. Select the “Command List” key.
SAA2529SAA2543SAA2544
Monitor, climate, audio, phone and voice recognition systems4-143
—
—
07/30/09—pattie

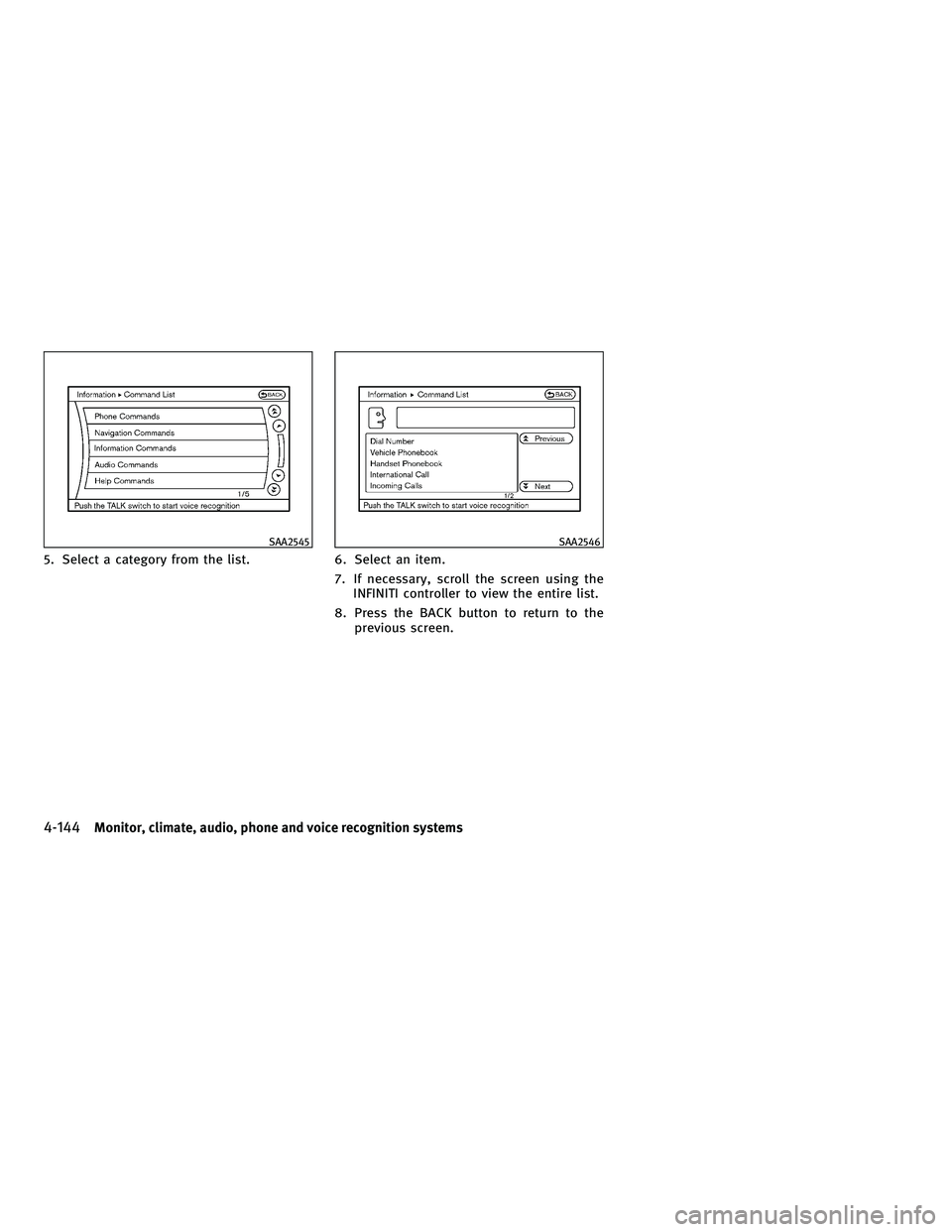

5. Select a category from the list.6. Select an item.
7. If necessary, scroll the screen using the INFINITI controller to view the entire list.
8. Press the BACK button to return to the previous screen.
SAA2545SAA2546
4-144Monitor, climate, audio, phone and voice recognition systems
—
—
08/03/09—pattie


Displaying user guide
You can confirm how to use voice commands by
accessing a simplified User Guide, which con-
tains basic instructions and tutorials for several
voice commands.
1. Push the INFO button on the instrumentpanel.
2. Select the “Others” key using the multi- function controller and push the ENTER
button.
3. Highlight the “Voice Recognition” key us- ing the INFINITI controller and push the
ENTER button. 4. Highlight the “User Guide” key using the
INFINITI controller and push the ENTER
button.
5. Highlight an item using the INFINITI con- troller and push the ENTER button.
Available items :
● Getting Started
Describe the basics of how to operate the
INFINITI Voice Recognition system.
● Let’s Practice
Mode that allows practicing by following the
instructions of the system voice.
● Using the Address Book
Refer to Navigation System Owner’s Manual.
● Finding a Street Address (if so equipped)
Refer to Navigation System Owner’s Manual.
● Placing Calls
Tutorial for making a phone call by voice
command operation.
● Help on Speaking
Displays useful tips for how to correctly
speak commands in order for them to be
properly recognized by the system. ●
Voice Recognition Settings
Describes the available voice recognition
settings.
● Adapting the System to Your Voice
Tutorial adapting the system to your voice.
USING THE SYSTEM
Initialization
When the ignition switch is pushed to the ON
position, INFINITI Voice Recognition is initial-
ized, which takes a few seconds. When com-
pleted, the system is ready to accept voice
commands. If the TALK
switch is pushed
before the initialization completes the display
will show the message: “Phonetic data down-
loaded. Please wait.” or a beep sounds.
Before starting
To get the best performance from INFINITI Voice
Recognition, observe the following.
● Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.), which may prevent the system
from recognizing the voice commands cor-
rectly.
SAA2547
4-148Monitor, climate, audio, phone and voice recognition systems
—
—
07/30/09—pattie


●When the air conditioner is in the AUTO
mode, the fan speed decreases automati-
cally for easy recognition.
● Wait until a tone sounds before speaking a
command.
● Speak in a natural voice without pausing
between words.
Giving voice command
1. Push and release the TALKswitch
located on the steering wheel. 2. A list of commands appears on the
screen, and the system announces,
“Please say a command”.
3. After the tone sounds and the icon on the screen changes from
to,
speak a command.
Operating tips :
● Voice commands cannot be accepted when
the icon is
.
● The list displayed can be scrolled by tilting
the menu control switch on the steering
wheel.
● If the command is not recognized, the sys-
tem announces, “Please say again”. Repeat
the command in a clear voice.
SAA2167SAA2548
Monitor, climate, audio, phone and voice recognition systems4-149
—
—
07/30/09—pattie

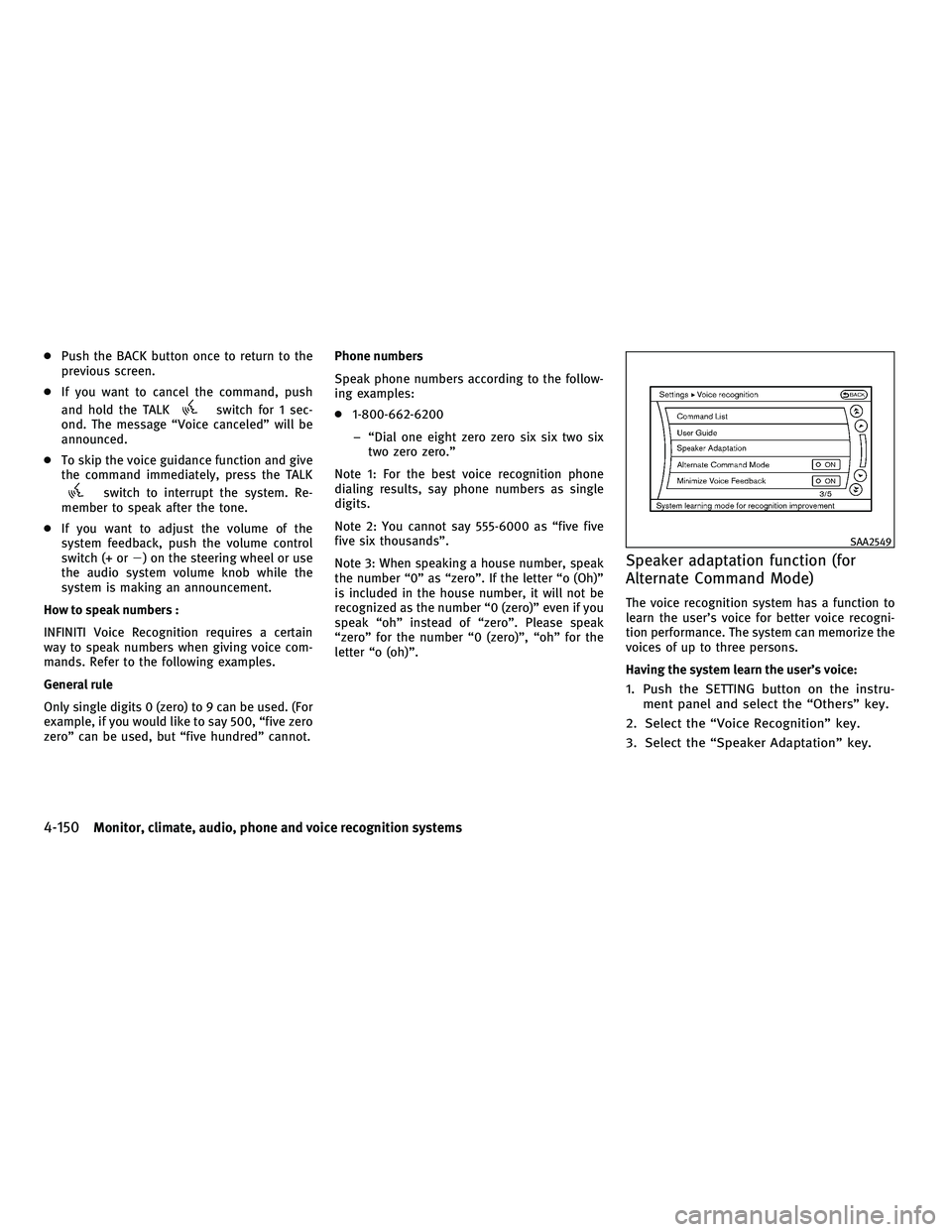

●Push the BACK button once to return to the
previous screen.
● If you want to cancel the command, push
and hold the TALK
switch for 1 sec-
ond. The message “Voice canceled” will be
announced.
● To skip the voice guidance function and give
the command immediately, press the TALK
switch to interrupt the system. Re-
member to speak after the tone.
● If you want to adjust the volume of the
system feedback, push the volume control
switch (+ or ) on the steering wheel or use
the audio system volume knob while the
system is making an announcement.
How to speak numbers :
INFINITI Voice Recognition requires a certain
way to speak numbers when giving voice com-
mands. Refer to the following examples.
General rule
Only single digits 0 (zero) to 9 can be used. (For
example, if you would like to say 500, “five zero
zero” can be used, but “five hundred” cannot. Phone numbers
Speak phone numbers according to the follow-
ing examples:
●
1-800-662-6200
– “Dial one eight zero zero six six two six two zero zero.”
Note 1: For the best voice recognition phone
dialing results, say phone numbers as single
digits.
Note 2: You cannot say 555-6000 as “five five
five six thousands”.
Note 3: When speaking a house number, speak
the number “0” as “zero”. If the letter “o (Oh)”
is included in the house number, it will not be
recognized as the number “0 (zero)” even if you
speak “oh” instead of “zero”. Please speak
“zero” for the number “0 (zero)”, “oh” for the
letter “o (oh)”.
Speaker adaptation function (for
Alternate Command Mode)
The voice recognition system has a function to
learn the user’s voice for better voice recogni-
tion performance. The system can memorize the
voices of up to three persons.
Having the system learn the user’s voice:
1. Push the SETTING button on the instru- ment panel and select the “Others” key.
2. Select the “Voice Recognition” key.
3. Select the “Speaker Adaptation” key.
SAA2549
4-150Monitor, climate, audio, phone and voice recognition systems
—
—
08/03/09—pattie


●Tire pressure rises and falls depending on
the heat caused by the vehicle’s operation
and the outside temperature. Low outside
temperature can lower the temperature of
the air inside the tire which can cause a
lower tire inflation pressure. This may cause
the low tire pressure warning light to illumi-
nate. If the warning light illuminates in low
ambient temperature, check the tire pres-
sure for all four tires.
● You can also check the pressure of all tires
(except the spare tire) on the display screen.
The order of the tire pressure figures dis-
played on the screen does not correspond
with the actual order of the tire position. See
“TIRE PRESSURE information” in the “4.
Monitor, climate, audio, phone and voice
recognition systems” section.
For additional information, see “Low tire pres-
sure warning light” in the “2. Instruments and
controls” section and “TIRE PRESSURE MONI-
TORING SYSTEM (TPMS)” in the “6. In case of
emergency” section.WARNING
● If the low tire pressure warning light illumi-
nates or LOW PRESSURE information is dis-
played on the monitor screen while driving,
avoid sudden steering maneuvers or abrupt
braking, reduce vehicle speed, pull off the
road to a safe location and stop the vehicle
as soon as possible. Driving with under-
inflated tires may permanently damage the
tires and increase the likelihood of tire fail-
ure. Serious vehicle damage could occur and
may lead to an accident and could result in
serious personal injury. Check the tire pres-
sure for all four tires. Adjust the tire pressure
to the recommended COLD tire pressure
shown on the Tire and Loading Information
label to turn the low tire pressure warning
light OFF. If the light still illuminates while
driving after adjusting the tire pressure, a
tire may be flat. If you have a flat tire, replace
it with a spare tire as soon as possible. (See
“FLAT TIRE” in the “6. In case of emergency”
section for changing a flat tire.) ●
When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.
CAUTION
● The TPMS may not function properly when
the wheels are equipped with tire chains or
the wheels are buried in snow.
● Do not place metalized film or any metal
parts (antenna, etc.) on the windows. This
may cause poor reception of the signals from
the tire pressure sensors, and the TPMS will
not function properly.
5-4Starting and driving
—
—
08/03/09—pattie


The IBA system will remain in the last ON or OFF
state it was left in until it is manually changed
by pressing the IBA OFF switch.
Illumination of the IBA OFF indicator light with-
out the warning chime sound is an indication
that the IBA system is temporarily unavailable.
It will occur under the following conditions:
– When driving into a strong light (for example,sunlight)
The IBA OFF indicator light will turn off when the
system returns to its normal operating condi-
tions.
For the sensor maintenance, see “INTELLIGENT
CRUISE CONTROL (ICC) SYSTEM (FULL SPEED
RANGE)” earlier in this section.CAUTION
During the first 1,200 miles (2,000 km), follow
these recommendations to obtain maximum
engine performance and ensure the future reli-
ability and economy of your new vehicle.
Failure to follow these recommendations may
result in shortened engine life and reduced en-
gine performance.
● Avoid driving for long periods at constant
speed, either fast or slow. Do not run the
engine over 4,000 rpm.
● Do not accelerate at full throttle in any gear.
● Avoid quick starts.
● Avoid hard braking as much as possible.
● Do not tow a trailer for the first 500 miles
(805 km). ●
Accelerate slowly and smoothly. Maintain
cruising speeds with a constant accelerator
position.
● Drive at moderate speeds on the highway.
● Avoid unnecessary stopping and braking.
Keep a safe distance behind other vehicles.
● Select a gear range suitable to road condi-
tions.
● Avoid unnecessary prolonged engine idling.
● Keep your engine tuned up.
● Follow the recommended periodic mainte-
nance schedule.
● Keep the tires inflated at the correct pres-
sure. Improper tire pressure will increase
wear and waste fuel.
● Make sure the front wheels are properly
aligned. Improper alignment will cause pre-
mature tire wear and lower fuel economy.
● Climate control operation lowers fuel
economy. Use the air conditioner only when
necessary.
● When cruising at highway speeds, it is more
economical to use the air conditioner and
leave the windows closed to reduce drag.
BREAK-IN SCHEDULE INCREASING FUEL ECONOMY
5-68Starting and driving
—
—
08/03/09—pattie


In the event of a roadside emergency, Roadside
Assistance Service is available to you. Please
refer to your Warranty Information Booklet
(U.S.) or Warranty & Roadside Assistance Infor-
mation Booklet (Canada) for details.
EMERGENCY ENGINE SHUT OFF
To shut off the engine in an emergency situation
while driving perform the following procedure:
●Rapidly push the push-button ignition
switch 3 consecutive times, or
● Push and hold the push-button ignition
switch for more than 2 seconds.
TIRE PRESSURE MONITORING SYSTEM
(TPMS)
This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires except the spare. When the
low tire pressure warning light is lit, one or
more of your tires is significantly under-
inflated. If the vehicle is being driven with low
tire pressure, the TPMS will activate and warn
you of it by the low tire pressure warning light.
This system will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h). For
more details, see “WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS” in the “2. Instru-
ments and controls” section, “TIRE PRESSURE
information” in the “4. Monitor, climate, audio,
phone and voice recognition systems” section
and “TIRE PRESSURE MONITORING SYSTEM
(TPMS)” in the “5. Starting and driving” section.
WARNING
● If the low tire pressure warning light illumi-
nates or LOW PRESSURE information is dis-
played on the monitor screen while driving,
avoid sudden steering maneuvers or abrupt
braking, reduce vehicle speed, pull off the
road to a safe location and stop the vehicle
as soon as possible. Driving with under-
inflated tires may permanently damage the
tires and increase the likelihood of tire fail-
ure. Serious vehicle damage could occur and
may lead to an accident and could result in
serious personal injury. Check the tire pres-
sure for all four tires. Adjust the tire pressure
to the recommended COLD tire pressure
shown on the Tire and Loading Information
label to turn the low tire pressure warning
light OFF. If the light still illuminates while
driving after adjusting the tire pressure, a
tire may be flat. If you have a flat tire, replace
it with a spare tire as soon as possible.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
ROADSIDE ASSISTANCE PROGRAM FLAT TIRE
6-2In case of emergency
—
—
03/17/10—debbie


CAUTION
●Do not continue to drive if your vehicle over-
heats. Doing so could cause engine damage
or a vehicle fire.
● To avoid the danger of being scalded, never
remove the radiator cap while the engine is
still hot. When the radiator cap is removed,
pressurized hot water will spurt out, possi-
bly causing serious injury.
● Do not open the hood if steam is coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading), or
if you feel a lack of engine power, detect
abnormal noise, etc., take the following steps:
1. Move the vehicle safely off the road, apply the parking brake and move the selector
lever to the P (Park) position.
Do not stop the engine.
2. Turn off the climate control. Open all the windows, move the heater or air condi-
tioner temperature control to maximum
hot and fan control to high speed. 3. If engine overheating is caused by climb-
ing a long hill on a hot day, run the engine
at a fast idle (approximately 1,500 rpm)
until the temperature gauge indication
returns to normal.
4. Get out of the vehicle. Look and listen for steam or coolant escaping from the radia-
tor before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no
steam or coolant can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the engine,
stand clear to prevent getting burned.
6. Visually check drive belts for damage or looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leak-
ing or the cooling fan does not run, stop
the engine.
WARNING
Be careful not to allow your hands, hair, jewelry
or clothing to come into contact with, or get
caught in, engine belts or the engine cooling
fan. The engine cooling fan can start at any
time.
7. After the engine cools down, check thecoolant level in the reservoir tank with the
engine running. Add coolant to the reser-
voir tank if necessary. Have your vehicle
repaired at the nearest INFINITI retailer.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
IF YOUR VEHICLE OVERHEATS
6-10In case of emergency
—
—
08/03/09—pattie


DOT (Department Of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
TREADWEAR
The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 1/2) times
as well on the government course as a tire
graded 100. The relative performance of tires
depends upon actual conditions of their use,
however, and may depart significantly from the
norm due to variations in driving habits, service
practices and differences in road characteristics
and climate.
TRACTION AA, A, B AND C
The traction grades, from highest to lowest, are
AA, A, B and C. Those grades represent the
tire’s ability to stop on wet pavement as mea-
sured under controlled conditions on specifiedgovernment test surfaces of asphalt and con-
crete. A tire marked C may have poor traction
performance.
WARNING
The traction grade assigned to this tire is based
on straight-ahead braking traction tests, and
does not include acceleration, cornering, hy-
droplaning, or peak traction characteristics.
TEMPERATURE A, B AND C
The temperature grades A (the highest), B, and
C, representing the tire’s resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions
on a specified indoor laboratory test wheel.
Sustained high temperature can cause the ma-
terial of the tire to degenerate and reduce tire
life, and excessive temperature can lead to
sudden tire failure. The grade C corresponds to
a level of performance which all passenger car
tires must meet under the Federal Motor Vehicle
Safety Standard No. 109. Grades B and A rep-
resent higher levels of performance on the
laboratory test wheel than the minimum re-
quired by law.
WARNING
The temperature grade for this tire is estab-
lished for a tire that is properly inflated and not
overloaded. Excessive speed, under-inflation,
or excessive loading, either separately or in
combination, can cause heat build-up and pos-
sible tire failure.
UNIFORM TIRE QUALITY GRADING
9-28Technical and consumer information
—
—
08/03/09—pattie
