0 Illustrated table of contents
Seats, seat belts and supplemental restraint
system (SRS)..................................... 0-2
Exterior front...................................... 0-3
Exterior rear ...................................... 0-4
Passenger compartment ........................... 0-5
Cockpit ........................................... 0-6 Instrument panel
.................................. 0-8
Meters and gauges ................................ 0-9
Engine compartment .............................. 0-10
VQ35HR engine ............................... 0-10
Vk50VE engine ................................. 0-11
Warning and indicator lights ......................0-12
—
—
10/22/09—tbrooks


1. Tachometer (P. 2-7)
2. Warning/Indicator lights (P. 2-12)
3. Speedometer (P. 2-6)
4. Engine coolant temperature gauge(P. 2-7) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-21)
6. Fuel gauge (P. 2-8)
SIC3825
METERS AND GAUGES
Illustrated table of contents0-9
—
—
08/03/09—tbrooks


Warninglight Name Page
All-Wheel Drive (AWD) warning
light (AWD models)* 2-13
Anti-lock Braking System (ABS)
warning light2-13
Automatic Transmission (AT)
check warning light2-13
Brake warning light
2-13
Charge warning light2-14
Distance Control Assist (DCA)
system warning light (orange)*2-14
Engine oil pressure warning
light2-14
Intelligent Cruise Control (ICC)
system warning light (orange)* 2-15
Intelligent Key system warning
light2-15
Lane departure warning light
(orange)*2-15
Warning
light Name Page
Low tire pressure warning light 2-15
Master warning light
2-17
Preview Function warning light
(orange)*2-17
Rear Active Steer warning light* 2-17
Seat belt warning light
2-17
Supplemental air bag warning
light2-17
Indica-
tor light Name Page
Adaptive Front lighting System
(AFS) indicator light 2-18
Automatic Transmission (AT)
position indicator light2-18
Front passenger air bag status
light2-18
High beam indicator light
2-18
Indica-
tor light Name Page
Intelligent Brake Assist (IBA) off
indicator light* 2-18
Lane Departure Prevention
(LDP) ON indicator light
(green)* 2-19
Malfunction Indicator Light
(MIL)
2-19
Security indicator light
2-20
Slip indicator light2-20
Low beam indicator lights 2-20
SPORT mode indicator light* 2-20
Turn signal/hazard indicator
lights2-20
Vehicle Dynamic Control (VDC)
off indicator light2-20
*: if so equipped
WARNING AND INDICATOR LIGHTS
0-12Illustrated table of contents
—
—
10/16/09—tbrooks


2 Instruments and controls
Cockpit........................................... 2-2
Instrument panel .................................. 2-4
Meters and gauges ................................ 2-5
Speedometer and odometer ..................... 2-6
Tachometer .................................... 2-7
Engine coolant temperature gauge ............... 2-7
Fuel gauge ..................................... 2-8
Meter/ring illumination and needle sweep ........ 2-8
Compass (if so equipped) .......................... 2-9
Zone variation change procedure ...............2-10
Warning/indicator lights and audible reminders .....2-12
Checking bulbs ............................... 2-12
Warning lights ................................ 2-13
Indicator lights ................................ 2-18
Audible reminders ............................. 2-20

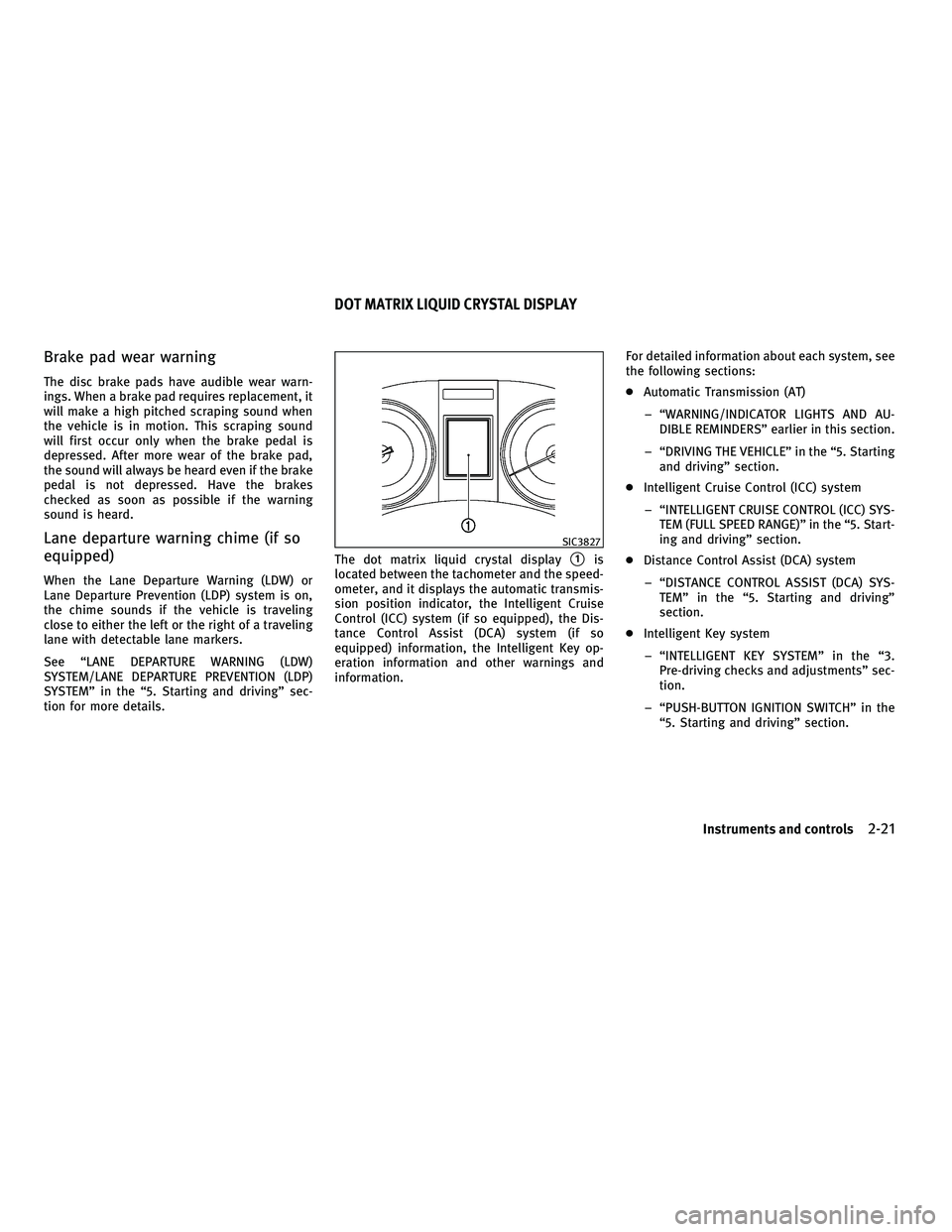

Dot matrix liquid crystal display ...................2-21
Indicators for operation ........................ 2-23
Indicators for maintenance .....................2-25
Trip computer ................................. 2-27
Security systems ................................. 2-29
Vehicle security system ........................ 2-29
INFINITI Vehicle Immobilizer System ............2-31Windshield wiper and washer switch
...............2-32
Windshield wiper and washer operation .........2-33
Rain-sensing auto wiper system
(if so equipped) ............................... 2-33
Rear window wiper and washer operation .......2-34
Rear window and outside mirror defroster switch . . . 2-35
Headlight and turn signal switch ..................2-35
Xenon headlights ............................. 2-35
Headlight switch .............................. 2-36
Turn signal switch ............................. 2-39
Fog light switch ............................... 2-40
Hazard warning flasher switch .....................2-40
Horn ............................................ 2-41
Climate controlled seats (if so equipped) ...........2-41
Lane Departure Warning (LDW) switch
(if so equipped) .................................. 2-42
Forward Collision Warning (FCW) switch
(if so equipped) .................................. 2-43
SNOW

mode switch .............................. 2-43
Continuous damping control mode select switch
(if so equipped) .................................. 2-44
Auto mode .................................... 2-44
—
—
08/03/09—tbrooks


1. Tachometer
2. Warning/Indicator lights
3. Speedometer
4. Engine coolant temperature gauge5. Dot matrix liquid crystal display/
Odometer/twin trip odometer
6. Fuel gauge
The needle indicators in the speedometer, ta-
chometer, engine coolant temperature gauge and fuel gauge may move slightly after the igni-
tion switch is pushed to the OFF position. This is
not a malfunction.
SIC3825
METERS AND GAUGES
Instruments and controls2-5
—
—
08/03/09—tbrooks


All-Wheel Drive (AWD) warning light
(AWD models)*Lane departure warning light
(orange)*Intelligent Brake Assist (IBA) off indica-
tor light*
Anti-lock Braking System (ABS) warning
lightLow tire pressure warning lightLane Departure Prevention (LDP) ON in-
dicator light (green)*
Master warning lightMalfunction Indicator Light (MIL)
Automatic transmission check warning
lightPreview Function warning light (or-
ange)*Security indicator light
Brake warning lightRear Active Steer warning light*Slip indicator light
Seat belt warning lightLow beam indicator light
Charge warning lightSupplemental air bag warning lightSPORT mode indicator light*
Distance Control Assist (DCA) system
warning light (orange)*Adaptive Front lighting System (AFS)
indicator light*Turn signal/hazard indicator lights
Engine oil pressure warning lightAutomatic transmission position indica-
tor lightVehicle Dynamic Control (VDC) off indi-
cator light
Intelligent Cruise Control (ICC) system
warning light (orange)*Front passenger air bag status light *: if so equipped
Intelligent Key warning lightHigh beam indicator light
CHECKING BULBS
With all doors closed, apply the parking brake
and push the ignition switch to the ON position
without starting the engine.The following lights will come on (if so
equipped):
,or,,,
,,
The following lights come on briefly and then go
off (if so equipped):
,or,,,,
,,,,
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
2-12Instruments and controls
—
—
10/19/09—tbrooks


If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the elec-
trical system. Have the system checked by an
INFINITI retailer.
Some indicators and warnings are also dis-
played on the dot matrix crystal display be-
tween the speedometer and tachometer. (See
“DOT MATRIX LIQUID CRYSTAL DISPLAY” later in
this section.)
WARNING LIGHTS
All-Wheel Drive (AWD)
warning light (AWD models)
Thewarning light comes on when the
ignition switch is pushed to ON. It turns off
soon after the engine is started.
If the AWD system malfunctions, or the diam-
eter of the front and the rear wheels are differ-
ent, the warning light will either remain illumi-
nated or blink. (See “ALL-WHEEL DRIVE (AWD)”
in the “5. Starting and driving” section.)
CAUTION
● If the warning light comes on while driving
there may be a malfunction in the AWD sys-
tem. Reduce the vehicle speed and have your
vehicle checked by an INFINITI retailer as
soon as possible. ●
If the AWD warning light blinks on when you
are driving:
– blinks rapidly (about twice a second): Pull off the road in a safe area, and idle the
engine. The driving mode will change to
2WD to prevent the AWD system from
malfunctioning. If the warning light turns
off, you can drive again.
– blinks slowly (about once every 2 sec- onds):
Pull off the road in a safe area, and idle the
engine. Check that all tire sizes are the
same, tire pressure is correct and tires are
not worn.
● If the warning light is still on after the above
operations, have your vehicle checked by an
INFINITI retailer as soon as possible.
orAnti-lock Braking
System (ABS)
warning light
When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indi-
cates the ABS is operational. If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by an INFINITI retailer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. (See “BRAKE SYSTEM” in the “5. Starting
and driving” section.)
Automatic transmission
check warning light
When the ignition switch is pushed to the ON
position, the light comes on for 2 seconds. If
the light comes on at any other time, it may
indicate the transmission is not functioning
properly. Have your INFINITI retailer check and
repair the transmission.
orBrake warning
light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator :
When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Instruments and controls2-13
—
—
07/30/09—pattie


Unless checked and repaired, the supplemental
restraint system (air bag system) and/or the
pretensioners may not function properly.
For additional information, see “SUPPLEMENTAL
RESTRAINT SYSTEM” in the “1. Safety — Seats,
seat belts and supplemental restraint system”
section.
WARNING
If the supplemental air bag warning light is on,
it could mean that the front air bag, side air
bag, curtain and rollover air bag systems
and/or pretensioner systems will not operate
in an accident. To help avoid injury to yourself
or others, have your vehicle checked by a re-
tailer as soon as possible.
INDICATOR LIGHTS
Adaptive Front lighting
System (AFS) indicator light
(if so equipped)
When the ignition switch is pushed to the ON
position, the Adaptive Front lighting System
(AFS) indicator light will illuminate. The light
will turn off in about 1 second if the AFS is
operational.If the AFS indicator light blinks, it may indicate
the AFS is not functioning properly. Have the
system checked by an INFINITI retailer.
See “Adaptive Front lighting System (AFS)” later
in this section.
Automatic transmission
position indicator light
When the ignition switch is pushed to the “ON”
position, the indicator shows the automatic
selector position.
In the manual shift mode, when the transmis-
sion does not shift to the selected gear due to a
transmission protection mode, the AT position
indicator light will blink and a chime will sound.
See “AUTOMATIC TRANSMISSION” in the “5.
Starting and driving” section for further details.
Front passenger air bag
status light
The front passenger air bag status light ()
will be lit and the passenger front air bag will be
OFF depending on how the front passenger seat
is being used.
For front passenger air bag status light opera-
tion, see “INFINITI ADVANCED AIR BAG SYSTEM (front seats)” in the “1. Safety — Seats, seat
belts and supplemental restraint system” sec-
tion of this manual.
High beam indicator light
This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Intelligent Brake Assist (IBA)
off indicator light (if so
equipped)
The light illuminates when the Intelligent Brake
Assist (IBA) off switch is pushed to OFF. This
indicates that the Intelligent Brake Assist (IBA)
system is not operating.
When the IBA off indicator light illuminates
while the system is turned on (without the
warning chime sound), this light indicates that
the system control is temporarily unavailable.
When the IBA off indicator light illuminates with
the warning chime sound while the IBA system
is turned on, this light indicates that the system
may not be functioning properly. Park the ve-
hicle in a safe place. Check to see if the laser
sensor is clean. Turn the engine off, then restart
the engine.
If the IBA off indicator light illuminates after
following the procedures above, it may indicate
2-18Instruments and controls
—
—
07/30/09—pattie


Brake pad wear warning
The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound
will first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the warning
sound is heard.
Lane departure warning chime (if so
equipped)
When the Lane Departure Warning (LDW) or
Lane Departure Prevention (LDP) system is on,
the chime sounds if the vehicle is traveling
close to either the left or the right of a traveling
lane with detectable lane markers.
See “LANE DEPARTURE WARNING (LDW)
SYSTEM/LANE DEPARTURE PREVENTION (LDP)
SYSTEM” in the “5. Starting and driving” sec-
tion for more details.The dot matrix liquid crystal display
1is
located between the tachometer and the speed-
ometer, and it displays the automatic transmis-
sion position indicator, the Intelligent Cruise
Control (ICC) system (if so equipped), the Dis-
tance Control Assist (DCA) system (if so
equipped) information, the Intelligent Key op-
eration information and other warnings and
information. For detailed information about each system, see
the following sections:
●
Automatic Transmission (AT)
– “WARNING/INDICATOR LIGHTS AND AU- DIBLE REMINDERS” earlier in this section.
– “DRIVING THE VEHICLE” in the “5. Starting and driving” section.
● Intelligent Cruise Control (ICC) system
– “INTELLIGENT CRUISE CONTROL (ICC) SYS- TEM (FULL SPEED RANGE)” in the “5. Start-
ing and driving” section.
● Distance Control Assist (DCA) system
– “DISTANCE CONTROL ASSIST (DCA) SYS- TEM” in the “5. Starting and driving”
section.
● Intelligent Key system
– “INTELLIGENT KEY SYSTEM” in the “3. Pre-driving checks and adjustments” sec-
tion.
– “PUSH-BUTTON IGNITION SWITCH” in the “5. Starting and driving” section.
SIC3827
DOT MATRIX LIQUID CRYSTAL DISPLAY
Instruments and controls2-21
—
—
08/11/09—debbie


To defog/defrost the rear window glass and
outside mirrors, start the engine and push the
switch
1on. The indicator light2will come
on. Push the switch again to turn the defroster
off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear win-
dow, be careful not to scratch or damage the
rear window defroster.
XENON HEADLIGHTS
WARNING
HIGH VOLTAGE
● When xenon headlights are on, they produce
a high voltage. To prevent an electric shock,
never attempt to modify or disassemble. Al-
ways have your xenon headlights replaced
at an INFINITI retailer.
● Xenon headlights provide considerably
more light than conventional headlights. If
they are not correctly aimed, they might
temporarily blind an oncoming driver or the
driver ahead of you and cause a serious acci-
dent. If headlights are not aimed correctly,
immediately take your vehicle to an INFINITI
retailer and have the headlights adjusted
correctly.
When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize. ●
The life of xenon headlights will be shortened
by frequent on-off operation. It is generally
desirable not to turn off the headlights for
short intervals (for example, when the ve-
hicle stops at a traffic signal). Even when the
daytime running lights are active (Canada
only), the xenon headlights do not turn on.
This way the life of the xenon headlights is
not reduced.
● If the xenon headlight bulb is close to burn-
ing out, the brightness will drastically de-
crease, the light will start blinking, or the
color of the light will become reddish. If one
or more of the above signs appear, contact an
INFINITI retailer.
SIC3239
REAR WINDOW AND OUTSIDE MIRROR
DEFROSTER SWITCH HEADLIGHT AND TURN SIGNAL SWITCH
Instruments and controls2-35
—
—
08/03/09—tbrooks
