WARNING
●Do not ride in a moving vehicle when the
seatback is reclined. This can be dangerous.
The shoulder belt will not be against your
body. In an accident, you could be thrown
into it and receive neck or other serious inju-
ries. You could also slide under the lap belt
and receive serious internal injuries.
● For the most effective protection when the
vehicle is in motion, the seat should be up-
right. Always sit well back in the seat with
both feet on the floor and adjust the seat belt
properly. See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section. ●
After adjustment, gently rock in the seat to
make sure it is securely locked.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents.
● The seatback should not be reclined any
more than needed for comfort. Seat belts are
most effective when the passenger sits well
back and straight up in the seat. If the seat-
back is reclined, the risk of sliding under the
lap belt and being injured is increased.
FRONT SEATS
Front power seat adjustment
Operating tips :
● The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “AUTOMATIC DRIVE POSITIONER” in the “3.
Pre-driving checks and adjustments” section for
the seat position memory function.
CAUTION
When adjusting the seat positions, be sure not
to contact any moving parts to avoid possible
injuries and/or damages.
SSS0133
SEATS
1-2Safety — Seats, seat belts and supplemental restraint system
—
—
08/03/09—tbrooks


3 Pre-driving checks and adjustments
Keys............................................. 3-2
Intelligent Key ................................. 3-2
Valet hand-off .................................. 3-3
Doors ............................................ 3-4
Locking with mechanical key .................... 3-4
Opening and closing windows with the
mechanical key ................................ 3-4
Locking with inside lock knob ................... 3-5
Locking with power door lock switch ............. 3-5
Automatic door locks ........................... 3-5
Child safety rear door lock ...................... 3-6
Intelligent Key system ............................. 3-6
Intelligent Key operating range .................. 3-8
Door locks/unlocks precaution .................. 3-9
Intelligent Key operation ........................ 3-9
Battery saver system ........................... 3-11
Warning signals ................................ 3-11
Troubleshooting guide ......................... 3-12
Remote keyless entry system ......................3-13
How to use remote keyless entry system ........3-13 Hood
............................................ 3-16
Lift gate ......................................... 3-16
Lift gate release lever ........................... 3-17
Auto closure ................................... 3-17
Fuel-filler door ................................... 3-18
Opening the fuel-filler door ....................3-18
Fuel-filler cap ................................. 3-18
Tilt/telescopic steering ........................... 3-19
Manual operation (if so equipped) ..............3-20
Electric operation (if so equipped) ..............3-20
Sun visors ....................................... 3-21
Mirrors .......................................... 3-21
Inside mirror .................................. 3-21
Outside mirrors ............................... 3-23
Vanity mirror .................................. 3-24
Automatic drive positioner (if so equipped) .........3-25
Entry/exit function ............................ 3-25
Seat synchronization function ..................3-26
Memory storage ............................... 3-26
System operation ............................. 3-27
—
—
10/16/09—tbrooks


The automatic drive positioner system has three
features:
●Entry/exit function
● Seat synchronization function
● Memory storage
ENTRY/EXIT FUNCTION
This system is designed so that the driver’s seat
and steering column will automatically move
when the automatic transmission selector lever
is in the P (Park) position. This allows the driver
to get into and out of the driver’s seat more
easily.
The driver’s seat will slide backward and the
steering wheel will move up when the driver’s
door is opened with the ignition switch in the
OFF position.
The driver’s seat and steering wheel will return
to the previous positions when one of the
following is operated:
●When the ignition switch is pushed to the
ACC position after the driver’s door is
closed.
● When the ignition switch is pushed to the
ON position. The driver’s seat will not return to the previous
positions if the seat or steering adjusting
switch is operated when the seat is at the exit
position.
Cancel or activate entry/exit function
The selector lever must be in the P (Park)
position with the ignition switch in the OFF
position.
The entry/exit function can be activated or
canceled by pressing and holding the SET
switch for more than 10 seconds.
The indicator lights on the memory switches (1
and 2) will blink once when the function is
canceled, and the indicator lights will blink
twice when the function is activated. Note that
the indicator lights may illuminate after 5 sec-
onds while holding the SET switch. This indi-
cates readiness for linking the Intelligent Key to
a stored memory position. Keep the SET switch
pressed for more than 10 seconds to turn on or
off the entry/exit function.
The entry/exit function can also be activated or
canceled if the “Lift Steering Wheel on Exit” key
or “Slide Driver Seat Back on Exit” key is turned
to ON or OFF in the “Comfort & Conv.” settings.
(See “VEHICLE INFORMATION AND SETTINGS” in
the “4. Monitor, climate, audio, phone and
voice recognition systems” section.)
Initialize entry/exit function
If the battery cable is disconnected, or if the
fuse opens, the entry/exit function will not work
though this function was set on before. In such
a case, after connecting the battery or replacing
with a new fuse, open and close the driver’s
door more than two times after the ignition
switch is turned from the ON position to the
LOCK position. The entry/exit function will be
activated.
AUTOMATIC DRIVE POSITIONER (if so
equipped)
Pre-driving checks and adjustments3-25
—
—
10/16/09—tbrooks

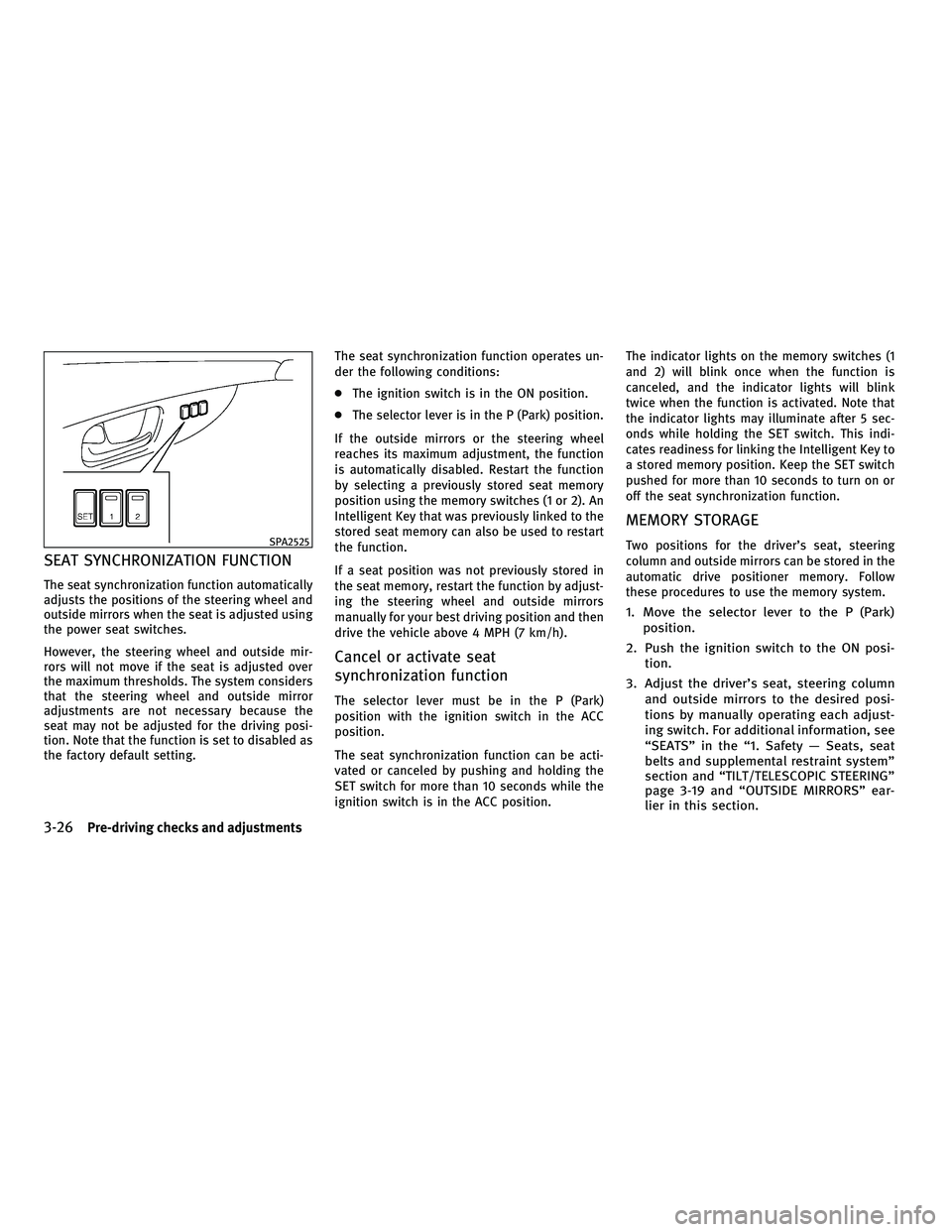

SEAT SYNCHRONIZATION FUNCTION
The seat synchronization function automatically
adjusts the positions of the steering wheel and
outside mirrors when the seat is adjusted using
the power seat switches.
However, the steering wheel and outside mir-
rors will not move if the seat is adjusted over
the maximum thresholds. The system considers
that the steering wheel and outside mirror
adjustments are not necessary because the
seat may not be adjusted for the driving posi-
tion. Note that the function is set to disabled as
the factory default setting.The seat synchronization function operates un-
der the following conditions:
●
The ignition switch is in the ON position.
● The selector lever is in the P (Park) position.
If the outside mirrors or the steering wheel
reaches its maximum adjustment, the function
is automatically disabled. Restart the function
by selecting a previously stored seat memory
position using the memory switches (1 or 2). An
Intelligent Key that was previously linked to the
stored seat memory can also be used to restart
the function.
If a seat position was not previously stored in
the seat memory, restart the function by adjust-
ing the steering wheel and outside mirrors
manually for your best driving position and then
drive the vehicle above 4 MPH (7 km/h).
Cancel or activate seat
synchronization function
The selector lever must be in the P (Park)
position with the ignition switch in the ACC
position.
The seat synchronization function can be acti-
vated or canceled by pushing and holding the
SET switch for more than 10 seconds while the
ignition switch is in the ACC position. The indicator lights on the memory switches (1
and 2) will blink once when the function is
canceled, and the indicator lights will blink
twice when the function is activated. Note that
the indicator lights may illuminate after 5 sec-
onds while holding the SET switch. This indi-
cates readiness for linking the Intelligent Key to
a stored memory position. Keep the SET switch
pushed for more than 10 seconds to turn on or
off the seat synchronization function.
MEMORY STORAGE
Two positions for the driver’s seat, steering
column and outside mirrors can be stored in the
automatic drive positioner memory. Follow
these procedures to use the memory system.
1. Move the selector lever to the P (Park)
position.
2. Push the ignition switch to the ON posi- tion.
3. Adjust the driver’s seat, steering column and outside mirrors to the desired posi-
tions by manually operating each adjust-
ing switch. For additional information, see
“SEATS” in the “1. Safety — Seats, seat
belts and supplemental restraint system”
section and “TILT/TELESCOPIC STEERING”
page 3-19 and “OUTSIDE MIRRORS” ear-
lier in this section.
SPA2525
3-26Pre-driving checks and adjustments
—
—
10/16/09—tbrooks


4. Push the SET switch and, within 5 sec-onds, push the memory switch (1 or 2)
fully for at least 1 second.
The indicator light for the pushed memory
switch will stay on for approximately 5 sec-
onds after pushing the switch.
If memory is stored in the same memory
switch, the previous memory will be deleted.
Linking Intelligent Key to a stored
memory position
The Intelligent Key can be linked to a stored
memory position with the following procedure.
1. Follow the steps for storing a memoryposition.
2. While the indicator light for the memory switch being set is illuminated for 5 sec-
onds, push the
button on the Intel-
ligent Key. If the indicator light blinks, the
Intelligent Key is linked to that memory
setting.
Push the ignition switch to the OFF position,
and then push the
button on the Intelli-
gent Key. The driver’s seat, steering wheel and
outside mirrors will move to the memorized
position or to the exit position when the
entry/exit function is set to active.
Confirming memory storage
● Push the ignition switch to the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 second.
When the memory has stored in position, the
indicator light will stay on for approximately
5 seconds.
● If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In
this case, reset the desired position using
the previous procedure.
● If optional Intelligent Keys are added to your
vehicle, the memory storage procedure to
switch 1 or 2 and linking Intelligent Key
procedure to a stored memory position
should be performed again for each Intelli-
gent Key. For additional Intelligent Key infor-
mation, see “KEYS” earlier in this section.
Selecting the memorized position
1. Move the selector lever to the P (Park) position.
2. Use one of the following methods to move the driver’s seat, the outside mirrors and
the steering wheel.
●Push the ignition switch to the ON posi-
tion and push the memory switch (1 or 2)
fully for at least 1 second. ●
Within 45 seconds of opening the driver’s
door, push the memory switch (1 or 2)
fully for at least 1 second.
The driver’s seat, steering column and out-
side mirrors will move to the memorized
position or to the exit position when the
entry/exit function is set to active with the
indicator light flashing, and then the light
will stay on for approximately 5 seconds.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:
● When the vehicle speed is above 4 MPH
(7 km/h).
● When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
● When the memory switch 1 or 2 is not
pushed for at least 1 second.
● When the seat, steering column and outside
mirrors have already been moved to the
memorized position.
● When no position is stored in the memory
switch.
● When the engine is started while moving the
automatic drive positioner.
Pre-driving checks and adjustments3-27
—
—
10/16/09—tbrooks


●Play Mode
Select the preferred play mode.
Movie file operation (models with
navigation system)
Park the vehicle in a safe location for the front
seat occupants to operate the USB memory
while watching the images.
PLAY :
When the DISC·AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC·AUX button
repeatedly until the center display changes to
the USB memory mode. Operation keys :
To operate the USB memory, select the desired
key displayed on the operation screen using the
INFINITI controller.
Pause
Select the “
” key to pause the movie file.
To resume playing the movie file, select the
“
” key.
Play
Select the “
” key to start playing a movie
file, for example, after pausing a movie file.
STOP
Select the “
” key to stop playing a movie
file.
Skip (Next chapter)
Select the “
” key to skip the chapter(s) of
the disc forward. The chapters will advance the
number of times the ENTER button is pushed.
Skip (Previous chapter)
Select the “
” key to skip the chapter(s) of
the disc backward. The chapters will go back
the number of times the “
” key is se-
lected.
SAA2503
Monitor, climate, audio, phone and voice recognition systems4-71
—
—
08/03/09—tbrooks


NOTE:
When the user deletes a phone, the associated
phone book for that phone will also be deleted.
●Replace Phone
Use the Replace Phone command to change
the active phone. The system will list the
names assigned to each phone and then
prompt you for the phone you wish to select.
Only one phone can be active at a time.
● Bluetooth On/Off
Use the Bluetooth On/Off command to turn
on/off Bluetooth Hands-Free Phone Sys-
tem.
● Help
The system announces the available com-
mands.
SPEAKER ADAPTATION MODE
The speaker adaptation mode allows up to two
users with different dialects to train the system
to improve recognition accuracy. By repeating a
number of commands, the users can create a
voice model of their own voice that is stored in
the system. The system is capable of storing a
different speaker adaptation model for each
connected phone.
Training procedure
1. Position the vehicle in a reasonably quiet outdoor location.
2. Sit in the driver’s seat with the engine running, the parking brake on, and the
transmission in Park.
3. Press the
button.
4. Speak: “Help”. The system acknowledges the command and announces the next set
of available commands.
5. Speak: “SPEAKER Adaptation”. The sys- tem acknowledges the command and dis-
plays the speaker adaptation mode
screen.
6. Voice memory A or memory B is selected automatically. If both memory locations
are already in use, the system will prompt
you to overwrite one. Follow the instruc-
tions provided by the system.
7. When preparation is complete and you are ready to begin, press the
button.
8. The speaker adaptation mode will be ex- plained. Follow the instructions provided
by the system.
9. When training is finished, the system will tell you an adequate number of phrases
have been recorded. 10. The system will ask you to say your
name. Follow the instructions to register
your name.
11. The system will announce that speaker adaptation has been completed and the
system is ready.
The speaker adaptation mode will stop if:
●The
button is pressed in speaker
adaptation mode.
● The vehicle is driven during speaker adapta-
tion mode.
● The ignition switch is turned to the OFF or
LOCK position.
Training phrases
During the SA mode, the system instructs you to
say the following phrases.
(The system will prompt you for each phrase.)
● phonebook transfer entry
● dial30429
● delete call back number
● Incoming
● Transfer entry
● 8 pause932pause 7
● delete all entries
4-128Monitor, climate, audio, phone and voice recognition systems
—
—
08/03/09—tbrooks


Loading information
(See vehicle loading information).......9-15
Lock Automatic door locks ............3-5
Door locks ..................3-4
Lift gate lock ................ 3-16
Power door lock ...............3-4
Locking with mechanical key ..........3-4
Low fuel warning ............... .2-24
Low outside temperature warning ......2-24
Low tire pressure warning light ........2-15
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) .....5-3
Low washer fluid warning ...........2-24
Luggage hooks ................ .2-50
Maintenance Battery ................... .8-15
General maintenance ............8-2
Indicators for maintenance
(dot matrix) ................. 2-25
Inside the vehicle ..............8-3
Maintenance precautions .........8-5
Maintenance requirements ........8-2
Outside the vehicle .............8-2
Seat belt maintenance ..........1-20
M
Malfunction indicator light (MIL) .......2-19
Map lights .................. .2-58
Master warning light ............. .2-17
Mechanical key (Intelligent Key system) . . .3-3
Memory storage, Automatic drive
positioner ................... .3-26Meter
Trip computer ............... .2-27
Meters and gauges .............. .2-5
Meters and gauges, Instrument brightness
control ..................... .2-39
Mirror Inside mirror ............... .3-21
Outside mirrors .............. 3-23
Monitor, Rearview monitor ..........4-22
Moonroof ................... .2-56
N
Net, Cargo net ................ .2-50
New vehicle break-in .............5-68
No key warning ................ .2-23
O
Odometer .................... .2-6
Off-road

recovery ............... .5-6
Oil Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine oil and filter ......8-11
Checking engine oil level .........8-10
Engine oil .................. 8-10
Engine oil viscosity .............9-6
Oil filter replacement indicator ......2-25
Operation, Indicators for operation
(dot matrix) .................. .2-23
Outside air temperature ............2-28
Outside mirrors ................ .3-23Owner’s Manual/Service Manual order
information
.................. .9-32
P
Panic alarm .................. .3-14
Parking Parking brake operation . . . . . . . . . .5-17
Parking brake release warning ......2-24
Parking on hills .............. 5-71
Parking brake break-in .............5-73
Personal lights ................ .2-58
Phone, Car phone or CB radio ........4-103
Power Power door lock .............. .3-4
Power outlet ................ 2-45
Power steering fluid ............8-13
Power steering system ..........5-72
Power windows .............. 2-53
Power front seat adjustment ..........1-2
Pre-crash seat belts with comfort function . .1-16
Precautions Audio operation ............. .4-46
Braking precautions ............5-73
Child restraints .............. 1-20
Cruise control ............... 5-26
Driving safety ................5-7
Maintenance .................8-5
On-pavement and off-road driving ....5-5
Seat belt usage ............... 1-12
Supplemental restraint system ......1-40
When

starting and driving . . .......5-2
Preview function ............... .5-74
Preview function (for Intelligent cruise control
system) .................... .5-49
10-5
—
—
10/19/09—tbrooks


Preview Function warning light........2-17
Push starting .................. .6-9
Push-button ignition switch ..........5-9
R
Radio ..................... .4-46
Radio Car phone or CB radio ..........4-103
FM-AM-SAT radio with Compact Disc (CD)
player .................... 4-61
Rain-sensing auto wiper system .......2-33
Rapid air pressure loss .............5-6
Readiness for inspection/maintenance (I/M)
test ...................... .9-30
Rear Active Steer system ...........5-79
Rear Active Steer warning light ........2-17
Rear center seat belt ............. .1-19
Rear door lock, Child safety rear door lock . .3-6
Rear seats ................... .1-5
Rear window and outside mirror defroster
switch ..................... .2-35
Rear window wiper blades ..........8-21
Rearview monitor ............... .4-22
Recorders, Event data .............9-31
Registering your vehicle in another
country .................... .9-10
Remote controller (DVD) ...........4-102
Remote keyless entry system .........3-13
Reporting safety defects (US only) ......9-29
Roadside assistance program .........6-2
Rollover ..................... .5-5
Roof Moonroof ................. .2-56Roof rack
.................. 2-53
Safety
Child seat belts .............. .1-15
Reporting safety defects (US only) . . . 9-29
Towing safety ............... 9-23
S
Satellite radio operation ...........4-62
Seat adjustment Front power seat adjustment ........1-2
Front seats ..................1-2
Seat belt(s)
Child safety ................ .1-15
Infants .................... 1-15
Injured persons ............... 1-16
Larger
children ............... 1-15
Pre-crash seat belts with comfort
function ................... 1-16
Precautions on seat belt usage ......1-12
Pregnant women .............. 1-16
Rear center seat belt ...........1-19
Seat belt cleaning ..............7-5
Seat belt extenders ............1-19
Seat belt maintenance ..........1-20
Seat belt warning light and chime ....2-17
Seat belts .................. 1-12
Seat belts with pretensioners ......1-52
Shoulder belt height adjustment .....1-19
Small children ............... 1-15
Three-point type .............. 1-17
Seat synchronization function ........3-26
Seat(s) Climate controlled seats ..........2-41
Driver-side memory ............3-25Seats
.....................1-2
Security system (INFINITI Vehicle Immobilizer
System), Engine start .............2-31
Security system, Vehicle security system . .2-29
Selector lever Shift lock release ............. .5-16
Servicing air conditioner
(See automatic climate control) . . . .4-40 , 4-42
Servicing climate control ...........4-46
SETTING button ................ .4-13
Shift lock release Transmission ............... .5-16
Shifting, Automatic transmission .......5-13
Shoulder belt height adjustment, For front
seats ...................... .1-19
Small light indicator light ...........2-20
Snow mode switch .............. .2-43
Spare tire .................... .9-9
Spark plugs .................. .8-18
Speedometer .................. .2-6
Starting Before starting the engine .........5-12
Precautions when starting and driving . . 5-2
Starting
the engine ............ 5-12
STATUS button ................. .4-7
Status light, Front passenger air bag . . . .1-47
Steering Power steering fluid ............8-13
Power steering system ..........5-72
Rear Active Steer system .........5-79
Steering lock release malfunction
indicator .................. 2-23
Steering-wheel-mounted controls for
audio .................... 4-89
Tilt/telescopic steering ..........3-19
Storage .................... .2-46
10-6
—
—
10/19/09—tbrooks
