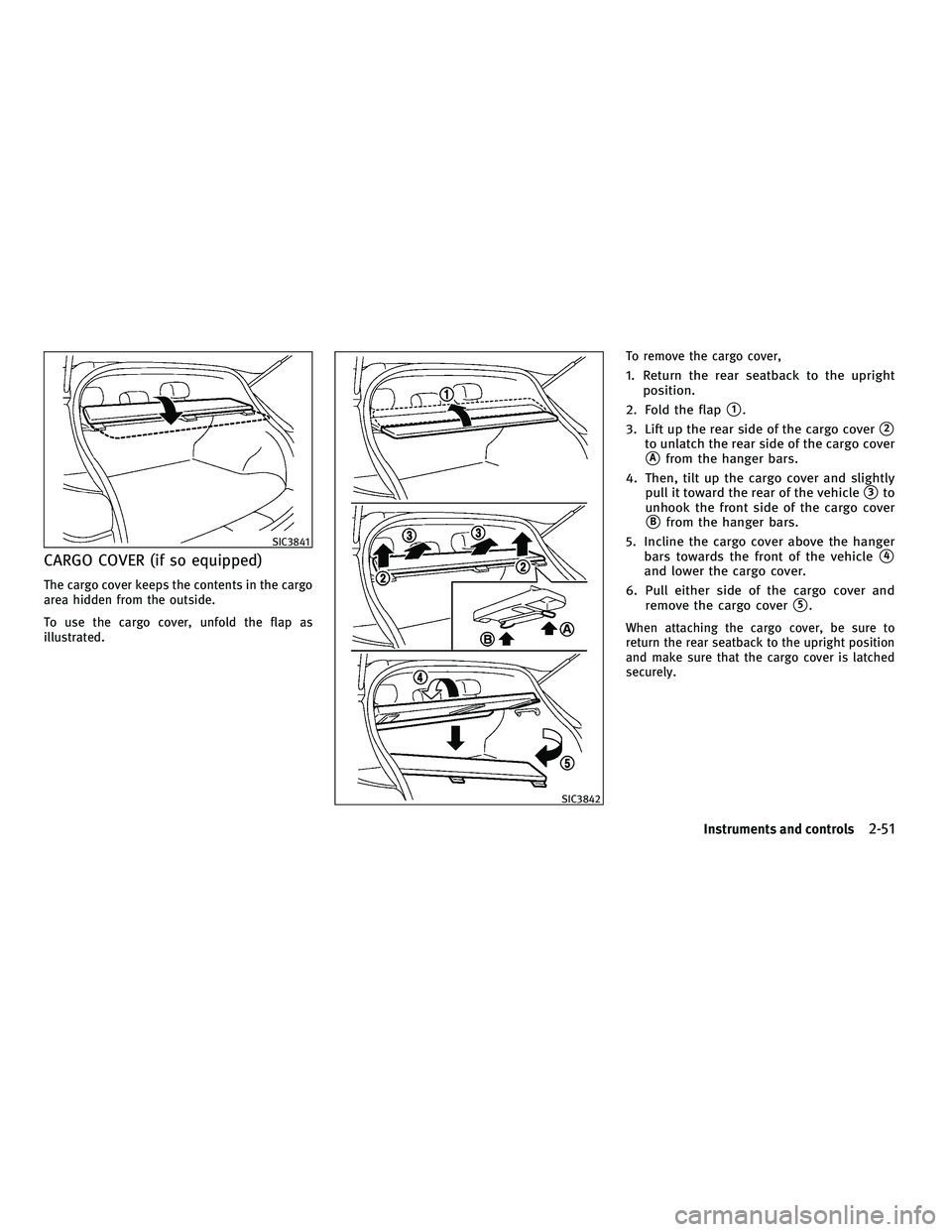

CARGO COVER (if so equipped)
The cargo cover keeps the contents in the cargo
area hidden from the outside.
To use the cargo cover, unfold the flap as
illustrated.To remove the cargo cover,
1. Return the rear seatback to the upright
position.
2. Fold the flap
1.
3. Lift up the rear side of the cargo cover
2
to unlatch the rear side of the cargo cover
Afrom the hanger bars.
4. Then, tilt up the cargo cover and slightly pull it toward the rear of the vehicle
3to
unhook the front side of the cargo cover
Bfrom the hanger bars.
5. Incline the cargo cover above the hanger bars towards the front of the vehicle
4
and lower the cargo cover.
6. Pull either side of the cargo cover and remove the cargo cover
5.
When attaching the cargo cover, be sure to
return the rear seatback to the upright position
and make sure that the cargo cover is latched
securely.
SIC3841
SIC3842
Instruments and controls2-51
—
—
