display INFINITI FX 2012 Owners Manual

SSD0738
SSD0749
Vehicle ahead detection indicator lightThe IBA system uses a distance sensor
*Alocated below the front bumper to measure
the distance to the vehicle ahead. When
the system judges that your vehicle is
getting close to the vehicle ahead in the
traveling lane, the vehicle ahead detection
indicator light on the instrument panel
blinks and a warning chime sounds.
The IBA system will be turned on/off by
pushing the IBA OFF switch. The IBA OFF
indicator light display will illuminate when
the system is turned off.
PRECAUTIONS ON IBA SYSTEM
WARNING
.
The IBA system is not a collision
avoidance system. It is the driver’ s
responsibility to stay alert, drive safely
and be in control of the vehicle at all
times.
. As there is a performance limit, the
system may not provide a warning or
braking in certain conditions.
. The system will not detect the following
objects:
—Pedestrians, animals or obstacles in the roadway
—Oncoming vehicles in the same lane
. The system will not detect another
vehicle under the following conditions:
—When the sensor gets dirty and it is
impossible to detect the distance
from the vehicle ahead.
—When driving into a strong light (forexample, sunlight)
. The sensor generally detects the signals
returned from the reflectors on a vehicle
ahead. Therefore, the system may not
function properly under the following
conditions:
—When the reflectors of the vehicle
ahead are positioned high or close to
each other (including a small vehicle
such as motorcycles).
—When the sensor gets dirty and it isimpossible to detect the distance
from the vehicle ahead.
—When the reflectors on the vehicle
ahead are missing, damaged or
covered.
—When the reflectors of the vehicleahead are covered with dirt, snow or
Starting and driving5-71

—Vehicle position in the lane maycause the sensor to temporarily not
detect a vehicle in the same lane or
may detect objects or vehicles in
other lanes.
SSD0471
Warning light and display
When the Preview Function is not operating
properly, the chime sounds and the system
warning light (orange) will come on.
Action to take:
If the warning light comes on, park the
vehicle in a safe place. Turn the engine off,
restart the engine and resume driving.
If the indicator stays on, it may indicate
that the Preview Function is malfunction-
ing (the brake is operative). Although the
Vehicle is still driveable under normal
conditions, have the vehicle checked at
an INFINITI retailer.
How to handle the sensor
The sensor for the Preview Function is
common with Intelligent Cruise Control and
is located below the front bumper.
To keep the Preview Function operating
properly, be sure to observe the following:
. Always keep the sensor clean. Wipe
with a soft cloth carefully so as not to
damage the sensor.
. Do not strike or damage the areas
around the sensor. Do not touch or
remove the screw located on the
sensor. Doing so could cause failure
or malfunction. If the sensor is da-
maged due to an accident, contact an
INFINITI retailer.
. Do not attach a sticker (including
transparent material) or install an
accessory near the sensor. This could
cause failure or malfunction.
Starting and driving5-81

6-2In case of emergency
In the event of a roadside emergency,
Roadside Assistance Service is available to
you. Please refer to your Warranty Informa-
tion Booklet (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada)
for details.To shut off the engine in an emergency
situation while driving perform the follow-
ing procedure:
.
Rapidly push the push-button ignition
switch 3 consecutive times in less than
1.5 seconds, or
. Push and hold the push-button ignition
switch for more than 2 seconds.TIRE PRESSURE MONITORING SYS-
TEM (TPMS)
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit and the CHECK TIRE
PRESSURE warning appears on the dot
matrix liquid crystal display, one or more
of your tires is significantly under-inflated.
If the vehicle is being driven with low tire
pressure, the TPMS will activate and warn
you of it by the low tire pressure warning
light. This system will activate only when
the vehicle is driven at speeds above 16
MPH (25 km/h). For more details, see
“Warning/indicator lights and audible re-
minders” (P.2-12),“TIRE PRESSURE infor-
mation” (P.4-11) and “Tire Pressure
Monitoring System (TPMS)” (P.5-4).
WARNING
.If the low tire pressure warning light
illuminates or LOW PRESSURE informa-
tion is displayed on the monitor screen
while driving, avoid sudden steering
maneuvers or abrupt braking, reduce
vehicle speed, pull off the road to a safe
ROADSIDE ASSISTANCE PROGRAM EMERGENCY ENGINE SHUT OFF FLAT TIRE

4. Lower the vehicle slowly until the tiretouches the ground. Then, with the
wheel nut wrench, tighten the wheel
nuts securely in the sequence as
illustrated. Lower the vehicle comple-
tely.
WARNING
. Incorrect wheel nuts or improperly tigh-
tened wheel nuts can cause the wheel to
become loose or come off. This could
cause an accident.
. Do not use oil or grease on the wheel
studs or nuts. This could cause the nuts
to become loose.
. Retighten the wheel nuts when the
vehicle has been driven for 600 miles
(1,000 km) (also in cases of a flat tire,
etc.).
.As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.
Wheel nut tightening torque: 80 ft-lb (108 N·m)
The wheel nuts must be kept tigh-
tened to specification at all times. It is recommended that wheel nuts be
tightened to specifications at each
lubrication interval.
.Adjust tire pressure to the COLD
pressure.
COLD pressure:
After the vehicle has been parked
for three hours or more or driven
less than 1 mile (1.6 km).
COLD tire pressures are shown on
the Tire and Loading Information
label affixed to the driver side center
pillar.
After adjusting tire pressure to the COLD
tire pressure, the display of the tire
pressure information may show higher
pressure than the COLD tire pressure after
the vehicle has been driven more than 1
mile (1.6 km). This is because the tire
pressurizes as the tire temperature rises.
This does not indicate a system malfunc-
tion.
Stowing the damaged tire and tools
1. Securely store the damaged tire, jack and tools in the storage area.
2. Close the luggage floor cover.
3. Close the lift gate.
WARNING
. Always make sure that the spare tire and
jacking equipment are properly secured
after use. Such items can become
dangerous projectiles in an accident or
sudden stop.
. The T-type spare tire and small size
spare tire are designed for emergency
use. See specific instructions under the
heading “Wheels and tires” (P.8-32).
If needed Roadside Assistance is available.
Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty Information Booklet (Canada).
In case of emergency6-7

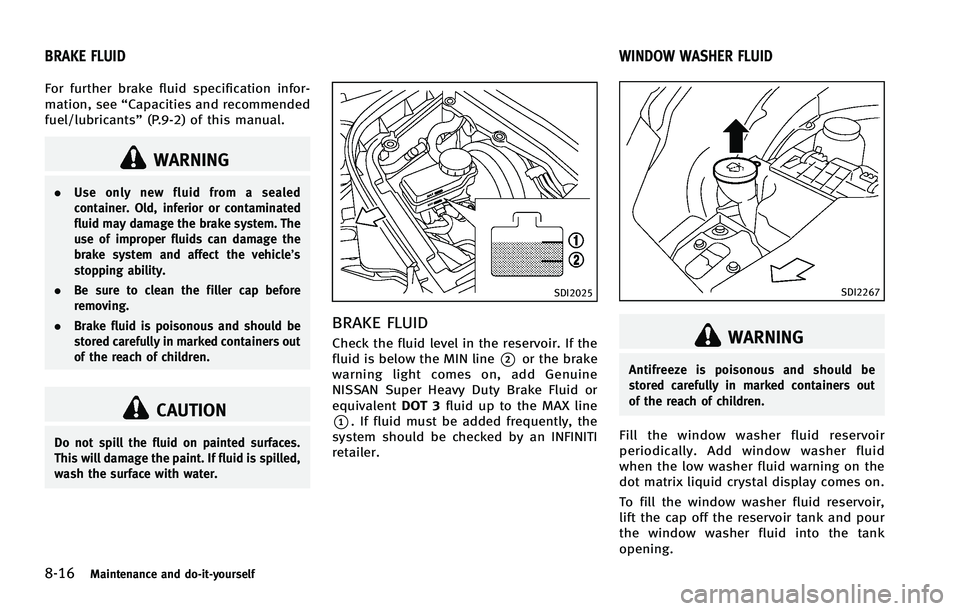

8-16Maintenance and do-it-yourself
For further brake fluid specification infor-
mation, see“Capacities and recommended
fuel/lubricants” (P.9-2) of this manual.
WARNING
.Use only new fluid from a sealed
container. Old, inferior or contaminated
fluid may damage the brake system. The
use of improper fluids can damage the
brake system and affect the vehicle’s
stopping ability.
. Be sure to clean the filler cap before
removing.
. Brake fluid is poisonous and should be
stored carefully in marked containers out
of the reach of children.
CAUTION
Do not spill the fluid on painted surfaces.
This will damage the paint. If fluid is spilled,
wash the surface with water.
SDI2025
BRAKE FLUID
Check the fluid level in the reservoir. If the
fluid is below the MIN line
*2or the brake
warning light comes on, add Genuine
NISSAN Super Heavy Duty Brake Fluid or
equivalent DOT 3fluid up to the MAX line
*1. If fluid must be added frequently, the
system should be checked by an INFINITI
retailer.
SDI2267
WARNING
Antifreeze is poisonous and should be
stored carefully in marked containers out
of the reach of children.
Fill the window washer fluid reservoir
periodically. Add window washer fluid
when the low washer fluid warning on the
dot matrix liquid crystal display comes on.
To fill the window washer fluid reservoir,
lift the cap off the reservoir tank and pour
the window washer fluid into the tank
opening.
BRAKE FLUID WINDOW WASHER FLUID

8-32Maintenance and do-it-yourself
SDI1500B
Cargo light
SDI1839
Vanity mirror lightIf you have a flat tire, see
“Flat tire”(P.6-
2).
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit and the CHECK TIRE
PRESSURE warning appears on the dot
matrix liquid crystal display, one or more
of your tires is significantly under-inflated.
The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h). Also, this system may not
detect a sudden drop in tire pressure (for
example a flat tire while driving).
For more details, see “Low tire pressure
warning light” (P.2-15),“Tire Pressure
Monitoring System (TPMS)” (P.5-4) and
“Tire Pressure Monitoring System (TPMS)”
(P.6-2).
Tire inflation pressure
Check the pressure of the tires
(including the spare) often and al- ways prior to long distance trips. The
recommended tire pressure specifi-
cations are shown on the Tire and
Loading Information label under the
“Cold Tire Pressure”
heading. The
Tire and Loading Information label is
affixed to the driver side center pillar.
Tire pressures should be checked
regularly because:
.Most tires naturally lose air over time.
.Tires can lose air suddenly whendriven over potholes or other
objects or if the vehicle strikes a
curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle
has been parked for 3 or more hours,
or driven less than 1 mile (1.6 km) at
moderate speeds.
Incorrect tire pressure, including
under inflation, may adversely affect
tire life and vehicle handling.
WHEELS AND TIRES

10 Index
A
ABS (Anti-lock Braking System) ......................... 5-82
Adaptive front lighting system (AFS) .................. 2-40
Adaptive shift control (ASC) .............................. 5-19
Advanced air bag system .................................. 1-42
Aiming control, Adaptive front lighting
system (AFS) ..................................................... 2-40
Air bag system
Advanced air bag system ............................. 1-42
Front passenger air bag and status light ...... 1-44
Front-seat mounted side-impact supplemental
air bag system ............................................. 1-47
Roof-mounted curtain side-impact and rollover
supplemental air bag system ....................... 1-47
Air bag warning labels ...................................... 1-50
Air bag warning light ............................... 1-50, 2-17
Air cleaner housing filter ................................... 8-21
Air conditioner Advanced Climate Control System (ACCS) ..... 4-46
Air conditioner service ................................. 4-48
Air conditioner specification label ................ 9-13
Air conditioning system refrigerant and
lubricant recommendations .................. 4-48, 9-7
Automatic climate control .................. 4-43, 4-45
In-cabin microfilter ....................................... 4-48
Alarm, How to stop alarm (see vehicle
security system) ................................................ 2-31
Alcohol, drugs and driving .................................. 5-8
All-wheel drive (AWD) ........................................ 5-75
All-wheel drive (AWD) warning light .................. 2-13 Antenna ............................................................ 4-92
Anti-lock Braking System (ABS) ......................... 5-82
Anti-lock braking system (ABS) warning light .... 2-13
Appearance care
Exterior appearance care ................................ 7-2
Interior appearance care ................................ 7-4
Armrest ............................................................. 1-10
Audible reminders ............................................ 2-21
Audio operation precautions ............................. 4-49
Audio system .................................................... 4-49 Steering wheel audio controls ...................... 4-91
Auto closure ..................................................... 3-24
Autolight system ............................................... 2-37
Automatic Automatic transmission fluid (ATF) ............... 8-15
Climate control .................................. 4-43, 4-45
Door locks ..................................................... 3-6
Drive positioner ........................................... 3-32Driving with automatic transmission ............ 5-15
Moonroof ..................................................... 2-61
Seat positioner ............................................ 3-32
Average fuel consumption and speed ................ 2-28
Avoiding collision and rollover ............................ 5-6
B
Back door (See lift gate) ................................... 3-18 Battery .............................................................. 8-17 Battery saver system ................................... 2-39
Intelligent Key .............................................. 8-27 Variable voltage control system ................... 8-19
Before starting the engine ................................ 5-13
Belts (See drive belts) ....................................... 8-19
Bluetooth
®hands-free phone system
(models with navigation system) ....................... 4-94
Bluetooth
®hands-free phone system
(models without navigation system) ................ 4-105
Bluetooth streaming audio .............. 4-60, 4-75, 4-92
Booster seats .................................................... 1-34
Brake Anti-lock Braking System (ABS) .................... 5-82
Brake fluid ................................................... 8-16
Brake system ............................................... 5-78
Parking brake operation ............................... 5-20
Warning light ............................................... 2-13
Break-in schedule ............................................. 5-74
Brightness control
Display ON/OFF button .................................. 4-9
Instrument panel ......................................... 2-41
Bulb check/instrument panel ............................ 2-12
Bulb replacement .............................................. 8-29
C
Cabin air filter ................................................... 4-48
Capacities and recommended fuel/lubricants ...... 9-2
Car phone or CB radio ...................................... 4-93
Cargo (See vehicle loading information) ............ 2-54
Cargo cover....................................................... 2-55
Cargo light ........................................................ 2-65

10-2
Cargo net .......................................................... 2-54Catalytic converter, Three way catalyst ................ 5-3
CD/CF/USB memory care and cleaning ............. 4-90
Center multi-function control panel ..................... 4-3Child restraints ................................................. 1-20 Booster seats ............................................... 1-34
LATCH system .............................................. 1-21
Precautions on child restraints ..................... 1-20
Child safety ...................................................... 1-18
Child safety rear door lock .................................. 3-6
Chimes Audible reminders ....................................... 2-21
Seat belt warning light and chime ............... 2-17
Circuit breaker, Fusible link............................... 8-25
Cleaning exterior and interior ....................... 7-2, 7-4
Climate control Automatic climate control .................. 4-43, 4-45
Clock ................................................................ 2-48
Coat hooks ....................................................... 2-53
Cockpit ............................................................... 2-3Cold weather driving ......................................... 5-85Compact Disc (CD) player (See audio system) ... 4-66
Compact spare tire ........................................... 8-42
Compass ............................................................. 2-9
Console box ...................................................... 2-52
Continuous Damping Control ............................. 5-77
Controller, Center multi-function control panel .... 4-5
Controls
Control panel button ...................................... 4-3INFINITI Controller .......................................... 4-5 Coolant
Capacities and recommended
fuel/ lubricants .............................................. 9-2
Changing engine coolant ............................. 8-11Checking engine coolant level ...................... 8-10
Corrosion protection ........................................... 7-6 Cover, Cargo cover ............................................ 2-55
Cruise control ................................................... 5-29 Fixed speed cruise control (on ICC system) ... 5-50
Cup holders ...................................................... 2-50
Current fuel consumption .................................. 2-28
D
Daytime running light system ........................... 2-40
Defroster switch, Rear window and outside mirror
defroster switch ................................................ 2-36
Dimensions ....................................................... 9-10 Distance Control Assist (DCA) system ................ 5-54
Distance Control Assist (DCA) system
warning light .................................................... 2-14
Distance to empty ............................................. 2-28
Door/lift gate open warning .............................. 2-25
Dot matrix liquid crystal display ....................... 2-21
Drive belts ........................................................ 8-19
Drive positioner ................................................ 3-32
Driving All-wheel drive (AWD) ................................... 5-75
Cold weather driving .................................... 5-85Driving with automatic transmission ............ 5-15
On-pavement and off-road driving .................. 5-7
Precautions when starting and driving ........... 5-3 Safety precautions ......................................... 5-8
DS (Drive Sport) mode ...................................... 5-17
DVD player operation ........................................ 4-67
E
Economy, Fuel ................................................... 5-74
Elapsed time ..................................................... 2-28
Elapsed time and trip odometer ........................ 2-28
Emission control information label .................... 9-13
Emission control system warranty ..................... 9-29
Engine Before starting the engine ........................... 5-13
Break-in schedule ........................................ 5-74
Capacities and
recommended fuel/lubricants ........................ 9-2
Changing engine coolant ............................. 8-11Changing engine oil and filter ...................... 8-12
Checking engine coolant level ...................... 8-10
Checking engine oil level ............................. 8-12
Coolant temperature gauge ............................ 2-8Emergency engine shut off ........................... 5-12
Engine block heater ..................................... 5-87
Engine compartment check locations ............. 8-7
Engine cooling system ................................... 8-9
Engine oil .................................................... 8-11
Engine oil and oil filter recommendation ........ 9-6
Engine oil replacement indicator .................. 2-26
Engine oil viscosity ........................................ 9-7
Engine serial number ................................... 9-12
Engine specifications ..................................... 9-8
Engine start operation indicator ................... 2-24

If your vehicle overheats .............................. 6-11
Starting the engine ...................................... 5-14
Entry/exit function, Automatic drive positioner ... 3-33
Event Data Recorders (EDR) ............................... 9-31
Exhaust gas (carbon monoxide) .......................... 5-3
F
F.M.V.S.S./C.M.V.S.S. certification label ............. 9-12
Filter
Air cleaner housing filter .............................. 8-21
Changing engine oil and filter ...................... 8-12
Flashers (See hazard warning flasher switch) .... 2-42
Flat tire ............................................................... 6-2 Flat towing ........................................................ 9-27
Floor mat cleaning .............................................. 7-5
Fluid Automatic transmission fluid (ATF) ............... 8-15
Brake fluid ................................................... 8-16
Capacities and
recommended fuel/lubricants ........................ 9-2
Engine coolant ............................................... 8-9
Engine oil .................................................... 8-11
Power steering fluid ..................................... 8-15
Window washer fluid ................................... 8-16
FM-AM-SAT radio with Compact Disc
(CD) player ........................................................ 4-63
Fog light switch ................................................ 2-42
Forward Collision Warning (FCW) system ........... 5-67
Front passenger air bag and status light ........... 1-44
Front power seat adjustment ............................... 1-3 Front seat, Front seat adjustment ........................ 1-3 Front-seat active head restraint ........................... 1-9
Fuel
Capacities and
recommended fuel/lubricants ........................ 9-2
Fuel economy............................................... 5-74
Fuel economy information (display) .............. 4-11Fuel octane rating .......................................... 9-4
Fuel recommendation ..................................... 9-4Fuel-filler cap ............................................... 3-24
Fuel-filler door ............................................. 3-24
Gauge ............................................................ 2-8
LOOSE FUEL CAP warning ............................. 3-26
Fuses ................................................................ 8-25
Fusible links ..................................................... 8-25
G
Garage door opener, HomeLink®
Universal Transceiver ........................................ 2-65
Gas cap ............................................................ 3-24
Gauge Engine coolant temperature gauge ................. 2-8
Fuel gauge ..................................................... 2-8
Odometer....................................................... 2-6
Speedometer ................................................. 2-6
Tachometer .................................................... 2-7
Trip computer .............................................. 2-28
General maintenance ................................... 8-2, 8-3
Glove box ......................................................... 2-52
H
Hands-free phone system, Bluetooth®
(models with navigation system) ....................... 4-94
Hands-free phone system, Bluetooth®
(models without navigation system) ................ 4-105
Hazard warning flasher switch .......................... 2-42
Head restraints ................................................... 1-6 Headlight aiming control .................................. 2-39
Headlights Aiming control (See adaptive front lighting
system (AFS)) ............................................... 2-40
Bulb replacement ......................................... 8-30
Headlight switch .......................................... 2-37
Xenon headlights ......................................... 2-36
Headrest ........................................................... 1-10
Heater Automatic climate control .................. 4-43, 4-45
Engine block heater ..................................... 5-87
HomeLink
®Universal Transceiver ...................... 2-65
Hood release .................................................... 3-18
Hook
Coat hooks .................................................. 2-53Luggage hook .............................................. 2-54
Horn ................................................................. 2-43
I
Ignition switch (Push-button) ............................ 5-10
Immobilizer system ........................................... 2-32
In-cabin microfilter ............................................ 4-48
10-3

10-4
IndicatorDot matrix display ....................................... 2-21
Lights .......................................................... 2-18
INFINITI Vehicle Immobilizer System .................. 2-32
INFINITI voice recognition system .................... 4-120
INFO button ........................................................ 4-9
Inside mirror ..................................................... 3-29
Inspection/maintenance (I/M) test .................... 9-31
Instrument brightness control ........................... 2-41
Instrument panel ................................................ 2-5
Intelligent Brake Assist (IBA) off indicator light ... 2-19
Intelligent Brake Assist (IBA) system ................. 5-70
Intelligent Cruise Control (ICC) system (Full
Speed Range) ................................................... 5-31
Intelligent Cruise Control (ICC) system
warning light .................................................... 2-15
Intelligent cruise control (ICC) system,
Preview function ............................................... 5-54
Intelligent Key ..................................................... 3-2 Intelligent Key battery discharge indicator ........ 2-24
Intelligent Key insertion indicator ...................... 2-24
Intelligent Key removal indicator ....................... 2-24
Intelligent Key system ......................................... 3-7 Battery replacement ..................................... 8-27
Intelligent Key system warning light ............ 2-15
Key operating range ....................................... 3-9
Key operation .............................................. 3-10
Warning signals ........................................... 3-12
Interior light control switch ............................... 2-63 Interior light replacement .................................. 8-30Interior lights .................................................... 2-63 iPod®player operation ..................................... 4-80
ISOFIX child restraint ........................................ 1-21
J
Jump starting ...................................................... 6-8
K
Keyless entry (See remote keyless
entry system) .................................................... 3-14
Keys ................................................................... 3-2 For Intelligent Key system .............................. 3-7
L
LabelsAir bag warning labels ................................. 1-50
Air conditioner specification label ................ 9-13
Emission control information label ............... 9-13
Engine serial number ................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ........ 9-12
Tire and Loading information label ...... 8-34, 9-13
Vehicle identification number (VIN) .............. 9-11
Lane Departure Prevention (LDP) ON
indicator light ................................................... 2-19
Lane Departure Prevention (LDP) system ........... 5-24
Lane departure warning (LDW) system .............. 5-22
Lane Departure Warning (LDW) system/Lane
Departure Prevention (LDP) system ................... 5-21
Lane departure warning chime .......................... 2-21
Lane departure warning light ............................ 2-15 LATCH system ................................................... 1-21
License plate, Installing front license plate ....... 9-14
Lift gate ............................................................ 3-18
Light
Air bag warning light ................................... 1-50
Bulb replacement ......................................... 8-29
Cargo light ................................................... 2-65
Fog light switch ........................................... 2-42
Headlight switch .......................................... 2-37
Headlights bulb replacement ....................... 8-30Indicator lights ............................................ 2-18Interior light control switch .......................... 2-63Interior lights ............................................... 2-63
Map lights ................................................... 2-63
Personal lights ............................................. 2-63
Replacement ................................................ 8-29
Vanity mirror lights ...................................... 2-64
Warning/indicator lights and
audible reminders ........................................ 2-13
Xenon headlights ......................................... 2-36
Lights, Exterior and interior light replacement ... 8-30
Loading information (See vehicle
loading information) ......................................... 9-15 Lock Automatic door locks ..................................... 3-6
Door locks ..................................................... 3-4
Lift gate lock ................................................ 3-18
Power door lock ............................................. 3-4
Locking with mechanical key ............................... 3-4
Low fuel warning .............................................. 2-25
Low tire pressure warning light ......................... 2-15
