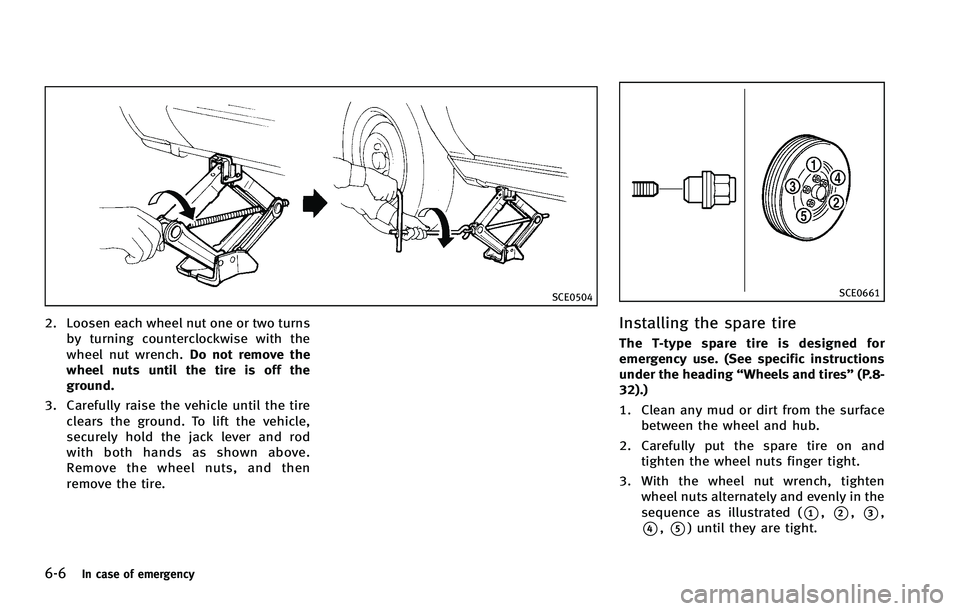

6-6In case of emergency
SCE0504
2. Loosen each wheel nut one or two turnsby turning counterclockwise with the
wheel nut wrench. Do not remove the
wheel nuts until the tire is off the
ground.
3. Carefully raise the vehicle until the tire clears the ground. To lift the vehicle,
securely hold the jack lever and rod
with both hands as shown above.
Remove the wheel nuts, and then
remove the tire.
SCE0661
Installing the spare tire
The T-type spare tire is designed for
emergency use. (See specific instructions
under the heading “Wheels and tires” (P.8-
32).)
1. Clean any mud or dirt from the surface between the wheel and hub.
2. Carefully put the spare tire on and tighten the wheel nuts finger tight.
3. With the wheel nut wrench, tighten wheel nuts alternately and evenly in the
sequence as illustrated (
*1,*2,*3,
*4,*5) until they are tight.

SDI2024
VQ35HR engine—2WD models
SDI2047
VQ35HR engine —AWD models
SDI2266
VK50VE engine
Engine oil and filter
1. Place a large drain pan under the drain
plug.
2. Remove the oil filler cap.
3. Remove the drain plug
*1with a
wrench and completely drain the oil.
CAUTION
Be careful not to burn yourself, as the
engine oil is hot.
.Waste oil must be disposed of
properly.
.Check your local regulations.
4. (Perform steps 4 to 7 only when the engine oil filter change is needed.)
Loosen the oil filter
*2with an oil filter
wrench. Remove the oil filter by turning
it by hand.
5. Wipe the engine oil filter mounting surface with a clean rag.
CAUTION
Be sure to remove any old rubber gasket
remaining on the mounting surface of the
engine. Failure to do so could lead to engine
damage.
6. Coat the gasket on the new filter with
clean engine oil.
7. Screw in the oil filter clockwise until a slight resistance is felt, then tighten
additionally more than 2/3 turn.
Oil filter tightening torque:11 to 15 ft-lb
(14.7 to 20.5 N·m)
Maintenance and do-it-yourself8-13

10-2
Cargo net .......................................................... 2-54Catalytic converter, Three way catalyst ................ 5-3
CD/CF/USB memory care and cleaning ............. 4-90
Center multi-function control panel ..................... 4-3Child restraints ................................................. 1-20 Booster seats ............................................... 1-34
LATCH system .............................................. 1-21
Precautions on child restraints ..................... 1-20
Child safety ...................................................... 1-18
Child safety rear door lock .................................. 3-6
Chimes Audible reminders ....................................... 2-21
Seat belt warning light and chime ............... 2-17
Circuit breaker, Fusible link............................... 8-25
Cleaning exterior and interior ....................... 7-2, 7-4
Climate control Automatic climate control .................. 4-43, 4-45
Clock ................................................................ 2-48
Coat hooks ....................................................... 2-53
Cockpit ............................................................... 2-3Cold weather driving ......................................... 5-85Compact Disc (CD) player (See audio system) ... 4-66
Compact spare tire ........................................... 8-42
Compass ............................................................. 2-9
Console box ...................................................... 2-52
Continuous Damping Control ............................. 5-77
Controller, Center multi-function control panel .... 4-5
Controls
Control panel button ...................................... 4-3INFINITI Controller .......................................... 4-5 Coolant
Capacities and recommended
fuel/ lubricants .............................................. 9-2
Changing engine coolant ............................. 8-11Checking engine coolant level ...................... 8-10
Corrosion protection ........................................... 7-6 Cover, Cargo cover ............................................ 2-55
Cruise control ................................................... 5-29 Fixed speed cruise control (on ICC system) ... 5-50
Cup holders ...................................................... 2-50
Current fuel consumption .................................. 2-28
D
Daytime running light system ........................... 2-40
Defroster switch, Rear window and outside mirror
defroster switch ................................................ 2-36
Dimensions ....................................................... 9-10 Distance Control Assist (DCA) system ................ 5-54
Distance Control Assist (DCA) system
warning light .................................................... 2-14
Distance to empty ............................................. 2-28
Door/lift gate open warning .............................. 2-25
Dot matrix liquid crystal display ....................... 2-21
Drive belts ........................................................ 8-19
Drive positioner ................................................ 3-32
Driving All-wheel drive (AWD) ................................... 5-75
Cold weather driving .................................... 5-85Driving with automatic transmission ............ 5-15
On-pavement and off-road driving .................. 5-7
Precautions when starting and driving ........... 5-3 Safety precautions ......................................... 5-8
DS (Drive Sport) mode ...................................... 5-17
DVD player operation ........................................ 4-67
E
Economy, Fuel ................................................... 5-74
Elapsed time ..................................................... 2-28
Elapsed time and trip odometer ........................ 2-28
Emission control information label .................... 9-13
Emission control system warranty ..................... 9-29
Engine Before starting the engine ........................... 5-13
Break-in schedule ........................................ 5-74
Capacities and
recommended fuel/lubricants ........................ 9-2
Changing engine coolant ............................. 8-11Changing engine oil and filter ...................... 8-12
Checking engine coolant level ...................... 8-10
Checking engine oil level ............................. 8-12
Coolant temperature gauge ............................ 2-8Emergency engine shut off ........................... 5-12
Engine block heater ..................................... 5-87
Engine compartment check locations ............. 8-7
Engine cooling system ................................... 8-9
Engine oil .................................................... 8-11
Engine oil and oil filter recommendation ........ 9-6
Engine oil replacement indicator .................. 2-26
Engine oil viscosity ........................................ 9-7
Engine serial number ................................... 9-12
Engine specifications ..................................... 9-8
Engine start operation indicator ................... 2-24
