13. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between IPDM E/R harness connector E9 termi-
nals 48 (L), 49 (R) and ground.
OK or NG
OK >> GO TO 14.
NG >> Repair harness between IPDM E/R and harness con-
nector E205.
14. ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION
Check components inspection. Refer to LAN-132, "
ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION" .
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-92, "Work Flow" .
NG >> Replace ECM and/or IPDM E/R.
IPDM E/R Ignition Relay Circuit CheckAKS00C0Z
Check the following. If no malfunction is found, replace the IPDM E/R.

IPDM E/R power supply circuit. Refer to PG-28, "IPDM E/R Power/Ground Circuit Inspection" .

Ignition power supply circuit. Refer to PG-12, "IGNITION POWER SUPPLY - IGNITION SW. IN “ON”
AND/OR “START”" .
Component InspectionAKS00C10
ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION

Remove ECM and IPDM E/R from vehicle.

Check resistance between ECM terminals 94 and 86.

Check resistance between IPDM E/R terminals 48 and 49.48 (L) - Ground : Continuity should not exist.
49 (R) - Ground : Continuity should not exist.
SKIA6879E
Unit TerminalResistance value (Ω)
(Approx.)
ECM 94 - 86
108 - 132
IPDM E/R 48 - 49
LKIA0037E

CAN SYSTEM (TYPE 4)
LAN-155
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Case 14
Check CAN communication circuit. Refer to LAN-163, "CAN Communication Circuit Check" .
Case 15
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-166, "IPDM E/R Ignition Relay
Circuit Check" .
PKIA8000E
PKIA8001E

LAN-156
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2004 November 2004 FX35/FX45
Case 16
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-166, "IPDM E/R Ignition Relay
Circuit Check" .
Circuit Check Between TCM and Data Link ConnectorAKS00C16
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect ECM connector and harness connector M82.

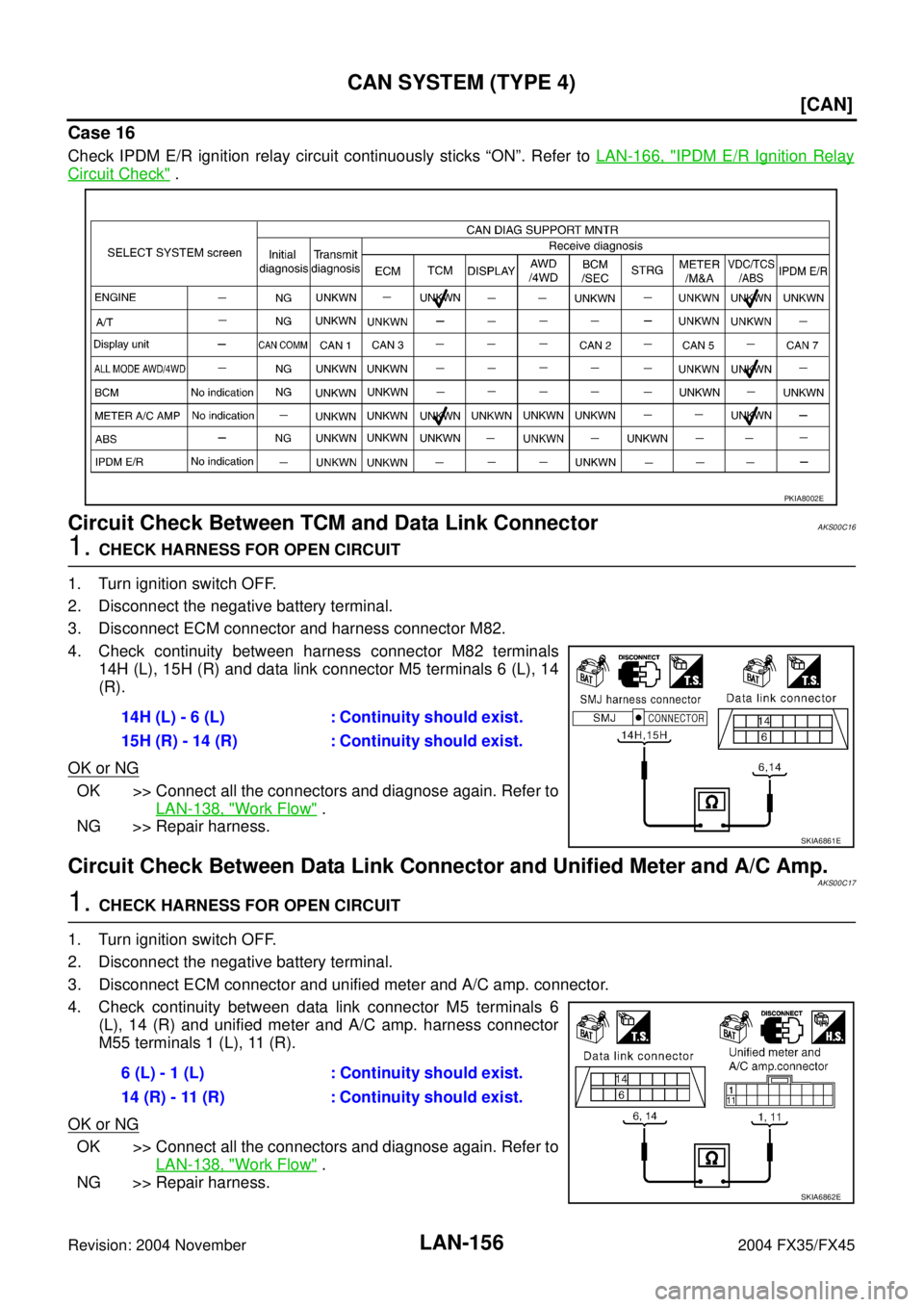

4. Check continuity between harness connector M82 terminals
14H (L), 15H (R) and data link connector M5 terminals 6 (L), 14
(R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-138, "
Work Flow" .
NG >> Repair harness.
Circuit Check Between Data Link Connector and Unified Meter and A/C Amp.AKS00C17
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect ECM connector and unified meter and A/C amp. connector.
4. Check continuity between data link connector M5 terminals 6
(L), 14 (R) and unified meter and A/C amp. harness connector
M55 terminals 1 (L), 11 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-138, "
Work Flow" .
NG >> Repair harness.
PKIA8002E
14H (L) - 6 (L) : Continuity should exist.
15H (R) - 14 (R) : Continuity should exist.
SKIA6861E
6 (L) - 1 (L) : Continuity should exist.
14 (R) - 11 (R) : Continuity should exist.
SKIA6862E

LAN-166
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2004 November 2004 FX35/FX45
10. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector E9 ter-
minals 48 (L) and 49 (R).
OK or NG
OK >> GO TO 11.
NG >> Repair harness between IPDM E/R and harness con-
nector E205.
11 . CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between IPDM E/R harness connector E9 termi-
nals 48 (L), 49 (R) and ground.
OK or NG
OK >> GO TO 12.
NG >> Repair harness between IPDM E/R and harness con-
nector E205.
12. ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION
Check components inspection. Refer to LAN-166, "
ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION" .
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-138, "Work Flow" .
NG >> Replace ECM and/or IPDM E/R.
IPDM E/R Ignition Relay Circuit CheckAKS00C1K
Check the following. If no malfunction is found, replace the IPDM E/R.

IPDM E/R power supply circuit. Refer to PG-28, "IPDM E/R Power/Ground Circuit Inspection" .

Ignition power supply circuit. Refer to PG-12, "IGNITION POWER SUPPLY - IGNITION SW. IN “ON”
AND/OR “START”" .
Component InspectionAKS00C1L
ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION

Remove ECM and IPDM E/R from vehicle.

Check resistance between ECM terminals 94 and 86.

Check resistance between IPDM E/R terminals 48 and 49.48 (L) - 49 (R) : Continuity should not exist.
SKIA6873E
48 (L) - Ground : Continuity should not exist.
49 (R) - Ground : Continuity should not exist.
SKIA6879E
Unit TerminalResistance value (Ω)
(Approx.)
ECM 94 - 86
108 - 132
IPDM E/R 48 - 49
LKIA0037E

CAN SYSTEM (TYPE 5)
LAN-191
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Case 16

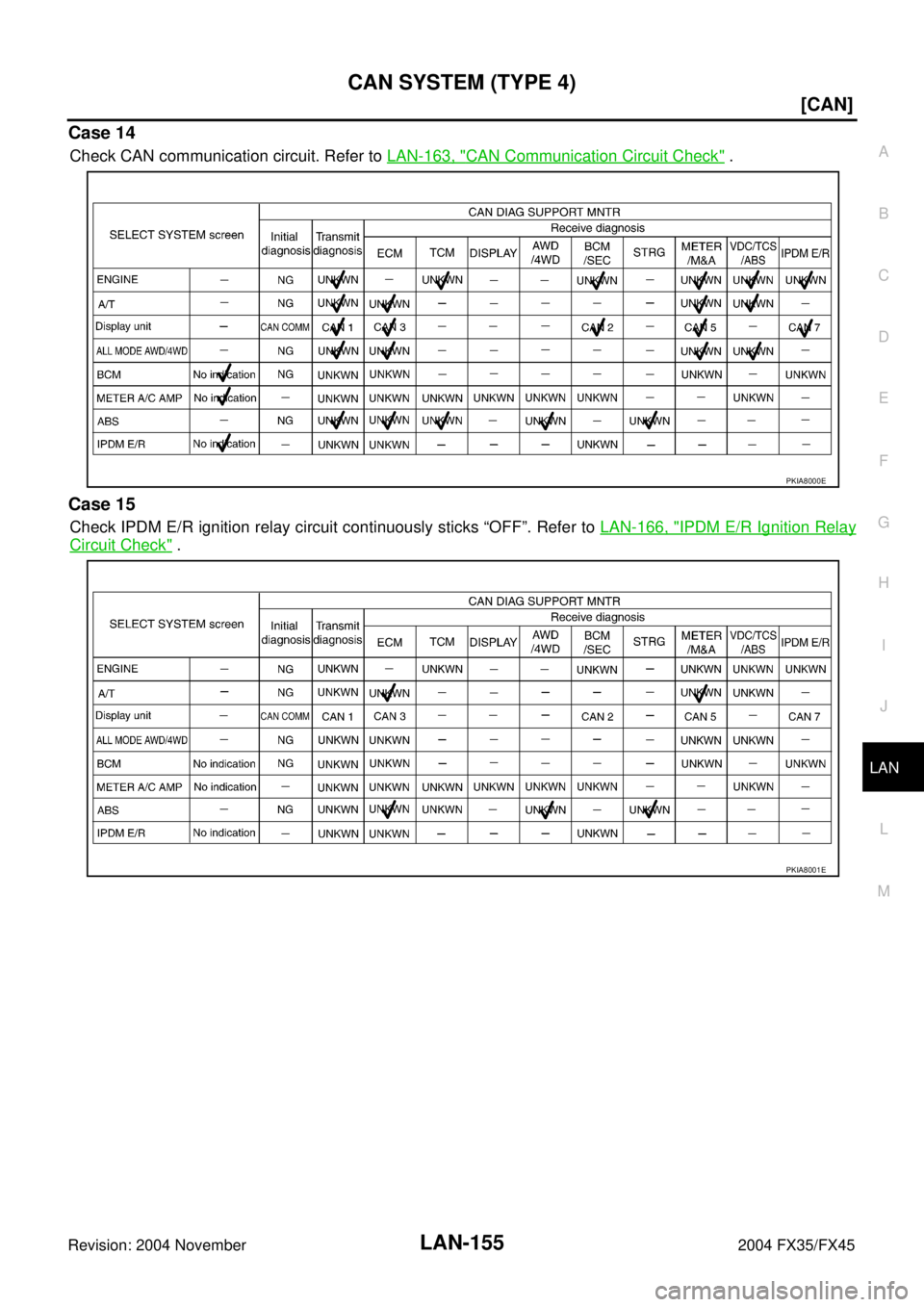

Check CAN communication circuit. Refer to LAN-200, "CAN Communication Circuit Check" .
Case 17
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-205, "IPDM E/R Ignition Relay
Circuit Check" .
PKIA8020E
PKIA8022E

LAN-192
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2004 November 2004 FX35/FX45
Case 18
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-205, "IPDM E/R Ignition Relay
Circuit Check" .
Circuit Check Between TCM and Data Link ConnectorAKS00C1R
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect ECM connector and harness connector M82.
4. Check continuity between harness connector M82 terminals
14H (L), 15H (R) and data link connector M5 terminals 6 (L), 14
(R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-172, "
Work Flow" .
NG >> Repair harness.
Circuit Check Between Data Link Connector and Unified Meter and A/C Amp.AKS00C1S
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect ECM connector and unified meter and A/C amp. connector.
4. Check continuity between data link connector M5 terminals 6
(L), 14 (R) and unified meter and A/C amp. harness connector
M55 terminals 1 (L), 11 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-172, "
Work Flow" .
NG >> Repair harness.
PKIA8021E
14H (L) - 6 (L) : Continuity should exist.
15H (R) - 14 (R) : Continuity should exist.
SKIA6861E
6 (L) - 1 (L) : Continuity should exist.
14 (R) - 11 (R) : Continuity should exist.
SKIA6862E

CAN SYSTEM (TYPE 5)
LAN-205
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
14. ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION
Check components inspection. Refer to LAN-205, "
ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION" .
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-172, "Work Flow" .
NG >> Replace ECM and/or IPDM E/R.
IPDM E/R Ignition Relay Circuit CheckAKS00C27
Check the following. If no malfunction is found, replace the IPDM E/R.

IPDM E/R power supply circuit. Refer to PG-28, "IPDM E/R Power/Ground Circuit Inspection" .

Ignition power supply circuit. Refer to PG-12, "IGNITION POWER SUPPLY - IGNITION SW. IN “ON”
AND/OR “START”" .
Component InspectionAKS00C28
ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION

Remove ECM and IPDM E/R from vehicle.

Check resistance between ECM terminals 94 and 86.

Check resistance between IPDM E/R terminals 48 and 49.
Unit TerminalResistance value (Ω)
(Approx.)
ECM 94 - 86
108 - 132
IPDM E/R 48 - 49
LKIA0037E

LAN-236
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45
Case 21
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-253, "IPDM E/R Ignition Relay
Circuit Check" .
PKIA8047E

CAN SYSTEM (TYPE 6)
LAN-237
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Case 22
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-253, "IPDM E/R Ignition Relay
Circuit Check" .
Circuit Check Between TCM and Data Link ConnectorAKS00C2E
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect ECM connector and harness connector M82.
4. Check continuity between harness connector M82 terminals
14H (L), 15H (R) and data link connector M5 terminals 6 (L), 14
(R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-211, "
Work Flow" .
NG >> Repair harness.
PKIA8046E
14H (L) - 6 (L) : Continuity should exist.
15H (R) - 14 (R) : Continuity should exist.
SKIA6861E

CAN SYSTEM (TYPE 6)
LAN-253
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
13. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between IPDM E/R harness connector E9 termi-
nals 48 (L), 49 (R) and ground.
OK or NG
OK >> GO TO 14.
NG >> Repair harness between IPDM E/R and harness con-
nector E205.
14. ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION
Check components inspection. Refer to LAN-253, "
ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION" .
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-211, "Work Flow" .
NG >> Replace ECM and/or IPDM E/R.
IPDM E/R Ignition Relay Circuit CheckAKS00C2Y
Check the following. If no malfunction is found, replace the IPDM E/R.

IPDM E/R power supply circuit. Refer to PG-28, "IPDM E/R Power/Ground Circuit Inspection" .

Ignition power supply circuit. Refer to PG-12, "IGNITION POWER SUPPLY - IGNITION SW. IN “ON”
AND/OR “START”" .
Component InspectionAKS00C2Z
ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION

Remove ECM and IPDM E/R from vehicle.

Check resistance between ECM terminals 94 and 86.

Check resistance between IPDM E/R terminals 48 and 49.48 (L) - Ground : Continuity should not exist.
49 (R) - Ground : Continuity should not exist.
SKIA6879E
Unit TerminalResistance value (Ω)
(Approx.)
ECM 94 - 86
108 - 132
IPDM E/R 48 - 49
LKIA0037E
