CAN COMMUNICATION
LAN-19
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Tire pressure data
signalRT
ABS warning lamp
signalRRT
VDC OFF indicator
lamp signalRRT
SLIP indicator lamp
signalRT
Brake warning lamp
signalRT
System setting signalTR R
RT T
AWD warning lamp
signalTR
Distance to empty
signalRT
Parking brake switch
signalRRT
Door lock/unlock
request signalTR
Door lock/unlock sta-
tus signalRT
Starter permission
signalTR
Back door open
request signalTR
Power window open
request signalTR
Alarm request signal T R
Key warning signal T R
ICC sensor signal R T
ICC warning lamp
signalTR
ICC system display
signalTR
Current gear posi-
tion signalTR R
Steering switch sig-
nalTR
ASCD operation sig-
nalTR
ASCD OD cancel
request signalTR
ICC OD cancel
request signalRR T Signals ECM TCMDis-
play
con-
trol
unitLow
tire
pres-
sure
warn-
ing
con-
trol
unitAW D
con-
trol
unitICC
unitIntel-
ligent
Key
unitBCMSteer-
ing
angle
sen-
sorUni-
fied
meter
and
A/C
amp.ICC
sen-
sorABS
actu-
ator
and
elec-
tric
unit
(con-
trol
unit)Driver
seat
con-
trol
unitIPDM
E/R

LAN-20
[CAN]
CAN COMMUNICATION
Revision: 2004 November 2004 FX35/FX45
*: VK45DE engine model onlyA/T CHECK indica-
tor lamp signalTR
A/T position indica-
tor lamp signalTR
A/T shift schedule
change demand sig-
nalRT
Manual mode signal R T
Not manual mode
signalRT
Manual mode shift up
signalRT
Manual mode shift
down signalRT
Manual mode indica-
tor signalTR
Ignition knob switch
signalTR
Snow mode switch
signalRT
Current gear posi-
tion signal*RT
Next gear position
signal*RT
Shift change signal* R T
Shift pattern signal* R TSignals ECM TCMDis-
play
con-
trol
unitLow
tire
pres-
sure
warn-
ing
con-
trol
unitAWD
con-
trol
unitICC
unitIntel-
ligent
Key
unitBCMStee r-
ing
angle
sen-
sorUni-
fied
meter
and
A/C
amp.ICC
sen-
sorABS
actu-
ator
and
elec-
tric
unit
(con-
trol
unit)Driver
seat
con-
trol
unitIPDM
E/R

LAN-24
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2004 November 2004 FX35/FX45
Work FlowAKS00BZA
1. When there are no indications of “BCM”, “METER A/C AMP” or “IPDM E/R” on “SELECT SYSTEM” dis-
play of CONSULT-II, print the “SELECT SYSTEM”.
2. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “BCM”, “METER A/C AMP”, “ABS”, and
“IPDM E/R” displayed on CONSULT-II.
3. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “BCM”, “METER A/C AMP”,
“ABS”, and “IPDM E/R” displayed on CONSULT-II.
4. Attach the printed sheet of “SELECT SYSTEM”, “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT
MNTR” onto the check sheet. Refer to LAN-26, "
CHECK SHEET" .
5. Based on the indications of “SELECT SYSTEM” and the results of “CAN DIAG SUPPORT MNTR”, put
marks “v” onto the items with “No indication”, “NG”, or “UNKWN” in the check sheet table. Refer to LAN-
26, "CHECK SHEET" .
NOTE:

If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” as “CAN DIAG SUPPORT MNTR” for the diag-
nosed control unit, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of “CAN DIAG SUPPORT MNTR” items which are not indi-
cated in check sheet table.
6. Check CAN communication line of the integrated display system. Refer to AV- 8 5 , "
CAN Communication
Line Inspection" .
7. Attach the CAN DIAG MONITOR check sheet onto the check sheet. Refer to LAN-26, "
CHECK SHEET" .
8. Mark the “NG” or “UNKWN” item of the check sheet table with “v” from the result of CAN DIAG MONITOR
check sheet. Refer to LAN-26, "
CHECK SHEET" .
PKIA2093E
PKIA8260E
PKIA8343E

CAN SYSTEM (TYPE 1)
LAN-35
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

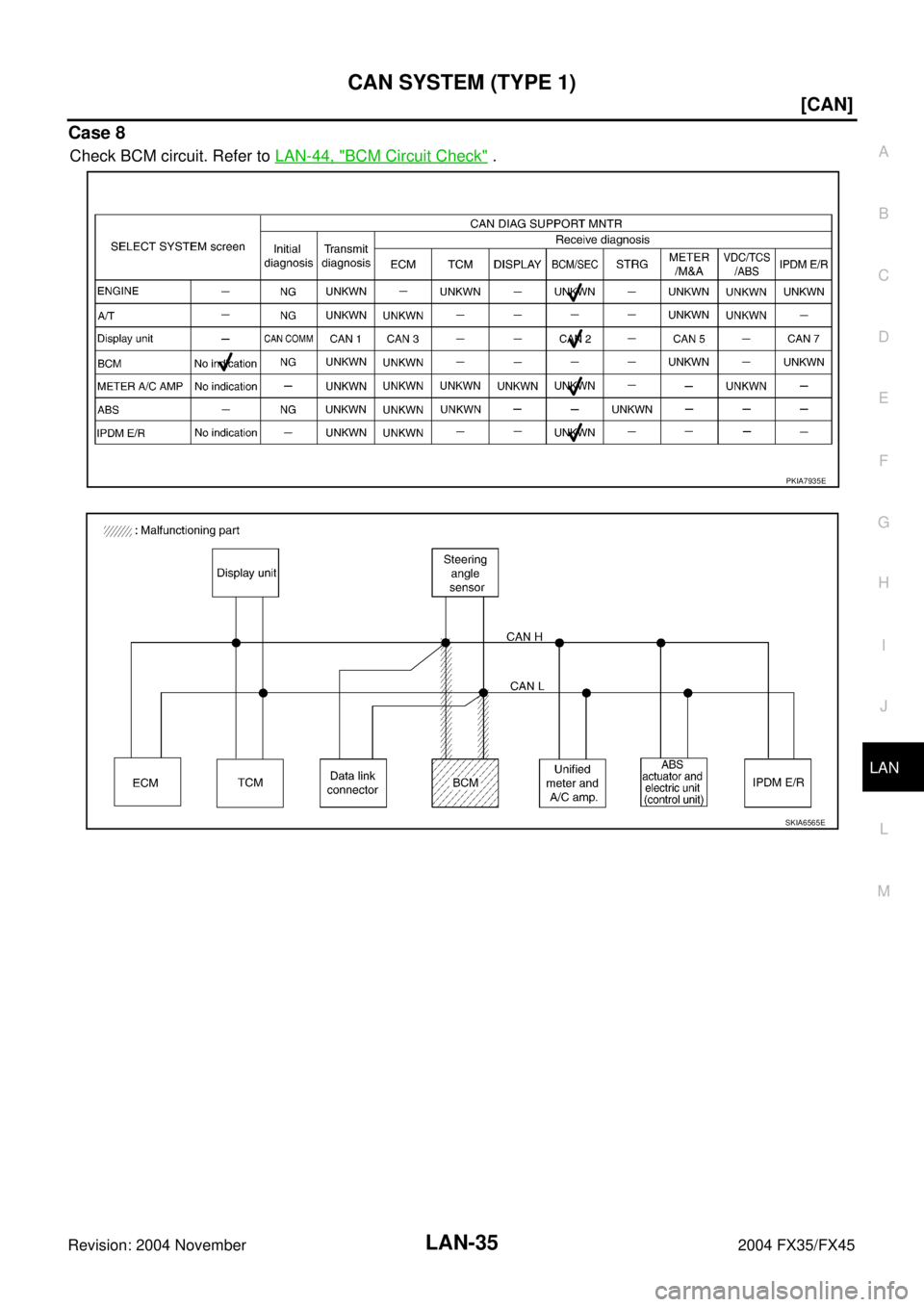

Case 8
Check BCM circuit. Refer to LAN-44, "BCM Circuit Check" .
PKIA7935E
SKIA6565E

LAN-44
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect display unit connector.
2. Check resistance between display unit harness connector M62
terminals 14 (L) and 16 (R).
OK or NG
OK >> Replace display unit.
NG >> Repair harness between display unit and harness con-
nector M82.
Data Link Connector Circuit CheckAKS00BZH
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check data link connector and terminals for damage, bend and loose connection (connector side and har-
ness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
Check resistance between data link connector M5 terminals 6 (L)
and 14 (R).
OK or NG
OK >> Diagnose again. Refer to LAN-24, "Work Flow" .
NG >> Repair harness between data link connector and BCM.
BCM Circuit CheckAKS00BZI
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of BCM for damage, bend and loose connection (control module side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.14 (L) - 16 (R) : Approx. 54 - 66Ω
SKIA6867E
6 (L) - 14 (R) : Approx. 54 - 66Ω
SKIA6868E

CAN SYSTEM (TYPE 1)
LAN-45
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect BCM connector.
2. Check resistance between BCM harness connector M3 termi-
nals 39 (L) and 40 (R).
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installa-
tion of BCM" .
NG >> Repair harness between BCM and data link connector.
Steering Angle Sensor Circuit CheckAKS00BZJ
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of steering angle sensor for damage, bend and loose connection (sensor
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering angle sensor connector.
2. Check resistance between steering angle sensor harness con-
nector M14 terminals 4 (L) and 5 (R).
OK or NG
OK >> Replace steering angle sensor.
NG >> Repair harness between steering angle sensor and data
link connector.
Unified Meter and A/C Amp. Circuit CheckAKS00BZK
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of unified meter and A/C amp. for damage, bend and loose connection
(meter side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.39 (L) - 40 (R) : Approx. 54 - 66Ω
SKIA6869E
4 (L) - 5 (R) : Approx. 54 - 66Ω
SKIA6870E

CAN SYSTEM (TYPE 1)
LAN-47
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between IPDM E/R harness connector E9 ter-
minals 48 (L) and 49 (R).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness between IPDM E/R and ABS actuator
and electric unit (control unit).
CAN Communication Circuit CheckAKS00BZN
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side,
unit side, sensor side, meter side, control unit side and harness side).
–ECM
–A/T assembly
–Display unit
–BCM
–Steering angle sensor
–Unified meter and A/C amp.
–ABS actuator and electric unit (control unit)
–IPDM E/R
–Between ECM and IPDM E/R
–Between ECM and A/T assembly
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.48 (L) - 49 (R) : Approx. 108 - 132Ω
SKIA6873E

LAN-48
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M82
–Display unit connector
–BCM connector
–Steering angle sensor connector
–Unified meter and A/C amp. connector
–Harness connector M41
2. Check continuity between data link connector M5 terminals 6 (L)
and 14 (R).
OK or NG
OK >> GO TO 3.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between data link connector and ECM

Harness between data link connector and harness
connector M82

Harness between data link connector and display unit

Harness between data link connector and BCM

Harness between data link connector and steering angle sensor

Harness between data link connector and unified meter and A/C amp.

Harness between data link connector and harness connector M41
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M5 terminals 6 (L), 14
(R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between data link connector and ECM

Harness between data link connector and harness
connector M82

Harness between data link connector and display unit

Harness between data link connector and BCM

Harness between data link connector and steering angle sensor

Harness between data link connector and unified meter and A/C amp.

Harness between data link connector and harness connector M41 6 (L) - 14 (R) : Continuity should not exist.
SKIA6868E
6 (L) - Ground : Continuity should not exist.
14 (R) - Ground : Continuity should not exist.
SKIA6874E

CAN SYSTEM (TYPE 2)
LAN-55
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Work FlowAKS00BZT
1. When there are no indications of “BCM”, “METER A/C AMP”, “AUTO DRIVE POS.” or “IPDM E/R” on
“SELECT SYSTEM” display of CONSULT-II, print the “SELECT SYSTEM”.
2. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “BCM”, “METER A/C AMP”, “ABS”,
“AUTO DRIVE POS.”, and “IPDM E/R” displayed on CONSULT-II.
3. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “BCM”, “METER A/C AMP”,
“ABS”, “AUTO DRIVE POS.”, and “IPDM E/R” displayed on CONSULT-II.
4. Attach the printed sheet of “SELECT SYSTEM”, “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT
MNTR” onto the check sheet. Refer to LAN-57, "
CHECK SHEET" .
5. Based on the indications of “SELECT SYSTEM” and the results of “CAN DIAG SUPPORT MNTR”, put
marks “v” onto the items with “No indication”, “NG”, or “UNKWN” in the check sheet table. Refer to LAN-
57, "CHECK SHEET" .
NOTE:

If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” as “CAN DIAG SUPPORT MNTR” for the diag-
nosed control unit, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of “CAN DIAG SUPPORT MNTR” items which are not indi-
cated in check sheet table.
6. Check CAN communication line of the integrated display system. Refer to AV- 8 5 , "
CAN Communication
Line Inspection" .
7. Attach the CAN DIAG MONITOR check sheet onto the check sheet. Refer to LAN-57, "
CHECK SHEET" .
8. Mark the “NG” or “UNKWN” item of the check sheet table with “v” from the result of CAN DIAG MONITOR
check sheet. Refer to LAN-57, "
CHECK SHEET" .
PKIA2093E
PKIA8260E
PKIA8343E

CAN SYSTEM (TYPE 2)
LAN-67
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Case 9

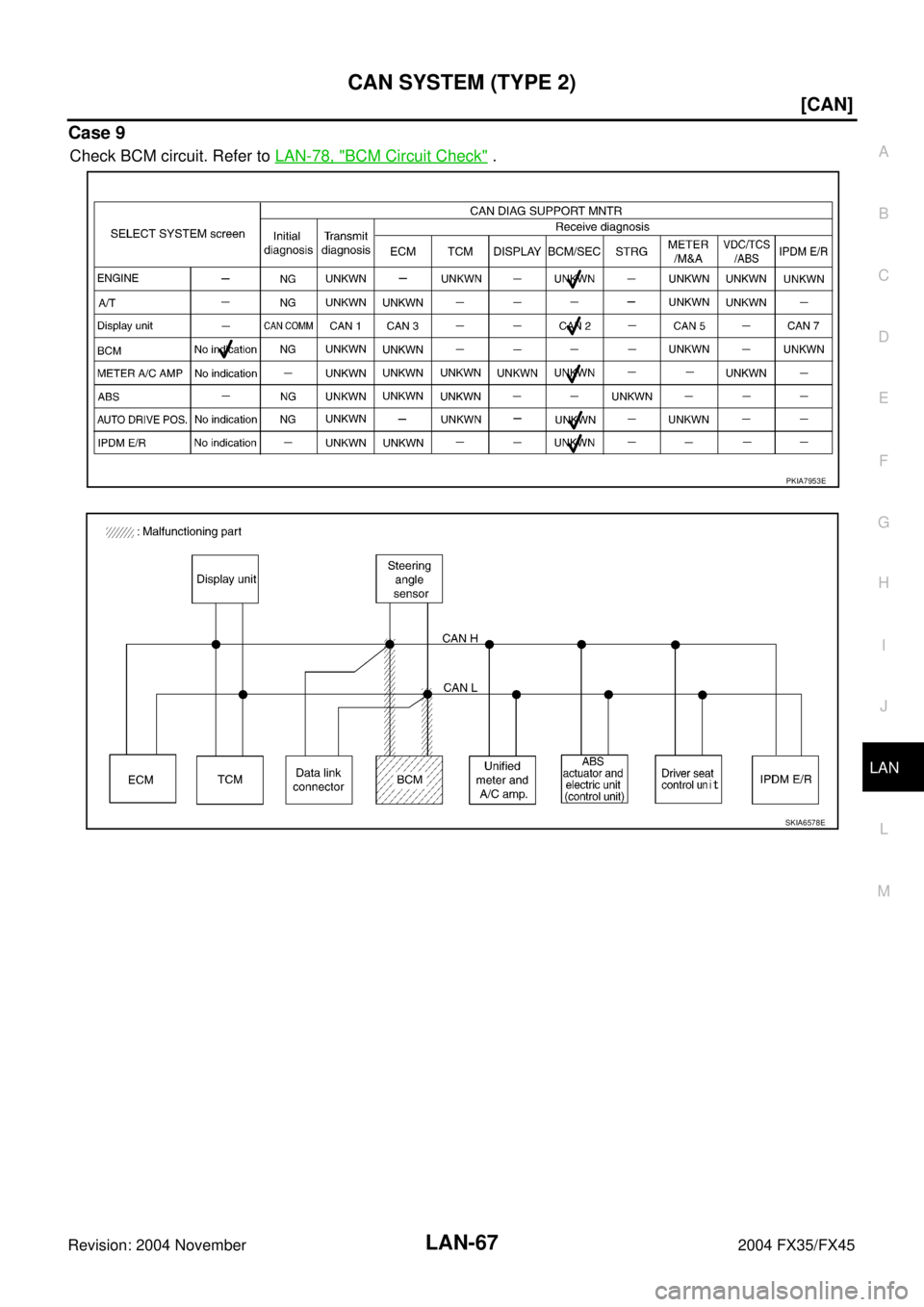

Check BCM circuit. Refer to LAN-78, "BCM Circuit Check" .
PKIA7953E
SKIA6578E
