3. CHECK GROUND CIRCUIT
1. Disconnect BOSE speaker amp. connector and woofer connector.
2. Check continuity between BOSE speaker amp. harness connec-
tor B212 terminal 17 (B) and ground.
3. Check continuity between woofer harness connector B66 termi-
nal 2 (B) and ground.
OK or NG
OK >> INSPECTION END (System is OK)
NG >> Repair harness or connector.
Audio Steering Wheel Switch InspectionAKS00BMT
1. A/C AND AV SWITCH SELF-DIAGNOSIS FUNCTION
1. Start A/C and AV switch self-diagnosis function. Refer to AV- 3 5 , "
A/C and AV Switch Self-Diagnosis Func-
tion" .
2. Operate audio steering wheel switch.
Does the audio steering wheel switch is operated normally?
YES >> INSPECTION END (System is OK)
NO >> GO TO 2
2. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect A/C and AV switch connector and spiral cable connector (Vehicle harness side).
3. Check continuity between A/C and AV switch harness connector
M64 terminal 12 (R/G), 13 (G/W), 14 (B/Y) and spiral cable har-
ness connector M15 terminal 24 (R/G), 32 (G/W), 31 (B/Y).
4. Check continuity between A/C and AV switch harness connector
M64 terminal 12 (R/G),13 (G/W),14 (B/Y) and ground.
OK or NG
OK >> GO TO 3
NG >> Repair harness or connector.17 – Ground :Continuity should exist.
SKIA4312E
2 – Ground :Continuity should exist.
SKIA6786E
12 – 24 : Continuity should exist.
13 – 32 : Continuity should exist.
14 – 31 : Continuity should exist.
12, 13, 14 – Ground :Continuity should not exist.
SKIB0522E

AV-42
AUDIO
Revision: 2004 November 2004 FX35/FX45
BOSE Speaker Amp. InspectionAKS00BMV
1. CHECK HARNESS
1. Disconnect audio unit connector and BOSE speaker amp. con-
nector.
2. Check continuity between audio unit harness connector M59 ter-
minal 12 (G/W) and BOSE speaker amp. harness connector
B213 terminal 31 (P).
3. Check continuity between audio unit harness connector M59 ter-
minal 12 (G/W) and ground.
OK or NG
OK >> GO TO 2
NG >> Repair harness or connector.
2. CHECK AMP. ON SIGNAL
1. Connect audio unit connector.
2. Turn the ignition switch ACC.
3. Check voltage between audio unit harness connector M59 ter-
minal 12 (G/W) and ground.
OK or NG
OK >> INSPECTION END (System is OK)
NG >> Replace audio unit.
Vehicle Speed Signal InspectionAKS00BMW
1. CHECK VEHICLE SPEED OPERATION
Start engine and drive vehicle.
Dose speedometer is operated normally?
YES >> GO TO 2
NO >> Check combination meter trouble diagnosis. Refer to DI-13, "
Diagnosis Flow" .
2. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect audio unit connector and unified meter and A/C
amp. connector.
3. Check continuity between audio unit harness connector M60 ter-
minal 22 (W/L) and unified meter and A/C amp. harness connec-
tor M56 terminal 34 (W/L).
4. Check continuity between audio unit harness connector M60 ter-
minal 22 (W/L) and ground.
OK or NG
OK >> GO TO 3
NG >> Repair harness or connector.12 – 31 : Continuity should exist.
12 – Ground : Continuity should not exist.
SKIA6816E
12 – Ground : More than approx. 6.5V
SKIA6818E
22 – 34 : Continuity should exist.
22 – Ground : Continuity should not exist.
SKIA6807E

AUDIO
AV-47
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45

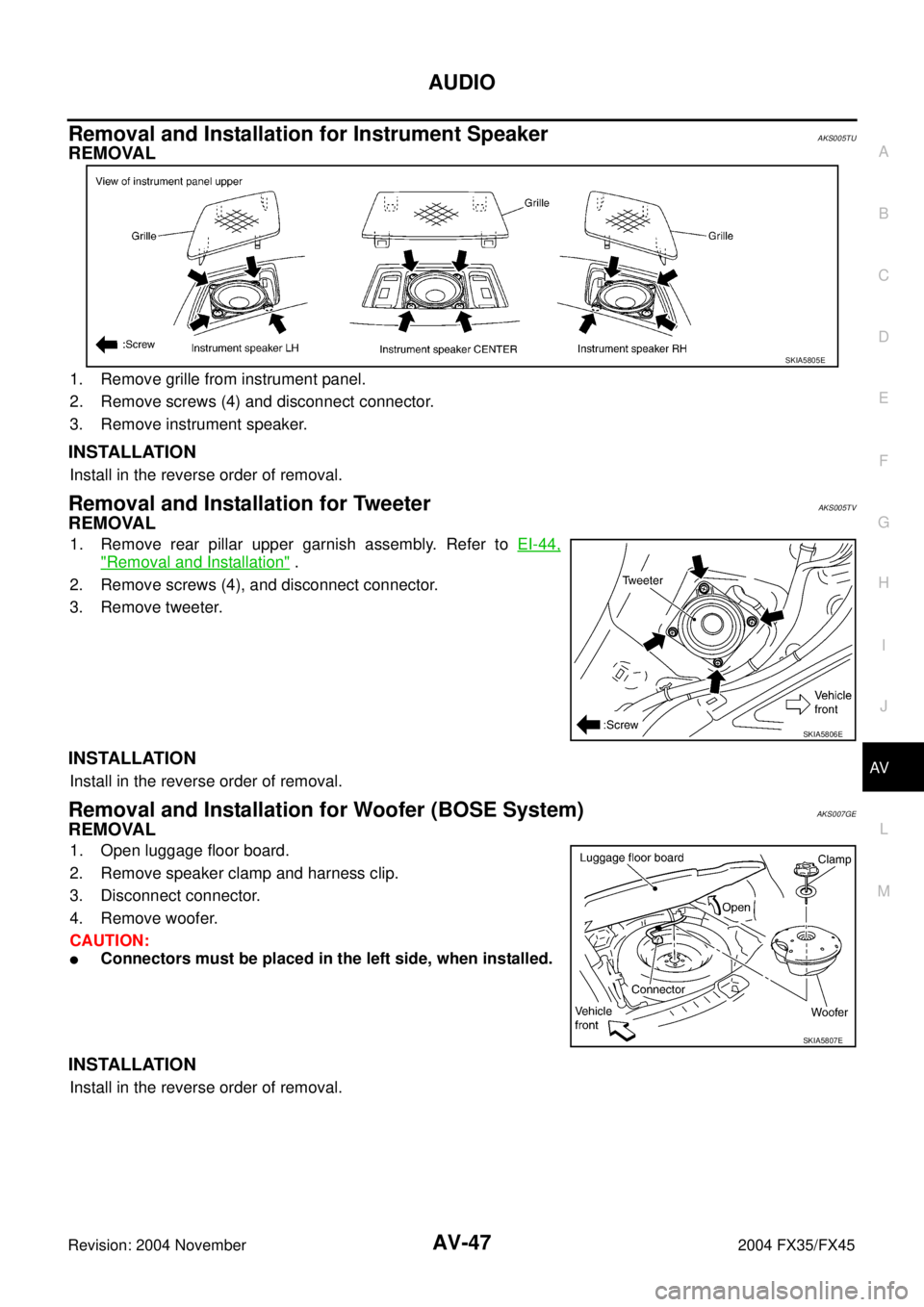

Removal and Installation for Instrument SpeakerAKS005TU
REMOVAL
1. Remove grille from instrument panel.
2. Remove screws (4) and disconnect connector.
3. Remove instrument speaker.
INSTALLATION
Install in the reverse order of removal.
Removal and Installation for TweeterAKS005TV
REMOVAL
1. Remove rear pillar upper garnish assembly. Refer to EI-44,
"Removal and Installation" .
2. Remove screws (4), and disconnect connector.
3. Remove tweeter.
INSTALLATION
Install in the reverse order of removal.
Removal and Installation for Woofer (BOSE System)AKS007GE
REMOVAL
1. Open luggage floor board.
2. Remove speaker clamp and harness clip.
3. Disconnect connector.
4. Remove woofer.
CAUTION:

Connectors must be placed in the left side, when installed.
INSTALLATION
Install in the reverse order of removal.
SKIA5805E
SKIA5806E
SKIA5807E

AV-48
AUDIO
Revision: 2004 November 2004 FX35/FX45

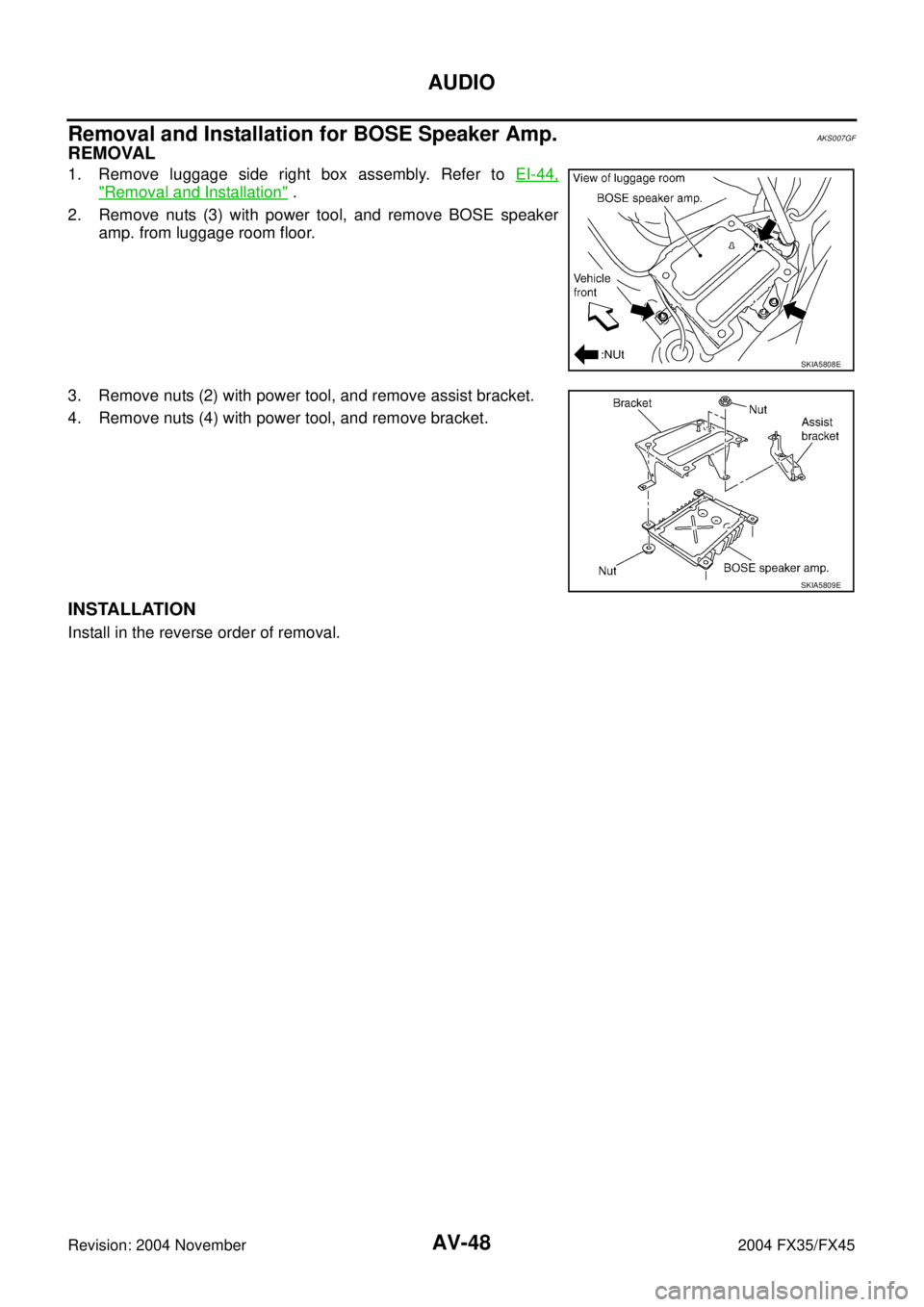

Removal and Installation for BOSE Speaker Amp.AKS007GF
REMOVAL
1. Remove luggage side right box assembly. Refer to EI-44,
"Removal and Installation" .
2. Remove nuts (3) with power tool, and remove BOSE speaker
amp. from luggage room floor.
3. Remove nuts (2) with power tool, and remove assist bracket.
4. Remove nuts (4) with power tool, and remove bracket.
INSTALLATION
Install in the reverse order of removal.
SKIA5808E
SKIA5809E
