TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2004 November 2004 FX35/FX45
3. CHECK ICC STEERING SWITCH SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect connectors of ECM and spiral cable.
3. Check continuity between ECM harness connector M90 terminal
82 (B/W), 99 (G/Y) and spiral cable M15 terminal 33 (B/W), 34
(G/Y).
4. Check continuity between spiral cable (on vehicle) harness con-
nector M15 terminal 33, 34 and spiral cable (on switch) harness
connector M203 terminal 14,15.
OK or NG
OK >> Replace ECM. Erase DTC and perform ICC system run-
ning test. Then perform self-diagnosis of ICC system
again.
NG >>

Repair harness between ICC unit and spiral cable.

After repair, erase DTC and perform ICC system run-
ning test. Then, perform self-diagnosis of ICC system
again.
DTC 61 PRESS SEN CIRCUITAKS006Z5
1. CHECK CONNECTOR BRAKE PRESSURE SENSOR AND ICC UNIT
1. Turn ignition switch OFF.
2. Disconnect connectors of brake pressure sensor and ICC unit, and connect them securely again. Then
erase DTC. After that, perform self-diagnosis of ICC system again.
OK or NG
OK >>
Poor connector connection.

Check connector. (Check connector housing for disconnected, loose, bent, and collapsed ter-
minals. If any malfunction is detected, repair applicable part.) After repair, Erase DTC, and per-
form ICC system running test. Then perform self-diagnosis of ICC system again.
NG >> GO TO 2.
2. CHECK HARNESS BETWEEN BRAKE PRESSURE SENSOR AND ICC UNIT
1. Turn ignition switch OFF.
2. Disconnect connectors of ICC unit and brake pressure sensor.
3. Check continuity between ICC unit harness connector M88 ter-
minal 8 (Y/G), 17 (BR), 24 (Y/R) and brake pressure sensor har-
ness connector E142 terminal 3 (Y/G), 2 (OR), 1 (Y/R).
OK or NG
OK >> GO TO 3.
NG >>

Repair harness between brake pressure sensor and
ICC unit.

After repair, erase DTC and perform ICC system running test. Then, perform self-diagnosis of
ICC system again. 82 - 33, 99 - 34 Continuity should exist.
SKIA5978E
34 - 14, 33 - 15 Continuity should exist.
SKIA5979E
8 - 3, 17 - 2, 24 - 1 Continuity should exist.
SKIA6652E

ELECTRICAL COMPONENT INSPECTION
ACS-65
[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
Revision: 2004 November 2004 FX35/FX45
ELECTRICAL COMPONENT INSPECTIONPFP:00000
ICC Steering SwitchAKS006ZX
1. Disconnect ICC steering switch.

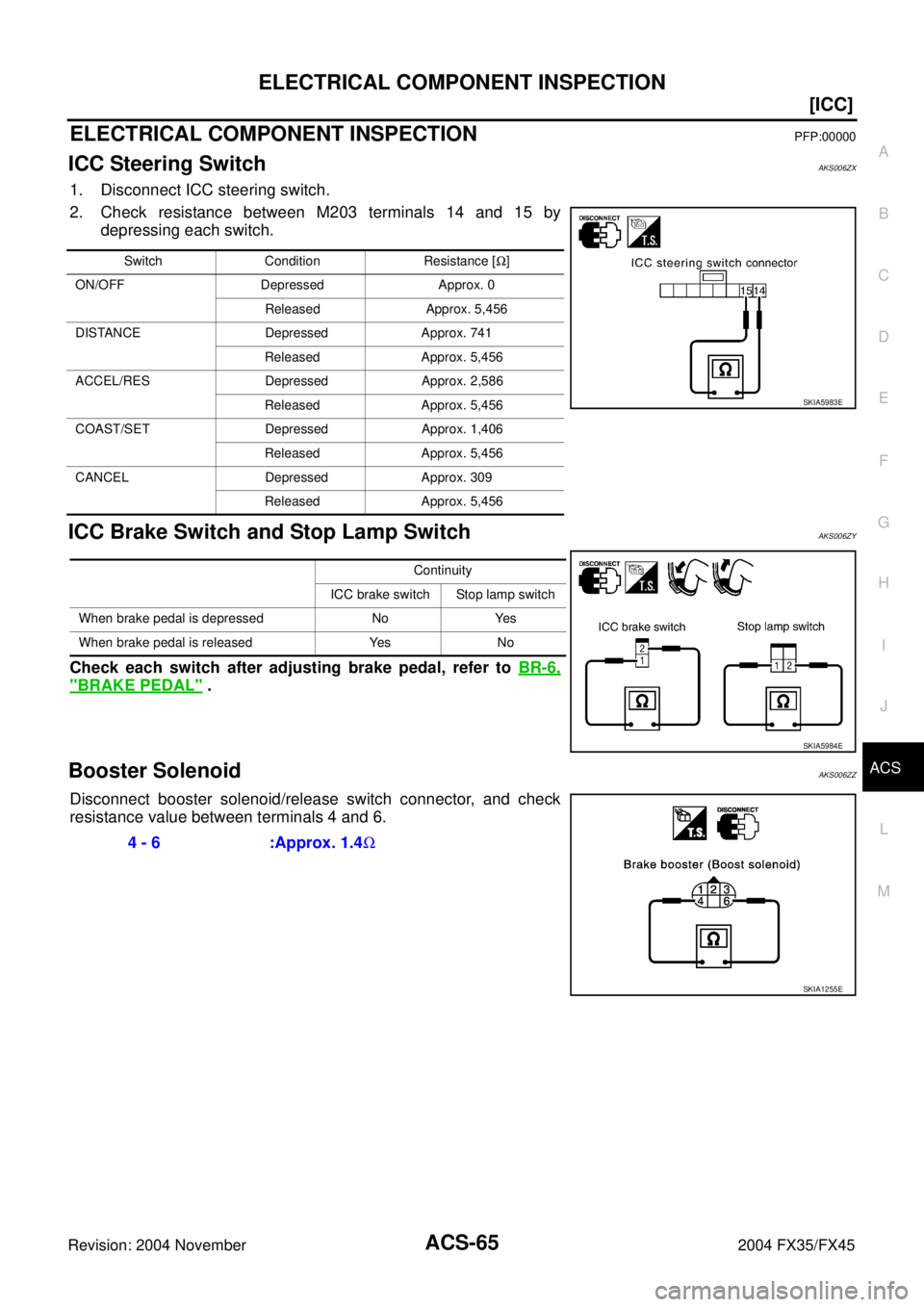

2. Check resistance between M203 terminals 14 and 15 by
depressing each switch.
ICC Brake Switch and Stop Lamp SwitchAKS006ZY
Check each switch after adjusting brake pedal, refer to BR-6,
"BRAKE PEDAL" .
Booster SolenoidAKS006ZZ
Disconnect booster solenoid/release switch connector, and check
resistance value between terminals 4 and 6.
Switch Condition Resistance [Ω]
ON/OFF Depressed Approx. 0
Released Approx. 5,456
DISTANCE Depressed Approx. 741
Released Approx. 5,456
ACCEL/RES Depressed Approx. 2,586
Released Approx. 5,456
COAST/SET Depressed Approx. 1,406
Released Approx. 5,456
CANCEL Depressed Approx. 309
Released Approx. 5,456
SKIA5983E
Continuity
ICC brake switch Stop lamp switch
When brake pedal is depressed No Yes
When brake pedal is released Yes No
SKIA5984E
4 - 6 :Approx. 1.4Ω
SKIA1255E

REMOVAL AND INSTALLATION
ACS-67
[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
Revision: 2004 November 2004 FX35/FX45
REMOVAL AND INSTALLATIONPFP:00000
ICC UnitAKS00704
ICC SensorAKS00705
CAUTION:
Adjust the laser beam aiming every time the ICC sensor is removed or installed.
ICC Steering SwitchAKS00707
Replace ICC steering switch as steering wheel assembly. Refer to PS-11, "Removal and Installation" .
SKIA5985E
SKIA5986E

HEATER & COOLING UNIT ASSEMBLY
ATC-127
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2004 November 2004 FX35/FX45
12. Remove mounting bolts from heater & cooling unit.
13. Disconnect drain hose.
14. Remove ventilator ducts, defroster nozzle and ducts.
15. Remove steering member mounting bolts, nut and harness clips.
16. Remove the steering member, and then remove heater & cooling unit.
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:

Replace O-rings for A/C piping with new one, then apply compressor oil to it when installing it.

Connection point for female-side piping is thin. So, when inserting male-side piping, take care not
to deform female-side piping. Slowly insert in axial direction.

Insert one-touch joint connection point securely until it clicks.

After piping has been connected, pull male-side piping by hand to make sure piping does not
come off.

When recharging refrigerant, check for leaks.
NOTE:

When filling radiator with coolant, refer to CO-11, "Changing Engine Coolant" (VQ35DE) or CO-36,
"Changing Engine Coolant" (VK45DE).

Recharge the refrigerant.
RJIA2044E
RJIA2043E
Heater & cooling unit mounting bolt
Tightening torque : 6.8 N·m (0.69 kg-m, 60 in - lb)
Steering member mounting nut and bolt
Tightening torque : 12 N·m (1.2 kg-m, 9 ft - lb)

REFRIGERANT LINES
ATC-153
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2004 November 2004 FX35/FX45
Removal and Installation of Liquid TankAJS0015Y
REMOVAL
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
2. Remove front grille. Refer to EI-23, "
FRONT GRILLE" .
3. Clean liquid tank and its surrounding area, and remove dirt and rust from tank.
CAUTION:
Be sure to clean carefully.
4. Remove mounting bolts for liquid tank and power steering oil cooler.
5. Lift liquid tank upwards. Remove bracket from protruding part of
condenser.
6. Slide liquid tank upward, and then remove liquid tank.
INSTALLATION
Install liquid tank, and then install liquid tank bracket on condenser.
CAUTION:

Make sure liquid tank bracket is securely installed at protru-
sion of condenser. (Make sure liquid tank bracket does not
move to a position below center of liquid tank.)

Replace O-rings for A/C piping with new ones, then apply
compressor oil to it when installing it.

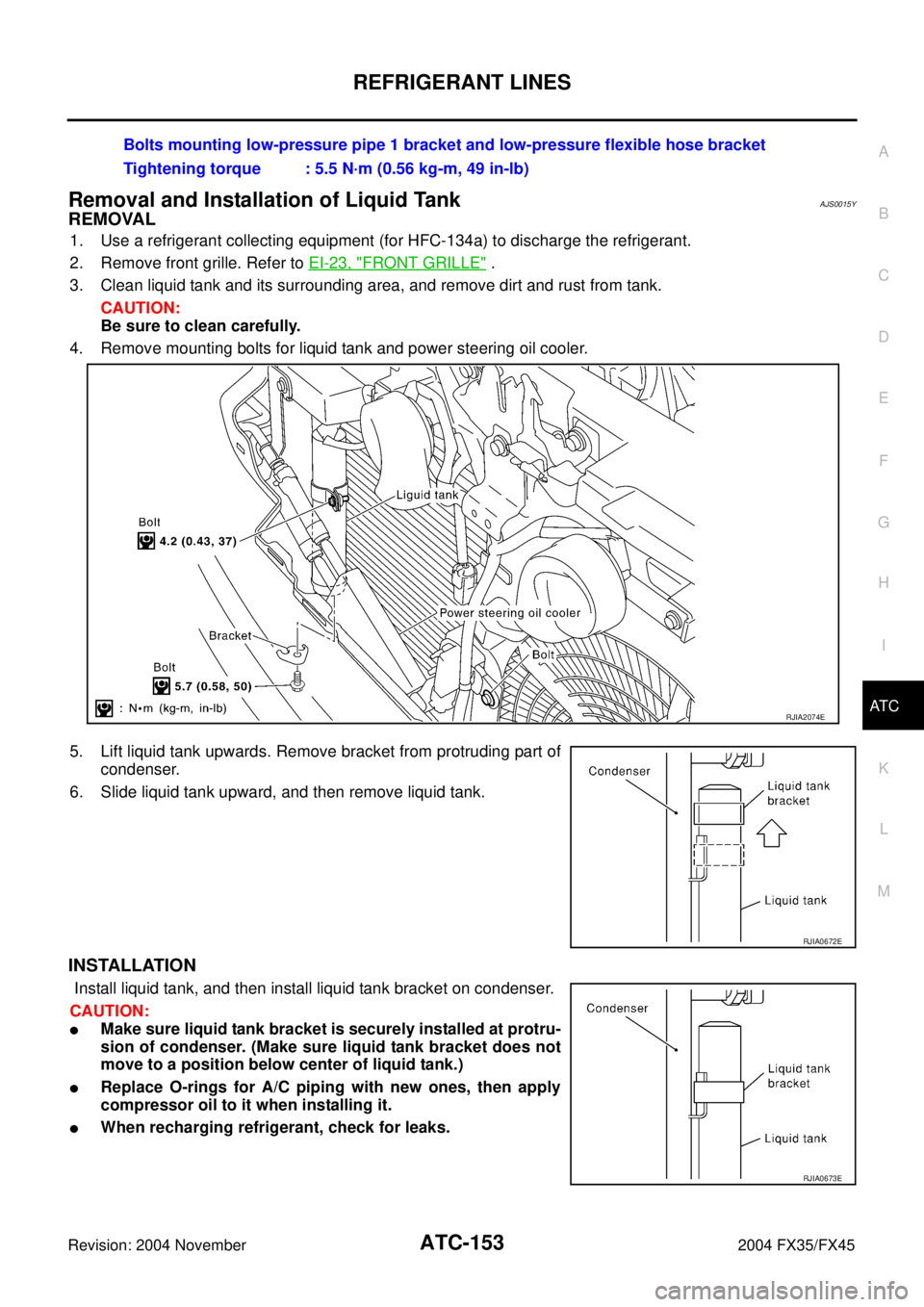

When recharging refrigerant, check for leaks.Bolts mounting low-pressure pipe 1 bracket and low-pressure flexible hose bracket
Tightening torque : 5.5 N·m (0.56 kg-m, 49 in-lb)
RJIA2074E
RJIA0672E
RJIA0673E
