DAYTIME LIGHT SYSTEM
LT-49
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45

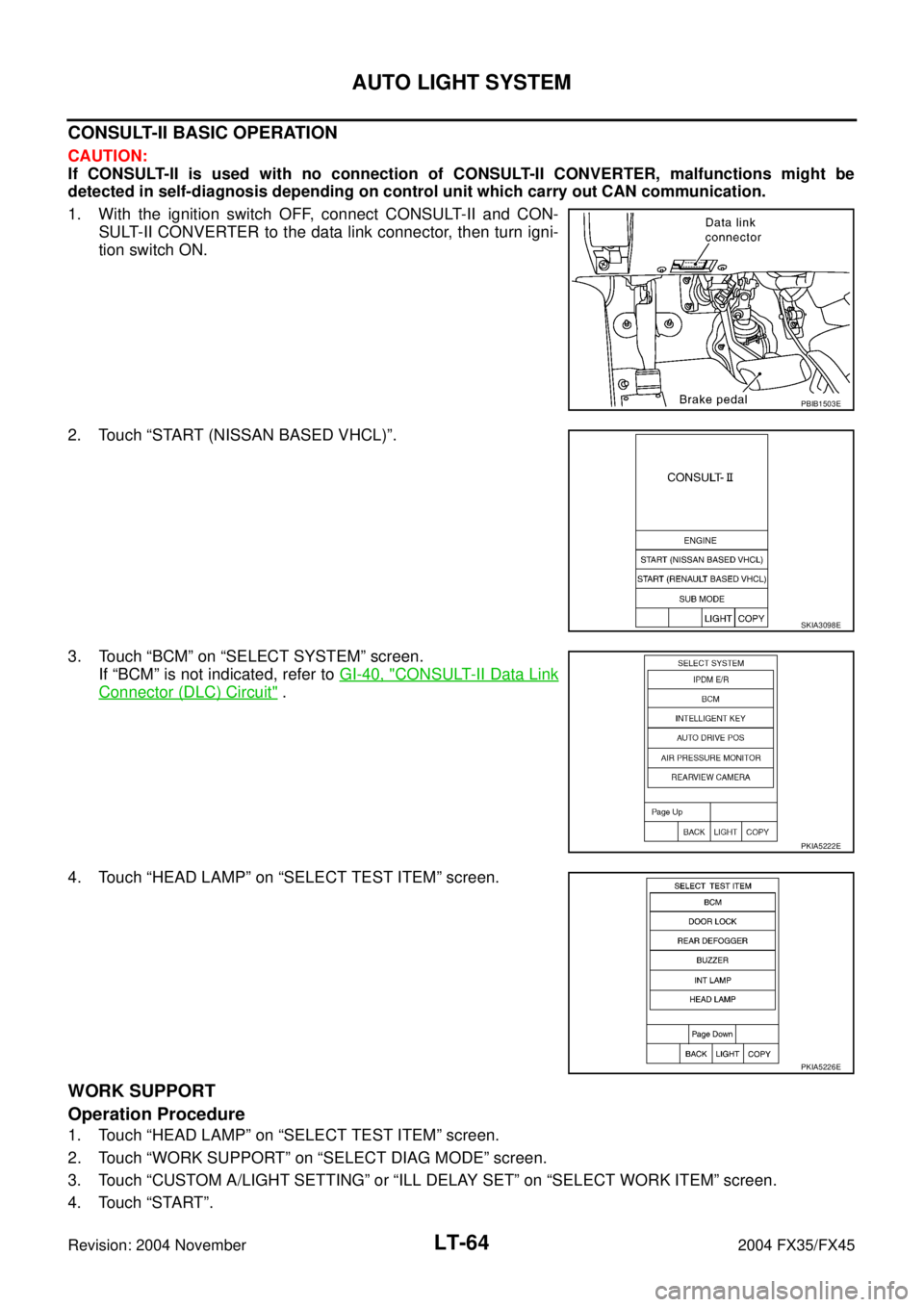

2. Touch “START (NISSAN BASED VHCL)”.
3. Touch “BCM” on “SELECT SYSTEM” screen.
If “BCM” is not indicated, refer to GI-40, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
4. Touch “HEAD LAMP” on “SELECT TEST ITEM” screen.
DATA MONITOR
Operation Procedure
1. Touch “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on the “DATA MONITOR” screen.
4. Touch “START”.
5. When “SELECTION FROM MENU” is selected, touch individual items to be monitored. When “ALL SIG-
NALS” is selected, all the items will be monitored.
6. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch “STOP”.
Display Item List
SKIA3098E
PKIA5222E
PKIA5226E
ALL SIGNALS Monitors all the signals.
SELECTION FROM MENU Selects and monitors individual signal.
Monitor item Contents
IGN ON SW “ON/OFF”Displays “IGN position (ON)/OFF, ACC position (OFF)” judged from the ignition switch sig-
nal.
ACC ON SW “ON/OFF” Displays “ACC (ON)/OFF, Ignition OFF (OFF)” status judged from ignition switch signal.
HI BEAM SW “ON/OFF”Displays status (high beam switch: ON/Others: OFF) of high beam switch judged from light-
ing switch signal.

LT-52
DAYTIME LIGHT SYSTEM
Revision: 2004 November 2004 FX35/FX45
4. CHECK GROUND
1. Check continuity between clearance lamp RH harness connec-
tor E23 terminal 3 (B) and ground.
2. Check continuity between clearance lamp LH harness connec-
tor E43 terminal 3 (B) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK BULB
Check bulbs of lamp which does not illuminate.
OK or NG
OK >> GO TO 6.
NG >> Replace bulb.
6. CHECK DAYTIME RELAY CIRCUIT
1. Disconnect combination meter connector.
2. Check continuity between daytime lamp relay harness connec-
tor E15 terminal 1 (L) and combination meter harness connector
M20 terminal 10 (L/W).
OK or NG
OK >> GO TO 7.
NG >> Repair harness or connector.
7. CHECK INPUT SIGNAL
1. Connect combination meter connector.
2. Start engine running.
3. Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor,
make sure “ENGINE RUN” turns ON-OFF linked with operation
of engine running or stop.
4. Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor,
make sure “PKB SW” turns ON-OFF linked with operation of
parking brake switch.
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installation of BCM" .
NG >> GO TO 8.3 (B) – Ground : Continuity should exist.
3 (B) – Ground : Continuity should exist.
SKIA5881E
1 (L) – 10 (L/W) : Continuity should exist.
PKIA5216E
Engine running : ENGINE RUN ON
Engine stop : ENGINE RUN OFF
Parking brake ON : PKR SW ON
Parking brake OFF : PKR SW OFF
SKIA5883E

DAYTIME LIGHT SYSTEM
LT-53
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
8. CHECKING CAN COMMUNICATIONS
Select “BCM” by CONSULT-II, and perform self-diagnosis for “BCM”.
Displayed self-diagnosis results
NO DTC>> Replace BCM. Refer to BCS-15, "Removal and Instal-
lation of BCM" .
CAN COMM CIRCUIT>> Check BCM CAN communication system.
Refer to BCS-14, "
CAN Communication Inspection
Using CONSULT-II (Self-Diagnosis)" .
Aiming AdjustmentAKS007NA
Refer to LT- 3 4 , "Aiming Adjustment" in “HEAD LAMP -XENON TYPE-”.
Bulb ReplacementAKS007NB
Refer to LT- 3 5 , "Bulb Replacement" in “HEAD LAMP -XENON TYPE-”.
Removal and InstallationAKS007NC
Refer to LT- 3 6 , "Removal and Installation" in “HEAD LAMP -XENON TYPE-”.
Disassembly and AssemblyAKS007ND
Refer to LT- 3 7 , "Disassembly and Assembly" in “HEAD LAMP -XENON TYPE-”.
SKIA1039E

LT-54
AUTO LIGHT SYSTEM
Revision: 2004 November 2004 FX35/FX45
AUTO LIGHT SYSTEMPFP:28491

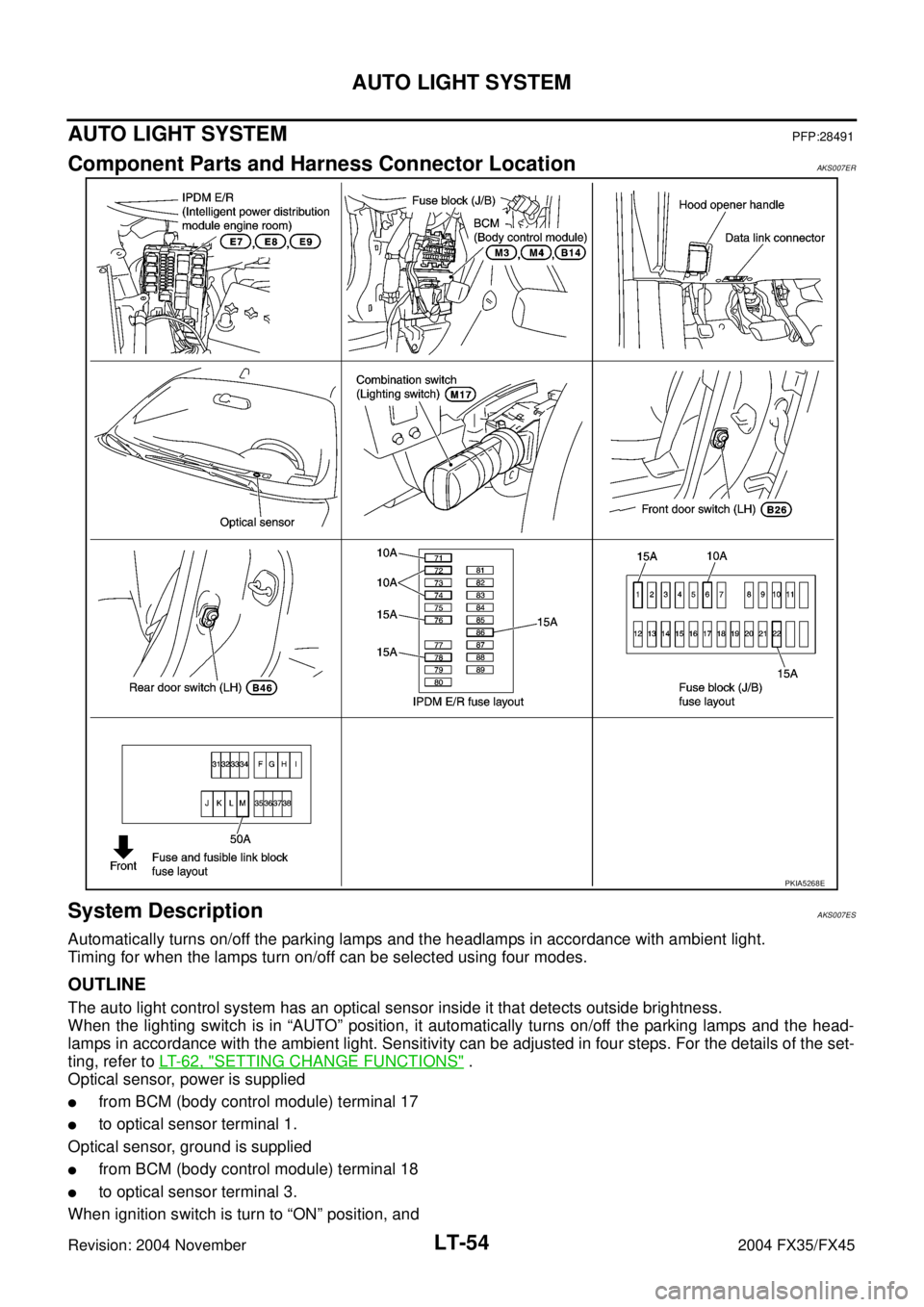

Component Parts and Harness Connector LocationAKS007ER
System DescriptionAKS007ES
Automatically turns on/off the parking lamps and the headlamps in accordance with ambient light.
Timing for when the lamps turn on/off can be selected using four modes.
OUTLINE
The auto light control system has an optical sensor inside it that detects outside brightness.
When the lighting switch is in “AUTO” position, it automatically turns on/off the parking lamps and the head-
lamps in accordance with the ambient light. Sensitivity can be adjusted in four steps. For the details of the set-
ting, refer to LT- 6 2 , "
SETTING CHANGE FUNCTIONS" .
Optical sensor, power is supplied

from BCM (body control module) terminal 17

to optical sensor terminal 1.
Optical sensor, ground is supplied

from BCM (body control module) terminal 18

to optical sensor terminal 3.
When ignition switch is turn to “ON” position, and
PKIA5268E

AUTO LIGHT SYSTEM
LT-55
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
When outside brightness is darker than prescribed level, input is supplied

to BCM (body control module) terminal 14

from optical sensor terminal 2.
The headlamps will then illuminate. For a description of headlamp operation, refer to LT- 5 4 , "
System Descrip-
tion" .
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the AUTO position, and the ignition switch is turned from
ON or ACC to OFF, and one of the front door is opened, the battery saver control feature is activated.
Under this condition, the headlamp remain illuminated for 5mimutes, then the headlamp are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
DELAY TIMER FUNCTION
When ignition switch ON and ACC are OFF while auto light switch is ON, BCM turn on/off headlamp. In delay
timer function, auto timer sensor power source is OFF and BCM is not turned on/off by auto sensor signal.

When the states ignition switch ON or ACC is ON and output judgment by auto light function is headlamp
ON turn to ignition switch ON or ACC are OFF and front door switch (driver side), front door switch (pas-
senger side) is ON, output judgment by auto light function should be headlamp ON for 5 minutes by tamer.
After time out, output judgment by auto light function should be headlamp OFF.

When the state is front door switch (driver side), front door switch (passenger side), rear door switch LH,
rear door switch RH or back door switch is turner to ON from OFF 45 seconds or 5 minutes while timer is
counting, timer stops, and re−start counting for 5 minutes, then auto light function judges output as head-
lamp ON. After time out, auto light function judges output as headlamp OFF.

When the states front door witch (driver side), front door switch (passenger side), rear door switch LH,
rear door switch RH or back door switch is ON turns to front door witch (driver side), front door switch
(passenger side), rear door switch LH, rear door switch RH or back door switch are OFF 45seconds or
5minute while is counting, Timer stops, and re−start counting for 45 seconds, then auto light function
judges output as head lamp ON. After timer out, auto light function judges output as head lamp OFF.

When the state is ignition switch ON or ACC is ON or auto light switch OFF while timer is counting, timer
stops counting and BCM turns on/off lamps according to headlamp function, front fog lamp function, auto
light function and headlamp battery save function.
Delay timer control mode can be changed by the function setting of CONSULT-II.
CAN Communication System DescriptionAKS007ET
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAKS0080U
Refer to LAN-6, "CAN Communication Unit" .
Major Components and FunctionsAKS007EV
Components Functions
BCM

Turns on/off circuits of tail light and headlamp according to signals from light sensor, lighting switch
(AUTO), driver door switch, passenger door switch, rear door switch, and ignition switch (ON, OFF).
Optical sensor

Converts ambient light (lux) to voltage, and sends it to BCM. (Detects lightness of 50 to 1,300 lux)

LT-60
AUTO LIGHT SYSTEM
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Values for BCMAKS007XO
Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
2 GY Combination switch input 5 ONLighting, turn, wiper OFF
Wiper dial position 4
3 L/B Combination switch input 4 ONLighting, turn, wiper OFF
Wiper dial position 4
4 PU/W Combination switch input 3 ONLighting, turn, wiper OFF
Wiper dial position 4
5 Y/R Combination switch input 2
ONLighting, turn, wiper OFF
Wiper dial position 4
6 SB Combination switch input 1
11 LG/R Ignition switch (ACC) ACC — Battery voltage
12 P/BFront door switch
(Passenger side) signalOFFFront door switch
(Passenger side) ON (open) Approx. 0V
OFF (closed) Battery voltage
13 P/L Rear door switch RH signal OFFRear door switch
RH ON (open) Approx. 0V
OFF (closed) Battery voltage
14 P Optical sensor signal ONWhen optical sensor is illuminated
3.1 V or more
Note
When optical sensor is not illuminated 0.6 V or less
17 Y/G Optical sensor power supply ON — Approx. 5V
18 B Sensor ground ON — Approx. 0V
32 GY/R Combination switch output 5 ONLighting, turn, wiper OFF
Wiper dial position 4
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E

LT-62
AUTO LIGHT SYSTEM
Revision: 2004 November 2004 FX35/FX45
How to Proceed With Trouble DiagnosisAKS007F0
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 5 4 , "
System Description" .
3. Perform the Preliminary Check. Refer to LT- 6 2 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction. Refer to LT- 6 8 , "
Trouble Diagnosis Chart
by Symptom" .
5. Does the auto light system operate normally? If YES: GO TO 6. If NO: GO TO 4.
6. INSPECTION END
Preliminary CheckAKS007F1
SETTING CHANGE FUNCTIONS

Sensitivity of auto light system can be adjusted using CONSULT-II. Refer to LT- 6 4 , "WORK SUPPORT" .
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES

Check fuses for blown-out.
Refer to LT- 5 7 , "Wiring Diagram — AUTO/L —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
28 SB Headlamp high (LH) ONLighting switch HIGH
or PASS positionOFF Approx. 0V
ON Battery voltage
30 GY Headlamp low (LH) ONLighting switch 2ND
positionOFF Approx. 0V
ON Battery voltage
38 B Ground ON — Approx. 0V
48 L CAN− H—— —
49 R CAN− L—— —
60 B Ground ON — Approx. 0V Te r m i n a l
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
Unit Power source Fuse and fusible link No.
BCMBatteryM
22
Ignition switch ON or START position 1
Ignition switch ACC or ON position 6
IPDM E/R Battery71
72
74
76
78
86

AUTO LIGHT SYSTEM
LT-63
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open or short between BCM and
fuse.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Check ground circuit harness.
CONSULT-II Functions (BCM)AKS007I5

CONSULT-II executes the following functions by combining data reception and command transmission via
the communication line from BCM. Work support, self-diagnosis, data monitor, and active test display.
Terminals Ignition switch position
(+)
(-) OFF ACC ON
ConnectorTerminal
(Wire color)
M311 (LG/R)
Ground0VBattery
voltageBattery
voltage
38 (W/L) 0V 0VBattery
voltage
M442 (L/R)Battery
voltageBattery
voltageBattery
voltage
55 (G)Battery
voltageBattery
voltageBattery
voltage
PKIA5204E
Terminals
Continuity
Connector Terminal (Wire color)
M449 (B)
Ground Yes
52 (B)
PKIA5191E
BCM diagnosis part Check item, diagnosis mode Description
HEADLAMPWORK SUPPORT Changes the setting for each function.
DATA MONITOR Displays BCM input data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
BCM CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.

LT-64
AUTO LIGHT SYSTEM
Revision: 2004 November 2004 FX35/FX45
CONSULT-II BASIC OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn igni-
tion switch ON.
2. Touch “START (NISSAN BASED VHCL)”.
3. Touch “BCM” on “SELECT SYSTEM” screen.
If “BCM” is not indicated, refer to GI-40, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
4. Touch “HEAD LAMP” on “SELECT TEST ITEM” screen.
WORK SUPPORT
Operation Procedure
1. Touch “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen.
3. Touch “CUSTOM A/LIGHT SETTING” or “ILL DELAY SET” on “SELECT WORK ITEM” screen.
4. Touch “START”.
PBIB1503E
SKIA3098E
PKIA5222E
PKIA5226E

LT-68
AUTO LIGHT SYSTEM
Revision: 2004 November 2004 FX35/FX45
3. Touch “START”.
4. Touch the required monitoring item on “SELECTION FROM MENU”. In “ALL SIGNALS”, all items are
monitored. In “MAIN SIGNALS”, predetermined items are monitored.
5. Touch “RECORD” while monitoring to record the status of the item being monitored. To stop recording,
touch “STOP”.
All Signals, Main Signals, Selection From Menu
NOTE:
Perform monitoring of IPDM E/R data with the ignition switch ON. When the ignition switch is at ACC, the dis-
play may not be correct.
ACTIVE TEST
Operation Procedure
1. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Touch item to be tested, and check operation.
3. Touch “START”.
4. Touch “STOP” while testing to stop the operation.
Trouble Diagnosis Chart by SymptomAKS007F3
ALL SIGNALS All items will be monitored.
MAIN SIGNALS Monitor the predetermined item.
SELECTION FROM MENU Select any item for monitoring.
Item nameCONSULT-II
screen displayDisplay
or unitMonitor item selection
Description
ALL
SIGNALSMAIN
SIGNALSSELECTION
FROM MENU
Position lights request TAIL & CLR REQ ON/OFF×× ×Signal status input from BCM
Headlamp low beam request HL LO REQ ON/OFF×× ×Signal status input from BCM
Headlamp high beam request HL HI REQ ON/OFF×× ×Signal status input from BCM
Font fog lights request FR FOG REQ ON/OFF×× ×Signal status input from BCM
Te s t i t e mCONSULT-II
screen displayDescription
Headlamp relay (HI, LO) output
LAMPSAllows headlamp relay (HI, LO) to operate by switching operation (OFF, HI ON,
LO ON) at your option (Head lamp high beam repeats ON–OFF every 1 second).
Front fog lamp relay output Allows fog lamp relay to operate by switching operation ON-OFF at your option
Tail lamp relay output TAIL LAMP Allows tail lamp relay to operate by switching operation ON-OFF at your option
Trouble phenomenon Malfunction system and reference

Parking lamps and headlamps will not illuminate when out-
side of the vehicle becomes dark. (Lighting switch 1st posi-
tion and 2nd position operate normally.)

Parking lamps and headlamp will not go out when outside
of the vehicle becomes light. (Lighting switch 1st position
and 2nd position operate normally.)

Headlamps go out when outside of the vehicle becomes
light, but parking lamps stay on.

Refer to LT- 6 4 , "WORK SUPPORT" .

Refer to LT- 6 9 , "Lighting Switch Inspection" .

Refer to LT- 6 9 , "Optical Sensor System Inspection" .
If above systems are normal, replace BCM.
Parking lamps illuminate when outside of the vehicle
becomes dark, but headlamps stay off. (Lighting switch 1st
position and 2nd position operate normally.)

Refer to LT- 6 4 , "WORK SUPPORT" .

Refer to LT- 6 9 , "Optical Sensor System Inspection" .
If above systems are normal, replace BCM.
Auto light adjustment system will not operate. (Lighting switch
AUTO, 1st position and 2nd position operate normally.)

Refer to LT- 6 9 , "Optical Sensor System Inspection" .
If above system is normal, replace BCM.
