IDX-8
ALPHABETICAL INDEX
TPS3 - Wiring diagram .................... EC-571, EC-1241
Transfer control unit inspection table ................. TF-19
Transverse link (front) ...................................... FSU-14
TRNSCV - Wiring diagram ............................... BL-228
Trouble diagnoses .............................................. GI-11
Turbine revolution sensor ................................ AT-143
TURN - Wiring diagram ...................................... LT-94
Turn signal lamp ................................................. LT-89
Tyre pressure monitoring system - trouble diagnoses ..
WT-10
Tyre pressure monitoring system - wiring diagram .......
WT-11
U
Unified meter and A/C amp. ............................... DI-28
V
Vacuum hose (brake system) ............................ BR-18
Vacuum hose drawing (Engine control) ............. EC-30
Valve clearance(VK45DE) .............................. EM-214
Valve clearance(VQ35DE) ................................ EM-89
Valve guide ..................................................... EM-105
Valve guide(VK45DE) ..................................... EM-231
Valve lifter(VK45DE) ....................................... EM-211
Valve lifter(VQ35DE) ........................................ EM-86
Valve seat(VK45DE) ......................... EM-232, EM-233
Valve seat(VQ35DE) ...................................... EM-107
Valve spring(VK45DE) ...................... EM-234, EM-235
Valve spring(VQ35DE) ................................... EM-108
Vanity mirror lamp ............................................. LT-149
Variable induction air control system (VIAS) . EC-1254
VDC -Wiring diagram ...................................... BRC-17
Vehicle security (theft warning) system ........... BL-181
Vehicle speed sensor (VSS) ........... EC-390, EC-1046,
EC-1216
VEHSEC - Wiring diagram ............................... BL-187
VENT/V - Wiring diagram .. EC-344, EC-504, EC-999,
EC-1170
VIAS - Wiring diagram ................................... EC-1256
W
WARN - Wiring diagram ..................................... DI-40
Warning chime .................................................... DI-55
Warning lamps .................................................... DI-39
Washer, front ..................................................... WW-4
Washer, rear .................................................... WW-35
Water control valve(VK45DE) ........................... CO-51
Water pump(VK45DE) ...................................... CO-49
Water pump(VQ35DE) ...................................... CO-22
Water temperature gauge ..................................... DI-4
Wheel alignment (front) ..................................... FSU-6
Wheel alignment (rear) ..................................... RSU-5
Wheel balance ........................................ WT-5, MA-32
Wheel bearing (front) ........................... FAX-4, FAX-10
Wheel bearing (rear) ......................................... RAX-5
Wheel hub (front) ................................. FAX-4, FAX-10
Wheel hub (rear) ............................................... RAX-5
Wheel sensor (VDC) ....................................... BRC-57
WINDOW - Wiring diagram .............................. GW-24
Window, door ...................................... GW-76, GW-80
Windshield ....................................................... GW-11
WIP/R - Wiring diagram ................................... WW-37
WIPER - Wiring diagram .................................. WW-11
Wiper, front ........................................................ WW-4
Wiper, rear ....................................................... WW-35
Wiring Diagram (Cell code) list ......................... PG-67
Wiring diagrams .................................................. GI-15
WT-T/WARN - Wiring diagram .......................... WT-11
Page 3286 of 4449
SQUEAK AND RATTLE TROUBLE DIAGNOSES
IP-5
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: 2004 November 2004 FX35/FX45
DUPLICATE THE NOISE AND TEST DRIVE
If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on A/T model).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.
Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.
If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.
CHECK RELATED SERVICE BULLETINS
After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool
(Chassis Ear: J-39570, Engine Ear and mechanics stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:
removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.
tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only
temporarily.
feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the
noise.
placing a piece of paper between components that you suspect are causing the noise.
looking for loose components and contact marks.
Refer to IP-6, "
Generic Squeak and Rattle Troubleshooting" .
REPAIR THE CAUSE
If the cause is a loose component, tighten the component securely.
If the cause is insufficient clearance between components:
–separate components by repositioning or loosening and retightening the component, if possible.
–insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or ure-
thane tape. A NISSAN Squeak and Rattle Kit (J-43980) is available through your authorized NISSAN
Parts Department.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
Always check with the Parts Department for the latest parts information.
The following materials are contained in the NISSAN Squeak and Rattle Kit (J-43980). Each item can be
ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100 × 135 mm (3.94 × 5.31 in)/76884-71L01: 60 × 85 mm (2.36 × 3.35 in)/76884-71L02: 15
× 25 mm (0.59 × 0.98 in)
INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
73982-9E000: 45 mm (1.77 in) thick, 50 × 50 mm (1.97 × 1.97 in)/73982-50Y00: 10 mm (0.39 in) thick,
50 × 50 mm (1.97 × 1.97 in)
Page 3288 of 4449
SQUEAK AND RATTLE TROUBLE DIAGNOSES
IP-7
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: 2004 November 2004 FX35/FX45
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1. Trunk lid dumpers out of adjustment
2. Trunk lid striker out of adjustment
3. The trunk lid torsion bars knocking together
4. A loose license plate or bracket
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area can often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sunvisor shaft shaking in the holder
3. Front or rear windshield touching headlining and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
SEATS
When isolating seat noise it's important to note the position the seat is in and the load placed on the seat when
the noise is present. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. The rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.
Page 3556 of 4449
LT-1
LIGHTING SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION LT
A
B
LT
Revision: 2004 November 2004 FX35/FX45
LIGHTING SYSTEM
PRECAUTIONS .......................................................... 5
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 5
General precautions for service operations ............. 6
Wiring Diagrams and Trouble Diagnosis .................. 6
HEADLAMP - XENON TYPE - ................................... 7
Component Parts and Harness Connector Location ..... 7
System Description .................................................. 7
OUTLINE ............................................................... 7
COMBINATION SWITCH READING FUNCTION ..... 9
EXTERIOR LAMP BATTERY SAVER CONTROL ..... 9
AUTO LIGHT OPERATION (IF EQUIPPED) ......... 9
VEHICLE SECURITY SYSTEM ............................ 9
XENON HEADLAMP ............................................. 9
CAN Communication System Description ................ 9
CAN Communication Unit ........................................ 9
Schematic .............................................................. 10
Wiring Diagram — H/LAMP — ................................ 11
Terminals and Reference Values for BCM ............. 15
Terminals and Reference Values for IPDM E/R ..... 16
How to Proceed With Trouble Diagnosis ................ 16
Preliminary Check .................................................. 17
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................... 17
CONSULT-II Functions (BCM) ............................... 18
CONSULT-II BASIC OPERATION ....................... 18
WORK SUPPORT ............................................... 19
DATA MONITOR ................................................. 19
ACTIVE TEST ..................................................... 20
CONSULT-II Functions (IPDM E/R) ....................... 21
CONSULT-II OPERATION .................................. 21
SELF-DIAGNOSTIC RESULTS .......................... 22
DATA MONITOR ................................................. 22
ACTIVE TEST ..................................................... 23
Headlamp Does Not Change To High Beam (Both
Sides) ..................................................................... 23
Headlamp Does Not Change To High Beam (One
Side) ....................................................................... 25
High Beam Indicator Lamp Does Not Illuminate .... 26Headlamp Low Beam Does Not Illuminate (Both
Sides) ..................................................................... 26
Headlamp Low Beam Does Not Illuminate (One
Side) ....................................................................... 29
Headlamp RH Low Beam and High Beam Do Not
Illuminate ................................................................ 30
Headlamp LH Low Beam and High Beam Do Not
Illuminate ................................................................ 30
Headlamps Do Not Turn OFF ................................. 31
CAUTION: .............................................................. 33
Xenon Headlamp Trouble Diagnosis ...................... 33
Aiming Adjustment .................................................. 34
PREPARATION BEFORE ADJUSTING .............. 34
LOW BEAM AND HIGH BEAM ........................... 34
ADJUSTMENT USING AN ADJUSTMENT
SCREEN (LIGHT/DARK BORDERLINE) ............ 35
Bulb Replacement .................................................. 35
HEADLAMP HIGH/LOW BEAM .......................... 35
PARKING LAMP (CLEARANCE LAMP) .............. 36
FRONT TURN SIGNAL LAMP ............................ 36
FRONT SIDE MARKER LAMP ........................... 36
Removal and Installation ........................................ 36
REMOVAL ........................................................... 36
INSTALLATION ................................................... 36
Disassembly and Assembly .................................... 37
DISASSEMBLY ................................................... 37
ASSEMBLY ......................................................... 37
DAYTIME LIGHT SYSTEM ....................................... 38
Component Parts and Harness Connector Location ... 38
System Description ................................................. 38
OUTLINE ............................................................. 38
DAYTIME LIGHT OPERATION ........................... 39
COMBINATION SWITCH READING FUNCTION ... 39
AUTO LIGHT OPERATION ................................. 39
CAN Communication System Description .............. 39
CAN Communication Unit ....................................... 39
Schematic ............................................................... 40
Wiring Diagram — DTRL — ................................... 41
Terminals and Reference Values for BCM .............. 45
How to Proceed With Trouble Diagnosis ................ 46
Page 3564 of 4449
HEADLAMP - XENON TYPE -
LT-9
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
Ground is supplied
to headlamp RH terminal 7
through grounds E21, E50 and E51
to headlamp LH terminal 7
through grounds E21, E50 and E51.
With power and ground supplied, the high beam headlamps illuminate.
If voltage is applied to a high beam solenoid, the bulb shade will move, even a xenon head lamp bulb comes
out, and a high beam and a low beam are changed.
The unified meter and A/C amp that received the high beam request signal by BCM across the CAN commu-
nication makes a high beam indicator lamp turn on in combination meter.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 2ND position (ON), and the ignition switch is turned
from ON or ACC to OFF, the battery saver control function is activated.
Under this condition, the headlamps remain illuminated for 5 minutes, then the headlamps are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
AUTO LIGHT OPERATION (IF EQUIPPED)
Refer to LT- 5 4 , "System Description" in “AUTO LIGHT SYSTEM”.
VEHICLE SECURITY SYSTEM
The vehicle security system will flash the high beams if the system is triggered. Refer to BL-181, "VEHICLE
SECURITY (THEFT WARNING) SYSTEM" .
XENON HEADLAMP
Xenon type headlamp is adopted to the low and high beam headlamps. Xenon bulbs do not use a filament.
Instead, they produce light when a high voltage current is passed between two tungsten electrodes through a
mixture of xenon (an inert gas) and certain other metal halides. In addition to added lighting power, electronic
control of the power supply gives the headlamps stable quality and tone color.
Following are some of the many advantages of the xenon type headlamp.
The light produced by the headlamps is a white color comparable to sunlight that is easy on the eyes.
Light output is nearly double that of halogen headlamps, affording increased area of illumination.
The light features a high relative spectral distribution at wavelengths to which the human eye is most sen-
sitive. This means that even in the rain, more light is reflected back from the road surface toward the vehi-
cle, for added visibility.
Power consumption is approximately 25 percent less than halogen headlamps, reducing battery load.
CAN Communication System DescriptionAKS007MB
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAKS0080S
Refer to LAN-6, "CAN Communication Unit" .
Page 3573 of 4449
LT-18
HEADLAMP - XENON TYPE -
Revision: 2004 November 2004 FX35/FX45

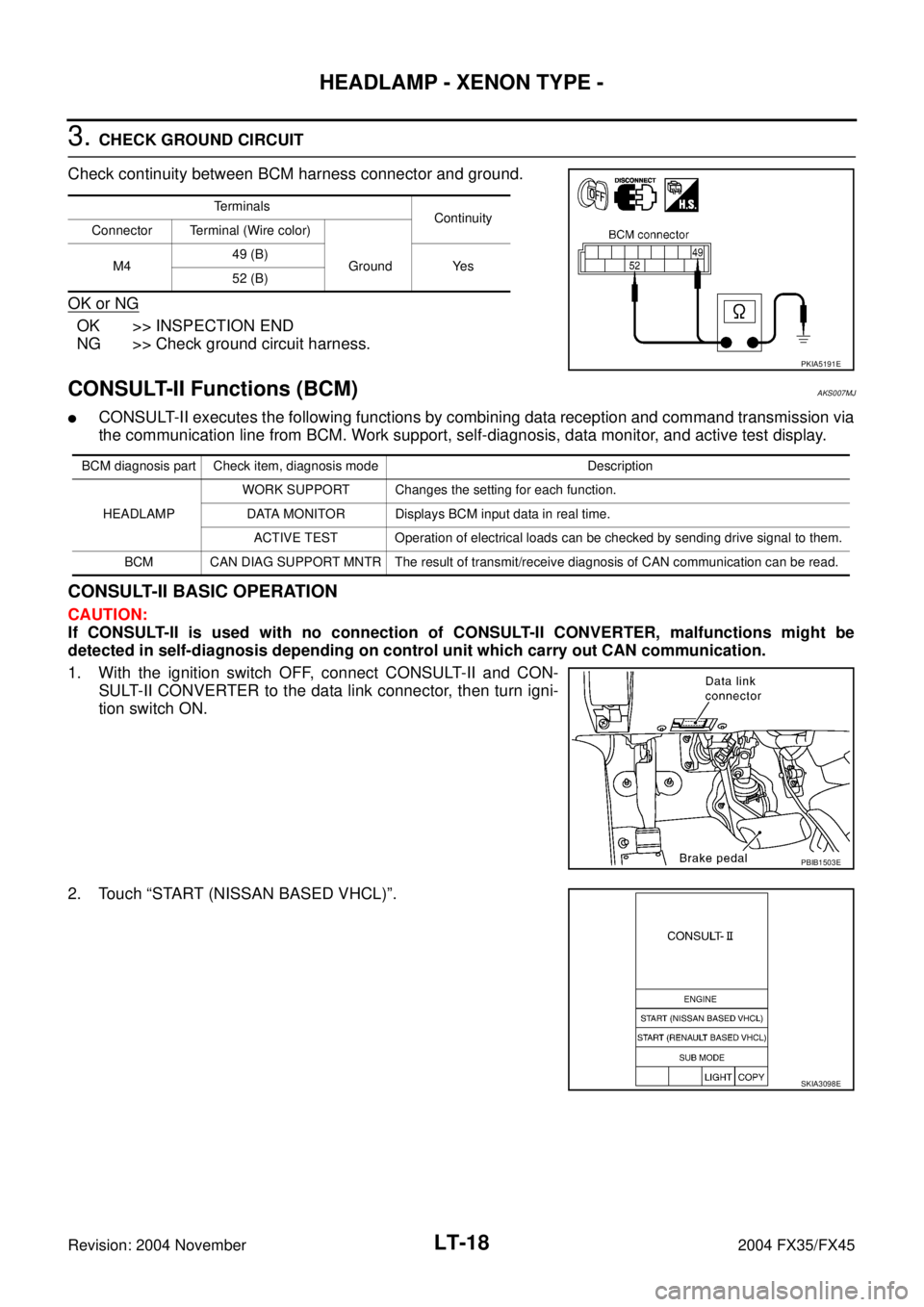

3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Check ground circuit harness.
CONSULT-II Functions (BCM)AKS007MJ
CONSULT-II executes the following functions by combining data reception and command transmission via
the communication line from BCM. Work support, self-diagnosis, data monitor, and active test display.
CONSULT-II BASIC OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn igni-
tion switch ON.
2. Touch “START (NISSAN BASED VHCL)”.
Terminals
Continuity
Connector Terminal (Wire color)
M449 (B)
Ground Yes
52 (B)
PKIA5191E
BCM diagnosis part Check item, diagnosis mode Description
HEADLAMPWORK SUPPORT Changes the setting for each function.
DATA MONITOR Displays BCM input data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
BCM CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
PBIB1503E
SKIA3098E
Page 3591 of 4449
LT-36
HEADLAMP - XENON TYPE -
Revision: 2004 November 2004 FX35/FX45
NOTE:
After installation, perform aiming adjustment. Refer to LT- 3 4 , "
Aiming Adjustment" .
PARKING LAMP (CLEARANCE LAMP)
1. Turn lighting switch OFF.
2. Turn bulb socket counterclockwise and unlock it.
3. Remove bulb from its socket.
4. Install in the reverse order of removal.
FRONT TURN SIGNAL LAMP
1. Turn lighting switch OFF.
2. Turn bulb socket counterclockwise with suitable tool and unlock
it.
3. Remove bulb from its socket.
4. Install in the reverse order of removal.
FRONT SIDE MARKER LAMP
1. Turn lighting switch OFF.
2. Turn bulb socket counterclockwise and unlock it.
3. Remove bulb from its socket.
4. Install in the reverse order of removal.
CAUTION:
After installing bulb, be sure to install plastic cap and bulb
socket securely to insure watertightness.
Removal and InstallationAKS007MX
REMOVAL
1. Disconnect the battery negative cable.
2. Remove front bumper. Refer to EI-14, "
Removal and Installa-
tion" in “EI” section.
3. Remove headlamp mounting bolts.
4. Remove plastics bumper bracket, then pull headlamp toward
vehicle front, disconnect connector, and remove headlamp.
INSTALLATION
Note the following, and install in the reverse order of removal. Headlamp high/low beam (Xenon) : 12V - 35W (D2S)
Parking lamp (Clearance lamp) : 12V - 5W
SKIA5550E
Front turn signal lamp : 12V - 21W (amber)
SKIA6182E
Front side marker lamp : 12V - 3.8W
SKIA5552E
SKIA5553E
Page 3592 of 4449
HEADLAMP - XENON TYPE -
LT-37
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
NOTE:
After installation, perform aiming adjustment. Refer to LT- 3 4 , "
Aiming Adjustment" .
Disassembly and Assembly AKS007MY
DISASSEMBLY
1. Turn plastic cap counterclockwise and unlock it.
2. Turn xenon bulb socket counterclockwise, and unlock it.
3. Unlock retaining spring, and remove xenon bulb.
4. Disconnect HID control unit connector, and remove HID control unit screws.
5. Turn parking lamp bulb socket counterclockwise and unlock it.
6. Remove parking lamp bulb from its socket.
7. Turn front turn signal lamp bulb socket counterclockwise and unlock it.
8. Remove front turn signal lamp bulb from its socket.
9. Turn front side marker lamp bulb socket counterclockwise and unlock it.
10. Remove front side marker lamp bulb from its socket.
ASSEMBLY
Note the following, and assemble in the reverse order of disassembly.
CAUTION:
When HID control unit is removed, reinstall it securely and avoid any looseness.
After installing bulb, be sure to install plastic cap and bulb socket securely to insure watertight-
ness. Headlamp mounting bolt
: 6.1 N·m (0.62 kg-m, 54 in-lb)
1. Headlamp housing assembly 2. Side marker lamp bulb 3. Side marker lamp bulb socket
4. Plastic cap 5. Seal packing 6. Screw
7. HID C/U 8. Parking lamp (Clearance lamp) bulb socket 9. Parking lamp (Clearance lamp) bulb
10. Retaining spring 11. Front turn signal lamp bulb 12. Front turn signal lamp bulb socket
13. Xenon bulb 14. Xenon bulb socket 15. Seal packing
PKIA6525E
HID control unit mounting screw
: 3.2 N·m (0.33 kg-m, 28 in-lb)
Page 3603 of 4449
LT-48
DAYTIME LIGHT SYSTEM
Revision: 2004 November 2004 FX35/FX45
2. CHECK PARKING BRAKE SWITCH SIGNAL
1. Turn ignition switch OFF.
2. Disconnect parking brake switch connector.
3. Turn ignition switch ON.
4. Check voltage between parking brake switch harness connector
E207 terminal 1 (L) and ground.
OK or NG
OK >> Replace parking brake switch.
NG >> GO TO 3.
3. CHECK PARKING BRAKE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect combination meter connector.
3. Check continuity between combination meter harness connector
M20 terminal 23 (PU/W) and parking brake switch harness con-
nector E207 terminal 1 (L).
OK or NG
OK >> Replace combination meter.
NG >> Repair harness or connector.
CONSULT-II Functions AKS007N8
CONSULT-II executes the following functions by combining data reception and command transmission via
the communication line from BCM. Work support, self-diagnosis, data monitor, and active test display.
CONSULT-II BASIC OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn igni-
tion switch ON.1 (L) – Ground : Battery voltage should exist.
SKIA5876E
1 (L) – 23 (PU/W) : Continuity should exist.
SKIA5877E
BCM diagnosis part Check item, diagnosis mode Description
HEADLAMPDATA MONITOR Displays BCM input data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
BCM CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
PBIB1503E
Page 3616 of 4449
AUTO LIGHT SYSTEM
LT-61
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
NOTE:
Optical sensor must be securely subjected to work lamp light. If the optical sensor is insufficiently illuminated, the measured value may
not satisfy standard.
Terminals and Reference Values for IPDM E/RAKS007I4
33 G Combination switch output 4 ONLighting, turn, wiper OFF
Wiper dial position 4
34 W/B Combination switch output 3 ONLighting, turn, wiper OFF
Wiper dial position 4
35 W/G Combination switch output 2
ONLighting, turn, wiper OFF
Wiper dial position 4
36 W/R Combination switch output 1
38 W/L Ignition switch (ON) ON — Battery voltage
39 L CAN− H—— —
40 R CAN− L—— —
42 L/R Battery power supply OFF — Battery voltage
49 B Ground ON — Approx. 0V
52 B Ground ON — Approx. 0V
55 G Battery power supply OFF — Battery voltage
58 LBack door closure motor
(Door switch)OFF Back door switchON (open) Approx. 0V
OFF (closed) Battery voltage
62 WFront door switch
(Driver side) signalOFFFront door switch
(Driver side) ON (open) Approx. 0V
OFF (closed) Battery voltage
63 P Rear door switch LH signal OFF Rear door switch LH ON (open) Approx. 0V
OFF (closed) Battery voltage Te r m i n a l
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
SKIA5292E
SKIA5291E
SKIA5292E
Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
20 LG Headlamp low (RH) ONLighting switch 2ND
positionOFF Approx. 0V
ON Battery voltage
22 RParking, license,
and tail lampONLighting switch 1ST
positionOFF Approx. 0V
ON Battery voltage
27 BR Headlamp high (RH) ONLighting switch HIGH
or PASS positionOFF Approx. 0V
ON Battery voltage
