INFINITI FX35 2004 Service Manual
Page 3477 of 4449
LAN-176
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2004 November 2004 FX35/FX45
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed control unit,
replace the control unit.
Case 1
Check harness between TCM and data link connector. Refer to LAN-192, "Circuit Check Between TCM and
Data Link Connector" .
PKIA8005E
SKIA6615E
Page 3478 of 4449
CAN SYSTEM (TYPE 5)
LAN-177
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

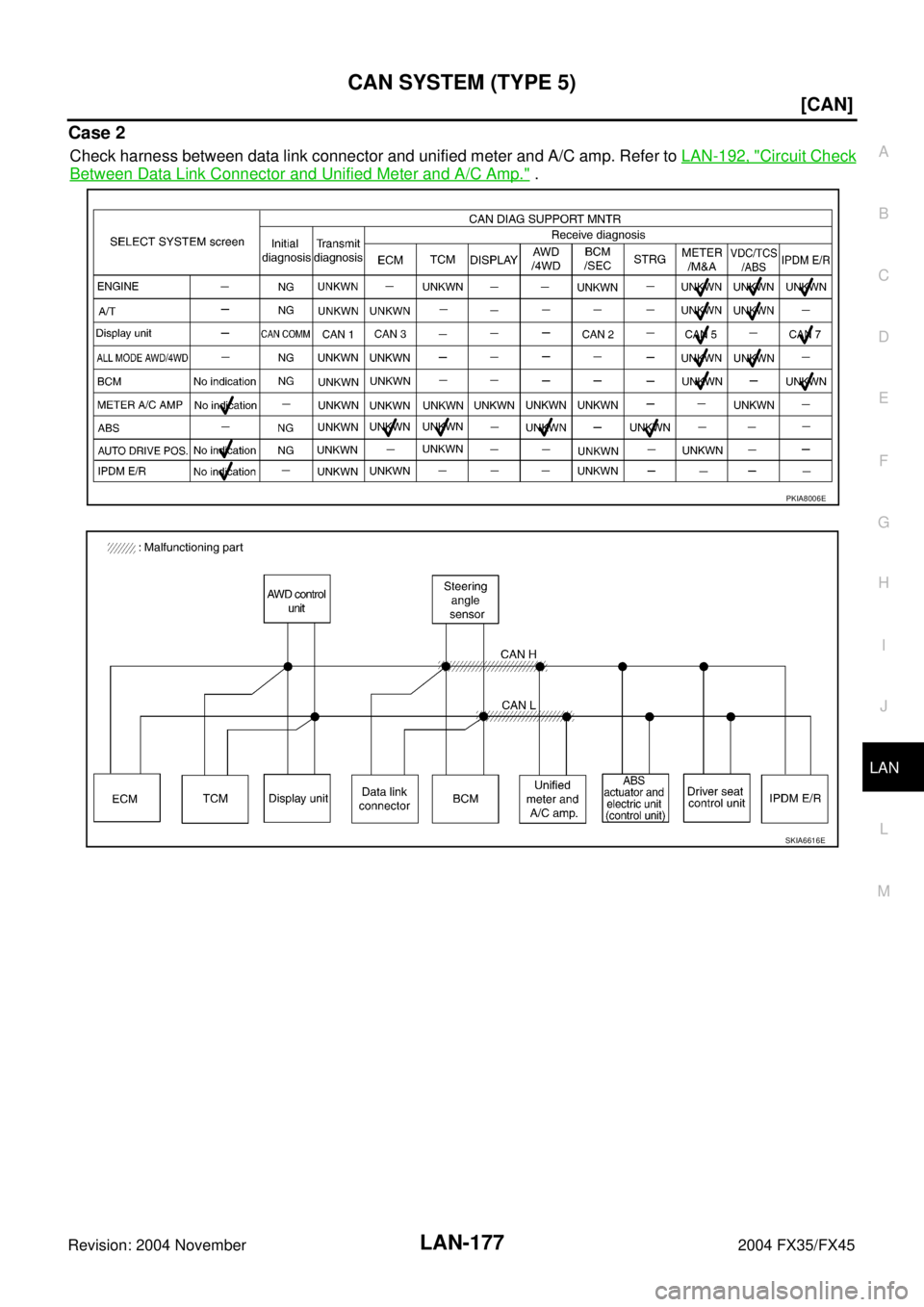

Case 2
Check harness between data link connector and unified meter and A/C amp. Refer to LAN-192, "Circuit Check
Between Data Link Connector and Unified Meter and A/C Amp." .
PKIA8006E
SKIA6616E
Page 3479 of 4449
LAN-178
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2004 November 2004 FX35/FX45
Case 3
Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to
LAN-193, "
Circuit Check Between Unified Meter and A/C Amp. and ABS Actuator and Electric Unit (Control
Unit)" .
PKIA8007E
SKIA6617E
Page 3480 of 4449
CAN SYSTEM (TYPE 5)
LAN-179
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Case 4
Check harness between ABS actuator and electric unit (control unit) and driver seat control unit. Refer to LAN-
194, "Circuit Check Between ABS Actuator and Electric Unit (Control Unit) and Driver Seat Control Unit" .
PKIA8008E
SKIA6618E
Page 3481 of 4449
LAN-180
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2004 November 2004 FX35/FX45

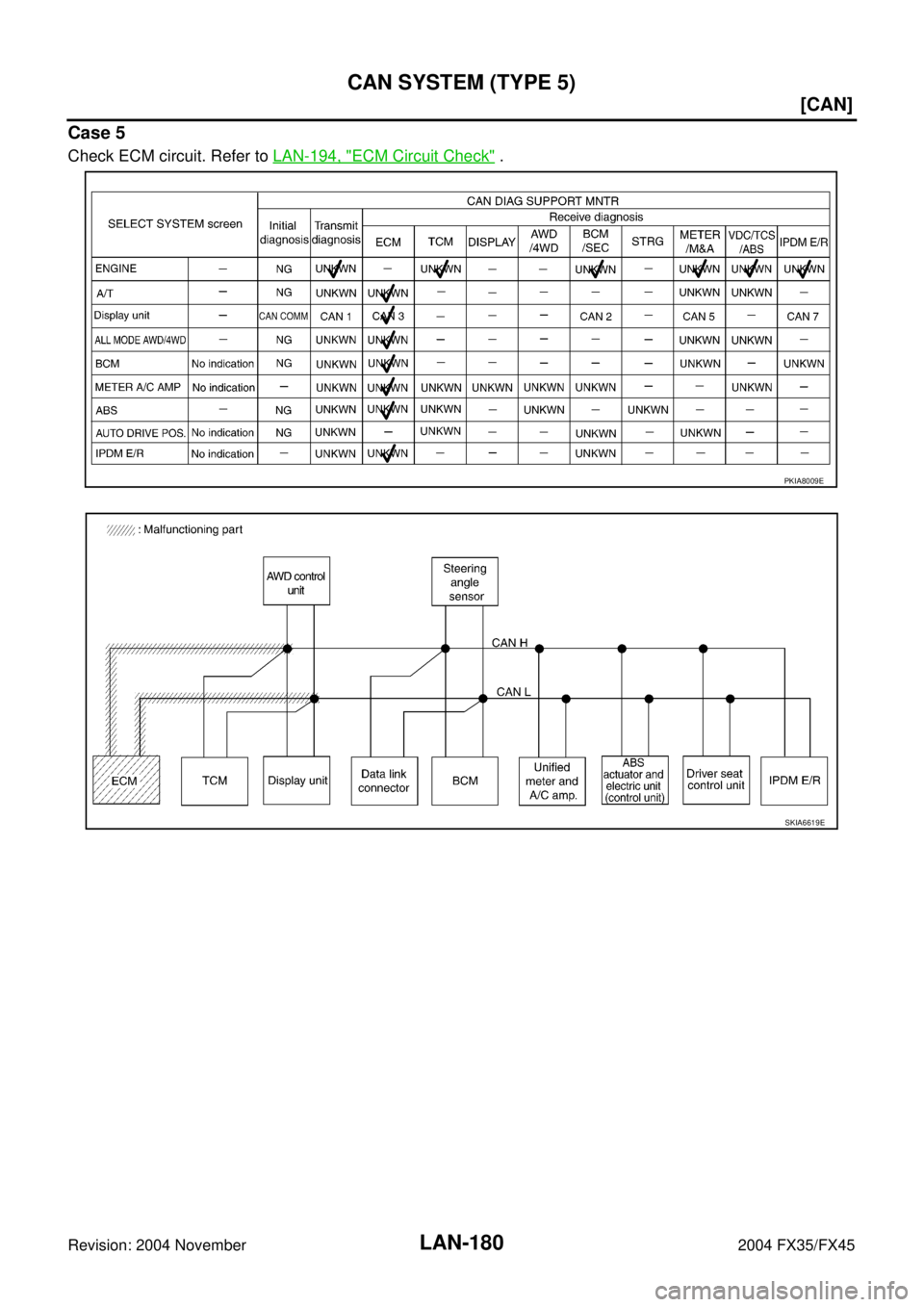

Case 5
Check ECM circuit. Refer to LAN-194, "ECM Circuit Check" .
PKIA8009E
SKIA6619E
Page 3482 of 4449
CAN SYSTEM (TYPE 5)
LAN-181
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

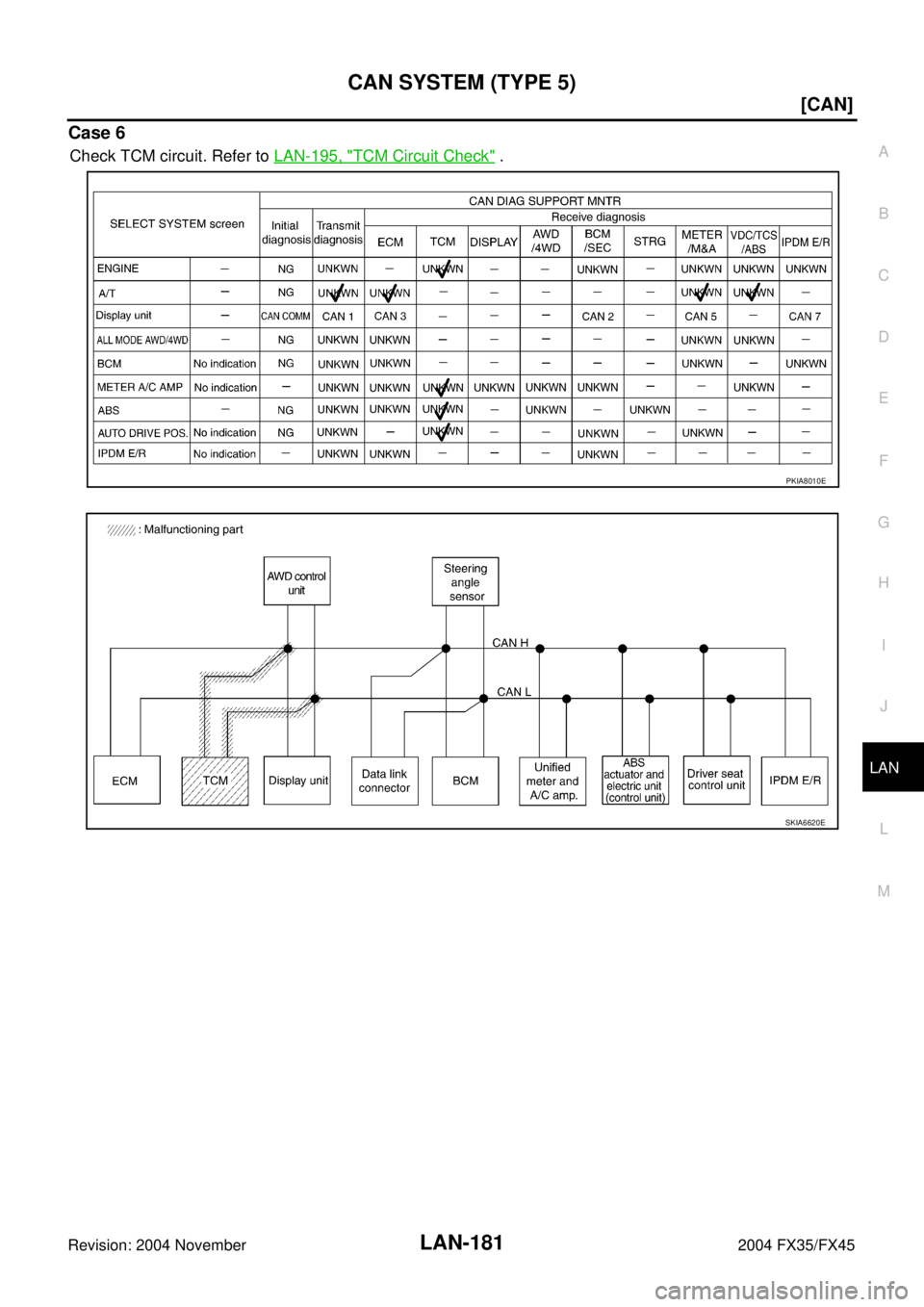

Case 6
Check TCM circuit. Refer to LAN-195, "TCM Circuit Check" .
PKIA8010E
SKIA6620E
Page 3483 of 4449
LAN-182
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2004 November 2004 FX35/FX45
Case 7
Check display unit circuit. Refer to LAN-195, "Display Unit Circuit Check" .
PKIA8011E
SKIA6621E
Page 3484 of 4449
CAN SYSTEM (TYPE 5)
LAN-183
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

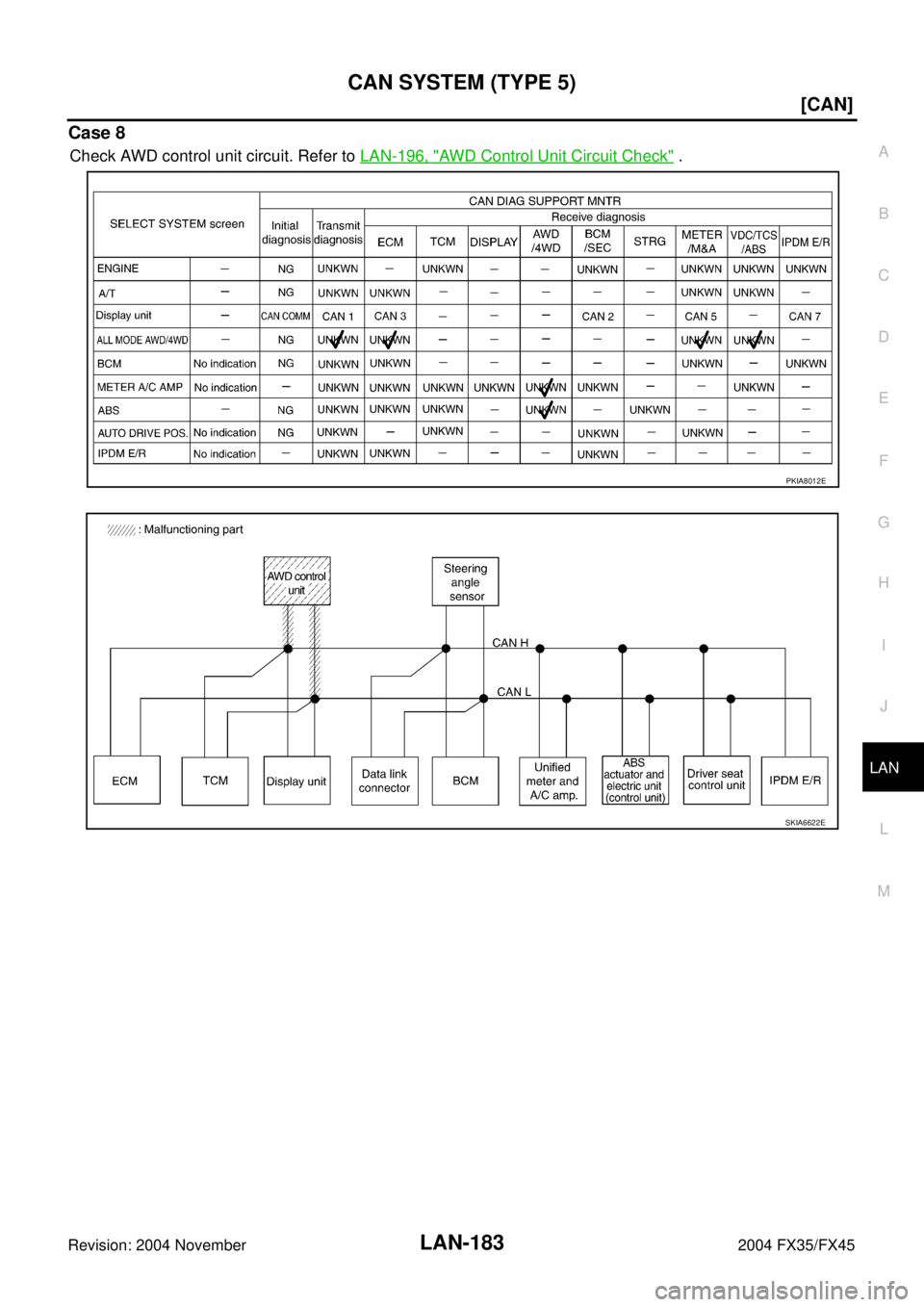

Case 8
Check AWD control unit circuit. Refer to LAN-196, "AWD Control Unit Circuit Check" .
PKIA8012E
SKIA6622E
Page 3485 of 4449
LAN-184
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2004 November 2004 FX35/FX45

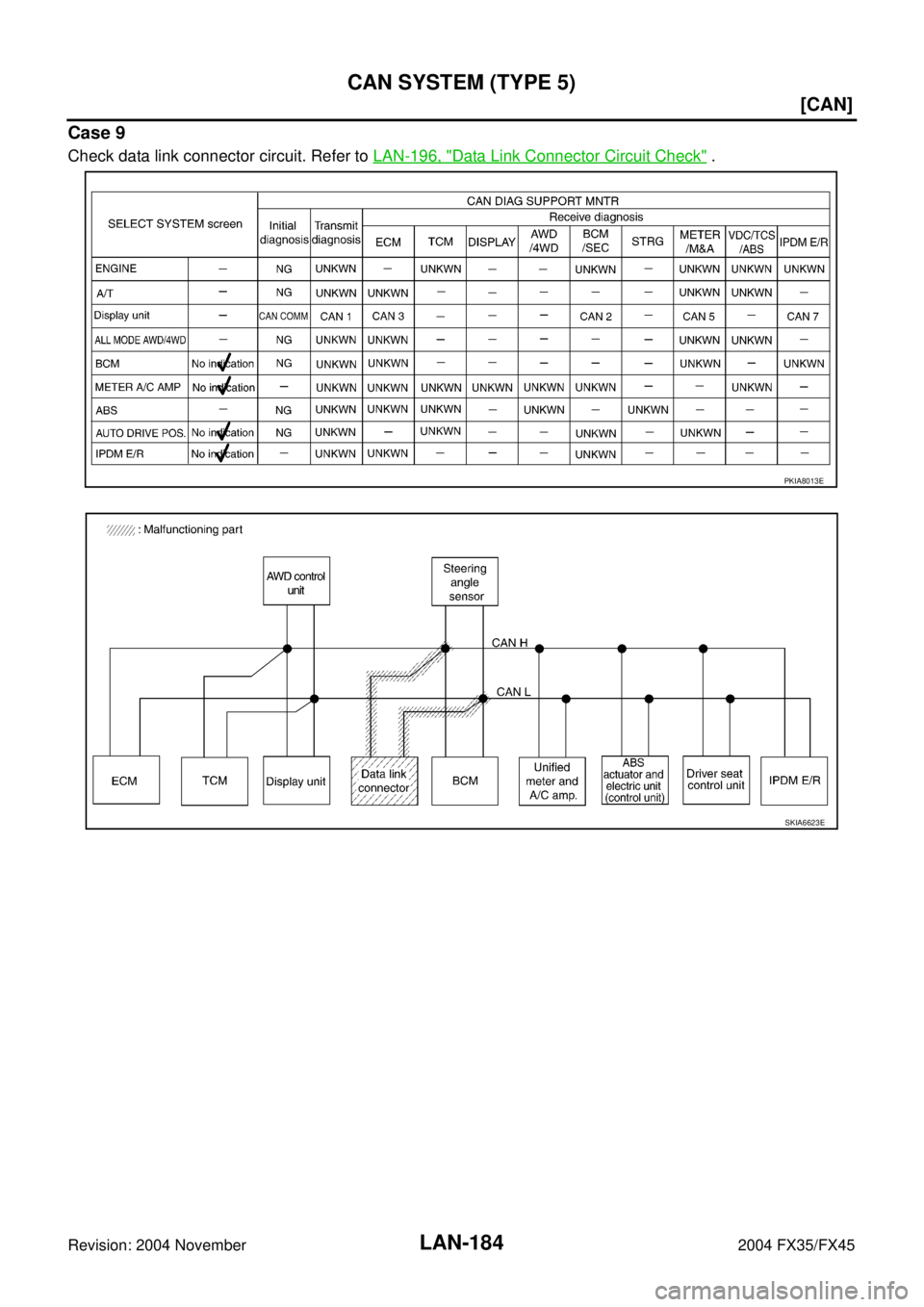

Case 9
Check data link connector circuit. Refer to LAN-196, "Data Link Connector Circuit Check" .
PKIA8013E
SKIA6623E
Page 3486 of 4449
CAN SYSTEM (TYPE 5)
LAN-185
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Case 10
Check BCM circuit. Refer to LAN-197, "BCM Circuit Check" .
PKIA8014E
SKIA6624E
